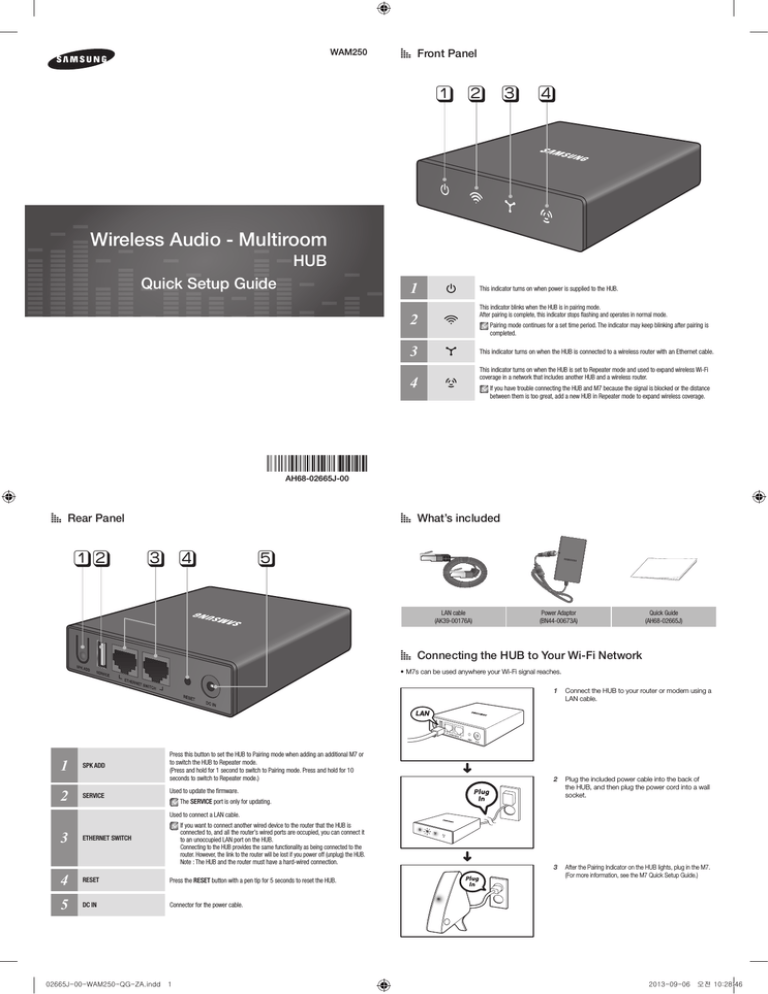

WAM250
AA Front Panel
q w e r
Wireless Audio - Multiroom
Quick Setup Guide
HUB
1
This indicator turns on when power is supplied to the HUB.
This indicator blinks when the HUB is in pairing mode.
After pairing is complete, this indicator stops flashing and operates in normal mode.
2
P airing mode continues for a set time period. The indicator may keep blinking after pairing is
completed.
3
This indicator turns on when the HUB is connected to a wireless router with an Ethernet cable.
This indicator turns on when the HUB is set to Repeater mode and used to expand wireless Wi-Fi
coverage in a network that includes another HUB and a wireless router.
4
If you have trouble connecting the HUB and M7 because the signal is blocked or the distance
between them is too great, add a new HUB in Repeater mode to expand wireless coverage.
AH68-02665J-00
AH68-02665J
AA Rear Panel
qw
AA What’s included
e r
t
LAN cable
(AK39-00176A)
Power Adaptor
(BN44-00673A)
Quick Guide
(AH68-02665J)
AA Connecting the HUB to Your Wi-Fi Network
•M7s can be used anywhere your Wi-Fi signal reaches.
1 Connect the HUB to your router or modem using a
LAN cable.
LAN
SPK ADD
2
SERVICE
Press this button to set the HUB to Pairing mode when adding an additional M7 or
to switch the HUB to Repeater mode.
(Press and hold for 1 second to switch to Pairing mode. Press and hold for 10
seconds to switch to Repeater mode.)
➜
1
Used to update the firmware.
Plug
In
The SERVICE port is only for updating.
2 Plug the included power cable into the back of
the HUB, and then plug the power cord into a wall
socket.
Used to connect a LAN cable.
3
RESET
Press the RESET button with a pen tip for 5 seconds to reset the HUB.
DC IN
Connector for the power cable.
02665J-00-WAM250-QG-ZA.indd 1
➜
4
5
If you want to connect another wired device to the router that the HUB is
connected to, and all the router’s wired ports are occupied, you can connect it
to an unoccupied LAN port on the HUB.
Connecting to the HUB provides the same functionality as being connected to the
router. However, the link to the router will be lost if you power off (unplug) the HUB.
Note : The HUB and the router must have a hard-wired connection.
ETHERNET SWITCH
Plug
In
3 After the Pairing Indicator on the HUB lights, plug in the M7. (For more information, see the M7 Quick Setup Guide.)
2013-09-06 오전 10:28:46
AA Adding a HUB
AA Regulatory Compliance Statements
An M7 and a HUB may not pair successfullly if the M7 and HUB are too far apart or are on different floors.
In such cases, you can link two HUBs together by setting the second HUB to Repeater mode. The additional
HUB amplifies the signal and lets you pair the M7 to the closest HUB.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting flash and arrowhead within the triangle is a
warning sign alerting you to dangerous voltage inside the
product.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
❚❚ Warning
• To reduce the risk of fire or electric shock, do not expose this appliance to
rain or moisture.
• Do not expose this apparatus to dripping or splashing.
Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of
the wall socket. Consequently, the power plug must be easily and readily
accessible at all times.
❚❚
FCC Statement: (for U.S.A)
Federal Communication Commission Interference Statement
M7
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet that is on a different circuit than the
outlet the receiver is connected to.
• Consult the dealer or an experienced radio/TV technician for help.
Used as a
extender
HUB
1 Set the HUB that is connected to the wireless router to Pairing mode by pressing its SPK ADD button for
1 second.
2 Plug in the new HUB you are using as an extender, and then press its SPK ADD button for 10 seconds.
3 The newly added HUB’s LED indicators turn off and on, and it switches to Repeater mode.
4 Once the connection between the two HUBs has been established, the added HUB’s (
stops blinking.
) indicator
`` If your smart device is not connected to the wireless router with a Wi-Fi connection, the M7 will not appear on the Samsung
Multiroom app.
`` Place the HUB in Repeater mode in an appropriate location between the M7 and the HUB that is connected to the wireless
router.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
For products available in the US and Canadian markets, only channels 1~11 are
available. You cannot select other channels.
This device and it’s antennas must not be co-located or operated in conjunction
with any other antenna or transmitter except in accordance with FCC multitransmitter product procedures.
This device operates in the 5.15~5.25GHz frequency range. It is restricted to
indoor environments only.
This device may automatically discontinue transmission if there is no information
to transmit, or an operational failure. Note that this is not intended to prohibit
the transmission of control or signaling information or the use of repetitive codes
where required by the technology.
To reduce potential for harmful interference to co-channel mobile satellite systems,
this device operates in the 5150-5250 MHz band, and is for indoor use only.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and operated so
there is at least 8 inches (20cm) between the radiator and your body.
❚❚ Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the
safety instructions listed below.
Keep these operating instructions handy for future reference.
1
2
3
4
5
6
7
8
9
10
11
12
IMPORTANT NOTE
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated so
there is at least 8 inches (20cm) between the radiator and your body.
❚❚ IC Statement: (for Canada)
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
For products available in the US and Canadian markets, only channels 1~11 are
available. You cannot select other channels.
This device and it’s antennas must not be co-located or operated in conjunction
with any other antenna or transmitter except in accordance with IC multitransmitter product procedures.
The explanation point within the triangle is a warning sign
alerting you to important instructions accompanying the
product.
13
14
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including AV receivers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where it exits the
apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or
when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as when the
power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
`` You can set only one HUB to Repeater mode.
AA Safety precautions
❚❚ Power Supply Precautions
• Do not overload outlets or extension cords.
-- This may result in abnormal heat or fire.
• Do not plug in or unplug the power cord with wet hands.
• Do not place the product near heating equipment.
• To clean the power plug blades, remove the plug from the wall outlet and
wipe the blades with a dry cloth only.
• Do not bend the power cord or pull it forcefully.
• Do not put heavy objects on the power cord.
• Do not plug the power cord into a loose or damaged outlet.
• Fully insert the power cord’s plug into the the wall outlet so that the plug is
firmly attached to the outlet.
-- If the connection is unstable, there is a risk of fire.
❚❚ Installation Precautions
• Do not install the product near equipment or objects that generate heat or
produce fire (candles, mosquito coils, heaters, radiators, etc.). Do not install
in direct sunlight.
• When moving the product, turn off the power and disconnect all cords (include
the power cord) from the unit.
-- A damaged cord may cause a fire and poses a risk of electric shock.
• Installing the product in environments with high heat or humidity, dust,
or extreme cold, can lead to quality problems or cause the product to
malfunction. Before you install the product in an environment that is
outside the norm, please contact a Samsung service center for additional
information.
• When placing the product on a shelf, cabinet, or desk, make sure the top
panel faces upwards.
• Do not place the product on an unstable surface (e.g. a shaky shelf, a tilted
desk, etc.).
-- Dropping the product can cause it to malfunction and poses a risk
of injury. Severe vibration or impact can also cause the product to
malfunction and lead to a fire hazard.
• Install your product with enough space around it for ventilation.
-- Leave at least 4 inches (10cm) at the rear of the product and more than 2 inches (5cm) on each side of the product.
• Keep the plastic packing materials out of reach of your children.
-- Children playing with the plastic packing materials run the risk of
suffication.
❚❚ Usage Precautions
• Using for an extended time at high volume may cause serious damage to
your hearing.
-- If you are exposed to sound louder than 85db for an extended time, you
may adversely affect your hearing. The louder the sound is, the more
seriously damaged your hearing may become. Note that an ordinary
conversation is between 50 to 60 db and road noise is approximately 80
db.
• This product contains dangerous high voltage. Do not attempt to
disassemble, repair, or modify it yourself.
-- Contact a Samsung service center when your product is in need of repair.
• Do not place any container that contains liquid on the product (e.g. a vase,
beverages, cosmetics, chemicals, etc.). Do do not allow any metal objects (e.g.
coins, hair clips, etc.) or flammable material (e.g. paper, matches, etc.) to enter
the product (through the air vents, I/O ports, etc.).
-- If any harmful material or liquid enters the product, turn off the product
immediately, unplug the power cord, and then contact a Samsung service
center.
• Do not drop the product. In case of a mechanical breakdown, disconnect
the power cord and contact a Samsung service center.
-- There is a risk of fire or electric shock.
• Do not hold or pull the product by the power cord or the signal cable.
-- A damaged cable can cause the product to malfunction, cause a fire, and
poses a risk of electric shock.
• Do not use or keep flammable materials near the product.
• If the product emits an abnormal sound or a burnt smell or smokes, unplug the
power-cord immediately and contact a Samsung service center.
• If you smell gas, ventilate the room immediately. Do not touch the power plug
of the product. Do not turn the product off or on.
• Do not strike or subject the product to a sudden shock. Do not pierce the
product with a sharp object.
02665J-00-WAM250-QG-ZA.indd 2
❚❚ Cleaning Precautions
• Never use alcohol, solvents, waxes, benzene, thinners, air freshener, or
lubricants to clean the product, or spray insecticide on the product.
-- Using any of these materials can discolor the exterior coating or cause it
to split or peel off, or remove the labelling on the product.
• To clean the product, unplug the power cord, and then wipe the product with
a clean, dry, soft cloth (Microfiber, cotton).
-- Avoid leaving dust on the product. Dust can scratch its the surface.
AA About the Network Connection
• Depending on the wireless router used, some network operations may
perform differently.
• For detailed information on networking with a wireless router or modem, refer
to the router’s or modem’s documentation.
• Select one wireless channel that is not used currently. If the selected channel
is used by another communication device nearby, radio interference may
result in communication failure.
• In compliance with the newest Wi-Fi certification specifications, the HUB
does not support WEP, TKIP, or TKIP-AES (WPA2 Mixed) security encryption
in networks running in the 802.11n mode.
• By its nature, wireless LAN may experience radio interference depending on
the environmental conditions (such as wireless router performance, distance,
obstruction, interference with other wireless devices, etc.)
• WEP encryption does not work with WPS (PBC) / WPS (PIN).
• Connecting the HUB to an AP whose IP address is 10.0.0.x may not be
successful.
AA Compatible products
Mobile
iOS
Android
4.3 or above
2.3.3(Gingerbread) or above
S
ome devices may not be compatible with the product.
AA Copyright
© 2013 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s manual may be reproduced or
copied without the prior written permission of Samsung Electronics Co.,Ltd.
AA Specifications
Power Requirements
Power Consumption
General
Weight
Dimensions
Operating Temperature Range
Operating Humidity Range
Ethernet
Wireless LAN
Network
Security
WPS(PBC)
Input : AC 100-240V 50/60 Hz
Output : DC 14.0 V
4W
0.4 Kg (0.9 Ibs)
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG and delivered new, in the original carton to the original consumer purchaser, is
warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:
One (1) Year Parts and Labor*
(*90 Days Parts and Labor for Commercial Use)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty
service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG
authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized
service center. Transportation of the product to and from the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be
defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to
SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.
SAMSUNG's obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the applicable end
user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an "AS IS" basis.
Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly
provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in
shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or
exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies,
accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product
or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions,
cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception
problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or
error-free operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL
APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON,
FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF
REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED,
AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG
BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT
LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S
PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG
NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
To obtain warranty service, please contact SAMSUNG customer care center.
100 (W) x 106 (D) x 25 (H) mm
(3.9 (W) X 4.1 (D) X 1 (H) inches)
+41°F to +95°F (+5°C to +35°C)
10 % to 75 %
100BASE - TX Terminal
Built-in
WEP (OPEN/SHARED)
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
Supported
-----
Network speeds equal to or below 10Mbps are not supported.
Design and specifications are subject to change without prior notice.
Weight and dimensions are approximate.
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website: www.samsung.com/
recyclingdirect or call, (877) 278 - 0799.
-- This Quick Setup Guide is based on the product using the Android operating
system.
-- For further details on using the product, visit www.samsung.com
2013-09-06 오전 10:28:47
