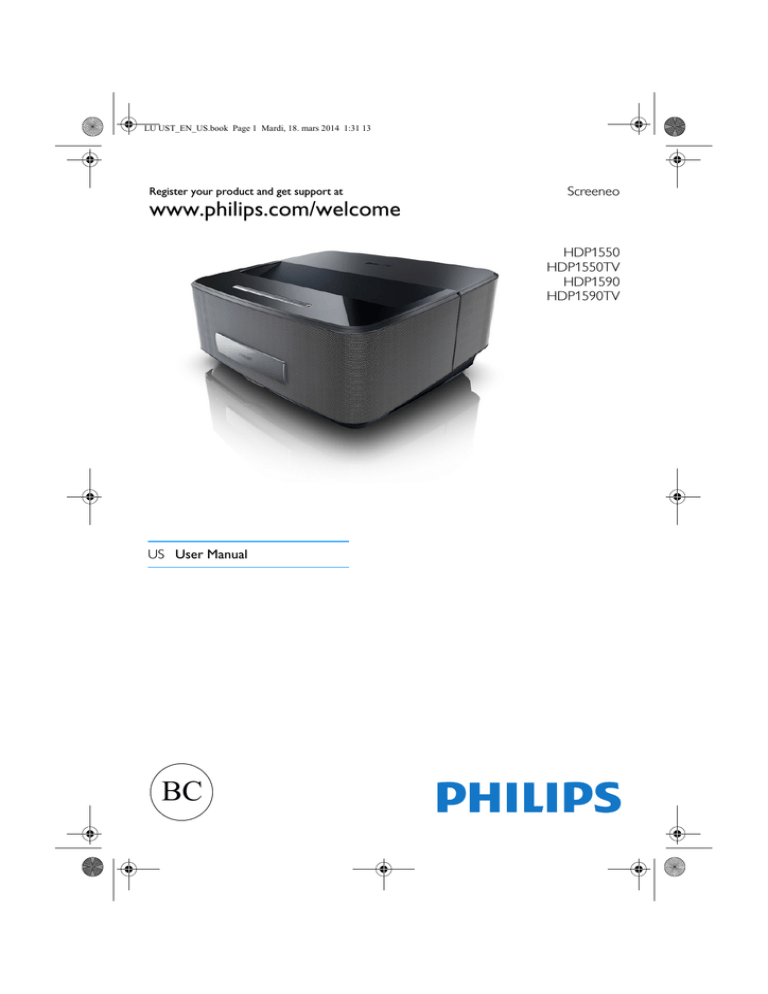

LU UST_EN_US.book Page 1 Mardi, 18. mars 2014 1:31 13
Register your product and get support at
Screeneo
www.philips.com/welcome
HDP1550
HDP1550TV
HDP1590
HDP1590TV
US User Manual
BC
LU UST_EN_US.book Page 2 Mardi, 18. mars 2014 1:31 13
Table of Contents
Overview ................................................... 3
8 Media Playback .................................. 23
Dear Customer ...................................................................
About this User Manual .....................................................
What's in the Box ...............................................................
Product Highlights ..............................................................
Navigating in the media Playback ..................................
Video playback ...................................................................
Photo Playback ..................................................................
Music Playback ...................................................................
Managing Files ....................................................................
3
3
3
3
1 General Safety Information ................ 4
Setting up the Device .........................................................
Automatic device temperature control .........................
Repairs ...................................................................................
Power Supply .......................................................................
Wireless Network (WLAN) ............................................
3D glasses use ......................................................................
Dolby Digital ........................................................................
4
4
4
5
5
5
5
2 Overview............................................... 6
Front View ............................................................................
Rear View .............................................................................
Remote Control ..................................................................
Browsing the user interface ..............................................
Overview of the Menu Functions ....................................
Symbols in the Statusbar ...................................................
6
6
7
8
8
9
3 Initial Operation ................................ 10
Setting up the Device ......................................................
Connect Power Supply ...................................................
Installing or Changing the Batteries of the
Remote Control ...............................................................
Using the Remote Control ............................................
Initial Installation ...............................................................
10
10
10
11
12
4 Connect to the Playback Device ...... 13
Connecting to Devices with HDMI Output ..............
Connecting to a Computer (VGA) ..............................
Connecting Using an Audio/Video (CVBS)
Adapter Cable ...................................................................
Connecting to a home cinema amplifier .....................
Connecting to a Hi-Fi unit .............................................
Connecting the headphones ..........................................
WiFiDisplay (Miracast) ....................................................
23
24
24
26
27
9 Digital TV Playback
(Depending on model)........................... 28
Connecting the Aerial .....................................................
First Playback .....................................................................
Television ............................................................................
Modifying the DVB-T settings ........................................
28
28
29
29
10 Android............................................... 30
Starting Android Apps ..................................................... 30
Exiting Android ................................................................. 30
Installing Android-Apps ................................................... 30
11 Settings............................................... 31
Overview of the Menu Functions ................................. 31
12 Service ................................................ 33
Cleaning ..............................................................................
Device Overheated ..........................................................
Update Firmware with Memory Card .........................
Troubleshooting ................................................................
33
33
33
34
13 Appendix ............................................ 36
Technical Data ................................................................... 36
Accessories ........................................................................ 36
13
13
14
14
14
15
15
5 Memory............................................... 16
Inserting a Memory Card ............................................... 16
Connecting USB Storage Medium ................................ 16
6 Network.............................................. 17
LAN Network ..................................................................
Wireless Network (WLAN) .........................................
Switching Wireless Networking (WLAN) on/off .....
Setting up a Wireless Network (WLAN) ..................
Setting up a Wireless Network (WLAN) using
the Wizard .........................................................................
Wifi Hotspot .....................................................................
Digital Living Network Alliance (DLNA) ...................
17
18
18
18
19
19
20
7 Bluetooth ............................................ 21
Activating the Bluetooth connection ........................... 21
Setting up Bluetooth parameters ................................. 21
Bluetooth speaker ............................................................ 21
2
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 3 Mardi, 18. mars 2014 1:31 13
Overview
Dear Customer
What's in the Box
Thank you for purchasing our projector.
We hope you enjoy your device and its many functions!
1 – Projector
2 – Remote Control (with 2AAA battery)
3 – A/C power cable
4 – HDMI A to A cable
5 – 3D Glasses with his quick start guide, a warning
label and a protection bag (depending on model)
6 – Quick Start Guide
7 – Warranty Guide
8 – Bag
About this User Manual
With the installation guide on the following pages, you
can start using your device quickly and easily. Detailed
descriptions can be found in the following sections of
this user manual.
Read the entire user manual carefully. Follow all safety
instructions in order to ensure proper operation of
your device. The manufacturer accepts no liability if
these instructions are not followed.
This user manual describes several versions of the product. Only the models HDP1590 and HDP1590TV have
the WiFi (Miracast, DLNA,..) and Bluetooth functions.
Only the models HDP1550TV and HDP1590TV have
the DVB-T function.
a
b
GUIDE
SOURCE
AMBILIGHT
3D
TV
FORMAT
SMART
TV
LIST
c
INFO
OK
OPTIONS
EXIT
CH -
CH +
1.@
2 ABC
DEF
3
4 GHI
5 JKL
MNO
6
7 PQRS
8 TUV
WXYZ
9
SUBTITLE
0
d
TEXT
PHILIPS
e
f
g
h
Symbols Used
Notice
Troubleshooting
This symbol designates tips that will help you
to use your device more effectively and easily.
CAUTION!
Damage to the Device or Loss of Data!
This symbol gives warning of damage to the
device and possible loss of data. This damage
can result from improper handling.
Product Highlights
Connecting to devices with HDMI output
With the HDMI cable you can connect the projector to
a computer or laptop (see Connect to the Playback
Device, page 13).
WiFiDisplay (Miracast)
With the Miracast™ solution you can display video
between Wi-Fi devices, without cables or a network
connection. You can do things like view pictures or videos from a smartphone or laptop on your projector.
DANGER!
Danger to Persons!
This symbol gives warning of danger to persons. Physical injury or damage can result
from improper handling.
3
LU UST_EN_US.book Page 4 Mardi, 18. mars 2014 1:31 13
1 General Safety Information
Do not make any changes or settings that are not
described in this user manual. Physical injury or damage
to the device or loss of data can result from improper
handling. Take note of all warning and safety notes indicated.
Do not expose the device to extreme vibrations. It may
damage the internal components.
Do not allow children to handle the device without
supervision. The packing materials should be kept out of
the hands of children.
Setting up the Device
Automatic device
temperature control
The unit is for indoor use only. The device should be
placed securely on a stable, flat surface. Position all
cables in such a way that no one will stumble on them,
thus avoiding possible injuries to persons or damage to
the device itself.
Do not plug in the device in moist rooms. Never touch
the mains cable or the mains connection with wet
hands.
The device must have sufficient ventilation and may not
be covered. Do not put your device in closed cabinets
or boxes.
Do not place the machine on soft surfaces such as tablecloths or carpets and do not cover the ventilation slits.
Otherwise the device could overheat or catch fire.
Protect the device against direct sunlight, heat, large
temperature fluctuations and moisture. Do not place
the device in the vicinity of heaters or air conditioners.
Observe the information on temperature and humidity
in the technical data.
Do not allow liquids to enter into the device. Switch off
the device and disconnect it from the mains supply if liquids or foreign substances end up inside the device.
Have the unit inspected by a technical service department.
Always handle the unit with care. Avoid touching the
lens. Never place heavy or sharp objects on the projector or the power cable.
If the projector gets too hot or emits smoke, shut it
down immediately and unplug the power cable. Arrange
for your device to be investigated by a technical service
centre. To prevent the spread of fire, open flames
should be kept away from the device.
Under the following conditions, a layer of moisture can
appear inside the device which can lead to malfunctions:
• if the device is moved from a cold to a warm
area;
• after a cold room is heated;
• when this device is placed in a damp room.
Proceed as follows to avoid any moisture build-up:
1 Seal this device in a plastic bag before moving it to
another room, in order for it to adapt to room conditions.
2 Wait one to two hours before you take the device
out of the plastic bag.
The device should not be used in a very dusty environment. Dust particles and other foreign objects may
damage the unit.
4
This device include an automatic thermal management
controller. If the internal temperature gets too hot, the
Fan speed will automatically increase (noise increase), if
the temperature still continue to growth, the brightness
of your product will decrease and in worst case the current symbol will appear.
The product will automatically switch off the display
after displaying this message during 5s.
This kind of behaviour should not arrive except if the
outside temperature is very high (>35°C). In such case
return the product to the manufacturer would be recommended.
Repairs
Do not repair the device yourself. Improper maintenance can result in injuries or damage to the device.
Your device must be repaired by an authorised service
centre.
Find details of authorised service centres on the warranty card.
Do not remove the type label from your device; this
would void the warranty.
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 5 Mardi, 18. mars 2014 1:31 13
Power Supply
Before turning on your device, check that the outlet
that you are going to plug it into conforms to the indications shown on the information plate (voltage, current, power network frequency) located on your
device. This device shall be connected to a single phase
power network. The device shall not be installed on
bare ground.
Only use the power cable that is supplied with your
device. Your device is delivered with a grounded power
cord. It is imperative to connect a grounded connector
to a grounded outlet connected to the building earthing.
The socket outlet shall be installed near the equipment
and shall be easily accessible.
The product should be supplied by a power system
compliant with LPS requirements of 2.5 of UL60950-1.
In case of failure, the power cable is the disconnect
device for this equipment. To remove all electrical
power from the equipment, disconnect the power cable
from the electrical outlet.
Turn off the device and unplug from the power outlet
before cleaning the surface. Use a soft, lint-free cloth.
Never use liquid, gaseous or easily flammable cleansers
(sprays, abrasives, polishes, alcohol). Do not allow any
moisture to reach the interior of the device.
• how to make a proper and regular cleaning and
disinfection in the case of any particular eventualities-ocular infections, infestations of the head,
mixed use, etc... where disinfection of the glasses
is not possible as it may damage the functionality
of the 3D glasses must be communicated to the
consumer that in presence of these eventualitiesinfections is contraindicated the use of 3D
glasses for the person concerned until the disappearance of the above circumstances;
• 3D glasses must be kept out of children if there
is the presence of small moving parts ingestible;
• 3D glasses are to be used together with the
instruments of vision correction in case the consumer is the bearer of lenses (eyeglasses or contact lenses);
• You should stop watching 3D in the event of the
occurrence of eye problems or discomfort, and
in the event of a persistence of the same, consult
a doctor.
Dolby Digital
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
DANGER!
High Power LED
This device is equipped with high power LED
(Light Emitting Diode), which emit very bright
light. Do not look directly into the projector
lens. This could cause eye irritation or damage.
Wireless Network (WLAN)
The functioning of security systems, medical equipment
or sensitive devices can be disrupted by the transmission power of the device. Observe any usage regulations (or restrictions) in the vicinity of such equipment.
The use of this device can affect the operation of insufficiently shielded medical devices and hearing aids and
pacemakers through the release of high frequency radiation. Also consult a doctor or the manufacturer of the
medical device to establish whether these are sufficiently shielded from external high frequency radiation.
3D glasses use
The use of 3D glasses in home for watching TV shows:
• is contraindicated for children less than 6 years
old;
• for subjects from 6 years old to adulthood,
should be limited to the vision for a maximum
time equal to the duration of a film show;
• the same time limit is also recommended for
adults;
• must be restricted to watching only 3D content
General Safety Information
5
LU UST_EN_US.book Page 6 Mardi, 18. mars 2014 1:31 13
2 Overview
Front View
Rear View
1 Control panel for navigation and operation
u – To display the home menu
¿ – One menu step back, one directory level back
/ cancelling a function
//À/Á – Navigation keys / navigate the
menu / modify settings
– Confirms selection
B– Long press: Power on /off the projector
Short press: ECO mode on / off
2 Ï – Audio output – headphone connection or connection for external speakers
3 3– HDMI port for a playback device
4 – Memory card slot
5 ý – USB port for a USB storage medium or to connect accessories (mouse or keyboard).
6 Focus wheel for image sharpness
1 – Power supply outlet
2 ý – 2 USB ports for a USB storage medium
3 – Digital audio connector
4 – HDMI 1 and 2 ports for a playback device
5 Kensington Security System Connector
6 VGA – Personal Computer input
7 – LAN network connector
8 – Analog audio connectors
9 / – A/V port for a playback device
– Remote screen connection
– Aerial socket for TV connection
– Lens
a
a
b
6
f
PHILIP
S
c
d
e
b
c
d
e
PHILIPS
S/PDIF
OPTICAL
1
2
VGA
L
R
AUDIO
OUT
f g
AV
IN
TRIG
OUT
j
i
h
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 7 Mardi, 18. mars 2014 1:31 13
3 EPG –To display the electronic program guide.
3D – To display the 3D menu.
Favorite – To display the favourite list in DVB-T
mode.
Remote Control
a
b
c
4 To display the home menu.
5 TAB key or Toggle between TV and Radio channels in DVB-T mode and browsing the Internet
without external keyboard.
EPG
FAVORITE
3D
SMART
SOURCE SETTING
d
e
FORMAT
MENU
TAB
f
g
INFO
6 Navigation keys
– Confirms selection
/, À/Á – Navigation keys / navigate the
menu / modify settings.
7 EXIT – One menu step back, one directory level
back / cancelling a function.
8 PAGE/CH- PAGE/CH+ –To select the previous
channel/page or the next channel/page.
OK
9 Color keys - On-screen options.
EXIT
OPTIONS
RECALL
h
PAGE/CH -
PAGE/CH +
Number keys and text keypad.
Short press for numbers and long press to
switch "letters"
SUB/SHIFT – To display subtitles in DVB-T mode
or shift key in input mode.
i
j
1.@
2 ABC
4 GHI
7 PQRS
SUB/SHIFT
DEF
3
5 JKL
MNO
6
8 TUV
WXYZ
9
0
TTX/
PHILIPS
TTX/← – To display Teletext pages when available in DVB-T mode or backspace key in input
mode.
– / + – To adjust the volume level (to decrease/
increase and to mute the sound).
RECALL – To recall the last function or the last
channel viewed in DVB-T mode.
OPTIONS – To call the option menu.
INFO – To display program information on current
program in DVB-T mode.
1 Long press: Power off the projector. To power the
projector on use the B key on the control panel.
Short press: ECO mode on / off
2 Playback keys
– Skip backward (music only)
MENU – To display the settings menu in DVB-T
mode.
SOURCE – To display the list of input connections.
SMART SETTINGS – To display the Smart settings menu
FORMAT – To change the aspect ratio.
– To stop playback
– Skip forward (music only)
– To rewind
– To start / pause playback
– To fast-forward
Overview
7
LU UST_EN_US.book Page 8 Mardi, 18. mars 2014 1:31 13
Browsing the user interface
Navigation for setting menu
Navigation can be done by navigation keys (,,
À,Á, OK and ¿) on the control panel or the remote control, as well as by an air mouse.
Navigation by keys:
• / scrolls trough the menu level up and
down.
• OK/Á goes one level down, with À / ¿ one
level up.
• u goes back to the main screen.
• In the final level, accepts a setting and goes
back to the last sub menu.
• The ¿ key aborts a setting and goes back to the
last sub menu (or exits the menu depending on
which menu)
Overview of the Menu
Functions
1 After switching on the device the main menu
appears.
2 Select the desired menu using the navigation keys
/, À/Á.
3 Confirm with OK.
4 By pressing the u key you will return to the main
menu.
Navigation by (air) mouse: (like standard mouse
operation within Android)
CAUTION!
Air mouse
The air mouse is not provided.
Select an icon by pointing with the mouse pointer and
clicking with the left mouse key.
If there are more menus listed than displayed you can
scroll the list by clicking into the list and move up and
down without releasing the left mouse button.
With the right mouse key you can exit the menu and
go back to the next top level menu.
Software Keyboard
Notice
To enter text, you can also use standard computer keyboard or mouse. It is possible to use
wired models (USB) as well as wireless models with 2.4 GHz USB-connectors.
HDMI 1, 2, & 3 – Switch to the external video input
HDMI.
TV1 – Television
DLNA – Displays the list of the devices found on the
Network.
Memory – Display the content of the internal memory and the inserted memory SD-Card (movies, pictures, musics, folderview).
USB – Display the content of the connected USB
media (movies, pictures, musics, folderview).
WWW – Open an Internet web browser.
VGA – Switch to the Personal computer input.
A/V-in – Switch to the Audio Video input.
APPs – Call the android operating system.
Settings – Configure settings for the wished used of
the device.
When you need to enter data, the projector displays a
virtual keyboard which allows you to enter text, numbers and punctuation marks, etc.
1 Select the input field using the ,,À and Á
keys, then press the OK key to display the keyboard
or click in the input field using the air mouse.
2 The software keyboard appears.
3 Enter the text on the software keyboard.
1.Depending on the device model, TV can be
replaced by BT speaker.
8
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 9 Mardi, 18. mars 2014 1:31 13
Symbols in the Statusbar
a
b
c de
1 – Time
2 – Date
3 – LAN status display
4 – Bluetooth status display
5 – WiFi status display
Overview
9
LU UST_EN_US.book Page 10 Mardi, 18. mars 2014 1:31 13
3 Initial Operation
Setting up the Device
Before installing your device, make sure that the
projector is turned off and the power cord is
unplugged from the power outlet.
You can position the device so that it lies flat on a table
in front of the projection surface; it is not necessary to
tilt it towards the projection surface. The device compensates for the distortion from the slanted projection
(pincushion distortion).
Check that the projection surface is appropriated to the
projector. The distance between the projector and the
screen determines the actual size of the image.
1 Connect the power cord into the socket on the rear
side of your device (1).
2 Plug the power cord to outlet on the wall (2).
PHILIPS
S/PDIF
OPTICAL
1
2
VGA
L
R
AUDIO
OUT
AV
IN
TRIG
OUT
b
Installing or Changing the
Batteries of the Remote
Control
a
To change the size of the screen, just move the projector towards or away from the wall.
The size of the screen (b) is comprised between 50 and
100 inches depending on the projection distance (a), as
described in the following table.
Diagonal size (b)
(mm)
[inch]
Projection distance
(a)
(mm)
1270
[50]
108
2540
[100]
441
DANGER!
Risk of Explosion with Incorrect Type of
Batteries
Only use the AAA type battery.
There is a risk of explosion if the incorrect battery type is used.
1 To access the battery, press to unlock the locking
mechanism (1) and slide out the battery compartment (2).
Connect Power Supply
CAUTION!
The power cord is used as a power unit cut
off. As a precaution, the outlet shall be located
close to the device and be of easy access in
case of danger.
10
2 Insert the new batteries into the battery compartment with the positive and negative poles as shown.
Make sure the polarities(+ and -) are aligned correctly.
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 11 Mardi, 18. mars 2014 1:31 13
3 Push the battery compartment back into the remote
control until the locking mechanism engages.
Notice
Normally the batteries will last for around
one year. If the remote control stops working,
please replace the batteries. If the device is
not used for a long time, take out the batteries. This will prevent leakage and possible
damage to the remote control.
The used batteries should be disposed of
according to the recycling regulations of your
country.
Using the Remote Control
The remote control can be used within an angle of 22.5
degrees and up to 10 meters from the device. When
using the remote control, no obstacle should be placed
between the remote control and remote sensor.
PHILIPS
22,
5°
EPG
SOURC
3D
SMART
E SETTIN
GS
22,5°
FAVORIT
E
FORMA
T
MENU
TAB
INFO
OK
EXIT
RECALL
OPTION
S
PAGE/C
H-
PAGE/C
H+
1 .@
2
4 GHI
7 PQRS
SUBTIT
LE
ABC
5 JKL
8 TUV
0
DEF
MNO
3
6
9
WXYZ
TEXT
PHILIPS
CAUTION!
• The improper use of batteries can lead
to overheating, explosion, risk of fire
and injury. Leaking batteries can possibly
damage the remote control.
• Never expose the remote control to
direct sunlight.
• Avoid deforming, dismantling or charging the batteries.
• Avoid exposure to open fire and water.
• Replace empty batteries immediately.
• Remove the battery from the remote
control if not in use for long periods of
time.
Initial Operation
11
LU UST_EN_US.book Page 12 Mardi, 18. mars 2014 1:31 13
Initial Installation
ECO mode
1 Push the POWER B button for 5 seconds till the
power indicator turns to red to turn the device on.
2 Turn the device towards a suitable projection surface or wall. Note that the distance to the projection
surface must be a minimum of 0.1 meter and a maximum of 0.5 meter (see Setting up the Device,
page 4). Make sure the projector is in a secure position.
3 Use the focus wheel on the font of the device to
adjust the image sharpness.
4 The first time you turn on the device, you should set
the following settings.
Press shortly the B button on the panel control or on
the remote control to put the device in ECO mode.
To wake up the device, press shortly again on the
B button.
Setting up the Language
The device has already been installed. In order to
change the menu language, proceed as follows:
1 Use the navigation keys to select Settings.
Notice
During the first installation, use OK key to
validate your choice and continue to the next
step, and the ¿ key to return on the previous step.
5 Use the keys / to select the language and confirm with OK.
6 Use the keys //À/Á to select the symbol +
or - to set the date (day, month and year) and confirm with .
7 Use the keys / to select the date format and
confirm with .
8 Use the keys / to select the time zone and
confirm with .
9 Use the keys //À/Á to select the symbol +
or - to set the date (hour and minute) and confirm
with .
10 Use the keys / to select the time format (12h
or 24h) and confirm with .
11 Use the keys / to select the location (Home
or Shop) and confirm with .
Home: for normal use.
Shop: when you choose this option, the projector
starts in demonstration mode. In this mode, the projector automatically displays the pictures or videos
stored in the internal memory in loop.
2
3
4
5
6
7
8
9
Confirm with .
Select Language/ Language with /.
Confirm with .
Select Menu Language with /.
Confirm with .
Select you desired language with /.
Confirm with .
Exit with u.
Notice
The demonstration mode can be activated or
deactivated on the menu Setting/Maintenance/Demo mode.
12 A message is displayed to give the address web site
where the user manual can be downloaded. Press
to continue.
Turning off the projector
Press the B button on the panel control of the device
or on the remote control more than 5 seconds.
12
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 13 Mardi, 18. mars 2014 1:31 13
4 Connect to the Playback Device
HDMI cable
Connecting to a Computer
(VGA)
Connecting to Devices with
HDMI Output
Notice
Supplied cables
Many laptops do not activate the external
video output automatically when you connect
a second display such as a projector. Check
your laptop's manual to find out how to activate the external video output.
Use the HDMI cable to connect the projector to a computer, laptop or others devices.
Notice
Use the HDMI socket 1 or 2 to connect the
projector to a DVD player when a 3D signal
is broadcasted.
Use the VGA cable (not included) to connect the projector to a computer, laptop, or some PDAs. The projector supports the following resolutions: VGA/SVGA/
XGA. For best results, please check the best resolution.
1 Switch the device on using the on/off key.
2 Connect the cable to the projector's HDMI socket.
PHILIPS
S/PDIF
OPTICAL
1
2
L
VGA
R
AUDIO
OUT
AV
IN
TRIG
OUT
VGA
PHILIPS
S/PDIF
OPTICAL
1
2
VGA
PHILIPS
L
R
AUDIO
OUT
AV
IN
TRIG
OUT
HDMI 3
HDMI 1 & HDM 2
1 Switch the device on using the on/off key.
2 Connect the VGA cable to the projector's VGA
socket.
3 Connect the VGA plug to the VGA socket of the
computer.
4 Adjust the computer's resolution to the correct setting and switch the VGA signal to an external monitor. The following resolutions are supported:
3 Connect the cable to the HDMI socket of the playback device.
4 From the main menu, select HDMI 1,2 or 3 depending on the external device is connected.
Resolution
refresh rate
VGA
640 x 480
60 Hz
SVGA
800 x 600
60 Hz
XGA
1024 x 768
60 Hz
WXGA
1280 x 768
60 Hz
FULL HD
1920 x 1080
60 Hz
Notice
Screen Resolution
For best results, please check the best resolution.
5 From the main menu, select VGA.
Connect to the Playback Device
13
LU UST_EN_US.book Page 14 Mardi, 18. mars 2014 1:31 13
Connecting Using an Audio/
Video (CVBS) Adapter
Cable
Use the projector's audio/video adapter cable (A/V
cable) (not included) to connect camcorders, DVD
players or digital cameras. The jacks for these devices
are yellow (video), red (audio right) and white (audio
left).
Connecting to a home
cinema amplifier
Use a S/PDIF optical cable (cable not provided) to connect the DIGITAL AUDIO output on the projector to
the input of your home cinema amplifier.
For example, to show digital channels in DTS or
DOLBY DIGITAL quality sound.
PHILIPS
PHILIPS
S/PDIF
OPTICAL
1
S/PDIF
OPTICAL
2
L
VGA
1
2
VGA
L
R
AUDIO
OUT
AV
IN
R
TRIG
OUT
AV
IN
AUDIO
OUT
S/PDIF
OPTICAL
AV
IN
TRIG
OUT
1 Connect the A/V adapter to the socket of the
projector.
2 Connect the video device's audio/video sockets to
the A/V cable using a conventional composite video
(RCA) cable.
3 From the main menu, select AV-in.
Connecting to mobile multimedia devices
Some video devices (e.g.: pocket multimedia players, ...)
require specific connection cables. There are either
supplied with the device or acquired from the manufacturer of the multimedia device. Please note that only the
original cables from the device manufacturer may function.
PHILIPS
S/PDIF
OPTICAL
1
Connecting to a Hi-Fi unit
It is possible to use an analog audio connection, just
connect the right and left audio outputs of the Projector
to the auxiliary input of your Hi-Fi system (cable not
provided).
PHILIPS
2
VGA
L
S/PDIF
OPTICAL
R
AUDIO
OUT
1
2
VGA
AV
IN
TRIG
OUT
L
R
AUDIO
OUT
AV
IN
AV
IN
TRIG
OUT
AUDIO
OUT
Notice
Switching to the Multimedia Device Signal Output
See the multimedia device instruction manual
to find out how to switch the signal output to
this jack.
14
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 15 Mardi, 18. mars 2014 1:31 13
Connecting the headphones
1 Before connecting the headphones, turn down the
volume on the device.
2 Connect the headphones to the projector's headphone slot. The device speakers deactivate automatically when the headphones are connected.
7 Connect the external device (smartphone or tablet)
to the same WiFi network that the projector.
8 Select on the WifiDisplay application of the external
device the name of the projector connection (in the
example Screeneo_5f31).
9 Connect the external device (smartphone or tablet)
to the projector, it will show up connecting.
10 In the WifiDisplay application of the projector, it will
show up the message Invitation to connect,
Decline or Accept, select Accept.
PHILIPS
3 After connecting the headphones, increase the volume to a comfortable level.
DANGER!
Danger of Hearing Damage
Do not use the device over a longer time at
high volume – especially when using headphones. This could lead to the risks of hearing
damage. Before connecting the headphones,
turn down the volume on the device. After
connecting the headphones, increase the volume to a comfortable level.
WiFiDisplay (Miracast)
Notice
Only the Miracast-certified devices can be
used with this function.
1 Switch the device on using the on/off key.
2 After the initial screen the main menu appears.
Notice
The projector must be connected to a WiFi
network.
3
4
5
6
Use the navigation keys to select APPs.
Confirm with .
Use the navigation keys to select WifiDisplay.
Confirm with .
Notice
The name used to identify the projector can
be modified in the Setting menu.
Connect to the Playback Device
15
LU UST_EN_US.book Page 16 Mardi, 18. mars 2014 1:31 13
5 Memory
Inserting a Memory Card
Connecting USB Storage
Medium
PHILIP
S
PHILIP
S
1 Insert a memory card with the contacts facing
upwards into the / slot at the back of the
device. Your device supports the following memory
cards: SD/SDHC/SDXC/MMC.
2 Insert the memory card into the slot until it snaps
into position.
DANGER!
Inserting a Memory Card!
Never pull out the memory card while the
device is accessing it. This could cause data
to be damaged or lost.
Switch the device off in order to make sure
that the device does not access the memory card.
3 Press lightly on the memory card to remove it.
4 The memory card is ejected.
16
PHILIPS
S/PDIF
OPTICAL
1
2
VGA
L
R
AUDIO
OUT
AV
IN
TRIG
OUT
1 Connect the USB storage medium to one USB port
of the device.
DANGER!
Inserting a Memory Card!
Never pull out the memory card while the
device is accessing it. This could cause data
to be damaged or lost.
Switch the device off in order to make sure
that the device does not access the memory card.
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 17 Mardi, 18. mars 2014 1:31 13
6 Network
The projector can be connected to the network by a
network hard-wired cable or through a wireless (Wi-Fi)
connection.
Use the procedure below appropriate to the type of
connection you want.
LAN Network
Notice
Connection!
The LAN connection takes priority over the
Wi-Fi connection.
Connecting to the LAN network
1 Connect one end of a LAN cable (not supplied) to
the ETHERNET port of your projector.
PHILIPS
S/PDIF
OPTICAL
1
2
VGA
L
R
AUDIO
OUT
AV
IN
TRIG
OUT
2 Connect the other end of the LAN cable to the network.
3 Configure the LAN network settings in manual or
automatic configuration.
Automatic configuration
The automatic configuration of the local network settings may be considered, if your local network features
a DHCP or BOOTP server that can dynamically assign
addresses to the peripheral devices present on the
LAN.
To automatically configure the local network settings:
1 Switch the device on using the on/off key.
2 After the initial screen, the main menu appears.
3 Use the navigation keys to select Settings.
4 Confirm with .
5 Using / select Wireless and Networks.
6 Confirm with .
7 Using / select Lan.
Network
8 Confirm with .
9 Using / select On.
10 Confirm with .
11 Using / select Advanced.
12 Confirm with .
13 Using / select Network address.
14 Confirm with .
15 Check that Automatic is selected.
Manual configuration
To configure your projector manually, you should
obtain the usual information used to set a peripheral
device (IP address, sub-network mask, network and
gateway address).
To configure the local network setting manually:
1 Switch the device on using the on/off key.
2 After the initial screen the main menu appears.
3 Use the navigation keys to select Settings.
4 Confirm with .
5 Using / select Wireless and Networks.
6 Confirm with .
7 Using / select Lan.
8 Confirm with .
9 Using / select On.
10 Confirm with .
11 Using / select Advanced.
12 Confirm with .
13 Using / select Network address.
14 Confirm with .
15 Using / select Use static IP.
16 Confirm with .
17 Enter the settings IP-Address, Gateway, Netmask, DNS1 and DNS2.
18 Confirm with .
Wireless Network (WLAN)
In a wireless network (Wireless Local Area Network,
WLAN) at least two computers, printers or other additional devices communicate with each other over radio
waves (high frequency waves). Data transmission in the
radio network is based on the standards 802.11a,
802.11b, 802.11g and 802.11n.
17
LU UST_EN_US.book Page 18 Mardi, 18. mars 2014 1:31 13
DANGER!
Information on Using WLAN!
The functioning of security systems, medical
equipment or sensitive devices can be disrupted by the transmission power of the
device. Observe any usage regulations (or
restrictions) in the vicinity of such equipment.
The use of this device can affect the operation
of insufficiently shielded medical devices and
hearing aids and pacemakers through the
release of high frequency radiation. Also consult a doctor or the manufacturer of the medical device to establish whether these are sufficiently shielded from external high frequency
radiation.
Setting up a Wireless
Network (WLAN)
1 Switch the device on using the on/off key.
2 After the initial screen the main menu appears.
Infrastructure Wireless Network
In an infrastructure network, multiple devices communicate via a central access point (gateway, router). All
data are sent to the access point (gateway, router) and
distributed from there.
Switching Wireless
Networking (WLAN) on/off
Wireless networking is deactivated by default. You have
the option of turning this function on.
1 Switch the device on using the on/off key.
2 After the initial screen the main menu appears.
3 Use the navigation keys to select Settings.
4 Confirm with .
5 Using / select Wireless and Networks.
6 Confirm with .
7 Using / select WIFI.
8 Confirm with .
9 Modify the settings with /.
10 Confirm with .
The ¿ key takes you one step back in the menu.
18
3 Use the navigation keys to select Settings.
4 Confirm with .
5 Using / select Wireless and Networks.
6 Confirm with .
7 Using / select WIFI Selection.
8 Confirm with .
9 Use / to select the desired wireless network.
10 Confirm with .
11 If your wireless network is password protected, an
input window appears. Select the input field (see
Navigation for setting menu, page 8) using the navigation keys of the remote control and press OK.
12 Enter the password with the virtual keyboard using
the navigation keys of the remote control or with an
external keyboard.
13 Click on Connect.
The ¿ key takes you one step back in the menu.
Setting up a Wireless
Network (WLAN) using the
Wizard
You can integrate your device very quickly and easily
into an existing wireless network using Wi-Fi Protected
Setup (WPS) or using a wireless network scan. Using
WPS, all important settings like network name (SSID)
are automatically configured and the connection protected with secure WPA Encryption.
Using Wi-Fi Protected Set-up
(WPS)
Using Wi-Fi Protected Setup (WPS), you can integrate
your device into an existing wireless network in two different ways very quickly and easily. You can activate the
login with a pin code or using Push Button Configuration (PBC), if your access point (Access Point, Router)
supports this method.
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 19 Mardi, 18. mars 2014 1:31 13
Using WPS with Push Button
Configuration (PBC)
Wifi Hotspot
Notice
1 Switch the device on using the on/off key.
2 After the initial screen the main menu appears.
Important!
The projector can work as an access point, if
only a wired lan network is installed in the
location of use.
Use the portable Wi-Fi hotspot to share the device’s
network connection with computers or other devices
through the Wi-Fi network.
Notice
Connection!
When the WiFi hotspot mode is activated, it
takes priority over the other connections.
3 Use the navigation keys to select Settings.
4 Confirm with .
5 Using / select Wireless and Networks.
6 Confirm with .
7 Using / select WIFI Selection.
8 Confirm with .
9 Use / to select the desired wireless network..
10 Confirm with .
11 Activate Push Button Configuration on the WLAN
access point. The WLAN access point and device
connect automatically and create a WPA protected
connection.
Activating WiFi hotspot
1 Switch the device on using the on/off key.
2 After the initial screen, the main menu appears.
3 Use the navigation keys to select Settings.
4 Confirm with .
5 Using / select Wireless and Networks.
6 Confirm with .
7 Using / select WiFi Hotspot.
8 Confirm with .
9 Using / select Portable WiFi Hotspot.
10 Confirm with .
11 Using / select On.
12 Confirm with .
The projector is now visible by other Wifi devices.
Network
19
LU UST_EN_US.book Page 20 Mardi, 18. mars 2014 1:31 13
Setting up a WiFI hotspot
To modify the WiFi hotspot name and define the security level.
1 Switch the device on using the on/off key.
2 After the initial screen the main menu appears.
3 Use the navigation keys to select Settings.
Digital Living Network
Alliance (DLNA)
This device supports Digital Living Network Alliance
(DLNA). Using this standard you can quickly interconnect your multimedia devices.
Switching DLNA on and off
The DLNA function is switched on by default. You have
the option of turning this function off.
1 Switch the device on using the on/off key.
2 After the initial screen the main menu appears.
4 Confirm with .
5 Using / select Wireless and Networks.
6 Confirm with .
7 Using / select WiFi Hotspot.
8 Confirm with .
9 Using / select Setup WiFi hotspot.
10 Confirm with .
11 To modify the settings, use / keys to select the
desired parameter.
Item
Description
Network SSID
Name of the WiFi hotspot.
This is the name used to identify your projector when it is
detected by another WiFi device.
To modify the name, select the
field and press . With the
keyboard, enter the new
name.
Security
Select among the 3 levels of security.
• Open (without security)
• WPA PSK
• WPA2 PSK
Password
Select the field and press .
With the keyboard, enter the
new password.
Show password
Check the box to display the
password.
3 Use the navigation keys to select Settings.
4 Confirm with .
5 Using / select Wireless and Networks.
6 Confirm with .
7 Using / select DLNA Sharing.
8 Confirm with .
9 Modify the settings with /.
10 Confirm with .
The ¿ key takes you one step back in the menu.
Play Media Using DLNA
If DLNA enabled devices are located in the connected
network, then you can access them in media playback
and file management (see Media Playback, page 23).
DLNA Control
You can control the projector using another device (e.g.
a smartphone) using DLNA. To do this, see the instruction manual for the device in question.
12 Using / select Save.
13 Confirm with .
20
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 21 Mardi, 18. mars 2014 1:31 13
7 Bluetooth
Activating the Bluetooth
connection
1 Switch the device on using the on/off key.
2 After the initial screen, the main menu appears.
8 Confirm with .
9 Using / select the desired setting.
10 Confirm with .
11 Modify the desired settings.
Menu
Description
Select device
The list shows all paired devices.
Paired device
To unconnect or unpair the
paired device.
Bluetooth speaker
3 Use the navigation keys to select Settings.
4 Confirm with .
5 Using / select Wireless and Networks.
6 Confirm with .
7 Using / select Bluetooth.
8 Confirm with .
9 Use / to select on.
10 Confirm with .
The projector is now visible for the near external Bluetooth devices.
The projector can be used as Bluetooth speaker. In this
mode, you can play music from smartphones or tablets.
The projector can only connect to, and play audio from
one device at a time.
Activating Bluetooth speaker
Notice
Bluetooth speaker connection!
Depending on the model of your device, the
bluetooth speaker can be activated from the
main menu (BT Speaker icon) or from the
APPs menu.
1 Switch the device on using the on/off key.
2 After the initial screen, the main menu appears.
Setting up Bluetooth
parameters
1 Switch the device on using the on/off key.
2 After the initial screen, the main menu appears.
3 Depending on model, use the navigation keys to
select BT Speaker or APPs>BT Speaker.
Notice
3
4
5
6
7
Use the navigation keys to select Settings.
Confirm with .
Using / select Wireless and Networks.
Confirm with .
Using / select Bluetooth.
Bluetooth
Remote control
You can also use the SOURCE or
OPTIONS key of the remote control.
Press the SOURCE key and select BT
Speaker or press OPTIONS key then
select SOURCE and BT Speaker.
4 Confirm with OK.
21
LU UST_EN_US.book Page 22 Mardi, 18. mars 2014 1:31 13
5 Press the Red key to power on the speaker.
6 Press the Green key to make the speaker discoverable during 60 seconds.
7 On your external device, activate the Bluetooth connection and select the speaker name from the list.
When the device is connected, his name is displayed
on the top of the screen.
8 Press the Green key to play music.
During music playback, the following actions are
available:
Red key: To stop the connection.
Green key: To make a pause.
Yellow key: To play the previous music.
Blue key: To play the next music.
Changing the name of the
Bluetooth speaker connection
This is the name used to identify your projector when
it is detected by another Bluetooth® device.
1 Switch the device on using the on/off key.
2 After the initial screen, the main menu appears.
3 Depending on model, use the navigation keys to
select BT Speaker or APPs>BT Speaker.
4 Press the Yellow key to rename the connection.
5 Use the keyboard to enter the new name.
6 Press OK to confirm.
22
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 23 Mardi, 18. mars 2014 1:31 13
8 Media Playback
Notice
Navigation Keys
All the keys shown are buttons on the remote
control.
Keys
Action
Green key of the
remote control
Allows to set the slide show
parameters for picture files.
or
Allows to set the shuffle
mode for music files:
Notice
Best Settings for Optimal Use
Read the informations on the best settings in
the chapter settings (see Settings, page 31) for
optimal use of your device.
Navigating in the media
Playback
To navigate in the memory media, use the following
keys:
•
: Shuffle mode
deactivate (greyed).
•
: Shuffle mode activate.
Yellow key of the
remote control
Allows to display the pictures
as miniatures or in a list.
Blue key of the remote control
Allows to delete the selected
file.
In order to optimize the navigation, you can select a file
type on the list:
Keys
Action
or To select folders or files in the
displayed list.
•
Á or For directories, goes one level
down.
For files, starts the selected
media file.
•
MOVIES to view videos files only.
•
PICTURES to view photo files only.
•
MUSIC to view audio files only.
À or ¿
Goes one level up in the directory structure.
u
Exits to main screen.
Red key of the remote control
Allows to set the repeat
mode for movie and music
files:
Media Playback
•
: Play mode deactivate (greyed).
•
: Play only the
selected movie in loop.
•
: Play all movies in
the selected directory
in loop.
•
: Play all movies in
the media in loop.
FOLDERS to view all files (photo, audio
and video).
23
LU UST_EN_US.book Page 24 Mardi, 18. mars 2014 1:31 13
Video playback
Notice
Displaying Video Files
Only those videos that are compatible
with the projector will be displayed.
Supported file formats
Supported file formats are *.avi, *.mov, *.mp4, *.mkv,
*.flv, *.ts, *.m2ts, *.3gp.
Video Playback (USB/SD Card/
Internal Memory/DLNA)
1 Switch the device on using the on/off key.
2 The main menu appears.
8 Press or Á to start playback.
9 Press ¿ to end the slide show and return to the
overview.
10 When you press ¿ again, you will return to the
main menu.
Notice
Navigation During Playback
Review / forward: Press :/; on the
remote control.
Press T to stop or continue playback.
During playback you can adjust the volume using the
keys
3 Use the navigation keys to select the desired media
(USB, SD-card or DLNA):
Memory
Internal memory or SD card can be selected.
USB
- If only one USB key is connected the explorer
shows only the content of the USB.
- If more than one USB memory is connected, select
the desired USB memory first.
DLNA
The explorer searches for servers and shows them
in a list. Select the desired DLNA server.
4 Confirm with .
The content of selected media is displayed.
5 To only display the movies content, select Movie
using the keys /on the left of the screen.
6 Confirm with .
/
on the remote control. Press
or
repeatedly to shut off the volume completely.
Photo Playback
Supported file formats
Supported file formats are JPEG, BMP, PNG and GIF.
Photo Playback (USB/SD Card/
Internal Memory/DLNA)
1 Switch the device on using the on/off key.
2 The main menu appears.
Notice
The use of color keys
The Red key allows to set the repeat mode:
•
: Play mode deactivate (greyed).
•
: Play only the selected movie in
loop.
•
: Play all movies in the selected
directory in loop.
•
: Play all movies in the media in loop.
The Blue key alows to delete the selected
file.
7 Use / to select the video file that you wish to
play.
24
3 Use the navigation keys to select the desired media
(USB, SD-card or DLNA):
SD-card
Internal memory or SD card can be selected!
USB
- If only one USB key is connected the explorer
shows only the content of the USB.
- If more than one USB memory is connected, select
the desired USB memory first.
DLNA
The explorer searches for servers and shows them
in a list. Select the desired DLNA server.
4 Confirm with .
The content of selected media is displayed.
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 25 Mardi, 18. mars 2014 1:31 13
5 To only display the picture content, select Picture
using the keys /on the left of the screen and
confirm with .
Slide Show with Background
Sound
Notice
1 During the slide show, press to display the menu
bar on the bottom of the screen.
2 Using À/Á select Ó.
3 Confirm with .
4 Use / to select the file that you wish to play.
The use of color keys
The Green key allows to set the slide show
parameters.
The Yellow key allows to display the pictures
as miniatures or in a list.
The Blue key allows to delete the selected
file.
Notice
Storage Location
Only files from the internal memory/Memory Card/USB Storage Medium can be
played.
6 The list of photos are displayed on the screen as an
overview.
Notice
Many Photos on the Memory Card or
the USB Medium
If there are a lot of photos on the memory
card or the USB storage medium it can
take a moment before the overview
appears.
7 Use À/Á or / to select the image that you
want to start the slide show with.
8 Press Green key to start the slide show.
Notice
The slide show can be started with the OK
key if the parameters have already been
set up.
9 To modify the settings, use / keys to select the
desired parameter.
Item
Description
Time per slide
To modify the photo display
frequency.
Off, 0, 2, 5, 10, 20, 30 and 60s
Repeat
Off, Directory or All
Slide transition
To modify the type of transition from one photo to another (random or by theme).
Slideshow order
Random or by order
5 To start the background sound confirm with .
6 Adjust the volume level with the volume keys on the
remote control.
7 If no input is made, the menu bar is hidden after 5
seconds.
Zoom and rotate functions
During the slide show, press OK key to display the contextual menu.
To perform a zoom, use the navigation keys to select
the
symbol then press OK.
To rotate a picture, use the navigation keys to select the
symbol then press OK to rotate the picture 90°
clockwise.
Press ¿ return to the slide show.
10 Press Green key to start the slide show.
11 Press to pause the slide show.
12 Press ¿ to end the slide show and return to the
overview.
13 When you press u, you will return to the main
menu.
Media Playback
25
LU UST_EN_US.book Page 26 Mardi, 18. mars 2014 1:31 13
Music Playback
Notice
Switch off the Image Playback
You can switch off the screen while playing
music in order to save power by a long press
on the
5 To only display the music content, select Music
using the keys /on the left of the screen and
confirm with .
Notice
The use of color keys
The Red key allows to set the repeat mode:
key.
Supported file formats
Supported file formats are MP3 and WAV.
Music Playback (USB/SD Card/
Internal Memory/DLNA)
•
: Play mode deactivate (greyed).
•
: Play only the selected music in
loop.
•
: Play all musics in the selected
directory in loop.
•
: Play all musics in the media in loop.
The Green key allows to set the shuffle
mode:
1 Switch the device on using the on/off key.
2 The main menu appears.
•
: Shuffle mode deactivate (greyed).
•
: Shuffle mode activate.
The Blue key allows to delete the selected
file.
6 Use / to select the file that you wish to play.
7 Press to start playback.
8 Press T to stop or continue playback.
Notice
3 Use the navigation keys to select the desired media
(USB, SD-card or DLNA):
SD-card
Internal memory or SD card can be selected!
USB
- If only one USB key is connected the explorer
shows only the content of the USB.
- If more than one USB memory is connected, select
the desired USB memory first.
DLNA
The explorer searches for servers and shows them
in a list. Select the desired DLNA server.
4 Confirm with .
The content of selected media is displayed.
26
Navigating when Image Playback is
Switched off
Press / to skip to the previous or
next song.
Press T to stop or continue playback.
Press ¿ to return to the selection.
During playback you can adjust the volume using the
keys
/
on the remote control. Press
or
repeatedly to shut off the volume completely.
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 27 Mardi, 18. mars 2014 1:31 13
Managing Files
Delete Files
You can delete files from the internal memory, the connected USB storage medium or the memory card.
1 Switch the device on using the on/off key.
2 The main menu appears.
3 Use the navigation keys to select the desired media
(USB, Memory or DLNA).
4 Confirm with .
5 Use / to select the file that you want to delete.
6 Press the Blue key on the remote control to delete
the file.
7 Confirm with .
Notice
Error
If errors occur during the deletion process, make sure that the storage medium is
not write-protected.
Media Playback
27
LU UST_EN_US.book Page 28 Mardi, 18. mars 2014 1:31 13
9 Digital TV Playback
(Depending on model)
First Playback
Connecting the Aerial
Notice
Navigation Keys
All the keys shown are buttons on the remote
control.
Notice
Aerial Size and Orientation
In some regions it is necessary to connect a
larger aerial in order to grant the reception.
In some countries it is necessary to point the
aerial horizontally in order to grant the reception.
When the DVB-T function is first started, the automatic
channel search must be started.
1 Switch the device on using the on/off key.
2 The main menu appears.
1 Connect the aerial to the aerial socket.
PHILIPS
S/PDIF
OPTICAL
1
2
VGA
L
R
AUDIO
OUT
AV
IN
TRIG
OUT
3 Connect the aerial (see Connecting the Aerial,
page 28).
4 Use the navigation keys to select TV.
5 Confirm with .
6 Use / to highlight a setting and use the À/Á
to select a value.
- Select the country.
- Select the level of the parental control.
- Enter the PIN code for channel lock or parental
control. Enter the code with 4 digits (0000 is not
accepted) and enter again the same code to confirm.
7 Press OK to confirm the settings and continue the
installation.
The channel search starts automatically.
8 At the end of the search, press .
Your TV is now set. You can start watching and enjoying all your channels.
Television
Notice
Navigation Keys
All the keys shown are buttons on the remote
control.
28
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 29 Mardi, 18. mars 2014 1:31 13
1 Switch the device on using the on/off key.
2 The main menu appears.
3 Use the navigation keys to select TV.
4 Confirm with OK.
5 The last viewed channel is played. Change the channel using keys CH+/CH-, / or enter directly
the number with the keypad.
Notice
Displaying Channel Information
When changing channel, channel information is displayed on the bottom projection
edge. The information bar is hidden after 5
seconds.
6 Press u to end playback and return to the main
menu.
During playback you can adjust the volume using the
keys
/
Press
or
completely.
or À/Á on the remote control.
repeatedly to shut off the volume
Modifying the DVB-T
settings
To modify DVB-T settings, press the Menu key on the
remote control. Main menus are:
Edit channels: To display and modify the channel and
radio lists.
Installation: To launch an automatic or a manual
search for channels.
System Setup: To modify the parental lock settings,
the display settings and the favorite settings.
Digital TV Playback (Depending on model)
29
LU UST_EN_US.book Page 30 Mardi, 18. mars 2014 1:31 13
10 Android
Your projector uses the Android operating system.
Starting Android Apps
1 Switch the device on using the on/off key.
2 After the initial screen the main menu appears.
7 Use the navigation keys to select ApkInstaller.
8 Confirm with OK.
9 Use the navigation keys to select Install.
10 Confirm with OK.
11 Navigate to the memory card and select the APK
package you want to install.
12 Press OK to execute the installation package.
13 The APK package is installed.
3 Use the navigation keys to select APPs.
4 Confirm with OK.
Exiting Android
Press the u key to return to the main menu.
Installing Android-Apps
CAUTION!
Trusted Sources!
Apps from third party sources may be malicious. Only use installation packets from
trusted sources.
You can install other apps. Use the APK installation
packets, proceed as follows:
1 Download the package APK and save it onto a memory card or USB-stick.
2 Insert the memory card into the device (see Inserting a Memory Card, page 16).
3 Switch the device on using the on/off key.
4 After the initial screen the main menu appears.
5 Use the navigation keys to select APPs
6 Confirm with OK.
30
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 31 Mardi, 18. mars 2014 1:31 13
11 Settings
1 Switch the device on using the on/off key.
2 After the initial screen the main menu appears.
3 Use the navigation keys to select Settings.
4 Confirm with OK.
5 Use / to select from the following settings.
6 Confirm with OK.
7 Modify the settings using OK, /,
8 Confirm with OK.
The ¿ key takes you one step back in the menu.
Overview of the Menu
Functions
Wireless and Network
WiFi – switching the wireless network (WLAN) off and
on.
Network Selection – select the wireless network with
which the device is to connect.
WiFi Hot Spot – activate and deactivate WLAN tethering.
LAN – switching the LAN network (LAN) off and on.
Advanced – (LAN mode only) check the Network
actual IP address or change the address by inputting
new address. You can also select Automatic or Use
static IP
DLNA Sharing – switching DLNA off and on.
Bluetooth – switching the Bluetooth connection off
and on.
Image settings
3D – set the picture modes with 2D/3D options.
Keystone – use / to set the keystone.
Fit Screen – use / to select the screen mode
Projection mode
Front – normal projection; the device is located in
front of the projection surface/screen
Settings
Rear – rear projection; the device is located behind
the projection surface; the image is reflected horizontally.
Front Ceiling – the device is hanging from the ceiling
in an upside-down position; the image is rotated by
180 degrees.
Rear ceiling – the device is located behind the projection surface, hanging from the ceiling in an upsidedown position; the image is rotated by 180 degrees
and reflected horizontally.
Wall color correction – colour correction of the projected image to adjust to coloured projection surfaces
Smart Settings – select predefined settings for brightness / contrast / colour saturation. If you modify these
settings, the setting is switched to Manual.
Brightness – use / to adjust the brightness and
press OK to confirm.
Contrast – use / to adjust the contrast and press
OK to confirm.
Advanced
Colour temperature – set to Warm to enhance
hotter colors such as red, or set to Cool to make
picture bluish.
Smart Brightness – use / to adjust the smart
brightness and press OK to confirm.
Dynamic contrast – adjusts the contrast to keep it
at the best level according to the brightness of the
screen.
Color space – to convert the color space setting to
another standard.
Gamma – adjusts the gamma correction according
to the type of the projected image.
Sound Settings:
Volume – adjust the volume
Deep Bass – switching the deep bass on and off
Wide sound – switching the wide sound on and off
Equalizer – select the equalizer mode
Smart volume – turn on/off the volume level automatic
control function
Key beep – turn key tones on and off
Speaker – switching the speaker on and off
System settings
Date and time – set date and time
Android Settings – set Android system
Sleep mode – With this function, the projector automatically goes to ECO mode after a specified period of
time or at the end of a movie.
Auto Power Down – turn on/off the sleep mode.
The default setting is off.
31
LU UST_EN_US.book Page 32 Mardi, 18. mars 2014 1:31 13
When the parameter is switched on, it works like this:
- If the projector is on, while no video is displayed (e.g.
menu open without user action), it should go into off
mode after the shortest possible time, by example 30
minutes.
- If a video is displayed, the APD should take place 3h
after last user action, meaning that a pop-up will appear
after 2h58 for 2 minutes, indicating that the product will
go into off mode.
HDMI name – select this item to change the HDMI
names. Name that appears on the main screen.
Language/Language
Menu language – use / to select the desired language and press OK to confirm.
Soundtrack – use / to select the desired language and press OK to confirm.
Sub Title – use / to select the desired language
and press OK to confirm.
Maintenance
Reset settings – Reset settings to factory defaults.
Firmware Update – Update Firmware
Information – Display free space in the internal memory and information on the device (Capacity: / Free
space: / Firmware version: / Device name: / Model:)
Demo mode – switching demo mode on and off.
32
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 33 Mardi, 18. mars 2014 1:31 13
12 Service
Cleaning
DANGER!
Instructions for Cleaning!
Use a soft, lint-free cloth. Never use liquid or
easily flammable cleansers (sprays, abrasives,
polishes, alcohol, etc.). Do not allow any
moisture to reach the interior of the device.
Do not spray the device with any cleaning fluids.
Wipe over the surfaces gently. Be careful that
you do not scratch the surfaces.
Cleaning the Lens
12 The device turns off and on again. After around 5
minutes the Language Selection screen appears.
The firmware update is now completed.
DANGER!
Inserting a Memory Card!
Never pull out the memory card while the
device is accessing it. This could cause data
to be damaged or lost.
Notice
If an error occurs during the firmware update
process retry the procedure or contact your
dealer.
Use a brush or lens cleaning paper for cleaning the lens
of the projector.
DANGER!
Do not use any Liquid Cleaning Agents
Do not use any liquid cleaning agents for
cleaning the lens, to avoid damaging the coating film on the lens.
Device Overheated
A overheat symbol appears if the device is overheated.
Update Firmware with
Memory Card
1 Use SD memory card in the file system FAT16 or
FAT32.
DANGER!
All Data will be Deleted!
This procedure erases all your data that is
stored on the memory card.
2 Save the latest firmware update file to the root of
the memory card.
3 Insert the memory card (see Inserting a Memory
Card, page 16) and switch the device on.
4 Use the navigation keys to select Settings.
5 Confirm with à.
6 Use / to select Maintenance.
7 Confirm with à.
8 Use / to select Firmware Update.
9 Confirm with à.
10 Use / to select Install.
11 Confirm with à.
Service
33
LU UST_EN_US.book Page 34 Mardi, 18. mars 2014 1:31 13
Troubleshooting
1 Switch the device off using the on/off key on the
panel control.
2 Wait at least ten seconds.
3 Switch the device on using the on/off key on the
panel control.
4 If the problem repeats, please contact our technical
customer service or your retailer.
Power Cycling
If a problem occurs that cannot be corrected with the
instructions in this user manual (see also the help
below), follow the steps given here.
Problems
Solutions
The projector cannot be switched on
•
Disconnect and Connect the power supply cable and
try again.
The projector cannot be switched off
•
Disconnect the power supply cable.
No sound
•
check that the speaker is activated (Settings /Sound
setting/Speaker).
•
Adjust the volume using the
remote control.
•
•
•
Check the cables to the external device
Set the volume on the external device
Only the original cables from the device manufacturer may function
No sound from DVB-T program or external HDMI out- •
put device.
Set the audio setting to Multichannel (Raw data) &
Stereo (PCM).
No sound when you connect your computer via HDMI
cable
•
Check that the sound is activated on the computer.
Video display problem when the source is a 3D signal
from a DVD player.
•
Check that the 3D mode is activated on the projector.
If the DVD player is connected to the projector via
HDMI, only use the HDMI sockets (1 or 2) located
on the rear of the device.
No sound from the external connected device
•
Only the initial screen appears and not the image from
the external device
•
•
•
•
Only the initial screen appears and not the image from
the connected computer
•
•
34
/
key on the
Check if the cables are connected to the right sockets.
Please check that the external device is switched on
Check if the video output of the external device is
switched on.
Check that the HDMI source selected on the user
interface corresponds to HDMI connector where
the external device is connected.
Please check that the VGA-output of the computer
is switched on.
Check if the resolution of the computer is set to
1280*800(for VGA connection) or 1080P(for HDMI
connection).
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 35 Mardi, 18. mars 2014 1:31 13
Problems
Solutions
The device turns itself off
•
•
•
The device changes from maximum level of brightness to •
minimum level of brightness when the device is connected over USB to play videos.
•
The device cannot connect with an Android device (for
example a mobile phone/smartphone with the Android
operating system) when connected via USB.
•
When the device is running for a long period of time,
the surface becomes hot and a warning symbol
appears on the projection (see Symbols in the Statusbar, page 9). The device automatically turns off when
it gets too hot. After the device has cooled down,
you can continue playback.
Check that the power cable is connected correctly.
Check the sleep mode status in the setting menu ().
When the sleep mode is activated, the device turn
off after the programmed duration.
When the environment temperature is too high, the
devices turns automatically from maximum level of
brightness to minimum level of brightness in order to
protect the high power LED.
Use the device with lower environment temperatures.
Deactivate the function „USB debugging“ in the settings menu of your Android device before connecting the Projector via USB; your Android device
should be recognized as USB storage medium.
Bad image or color quality when connecting with HDMI •
Use the supplied HDMI cable. Third-party cables
may cause signal distortions.
The device cannot read the SD card.
•
Check that the memory card is compatible (see the
list in the chapter Appendix).
The device cannot read the USB stick
•
•
The device does not support the exFAT file system.
Format the USB key in FAT format, then use it.
The TV icon doesn't appear while the DVB-T module is
installed.
•
Call the hot-line.
Service
35
LU UST_EN_US.book Page 36 Mardi, 18. mars 2014 1:31 13
13 Appendix
Technical Data
Accessories
Dimensions (L×H×W) .................... 287 × 148× 339 mm
Weight ........................................................................... 5,3 kg
Recommended Ambient......................................5 – 35 ºC
Relative Humidity ................15 – 85 % (non-condensing)
File format................................ *.avi, *.mov, *.mp4,*.mkv,
................................................ *.flv, *.ts, *.m2ts, *.3gp
Photo formats ................................. JPEG, BMP, PNG, GIF
Music formats..................................................... MP3, WAV
Video Standard (CVBS)................... PAL, SECAM, NTSC
Video connection .........................................HDMI sockets
Internal speaker ................................................mono 26 W
Internal memory............................................................4 GB
Compatible Memory Cards ......SD/SDHC/SDXC/MMC
USB connection max. power...........................5V, 500mA
Following accessories are available for your device:
PVideo-(CVBS) cable.....................PPA1320 / 253526178
All data are provided for reference purposes only.
Sagemcom Documents SAS reserves the right to
make any changes without prior notice.
Technology / optical
Display technology ...............................WXGA 0.45" DLP
Light source ........................................................... RGB LED
Native resolution......................... 1280 x 800 Pixel (16:9)
Supported Resolutions..................... VGA/SVGA/WVGA
..............................................XGA/WXGA/FULL HD
Projected image size (inch)...........................50 up to 100
Screen distance (mm).................................. 108 up to 441
Display refresh rate ............................. 60Hz/50Hz/120Hz
Power supply
Input .......................................100V-240V, 4.0 A, 50/60HZ
Power consumption....................................................150W
Off mode power consumption .............................. <0,5W
Manufacturer .................................... JQH Group Co., Ltd.
36
Philips · HDP15x0 & HDP15x0TV
LU UST_EN_US.book Page 37 Mardi, 18. mars 2014 1:31 13
Batteries: If your product contains batteries, they
must be disposed of at an appropriate collection point.
The CE marking certifies that the product meets the
main requirements of the European Parliament and
Council directives 1999/5/CE, 2006/95/CE, 2004/108/
CE and 2009/125/CE on information technology equipment, regarding safety and health of users and regarding
electromagnetic interference.
The declaration of compliance can be consulted on the
site www.screeneo.philips.com.
Preservation of the environment as part of a sustainable
development plan is an essential concern of Sagemcom
Documents SAS. The desire of Sagemcom Documents
SAS is to operate systems observing the environment.
The desire of Sagemcom Documents SAS is to operate
systems observing the environment and consequently it
has decided to integrate environmental performances in
the life cycle of this products, from manufacturing to
commissioning use and elimination.
FCC notice: This device has been tested and found to
comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this device does
cause harmful interference to radio or television reception, which can be determined by turning the device off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and
receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
Canada Regulatory Compliance
This device complies with Industry Canada CAN
ICES-3 (B)/NMB-3(B)
Packaging: The presence of the logo (green dot)
means that a contribution is paid to an approved
national organization to improve package recovery and
recycling infrastructures. Please respect the sorting
rules set up locally for this kind of waste.
Appendix
Product: The crossed-out waste bin stuck on the
product means that the product belongs to the family of
electrical and electronic equipment. In this respect, the
European regulations ask you to dispose of it selectively;
• At sales points in the event of the purchase of
similar equipment.
• At the collection points made available to you
locally (drop-off centre, selective collection,
etc.).
In this way you can participate in the re-use and upgrading of Electrical and Electronic Equipment Waste, which
can have an effect on the environment and human
health.
The paper and cardboard packaging used can be disposed of as recyclable paper. Have the plastic wrapping
recycled or dispose of it in the non-recyclable waste,
depending on the requirements in your country.
Trademarks: The mentioned references in this manual are trademarks of the respective companies. The
lack of the trademarks É and Ë does not justify the
assumption that these dedicated terminologies are free
trademarks. Other product names used herein are for
identification purposes only and may be trademarks of
their respective owners. Sagemcom Documents SAS
disclaims any and all rights in those marks.
Neither Sagemcom Documents SAS nor its affiliates
shall be liable to the purchaser of this product or third
parties for damages, losses, costs, or expenses incurred
by the purchaser or third parties as a result of accident,
misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or failure to strictly comply with Sagemcom Documents SAS
operating and maintenance instructions.
Sagemcom Documents SAS shall not be liable for any
damages or problems arising from the use of any
options or any consumable materials other than those
designated as original Sagemcom Documents SAS /
PHILIPS products or Sagemcom Documents SAS /
PHILIPS approved products.
Sagemcom Documents SAS shall not be held liable for
any damage resulting from electromagnetic interference
that occurs from the use of any interface cables other
than those designated as Sagemcom Documents SAS /
PHILIPS products.
All rights reserved. No part of this publication may be
reproduced, stored in a retrieval system or transmitted
in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the
prior written permission of Sagemcom Documents SAS.
The information contained herein is designed only for
use with this product. Sagemcom Documents SAS is not
responsible for any use of this information as applied to
other devices.
This user manual is a document that does not represent
a contract.
Errors, printing errors and changes are reserved.
Copyright © 2014 Sagemcom Documents SAS
37
LU UST_EN_US.book Page 38 Mardi, 18. mars 2014 1:31 13
PHILIPS and the PHILIPS’ Shield Emblem are registered trademarks of Koninklijke Philips N.V.
and are used by Sagemcom Documents SAS under license from Koninklijke Philips N.V.
© 2014 Sagemcom Documents SAS
All rights reserved
Sagemcom Documents SAS
Documents Business Unit
Headquarters : 250, route de l’Empereur
92848 Rueil-Malmaison Cedex · FRANCE
Tel: +33 (0)1 57 61 10 00 · Fax: +33 (0)1 57 61 10 01
www.sagemcom.com
Simplified Joint Stock Company · Capital 8.479.978 € · 509 448 841 RCS Nanterre
HDP15x0 & HDP15x0TV
EN-US
253592375-B
