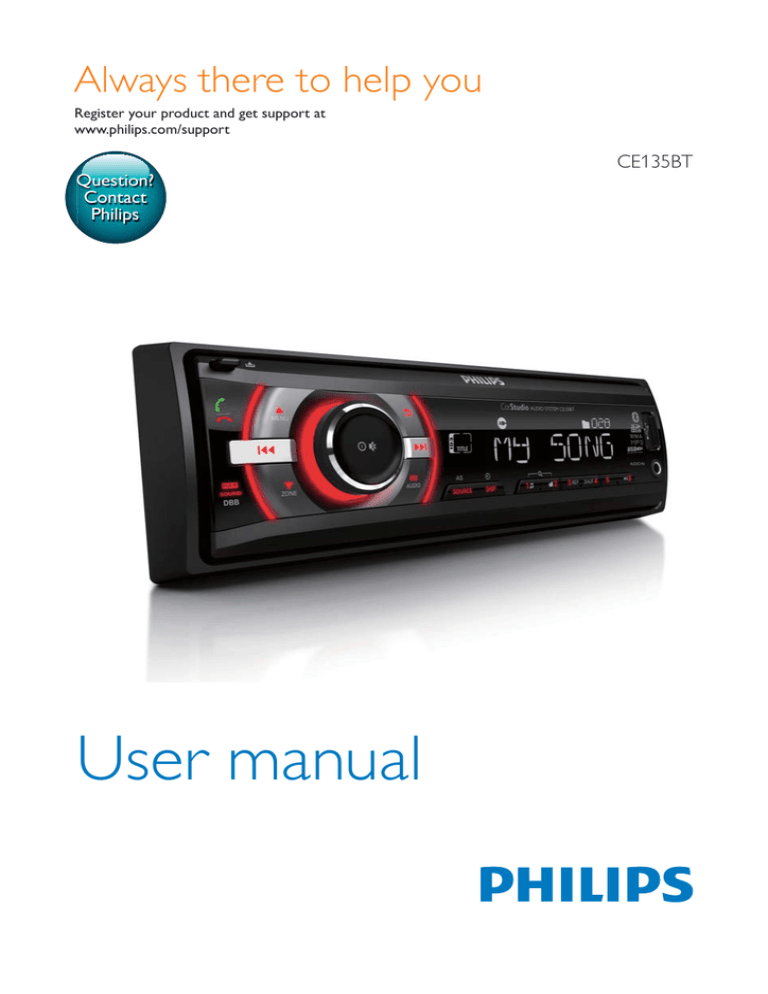

Always there to help you
Register your product and get support at
www.philips.com/support
Question?
Contact
Philips
User manual
CE135BT
English
Contents
1 Safety
2
11 Reset the system
16
2 Your car audio system
3
3
3
4
12 Product information
17
17
13 Troubleshooting
18
6
7
8
9
14 Notice
19
19
19
19
19
Introduction
What's in the box
Overview of the system
3 Install the car audio system
Connect wires
Mount into the dashboard
Attach the front panel
4 Get started
)RUWKHÀUVWWLPHXVH
Set the clock
Select a source
5 Listen to radio
Select a tuner region
Select a tuner sensitivity
Enable the RDS function
Search for a radio station
Store radio stations in memory
Compliance
Care of the environment
Trademark notice
Copyright
10
10
10
10
10
10
11
11
11
6 Play from a storage device
12
7 Use Bluetooth devices
13
13
14
14
Connect a device
Play audio from a Bluetooth device
Make a call
Product Information
8 Listen to an external device
15
9 Charge your USB device
15
10 Adjust sound
16
EN
1
1 Safety
Read and understand all instructions before you
use this device. If damage is caused by failure to
follow instructions, the warranty does not apply.
‡ 0RGLÀFDWLRQRIWKHSURGXFWFRXOGUHVXOW
in hazardous radiation of EMC or other
unsafe operation.
‡ The device is designed for negative ground
(earth) 12 V DC operation only.
‡ To ensure safe driving, adjust the volume to
a safe and comfortable level.
‡ Improper fuses can cause damage or
ÀUH:KHQ\RXQHHGWRFKDQJHWKHIXVH
consult a professional.
‡ Use only the supplied mounting hardware
for a safe and secure installation.
‡ To avoid short circuits, do not expose the
device to rain or water.
‡ The device shall not be exposed to
dripping or splashing.
‡ Do not place any sources of danger on
WKHGHYLFHHJOLTXLGÀOOHGREMHFWVOLJKWHG
candles).
‡ Never insert objects into the ventilation
slots or other openings on the device.
‡ Clean the device with soft, damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners on the
device.
2
EN
Introduction
With this system, you can:
‡ enjoy audio from USB storage devices, SD/
SDHC card, and other external players,
and Bluetooth device.
‡ listen to radio stations.
You can enrich sound output with these sound
effects:
‡ Dynamic bass boost (DBB)
‡ Digital sound control (DSC)
Playable media:
‡ USB storage device
‡ Compatibility: USB 2.0, USB 1.1
‡ Class support: MSC (Mass Storage
Class)
‡ Maximum capacity: 32 GB
‡ SD/SDHC card
‡ Maximum capacity: 32 GB
‡ Files
‡ File system: FAT16, FAT32
‡ Maximum number of folders: 99
‡ 0D[LPXPQXPEHURIWUDFNVÀOHV
‡ Maximum level of directory: 8
‡ PSÀOHV
Sampling frequencies: 32 kHz, 44.1 kHz,
48 kHz
Bitrates: 8-320 kbps and variable
bitrates
‡ ZPDÀOHV
Versions: V4, V7, V8, V9 (L1 and L2)
Sampling frequencies: 44.1 kHz, 48 kHz
Bitrates: 64-192 kbps and variable
bitrates
‡ ID3 tag V2.0 or later
‡ 8QVXSSRUWHGÀOHV
$$&:$9DQG3&0ÀOHV
'50SURWHFWHG:0$ÀOHVZDYPD
.m4p, .mp4, and .aac)
:0$ÀOHVLQORVVOHVVIRUPDW
What's in the box
Check and identify the contents of the package:
a
b
c
d
e
f
a Main unit (with a sleeve)
b Carrying case (with front panel included)
c Trim plate
d Disassembly tool X 2
e ISO male connector X 2
f User manual
EN
3
English
2 Your car audio
system
Overview of the system
a
b
t s r q
c
p
o
d
l k j i h g
n m
u
f
v
e
a
‡ Connect to a USB storage device.
‡ Unlock the front panel.
b
‡ For .wma and .mp3 tracks, press to
select the previous folder.
‡ Press and hold to access the system
menu.
‡ Press to select a tuner band.
c
‡ Return to the previous menu.
d LCD screen
4
e
EN
f AUDIO IN
‡ Connect to the audio output socket
(usually the headphone socket) of an
external device.
g
‡ Start, pause, or resume the play of
tracks.
‡ In radio mode, press to select the
preset radio station of No. 6.
‡ In radio mode, press and hold to store
the current radio station at channel
No. 1.
‡ For .wma and .mp3 tracks, press to
access the track list.
h
‡ In radio mode, press to select the
preset radio station of No. 5.
‡ In radio mode, press and hold to store
the current radio station at channel
No. 5.
m
i
‡ In radio mode, press to select the
preset radio station of No. 4.
‡ In radio mode, press and hold to store
the current radio station at channel
No. 4.
‡ For .wma and .mp3 tracks, press
repeatedly to select a play mode: play
all tracks randomly ([SHU ALL]), play
tracks in the current folder randomly
([SHU FLD]), or play all tracks in the
storage device in sequence ([SHU
OFF]).
j
‡ In radio mode, press to select the
preset radio station of No. 3.
‡ In radio mode, press and hold to store
the current radio station at channel
No. 3.
‡ For .wma and .mp3 tracks, press
repeatedly to select a repeat mode:
repeat the current track ([REP ONE]),
repeat all tracks in the current folder
([RPT FLD]), or repeat all tracks in the
storage device ([RPT ALL]).
n AS/SOURCE
‡ Press repeatedly select a source.
‡ In radio mode, press and hold to
activate the automatic search of radio
stations.
o
‡ Press repeatedly to select a preset
sound equalizer.
‡ Press and hold to activate the setup of
bass, treble, balance, and fader.
p
‡ Press to turn on the system.
‡ Press and hold to turn off the system.
‡ Press to mute the speakers or release
them from mute status.
‡ 3UHVVWRFRQÀUPDQRSWLRQ
‡ Rotate to switch between menu
options.
‡ Rotate to adjust the volume level.
q
‡ For .wma and .mp3 tracks, press to
select the next folder.
‡ Press and hold to activate the selection
of listening zones.
‡ Press to select a tuner band.
k
‡ In radio mode, press to select the
preset radio station of No. 2.
‡ In radio mode, press and hold to store
the current radio station at channel
No. 2.
‡ For .wma and .mp3 tracks, press to
access the folder list.
l
‡ In radio mode, press to select the
preset radio station of No. 1.
/DSP
‡ Press repeatedly to display available
information about the current track.
‡ Press repeatedly to display available
RDS information.
‡ Press and hold to display the set clock.
r
/
‡ Tune to a radio station.
‡ Press to skip to the previous/next
track.
‡ Press and hold to rewind a track or
search fast forward.
EN
5
English
‡ In radio mode, press and hold to store
the current radio station at channel
No. 6.
s
‡ Press to enable or disable the
maximum volume.
‡ Press and hold to enable or disable
the DBB (dynamic bass boost) sound
effect.
t
/
‡ Press to hang up a call.
‡ Press and hold to reject an incoming
call.
u Slot for SD/SDHC card
‡ Insert an SD/SDHC card.
v RESET
‡ Press to reset the system to factory
default settings.
3 Install the car
audio system
Caution
‡ Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in
sequence.
These instructions are for a typical installation.
However, if your car has different requirements,
make the adjustment accordingly. If you have
any question regarding installation kits, consult
your local retailer.
Note
‡ This system is designed for negative ground (earth) 12V
DC operation only.
‡ Always install this system in the car dashboard. Other
‡
‡
‡
‡
‡
‡
‡
‡
‡
‡
6
EN
locations can be dangerous as the rear of the system
heats up during use.
To avoid short-circuit: before you connect, make sure
that the ignition is off.
Make sure that you connect the yellow and red power
supply leads after all other leads are connected.
Make sure that all loose leads are insulated with
electrical tape.
Make sure that the leads do not get caught under
screws iron parts that will move (e.g. seat rail).
Make sure that all ground (earth) leads are run to a
common ground (earth) point.
Use only the supplied mounting hardware for a safe
and secure installation.
,PSURSHUIXVHVFDQFDXVHGDPDJHRUÀUH:KHQ\RX
need to change the fuse, consult a professional.
When you connect other devices to this system, make
sure that the rating of the car circuit is higher than the
total fuse value of all the connected devices.
Never connect speaker wires to the metal body or
chassis of the car.
Never connect speaker wires with stripes to one
another.
Yellow strip
To the +12V car
battery which is
energized at all
times
Note
‡ Make sure that all loose leads are insulated with
electrical tape.
‡ Consult a professional to connect wires as instructed
2
below.
English
i
Connect wires
&RQQHFWWKHDQWHQQDDQGDPSOLÀHUDV
illustrated, if applicable.
e
1
Check the car's wiring carefully and
connect them to the the ISO male
connectors.
L
REAR
R
d
ISO male
connectors
Connect to
Rear left speaker
e
Green strip, blackedged green strip
White strip, blackedged white strip
Gray strip, blackedged gray strip
Purple strip, blackedged purple strip
Red strip
f
Blue strip
a
b
c
d
g
h
White-edged blue
strip
Black strip
Front left speaker
1
Front right speaker
2
3
4
5
Rear right speaker
Ignition key +12V
DC when ON/
ACC
Motor/electric
antenna relay
control lead
$PSOLÀHUUHOD\
control lead
Ground
c b
a
Sockets on rear panel
External sockets or
connectors
For ISO male
connectors
REAR L
REAR R
ANTENNA
Purple strip
As indicated
above
Rear left speaker
Rear right speaker
Antenna
OE remote
control module
Tip
‡ The pin arrangement for the ISO connectors depends
on the type of your vehicle. To avoid damage to the
unit, connect properly.
EN
7
Mount into the dashboard
‡
1
18
53.5 mm
‡
If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
If the car battery is not disconnected, to
avoid short-circuit, make sure that the bare
wires do not touch each other.
3m
m
Make sure that the car dashboard opening
is within these measurements:
m
5m
Slide the unit into the dashboard until you
hear a "click".
5
Attach the trim plate.
mm
53mm
183
4
2
Remove the mounting sleeve with the
supplied disassembly tools.
3
Install the sleeve into the dashboard and
EHQGWKHWDEVRXWZDUGWRÀ[WKHVOHHYH
8
EN
Reconnect the negative terminal of the car
battery.
Detach the front panel
English
6
Note
Attach the front panel
‡ Before you insert an SD/SDHC card or reset the
1
‡ Before you detach the front panel, make sure that the
Insert the notch on the front panel to the
chassis on the main unit.
system, detach the front panel.
system is turned off.
1
2
2
Press
to release the front panel.
Pull the front panel outwards to remove it.
Press the left end of the front panel
inwards until it is securely locked with a
"click".
EN
9
4 Get started
5 Listen to radio
)RUWKHÀUVWWLPHXVH
Select a tuner region
1
You can select a radio region that matches your
location.
Press
to turn on the system.
» [PHILIPS] is displayed and the device
turns to radio mode automatically.
Set the clock
1
Press and hold
menu.
2
Press / repeatedly until [CLK] is
displayed with time digits blinking.
3
4
Rotate
anti-clockwise to set the hour.
Rotate
clockwise to set the minute.
1
Press and hold
menu.
2
Press /
repeatedly until one of the
following options is displayed.
‡ [AREA EUROPE] (Western Europe)
‡ [AREA ASIA] $VLD3DFLÀF
‡ [AREA M--EAST] (Middle East)
‡ [AREA AUST] (Australia)
‡ [AREA RUSSIA] (Russia)
‡ [AREA USA] (United States)
‡ [AREA LATIN] (Latin America)
3
Rotate to select a region.
to access the system
to access the system
Select a source
Press AS/SOURCE repeatedly to select a
source.
‡ [RADIO]: Listen to FM/AM radio.
‡ [AUDIO IN]: Listen to the audio input
through the AUDIO IN socket.
‡ [USB]: When a USB storage device is
connected and recognized, you can select
WKLVVRXUFHWRSOD\DXGLRÀOHVWKDWDUH
stored on it.
‡ [SD/SDHC]: When an SD/SDHC card is
inserted and recognized, you can select this
VRXUFHWRSOD\DXGLRÀOHVWKDWDUHVWRUHG
on it.
10
EN
Select a tuner sensitivity
To search for radio stations with strong signals
only or more radio stations, you can change the
tuner sensitivity.
1
Press and hold
menu.
2
Press / repeatedly until [LOC ON]
or [LOC OFF] is displayed.
3
Rotate
to select a setting.
‡ [LOC ON]: Search for radio stations
with strong signals only.
‡ [LOC OFF]: Search for radio stations
with strong and weak signals.
to access the system
Note
‡ The RDS function is enabled by default.
‡ Only when the RDS function is enabled, RDS related
settings can be accessed.
1
Press and hold
menu.
2
Press / repeatedly until [RDS ON] or
[RDS OFF] is displayed.
3
Rotate
to select [RDS ON].
» The RDS function is enabled.
‡ To disable the RDS function, rotate
to select [RDS OFF].
Store radio stations automatically
1
2
Switch the source to [RADIO].
3
Press and hold AS/SOURCE until
[STORE---] is displayed.
» After the search is complete, the
ÀUVWVWRUHGUDGLRVWDWLRQLVEURDGFDVW
automatically.
to access the system
Search for a radio station
Search for a radio station
automatically
Press
or
to search for the previous or
next radio station with strong signals.
Press BAND,
a band.
, or
repeatedly to select
‡ To select a stored radio station, press
,
,
,
, , or
.
Store radio stations manually
1
Press BAND,
a tuner band.
2
Tune to the radio station that you want to
store.
3
Press and hold ,
,
,
,
, or
to store the radio station at the
selected channel.
‡ To select a stored radio station, press
,
,
,
, , or
.
, or
repeatedly to select
Search for a radio station manually
1
2
Press and hold
or
until [M] blinks.
Press
or
repeatedly until the target
frequency is displayed.
Store radio stations in
memory
Note
‡ You can store a maximum of six stations in each band.
EN
11
English
Enable the RDS function
6 Play from a
storage device
Button
/
/
/
/DISP
1
Connect a compatible USB storage device
or SD/SDHC card.
‡ For an SD/SDHC card, detach the
IURQWSDQHOÀUVWLQVHUWWKHFDUGLQWR
the card slot, and then attach the front
panel.
2
Switch the source to [USB] or [SD/
SDHC].
3
If the play does not start, press
12
EN
.
Function
Press repeatedly to select a folder.
Pause or resume play.
Press to play the previous or next
track.
Press and hold to rewind a track
or search forward fast.
Press repeatedly to display
available information about the
current track.
Press repeatedly to select a repeat
mode:
‡ [REP ONE]: repeat the current
track,
‡ [RPT FLD]: repeat all tracks in
the current folder, or
‡ [RPT ALL]: repeat all tracks in
the storage device.
Press repeatedly to select a play
mode:
‡ [SHU ALL]: play all tracks
randomly,
‡ [SHU FLD]: play tracks in the
current folder randomly, or
‡ [SHU OFF]: play all tracks in the
storage device in sequence.
7 Use Bluetooth
devices
English
» If the connection fails, [FAILED] is
displayed on the LCD screen of this
system.
Disconnect a device
With this car audio system, you can listen to
audio from a player or make a call through
Bluetooth.
1
Press and hold MENU to access the
system menu.
2
Press / repeatedly until [DISCONN]
is displayed.
Connect a device
3
Press
.
» [WAIT] is displayed with -, --, and
--- blinking alternately until [DISCNN
OK] scrolls.
Note
‡ WOOX Innovations does not guarantee the
Tip
compatibility with all Bluetooth devices.
‡ Before pairing a device with this system, read its user
manual for Bluetooth compatibility.
‡ You can also complete the disconnection on your
device.
‡ Make sure that Bluetooth function is enabled on your
‡
‡
‡
‡
device, and your device is set as visible to all other
Bluetooth devices.
At one time, you can connect only one Bluetooth
device to this system.
The operational range between this system and a
Bluetooth device is approximately 3 meters (9 feet).
Any obstacle between this system and a Bluetooth
device can reduce the operational range.
Keep away from any other electronic device that may
cause interference.
On your device, follow the steps below.
1
2
3
Search for Bluetooth devices.
4
Enable or permit the connection with
CE135BT.
» If the connection succeeds,
[CONNECTED] scrolls and is
displayed on the LCD screen of this
system.
In the device list, select CE135BT.
Enter the default password "0000", and
WKHQFRQÀUPWKHSDVVZRUGHQWU\
» If the pairing succeeds, [PAIRED] is
displayed on the LCD screen of this
system.
Reconnect a device
Some Bluetooth devices support the automatic
reconnection with a paired Bluetooth device.
If your device does not support automatic
reconnection, reconnect it with this system
manually.
1
Press and hold MENU to access the
system menu.
2
Press / repeatedly until [CONNECT]
is displayed.
3
Press
.
» [WAIT] is displayed with -, --,
and --- blinking alternately until
[CONNECTED] scrolls or [FAILED]
appears.
» If [CONNECTED] scrolls, this system
is reconnected to the last connected
device.
EN
13
Tip
‡ You can also complete the reconnection on your
device.
Pick up an incoming call
When the system receives an incoming call, the
phone number or [PHONE IN] is displayed.
Press
Play audio from a Bluetooth
device
If the connected Bluetooth device supports
$GYDQFHG$XGLR'LVWULEXWLRQ3URÀOH$'3
you can listen to tracks that are stored on the
device through the system. If the device also
VXSSRUWV$XGLR9LGHR5HPRWH&RQWURO3URÀOH
$95&3SURÀOH\RXFDQFRQWUROSOD\RQWKH
system or with its remote control.
1
2
Play a track on the connected device.
Press SOURCE repeatedly to switch the
source to [BT AUDIO].
» Play starts automatically.
‡ To pause or resume play, press
.
‡ To skip to the previous or next track,
press
/
.
Note
‡ If the connected device does not support the AVRCP
SURÀOHFRQWUROSOD\RQWKHFRQQHFWHGGHYLFH
Make a call
Note
‡ Keep the Bluetooth connection active between the
system and your mobile phone.
Call a number
On your mobile phone, call a number.
» [CALLING] is displayed.
14
EN
to answer the call.
Reject an incoming call
Press and hold
until [END] is displayed.
End a call
To end an on-going call, press
.
9 Charge your
USB device
You can use the system to amplify the audio
input from an external device, for example,
MP3 player.
You can charge your USB device, for example,
smart phone, with this product.
English
8 Listen to an
external device
Note
‡ The output voltage through the USB socket is 5 V with
output current 1.0 A.
AUDIO-IN
Connect your USB device to this product with
USB cable. Once the USB device is connected
and recognized, it begins to charge automatically.
1
2
Switch the source to AUDIO IN.
3
Play the external device.
Connect an audio in cable to
‡ the AUDIO IN socket on the system,
and
‡ the audio output socket (usually the
headphone socket) on the external
device.
EN
15
10 Adjust sound
11 Reset the
system
The following operations are applicable to all
supported media.
Button
Function
Rotate to increase or decrease the
volume level.
Press to mute the speakers or release
them from mute status.
Press to enable or disable the
maximum volume.
Press and hold to enable or disable
the Dynamic Bass Boost (DBB) effect.
Press repeatedly to select a sound
equalizer.
1 Press and hold to activate the setup
of customized sound equalizer.
2 Press repeatedly to select an option:
[BAS] (bass), [TRE] (treble), [BAL]
(balance), or [FAD] (fader).
3 Rotate
16
EN
to adjust the setting.
If the system works abnormally, reset the
system to factory default settings.
1
2
Detach the front panel.
Press the RESET button with the tip of a
ball-point pen or toothpick.
» All settings are reset to factory default.
Note
‡ Product information is subject to change without prior
Bluetooth
Output
power
Frequency
band
Range
Standard
Class 2
2.4000 GHz - 2.4835 GHz ISM
Band
3 meters(free space)
%OXHWRRWKVSHFLÀFDWLRQ
notice.
Product Information
General
Power supply
Fuse
Suitable speaker
impedance
Maximum power
output
Continuous power
output
Pre-Amp output
voltage
Aux-in level
Dimension (Wx H x D)
Weight
12 V DC (11 V - 16
V), negative ground
15 A
4-8
50 W x 4
22 W x 4 RMS (4
10% T.H.D.)
2.5 V
500 mV
188 x 58 x 110 (mm)
0.63 kg
Radio
Frequency range
- FM
Usable sensitivity FM (S/N = 20 dB)
Frequency range AM(MW)
Usable sensitivity AM(MW) (S/N =
20 dB)
87.5 - 108.0 MHz
(100kHz per step in auto
search and 50kHz per
step in manual search)
8 μV
522 - 1620 KHz (9 kHz)
530 - 1710 kHz (10 kHz)
30 μV
Compatible USB devices:
‡ 86%ÁDVKPHPRU\86%KRVWZLWK
interface reading all speed support
(1.1, 2.0)
‡ 86%ÁDVKSOD\HUV86%KRVWZLWK
interface reading all speed support
(1.1, 2.0)
Supported formats:
‡ 86%RUPHPRU\ÀOHIRUPDW)$7
FAT16, FAT32
‡ MP3 bit rate (data rate): 32-320 Kbps
and variable bit rate
‡ WMA V4, V7, V8, V9 (L1, L2)
‡ MP3 sampling frequencies: 8-48 kHz
‡ MP3 Bit-rates: 8~320 (kbps), variable
bit rates
‡ WMA sampling frequencies: 32 kHz,
44.1 kHz, 48 kHz
‡ WMA Bit-rates: 32~192 (kbps),
variable bit rates
‡ Directory nesting up to a maximum of
8 levels
‡ Number of albums/folders: CD
maximum 99, USB or memory
maximum 99
‡ Number of tracks/titles: CD maximum
999 (depending on number of album),
USB or memory maximum 999
‡ ID3 tag v2.0 or later
Unsupported formats:
‡ Empty albums: an empty album is an
album that does not contain MP3/
:0$ÀOHVDQGLVQRWEHVKRZQLQWKH
display.
EN
17
English
12 Product
information
‡ 8QVXSSRUWHGÀOHIRUPDWVDUHVNLSSHG
For example, Word documents (.doc)
RU03ÀOHVZLWKH[WHQVLRQGOIDUH
ignored and not played.
‡ $$&:$93&0DXGLRÀOHV
‡ '50SURWHFWHG:0$ÀOHVZDYPD
.m4p, .mp4, .aac)
‡ :0$ÀOHVLQ/RVVOHVVIRUPDW
13 Troubleshooting
Warning
‡ Never remove the casing of this product.
To keep the warranty valid, never try to repair
the product yourself.
If you encounter problems when using this
product, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact the
Consumer Care, make sure that the product
is nearby and the model number and serial
number are available.
No power or no sound
‡
The power supply from car battery is cut
off, or the car battery runs out of energy.
Power the system with car battery.
‡
Car engine is not on. Turn the car engine
on.
‡
Cable is not correctly connected. Check
connections.
‡
The fuse is burnt. Replace the fuse.
‡
Volume is too low. Adjust volume.
‡
If the above solutions cannot help, press
the RESET button.
‡
Make sure that the current track is in a
compatible format.
Noise during broadcast
‡
Signals are too weak. Select other stations
with stronger signals.
‡
Check the connection of the car antenna.
‡
Change the broadcast setting from stereo
to mono.
Preset stations are erased.
‡
Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
18
EN
Display shows ERR-12.
‡
Data error. Check the USB storage device
or SD/SDHC card.
$Q\FKDQJHVRUPRGLÀFDWLRQVPDGHWRWKLV
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Compliance
This product complies with the radio
interference requirements of the European
Community.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
A copy of the EC declaration of Conformity
is available in the Portable Document Format
(PDF) version of the user manual at www.
philips.com/support.
Trademark notice
Care of the environment
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
Other trademarks and trade names are those
of their respective owners.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Copyright
2014 © WOOX Innovations Limited. All rights
reserved.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Philips and the Philips’ Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
and are used by WOOX Innovations Limited
under license from Koninklijke Philips N.V.”
6SHFLÀFDWLRQVDUHVXEMHFWWRFKDQJHZLWKRXW
notice. WOOX reserves the right to change
products at any time without being obliged to
adjust earlier supplies accordingly.
EN
19
English
14 Notice
Specifications are subject to change without notice
2014 © WOOX Innovations Limited. All rights reserved.
Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by
WOOX Innovations Limited under license from Koninklijke Philips N.V.
CE135BT_10_UM_V2.0
