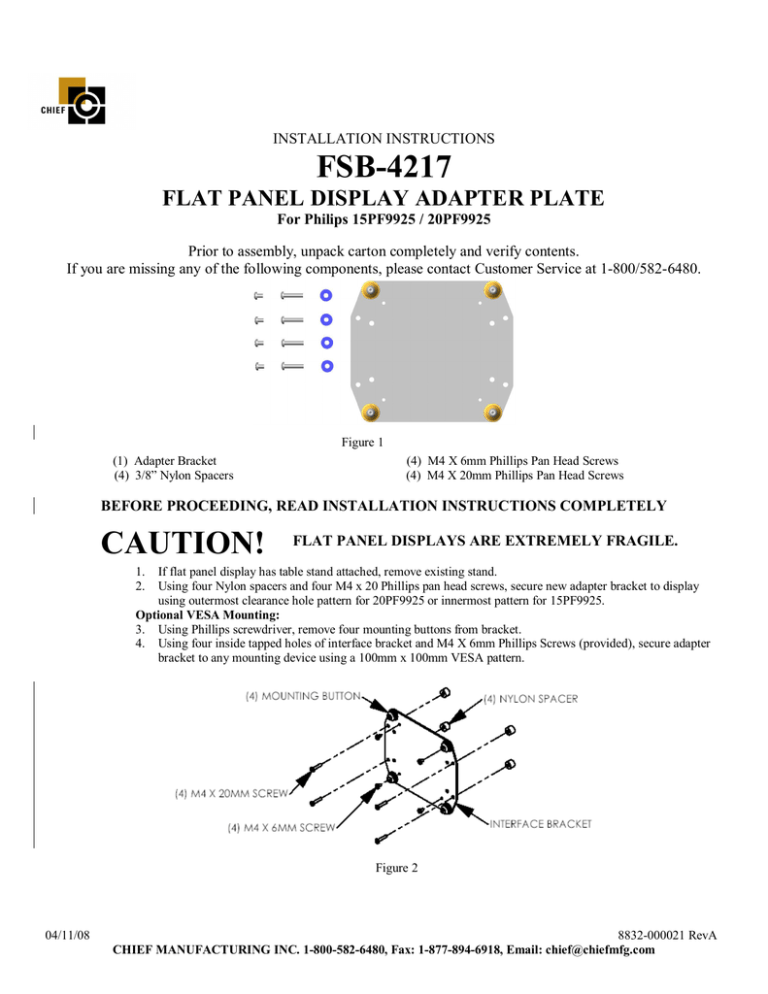

INSTALLATION INSTRUCTIONS
FSB-4217
FLAT PANEL DISPLAY ADAPTER PLATE
For Philips 15PF9925 / 20PF9925
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480.
Figure 1
(1) Adapter Bracket
(4) 3/8” Nylon Spacers
(4) M4 X 6mm Phillips Pan Head Screws
(4) M4 X 20mm Phillips Pan Head Screws
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
FLAT PANEL DISPLAYS ARE EXTREMELY FRAGILE.
1.
2.
If flat panel display has table stand attached, remove existing stand.
Using four Nylon spacers and four M4 x 20 Phillips pan head screws, secure new adapter bracket to display
using outermost clearance hole pattern for 20PF9925 or innermost pattern for 15PF9925.
Optional VESA Mounting:
3. Using Phillips screwdriver, remove four mounting buttons from bracket.
4. Using four inside tapped holes of interface bracket and M4 X 6mm Phillips Screws (provided), secure adapter
bracket to any mounting device using a 100mm x 100mm VESA pattern.
Figure 2
04/11/08
8832-000021 RevA
CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com
