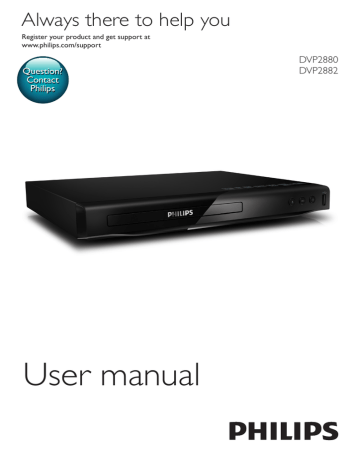

Always there to help you
Register your product and get support at
www.philips.com/support
Question?
Contact
Philips
User manual
DVP2880
DVP2882
1 Hookup and play
EN
2
Before you connect this DVD player, read and understand all accompanying instructions.
1
HDMI VIDEO OUT
COAXIAL
AUDIO
AU
UDIO OUT
3
2
HDMI
HDMI
VIDEO OUT + AUDIO OUT
L
R
VIDEO OUT
VIDE
UT
SCART
4
3
4
5
2
SOURCE
TV
5
6
2
1
DVD
VCD
CD
MP3 / JPEG
3
4
DISC
Setup
USB
DISC
1
USB
2
3
4
6
DISC
USB
USB
Setup
Contents
1 Hookup and play 2-6
2 Use your DVD player 8
8
9
9
9
9
10
10
3 Change settings 11
11
11
12
Basic play control Video options Play a musical slideshow Repeat play Skip play Play DivX videos Use Philips EasyLink General (sleep, standby...) Picture Sound Preference (languages, parental
control...) 12
4 Software update 13
5 Specifications 14
6 Troubleshooting 15
7 Safety and important notice 16
EN
7
2 Use your DVD
player
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
During play, press the following buttons to
control the player.
Button
DISC MENU
OPTIONS
Basic play control
/
OK
BACK
STOP
/
SUBTITLE
GOTO
AUDIO
VOLUME
REPEAT/REPEAT
A-B
8
EN
Action
Turn on the player, or
switch to standby.
Open or close the disc
compartment.
Access the home menu.
Access or exit the disc
menu.
Access more options
during video play.
Navigate the menus.
Slow forward or backward.
Press repeatedly to change
a search speed.
Navigate the menus.
Fast forward or backward.
Press repeatedly to change
a search speed.
Confirm a selection or
entry.
Return to a previous
display menu.
Stop play.
Start, pause or resume play.
Skip to the previous or
next track, chapter or file.
Select a subtitle language.
Skip to a title, a chapter or
a track.
Select an audio language or
channel.
Fit the picture display to
the TV screen.
Zoom the picture in or out.
Activate volume control,
and then press
/
to
change a volume level.
Select a repeat play option.
Video options
Repeat play
During video play, press
OPTIONS to
access the following options.
• [Info]: Display the current play information.
• [PBC]: Display or skip the content menu
for VCD and SVCD.
• [Aspect ratio]: Select a picture display
format to fit the TV screen.
• [Volume]: Change a volume level.
• [Angle]: Select a camera angle from which
video is viewed.
During play, press REPEAT/REPEAT A-B
repeatedly to select a repeat play option.
• Repeat the current title, chapter, or track.
• Repeat all the contents on a disc or a USB
storage device.
• Repeat play for a specific section.
Play a musical slideshow
Play music and pictures simultaneously to create
a musical slideshow.
1
From a disc or connected USB storage
device, play a music file.
2
3
Press
1
2
3
to navigate to the picture files.
Select a picture from the same disc or
USB, and press OK to start slideshow.
4
5
To Repeat play for a specific section
Press
to stop slideshow.
Press
again to stop music play.
Press REPEAT/REPEAT A-B repeatedly to
select
as a start point.
Press REPEAT/REPEAT A-B again to select
as an end point.
»» The repeat play of the marked section
starts.
To cancel repeat play, press REPEAT/
REPEAT A-B until [Off] is displayed.
Note
•• Repeat play of the marked section is only possible
within a title or track.
Control photo play
Skip play
During a photo slideshow, use the remote
control to control the play.
You can skip play to a specific title, chapter or
track.
Button
/
OPTIONS
OK
Action
Rotate a picture horizontally/
vertically.
Rotate a picture anti-clockwise/
clockwise.
Access to select [Color] to
display a picture in color or black
and white.
Access to select [Photo preview]
to display pictures in thumbnail.
Zoom in or out of a photo.
Play pauses in zoom mode.
Start or resume a play.
Stop a play.
1
2
3
4
5
During play, press GOTO.
»» An input field bar is displayed, and "0"
blinks.
Press
to select a digit as a title,
chapter, or track number.
After a digit is selected, press
change a digit position.
/
to
If necessary, repeat step 2 and 3 to
complete the input of a title, chapter, or
track number.
Press OK.
»» The play skips to the selected title,
chapter or track.
EN
9
Play DivX videos
Use Philips EasyLink
You can play DivX videos from a disc or a USB
storage device.
This player supports Philips EasyLink which
uses the HDMI CEC (Consumer Electronics
Control) protocol. You can use a single remote
control to control EasyLink compliant devices
that are connected through HDMI. Philips does
not guarantee 100% interoperability with all
HDMI CEC devices.
VOD code for DivX
• Before you purchase DivX videos and play
them on this player, go to vod.divx.com to
register this player using the DivX VOD
code.
• Display the DivX VOD code: press , and
select [Setup] > [General] > [DivX(R)
VOD Code].
DivX subtitles
• Press SUBTITLE to select a language.
• If subtitles are not displayed correctly,
change the character set that supports
DivX subtitles. Select a character set: press
, and select [Setup] > [Preference] >
[DivX Subtitle].
Character
set
Languages
[Standard]
English, Albanian, Danish, Dutch,
Finnish, French, Gaelic, German,
Italian, Kurdish (Latin), Norwegian,
Portuguese, Spanish, Swedish, and
Turkish
Albanian, Croat, Czech, Dutch,
English, German, Hungarian, Irish,
Polish, Romanian, Slovak, Slovene,
and Serbian
Bulgarian, Belorussian, English,
Macedonian, Moldavian, Russian,
Serbian, and Ukrainian
Greek
[Central
Europe]
[Cyrillic]
[Greek]
Note
•• To play DivX DRM protected files from a USB storage
device, connect this player to a TV through HDMI.
•• To use the subtitles, make sure that the subtitle file
has the same name as the DivX video file name. For
example, if the DivX video file is named “movie.avi",
save the subtitle file as “movie.srt”, or “movie.sub”.
•• This player can play subtitle files in the following
formats: .srt, .sub, .txt, .ssa, and .smi.
10
EN
1
2
3
4
Connect the HDMI CEC compliant devices
through HDMI, and turn on the HDMI
CEC operations on the TV and other
connected devices (see the user manual of
the TV or other devices for details).
Press
.
Select [Setup]> [Video] > [HDMI Setup]
> [EasyLink Setup].
Select [On] under the options: [EasyLink],
[One Touch Play] and [One Touch
Standby].
»» EasyLink function is turned on.
One Touch Play
When you play a disc on this player, the TV
automatically switches to the correct video
input source.
One Touch Standby
When a connected device (for example TV)
is put to standby with its own remote control,
this player is put to standby automatically.
3 Change settings
• [Auto Standby]: Enable or disable
auto standby. If enabled, this player
switches automatically to standby after
15 minutes of inactivity (for example, in
pause or stop mode).
• [DivX(R) VOD Code]: Display
the DivX® registration code and
deregistration code.
This section helps you change the settings of
this player.
1
2
MP3
Disc
USB
Setup
Setup
General
3
Video
Audio
Disc Lock
OSD Language
Sleep Timer
Auto Standby
DivX(R) VOD Code
Unlock
English
Off
On
Registration
Preference
Note
•• You cannot change a menu option that is grayed out.
•• To access [Preference], stop the disc play.
•• To return to the previous menu, press . To exit the
menu, press
.
General (sleep, standby...)
1
2
Press
.
Select [Setup] > [General] to access the
general setup options.
• [Disc Lock]: Lock or unlock a disc for
play. To play a locked disc, you need
to input your password: press
to enter a digit, and press
/
to
change a digit position. The default
password is "136900".
• [OSD Language]: Select a language for
on-screen menu.
• [Sleep Timer]: Set a period of time for
this player to switch automatically to
standby mode from play.
1
2
Press
.
Select [Setup] > [Video] to access the
video setup options.
• [TV System]: Select a TV system that
matches your TV. By default, this setting
matches the common TVs in your
country.
• [Aspect ratio]: Select a picture display
format to fit the TV screen.
• [Picture Setting]: Select a predefined
color setting, or customize a setting.
• [HD JPEG]: Enable this feature to view
high-definition pictures through HDMI
connection.
• [HDMI Setup]: Set up for HDMI
connection.
• [Resolution]: Select a resolution
for high definition videos.
• [HDMI Deep Color]: Create
vivid images with more color
details when the video content is
recorded in Deep Color and the
TV supports this feature.
• [Wide Screen]: Select a display
format for wide screen videos.
• [EasyLink Setup]: See “Use your
DVD player” > “Use Philips
EasyLink” for details.
EN
11
Sound
1
2
Press
.
Select [Setup] > [Audio] to access the
audio setup options.
• [Analogue Output]: Select an audio
format for sound output when this
player is connected through the
AUDIO OUT L/R connectors.
• [Digital Audio]: Select an audio format
for sound output when this player is
connected through the COAXIAL
connector.
• [Digital Output]: Select a type
of digital output: [Off] - Disable
digital output; [All] - Support
multi-channel audio formats; [PCM
Only] - Downmix to two-channel
audio signal.
• [LPCM Output]: Select a LPCM
(Linear Pulse Code Modulation)
output sampling rate. The higher
the sampling rate, the better the
sound quality. [LPCM Output] is
enabled only when [PCM Only] is
selected under [Digital Output].
• [HDMI Audio]: Enable or disable
the audio output through HDMI
connection.
• [Audio Sync]: Set a delay time for
audio output to match the video play.
• [Volume]: Change a volume level.
• [Sound Mode]: Select a preset sound
effect.
• [Night Mode]: Select quiet or full
dynamic sound. Night mode decreases
the volume of loud sound and
increases the volume of soft sound
(such as speech).
Note
•• Night mode is only available for Dolby encoded DVD
discs.
12
EN
Preference (languages,
parental control...)
1
2
Press
.
Select [Setup] > [Preference] to access
the preference setup options.
• [Audio]: Select an audio language for
video.
• [Subtitle]: Select a subtitle language for
video.
• [Disc Menu]: Select a menu language
for a video disc.
• [Parental Control]: Restrict access to
discs that are encoded with ratings.
Input "136900" to access the restriction
options: When the password field
is highlighted, press OK to enter an
input stage, press
to select a digit
and press
/
to change a digit
position.
• [PBC]: Display or skip the content
menu for VCD and SVCD.
• [Password]: Set or change a password
to play a restricted disc. Input "136900"
if you do not have a password or if you
have forgotten your password
• [DivX Subtitle]: Select a character set
that supports the subtitle of your DivX
video.
• [Version Info]: Display the software
version for this player.
• [Default]: Reset all settings to the
factory default, except for the settings
for [Disc Lock], [Parental Control]
and [Password].
Note
•• If your preferred language is not available for disc
language, audio or subtitle, you can select [Others]
from the menu options and input 4-digit language code
which can be found at the back of this user manual.
•• The rating levels are country-dependent. To allow all
discs to be played, select [8 Adult].
4 Software update
Note
•• Power supply must not be interrupted during software
update.
To check for updates, compare the current
software version of this player with the latest
software version (if available) at the Philips
website.
1
2
3
4
5
Press
.
Select [Setup] > [Preference] > [Version
Info], and then press OK.
Write down the model name and the
software version number.
Visit www.philips.com/support to check for
the latest software version, using the model
name and software version number.
Refer to the upgrade instructions given
on the website to complete the software
update.
EN
13
5Specifications
•
•
Note
•• Specifications are subject to change without notice
Region code
This player can play discs with the following
region codes.
DVD region code
Countries
Europe
Playable media
• DVD, DVD-Video, VCD, SVCD, Audio CD
• DVD+R/+RW, DVD-R/-RW, DVD+R/-R
DL (Dual Layer), CD-R/-RW (maximum
299 folders and 648 files)
• USB storage device
File format
• Video: avi, .divx, .xvid
• Audio: .mp3, .wma
• Picture: .jpg, .jpeg
USB
• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class
• File system: FAT16, FAT32, NTFS
• Maximum number of albums/folders: 299
• Maximum number of tracks/titles: 648
• USB port: 5V , 500mA
• Support USB HDD (Hard Disc Drive): an
external power source may be needed
Video
• Signal system: PAL, NTSC, Multi
• Composite video output: 1 Vp-p (75 ohm)
• HDMI output: 480i, 480p, 576i, 576p, 720p,
1080i, 1080p, Auto
Audio
• 2-channel analog output
• Audio Front L&R : 2 Vrms (47k Ohm)
• Digital output: 0.5 Vp-p (75 Ohm)
• Coaxial
14
EN
•
HDMI output
Sampling frequency:
• MP3: 22.05 kHz, 24 kHz, 32 kHz,
44.1 kHz, 48 kHz
• WMA: 44.1 kHz, 48 kHz
Constant bit rate:
• MP3: 8 kbps - 320 kbps
• WMA: 64 kbps - 192 kbps
Main unit
• Dimensions (W x H x D):
270 x 37.5 x 209 (mm)
• Net Weight: 1.0 kg
Power
• Power supply rating: 220-240V~, 50-60Hz
• Power consumption: 11W
• Power consumption in standby mode:
< 0.5W
Accessories supplied
• Remote control and one battery
• User manual
Laser specification
• Type: Semiconductor laser InGaAIP (DVD),
AIGaAs (CD)
• Wave length: 658 nm (DVD),
790 nm (CD)
• Output Power: 7.0 mW (DVD),
10.0 mW (VCD/CD)
• Beam divergence: 60 degrees
6Troubleshooting
To keep the warranty valid, never try to repair
the player yourself.
If you have problems using this player, check the
following points before you request service. If
you still have a problem, register your player and
get support at www.philips.com/support.
If you contact Philips, you will be asked for the
model and serial number of this player. The
model number and serial number are on the
back of this player. Write the numbers here:
Model No. ____________________________
Serial No. _____________________________
No picture.
• The TV video input channel is not correctly
selected (see the TV's user manual).
• If you have changed a TV system setting,
switch back to the default setting:
1) Press to open the disc compartment.
2) Press SUBTITLE.
No picture on HDMI connection.
• If this player is connected to an
unauthorized display device, the audio/
video signal cannot be output.
• If the HDMI cable is faulty, replace it with a
new HDMI cable.
• If you have changed the setting for HDMI
video resolution, switch to its default mode.
No sound output from the TV.
• Make sure that the audio cables are correctly
connected between this player and the TV.
No sound during DivX video playback.
• The audio codes are not supported.
No sound on HDMI connection.
• If the connected device is non-HDCP
compliant or only DVI-compatible, no
sound can be heard from the HDMI output.
• Make sure that [HDMI Audio] is set to [On].
No audio output from the loudspeakers of the
connected external audio device (for example,
stereo system, amplifier receiver).
• Make sure that the audio cables or coaxial
cable are correctly connected.
•
Switch the external audio device to
correct audio input source.
Disc cannot be read.
• Make sure that this player supports the
disc (see "Specifications" > "Playable
media").
• For a recorded disc, make sure that the
disc is finalized.
A USB storage device cannot be read.
•• Make sure that the format of the USB
storage device is compatible with this
player (see "Specifications" > "USB").
•• Make sure that the file system on the USB
storage device is supported by this player
(see "Specifications" > "USB").
Files cannot be displayed or read.
• Make sure that the number of files or
folders does not exceed the supported
limit of this player (maximum 648 files or
299 folders).
• Make sure that this player supports these
files (see "Specifications" > "File format").
DivX video files cannot be played.
•• Make sure that the DivX video file is
complete.
•• Make sure that the file extension is correct.
•• To play DivX DRM protected files from a
USB storage device, connect this player to
a TV through HDMI.
DivX subtitles do not display correctly.
•• Make sure that the subtitle file has the
same name as the DivX video file.
•• Make sure that the subtitle file has an
extension name supported by this player
(.srt, .sub, .txt, .ssa, or .smi).
•• Select the character set that supports the
subtitle (see "Use your DVD player" >
"DivX videos").
EasyLink feature does not work.
• Make sure that this player is connected
to the Philips brand EasyLink TV, and
the EasyLink option is turned on (see
“Use your DVD player” > “Use Philips
EasyLink”).
EN
15
7 Safety and
important
notice
Read and understand all instructions before
you use this DVD player. If damage is caused by
failure to follow the instructions, the warranty
does not apply.
Safety
Risk of electric shock!
• Never remove the casing of the player.
• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are split on or into the product,
disconnect it from the power outlet
immediately. Contact Philips Consumer
Care to have the product checked before
use.
• Never place the product and accessories
near naked flames or other heat sources,
including direct sunlight.
• Never insert objects into the ventilation
slots or other openings on the product.
• Where the mains plug or an appliance
coupler is used as the disconnect device, it
shall remain readily operable.
• Batteries (battery pack or batteries
installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
• Disconnect the product from the power
outlet before lightning storms.
• When you disconnect the power cord,
always pull the plug, never the cable.
Risk of short circuit or fire!
• Before you connect the product to the
power outlet, make sure that the power
voltage matches the value printed on the
back or bottom of the product.
16
EN
•
Avoid applying pressure on the power
plugs. Loose power plugs can cause arcing
or fire.
Risk of injury or damage to the product!
• To avoid exposure to laser radiation, do
not disassemble.
• Do not touch the optical lens inside the
disc compartment.
• Never place the product or any objects
on power cords or on other electrical
equipment.
• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
Risk of overheating!
• Never install this product in a confined
space. Always leave a space of at least four
inches around the product for ventilation.
Make sure that curtains or other objects
never cover the ventilation slots on the
product.
Risk of contamination!
• Remove the batteries if flat or if the remote
control is not to be used for a long time.
• Batteries contain chemical substances. They
should be disposed of properly.
Risk of swallowing batteries!
• The product/remote control may contain a
coin type battery, which can be swallowed.
Keep the battery out of reach of children
at all times!
Note
•• For identification and supply ratings, see the type plate
at the back or bottom of the product.
•• Before you make or change any connections, make sure
that all devices are disconnected from the power outlet.
CLASS 1
LASER PRODUCT
Care for your product
•
•
•
•
Do not insert any objects other than discs
into the disc compartment.
Do not insert warped or cracked discs into
the disc compartment.
Remove discs from the disc compartment
if you are not using the product for an
extended period of time.
Only use microfiber cloth to clean the
product.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Please inform yourself about the local rules
on separate collection of batteries because
correct disposal helps to prevent negative
consequences for the environmental and
human health.
Compliance
This product complies with the radio
interference requirements of the European
Community.
This is CLASS II apparatus with double
insulation, and no protective earth provided.
Copyright
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed with normal household waste.
This item incorporates copy protection
technology that is protected by U.S. patents
and other intellectual property rights of
Rovi Corporation. Reverse engineering and
disassembly are prohibited.
Trademarks
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, LLC, a subsidiary
of Rovi Corporation. This is an official DivX
Certified® device that plays DivX video. Visit
divx.com for more information and software
tools to convert your files into DivX videos.
EN
17
ABOUT DIVX VIDEO-ON-DEMAND: This
DivX Certified® device must be registered
in order to play purchased DivX Video-onDemand (VOD) movies. To obtain your
registration code, locate the DivX VOD section
in your device setup menu. Go to vod.divx.com
for more information on how to complete your
registration.
DivX®, DivX Ultra®, DivX Certified® and
associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used
under license.
DivX Ultra® Certified to play DivX® video with
advanced features and premium content.
HDMI, the HDMI logo, and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC in
the United States and other countries.
Manufactured under license from Dolby
Laboratories.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
'DVD Video' is a trademark of DVD Format/
Logo Licensing Corporation.
18
EN
Language Code
Abkhazian
Afar
Afrikaans
Amharic
Arabic
Armenian
Assamese
Avestan
Aymara
Azerhaijani
Bahasa Melayu
Bashkir
Belarusian
Bengali
Bihari
Bislama
Bokmål, Norwegian
Bosanski
Brezhoneg
Bulgarian
Burmese
Castellano, Español
Catalán
Chamorro
Chechen
Chewa; Chichewa; Nyanja
6566
6565
6570
6577
6582
7289
6583
6569
6589
6590
7783
6665
6669
6678
6672
6673
7866
6683
6682
6671
7789
6983
6765
6772
6769
7889
9072
Chuang; Zhuang
9065
Church Slavic; Slavonic 6785
Chuvash
6786
Corsican
6779
Česky
6783
Dansk
6865
Deutsch
6869
Dzongkha
6890
English
6978
Esperanto
6979
Estonian
6984
Euskara
6985
6976
Faroese
7079
Français
7082
Frysk
7089
Fijian
7074
Gaelic; Scottish Gaelic 7168
Gallegan
7176
Georgian
7565
Gikuyu; Kikuyu
7573
Guarani
7178
Gujarati
7185
Hausa
7265
Herero
7290
Hindi
7273
Hiri Motu
7279
Hrwatski
6779
Ido
7379
Interlingua (International)7365
Interlingue
7365
Inuktitut
7385
Inupiaq
Irish
Íslenska
Italiano
Ivrit
Japanese
Javanese
Kalaallisut
Kannada
Kashmiri
Kazakh
Kernewek
Khmer
Kinyarwanda
Kirghiz
Komi
Korean
Kuanyama; Kwanyama
Kurdish
Lao
Latina
Latvian
Letzeburgesch;
Limburgan; Limburger
Lingala
Lithuanian
Luxembourgish;
Macedonian
Malagasy
Magyar
Malayalam
Maltese
Manx
Maori
Marathi
Marshallese
Moldavian
Mongolian
Nauru
Navaho; Navajo
Ndebele, North
Ndebele, South
Ndonga
Nederlands
Nepali
Norsk
Northern Sami
North Ndebele
Norwegian Nynorsk;
Occitan; Provencal
Old Bulgarian; Old Slavonic
Oriya
Oromo
Ossetian; Ossetic
Pali
Panjabi
Persian
Polski
Português
7375
7165
7383
7384
7269
7465
7486
7576
7578
7583
7575
7587
7577
8287
7589
7586
7579
7574
7585
7679
7665
7686
7666
7673
7678
7684
7666
7775
7771
7285
7776
7784
7186
7773
7782
7772
7779
7778
7865
7886
7868
7882
7871
7876
7869
7879
8369
7868
7878
7967
6785
7982
7977
7983
8073
8065
7065
8076
8084
Pushto
Russian
Quechua
Raeto-Romance
Romanian
Rundi
Samoan
Sango
Sanskrit
Sardinian
Serbian
Shona
Shqip
Sindhi
Sinhalese
Slovensky
Slovenian
Somali
Sotho; Southern
South Ndebele
Sundanese
Suomi
Swahili
Swati
Svenska
Tagalog
Tahitian
Tajik
Tamil
Tatar
Telugu
Thai
Tibetan
Tigrinya
Tonga (Tonga Islands)
Tsonga
Tswana
Türkçe
Turkmen
Twi
Uighur
Ukrainian
Urdu
Uzbek
Vietnamese
Volapuk
Walloon
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
8083
8285
8185
8277
8279
8278
8377
8371
8365
8367
8382
8378
8381
8368
8373
8373
8376
8379
8384
7882
8385
7073
8387
8383
8386
8476
8489
8471
8465
8484
8469
8472
6679
8473
8479
8483
8478
8482
8475
8487
8571
8575
8582
8590
8673
8679
8765
6789
8779
8872
8973
8979
9085
19
Specifications are subject to change without notice
© 2014 Koninklijke Philips N.V. All rights reserved.
Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
DVP2880/2882_12_UM_V3.0
