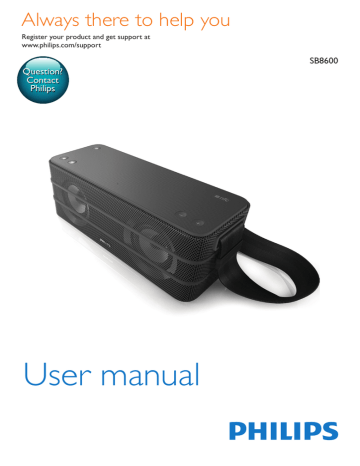

Always there to help you
Register your product and get support at
www.philips.com/support
Question?
Contact
Philips
User manual
SB8600
Contents
1Important
2
Safety2
2 Your Bluetooth speaker
3
Introduction3
What's in the box
3
Overview of the speaker
4
3 Get started
Power supply
Turn on
5
5
5
4 Play from Bluetooth-enabled devices 6
Connect a device
6
Play from Bluetooth device
7
Reconnect the Bluetooth device
7
Disconnect the Bluetooth-enabled device 7
Connect another Bluetooth-enabled
device7
Speak through the microphone
7
Enable or disable outdoor sound effect 7
5 Other features
8
8
8
8
8
6 Product information
9
9
Charge your mobile devices
Listen to an external device
Adjust volume
Reset the speaker
Specifications
7Troubleshooting
10
General10
About Bluetooth device
10
8Notice
11
EN
1
1Important
Safety
Warning
•• Never remove the casing of this speaker.
•• Never lubricate any part of this speaker.
•• Never place this speaker on other electrical equipment.
•• Keep this speaker away from direct sunlight, naked
flames or heat.
•• Make sure that you always have easy access to the
power cord, plug, or adaptor to disconnect the speaker
from the power.
•
•
•
•
•
•
•
Make sure that there is enough free space
around the speaker for ventilation.
Use only power supplies listed in the user
manual.
Only use attachments or accessories
specified by the manufacturer.
The battery shall not be exposed to
excessive heat such as sunshine, fire or the
like.
The speaker shall not be exposed to
dripping or splashing.
Do not place any sources of danger on
the speaker (e.g. liquid filled objects, lighted
candles).
Where the plug of the Direct Plug-in
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.
Note
•• The type plate is located on the bottom of the
apparatus.
2
EN
2 Your Bluetooth
speaker
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this speaker, you can
• play audio from Bluetooth-enabled devices,
or other external devices; and
• charge your mobile devices.
What's in the box
Check and identify the contents of your
package:
• Speaker
• Power adaptor
• Short user manual
EN
3
Overview of the speaker
f
a
e
b
d
c
g
j
h
i
a
b
• Turn the speaker on or off.
• Bluetooth indicator.
• Disconnect Bluetooth connection.
• Enter Bluetooth pairing mode.
c OUTDOOR
• Enable or disable outdoor sound effect.
d Built-in microphone
e +/• Adjust volume.
f NFC
• Connect a NFC compatible device
through Bluetooth.
g AUDIO IN
• Connect an external audio device.
h Reset
• Restore factory default status.
4
EN
i CHARGING
• Charge mobile devices.
j DC IN
• Connect AC power.
3 Get started
To charge the built-in battery:
• Connect to AC power supply.
When powered by AC mains:
Always follow the instructions in this chapter in
sequence.
System
status
On
Battery status
Under charging
Fully charged
Under charging
Fully charged
Power LED
status
Flashing white
Solid white
Solid red
Off
Power supply
Off
Either AC power or battery can be used as
power supply of this product.
When powered by the built-in battery:
Option 1: AC power
System Status
On
Caution
Off
Power LED status
Solid white (Full battery)
Flashing red (Low battery)
Off
•• Risk of product damage! Make sure that the power
voltage corresponds to the voltage printed on the back
or underside of the speaker.
•• Risk of electric shock! When you unplug the AC
adapter, always pull the plug from the socket. Never
pull the cord.
Connect the power adaptor to:
• the DC IN socket at the back of the
speaker.
• the wall outlet.
Turn on
Press and hold for one second.
»» The button lights up.
»» The Bluetooth indicator flashes white.
Turn off
Press and hold for one second again.
»» The speaker is turned off.
Option 2: Battery power
The speaker can also be powered by the builtin rechargeable battery.
The speaker is turned off automatically in the
following situations:
• Msic playback through Bluetooth or
external devices is stopped or paused for
15 minutes;
• There is no phone call for 15 minutes; or
• The volume level is 0 for 15 minutes.
Note
•• Rechargeable battery has a limited number of charge
cycles. Battery life and number of charge cycles vary by
use and settings.
•• It takes you approximately five hours to fully charge
the battery.
EN
5
4 Play from
Bluetoothenabled devices
With this product, you can listen to audio from
Bluetooth-enabled devices.
Connect a device
4
5
Note
•• Make sure that your Bluetooth device is compatible
with this speaker.
•• Before pairing a device with this speaker, read its user
manual for Bluetooth compatibility.
•• The speaker can memorize a maximum of 4 paired
devices.
Connect a device through NFC
Near Field Communication (NFC) is a
technology that enables short-range wireless
communication between various NFC
compatible devices, such as mobile phones and
IC tags.
If your Bluetooth device supports NFC, you can
connect it with this speaker easily.
1
2
3
6
Press and hold for one second on the
speaker.
»» The Bluetooth indicator flashes
white.
Enable NFC on your Bluetooth device
(refer to the user manual of the device).
Touch the NFC tag on the speaker with
the NFC area of your Bluetooth device
until you hear a beep.
EN
Follow the on-screen instructions to
complete the pairing and connection.
»» After successful pairing and connection,
the speaker beeps twice, and the
Bluetooth indicator turns solid white.
Connect a device manually
•• Make sure that Bluetooth function is enabled on your
device, and your device is set as visible to all other
Bluetooth devices.
•• Any obstacle between this speaker and a Bluetooth
device can reduce the operational range.
•• Keep away from any other electronic device that may
cause interference.
On your Bluetooth device, accept the
pairing request with "SB8600". If necessary,
input "0000" as the pairing password.
Note
•• The operational range between this speaker and a
Bluetooth device is approximately 10 meters (30 feet).
1
2
3
On the speaker, press and hold for one
second.
»» The Bluetooth indicator flashes
white.
On your Bluetooth device, enable
Bluetooth and search for Bluetooth devices
(refer to the user manual of the device).
When [Philips ShoqBox XL] is displayed
on your device, select it to start pairing
and connection. If necessary, enter default
password “0000”.
»» After successful pairing and connection,
the speaker beeps twice, and the
Bluetooth indicator turns solid white.
Bluetooth indicator
( )
Description
Flashing white
Connecting or waiting
for pairing
Connected
Solid white
Play from Bluetooth device
After successful Bluetooth connection, play
audio on the Bluetooth device.
»» Audio streams from your Bluetooth
device to the speaker.
Reconnect the Bluetooth
device
•
•
Next time you turn on the speaker, the
speaker will reconnect the last connected
device automatically; or
On your Bluetooth device, select "Philips
ShoqBox XL" on your Bluetooth menu to
start connection.
Disconnect the Bluetoothenabled device
•
•
•
Speak through the
microphone
If Bluetooth connection is established, when
there is an incoming call on your phone, you
can speak through the built-in microphone on
SB8600.
Note
•• Music play pauses when there is an incoming call.
Enable or disable outdoor
sound effect
Press OUTDOOR repeatedly to enable or
disable the outdoor sound effect.
»» If the sound effect is enabled, the
OUTDOOR button lights up whte.
Press and hold for three seconds;
Disable Bluetooth on your device; or
Move the device beyond the
communication range.
»» The Bluetooth indicator flashes
white.
Connect another Bluetoothenabled device
1
2
Press and hold for three seconds to
disconnect the currently connected device.
»» The speaker enters Bluetooth pairing
mode.
Connect another Bluetooth device.
EN
7
5 Other features
AUDIO IN
Charge your mobile devices
With this speaker, you can charge your mobile
devices through the CHARGING socket.
Play audio on the external device (refer to
its user manual).
Adjust volume
Note
•• The USB socket is used for charging only.
1
2
2
During play, press + or - to increase or decrease
volume.
Connect to AC power supply.
Connect to your mobile device with a USB
cable (not supplied).
»» Once the device is recognized, the
charging starts.
Note
•• When the volume reaches the maximum or minimum,
the
button flashes white for two seconds.
Reset the speaker
CHARGING
Listen to an external device
With this speaker, you can also listen to an
external audio device such as an MP3 player.
Note
•• Make sure that Bluetooth connection is disconnected.
1
8
Connect an audio input cable (not
supplied) with a 3.5 mm connector on
both ends to
• the AUDIO IN socket on this speaker,
and
• the headphone socket on the external
device.
EN
If the system works abnormally, reset the
speaker to factory default settings.
• Press the reset button with the tip of a pen
or toothpick.
»» All settings are reset to factory default.
6Product
information
Weight - Main Unit
2 kg
Note
•• Product information is subject to change without prior
notice.
Specifications
Amplifier
Rated Output Power
Signal to Noise Ratio
Audio-in Input
2 X 10 W RMS
> 65 dBA
0.6V RMS 22kOhm
Bluetooth
Bluetooth Version
Frequency Band
Range
V4.0
2.402 ~ 2.480 GHz ISM
Band
10 m (Free Space)
General information
Power Supply
- AC Power
(power adapter)
- Battery
Charging
Operation Power
Consumption
Dimensions - Main
Unit (W x H x D)
Brand name: PHILIPS;
Model: OH1028A1502000U-IR;
Input: 100-240 V~,
50/60 Hz, 800 mA MAX
Output: 15 V 2 A;
Lithium battery (11.1V,
2200mAh)
Max. 1000 mA for USB
<25 W
325 x 176 x 115 mm
EN
9
7Troubleshooting
Warning
•• Never remove the casing of this device.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact Philips,
make sure that the device is nearby and the
model number and serial number are available.
General
No power
•• Make sure that the AC power plug is
connected properly.
•• Make sure that there is power at the AC
outlet.
•• Recharge the built-in battery.
No sound
•• Adjust volume on the speaker or the
Bluetooth-connected device.
•• Make sure that your Bluetooth device is
within the effective operational range.
No response from the speaker
•• Disconnect and reconnect the AC power
plug, then turn on the speaker again.
•• Press the reset button with the tip of a pen
or toothpick to restore factory settings.
Cannot charge mobile devices
•• Make sure that AC power is connected
properly.
•• Make sure that there is power at the AC
outlet.
10
EN
About Bluetooth device
The audio quality is poor after connection
with a Bluetooth-enabled device.
•• The Bluetooth reception is poor. Move the
device closer to this product or remove
any obstacle between them.
Cannot connect with the device.
•• The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
•• This product is already connected with
another Bluetooth-enabled device.
Disconnect that device and then try again.
The paired device connects and disconnects
constantly.
•• The Bluetooth reception is poor. Move the
device closer to this product or remove
any obstacle between them.
•• For some devices, Bluetooth connection
may be deactivated automatically as a
power-saving feature. This does not indicate
any malfunction of this product.
8Notice
Any changes or modifications made to this
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Disposal of your old product
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Do not throw away the product with the
normal household waste at the end of its life,
but hand it in at an official collection point or
recycling. By doing this, you help to preserve the
environment.
Always bring your product to a professional to
remove the built-in battery.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by WOOX
Innovations is under license.
The N Mark is a trademark or registered
trademark of NFC Forum, Inc. in the United
States and in other countries.
© 2014 CSR plc and its group companies.
The aptX® mark and the aptX logo are
trade marks of CSR plc or one of its group
companies and may be registered in one or
more jurisdictions.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
EN
11
Specifications are subject to change without notice.
2014 © WOOX Innovations Limited. All rights reserved.
Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V.
and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V.
SB8600_77_UM_V1.0
