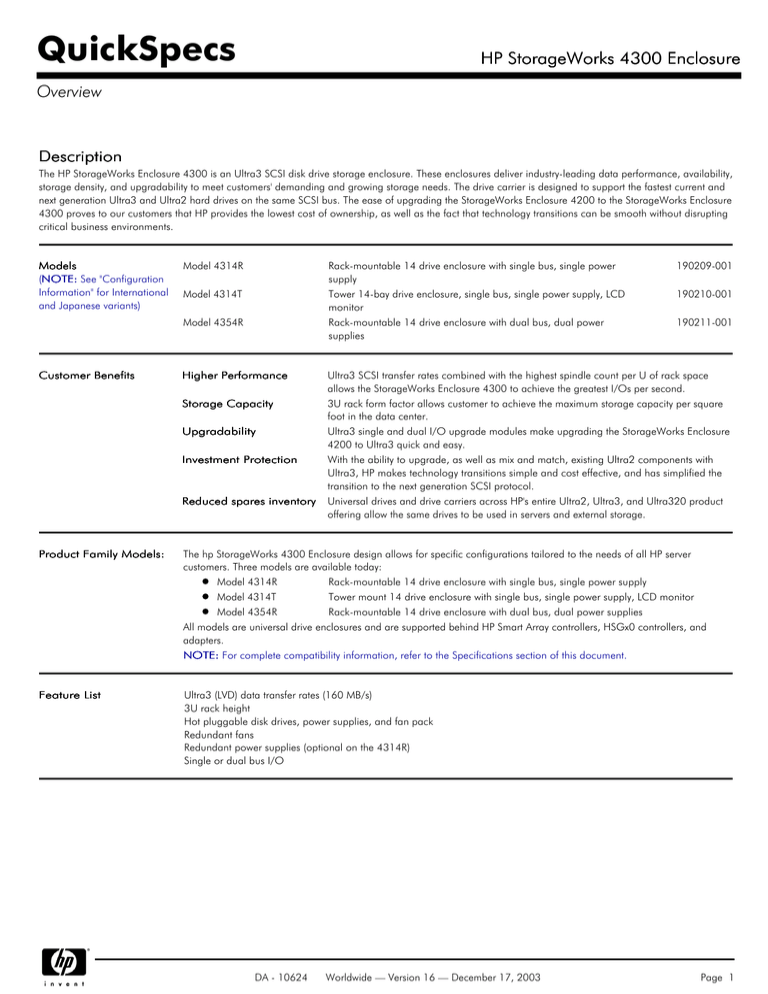

QuickSpecs
HP StorageWorks 4300 Enclosure
Overview
Description
The HP StorageWorks Enclosure 4300 is an Ultra3 SCSI disk drive storage enclosure. These enclosures deliver industry-leading data performance, availability,
storage density, and upgradability to meet customers' demanding and growing storage needs. The drive carrier is designed to support the fastest current and
next generation Ultra3 and Ultra2 hard drives on the same SCSI bus. The ease of upgrading the StorageWorks Enclosure 4200 to the StorageWorks Enclosure
4300 proves to our customers that HP provides the lowest cost of ownership, as well as the fact that technology transitions can be smooth without disrupting
critical business environments.
Models
(NOTE:
NOTE: See "Configuration
Information" for International
and Japanese variants)
Model 4314R
Rack-mountable 14 drive enclosure with single bus, single power
supply
Tower 14-bay drive enclosure, single bus, single power supply, LCD
monitor
Rack-mountable 14 drive enclosure with dual bus, dual power
supplies
Model 4314T
Model 4354R
Customer Benefits
Higher Performance
Storage Capacity
Upgradability
Investment Protection
Reduced spares inventory
190209-001
190210-001
190211-001
Ultra3 SCSI transfer rates combined with the highest spindle count per U of rack space
allows the StorageWorks Enclosure 4300 to achieve the greatest I/Os per second.
3U rack form factor allows customer to achieve the maximum storage capacity per square
foot in the data center.
Ultra3 single and dual I/O upgrade modules make upgrading the StorageWorks Enclosure
4200 to Ultra3 quick and easy.
With the ability to upgrade, as well as mix and match, existing Ultra2 components with
Ultra3, HP makes technology transitions simple and cost effective, and has simplified the
transition to the next generation SCSI protocol.
Universal drives and drive carriers across HP's entire Ultra2, Ultra3, and Ultra320 product
offering allow the same drives to be used in servers and external storage.
Product Family Models:
The hp StorageWorks 4300 Enclosure design allows for specific configurations tailored to the needs of all HP server
customers. Three models are available today:
Model 4314R
Rack-mountable 14 drive enclosure with single bus, single power supply
Model 4314T
Tower mount 14 drive enclosure with single bus, single power supply, LCD monitor
Model 4354R
Rack-mountable 14 drive enclosure with dual bus, dual power supplies
All models are universal drive enclosures and are supported behind HP Smart Array controllers, HSGx0 controllers, and
adapters.
NOTE: For complete compatibility information, refer to the Specifications section of this document.
Feature List
Ultra3 (LVD) data transfer rates (160 MB/s)
3U rack height
Hot pluggable disk drives, power supplies, and fan pack
Redundant fans
Redundant power supplies (optional on the 4314R)
Single or dual bus I/O
DA - 10624
Worldwide — Version 16 — December 17, 2003
Page 1
QuickSpecs
HP StorageWorks 4300 Enclosure
Overview
Key Features
NOTE: All models of the
StorageWorks Enclosure 4300
Family have the following
features:
Ultra3 (LVD) support - Delivering data transfer rates up to 160 MB/s per channel
3U rack height
Supports up to 14 (1-inch) Ultra320 (as well as legacy Ultra3 and Ultra2 drives) Universal hard disk drives
Provides storage capacity of up to 2TB per enclosure (using 146GB 1-inch disk drives)
Modular design allows the StorageWorks Enclosure 4300 to be used in any storage configuration from JBOD (Just a
Bunch of Disks) to Smart Array storage enclosures to external RAID arrays. Up to 14 enclosures can be mounted in
one 42U rack for a single rack storage capacity of up to 28.4TB of disk storage (JBOD configuration) or up to 12
enclosures in an EMA16000 (HSG80 configuration) for a single rack storage capacity of 24.4TB.
A common storage platform allows for future storage consolidation to the SAN.
Award-winning innovative SCA (Single Connect Attach) direct connect drive carrier - provides better cooling and
reliability for 10K and 15K drives
Hot pluggable disk drives, power supplies, and fans
Redundant fans, redundant power supplies and dual bus I/O module
(Each Enclosure 4314T and 4314R come with a single power supply that is sufficient to provide power to the
enclosure and maintain normal operating levels. A second optional redundant power supply is recommended for
higher levels of fault tolerance and availability.)
Environmental Monitoring Unit (EMU) - Monitors environmental conditions within the enclosure and components
such as the power supplies and fans
Easy removal of parts provides better serviceability. No tools are required!
DA - 10624
Worldwide — Version 16 — December 17, 2003
Page 2
QuickSpecs
HP StorageWorks 4300 Enclosure
Product Highlights
Upgradability
Upgrading a StorageWorks Enclosure 4200 to a StorageWorks Enclosure 4300 is as easy as swapping out the I/O module
on the back of the unit. The I/O module is warm-swappable, therefore during the upgrade power to the unit can remain on,
but all I/O operations need to be stopped to ensure that no data is lost during the upgrade.
Mix and Match
All Ultra320, Ultra3, and Ultra2 devices from HP are compatible with one another so customers can mix and match
components in the same storage enclosure or server. When Ultra2, Ultra3, and Ultra320 devices are found on the same
Ultra3 SCSI bus, each device will transfer data at its individual interface transfer rate up to the transfer rate of the SCSI bus..
NOTE: For customers who operate legacy Models 4310R and 4350R enclosures, the use of 1-inch Universal Ultra2,
Utlra3, or Ultra320 disk drives requires the addition of 0.6-inch drive extenders.
Hot Pluggable
Hot pluggable technology is designed into drives, power supplies and redundant cooling fans. Hot pluggable components
can be replaced without powering down the storage system or stopping I/O operations. This feature significantly enhances
data availability.
Auto SCSI ID Selection
SCSI ID is automatically set when a drive is inserted into a drive bay.
LED Indicators
Front panel LEDs indicate drive activity, required drive service, and power, giving a quick visual assessment of overall
system storage status. LED status and fault indicators for the fans and power supplies are located in the back of the
enclosure.
Rack Density
The StorageWorks Enclosure 4300 models have a 3U height.
Environment Monitoring
Unit (EMU)
Each StorageWorks Enclosure 4300 model is equipped with an EMU that constantly monitors the enclosure, the power
supplies, and fans to ensure suggested operating tolerances are maintained.
Single Bus I/O Module
The single bus I/O module allows one SCSI channel to access all drives in the StorageWorks Enclosure 4300.
Dual Bus I/O Module
The dual bus I/O module allows two SCSI channels to access a single StorageWorks Enclosure 4300. This allows for greater
fault tolerance (controller duplexing) or provides access from two different servers to two separate storage areas.
Fault Tolerance
With the dual bus I/O module, redundant power supplies and fans, the StorageWorks Enclosure 4300 family provides a
high level of system availability. Using an internal or external RAID Array, the StorageWorks Enclosure 4300 family can be
configured for RAID levels 0, 1, 0 1, 5.
Manageability
Depending on the host controller, the StorageWorks 4300 Enclosure is managed by HP Insight Manager or StorageWorks
Command Console.
Compatibility and
Integration Testing
Intensive compatibility and performance testing with HP ProLiant severs and AlphaServers ensures the highest level of
integration available in the industry on a HP server. For a complete list of supported HP servers and workstations, please
refer to the QuickSpecs and/or User Guide of the array controller or Host Bus adapter that you are planning to use. The list
of supported array controllers and SCSI adapters is provided under "Related Options, Controllers
DA - 10624
Worldwide — Version 16 — December 17, 2003
Page 3
QuickSpecs
HP StorageWorks 4300 Enclosure
Product Highlights
Product Kit Contents
Model 4314T
Single power supply, single bus I/O module, 14 drive blanks, warranty card, AC power
cord, Enclosure 4300 tower user guide, EMU booklet, HP SmartStart CD Kit,
documentation CD, and one 12-ft VHDCI to VHDCI SCSI cable:
Model 4314R
Single power supply, single bus I/O module, 14 drive blanks, warranty card, mounting
hardware, Enclosure 4300 user guide, EMU booklet, HP SmartStart CD Kit, documentation
CD, and two 12-ft VHDCI to VHDCI SCSI cables
(one 110V and one 220V).
Model 4354R
Redundant power supplies, dual bus I/O module, 14 drive blanks, warranty card,
mounting hardware, Enclosure 4300 user guide, EMU booklet, HP SmartStart CD Kit,
documentation CD, and two 12-ft VHDCI to VHDCI SCSI cables
(one 110V and one 220V).
NOTE: A different SCSI cable may be required when the StorageWorks Enclosure 4300 is intended for connection to an
HSG80 controller in a Model 2200 controller enclosure or a host-based adapter on an Alpha server. See the Related
Options section of this document for cable ordering information.
NOTE: To maintain proper cooling and airflow, a drive blank or drive must occupy all bays during operation.
Warranty
StorageWorks Enclosure 4300 family: Three-year limited warranty
NOTE: Certain restrictions and exclusions apply. Consult the Customer Support Center at 1-800-345-1518 for details.
Hard drive Pre-Failure Warranty: When used with any one of the StorageWorks Smart Array Family controllers and
monitored under HP Insight Manager (v4.20 or later), HP hard drives are supported by a Pre-Failure (replacement)
Warranty.
NOTE: Pre-Failure Warranty is available on all HP Prosignia and HP ProLiant servers using HP Insight Manager v4.20 or
later, and covers Pentium Pro processors, ECC memory, server hard drives, and external storage enclosure hard drives
(except the 535 MB Fast-SCSI-2 hard drive) using HP IDA, IDA-2, HP SMART SCSI Array Controllers, HP SMART-2 Array
Controllers or HP Smart Array Controllers. Certain restrictions and exclusions apply. Consult the Customer Support Center
at: 1-800-345-1518 for details.
DA - 10624
Worldwide — Version 16 — December 17, 2003
Page 4
QuickSpecs
HP StorageWorks 4300 Enclosure
Service And Support
Software Product Services
Standalone telephone support
Rights to new license version
Media and documentation updates
Hardware Product Services Installation services
On-site maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage
RAID setup and performance consulting via statement of work
For additional hardware installation and maintenance information, please refer to the URL listed below:
http://www.hp.com/hps/carepack/services/cp_installation.html
Warranty Upgrade
Options
Response - Upgrade on-site response from next business day to same day 4 hours
Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days
Duration - Select duration of coverage for a period of 1, 3, or 5 years
Hardware Product Services Sample part numbers:
FM-**XHW-36
FM-**4HR-36
FM-**724-36
3 year, uplift to 5 x 9, Next Day Response
3 year, uplift to 5 x 9, 4-hour Response
3 year, uplift to 7 x 24, 4-hour Response
** Represents a two-digit, product-specific code
Care Pack is defined as an upgrade to the product warranty attribute, available for a specific duration and hours of
coverage.
Care Pack is not available for less than the product's warranty duration.
Care Pack is available for sale anytime during the warranty period for most products, but the commencement date will be
the same as the Warranty Start Date (delivery date to end user customer). Proof of purchase may be required.
Care Pack services are prepaid.
For additional HP Care Pack Services (hardware & software) information, as well as orderable part numbers, please refer to
the URL http://www.hp.com/hps/carepack/
Components
The following brick level options/components do not have individual HP Care Pack Services. These items will be included
in product Care Pack Services into which they are installed.
Disk Drives
Tape Drives
CD/DVD ROM
SCSI Hubs in SBBs
Adapters
Bus Converters
Backplane RAID
Controllers
Power Supplies
Cabling
Fans
DA - 10624
Worldwide — Version 16 — December 17, 2003
Page 5
QuickSpecs
HP StorageWorks 4300 Enclosure
Configuration Information
Product
Shipping Dimensions
UPC Code
Part Number
720591469795
190210-001
720591469801
190210-B31
720591469818
190210-291
720591469566
190209-001
StorageWorks Enclosure 4314R (Int'l)
720591469583
190209-B31
StorageWorks Enclosure 4314R (Japan)
720591469788
190209-291
720591469825
190211-001
StorageWorks Enclosure 4354R (Int'l)
720591469832
190211-B31
StorageWorks Enclosure 4354R (Japan)
720591469849
190211-291
StorageWorks Enclosure 4314T
25.25 x 12.5 x 23.5 in/64.1 x 31.8 x 59.7 cm
StorageWorks Enclosure 4314T (Int'l)
StorageWorks Enclosure 4314T (Japan)
StorageWorks Enclosure 4314R
25.25 x 12.5 x 23.5 in/64.1 x 31.8 x 59.7 cm
StorageWorks Enclosure 4354R
25.25 x 12.5 x 23.5 in/64.1 x 31.8 x 59.7 cm
Ultra3 Single Bus Upgrade I/O Module
12.75 x 8 x 3.75 in/32.13 x 20.16 x 9.45 cm
720591469856
190212-B21
Ultra3 Dual Bus Upgrade I/O Module
13.25 x 8 x 8.5 in/33.39 x 20.16 x 21.42 cm
720591469863
190213-B21
Redundant Power Supply, 499 watts
3.75 x 8 x 12.75 in/9.52 x 20.32 x 32.38 cm
808736966726
338296-B21
Redundant Power Supply, 499 watts (Int'l)
808736966740
338296-B22
Redundant Power Supply, 499 watts (Japan)
808736966764
338296-B23
UPC Code
Part Number
720591351335
176622-B21
Description
Controllers & Adapters
Supported
HSG80 Controller
NOTE: HSG80 connection to the model 4300 requires the use of the Model
2200 controller shelf: 135820-B21
Smart Array 6402
273914-B21
Smart Array 5302/128
283552-B21
Smart Array 5304/256
283551-B21
Smart Array 642
291967-B21
NOTE: Supported at Ultra2 speeds
Smart Array 532
225338-B21
Smart Array 5i/5i Plus
N/A
NOTE: Single external SCSI channel supported on select ProLiant Servers. See
Server QuickSpecs for specific model information.
64-bit/133MHz dual channel Ultra320 SCSI Adapter
Power Options
268351-B21
64-bit Dual Channel Wide Ultra3 SCSI Adapter
743172876379
129803-B21
1 channel Ultra2 (LVD) Adapter (AlphaServer systems)
743172900562
136237-B21/ SNKZPCA-AA
1 channel Ultra2 (LVD) Adapter (AlphaServer systems)
613326184219
3X-KZPCA-AA
Redundant Power Supply, 499 watts
808736966726
338296-B21
Redundant Power Supply, 499 watts (Int'l)
808736966740
338296-B22
Redundant Power Supply, 499 watts (Japan)
808736966764
338296-B23
StorageWorks Enclosure Ultra3 Single Bus I/O Module
720591469856
190212-B21
StorageWorks Enclosure Ultra3 Dual Bus I/O Module
720591469863
190213-B21
StorageWorks Enclosure Tower to Rack Conversion Kit
743172948182
150213-B21
39-ft (12m) VHDCI to VHDCI SCSI Cable
743172948199
150214-B21
24-ft (7m) VHDCI to VHDCI SCSI Cable
720591275983
164604-B21
DA - 10624
Worldwide — Version 16 — December 17, 2003
Page 6
QuickSpecs
HP StorageWorks 4300 Enclosure
Options
Rack Options
Wide 41U cabinet (Opal)
720591823511
238789-B21
NOTE: Configuration restrictions apply, please see modular array QuickSpecs for details:
http://h18006.www1.hp.com/storage/arraysystems.html42U
Modular Storage Cabinet 60 Hz (Opal)
720591398378
180311-B21
36U Modular Storage Cabinet 60 Hz (Opal)
720591398606
180313-B21
22U Modular Storage Cabinet 60 Hz (Opal)
720591398651
180315-B21
41U Modular Storage Cabinet 60 Hz (Blue)
720591398880
180317-B21
41U Modular Storage Cabinet 50 Hz (Blue)
720591398897
180318-B22
NOTE: Each Modular Storage Cabinet (42U, 41U, 36U, and 22U) comes with redundant 220 to 240V PDUs and power
cables to accommodate Modular Array configurations. For more details on Modular Array solutions, see
http://h18006.www1.hp.com/storage/arraysystems.html
Legacy Racks Supported
Rack 7142
Rack 9142
Rack 9136
Rack 9122
NOTE: Certain power support and cooling restrictions apply when housing a maximum number of Model 4314R or Model
4354R enclosures in one of the supported HP racks. Please refer to http://h18006.www1.hp.com/storage/index.html for
more information or consult the Customer Support Center at 1-800-345-1518 for details.
Universal SCSI Drives
Ultra 320 Drives
146.8-GB Pluggable Ultra320 SCSI 10,000 rpm Hard Drive
286716-B22
72.8-GB Pluggable Ultra320 SCSI 10,000 rpm Hard Drive
286714-B22
36.4-GB Pluggable Ultra320 SCSI 10,000 rpm Hard Drive
286713-B22
72.8-GB Pluggable Ultra320 SCSI 15,000 rpm Hard Drive
286778-B22
36.4-GB Pluggable Ultra320 SCSI 15,000 rpm Hard Drive
286776-B22
18.2-GB Pluggable Ultra320 SCSI 15,000 rpm Hard Drive
286775-B22
0.6-inch (1.52 cm) Drive Extenders (package of 4)
148649-B21
(1)Ultra 2 and Ultra3 drives are also supported in 4300 configurations
(2) For pre-existing 10-bay solutions, drive height extenders are attached to 1 in drives for use in 1.6 in drive bay.
NOTE: Go to the HP SCSI Hard Drive Compatibility table for complete drive compatibility information
(http://www.hp.com/products/harddiskdrives). Using hard drives in unsupported configurations will result in voiding the
warranty and could result in damage to the drive and/or loss of data.
SCSI Cable Options
Cables for use with HSG80 controller in the Model 2200 controller enclosure
2M SCSI cable for connection to the Model 2200 Controller Shelf
720591304515
168257-B21
3M SCSI Cable for connection to the Model 2200 Controller Shelf
743172825544
188505-B21
12 ft VHDCI to 68-pin SCSI Cable
743172660848
341177-B21
24-ft VHDCI to VHDCI SCSI Cable
720591275983
164604-B21
39-ft VHDCI to VHDCI SCSI Cable
743172948199
150214-B21
1M SCSI 68HD Cable
None
BN38C-01
2M SCSI 68HD Cable
None
BN38C-02
5M SCSI 68HD Cable
None
BN38C-05
Cables for use with Smart Array controllers
Cables for use with the KZPCA-AA host bus adapter
DA - 10624
Worldwide — Version 16 — December 17, 2003
Page 7
QuickSpecs
HP StorageWorks 4300 Enclosure
Technical Specifications
Protocol Support
Wide Ultra3 (LVD)
Wide Ultra2 (LVD)
O/S Support
Defined by specific HP array controller or SCSI adapter used; please refer to the QuickSpecs and/or User Guide of the specific
array controller or SCSI adapter
Dimensions (HxWxD)
Tower
Rack
22.5 x 13.25 x 23 in (56.7 x 33.9 x 57.96 cm)
5.2 x 19 x 20.5 in (13.1 x 47.88 x 51.66 cm)
Shipping Dimensions
(HxWxD
Tower
Rack
Redundant Power Supply
34.25 x 14.5 x 31.25 in (86.31 x 36.54 x 78.75 cm)
34.25 x 14.5 x 31.25 in (86.31 x 36.54 x 78.75 cm)
3.75 x 8.0 x 12.75 in (9.52 x 20.32 x 32.38 cm)
Weight
Tower
Rack
Redundant Power Supply
93 lb (42.8 kg)
68 lb (30.9 kg)
6.6 lbs (3.0 kg)
LED Indicators
(on front panel)
EMU Status LED (left)
Enclosure Power LED (middle)
Fault LED (right)
Drive LED Indicators
(on drive trays)
Drive LED (top)
On Line LED (middle)
Drive Failure LED (bottom)
Enclosure LED
Indicators (back of
unit)
I/O Module (top)
EMU (middle)
Power supplies (bottom)
Input Requirements
Nominal Line Voltage
Range Line Voltage
Line Frequency
Typical Input Current
110 to 240 V AC
90 to 264 V AC
47 to 63 Hz
2.3A at 120 V AC
Relative Humidity
(non-condensing)
Operating
Shipping
10% to 90%
5% to 90%
Enclosure LED
Indicators (back of
unit)
Smart Array 6402
Smart Array 5302/128
Smart Array 5312
Smart Array 5304/256
Smart Array 642
NOTE: Supported at Ultra2 speeds
Smart Array 532
Smart Array 5i/5i Plus
NOTE: Single external SCSI channel supported on select ProLiant Servers. See Server QuickSpecs for specific model
information.
HSG80 Controller
HSG60 Controller
64-bit Dual Channel Wide Ultra3 SCSI Adapter
1 channel Wide Ultra2 Adapter (AlphaStations)
1 channel Wide Ultra2 Adapter (AlphaServer systems)
NOTE: See your server and controller compatibility matrix for details on controller and server compatibility.
Power
377 Watts per supply (load)
BTU (220 volts)
Single power supply 14 drives
Single power supply 5 drives
Single power supply 1 drive
Dual power supply 14 drives
Dual power supply 5 drives
Dual power supply 1 drive
1164 BTUs/hour
536 BTUs/hour
273 BTUs/hour
1232 BTUs/hour
625 BTUs/hour
352 BTUs/hour
Temperature Range
Operating
Shipping
50° to 94° F (10° to 35° C )
-40° to 151° F (-40° to 66° C)
NOTE: To maintain proper cooling and airflow, a drive blank or drive must occupy all bays during operation.
DA - 10624
Worldwide — Version 16 — December 17, 2003
Page 8
QuickSpecs
HP StorageWorks 4300 Enclosure
Technical Specifications
© Copyright 2003 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 10624
Worldwide — Version 16 — December 17, 2003
Page 9
