QuickSpecs
HP Rack 10000 Series
Overview
HP sets the standard for performance and value in the enterprise with the Rack 10000 Series family. This enterprise-class rack
cabinet system combines next-generation structural integrity and ease of use capabilities to deliver industry-leading performance.
Ideal for onsite assembly of rack mounted ProLiant, Alpha, and Tandem servers, workstations, networking, and Storage products, the
10000 Rack Series of cabinets, complement and protect your customer's investment in technology. Specifically designed to ensure
outstanding performance and seamless integration throughout the entire enterprise, the Rack 10000 could easily be the last family of
racks that you ever have to buy.

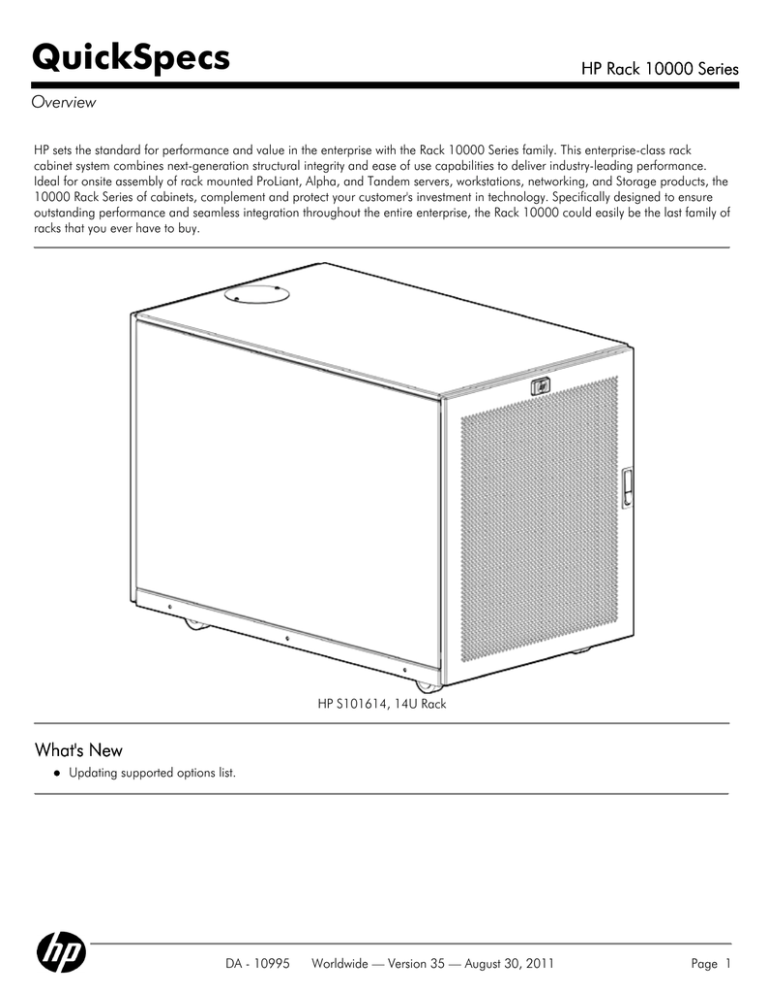

HP S101614, 14U Rack
What's New
Updating supported options list.
DA - 10995
Worldwide — Version 35 — August 30, 2011
Page 1
QuickSpecs
HP Rack 10000 Series
Overview
At a Glance
14U height
Thermal integrity
Security provisions
Shock pallet for factory CTO and dynamic loads
Sidepanels included
Heavy duty casters
Powerful 3 year Warranty (3-0-0)
Models
HP S10614 (14U) Rack
NOTE: A rack with a shock pallet must be used when shipping racks with equipment installed.
DA - 10995
Worldwide — Version 35 — August 30, 2011
292302-B22
Page 2
QuickSpecs
HP Rack 10000 Series
Standard Features
Industry Standard Support All products are 19 inch RETMA standard and will support select third-party equipment
Extensive evaluation, and testing across all critical platforms
Key HP Infrastructure Rack components
Innovative Breakthroughs
The HP Rack System
HP is the only IT rack provider to offer a complete line of options and accessories that are
designed to support HP products.
HP's reputation for providing the highest quality products throughout the entire enterprise is based
on our strategic partnerships, extensive product research, product development and product
testing processes.
All rack sizes (including the S10614 rack are configurable at HP CTO (Configure to Order)
facilities.
All HP rack-mountable products are designed to fit our industry-standard 19-inch wide racks. HP offers
several racks to meet your system needs.
Racks and rack-mountable components are typically described using "U" measurements. One "U" is
1.75" (44.45 mm) high.
This sturdy, industrial-strength rack series offers the following features:
Universal - Accommodates all HP equipment (ProLiant, Alpha, Storage, UPS, PDU) in addition to
select third party equipment
Design - Perforated front and back doors which allows for high air flow and cooling up to 65%
open; U marking front and sides of rails to ease component installation; increased cable
management features
NOTE: Side Panels ship standard on the S10614 models.
DA - 10995
Worldwide — Version 35 — August 30, 2011
Page 3
QuickSpecs
HP Rack 10000 Series
Product Features
HP Rack 10000 Series
Key Benefits
(Universal Rack)
The HP Rack 10000 Series offers protection, price, performance and quality. The following are a few of
the many benefits that come standard:
Unique Frame and Rail Design - enables fast assembly, easy mounting and outstanding structural
integrity. Equipment installation effort is dramatically reduced because the vertical mounting
system was specifically designed to minimize the time required to install HP products, and can be
used with many other non-HP products as well. U markings on the front and sides of rails make it
easy to align parts when installing equipment. Cut outs in the rails also allows for cabling between
racks.
Thermal Integrity - Front to back natural convection cooling is greatly enhanced by the innovative
multi-angled design of the front door. For additional heat removal, an optional roof mounted fan
kit can be easily installed.*
Security Provisions - Front and rear doors are lockable, which provides the necessary level of
security to prevent unauthorized entry. Side panels are also lockable* allowing for your entire rack
row to be secure.
Flexibility - Outstanding cable management features make it easy to develop effective solutions
and easy to maintain. Cable egresses in the top of the rack allow for ample room for routing
cables outside of the rack. The split rear doors* give ample access to rack mounted equipment
without blocking rack rows while the removable panel gives added flexibility for cable routing.
Velcro straps are provided in the hardware bag for clean cable bundling within the rack.
* Except S10614. The side panels and roof are not removable and cannot be bayed. The S10614
features one back door (not split).
Low Total Cost of
Ownership
Exclusive product options and accessories that optimize rack space utilization
0U and 1U mounting kits for options such as the new Modular Power Distribution Units (mPDU)
Cost-saving Server Console Switches (KVM) with multiple mounting options
TFT7600 Rackmount Keyboard and Monitor
Highest levels of system management, performance, construction and compatibility
Investment Protection
Investment security across all mainstream ProLiant server and storage products.
Well-designed and crafted options provide unlimited flexibility in growing or adapting the 10000
series of rack cabinets to specific requirements and needs.
Advanced product integration and quality provides high system reliability
Simplified Management
Unique frame and rail design minimizes time necessary to install products in rack cabinet
Product selection:
47U @ 2.3 M
42U @ 2.0 M
36U @ 1.7 M
22U @ 1.1 M
14U @ 0.7 M
All mainstream ProLiant server and storage products are easily managed with our seamless
enterprise integration process
DA - 10995
Worldwide — Version 35 — August 30, 2011
Page 4
QuickSpecs
HP Rack 10000 Series
Product Features
Industry-leading
Breakthroughs
Exclusive 42U in a two-meter rack cabinet height for easy door clearance
The only company to provide a complete line of options and accessories that are designed to
support HP products
Special 14U rack designed specifically for remote site deployments.
2000 lb dynamic load capacity for the S10642
DA - 10995
Worldwide — Version 35 — August 30, 2011
Page 5
QuickSpecs
HP Rack 10000 Series
Service and Support, HP Care Pack, and Warranty Information
Warranty
Three year warranty, parts only (3-0-0).
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
HP Care Pack Services
HP Care Pack services include coverage for the HP branded hardware options qualified for the server
and purchased at the same time or afterward that are internal to the enclosure. This also includes the
22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the
same service level and for the same coverage period as the server. Coverage of UPS Battery is not
included, and standard warranty terms & conditions apply. For servers or storage systems installed within
a rack, service also covers all HP qualified rack options installed within the same rack.
HP Services
To help streamline implementation and enhance ongoing support of rack solution, HP
provides cost-effective service options with resources and specialized expertise to
complement customers in-house capabilities.
Installation and Startup services
Take advantage of complete installation and implementation support-including global
rollout capabilities-to get rack solutions up-and-running rapidly, with minimal business
disruption.
Rack Option Hardware Support
Cover rack options with a single convenient service package. HP Care Pack Services for
rack-mounted ProLiant DL servers and storage products provide support for all HP-branded
rack hardware options that are qualified for inclusion with the server at the time of or after
purchase. In addition, 22-inch and smaller external monitors, tower units, and UPS options
up to 3KVA are covered at the same service level and for the same period as the server at
not additional cost. Also covered are any additional HP-qualified rack options installed
within the same rack.
HP Care Pack Services help increase uptime and productivity with rapid response on a 24x7 or 13x5
basis. Both options feature same-day, 4-hour onsite assistance when service issues cannot be resolved
remotely. And both help enhance the return on server investment with proven HP Services expertise and
consistent support levels across geographically dispersed sites.
NOTE: To learn more, please visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/services/bladesystemservices
DA - 10995
Worldwide — Version 35 — August 30, 2011
Page 6
QuickSpecs
HP Rack 10000 Series
Related Options
Several options allow for quick and easy expansion of the HP Rack 10000 Series racks to create a custom solution.
NOTE: This is only a sampling of the many HP Rack options available. See the HP rack products Web site for more complete
information at http://www.hp.com/products/rackoptions. Contact your nearest HP Authorized Reseller or Service Provider for
information about ordering HP parts. In the United States, HP can make arrangements to have your rack system installed by
qualified Guaranteed Service Providers. This installation service covers the entire hardware installation sequence, from unpacking
the components to routing cabling and running a test of the system.
AF090A
HP Airflow Optimization HP 10000 Series Rack Airflow Optimization Kit
NOTE: The Airflow Optimization kit is designed to prevent hot and cold air from
mixing thus optimizing the temperature at which the chilled air enters the racked
servers.
NOTE: When configuring racks through Factory Express, a Rack Optimization kit will
automatically ship with the rack. This kit is recommended for all other rack
configurations also.
HP Rack Light Kit
HP Light Kit for 10000 Series Rack
NOTE: Supports HP Rack 10000 Series and HP Rack 10000 G2 series. This light kit
is mounted on the rack roof and used to provide light to the rear section of the rack.
361589-B21
Rack Coupling Kit
10000 Rack Coupling Kit
NOTE: Supported by both the Rack 10000 and Rack 10000 G2 series. Supports 24
in and 600 mm floor tile spacing. The kit is used to join two or more 10000 series
racks of the same height together in minutes to create a multi-bay configuration.
248929-B21
Offset Baying Kit
HP 9000 to 10000 Rack Offset Baying Kit
NOTE: This kit can be used to connect 9000 and 10000 series racks of the same U
height together. Kit contents include hardware for connecting racks and a panel to
cover the 100mm gap at the rear of the two racks.
248931-B21
Grounding Kit
HP 10000 G2 Series Rack Grounding Kit
NOTE: Supported by the Rack 10000 and Rack 10000 G2 series.
NOTE: 0D1 will appear after the above selected part numbers on yours sales order if
factory integration is indicated.
DA - 10995
Worldwide — Version 35 — August 30, 2011
AF074A
Page 7
QuickSpecs
HP Rack 10000 Series
Related Options
HP Cable Management
Kits
Cable Management D Rings
NOTE: This kit consists of 10 "D" rings that can be used in addition to the rings that
ship standard in the 10000 series and 10000 G2 series racks for cable management.
HP Rack Cable Management Velcro Clips
NOTE: 50 pack.
HP Rack Cable Management Kit
NOTE: This kit provides an easy way to organize and route cables within HP Racks.
Cable clips, cable rings, and 1U and 2U access panels are included.
NOTE: 0D1 will appear after the above selected part numbers on yours sales order if
factory integration is indicated.
168233-B21
HP Locking Drawer
HP 2U Universal Locking Drawer
NOTE: This product mounts on HP 10000 Series and HP Rack 10000 G2 series
racks with sliding rails and is used to store CD's, Instruction manuals, tools, and any
other item that is frequently used at the rack. Drawer includes lock.
NOTE: 0D1 will appear after the above selected part numbers on yours sales order if
factory integration is indicated.
361591-B21
HP Rack Cable Trays
HP 600 Wide Rack Top Cable Tray
HP 800 Wide Rack Top Cable Tray
HP Rack Top Cable Mgmt Transfer Tray
NOTE: The HP Rack Top Cable Mgmt Transfer Tray allows for cabling trays to be
connected even across different aisles in the datacenter.
NOTE: These kits mount on the top of the 9000 and 10000 Series rack (except the
S10614 rack). Kit color is graphite.
383982-B21
383983-B21
383984-B21
Rack Cooling
HP 10000 Rack Roof Mount Fan (110V) Kit
HP 10000 Rack Roof Mount Fan (220V) Kit
NOTE: 0D1 will appear after the above selected part numbers on yours sales order if
factory integration is indicated.
257413-B21
257414-B21
DA - 10995
Worldwide — Version 35 — August 30, 2011
379820-B21
AF099A
Page 8
QuickSpecs
HP Rack 10000 Series
Related Options
Keyboard and Monitors
HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard UK Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard DE Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard FR Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard IT Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard ES Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard DK Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard NO Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard SE/FI Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard CH Monitor
AZ870A
AZ871A
AZ872A
AZ873A
AZ874A
AZ875A
AZ876A
AZ877A
AZ878A
AZ879A
HP TFT7600 G2 KVM Console Rackmount Keyboard PT Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard BE Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard JP Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard RU Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard Intl Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13731_div/13731_div.html
(Worldwide)
AZ880A
AZ881A
AZ882A
AZ883A
AZ884A
AZ885A
Universal 1U Filler Panels HP 1U 10-pack Carbon Universal Filler Panel
HP 1U 100-pack Carbon Universal Filler Panel
NOTE: The blanking panels are made from high grade molded plastic, and are
designed to be installed without tools. The use of blanking panels is recommended to
ensure proper airflow.
NOTE: 0D1 will appear after the above selected part numbers on yours sales order if
factory integration is indicated.
HP Modular Power
Distribution Units (ZeroU/1U Modular PDUs)
100 - 127v 1Ø
HP 2.8kVA 24A Low Voltage NA/JP Modular Power Distribution Unit
200 - 240v 1Ø
HP 3.6kVA 16A High Voltage INTL Modular Power Distribution Unit
HP 4.9kVA 24A High Voltage NA/JP Modular Power Distribution Unit
HP 7.3kVA 32A High Voltage INTL Modular Power Distribution Unit
HP 8.3kVA 40A High Voltage INTL Modular Power Distribution Unit
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html
(Worldwide)
DA - 10995
Worldwide — Version 35 — August 30, 2011
AF070A
AF071A
252663-D71
252663-B24
252663-D72
252663-B31
252663-B21
Page 9
QuickSpecs
HP Rack 10000 Series
Related Options
HP Monitored Power
Distribution Unit
HP Monitored Power Distribution Unit - Full Rack Version
HP 17.3kVA 24A Dual Three Phase NA/JP Monitored Power Distribution Unit
HP 8.6kVA 24A Single Input Three Phase NA/JP Monitored Power Distribution Unit
HP 16.6kVA 40A Dual Input Single Phase NA/JP Monitored Power Distribution Unit
HP 8.3kVA 40A Single Input Single Phase NA/JP Monitored Power Distribution Unit
HP 22.1kVA 16A Dual Input Three Phase INTL Monitored Power Distribution Unit
HP 11kVA 16A Single Input Three Phase INTL Monitored Power Distribution Unit
HP 14.7kVA 32A Dual Input Single Phase INTL Monitored Power Distribution Unit
HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit
HP Monitored Power Distribution Unit - Half Rack Version
AF503A
AF504A
AF505A
AF506A
AF507A
AF508A
AF509A
AF510A
HP 17.3kVA 48A Single Input Three Phase NA/JP Monitored Power Distribution Unit
HP 22kVA 32A Single Input Three Phase INTL Monitored Power Distribution Unit
HP 4.9kVA 24A Single Input Single Phase NA/JP Monitored Power Distribution Unit
HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html
(Worldwide)
AF916A
AF917A
AF914A
AF915A
HP UPS R1500 G2
HP R1500 G2 1440VA Low Voltage NA 1U Rackmount Uninterruptible Power System
HP R1500 G2 1440VA INTL 1U Rackmount Uninterruptible Power System
HP R1500 G2 1200kVA Low Voltage JP 1U Rackmount Uninterruptible Power System
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12507_div/12507_div.html
(Worldwide)
AF419A
AF418A
AF421A
HP R1500 G3
Uninterruptible Power
Supply (UPS)
HP R1.5kVA G3 1U NA Uninterruptible Power System
HP R1.5kVA G3 1U JP/TW Uninterruptible Power System
HP R1.5kVA G3 1U INTL Uninterruptible Power System
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14059_div/14059_div.html
(Worldwide)
AF469A
AF470A
AF471A
HP R/T3000
Uninterruptible Power
System (UPS)
HP R/T3000 2880VA Low Voltage NA/JPN 2U Rackmount Uninterruptible Power
System
HP R/T3000 3300VA High Voltage NA/JPN 2U Rackmount Uninterruptible Power
System
HP R/T3000 3300VA INTL 2U Rackmount Uninterruptible Power System
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13417_div/13417_div.html
(Worldwide)
AF452A
DA - 10995
Worldwide — Version 35 — August 30, 2011
AF453A
AF454A
Page 10
QuickSpecs
HP Rack 10000 Series
Related Options
HP R/T3000 G2
Uninterruptible Power
System (UPS)
HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System
HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System
HP R/T3000 G2 2U Detachable Cord High Voltage INTL Uninterruptible Power
System
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13417_div/13417_div.html
(Worldwide)
AF466A
AF467A
AF468A
HP Rack-Mountable
R5500 UPS
HP R5500 6000VA INTL 3U Rackmount Uninterruptible Power System
HP R5500 5000kVA NA/JP 3U Rackmount Uninterruptible Power System
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/11817_div/11817_div.html
(Worldwide)
AF416A
AF426A
HP Parallel 3 Phase
HP RP36000/3 36000VA Three Phase NA Uninterruptible Power System
Uninterruptible Power
HP RP36000/3 36000VA Three Phase INTL Uninterruptible Power System
Systems (UPS RP36000/3)
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12856_div/12856_div.html
(Worldwide)
AF438A
AF439A
HP 1x4 USB/PS2 KVM
Switch
HP 1x4 USB/PS2 KVM Console Switch
HP 1x4 KVM Console 6ft PS2 Cable
HP 1x4 KVM Console 6ft USB Cable
NOTE: USB cable required for supporting USB peripherals.
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12662_div/12662_div.html
(Worldwide)
AF611A
AF612A
AF613A
HP KVM Switch Options
HP Server Console 0x2x8 Port Analog Switch
HP Server Console 0x2x16 Port Analog Switch
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/11834_div/11834_div.html
(Worldwide)
Interface Adapters
HP KVM CAT5 1-pack PS/2 Interface Adapter
HP KVM CAT5 8-pack PS/2 Interface Adapter
HP KVM CAT5 1-pack USB Interface Adapter
HP KVM CAT5 1-pack Serial Interface Adapter
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13474_div/13474_div.html
(Worldwide)
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches.
Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
AF616A
AF617A
DA - 10995
Worldwide — Version 35 — August 30, 2011
262588-B21
262587-B21
336047-B21
373035-B21
Page 11
QuickSpecs
HP Rack 10000 Series
Related Options
NOTE: For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following URL:
http://www.hp.com/go/kvm.
HP Serial Console Server HP 16 Port Serial Console Server
Options
HP 48 Port Serial Console Server
HP CAT5 RJ45-DB9 DCE Female 1 Pack Serial Adapter
HP CAT5 RJ45-DB9 DCE Female 8 Pack Serial Adapter
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html
(Worldwide)
AF101A
AF102A
AF103A
AF110A
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches.
Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
HP Care Pack Services
HP Install Rack and Rack Options Service
DA - 10995
Worldwide — Version 35 — August 30, 2011
U2871E
Page 12
QuickSpecs
HP Rack 10000 Series
Technical Specifications
S10614 Rack Physical Characteristics
Dimensions
(HxDxW)
Weight
Load
Color
Environment-friendly
Products and Approach
Total Cabinet Area
Shipping
(with packaging materials)
Operating
Shipping
Static
Dynamic
Doors
Frame
28.5 x 39.69 x 23.6 in (72.4 x 100 x 60 cm)
34 x 44x 30.5 in (86.36 x 111.82 x 77.5 cm)
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
135 lb (61 kg)
190 lb (86.18 kg)
600 lb (270 kg)
500 lb (227 kg)
Graphite Metallic
Carbon
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2011 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 10995
Worldwide — Version 35 — August 30, 2011
Page 13
