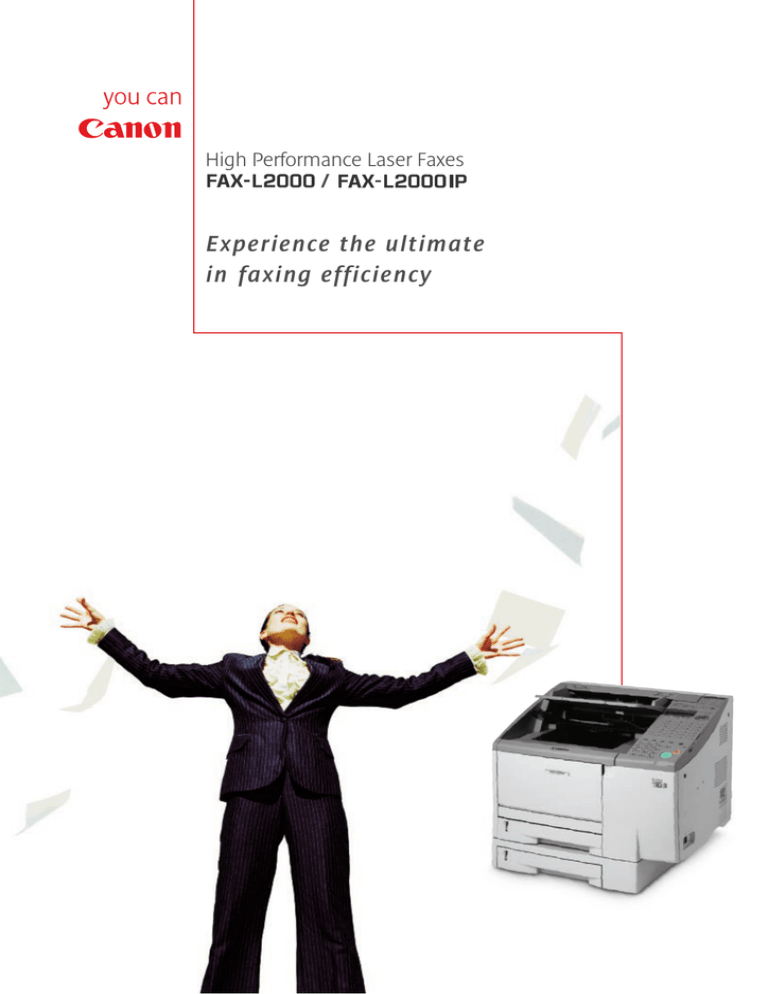

High Performance Laser Faxes
Experience the ultimate
in faxing efficiency
From high speed multi-tasking
to internet faxing
Enhance efficiency, save time and cut costs with the most complete laser fax for dynamic corporate
environments. High speed performance for heavy-duty faxing - as well as fast network printing and
convenient copying - provides unparalleled productivity. All combined with high quality sending,
simplicity and total security for sensitive documents.
The FAX-L2000 is the ideal choice for medium size companies and departments with a demanding
workload. While the unique Canon FAX-L2000IP opens new horizons for highly effective faxing.
Fully utilising your organization's internet platform, it features intelligent send, receive and forward
functions to speed up and simplify overall document management.
FAX-L2000:
heavy-duty
performance
ENHANCED PRODUCTIVITY
The durable design of the FAX-L2000 makes it
OFF
ON
Canon's unique UHQ
technology ensures
ideal for rapid and reliable high-volume faxing.
The large standard paper capacity of 600 pages
exceptional quality
when sending photos,
fine text or illustrations
reduces the need for constant paper refilling.
A huge standard memory of 512 pages* stores
both your incoming and outgoing faxes.
SUPERIOR IMAGE QUALITY
Other time-saving features include dual access -
Whether you're faxing fine text, diagrams or even
allowing you to carry out different functions
photographs, you can always rely on Canon's
simultaneously - and a 50-page Automatic
exclusive UHQ (Ultra High Quality) technology
Document Feeder.
for superior sending. Ensuring extra depth and
*
Based on ITI-T standard chart NO.1.
clarity for all your detailed work. A high print
resolution of 1200 x 1200 dpi offers equally high
CUTTING PHONE AND LABOUR COSTS
quality for all incoming faxes.
Keep your company phone and labour costs
down to an absolute minimum, thanks to ultra
COMPLETE CONFIDENTIALITY
fast Super G3 transmission. A fallback capability
Up to 50 confidential mailboxes are available -
allows full reception of multiple faxes without
offering users total security for all sensitive
blocking the line. Up to 200 fax numbers can
documents. Documents can then be received in
be stored in memory (72 one touch/128 coded)
memory and are only printed out when a
for faster dialling. Scanning speed is a rapid
password is provided. A forced reception feature
1.1 seconds per page (A4). Plus an 18 pages
ensures that all documents stay in memory and
per minute printing speed delivers your
are only printed out on request. While direct mail
faxes instantly.
prevention eliminates unwanted faxes.
IReceive
E-mail
FAX-L2000IP:
intelligent
internet faxing
COST-EFFECTIVE INTERNET FAXING
I-Fax
Mailbox
ISend
E-mail
With the FAX-L2000IP, you can send all your
international faxes via your existing internet
I-Fax
connection to compatible i-fax devices at reduced
File Server
rates. And you benefit from all the productive
AN INTELLIGENT WORKFLOW
features of the FAX-L2000 with the added
Paper documents can be scanned into your
advantage of unique send, receive and forward
system for direct distribution to i-fax and email
functions to transform your entire office workflow.
addresses. Faxes can also be sent to a file server
for storage. Plus you can route all incoming faxes
POWERFUL NETWORK PRINTING
automatically -allowing them to be shared and
As the FAX-L2000IP features standard network
worked on by authorised users on the network.
connectivity, the unit can also be used as a fast,
Acting as a central communication hub,
flexible and high quality printer for every PC on
the FAX-L2000IP lets you collect, share, manage
your network. Speed is a rapid 18 pages per
and store all your office documents digitally.
minute, with a razor-sharp print resolution of
1200 x 600 dpi. Thus it's ideal for use as a backup printer - or it can even serve as the main
printer for departments and workgroups.
MANAGE IT ALL EASILY
A Remote User Interface (RUI) allows direct
desktop control from connected PCs. Users can
issue print commands, check on status and carry
out a wide range of functions, via the built-in
web browser function. Plus handy network
management tools let administrators maintain
and monitor use remotely - complete with full
accountability so costs can be reduced.
Upgrade as
your business
expands
HIGH VOLUME PAPER CAPACITY
An optional 500-sheet paper cassette for both
the FAX-L2000 and FAX-L2000IP takes the total
paper supply up to 1100 sheets. Simply add it
on whenever you want - to meet the most
demanding needs for high volume faxing and
printing in the future.
BENEFIT FROM MORE MEMORY
With both faxes, you can also boost the standard
8MB memory right up to 32MB. This offers a
1500
massive 1500-page storage memory for high
volume faxing - without any risk of missing a fax
even if paper runs out. Also an optional handset can
be added to either model for full phone/fax use.
NETWORK PRINTING (FAX-L2000)
Add on an optional network and printer board
and transform the FAX-L2000 into a powerful
and productive network printer. It adds to overall
efficiency, saves space and saves you the cost of
having to buy an extra printer as and when the
need arises.
INTERNET FAXING (FAX-L2000)
If internet faxing is a feature that might interest
you in the future, no problem. The FAX-L2000
can be easily upgraded to an internet fax at any
time - thus offering your organization all the
intelligent, time-saving workflow functions
of the FAX-L2000IP.
FAX-L2000/FAX-L2000IP Specifications
FAX unit type
Type
Compatibility
Applicable line
Modem speed
Print technology
Scanner type
Body colour
General features
FAX-L2000 Standalone facsimile with optional upgrades
FAX-L2000IPFacsimile with network printing and internet
faxing capabilities
Group 3
PSTN
33.6K bps ( Super G3 )
Laser beam printing
Sheet fed
Cool White
FAX scanning features
Automatic document feeder50 sheets
Scanning speed
Approx. 1.1 sec/page
Fax resolution
Ultra fine: 16 pels x 15.4 lines / mm
Super fine: 8 pels x 15.4 lines / mm
Fine: 8 pels x 7.7 lines / mm
Standard: 8 pels x 3.85 lines / mm
Image processing system UHQ (Ultra High Quality)
Halftone
256 shades of greyscale
Dimensions
Dimensions
Installation space
Weight
Power
Acoustic Noise Levels
Options
Items
FAX printing features
Printing method
Print speed
Print resolution
Paper input capacity
Print cartridge
Yield
Others
Laser Beam Printing
18 pages per minutes
1200 X 1200 dpi
2 x 250 sheets paper cassette
Optional cassette 500 sheets paper cassette
Multi Purpose Tray 100 sheet auto sheet feeder
FX-7
4500 pages (based on Canon Fax Standard Chart No. 1.)
Smoothing
Transmission and reception features
Transmission speed
Compression method
FAX memory
Others
3 seconds per page with 33.6K bps modem
(based on ITU-T Standard Chart No.1.)
MH, MR, MMR, JBIG
512 pages (8MB) based on ITU-T Standard Chart No. 1.
Memory backup
Yes, approx. 12 hours
Optional memory 32MB (1500 pages)
based on ITU-T Standard Chart No. 1.
Dual access, Error correction mode (ECM), Fax transfer,
Fax retrieval (Bulletin board)
Security and Management features
Confidential transmission Yes (By sub address or password)
Confidential mail box
Yes (By sub address or password - 50 boxes)
Others
Verification stamp
(No handset or optional cassette)
499(W) x 498.7(D) x 458.9(H) mm
(With handset and optional cassette)
569(W) x 498.7(D) x 595.4(H) mm
(With handset and optional cassette)
569(W) x 1065.3(D) x 644.6(H) mm
Approx. 24 Kg (without handset or optional cassette)
Source
AC 200-240V 50-60Hz
Consumption
Approx. 15W (standby), Approx. 980W (Max)
Reception: approx. 270W; Transmission:
approx. 18W Copy: approx. 435W
Standby: under 35dB(A); Copy: under 56dB(A)
Printing: under 54dB(A); Transmission: under 55dB(A)
500 Sheet Paper Cassette
Printer Interface Board (optional for FAX-L2000)
Network Interface Board (optional for FAX-L2000)
32MB Memory (For Printer and Fax)
64MB Memory (Printer only)
Handset (Telephone 6 - Cool white )
Printer Features
Printer function
Printer Type
Print Speed
Interface
PDL
Memory
Print Resolution
Supplied Drivers
Others
FAX-L2000
Optional
FAX-L2000IP
Yes
Mono Laser
18 pages per minute
IEEE1284 (Parallel), USB
PCL5e, PCL6
Standard RAM
8MB
Option RAM
32MB/64MB
Option ROM
8MB Flash ROM DIMM
1200 x 600 dpi
Printer
Windows 95, NT4.0, 98, Me, 2000, XP
Fax
Windows 95, NT4.0, 98, Me, 2000, XP
Toner Save
Network Features
Network connectivity
Type
Connection Type
Network Protocols
Others
FAX-L2000
Optional
FAX-L2000IP
Yes
Ethernet (10BaseT/100BaseT)
RJ45
TCP/IP, IPX/SPX
Remote User Interface, Email notification upon job completion,
Dynamic Configuration, Scan to FTP
Internet Fax features
Internet Fax
Telephony features
One touch dials
Coded dials
Group dials
Telephone handset
Others
72 locations
128 locations
Max. 199 locations
Option
Program dial
Protocol
Transmission
Reception
Copy features
Copy resolution
Copy speed (Mono)
Multiple copy
Scan: 600 x 600 dpi Print; 1200 x 1200 dpi
18 copies per minutes
Up to 99 copies
FAX-L2000
Optional
FAX-L2000IP
Yes
T.37 Simple Mode
Internet FAX (Simple Mode) File Format
TIFF (MH)
Email Mode File Format
TIFF (MH/MR/MMR), PDF (MH)
Internet FAX (Simple Mode) File Format
TIFF (MH)
Receiving Method
POP3 (Manual RX available), SMTP
Other features
Display
Internet FAX function
(LAN Type)
Type
Size
LCD
20 x 2
FAX-L2000
FAX-L2000IP
Optional
Yes
™ All company and/or product names are trademarks and/or registered trademarks of
their respective manufacturers in their markets and/or countries.
Canon reserves the right to change specifications without notice.
Canon's new FX-7 cartridge included
Canon Inc.
30-2, Shimomaruko 3-Chome, Ohta-ku,
Tokyo 146-8501, Japan
www.canon.com
Europe, Africa and Middle East
Canon Europa N.V.
P.O. Box 2262, 1180 EG Amstelveen,
the Netherlands
www.canon-europe.com
Canon (UK) Ltd
Woodhatch
Reigate
Surrey
RH2 8BF
Tel 08705 143723
Fax 08705 143340
www.canon.co.uk
© Canon Europa N.V., 2003 (0203)
