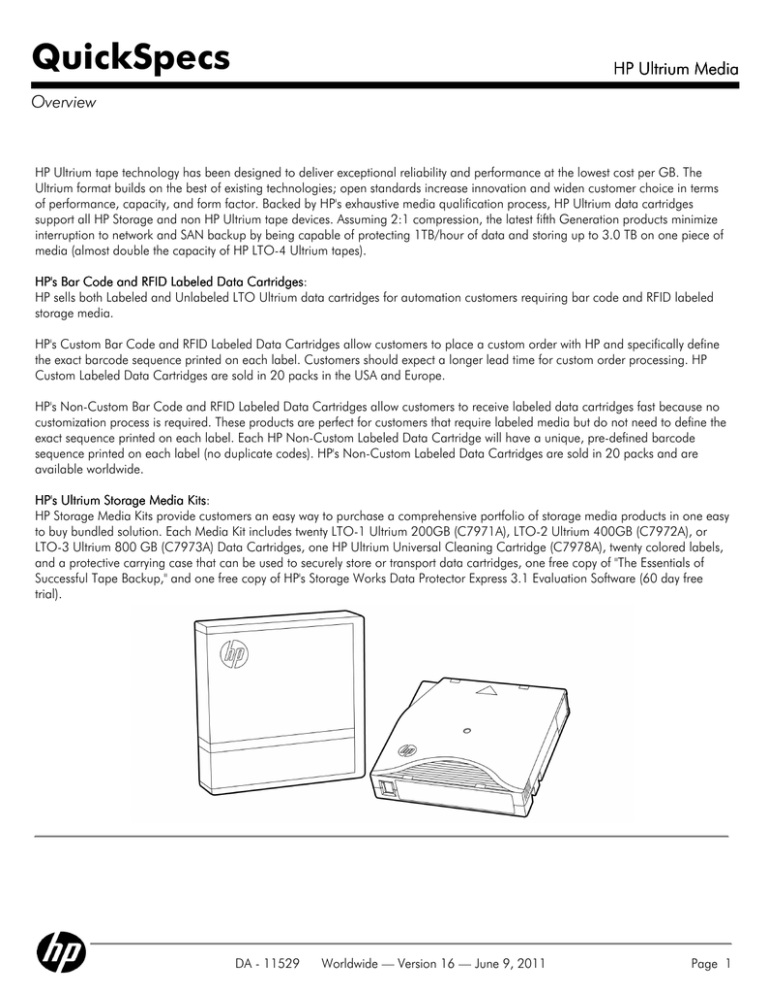

QuickSpecs
HP Ultrium Media
Overview
HP Ultrium tape technology has been designed to deliver exceptional reliability and performance at the lowest cost per GB. The
Ultrium format builds on the best of existing technologies; open standards increase innovation and widen customer choice in terms
of performance, capacity, and form factor. Backed by HP's exhaustive media qualification process, HP Ultrium data cartridges
support all HP Storage and non HP Ultrium tape devices. Assuming 2:1 compression, the latest fifth Generation products minimize
interruption to network and SAN backup by being capable of protecting 1TB/hour of data and storing up to 3.0 TB on one piece of
media (almost double the capacity of HP LTO-4 Ultrium tapes).
HP's Bar Code and RFID Labeled Data Cartridges:
Cartridges
HP sells both Labeled and Unlabeled LTO Ultrium data cartridges for automation customers requiring bar code and RFID labeled
storage media.
HP's Custom Bar Code and RFID Labeled Data Cartridges allow customers to place a custom order with HP and specifically define
the exact barcode sequence printed on each label. Customers should expect a longer lead time for custom order processing. HP
Custom Labeled Data Cartridges are sold in 20 packs in the USA and Europe.
HP's Non-Custom Bar Code and RFID Labeled Data Cartridges allow customers to receive labeled data cartridges fast because no
customization process is required. These products are perfect for customers that require labeled media but do not need to define the
exact sequence printed on each label. Each HP Non-Custom Labeled Data Cartridge will have a unique, pre-defined barcode
sequence printed on each label (no duplicate codes). HP's Non-Custom Labeled Data Cartridges are sold in 20 packs and are
available worldwide.
HP's Ultrium Storage Media Kits:
Kits
HP Storage Media Kits provide customers an easy way to purchase a comprehensive portfolio of storage media products in one easy
to buy bundled solution. Each Media Kit includes twenty LTO-1 Ultrium 200GB (C7971A), LTO-2 Ultrium 400GB (C7972A), or
LTO-3 Ultrium 800 GB (C7973A) Data Cartridges, one HP Ultrium Universal Cleaning Cartridge (C7978A), twenty colored labels,
and a protective carrying case that can be used to securely store or transport data cartridges, one free copy of "The Essentials of
Successful Tape Backup," and one free copy of HP's Storage Works Data Protector Express 3.1 Evaluation Software (60 day free
trial).
DA - 11529
Worldwide — Version 16 — June 9, 2011
Page 1
QuickSpecs
HP Ultrium Media
Overview
Models
HP LTO-5 Ultrium 3TB RW Data Cartridge
HP LTO-5 Ultrium 3TB RW Custom Labeled Data Cartridge 20 Pack
HP LTO-5 Ultrium 3TB WORM Data Cartridge
HP LTO-5 Ultrium Non-custom Labeled Data Cartridge 20 Pack
HP LTO-5 WORM Custom Labeled Cartridge 20 Pack
HP LTO-5 RW Custom Labeled No Case Data Cartridge 20 Pack
HP LTO-5 Ultrium 3.0 TB RFID Custom Labeled Data Cartridge (20 pack)
HP LTO-5 Ultrium 3.0 TB RFID Non Custom Labeled Data Cartridge (20 pack)
HP LTO-5 Ultrium 3.0 TB RFID Eco Pack (No Case) Data Cartridge (20 pack)
HP LTO-4 Ultrium 1.6 TB RW Data Cartridge
C7975A
C7975AL
C7975W
C7975AN
C7975WL
C7975AC
C7975AF
C7975AJ
C7975AK
C7974A
HP LTO-4 Ultrium 1.6TB RW Custom Labeled Data Cartridge (20 pack)
HP LTO-4 Ultrium 1.6 TB WORM Data Cartridge
HP LTO-4 Ultrium 1.6TB Non Custom Labeled Data Cartridge (20 pack)
HP LTO-4 Ultrium 1.6 TB WORM Custom Labeled Data Cartridge (20 pack)
HP LTO-4 Ultrium 1.6 TB RFID Custom Labeled Data Cartridge (20 pack)
HP LTO-4 Ultrium 1.6 TB RFID Non Custom Labeled Data Cartridge (20 pack)
HP LTO-4 Ultrium 1.6 TB RFID Eco Pack (No Case) Data Cartridge (20 pack)
HP LTO-3 Ultrium 800 GB RW Data Cartridge
HP LTO-3 Ultrium 800 GB RW Custom Labeled Data Cartridge (20 pack)
HP LTO-3 Ultrium 800 GB Non Custom Labeled Data Cartridge (20 pack)
HP LTO-3 Ultrium 800 GB WORM Data Cartridge
HP LTO-3 Ultrium 800 GB WORM Custom Labeled Data Cartridge (20 pack)
HP LTO-3 Ultrium 800 GB RFID Custom Labeled Data Cartridge (20 pack)
HP LTO-3 Ultrium 800 GB RFID Non Custom Labeled Data Cartridge (20 pack)
HP LTO-3 Ultrium 800 GB RFID Eco Pack (No Case) Data Cartridge (20 pack)
HP LTO-2 Ultrium 400 GB Data Cartridge
HP LTO-2 Ultrium 400 GB Custom Labeled Data Cartridge (20 pack)
HP LTO-2 Ultrium 400 GB Non Custom Labeled Data Cartridge (20 pack)
HP LTO-1 Ultrium 200 GB Data Cartridge
HP LTO-1 Ultrium 200 GB Custom Labeled Data Cartridge (20 pack)
HP LTO-1 Ultrium 200 GB Non Custom Labeled Data Cartridge (20 pack)
HP LTO Ultrium Universal Cleaning Cartridge
HP LTO-1 Ultrium Bar Code label pack
HP LTO-2 Ultrium Bar Code label pack
HP LTO-3 Ultrium RW Bar Code label pack
HP LTO-3 Ultrium WORM Bar Code label pack
HP LTO-4 Ultrium RW Bar Code label pack
HP LTO-4 Ultrium WORM Bar Code label pack
HP LTO-5 Ultrium RW Bar Code Label Pack
HP LTO-5 Ultrium WORM Bar Code Label Pack
C7974AL
C7974W
C7974AN
C7974WL
C7974AF
C7974AJ
C7974AK
C7973A
C7973AL
C7973AN
C7973W
C7973WL
C7973AF
C7973AJ
C7973AK
C7972A
C7972AL
C7972AN
C7971A
C7971AL
C7971AN
C7978A
Q2001A
Q2002A
Q2007A
Q2008A
Q2009A
Q2010A
Q2011A
Q2012A
DA - 11529
Worldwide — Version 16 — June 9, 2011
Page 2
QuickSpecs
HP Ultrium Media
Overview
Key Features & Benefits
Up to 3.0 TB compressed capacity.
Supports transfer speeds of 140 MB/s (native), 280 MB/s (2:1) with Generation 5
For use in all HP and non-HP LTO Ultrium products.
Unique colored cartridge to assist with identification in mixed media environments.
Superior 'smart grabber' mechanism and mechanical interlock to prevent the leader pin from
being pulled inside the tape housing (a key weakness of DLT media). Sensors detect proper
connection and prevent leader loss that would ruin the tape.
Simplified tape path to reduce wear and tear.
Very low media cost per GB.
LTO cartridge memory in media to improve access time and provide enhanced media monitoring.
Durable cartridge designed to minimize wear and debris (important in automation).
Tested to extremes in HP's media laboratory, to a level of specification unique to Hewlett-Packard.
Many of the test procedures required for HP Brand qualification (e.g. load/unload, shoeshine,
drop testing and environmental stress testing) are not required for the Ultrium logo.
HP LTO-4 and LTO-5 Ultrium offers data encryption for enhanced data security.
HP's offers both labeled (Custom Labeled and Non-Custom Labeled) and non-labeled Tri Optic
and RFID data cartridges.
Custom labeled offerings allow automation customers the ability to customize their label to their
specific needs. This includes the ability to define the barcode label type and to specify an exact
label sequence. Custom labels are pre-attached to the media before shipment. Available in
Europe and the USA. Europe requires a Minimum Order Quantity of 5 units or 100 total data
cartridges (5 units X 20 cartridges).
HP Non-Custom Labeled media allows automation customers the ability to receive labeled media
without having to wait for a custom labeled solution. Barcode sequences are pre-determined by
HP and are guaranteed to be unique. LTO-1 and LTO-2 products utilize the double barcode
format whereas products from LTO-3 onwards utilize the single barcode format. HP Non-Custom
Labeled media is available worldwide.
HP LTO Ultrium RFID Storage Media provides a faster, more flexible and secure alternative to
traditional barcode identification solutions. Rewritable RFID labels enable cartridges to be
accurately tracked in real time, anywhere in the world. HP RFID labels are tested to extremes,
support worldwide radio frequencies and comply with global data security standards.
All labeled solutions are shipped in 20 packs.
DA - 11529
Worldwide — Version 16 — June 9, 2011
Page 3
QuickSpecs
HP Ultrium Media
Product Highlights
Proven Reliability
HP ensures the highest level of quality with media specifications that far exceed industry standards.
HP has 20 custom-built testing chambers that are in use 24 hours per day, 365 days per year.
It is doubtful if any other media supplier carries out such exhaustive qualification of the drive and
media as they are used in the field. This is because no media supplier is exposed to support of
hardware in the field and has a vested interest in reducing media-induced hardware issues.
In 2009, HP LTO Ultrium media was used to conduct in excess of 235,000 individual tests,
equivalent to almost 1 million test hours.
HP testing includes procedures like drop testing, load/unload, environmental stress tests and
archival simulation that are not required to gain the LTO Ultrium logo.
LTO Ultrium tape technology uses a "best of breed" technology approach, taking the best features from
other tape technologies and combining them into a single new technology without the need for design
compromises to accommodate legacy compatibility requirements. Designed for the demanding
environment of large-scale libraries, Ultrium media is certified for 1 million passes or 260 full back ups
and has a 30-year archival storage life.
HP Branded Media
Specification
HP believes that its test program for HP Ultrium media is the most thorough and comprehensive in the
industry. In order to carry the HP Brand, designated cartridges must satisfy an exhaustive battery of
additional procedures that relate directly to how the product is used in real life situations when real data
and real businesses are at stake. Some of these procedures - e.g. "five corner" environmental
interchange, load/unload for automation, ageing simulation and drop testing are not found in the
standard logo test. Over 1 million test hours on media and drives per year ensures that HP Ultrium
media will always offer maximum reliability even in the most extreme conditions.
HP LTO-5 Ultrium Tape
Technology
The latest HP LTO-5 Ultrium tape drive technology uses a linear format of 1,280 tracks, writing sixteen
(16) tracks simultaneously. The data is written in a serpentine pattern; the tape reverses direction after
each set of sixteen tracks is written.
LTO Ultrium formats are open standards. This means that data written on any HP LTO Ultrium tape drive
for ProLiant servers, autoloaders, MSL, EML or ESL can be interchanged directly with Ultrium tape drives
from other vendors.
Compression
LTO-DC is an enhanced version of Advanced Lossless Data Compression (ALDC) hardware
compression. Compression is automatically turned "off" if the compressed data would cause an overall
expansion in data size.
Compatibility Testing
HP LTO Ultrium data cartridges are fully supported and compatible with HP LTO Ultrium tape products.
Because HP LTO Ultrium media is LTO Ultrium logo compliant, it may be used with any other non-HP
device that bears the LTO Ultrium logo.
DA - 11529
Worldwide — Version 16 — June 9, 2011
Page 4
QuickSpecs
HP Ultrium Media
Product Highlights
Backward Read
Compatible
Why Buy LTO?
LTO-1 Media
LTO-2 Media
LTO-3 Media
LTO-4 Media
LTO-5 Media
LTO-1 Drive
Read/Write
Not Compatible
Not Compatible
Not Compatible
Not Compatible
LTO-2 Drive
Read/Write
Read/Write
Not Compatible
Not Compatible
Not Compatible
LTO-3 Drive
Read Only
Read/Write
Read/Write
Not Compatible
Not Compatible
LTO-4 Drive
Not Compatible
Read Only
Read/Write
Read/Write
Not Compatible
LTO-5 Drive
Not Compatible
Not Compatible
Read Only
Read/Write
Read/Write
If you have not yet standardized on a large-tape format then LTO Ultrium tape technology is the
preferred choice offering:
Highest reliability through no compromise design and innovative features like Data Rate
Matching.
High capacity to meet the challenges of data deluge
High performance - even on slower hosts
An industry standard - Linear Tape-Open format
Investment protection - with an eight-generation roadmap with plans to deliver a compressed
capacity of 32 TB and a compressed transfer rate of up to 1.18 GB/s.
Warranty and Support
Includes a limited lifetime warranty, fully supported by a worldwide network of resellers and service
providers as well as toll-free 24 X 7 technical phone support during the warranty period. For full details
on warranty and support for pre-labeled media, please go to:
http://www.hp.com/products1/storage/products/storagemedia/index.html.
Related Hardware Options
For full details of all media and hardware compatibility between HP LTO Ultrium storage media and HP Storage tape drives,
autoloaders and libraries, please go to: www.hptapecompat.com.
DA - 11529
Worldwide — Version 16 — June 9, 2011
Page 5
QuickSpecs
HP Ultrium Media
Options
Related Hardware Options
NOTE: This is a list of supported hardware options. Some may be discontinued.
HP MSL8096 2 LTO-5 Ultrium 3280 FC Tape Library
HP MSL8096 4 LTO-5 Ultrium 3280 FC Tape Library
HP MSL8096 2 LTO-5 Ultrium 3000 SAS Tape Library
HP MSL8096 2 LTO-4 Ultrium 1840 Fibre Channel Tape Library
HP MSL8096 4 LTO-4 Ultrium 1840 Fibre Channel Tape Library
HP MSL8096 2 LTO-4 Ultrium 1760 SAS Tape Library
HP MSL8096 4 LTO-3 Ultrium 960 Fibre Channel Tape Library
BL533A
BL534A
BL539A
AJ040A
AN974A
AK382A
AN973A
HP MSL4048 Tape
Library
HP MSL4048 1 LTO-5 3280 FC Tape Library
HP MSL4048 2 LTO-5 Ultrium 3000 SAS Tape Library
HP MSL4048 2 LTO-5 Ultrium 3000 Fibre Channel Tape Library
HP MSL4048 1 LTO-4 Ultrium 1840 Fibre Channel Tape Library
HP MSL4048 2 LTO-4 Ultrium 1840 Fibre Channel Tape Library
HP MSL4048 2 LTO-4 Ultrium 1840 Tape Library
HP MSL4048 2-drive LTO-4 Ultrium 1760 SCSI Tape Library
HP MSL4048 2 LTO-4 Ultrium 1760 SAS Tape Library
HP MSL4048 1 LTO-3 Ultrium 920 Drive Tape Library
HP MSL4048 0-Drive Tape Library
BL532A
BL538A
BL543A
AJ036A
AJ038A
AJ037A
AJ818A
AK380A
AH171A
AK381A
HP MSL2024 Tape
Library
HP MSL2024 1 LTO-5 3280 FC Tape Library
HP MSL2024 1 LTO-5 Ultrium 3000 SAS Tape Library
HP MSL2024 1 LTO-5 Ultrium 3000 Fibre Channel Tape Library
HP MSL2024 1 LTO-4 Ultrium 1840 Fibre Channel Tape Library
HP MSL2024 1 LTO-4 Ultrium 1840 Tape Library
HP MSL2024 1 LTO-4 Ultrium 1760 SAS Tape Library
HP MSL2024 1-drive LTO-4 Ultrium 1760 SCSI Tape Library
BL531A
BL537A
BL542A
AJ034A
AJ033A
AK378A
AJ817A
HP MSL2024 LTO-3 Ultrium 920 SAS Tape Library
HP MSL2024 1 LTO-3 Ultrium 920 Drive Tape Library
HP MSL2024 0-Drive Tape Library
AH559A
AH169A
AK379A
HP MSL8096 Tape
Library
Ultrium 3000 Tape Drive HP LTO-5 Ultrium 3000 SAS Internal
* 0D1 will appear after this part number on your sales order if factory integration is
indicated.
HP LTO-5 Ultrium 3000 SAS External Tape Drive
HP LTO-5 Ultrium 3000 SAS Rack-mount
* 0D1 will appear after this part number on your sales order if factory integration into
a rack is indicated.
NOTE: Single drive bundled with a 1U Rack-mount enclosure.
DA - 11529
Worldwide — Version 16 — June 9, 2011
EH957A*
EH958A
EJ014A*
Page 6
QuickSpecs
HP Ultrium Media
Options
Ultrium 1760 Tape Drive HP LTO-4 Ultrium 1760 SAS Internal
* 0D1 will appear after this part number on your sales order if factory integration is
indicated.
HP LTO-4 Ultrium 1760 SAS External Tape Drive
HP LTO-4 Ultrium 1760 SAS Rack-mount
* 0D1 will appear after this part number on your sales order if factory integration into
a rack is indicated.
NOTE: Single drive bundled with a 1U Rack-mount enclosure.
HP LTO-4 Ultrium 1760 SCSI Internal
* 0D1 will appear after this part number on your sales order if factory integration is
indicated.
HP LTO-4 Ultrium 1760 SCSI External Tape Drive
EH919A*
Ultrium 920 Tape Drive
HP Ultrium 920 SCSI Internal
* 0D1 will appear after this part number on your sales order if factory integration is
indicated.
HP Ultrium 920 SCSI External
HP Ultrium 920 SCSI Rack-mount
* 0D1 will appear after this part number on your sales order if factory integration into
a rack is indicated.
NOTE: Single drive bundled with a 1U Rack-mount enclosure.
HP Ultrium 920 SAS Internal
* 0D1 will appear after this part number on your sales order if factory integration is
indicated.
HP Ultrium 920 SAS External Tape Drive
EH841A*
HP Ultrium 448 SCSI Internal
* 0D1 will appear after this part number on your sales order if factory integration is
indicated.
HP Ultrium 448 SCSI External Tape Drive
HP Ultrium 448 SCSI Array Module
* 0D1 will appear after this part number on your sales order if factory integration is
indicated.
NOTE: Offline hot-swap tape drive for HP Tape Array 5300.
HP Ultrium 448 SCSI Rack-mount
* 0D1 will appear after this part number on your sales order if factory integration into
a rack is indicated.
NOTE: Single drive bundled with a 1U Rack-mount enclosure.
HP Ultrium 448 SAS Internal
* 0D1 will appear after this part number on your sales order if factory integration is
indicated.
HP Ultrium 448 SAS External Drive
DW016A*
Ultrium 448 Tape Drive
DA - 11529
Worldwide — Version 16 — June 9, 2011
EH920A
EH946A*
EH921A*
EH922A
EH842A*
EH903B
EH847A*
EH848A
DW017B
DW019A*
DW028B*
DW085A*
DW086A
Page 7
QuickSpecs
HP Ultrium Media
Options
Ultrium 232 Tape Drive
HP Ultrium 960 Tape
Drive
HP Ultrium 232 SCSI Internal
* 0D1 will appear after this part number on your sales order if factory integration is
indicated.
HP Ultrium 232 SCSI External Tape Drive
HP Ultrium 960 Internal Tape Drive
HP Ultrium 960 Array Module
DA - 11529
Worldwide — Version 16 — June 9, 2011
DW064A*
DW065B
Q1538A
Q1540A
Page 8
QuickSpecs
HP Ultrium Media
Technical Specifications
LTO-1 Ultrium
LTO-2 Ultrium
LTO-3 Ultrium
LTO-4 Ultrium
LTO-5 Ultrium
Magnetic Material
Metal Particle
Metal Particle
Metal Particle
Metal Particle
Metal Particle
Recording Density
124 kbits/inch
188 kbits/inch
245 kbits/inch
343 kbits/inch
343 kbits/inch
Number of Data Tracks 384
512
704
896
1,280
Recording Capacity
100/200 GB
200/400 GB
400/800 GB
800GB/1.6 TB
1.5 TB/3.0 TB
Coercivity
1800 - 1900 Oe
2100 - 2400 Oe
2500 - 2700 Oe
2500 - 2700 Oe
2,500 - 2,700 Oe
Tape Width (mm)
12.65
12.65
12.65
12.65
12.65
Tape Thickness (um)
8.9
8.9
8.0
6.6
6.4
Tape Length (m)
609
609
680
820
846
External Dimensions
1.8 x 4.45 x 4.37 in 1.8 x 4.45 x 4.37 in 1.8 x 4.45 x 4.37 in 1.8 x 4.45 x 4.37 in 1.8 x 4.45 x 4.37 in
(2.1 x 11.3 x 11.1 (2.1 x 11.3 x 11.1 (2.1 x 11.3 x 11.1 (2.1 x 11.3 x 11.1 (2.1 x 11.3 x 11.1
cm)
cm)
cm)
cm)
cm)
Cartridge Weight
0.63 lb (285.2 g) 0.63 lb (285.2 g) 0.63 lb (285.2 g) 0.63 lb (285.2 g) 0.63 lb (285.2 g)
Durability
1,000,000 passes on any area of tape, equates to over 20,000 end-to-end passes/260 full tape
backups
Archival Life
30 years
30 years
30 years
30 years
N/A
Environmental
50° to 113° F (10° to 45° C)
Operating
Requirements
Temperature
(Media should not be used Day to Day Storage 60° to 90° F (16° to 32° C)
outside of these
Temperature
parameters)
Long Term Storage 41° to 73° F (5° to 23° C)
Temperature Ambient
Maximum Wet Bulb 79° F (26° C)
Temperature
Non Condensing 10 to 80% (Operating) 20 to 60% (Archival)
Relative Humidity
© Copyright 2011 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 11529
Worldwide — Version 16 — June 9, 2011
Page 9
