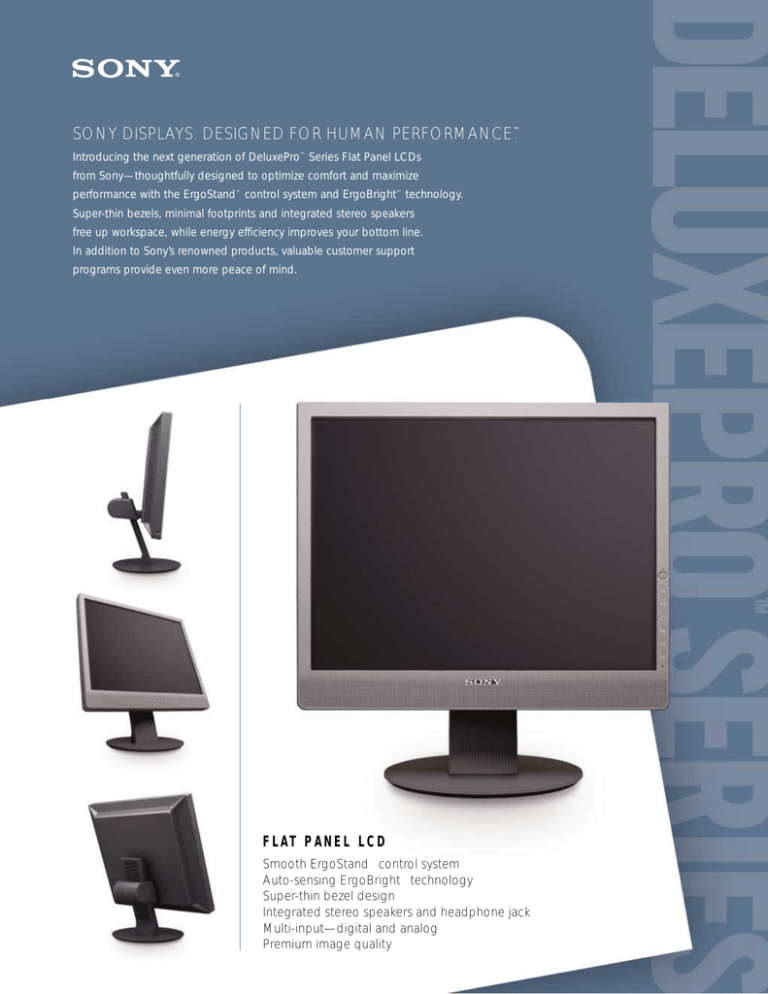

SONY DISPLAYS. DESIGNED FOR HUMAN PERFORMANCE™.
Introducing the next generation of DeluxePro™ Series Flat Panel LCDs
from Sony—thoughtfully designed to optimize comfort and maximize
performance with the ErgoStand™ control system and ErgoBright™ technology.
Super-thin bezels, minimal footprints and integrated stereo speakers
free up workspace, while energy efficiency improves your bottom line.
In addition to Sony’s renowned products, valuable customer support
programs provide even more peace of mind.
FLAT PANEL LCD
Smooth ErgoStand™ control system
Auto-sensing ErgoBright™ technology
Super-thin bezel design
Integrated stereo speakers and headphone jack
Multi-input—digital and analog
Premium image quality
Ergonomically designed. Space-conscious. Energy-efficient.
Smooth ErgoStand™ control system: Height control, swivel base and tilt combine to achieve custom viewing positions.
Auto-sensing ErgoBright™ technology: Brightness automatically adapts to your workspace environment and saves energy.
Super-thin bezel design: Desktop savings; wall and arm mountable or stackable.
Integrated stereo speakers and headphone jack: See and hear multimedia presentations and more.
Multi-input—digital and analog: Supports simultaneous connections; digital technology protects your investment.
Premium image quality: Auto ImageSet™ technology and sharpness control optimize picture performance.
Super-thin bezel
Kensington® security lock and
VESA arm/wall mount
Thin profile w/internal
power supply
Smooth adjustable
height and tilt
Thin footprint design
Integrated stereo
speakers w/HPJ
Cable management system
Swivel base
Model Number
Viewable Image Size
Native Resolution
Screen Coating
Design Color
Super-Thin Bezel (width)
Audio
Pixel Pitch
Horizontal Scan (kHz)
Vertical Refresh (Hz)
Response Time (rise/fall)
Contrast Ratio (max.)
Luminance (max.)
Viewing Angle (H/V)
Auto-Sensing ErgoBright™
Technology
ErgoStand™ Control System
VESA Wall/Arm Mount
Video Input Connector(s)
Auto-Sensing Inputs
Kensington Lock Compatible
Internal Power Supply
Cable Management System
US Government Trade Compliant
Power Management
SDM-X53, SDM-X53/B
SDM-X73, SDM-X73/B
SDM-X93, SDM-X93/B
17.0"
15.0"
1280 x 1024
1024 x 768
Anti-Glare/Protective
Anti-Glare/Protective
Black or Two -Tone Gray
Black or Two -Tone Gray
0.53"
0.65"
Stereo Speakers w/HPJ
Stereo Speakers w/HPJ
0.264 mm
0.297 mm
28-80 kHz
28-61 kHz
48-75 Hz
48-75 Hz
16ms
25ms
500:1
500:1
300cd/m2
300cd/m2
160°/140°
160°/140°
Auto 50cd/m2-300cd/m2, High 300cd/m2, Auto 50cd/m2-300cd/m2, High 300cd/m2,
Middle 250cd/m2, Low 100cd/m2
Middle 250cd/m2, Low 100cd/m2
170°/170°
Auto 50cd/m2-300cd/m2, High 300cd/m2,
Middle 250cd/m2, Low 100cd/m2
Tilt Range -5° to +20°; Swivel Range 350°;
Height Range up to 4.0"
Tilt Range -5° to +20°; Swivel Range 350°;
Height Range up to 4.0"
Tilt Range -5° to +20°; Swivel Range 350°;
Height Range up to 4.0"
75 mm
Digital (DVI-D) and Analog (HD15)
Yes
Yes
Yes
Yes
Yes
75 mm
Digital (DVI-D) and Dual Analog (HD15)
Yes
Yes
Yes
Yes
Yes
100 mm
Digital (DVI-D) and Dual Analog (HD15)
Yes
Yes
Yes
Yes
Yes
Normal Operation (max.) 25W/Standard Condition (typ.) 18W/
Active Off (max.) 1W/Main Switch Off 0W
Normal Operation (max.) 45W/Standard Condition (typ.) 35W/
Active Off (max.) 1W/Main Switch Off 0W
Normal Operation (max.) 50W/Standard Condition (typ.) 40W/
Active Off (max.) 1W/Main Switch Off 0W
19.0"
1280 x 1024
Anti-Glare/Protective
Black or Two -Tone Gray
0.67"
Stereo Speakers w/HPJ
0.294 mm
28-80 kHz
48-75 Hz
25ms
600:1
300cd/m2
High 18W/Middle 18W/Low 13W
High 35W/Middle 35W/Low 17W
High 40W/Middle 40W/Low 20W
Dimensions (WxHxD)
13.3" x [12.6"~16.5"] x [7.9"~9.1"] (w/stand)
13.3" x 11.7" x 2.4" (w/o stand)
14.4" x [14.2"~18.1"] x [9.1"~9.8"] (w/stand)
14.4" x 13.2" x 2.4" (w/o stand)
16.2" x [15.6"~19.5"] x [9.1"~9.8"] (w/stand)
16.2" x 14.6" x 2.5" (w/o stand)
Weight (Display)
Regulation Compliance
15.7 lbs. (w/stand)/11.0 lbs. (w/o stand)
10.1 lbs. (w/stand)/6.6 lbs. (w/o stand)
16.5 lbs. (w/stand)/11.9 lbs. (w/o stand)
Power Management: International Energy Star; Emissions/Ergonomics: TCO ’99 Designed For: PC2001; Windows® 95, 98,
2000, Windows NT®, Windows® XP Operating Systems; Macintosh® Computers; Plug and Play: DDC 2B
Power, Menu, Contrast, Brightness, Input Select, Eco Mode, Color Temperature, Backlight, Auto Adjust, H/V Adjust, Phase, Pitch, Reset,
Gamma, Zoom, Auto-Sensing Inputs, Sharpness, Menu Lock, OSD Position, Multi Lang. (Eng., Fre., Spa., Ital., Ger., Jap., Dut., Swe., Rus., Chi.)
ErgoBright™ Technology Power Management
On-Screen Controls
Limited Warranty
Supplied Accessories
3 years (parts, labor, backlight); Extended warranties also available.
PC/Mac Setup Utility CD-ROM + User’s Manual, Quick Setup Guide, AC Power Cord,
Cord Strap, DVI-D Cable, HD15 Video Cable, Audio Cable, Limited Warranty Card
For more info, log on to
sony.com/displays/b2b
Computer Interface: The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. These displays are not manufactured to any specific software, and Sony does not and cannot
make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware options except those mentioned here. Sony hereby disclaims any representations or
warranty that this product is compatible with any combination of non-Sony products you may choose to connect. While Sony representatives or Sony authorized dealers may be able to assist you and may make recommendations, they are NOT
authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and software in each and every particular instance.
© 2003 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, the Sony logo, DeluxePro, ErgoStand, ErgoBright, Auto ImageSet and “Designed For Human Performance” are trademarks
of Sony. Microsoft, the Windows logo and Windows are registered trademarks of Microsoft Corporation. Mac and Macintosh are trademarks of Apple, Inc. All other trademarks are the properties of their respective owners. Features and
specifications are subject to change without notice. These monitors are Energy Star Compliant when used with a computer equipped with VESA Display Power Management Signaling (DPMS). As an International Energy Star Partner, Sony has
determined that these products merit the International Energy Star Program for energy efficiency. The Energy Star emblem does not represent EPA endorsement of any product or service.
D298
