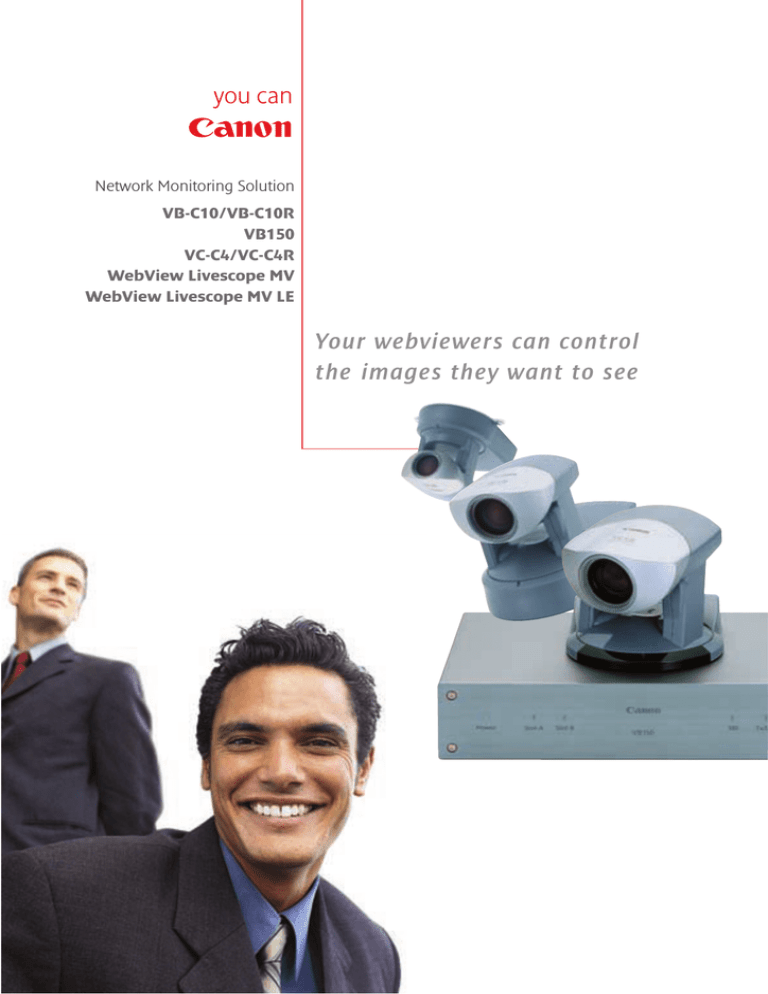

Network Monitoring Solution
VB-C10/VB-C10R
VB150
VC-C4/VC-C4R
WebView Livescope MV
WebView Livescope MV LE
Your webviewers can control
the images they want to see
Your webviewers can control
the images they want to see
Link Canon’s Network Monitoring Solution to your
company’s Internet or Intranet site and transform the live
images into the ultimate interactive experience. Simple set
up, precise control of connected cameras and innovative
features make it the easiest way to add excitement to
e-commerce applications and improve the effectiveness of
real-time remote monitoring.
HIGH IMAGE QUALITY
The VB-C10 and the VB-C10R feature a
high-precision 16x optical zoom lens and
sophisticated pan, tilt, and zoom controls.
Live images can be transmitted smoothly
at up to 30 frames per second. For added
flexibility, three video image sizes and five
quality settings are included.
EASY TO INSTALL
Get connected in just a few easy steps.
Configuration is simple through your web
browser. You have access to a variety of
settings: camera restrictions, preset
viewing angles, image capture schedules,
and more.
VB-C10 / VB-C10R
Network Camera
VERSATILE FEATURES
• Built-in web server and FTP server.
• Transmit video to up to 20 clients
simultaneously.
• Panorama creation tool and eight preset
angles for quick camera control.
• Restrict zoom range and camera angles.
• Image capture and storage capabilities,
either schedule-based or sensor-activated.
• Automatically retrieve captured images
stored in the VB-C10/VB-C10R with
included software.
• Management tool with advanced
controls.
VC-C4 / VC-C4R
Communication Camera
SUPER SMALL WITH SUPERIOR
PERFORMANCE
Communication Cameras — the VC-C4 and
VC-C4R — mount easily and conveniently
on the ceiling, provide outstanding
performance for video conferencing,
webcasting and monitoring via all
networks. They deliver crisp, vivid video
images with wide pan, tilt and zoom
coverage, all in a compact, affordable,
space-saving design.
VB150 Network
Camera Server
CONNECT UP TO FOUR CAMERAS
Connect up to four video cameras (two
of which by remote control). Switching
is possible from the viewer side.
EXPANDABILITY
Equipped with two card slots for optional
modems, flash memory, wireless LAN, etc.
(Please use recommended PCMCIA cards.)
BUILT-IN FTP SERVER / WEB SERVER
The VB150 can also function as a web
server. By placing home page data in an
optional flash memory card, you can
broadcast information and images at the
same time. You can also upload data
remotely using FTP.
LOG FUNCTION
The log feature records information such
as system malfunctions and access
conditions and saves it to a file or sends it
out by e-mail to any specified address.
ARCHIVING STILL IMAGES
The VB150 can store still images captured
at scheduled dates and times, or when it
receives a signal from external devices.
Search stored images using your Internet
browser. It can also broadcast according
to incoming signals or a set schedule.
MOTION DETECTION
The VB150 can detect image changes
caused by moving people or objects,
perform external device output and record
pictures.
EXCEPTIONAL QUALITY AND RANGE
Canon’s digital signal processing
system reproduces rich, smooth video
images and precise focal control. A
high-performance 16x zoom allows a
wider viewing angle, with a largeaperture f/1.4 lens for optimum
brightness. The VC-C4 camera pans to
± 100° and tilts -30° to +90°, while the
VC-C4R ceiling mount model pans to
± 170° and tilts from +10° to -90°.
Both cameras are positioned in the
middle of the system, ensuring
high-speed, stability and precise
camera movement.
THE SMART MONITORING SOLUTION
The MV Manager automatically creates
monitoring screens and controls multiple
camera servers. With the MV Station, the
users can control cameras and the monitor
in a variety of views for a pleasant
monitoring environment.
MONITOR MULTIPLE LOCATIONS
The Livescope views a maximum of
16 locations at the same time. A map
function indicates the camera’s location
on a map image. Includes automatic
switching of displayed images. An
auto-run function shows the preset
locations in sequential order, viewing the
information and status of camera servers.
VERSATILITY AND EASE
Up to nine VC-C4/VC-C4R cameras
can be controlled simultaneously
from one PC for use in a large
conference room. The cameras can be
‘cascade-connected’ via the RS-232C
cable and then programmed for
individual control.
SEARCH AND VIEW STORED IMAGES
Images stored on the VB-C10/VB150
flash memory card can be searched and
displayed according to date and time,
external device signal inputs, etc. The
animation function displays images
consecutively.
WebView Livescope MV
WebView Livescope LE
CREATE MULTIPLE MONITORING
SCREENS
Users with no experience in designing
home pages can easily create a monitoring
screen using a wide variety of screen
patterns, just by following the screen
creation wizard.
MULTIPLE MONITORING
HTML screen data created with the
MV Manager can be sent into a WWW or
file server to provide the same monitoring
screen on multiple MV stations, thereby
centralizing the control.
Remote Network Monitoring
IN THE FACTORY
Monitor equipment or production line in
your factory. Monitor multiple locations
using the factory LAN. Check real-time
VC-C4
VC-C4R
VC-C4
images and control the camera from
your PC. Monitoring the situation in
real-time helps you make quick
decisions, increasing your productivity.
VC-C4R
WebView
LiveScope
MV
VB150
Ethernet (10/100Mbps)
VB-C10
WebView
LiveScope
MV Station
VB-C10R
IN CHAIN STORES
• Check the situation in each store from
the head office.
• Utilize the current network now used
only for e-mail.
• Give accurate, timely instructions with
the help of real-time monitoring.
• Save time, staff costs and travel
expenses.
Web Server
INTERNET
Router
Viewer PC
Viewer PC
AT THE CONSTRUCTION SITE
• Monitoring processes from a remote
location increases work efficiency.
• Camera control lets you view multiple
directions to maintain safety at the site.
• Periodic and sensor recording lets you
check the status afterward.
VC-C4
Wireless LAN
VB150
VC-C4R
Wireless HUB
Wireless LAN Board
Viewer PC
Webcasting
Live images over the internet/intranet
TRAFFIC INFORMATION
• Broadcast traffic conditions of streets
and highways on your home page.
• Choose the best kind of transportation
by referring to traffic conditions.
• Check the situation whenever needed
on the Internet.
Web Server
VB-C10
Router
INTERNET
VC-C4
Viewer PC
VB150
Viewer PC
Router
EVENT/RADIO STATIONS
• Broadcast real-time images on your
home page.
• Combine them with audio media such as
radio.
• Monitor interactively using camera
controls and zooming.
• Increase access and repeaters to the
home page.
• Use the event organizer to check the
situation remotely.
SIGHTSEEING SPOTS
• Broadcast live images of sightseeing
spots on your home page.
• Control the angle and zoom from your
browser.
• Preset the best angles for viewer switching.
• Use the live images to attract visitors to
locations and events.
VC-C4 / VC-C4R Communication Camera Specifications
VB-C10 / VB-C10R Network Camera Specifications
TOTAL NUMBER OF PIXELS
470,000 (440,000 effective) pixels
ZOOM
16x Power Zoom
RESOLUTION
HORIZONTAL
VERTICAL
420 TV lines
350 TV lines
PAN ANGLE RANGE
VB-C10
VB-C10R
200°
340°
ZOOM
16x Power zoom
FOCUS
Auto / Manual
TILT ANGLE RANGE
VB-C10
VB-C10R
120°
100°
APERTURE
Auto iris servo system
NETWORK
Ethernet 10M/100M (auto-negotiation)
PAN ANGLE RANGE
VC-C4
VC-C4R
EXTERNAL DEVICE IN/OUT
In x 1, Out x 1
± 100°
± 170°
PROTOCOL
TCP/IP, HTTP, FTP, BOOTP, NTP
VIDEO COMPRESSION METHOD
Motion-JPEG (video), JPEG (still images)
TILT ANGLE RANGE
VC-C4
VC-C4R
–30° to +90°
–90° to +10°
SERVER FUNCTION
WWW, FTP, WebView
PAN/TILT ROTATION SPEED
Pan: 1 to 90 deg/s, Tilt: 1 to 70 deg/s
VIDEO TRANSMISSION RATE
0.1~30 fps (variable)
VIDEO OUT
RCA pin jack
RECORDING CAPACITY
Approx. 5 Mbyte (JPEG)
S VIDEO OUT
1 mini-DIN 4-pin
DIMENSIONS
111.0 (H) x 106.0 (W) x 143.1 (D) mm
RS-232C
in: Mini 8-pin DIN x 1, out: Mini 8-pin DIN x 1
DC INPUT
dedicated AC adapter
WEIGHT
VB-10
VB-C10R
645 g
730 g (Main Unit Only)
CASCADE CONTROL
upto 9 cameras
DIMENSIONS
100 (W) x 112 (D) x 89.5 (H) mm
WEIGHT
375 g / 440 g
WebView Livescope MV System Requirements
OS
Windows 9X/ME/NT4.0/2000/XP
WEB BROWSER
Internet Explorer 5.0 or later
VB150 Network Camera Server Specifications
RAM
64MB or above
CPU
XPC860DT (66MHz)
HARD DISK
Minimum 50MB of free space
MAIN MEMORY
16 MB (SDRAM)
DISPLAY
XGA (1024 x 768) or better
FLASH ROM
4 MB
VIDEO INPUT
4 (NTSC/PAL selectable, BNC (2), RCA (2))
SERIAL
RS-232C x 2 (for camera control)
NETWORK
Ethernet x 1 (RJ45, 10/100 auto switch)
CARD SLOT
Type I and II PC Cards (automatic recognition of 3.3V/5V)
I/O CONNECTIONS
In x 2, Out x 2
PROTOCOL
TCP/IP, HTTP, bootp, FTP, SMTP, WebView
IMAGE COMPRESSION METHODS Motion-JPEG(Video)/ JPEG(Still images)
VIDEO TRANSMISSION RATE
0.1 - 30 fps (Adjustable)
CAPTURED IMAGE SIZES
160 x 120, 320 x 240, 640 x 240 pixels
MAXIMUM NUMBER OF CLIENT
50
OTHER FUNCTIONS
Wireless LAN Support (IEEE802.11b), Camera Position
Presets ( Max. 8 positions), Still Image Capture
(Max. 30,000 frames), E-mailing of stored images,
Motion Detection
DIMENSIONS (W X D X H MM)
248 x 167 x 52
WEIGHT
1.2 kg (Excluding Cables and AC Adapter)
Canon Europa NV
Bovenkerkerweg 59-61
1185 XB Amstelveen
The Netherlands
Canon Inc.
30-2 Shimomaruko
3-Chome, Ohta-ku
Tokyo 146-8501
Japan
www.canon-europa.com
English Edition 0033W444
© Canon Europa N.V., 2002 (0203)
™ All company and/or product names are trademarks and/or registered trademarks of their
respective manufacturers in their market and/or countries. Canon reserves the right to
change specifications without notice.
