Philips 17IN 27MM 1280X1024 70HZ

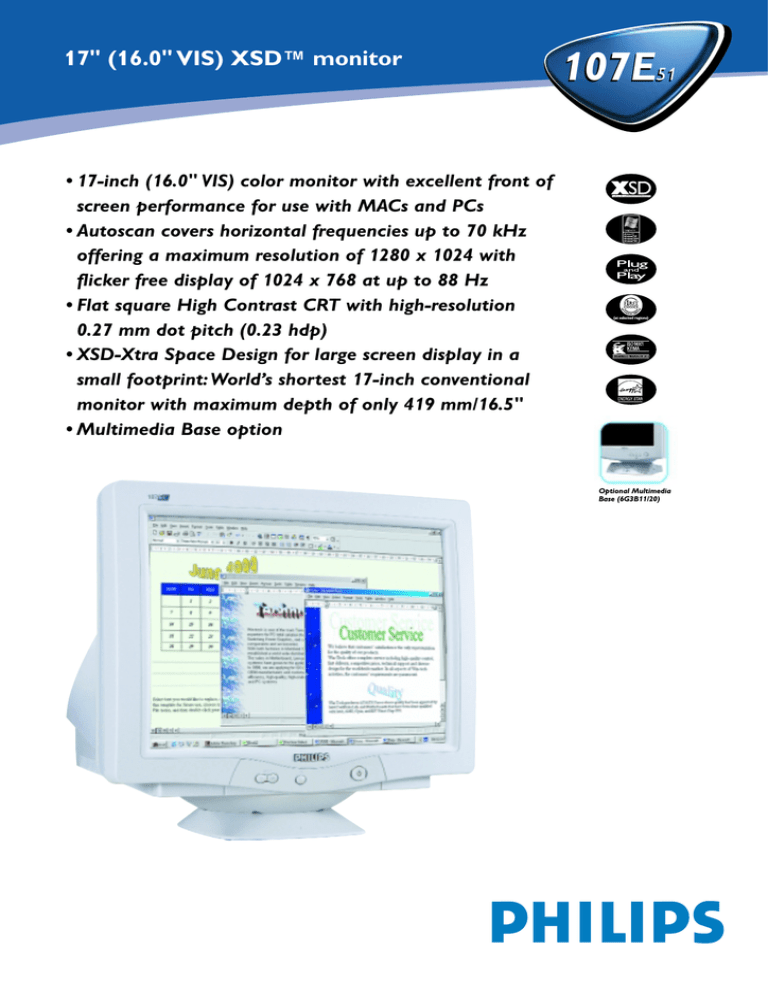

17" (16.0" VIS) XSD™ monitor
• 17-inch (16.0" VIS) color monitor with excellent front of
screen performance for use with MACs and PCs
• Autoscan covers horizontal frequencies up to 70 kHz
offering a maximum resolution of 1280 x 1024 with
flicker free display of 1024 x 768 at up to 88 Hz
• Flat square High Contrast CRT with high-resolution
0.27 mm dot pitch (0.23 hdp)
• XSD-Xtra Space Design for large screen display in a
small footprint: World’s shortest 17-inch conventional
monitor with maximum depth of only 419 mm/16.5"
• Multimedia Base option
107E51
(at selected regions)
Optional Multimedia
Base (6G3B11/20)
17" (16.0" VIS) XSD™ monitor
107E51
Technical Specifications
CRT panel
•
•
•
•
•
•
•
•
•
Size (inch/cm)
Deflection angle (degrees)
Dot pitch
Horizontal pitch
-Tube type
Phosphor
Recom. display area(mm)
Recom. display area(inch)
Max. display area(mm)
Max. display area(inch)
17"/ 41 cm
90°
0.27 mm
0.23 mm
Shadow mask, Flat Square, High Contrast,
Anti Glare, Anti Static, Anti reflection,
Light Transmission 47%
P22
306 x 230 mm
12.0" x 9.0"
327 x 245 mm
12.9" x 9.7"
Complies with EPA Energy Star and NUTEK specifications
• Operation
64 W (typical)
• Suspend/Stand By mode
< 2W
• Off mode/Deep Sleep
< 2W
Low-emission characteristics
• Complies with MPR-II specifications
Monitor controls and functions
• Main
Scanning
• Horizontal scanning
• Vertical scanning
Power management
30 - 70 kHz
50 - 160 Hz
• On Screen Display
Video
• Video dot rate
• Input impedance
-Video
-Sync
• Input signal levels
• Sync input signal
• Sync polarities
108 MHz
75 Ohm
2.2k Ohm
0.7 Vpp
Separate sync
Composite sync
Positive and negative
White color temperature
640 x 350
640 x 350
640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
• Connections
- Video
• Cables
•
•
•
•
•
•
Resolution & preset modes
Max. resolution
Recom. resolution
8 user definable modes
14 factory preset modes
Connections and cables
15-pin D-sub (analog)
D-Sub Video cable(fixed), power cord
Regulatory approvals
Chromaticity CIE coordinates
• at 9300 K:
x=0.283, y=0.297
• at 6500 K:
x=0.313, y=0.329
•
•
•
•
3-button OSD
Brightness +/- direct access
Contrast+/- direct access
Language (English, Spanish, French,
German, Italian, Chinese, Portuguese,
Korean ), zoom, horizontal, vertical,
pincushion, balanced, trapezoid,
parallelogram, color, reset, degauss,
moire, serial number, resolution,
frequency, sRGB
1280 x 1024
1024 x 768
MPR-II Low Emission
TÜV/GS,TÜV/Ergo,TÜV/9241-3
FCC-B, UL, CSA, DHHS
SEMKO, Poland-B sign, C-Tick
CE, BCIQ, PSB
NUTEK, Energy Star
Physical specifications
H.freq (KHz)
31.5K
37.9K
37.9K
37.5K
50.6K
37.9K
37.9K
48.1K
63.9K
49.7K
48.4K
56.5K
67.5K
64.0K
V.freq (Hz)
70
85
72
75
100
85
60
72
100
75
60
70
75
60
Plug and play compatibility
• Display Data Channel DDC 2B (VESA)
• Microsoft® Windows® 95/98/Me & 2000/NT/XP compatible
• sRGB
•
•
•
•
•
•
•
•
•
•
Dim. incl. base (WxHxD) 397 x 383 x 419 mm
Dim. incl. base (WxHxD) 15.6" x 15.1" x 16.5" inch
Dim. excl. base (WxHxD) 397 x 333 x 419 mm
Dim. excl. base (WxHxD) 15.6" x 13.1" x 16.5" inch
Weight
14.5 kg
Power supply
Please refer to rating label
Temperature (operational)0°C to 40°C/ 32°F to 104° F
Temperature (storage) -25°C to 65°C/ -13°F to 149°F
Relative humidity
5% to 95%
MTBF
> 75,000 H
Other
• Multimedia Base option type: 6G3B11/20
As an Energy Star partner, Philips has determined that this
product meets the Energy Star guidelines for energy efficiency.
Microsoft and Windows are registered trademarks of Microsoft
Corporation
MacOS is a registered trademark of Apple Computer, Inc.
All data subject to change without notice
Release date: April 2003
www.philips.com/pcstuff
