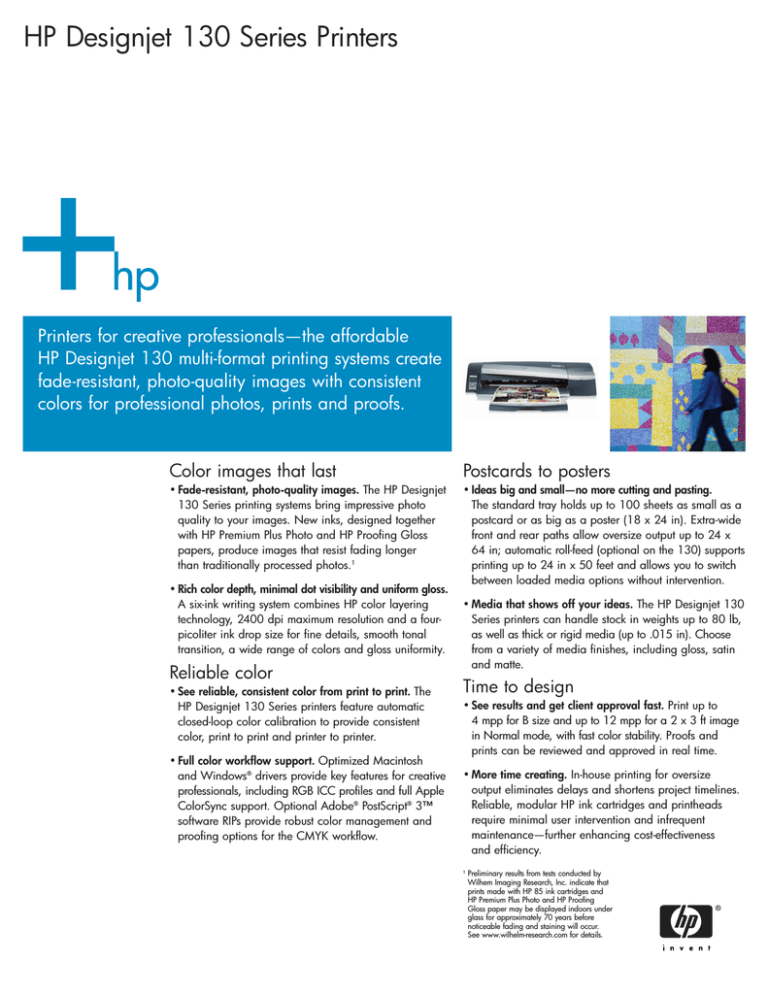

HP Designjet 130 Series Printers
Printers for creative professionals—the affordable
HP Designjet 130 multi-format printing systems create
fade-resistant, photo-quality images with consistent
colors for professional photos, prints and proofs.
Color images that last
Postcards to posters
• Fade-resistant, photo-quality images. The HP Designjet
130 Series printing systems bring impressive photo
quality to your images. New inks, designed together
with HP Premium Plus Photo and HP Proofing Gloss
papers, produce images that resist fading longer
than traditionally processed photos.1
• Ideas big and small—no more cutting and pasting.
The standard tray holds up to 100 sheets as small as a
postcard or as big as a poster (18 x 24 in). Extra-wide
front and rear paths allow oversize output up to 24 x
64 in; automatic roll-feed (optional on the 130) supports
printing up to 24 in x 50 feet and allows you to switch
between loaded media options without intervention.
• Rich color depth, minimal dot visibility and uniform gloss.
A six-ink writing system combines HP color layering
technology, 2400 dpi maximum resolution and a fourpicoliter ink drop size for fine details, smooth tonal
transition, a wide range of colors and gloss uniformity.
Reliable color
• See reliable, consistent color from print to print. The
HP Designjet 130 Series printers feature automatic
closed-loop color calibration to provide consistent
color, print to print and printer to printer.
• Full color workflow support. Optimized Macintosh
and Windows® drivers provide key features for creative
professionals, including RGB ICC profiles and full Apple
ColorSync support. Optional Adobe® PostScript® 3™
software RIPs provide robust color management and
proofing options for the CMYK workflow.
• Media that shows off your ideas. The HP Designjet 130
Series printers can handle stock in weights up to 80 lb,
as well as thick or rigid media (up to .015 in). Choose
from a variety of media finishes, including gloss, satin
and matte.
Time to design
• See results and get client approval fast. Print up to
4 mpp for B size and up to 12 mpp for a 2 x 3 ft image
in Normal mode, with fast color stability. Proofs and
prints can be reviewed and approved in real time.
• More time creating. In-house printing for oversize
output eliminates delays and shortens project timelines.
Reliable, modular HP ink cartridges and printheads
require minimal user intervention and infrequent
maintenance—further enhancing cost-effectiveness
and efficiency.
1
Preliminary results from tests conducted by
Wilhem Imaging Research, Inc. indicate that
prints made with HP 85 ink cartridges and
HP Premium Plus Photo and HP Proofing
Gloss paper may be displayed indoors under
glass for approximately 70 years before
noticeable fading and staining will occur.
See www.wilhelm-research.com for details.
HP Designjet 130 Series Printers
1
1. LCD printer status indicator
for ink supply maintenance and
print message alerts
2. Media tray holds up to
100 sheets of standard-size
media (up to 18 x 24 in)
3. Front bypass slot accommodates
cut-sheet media up to 24 inches
4. Small footprint allows
placement of printer on tabletop
or in common work area
5. USB and parallel connections
plus network capability
(standard on 130nr) ensure
easy system integration
6. Rear bypass slot handles
heavy and rigid media of
weights up to 80 lb (300 g/m2)
HP Designjet 130 front shown
2
3
4
7. Automatic roll feed (optional
on the HP Designjet 130) feeds
rolls up to 24 inches in width
Internal color sensor for
color consistency
5
6
7
Fade-resistant inks with 4 pl
drop size for fade-resistant,
photo-quality images
Modular ink system with six
independently replaceable ink
cartridges allows you to replace
only the ink colors you need
HP Designjet 130nr rear shown
Series at a glance
Optional accessories
• HP Software RIP for
HP Designjet 130
HP Designjet 130
HP Designjet 130nr
• 100-sheet input tray for sheets
up to 18 x 24 in
All the features of the 130 model,
plus:
• Slot for single sheets up to
24 x 64 inches
• Automatic roll feed for printing
up to 24 inches x 50 feet
• One open EIO slot for optional
network connectivity
• HP Jetdirect 620n internal
EIO print server
• EFI Designer Edition 4.0
for HP XL
• Printer stand and media bin
• Automatic roll feed (standard
on HP Designjet 130nr)
• Additional roll-feed spindle
As a creative professional, you need more than
reliability, performance and value. Your world is
all about color. That’s why HP has implemented
technologies and solutions that deliver the color
quality, consistency and control you need for a
superior color experience.
Color solutions for your workflow
RGB or CMYK. Printing or proofing. Pleasing color
or accurate color. With the HP Designjet 130 printing
system, you can choose the solution that best fits your
needs, your workflow and your environment.
Color technology by HP
Inks and media deliver fade resistance and stability
New, dye-based inks, combined together with HP papers,
produce images that stabilize in minutes vs. hours and last for
years. HP inks, media and printers are designed together for
results that do justice to your ideas.
HP Designjet 130 drivers
Optimized Mac and Windows drivers deliver outstanding
color output for photographers or designers printing
images in an RGB workflow. Support for RGB ICC profiles
means you have the choice of managing color in the
applications or via ICM profile or ColorSync tools.
The drivers also allow you to balance color channels
individually when you need one last tweak.
HP Designjet 130
Series printers
HP Software RIP
Designed for creatives who need color management in
a CMYK workflow, this optional RIP adds the capabilities
designers need to generate accurate layouts, comps or
concept proofs that integrate images with text, logos
or illustrations. A true Adobe PostScript 3 solution, the
RIP offers complete ICC profile management, including
input and output profiles, as well as automatic PANTONE®2
calibration to easily and accurately print corporate or
specific colors.
Like artists creating new colors by
mixing the standard paints on their
palettes, multi-layering technology
uses the basic CMYKcm palette to
achieve a much broader range of
printable colors.
EFI Designer RIP for HP XL
This EFI solution is ideal for agencies and service bureaus
whose workflow requires incremental production, color
management or proofing capabilities. It offers in-RIP
separations for the composite workflow, as well as the
ability to define non-standard spot colors. It also offers
job management tools including job ticket and control
strip ability as well as job nesting for paper savings. You
can easily emulate offset presses or other printing devices
via ICC profiles, and CMYKplus support allows you to
produce images perceptually consistent with offset output,
but with the richer and more vibrant colors possible with
a digital printer.
Third-party RIPs
HP has worked with virtually all the leading RIP vendors
in digital photography, large-format printing and pre-press
proofing fields to ensure you can choose the solution that
best matches your color workflow.
1 drop
per dot
HP color layering technology
Multiple drops
per dot
(using HP Proofing
Semi-Gloss Paper)
By layering ultra small (4 pl) drops within
a single dot, HP Designjet 130 printers
produce smoother gradations between
tones for virtually grain-free images.
Automatic color calibration
The automatic closed-loop color (CLC)
calibration process enables consistent
and accurate color reproduction.
The CLC process is based on measuring,
via a color sensor, reflected energy from
primary color tiles that are illuminated
with a narrow-bond light source. The
process works in much the same way
as a classical densitometer. The printer
generates a target, scans the pattern
and adjusts based on the results.
2
Pantone, Inc.’s check-standard trademark for color.
3
HP Designjet 130 Series Printers
Technical specifications
HP Designjet 130 (Product number: C7791C)
Print speed, using N5 file
Resolution, maximum
Print margins (B-size)
Memory
Media
Media handling
Types
Weight (by paper path)
Thickness (by paper path)
Media size
Printing
Print technology
Print technology resolution
Print cartridge colors
Ink types
HP Professional Color technologies
Connectivity
Interfaces
Languages
Drivers (included)
Standard operating systems
Network operating systems
Recommended system requirements
Dimensions
Printer
Maximum
Shipping
Weight
Printer
Shipping
What’s in the box
HP Designjet 130nr (Product number: C7791D)
B size: up to 4 min/page (Normal, glossy); B size: up to 6 min/page (Best, glossy)
D size: up to 11.9 min/page (Normal, glossy); D size: up to 17.5 min/page (Best, glossy)
Up to 2400 x 1200 dpi
Top: 0.2 in; bottom: 0.47 in; left: 0.2 in; right: 0.2 in
64 MB
100-sheet input tray (for sheets up to 18 x 24 in); front bypass single sheet
feed up to 24 x 64 in; rear bypass single sheet feed up to 24 x 64 in
100-sheet input tray (for sheets up to 18 x 24 in); front bypass single sheet feed
up to 24 x 64 in; rear bypass single sheet feed up to 24 x 64 in;
automatic 24 in roll feed with automatic cutter
Plain, coated, glossy and heavyweight paper; transparencies
Tray 1: 17 to 40 lb; manual single-sheet feed: 17 to 40 lb;
Tray 1: 17 to 40 lb; manual single-sheet feed: 17 to 40 lb;
rear path: up to 80 lb
rear path: up to 80 lb; roll feed: 17 to 40 lb
Tray 1: up to 0.008 in, envelopes: up to 0.015 in; rear tray: up to 0.015 in;
Tray 1: up to 0.008 in, envelopes: up to 0.015 in; rear tray: up to 0.015 in;
manual sheet feed: up to 0.008 in
manual sheet feed: up to 0.008 in; roll media: up to 0.008 in
Postcards, letter, legal, tabloid, executive, C, D, D+, envelopes, banners
HP Thermal Inkjet
HP color layering technology, PhotoREt IV
Black, cyan, magenta, yellow, light cyan, light magenta
Fade-resistant dye-based
Automatic color calibration, automatic PANTONE® calibration, offset simulation and CMYKplus
Standard: USB 1.1 (USB 2.0 compliant), Centronics parallel IEEE-1284
USB 1.1 (USB 2.0 compliant), Centronics parallel IEEE-1284 (ECP compliant),
(ECP compliant), 1 EIO slot; optional: HP Jetdirect 620n, 680n, 610n, 600n,
1 EIO slot, HP Jetdirect 620n
175x, 310x, 380x
Standard: PCL3-GUI RGB 24-bit Contone; optional: Adobe PostScript 3 via software RIP
Raster driver for Mac OS (9.x, X.1, X.2, X.3), PCL3-GUI Windows driver, Microsoft® Windows drivers (95, 98, Me, NT 4.0, 2000, XP)
including support for AutoCAD 2000, USB, ECP drivers
Microsoft Windows NT 4.0 Server, 2000 Server, XP; Mac OS 9.1, 9.2, X.2, X.3
Microsoft Windows XP, NT 4.0 Server, 2000 server, 2002 server; Novell; Mac OS
Windows: Microsoft Windows (95, Me): Pentium® II, 300 MHz, 128 MB RAM, 1 GB available hard disk space; Microsoft Windows NT®: Pentium III,
733 MHz, 128 MB RAM, 2 GB available hard disk space; Microsoft Windows 2000: Pentium III, 733 MHz, 256 MB RAM, 2 GB available hard disk space;
Microsoft Windows XP: Pentium IV, 1 GHz, 256 MB RAM, 2 GB available hard disk; Mac: Dual 1 GHz PowerPC G4, 512 MB RAM
41.3 x 15.7 x 8.7 in
41.3 x 31.5 x 8.7 in
47 x 21.5 x 19.5 in
41.3 x 20.5 x 8.7 in
41.3 x 36.2 x 8.7 in
47 x 21.5 x 19.5 in
48.5 lb
74.6 lb
HP Designjet 130 printer, power cord, USB cable, printheads (6), print
cartridges (6), input/output tray, macroinstaller, user documentation CD,
setup poster, Quick Start Guide, media samples, customer care document
50.7 lb
75.7 lb
HP Designjet 130nr printer, automatic roll feed, HP Jetdirect 620n LAN card,
power cord, USB cable, printheads (6), print cartridges (6), input/output tray,
macroinstaller, user documentation CD, setup poster, Quick Start Guide,
media samples, customer care document
Ordering information
Environmental ranges
Operating temperature:
Recommended operating
temperature:
Storage temperature:
Operating humidity:
Recommended humidity:
Storage humidity:
Acoustics
Sound pressure:
Sound pressure, standby:
Sound power:
Sound power, standby:
Power requirements
Input voltage:
Power consumption
Maximum:
Standby:
Power certification
Safety certifications:
Electromagnetic compatibility:
ENERGY STAR® compliant
Warranty
41 to 104° F (5 to 40° C)
59 to 95° F (15 to 30° C)
-4 to 131° F (-20 to 55° C)
20 to 80% RH
25 to 75% RH
0 to 95% RH
50 dB(A)
37 dB(A)
6.2 B(A)
5.4 B(A)
100 to 240 VAC (± 10%), 50/60 Hz (± 3Hz), 2 amps maximum
65 watts
22 watts
IC 950-compliant, EU LVD and EN60950 compliant,
CSA certified for US and Canada
Compliance for Class B products, Class A when connected to LANs,
EU (EMC Directive), USA (FCC rules), Canada (DoC)
Product number
C7791C
C7791D
Supplies and accessories
Q1246A
HP Designjet printer stand & media bin
Q1264A
Spindle
Q1247A
Automatic roll feed (130 model only)
Ink supplies
C9420A
HP 85 cyan printhead
C9421A
HP 85 magenta printhead
C9422A
HP 85 yellow printhead
C9423A
HP 85 light cyan printhead
C9424A
HP 85 light magenta printhead
C5019A
HP 84 black printhead
C9425A
HP 85 cyan ink cartridge
C9426A
HP 85 magenta ink cartridge
C9427A
HP 85 yellow ink cartridge
C9428A
HP 85 light cyan ink cartridge
C9429A
HP 85 light magenta ink cartridge
C5016A
HP 84 black ink cartridge
Media3
Q5492A
HP Photo Matte B+, 50 sheets
Q5486A
HP Premium Plus Photo and Proofing Gloss B+, 25 sheets
Q5487A
HP Premium Plus Photo and Proofing Gloss C+, 20 sheets
Q5488A
HP Premium Plus Photo and Proofing Gloss, 24" roll, 50 ft
Q5489A
HP Premium Plus Photo Satin B+, 25 sheets
Q5490A
HP Premium Plus Photo Satin C+, 20 sheets
Q5491A
HP Premium Plus Photo Satin, 24" roll, 50 ft
Network and software
J7934A
HP Jetdirect 620n LAN card (130 model only)
Q6643A
One-year warranty
HP recommends Microsoft® Windows® XP Professional for mobile computing.
ENERGY STAR and the ENERGY STAR logo are U.S. registered marks of the United States Environmental Protection Agency. Adobe PostScript 3
is a trademark of Adobe Systems Incorporated. Pentium is a registered trademark of Intel Corporation or its subsidiaries in the United States and
other countries. Microsoft, Windows and Windows NT are U.S. registered trademarks of Microsoft Corporation.
© 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties
for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should
be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
For more information visit our website at www.hp.com
5982-5478ENUC, 8/18/2004, Rev. 1
HP product
HP Designjet 130
HP Designjet 130nr
3
EFI Designer Edition 4.0 for HP XL
For a complete list of all media that work with the HP Designjet 130 series printers,
please take a look at www.hp.com/media.
