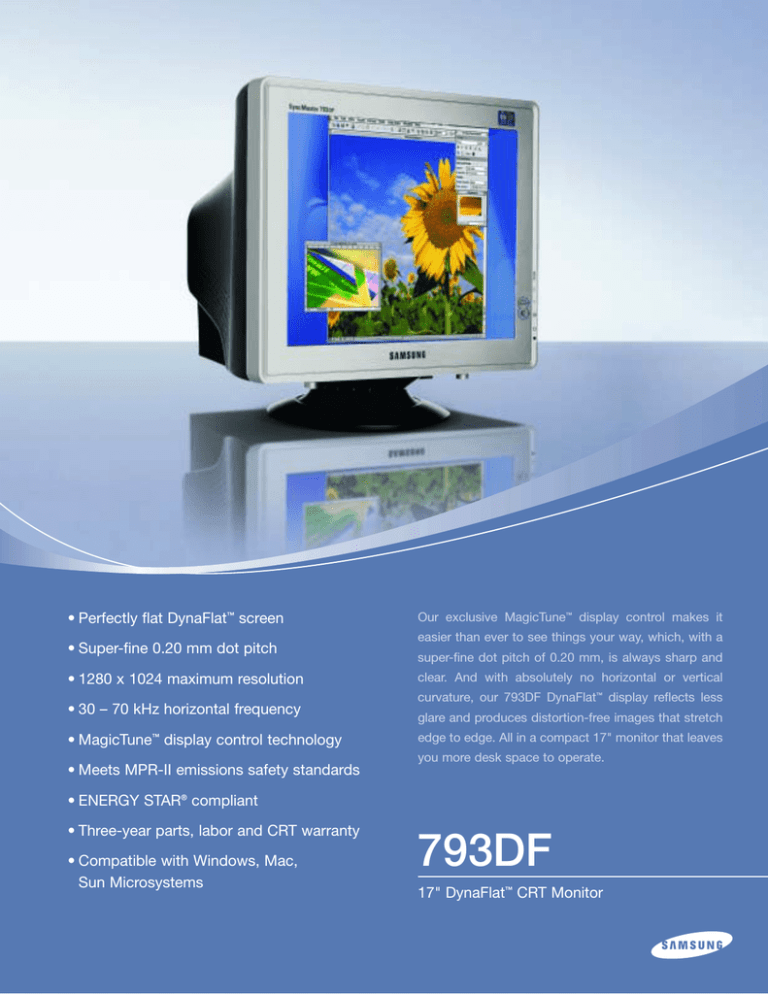

Samsung SyncMaster 793DF Silver/Black

• Perfectly flat DynaFlat™ screen
• Super-fine 0.20 mm dot pitch
• 1280 x 1024 maximum resolution
• 30 – 70 kHz horizontal frequency
• MagicTune™ display control technology
• Meets MPR-II emissions safety standards
Our exclusive MagicTune™ display control makes it
easier than ever to see things your way, which, with a
super-fine dot pitch of 0.20 mm, is always sharp and
clear. And with absolutely no horizontal or vertical
curvature, our 793DF DynaFlat™ display reflects less
glare and produces distortion-free images that stretch
edge to edge. All in a compact 17" monitor that leaves
you more desk space to operate.
• ENERGY STAR® compliant
• Three-year parts, labor and CRT warranty
• Compatible with Windows, Mac,
Sun Microsystems
793DF
17" DynaFlat™ CRT Monitor
793DF
17" DynaFlat™ CRT Monitor
Specifications
CRT Size
17"
Viewable Area
16"
Dot Pitch
0.20 mm (H)
CRT Type
DynaFlat™
Screen Coating
Multi-Layer Coating
Horizontal Frequency
30 – 70 kHz
Vertical Frequency
50 – 160 Hz
Bandwidth
110 MHz
Maximum Resolution
1280 x 1024/65Hz
Optimal Resolution
1024 x 768/85Hz
Sync Type
Separate H/V
Input Connector
15-Pin D-Sub
Digital Control
Yes
ENERGY STAR
Yes
Energy 2000
Yes
Plug & Play
DDC-2B/2Bi
Emissions
MPR-II
Power Consumption (Max)
80 Watts
®
Mac Compatibility
Yes
Sun Compatibility
Yes
Special Features
DynaFlat™, MagicTune™
Dimensions (W x H x D)
15.8" x 16.1" x 14.9"
Weight
31.5 Lbs.
Parts/Labor/CRT Warranty (Years)
3/3/3
Available Colors
Ivory, Silver/Black
Product Information
1-866-542-7214
Product Support
1-800-SAMSUNG
www.samsungusa.com/monitor
© 2004 Samsung Electronics America, Inc. Specifications and design are subject to change without notice.
Non-metric weights and measurements are approximate. All brand, product, service names and logos are
trademarks and/or registered trademarks of their respective manufacturers and companies. 793DF05/04R1
