Sony PFM-42X1N 1024x768 XGA

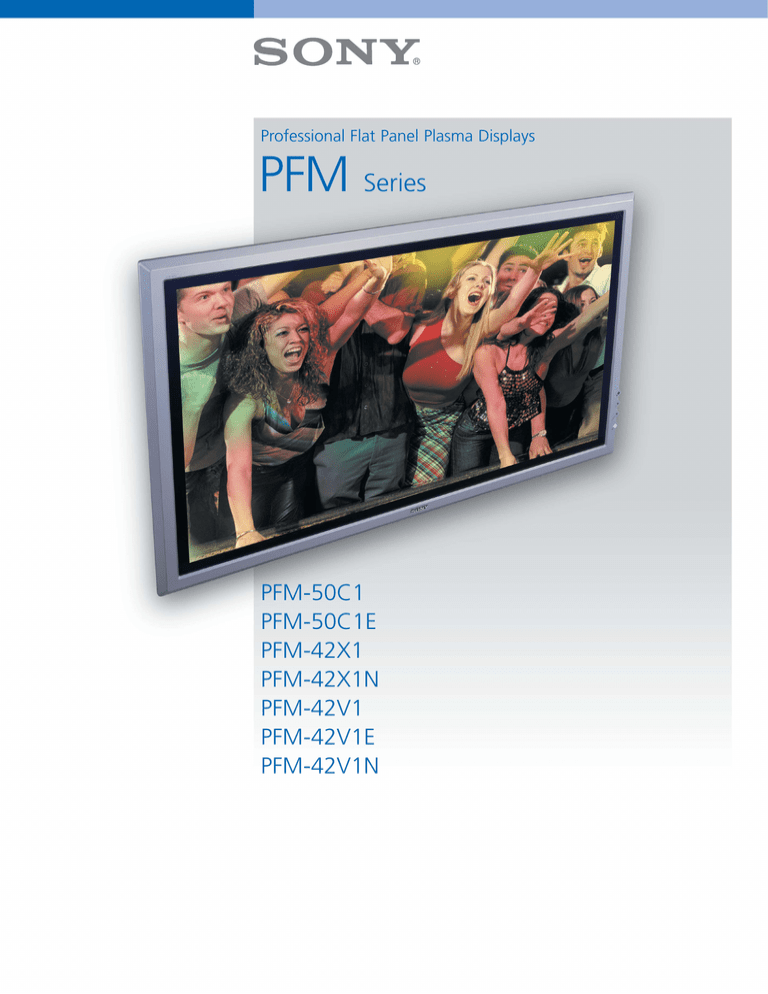

Professional Flat Panel Plasma Displays
PFM Series
PFM-50C1
PFM-50C1E
PFM-42X1
PFM-42X1N
PFM-42V1
PFM-42V1E
PFM-42V1N
Dazzle Your Customers with Brilliant and
Powerful Digital Signage Using Sony Plasma Displays
PFM-50C1/50C1E
PFM-42X1/42X1N
PFM-42V1/42V1E/42V1N
The PFM-42X1 incorporates a high-resolution,
widescreen 16:9, native XGA plasma display panel
with brilliant picture quality. It achieves a high
contrast ratio resulting in clear image reproductions,
and its stylish, slim, and lightweight design makes it
easy to integrate in almost any environment. The
PFM-42X1 has the flexibility to accept a variety of
signals including PC and HD video signals. In
addition, its “Picture and Picture” function allows
images from two separate signals to be displayed
simultaneously.
Incorporating superb signal processing technology,
precise images with smooth picture edges are
reproduced making the PFM-42X1 ideal for digital
signage that requires clear reproductions of small
images and characters. These applications range
from event signage and advertising at retail stores
and shopping malls, to information displays at
airports, train stations, schools, conference rooms,
and securities exchanges. Wherever you need to
grasp the attention of visitors, the PFM-42X1 is the
ideal choice.
The PFM-50C1 is equipped with a wide XGA
resolution display panel, while the PFM-42V1
incorporates a wide VGA plasma display panel. Like
the PFM-42X1, the PFM-50C1 is ideal for applications
in which clear and legible images of small characters
need to be reproduced. The high brightness achieved
by the PFM-42V1 makes it an ideal plasma display to
catch the attention of passers-by.
Note: Unless otherwise specified, references in this brochure to the
PFM-42V1, PFM-42X1, and PFM-50C1 also refer to the models
PFM-42V1E/N, PFM-42X1N, and PFM-50C1E, respectively.
2
FEATURES AND BENEFITS
High-Quality Picture
Digital Visual Interface (DVI)
The PFM-42X1 incorporates a high-resolution
widescreen native XGA (1024 x 768) plasma
display panel with a 16:9 aspect ratio, while
the panels adopted by the PFM-50C1 and
PFM-42V1 are wide XGA (1365 x 768) and
wide VGA (852 x 480), respectively. All of
these plasma displays offer excellent picture
quality with a high contrast ratio, resulting in
clear image reproduction.
The PFM-42X1 is equipped with a DVI-D HDCP
interface capable of receiving signals from
either a DVI-equipped PC or DVI-equipped A/V
equipment, such as a DVD player, while the
PFM-42V1 is equipped with a DVI-D interface
for use with a DVI-equipped PC. The
advantage of this interface is that digital data
and video can be converted for viewing
without the loss of image quality associated
with the signal conversion of digital to analog.
Picture and Picture Function
Note: DVI interface is not supported on the PFM-50C1,
PFM-42X1N, and PFM-42V1N.
Both the PFM-42X1 and PFM-42V1 have a
Picture and Picture function. Two separate
signals can be input to these units to display
two separate 4:3 aspect ratio images, each
variable in size. Signal Combinations can be
seen in the table below.
Note: The picture and picture function is not supported on
the PFM-50C1. The PFM-42X1N and PFM-42V1N
require either the BKM-V10, BKM-V11, or BKM-V12
for picture and picture.
Multi-Layer,
AR-Coated Protection Panel
The anti-reflection (AR) coating on the glass
protection panel reduces light reflection for
clear, high-contrast picture viewing.
Picture and Picture
Signal Combinations for Picture and Picture
PFM-42X1/PFM-42V1 (Digital RGB is not supported on the PFM-42X1N and PFM-42V1N)
Digital RGB
Analog RGB
Component
Y/C
Composite
Digital RGB
●
●●
●●
Analog RGB
●*
●●
●●
Component
●
●*
●
●
Y/C
●●
●●
●
Composite
●●
●●
●
● PFM-42X1
* Requires INPUT 1 on the
PFM-42X1 to be used in
combination with a component
input from either the optional
BKM-V11 or BKM-V12 Input
Adapters
● PFM-42V1
■
■
■
■
Two separate signals can be used to display two images simultaneously.
Each image can be adjusted to seven sizes (for a total 14 steps).
The position of each picture can be swapped if desired.
The background color can be selected from any of the following:
• Gray (default) • Dark Gray • Black
Note: Background color settings are made from the screen saver setup menu
3
FEATURES AND BENEFITS
Multiple Inputs and
High-Performance Scan Converter
The PFM Series utilizes 16:9 aspect ratio flat
panels that provide smooth, high-quality
images across the entire screen. Display signals
range from standard SDTV1 to HDTV, and RGB
computer signals with resolutions up to UXGA.
A range of optional input adapters is available,
providing convenient system flexibility. In
addition, an integrated high-performance scan
converter provides accurate pixel-by-pixel image
reproduction, offering optimum image quality
whatever the signal format.
Optional adapters2 are available for receiving
component/RGB input signals. The BKM-V12
accepts signals via a D-sub 15-pin connector
and has an active through feature, and the
BKM-V11 accepts signals via BNC connectors.
1 An optional adapter is required to accept composite
video signals on the following models:
The PFM-50C1E requires the BKM-B10 adapter.
The PFM-42X1N, PFM-42V1E, and PFM-42V1N require
the BKM-V10 adapter.
2 These adapters are for use with the PFM-42X1 and
PFM-42V1 series of displays.
Versatile and Stylish Design
With its simple yet sophisticated appearance,
the PFM Series offers a stylish, high-impact way
to convey graphical messages. With excellent
installation flexibility, these slim and lightweight
displays provide large, superb-quality images in
minimal space. The bezels of the PFM-42X1
and PFM-42V1 are available in cool silver or
bluish black, while the PFM-42X1N,
PFM-42V1E/N, and PFM-50C1 are available in
cool silver.
High-Quality Digital Audio Amplifier
All PFM Series models provide exceptionally
clear audio reproduction as a result of their
high-quality integrated digital amplifiers. In
addition, the amplifiers feed Speaker OUT (L/R)
connectors so that optional speakers can be
connected - further enhancing audio
performance and quality.
4
Preset Signals
Video Input
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
NTSC
PAL
SECAM
NTSC4.43
PAL60
PAL-M
PAL-N
575/50i
480/60i
1080/24PsF*5
1080/50i
576/50P
480/60P
1080/60i
720/60P
720/50P
Computer Input
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
● ● VGA-1 (VGA350)
640 x 350 @85 (VESA STD)
640 x 400 @85 (VESA STD)
● ● 640 x 480 @60 (VESA STD)
Mac 13”
640 x 480 @72 (VESA STD)
640 x 480 @75 (VESA STD)
640 x 480 @85 (VESA STD)
852 x 480 @60 (I-O DATA)*3
● ● VGA (VGA TEXT)
720 x 400 @85 (VESA STD)
800 x 600 @56 (VESA STD)
● ● 800 x 600 @60 (VESA STD)
800 x 600 @72 (VESA STD)
800 x 600 @75 (VESA STD)
800 x 600 @85 (VESA STD)
● ● Mac 16”
● ● 1024 x 768 @60 (VESA STD)
1024 x 768 @70 (VESA STD)
● ● 1024 x 768 @75 (VESA STD)
● ● 1024 x 768 @85 (VESA STD)
● ● 1152 x 864 @75 (VESA STD)
● ● Mac 21”
● ● 1280 x 960 @60 (VESA STD)
1280 x 960 @85 (VESA STD)
● ● 1280 x 1024 @60 (VESA STD)
1280 x 1024 @75 (VESA STD)
1280 x 1024 @85 (VESA STD)
● ● 1600 x 1200 @60 (VESA STD)*4*5
856 x 480 @60 (Matrox)*6
856 x 480 @59.6 (Matrox)*6
856 x 480 @60.1 (Matrox)*6
● ● 848 x 480 @60 (VESA STD)*5
● ● 848 x 480 @60 (VESA STD)
● ● 848 x 480 @75 (VESA STD)
● ● 1280 x 768 @60 (VESA STD)
● ● 1280 x 768 @60 (VESA STD)
fH(kHz)
15.734
15.625
15.625
15.734
15.734
15.734
15.734
15.625
15.734
27.000
28.125
31.250
31.469
33.750
45.000
45.000
Frame
Rate
60*1
50
50
60*1
60*1
60*1
60*1
50
60*1
48*2
50
50
60*1
60*1
60*1
50
Resolution
(Active lines)
480
575
575
480
480
480
480
575
480
1080
1080
576
480
1080
720
720
fH(kHz)
fV(Hz)
Resolution
(Active Pixels)
640 x 480
640 x 350
640 x 400
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
852 x 480
720 x 400
720 x 400
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1152 x 870
1280 x 960
1280 x 960
1280 x 1024
1280 x 1024
1280 x 1024
1600 x 1200
856 x 480
856 x 480
856 x 480
848 x 480
848 x 480
848 x 480
1280 x 768
1280 x 768
31.5
37.9
37.9
31.5
35.0
37.9
37.5
43.3
31.7
31.5
37.9
35.2
37.9
48.1
46.9
53.7
49.7
48.4
56.5
60.0
68.7
67.5
68.7
60.0
85.9
64.0
80.0
91.1
74.5
30.2
30.1
30.1
29.8
29.5
37.7
47.8
47.4
70
85
85
60
67
72
75
85
60
70
85
56
60
72
75
85
75
60
70
75
85
75
75
60
85
60
75
85
60
60
59.6
60.1
60
60
75
60
60
*1 Also accepts signals with a frame rate of 59.94.
*2 Also accepts signals with a frame rate of 47.952. This signal requires a D/A conversion before input.
*3 With a graphics accelerator board from I-O Data Device, Inc.
*4 Dot phase adjustment is not available when a UXGA resolution (1600 x 1200) signal is input.
*5 The DVI-D input does not accept these signals.
*6 With a graphics card from Matrox Graphics Inc.
● PFM-50C1 ● PFM-42X1 ● PFM-42V1
Easy-To-Use Remote Control Unit
Selectable Aspect Ratio
Easy control of the plasma display is
possible with the supplied
RM-971 remote control unit.
When video is input, the aspect ratio can be
selected from widescreen 16:9, expanded 4:3,
Letter Box zoom, Subtitle mode, and standard
4:3. When a PC signal is input, the aspect ratio
can be selected from widescreen 16:9 or
standard 4:3.
Precise Color Temperature Control
RM-971
External Control Using RS-232C
Interface
All PFM Series plasma displays are equipped
with an RS-232C interface, enabling users to
have full control of the units from external
equipment.
Installation Flexibility
All models can be installed in various positions
to meet different user applications - whether
placed on an optional stand3, installed on a
wall, or hung from a ceiling. These plasma
displays can be mounted horizontally or
vertically 4.
3 The SU-P50C is available for the PFM-50C1, and the
SU-42B is available for the PFM-42X1 and PFM-42V1.
4 Vertical mounting is not recommended with the
PFM-42V1. The PFM-42V1P is available for vertical
mounting.
In addition to three preset color temperature
settings (cool, neutral, and warm), three userdefined color temperature settings can be
stored in memory and recalled to meet the
specific needs of your display environment.
Picture Zoom Control
A section of the picture can be zoomed in for
closer viewing using the Picture Zoom Control
function. This also allows multiple units to be
used in video-wall applications.
Dot Phase Adjustment
(for analog RGB input from a PC)
The sampling phase for signal digitizing can be
precisely adjusted to the input RGB analog signal,
creating clearer pictures. When the display
receives an input signal, it automatically adjusts
the picture’s sharpness (phase/pitch) to ensure
that a clear picture appears on the screen. Users
can also adjust the setting manually.
Flat Panel Advantages
Flat panel displays produce accurate image
geometry as a result of their linear pixel
alignment.
CRT
PLASMA
Unlike conventional CRTs, flat panel plasma
displays are resistant to magnetic fields providing drift-free
color uniformity.
5
FEATURES AND BENEFITS
Resize and Reposition Adjustment
Screen Saver
If a picture is not sized or positioned correctly
on the screen, the resize and reposition
functions can be used to manually adjust the
picture size and vertical/horizontal position of
the picture to fit the screen.
Residual images are reduced effectively with
“Picture Orbiting” and “Picture Inversion”
screen saver functions. In addition to these,
the PFM-42X1 has a “Background” screen
saver function that displays the background
screen, which can be selected from one of the
following three colors: gray (default), dark
gray, and black.
Picture Setting Memory
Up to 20 individual picture-setting patterns can
be stored and loaded as required. This function
is convenient when multiple users share a single
unit. The following settings are available:
•Contrast
•Phase
•Color Temperature
•Gamma Correct
•Pixel Adjustment
•Brightness
•Chroma
•Sharpness
•Noise Reduction
•Color Correct •Resize and Reposition
•Aspect Ratio Adjustment
Energy-Saving Mode
The energy-saving mode decreases power
consumption of the unit by reducing the
emission level of the plasma panel, thus saving
cost throughout the lifespan of the display.
24-Hour On/Off Timer
Multi-Language On-Screen Display
(OSD)
The power can conveniently be turned on and
off using the built-in 24-hour on/off timer.
A multi-language OSD is available on all units.
Supported languages include English, French,
German, Italian, Spanish, and Japanese.
Picture Modes
Closed Caption Decoder
Closed caption data embedded in video signals
can be displayed on all of these PFM Series
displays.
The PFM Series offers several picture modes
that allows images to be displayed according to
different user preferences and viewing
environments. Two factory presets (Standard
Mode and Vivid Mode) allow for quick and easy
display setup. Also available are three user
modes for storage of user-defined settings.
Auto Wide Function
The Auto Wide function automatically enlarges
the video image to fill the 16:9 wide aspect
screen.
Worldwide Power Supply
The PFM Series plasma displays accept 100 to
240 volts and can be used worldwide.
6
OPTIONAL ACCESSORIES
BKM-V10
BKM-V11
●●
BKM-V12
●●
BKM-B10
●●
●
Video Input Adapter
•Composite input/output
•Y/C input
•Audio input (x1)
Component/RGB Input Adapter
•YUV/RGB input
•Audio input (x1)
RGB/Component Active Through
Adapter
•RGB/YUV input/output
(active through)
•Audio input (x1)
Video Input Adapter
•Composite input/output
•Y/C input
•Audio input (x1)
SS-SP10A
SS-SP20B
SU-P50C
SU-42B
●
Speaker System
●●
Speaker System
*Available in bluish black or
cool silver.
●
Monitor Stand
●●
Monitor Stand
● PFM-50C1 ● PFM-42X1 ● PFM-42V1
CONNECTOR AND CONTROL PANELS
PFM-50C1/PFM-50C1E Connector Panel
CONTROL S
IN
OUT
PFM-50C1E requires an optional BKM-B10 adapter (shown in the illustration) to
accept composite video signals.
PFM-42X1 Connector Panel
PFM-42X1N Connector Panel
COMPOSITE
AUDIO
OUT
OUT
IN
AUDIO
DVI
CONTROL S
REMOTE
INPUT 2
AUDIO
IN
RGB/YUV
AUDIO IN
Y/C IN
OUT
L
AUDIO
OUT
R
VIDEO
INPUT 1
REMOTE
OUT
IN
AUDIO
CONTROL S
RGB/YUV
INPUT 1
PFM-42X1 can also be configured with either the BKM-V11 or BKM-V12
adapters in lieu of the BKM-V10 (shown in the illustration) to accept
RGB/Component signals.
PFM-42X1N requires an optional BKM-V10 adapter to accept composite video
signals. It can also be configured with either the BKM-V11 or BKM-V12
adapters to accept RGB/Component signals.
PFM-42V1/PFM-42V1E Connector Panel
PFM-42V1N Connector Panel
COMPOSITE
IN
OUT
AUDIO IN
Y/C IN
L
R
RGB/YUV
VIDEO
AUDIO
INPUT 1
DVI
INPUT 2
AUDIO
IN
OUT
CONTROL S
AUDIO
OUT
RGB/YUV
INPUT 1
REMOTE
PFM-42V1 can also be configured with either the BKM-V11 or BKM-V12
adapters in lieu of the BKM-V10 (shown in the illustration) to accept
RGB/Component signals. The PFM-42V1E requires and optional BKM-V10
adapter (shown in the illustration) to accept composite video signals.
AUDIO
IN
OUT
CONTROL S
AUDIO
OUT
REMOTE
PFM-42V1N requires an optional BKM-V10 adapter to accept composite video
signals. It can also be configured with either the BKM-V11 or BKM-V12
adapters to accept RGB/Component signals.
Note: Connector panels are located on the bottom of all units.
PFM-50C1, PFM-42X1, and PFM-42V1 Control Panel
The control panel is located on the top of all units.
MENU
ENTER
VOLUME
Note: The power switch is positioned on the front of all units.
7
SPECIFICATIONS
Picture Performance
PFM-50C1/50C1E
Panel
Resolution
Pixel pitch
Active area (W/H)
Viewable picture area
Colors
Type
Color system
Sampling rate
Input/Output
INPUT1
RGB
YUV
AUDIO
1
INPUT2*
RGB
YUV
VIDEO*2
PFM-42X1/42X1N
PFM-42V1/42V1E/42V1N
1365 x 768 pixels
1024 x 768 pixels
0.81 x 0.81 mm
0.90 x 0.676 mm
1,106 x 622 mm
920 x 518 mm
50-inch/1,270 mm (measured diagonally)
42-inch/1,058 mm (measured diagonally)
16.8 million colors simultaneously
1.06 billion colors simultaneously
AC-type Plasma Display Panel with anti-reflection screen
NTSC, PAL, SECAM, NTSC4.43, PAL60, PAL-M, PAL-N
13.5 to 140 MHz
852 x 480 pixels
1.08 x 1.08 mm
16.8 million colors simultaneously
D-sub 15-pin
0.7 Vp-p/non composite, 1.0 Vp-p composite, 75 Ω
0.7 Vp-p/non composite (U/V), 1.0 Vp-p/composite (Y), 75 Ω
Stereo mini jack, 500 mVrms, high impedance
D-sub 15-pin
DVI-D HDCP
0.7 Vp-p/non composite, 1.0 Vp-p composite, 75 Ω –
0.7 Vp-p/non composite (U/V),
1.0 Vp-p/composite (Y), 75 Ω
–
Stereo mini jack, 500 mVrms, high impedance
BNC, 1.0 Vp-p ±2 dB sync negative, 75 Ω automatic termination
Mini DIN 4-pin
Y: 1.0 Vp-p ±2 dB sync negative, 75 Ω automatic termination
C: 0.286 Vp-p ±2 dB sync negative (NTSC), 75 Ω
0.3 Vp-p ±2 dB sync negative (PAL), 75 Ω
Stereo mini jack, 500 mVrms, high impedance
Phono jack (L/R), 500 mVrms, high impedance
BNC, loop-through
–
Stereo mini jack, 500 mVrms, high impedance
7 W + 7 W (6 Ω)
D-sub 9-pin
Stereo mini jack
AUDIO
COMPOSITE IN
Y/C IN
AUDIO IN
COMPOSITE OUT
AUDIO OUT
SPEAKER OUT (L/R)
REMOTE (RS-232C)
CONTROL S
General
Power requirements
Power consumption (max.)
Operating temperature
Storage temperature
Humidity
Dimensions*3 (W/H/D)
AC 100 to 240 V, 50/60 Hz, 5.4 to 2.2 A
490 W
0 to 35 °C (32 to 95 °F)
-10 to 40 °C (14 to 104 °F)
20 to 90 %, no condensation
1,246 x 755 x 100 mm
(49 x 29 6/8 x 4 inches)
46.7 kg (103 lb 9 oz)
Mass
Supplied Accessories
AC Power Cord, AC Plug Holder (2),
AA/R6 Sized Batteries (2), Cable Holder A (2),
Cable Holder B (4), Operating Instructions
Remote Commander RM-971
DVI-D
–
–
AC 100 to 240 V, 50/60 Hz, 4.2 to 1.8 A
400 W
AC 100 to 240 V, 50/60 Hz, 3.7 to 1.5 A
360 W
1,033 x 631 x 102 mm
(40 3/4 x 24 7/8 x 4 1/8 inches)
29.7 kg (65 lb 8 oz)
1,033 x 631 x 83 mm
(40 3/4 x 24 7/8 x 3 3/8 inches)
27.0 kg (59 lb 8 oz)
DVI-D Cable*4, AC Power Cord, AC Plug Holder (2), AA/R6 Sized Batteries (2), Cable Holder (4),
Operating Instructions
Regulation Compliance
UL1950, CSA No.950 (c-UL), CE LVD (EN60950), PSE, FCC Class-B, IC Class-B, VCCI Class-B,
CE EMC (EN55022 Class-B, EN55024, EN61000-3-2, EN61000-3-3), C-Tick (AS/NZS 3548/95, AS/NZS 4252.1), JEITA, CB
*1 The PFM-42X1N and PFM-42V1N do not have an INPUT2.
*2 The PFM-50C1E requires an optional BKM-B10 adapter to accept video signals.
The PFM-42X1N, PFM-42V1E and the PFM-42V1N requires an optional BKM-V10 adapter to accept video signals.
*3 Excluding protruding parts.
*4 Not included with the PFM-42X1N or PFM-42V1N
Dimensions
35.5
35.5
44.5
Unit: mm (inches)
INPUT 1
RGB / YUV
AUDIO
AUDIO
Distributed by
MK10148V1OHB04MAY
STA
NDB
Y
STA
NDB
35.5
35.5
44.5
ON
AUDIO IN
35.5
1,033 (40 3/4)
PFM-42X1/42X1N
400
631 (24 7/8)
Y/C IN
ON
VIDEO
PFM-50C1/50C1E
11.5
100 (4)
11.9
102 (4 1/8)
35.5
Y
OUT
COMPOSITE
44.5
1,246 (49)
35.5
IN
400
REMOTE
631 (24 7/8)
OUT
430
IN
CONTROL S
755 (29 6/8)
INPUT 2
RGB / YUV
44.5
21.6
35.5
1,033 (40 3/4)
83 (3 3/8)
PFM-42V1/42V1E/42V1N
©2004 Sony Corporation. All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Sony is a registered trademark of Sony Corporation.
All other trademarks are the property of their respective owners.
