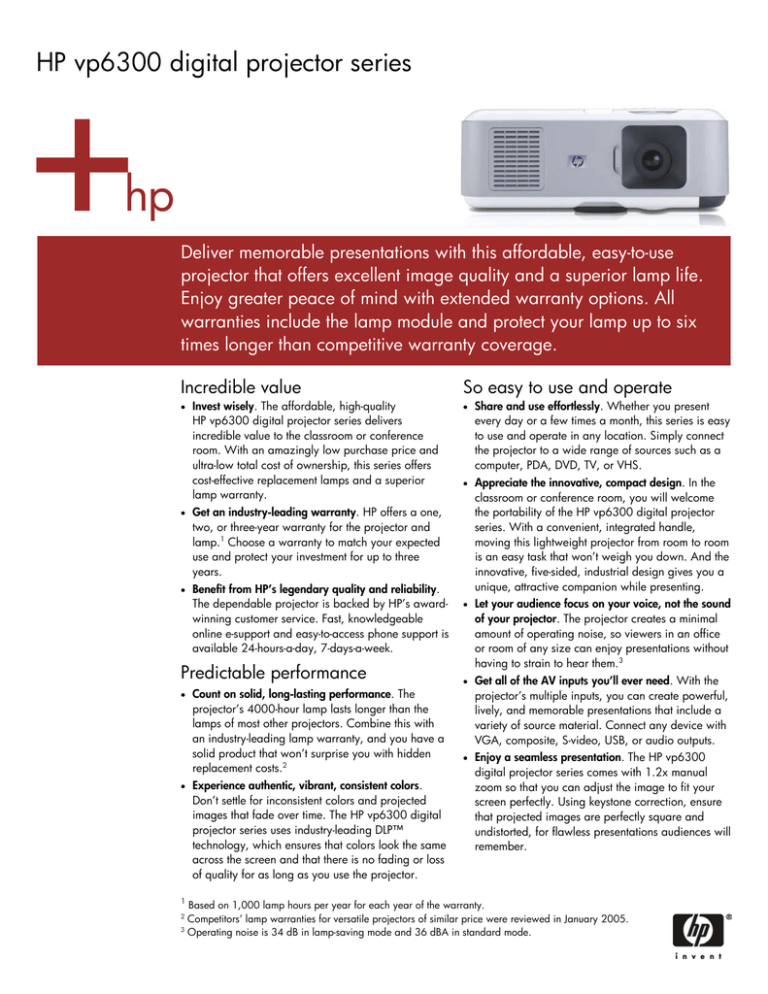

HP vp6300 digital projector series
hp
Deliver memorable presentations with this affordable, easy-to-use
projector that offers excellent image quality and a superior lamp life.
Enjoy greater peace of mind with extended warranty options. All
warranties include the lamp module and protect your lamp up to six
times longer than competitive warranty coverage.
Incredible value
So easy to use and operate
• Invest wisely. The affordable, high-quality
• Share and use effortlessly. Whether you present
HP vp6300 digital projector series delivers
incredible value to the classroom or conference
room. With an amazingly low purchase price and
ultra-low total cost of ownership, this series offers
cost-effective replacement lamps and a superior
lamp warranty.
• Get an industry-leading warranty. HP offers a one,
two, or three-year warranty for the projector and
lamp.1 Choose a warranty to match your expected
use and protect your investment for up to three
years.
• Benefit from HP’s legendary quality and reliability.
The dependable projector is backed by HP’s awardwinning customer service. Fast, knowledgeable
online e-support and easy-to-access phone support is
available 24-hours-a-day, 7-days-a-week.
Predictable performance
• Count on solid, long-lasting performance. The
projector’s 4000-hour lamp lasts longer than the
lamps of most other projectors. Combine this with
an industry-leading lamp warranty, and you have a
solid product that won’t surprise you with hidden
replacement costs.2
• Experience authentic, vibrant, consistent colors.
Don’t settle for inconsistent colors and projected
images that fade over time. The HP vp6300 digital
projector series uses industry-leading DLP™
technology, which ensures that colors look the same
across the screen and that there is no fading or loss
of quality for as long as you use the projector.
1
2
3
every day or a few times a month, this series is easy
to use and operate in any location. Simply connect
the projector to a wide range of sources such as a
computer, PDA, DVD, TV, or VHS.
• Appreciate the innovative, compact design. In the
classroom or conference room, you will welcome
the portability of the HP vp6300 digital projector
series. With a convenient, integrated handle,
moving this lightweight projector from room to room
is an easy task that won’t weigh you down. And the
innovative, five-sided, industrial design gives you a
unique, attractive companion while presenting.
• Let your audience focus on your voice, not the sound
of your projector. The projector creates a minimal
amount of operating noise, so viewers in an office
or room of any size can enjoy presentations without
having to strain to hear them.3
• Get all of the AV inputs you’ll ever need. With the
projector’s multiple inputs, you can create powerful,
lively, and memorable presentations that include a
variety of source material. Connect any device with
VGA, composite, S-video, USB, or audio outputs.
• Enjoy a seamless presentation. The HP vp6300
digital projector series comes with 1.2x manual
zoom so that you can adjust the image to fit your
screen perfectly. Using keystone correction, ensure
that projected images are perfectly square and
undistorted, for flawless presentations audiences will
remember.
Based on 1,000 lamp hours per year for each year of the warranty.
Competitors’ lamp warranties for versatile projectors of similar price were reviewed in January 2005.
Operating noise is 34 dB in lamp-saving mode and 36 dBA in standard mode.
HP vp6300 digital projector series
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Infrared port and height
adjustment button
Auto sync button
Integrated handle for
security cable
Lamp and temperature
warning light
Menu buttons
Picture button
Page-down button
Source button
Page-up button
Keystone adjustment
Power button
Focus and zoom rings
Lens cover
Lens
S-video connection
Audio in RCA
connection
Audio-in phono plug
USB port
17.
18.
19. VGA-in port
20. VGA-out port 21. RS-232
port (not available on
vp6310)
21. RS-232 port (not
available on vp6310)
22. Lock slot (missing in
photo, not available on
vp6310)
23. DVI-D connection (not
available on vp6310)
24. AC power
25. 12-Vdc output (not
available on vp6310)
26. Power on/off
27. Composite connection
28. Wireless remote control
with mouse function and
batteries
1
12
11
10
9
8
7
13 14
2
3
6
5 4
15 16 17 18 19 20
28
27 26 25 24 23 22 21
HP vp6320 digital projector shown
Product highlights
• Protect your investment. The HP vp6320 digital
projector includes a built-in slot to secure the
projector with a cable and lock, similar to a
Kensington MicroSaver lock system.
Alternatively, the integrated handle allows you to
loop a cable or bracket around the projector’s
handle to secure the projector in place. Set a
password button sequence to further protect your
projector from unauthorized use.
• Create the perfect environment for your
presentation. Once your projector is set up,
experience the convenience of RS-232 room
control to quickly and easily manage the light
conditions in the room from your projector.
Effortlessly dim or brighten lights without
interrupting your presentation. (RS-232 room
control capability is not available on the
HP vp6310 digital projector.)
• Take complete command of your presentation.
Maintain amazing control over your presentation
and focus your audience’s attention with your
remote control and an external monitor. Using
the VGA output, you can run presentations from
an external monitor, keeping an eye on both the
presentation and your audience.
• Enjoy the versatility. If you don’t plan to move the
projector to different locations, you can easily
mount it to the ceiling, rear wall, or tabletop, so
the projector is secure and always ready to
operate. Regardless of placement, this projector
has an easy-access lamp module, making lamp
replacement a simple task.
Deliver top-caliber presentations and dazzle your
audience with the HP vp6300 digital projector
series. This affordable, versatile, whisper-quiet
series is easy to set up and operate anywhere.
Superb image quality
• See it to believe it. Attract your audience’s attention
with stunning image quality. Create vibrant, bright
images with up to 2000 ANSI (max) lumens,
ensuring visibility even in a partially or fully lit
room.4 The HP vp6320 digital projector’s sharp
2500:1 contrast ratio ensures the data and
graphics presented are crisp and clear.
• Enjoy superior resolution. Whether projecting for a
small, impromptu gathering or a large training
meeting, your audience will always see crisp, sharp
detail with either XGA or SVGA resolution.
• Let the projector do the work for you. Focus on your
presentation and audience, not your equipment.
The projector conveniently offers different modes for
image optimization. Simply select the data,
graphics, or video mode, and the projector
automatically determines the optimal settings.
Cost-effective lamp with an
industry-leading warranty
The projector’s 4000-hour lamp life delivers
outstanding performance with a longer life than
competing projectors’ lamps. Experience solid,
predictable performance while eliminating hundreds
of dollars in hidden costs associated with lamp
replacement.
The HP vp6300 digital projector series boasts an
attractive purchase price. A low total cost of
ownership is achieved with cost-effective replacement
lamps and an industry-leading lamp warranty that is
up to six times longer than that of its competitors.
Enhance your basic warranty coverage with a two- or
three-year upgrade. And if you do ever need support,
this reliable HP projector comes with 24-hours-a-day,
7-days-a-week HP phone, e-mail, and Web support.
Maximize your presentations with versatile accessories from HP
HP wireless IR remote
control
HP carrying case
HP ceiling mount
L1586A
L1696A
L1703A
Confidently control your
presentation with this
wireless remote control
with laser pointer.
Protect your digital
projector from the rigors
of travel and frequent use
with this sturdy carrying
case.
Easily mount your
projector to the ceiling for
permanent installation.
HP mobile 60-inch screen
L1633A
HP presenter 50-inch
screen
L1671A
HP lamp module
Give your audience the
big picture whenever
and wherever they want
with a self-contained,
easy-to-use mobile
screen.
Prevent distracting
interruptions during your
presentation with this
back-up lamp module.
L1695A
4
The ANSI (max) lumens rating is based on ANSI/NAPM IT7 .228-1997 tests of 50 HP vp6320 units, in February 2005,
with a projector mean ANSI lumens of 1812 and maximum ANSI lumens of 2004; tests of 50 mp6310 units, in February
2005, with a projector mean ANSI lumens of 1624 and maximum ANSI lumens of 1745. The ANSI (max) lumens
specification is provided to enable customers to accurately compare HP digital projectors’ lumens with the lumen ratings of
other vendors. Lamp brightness will decline with use. Replacing the used lamp with a new factory lamp will restore the
projector’s output to its original brightness range.
HP vp6300 digital projector series
Technical specifications
Brightness
Resolution
Image contrast
Lamp life
Weight
Dimensions (w x d x h)
Projected image
Size
Throw distance
Display technology
Scalable resolution
Projector lens
Keystone correction
Light source
Audio
Video capability
Signal interface
Computer connectivity
Resizing of images to full screen
Detection of computer signal
input
Image synchronization
Remote control
Mounting capability
Dimensions (w x d x h)
What’s in the box
HP vp6310 digital projector (L1686A)
HP vp6320 digital projector (L1687A)
1,600 ANSI (max) lumens
2,000 ANSI (max) lumens
True SVGA (800 × 600)
True XGA (1024 × 768)
2,000:1 full on/full off
2,500:1 full on/full off
4,000-hour average lamp life (to half of original brightness)
7.7 lb
11.0 × 10.1 × 4.0 in.
Adjustable from 24 in to 230 in
5 to 30 ft
Texas Instruments DLP™
SXGA+, SXGA, XGA, SVGA, VGA, MAC
f/2.4~2.6, f=24.3~29.2 mm; optical zoom, manual focus
Horizontal, ±20%
210-watt lamp; lamp saver mode reduces lamp power to 168 watts
Monaural speaker, 6-watt peak output
NTSC 3.58 MHz and 4.43 MHz; PAL B, D, G, H, I, M, N; SECAM B,
NTSC 3.58 MHz and 4.43 MHz; PAL B, D, G, H, I, M, N; SECAM B,
D, G, K, K1, L; HDTV (480i/p, 575i/p, 720p, 1080i); PC video up to
D, G, K, K1, L; HDTV (480i/p, 575i/p, 720p, 1080i); DVI with
SXGA
HDCP; PC video up to SXGA
Input: VGA, RCA jack (composite), S-video, audio RCA jack
Input: VGA, RCA jack (composite), S-video, audio RCA jack
Output: USB (mouse control), VGA pass through
Output: USB (mouse control), VGA pass through, DVI-D,
RS-232, 12-Vdc
UXGA, SXGA+, SXGA, XGA+, XGA, SVGA, VGA, Mac, Mac LC 13
SXGA, XGA+, XGA, SVGA, VGA, Mac, Mac LC 13 in, Mac II 13 in,
in, Mac II 13 in, Mac 16 in, Mac 19 in, Mac G4, iMac DV
Mac 16 in, Mac 19 in, Mac G4, iMac DV
Automatic
Automatic
Automatic
Wireless remote controller with USB mouse function
Ceiling and tabletop, front and rear projection
11.6 x 10.7 x 4.4 in.
HP vp6320 digital projector, 3-conductor 10 ft power cord, 1.8-meter
HP vp6310 digital projector, 3-conductor 10 ft power cord, 1.8-meter
USB cable, 1.8-meter VGA cable, wireless remote control with mouse
USB cable, 1.8-meter VGA cable, wireless remote control with mouse
function and batteries, multi-language User’s Guide (CD-ROM), multifunction and batteries, multi-language User’s Guide (CD-ROM), multilanguage Quick Start Card, warranty card
language Quick Start Card, warranty card
Ordering information
Environmental ranges
Operating
Storage
Noise level
Power
Requirements
Consumption
Certifications
Safety
Electromagnetic compatibility
Warranty
Temperature: 50 to 95° F
Humidity: 80% RH max, non-condensing
Altitude: up to 10,000 ft
Temperature: –4 to 131° F
Humidity: 80% RH max, non-condensing
Altitude: up to 40,000 ft
As low as 34 dBA in lamp-saving mode
100 to 240 V at 50 to 60 Hz
285 watts maximum
cULus, TUV-GS, CCC, EN60950, PSB, NOM, B-mark, GOST, FDA DHHS,
SHOAN, EMI/EMC certifications, FCC Part 15 Class B, EN55022: 1998,
EN55024: 1998, VCCI, MIC, C-Tick
FCC Part 15 Class B, EN55022:1998, EN55024:1998, VCCI, MIC,
C-Tick
1, 2, or 3-year warranty for projector and lamp based on product
selected; 24-hour, 7-day HP phone, e-mail, and Web support
HP product
Number
HP vp6310 digital projector, 1-year warranty,
projector and lamp
HP vp6310b digital projector, 2-year warranty,
projector and lamp
HP vp6310c digital projector, 3-year warranty,
projector and lamp
HP vp6320 digital projector, 1-year warranty,
projector and lamp
HP vp6320b digital projector, 2-year warranty,
projector and lamp
HP vp6320c digital projector, 3-year warranty,
projector and lamp
HP and the invent signature are trademarks of the Hewlett-Packard Company.
© 2005 Copyright Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are
set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed
as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
For more information visit our website at www.hp.com
5983-0697ENUC, 3/2005, Rev. 1
L2314A
L2315A
L1687A
L2317A
L2318A
Accessories and supplies
HP
HP
HP
HP
HP
HP
wireless remote control with USB
vp6300 series lamp module
vp6300 series carrying case
vp6300 series ceiling mount
mobile 60-inch standard screen
presenter 50-inch standard screen
L1586A
L1695A
L1696A
L1703A
L1633A
L1617A
HP
HP
HP
HP
HP
HP
VGA 1.8-meter cable
Composite RCA 1.8-meter cable
S-video 1.8-meter cable
S-video 20-ft cable
audio mini-plug 1.8-meter cable
SCART to composite/S-video adapter
L1625A
L1527A
L1635A
L1715A
L1532A
L1717A
Cables
DLP is a trademark of Texas Instruments.
L1686A
Service and support
Web support
Phone support
www.hp.com
1-800 HP Invent (1-800-474-6836)
