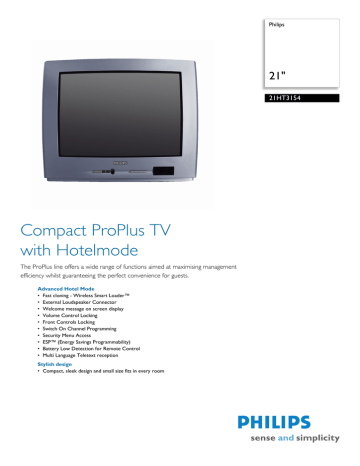

Philips 21" professional TV

Philips
21"
21HT3154
Compact ProPlus TV
with Hotelmode
The ProPlus line offers a wide range of functions aimed at maximising management
efficiency whilst guaranteeing the perfect convenience for guests.
Advanced Hotel Mode
• Fast cloning - Wireless Smart Loader™
• External Loudspeaker Connector
• Welcome message on screen display
• Volume Control Locking
• Front Controls Locking
• Switch On Channel Programming
• Security Menu Access
• ESP™ (Energy Savings Programmability)
• Battery Low Detection for Remote Control
• Multi Language Teletext reception
Stylish design
• Compact, sleek design and small size fits in every room
21HT3154/01
21"
Specifications
Product highlights
Picture / Display
•
•
•
•
•
•
Aspect ratio: 4:3
Diagonal screen size: 21 inch / 55 cm
Visible diagonal screen size: 51 cm
Display screen type: Blackline FX picture tube
Picture enhancement: Smart Picture
Picture processing: 50 Hz
• Aerial input: 75 ohm coaxial (IEC75)
• Number of preset channels: 125
Connectivity
Loudspeakers
•
•
•
•
•
Convenience
Power
• Built-in speakers: 2
•
•
•
•
•
•
•
Ease of installation: PLL digital tuning
Ease of Use: Smart picture control
Remote control type: RC2886
Teletext: 1 page Teletext
Clock: Sleep timer
Remote control: TV
Screen format adjustments: 4:3
Tuner / Reception / Transmission
• Tuner bands: Hyper band, S channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video playback: NTSC
Ext 1 Scart: CVBS in/out, RGB
Front / Side connections: Headphone out
Number of scarts: 1
Headphone: 3.5 mm
Connectivity enhancements: External
Loudspeaker connector, RJ12 Smartloader
Wireless Smart Loader™
Provides the ability to copy easily and wirelessly all
programmming settings from one TV set into other TV
sets in less then a minute. The feature ensures
uniformity between TV sets and significantly reduces
installation time and costs.
External Loudspeaker Connector
Amplified audio connector for easy installation of
external speakers (like for bathrooms), eliminating the
need for investments in external equipment
• Power consumption: 51W W
• Standby power consumption: < 5 W
• Mains power: AC 220 - 240 V +/- 10%
Welcome Message
Welcome greeting displayed on screen each time the
TV set is switched on
Dimensions
Volume Control Locking
This feature predefines the volume range in which the
TV set can operate, preventing excessive volume
adjustments avoiding disturbance of next door
neighbours.
•
•
•
•
Product weight: 20 kg
Weight incl. packaging: 23 kg
Colour cabinet: Blue silver
Set dimensions (W x H x D):
549 x 469 x 497 mm
Sound
• Output power (RMS): 2 x 2W
• Sound system: Mono
•
Front Controls Locking
Prevents unauthorised access to TV functions
Switch On Channel Programming
It forces the TV set to a specified channel when turned
on. Perfect for in-house advertising or information
channels.
Security Menu Access
Provides conditional access to installation and
configuration settings via a special code or master
remote control
ESP™
Feature can be selected in the set-up menu. The TV can
be switched off automatically after a specified period of
use saving energy and providing extended product life
time. The selectable range is from 0 to 99 hours.
Battery Low Detection
This feature informs of the need to replace the remote
control batteries preventing unneccessary replacement
of batteries.
Multi Language Teletext
Allows users to select their preferred language
supported by the teletext characters
Date of issue 2007-01-03
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 3.0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 16377
EAN: 87 10895 72762 4
