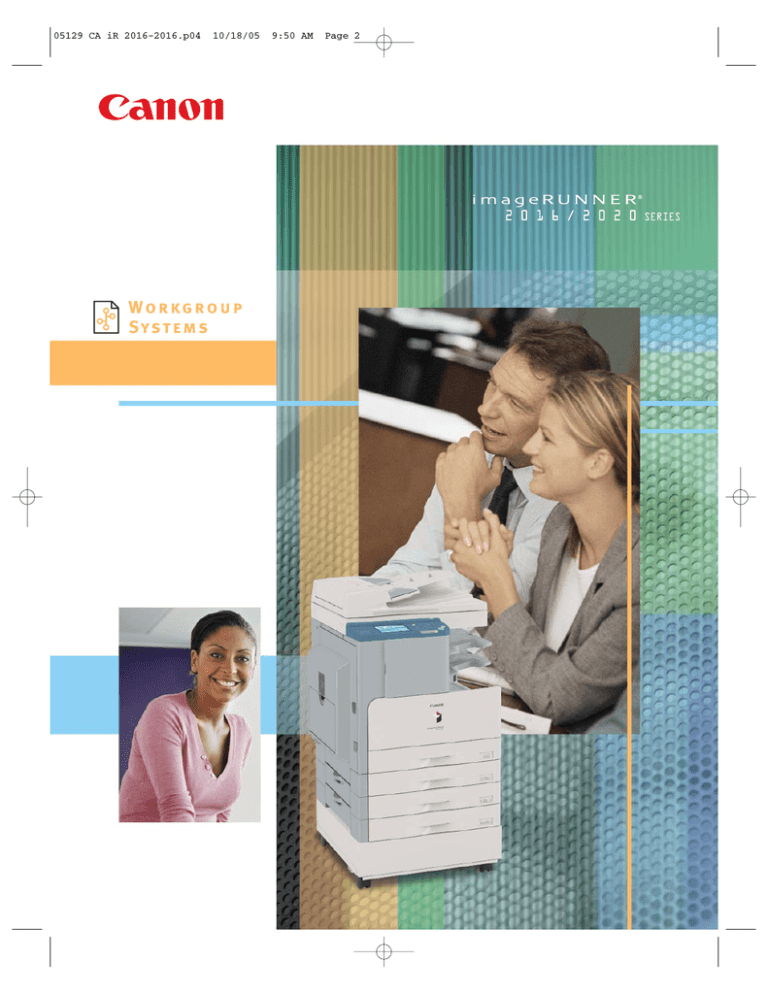

05129 CA iR 2016-2016.p04
10/18/05
W o r kg r o u p
Systems
9:50 AM
Page 2
05129 CA iR 2016-2016.p04
10/18/05
9:50 AM
Page 3
HIGH-END PRODUCTIVITY COMES TO LOW-VOLUME
The advantages of digital multifunction technology are more apparent than ever before. You need a solution to meet the daily
challenges faced in an increasingly sophisticated communications environment.
Introducing four new choices from Canon–the imageRUNNER® 2016/2016i and the imageRUNNER 2020/2020i. Producing lasersharp output at speeds of 16 and 20 pages per minute, respectively, these compact imageRUNNER devices deliver the advantages
of high-end digital copy, print, and fax features to smaller offices like yours, along with innovative technologies that will help your
business save time, space and, most of all, document production and distribution costs.
imageRUNNER 2016/2016i/2020/2020i Specifications
Type:
Digital Multifunction Imaging System
Imaging System:
Laser Dry Electrostatic Transfer
Developing System:
Dry Single-Component Projection
Fixing System:
RAPID Fusing System™
Image Server Memory (Std./Max.)
2016/2020:
128MB/256MB RAM
2016i/2020i:
256MB/256MB RAM
First-Copy-Out Time:
7.9 Seconds from Platen Glass
13.5 Seconds from Feeder
Warm-Up Time:
1 Second or Less from Sleep Mode†
13 Seconds or Less from Main Power Off †
Copy/Print Speed
2016/2016i:
Up to 16 ppm (Letter)
2020/2020i:
Up to 20 ppm (Letter)
Maximum Original Size:
11" x 17"
Maximum Copy Size:
11" x 17"
Minimum Copy Size:
3-3/4" x 5-7/8"
Acceptable Originals:
Sheets, Books, and
3-Dimensional Items (Up to 4-3/8 lb.)
Multiple Copies:
1 to 99
Max. Copy Reservation:
5 Jobs
Scan Resolution:
600 x 600 dpi
Copy Resolution (Enhanced):
1200 x 600 dpi
Print Resolution
2016/2020:
600 x 600 dpi (Std.)
1200 x 1200 dpi (Opt)††
2016i/2020i:
1200 x 1200 dpi (Std.)††
Halftone:
256 Levels
Automatic Trayless Duplexing
2016/2020:
Optional
2016i/2020i:
Standard
Magnification:
50% to 200% (In 1% Increments)
Preset Reduction:
50%, 64%, 73%, 78%
Preset Enlargement:
121%, 129%, 200%
Exposure Control:
Automatic or Manual (9 Levels)
Document Feeding
2016/2020:
Optional 50-Sheet DADF
2016i/2020i:
Standard 50-Sheet DADF
Standard Paper Capacity
2016/2016i:
1 x 250+80 Bypass (Total 330 Sheets)
2020/2020i:
2 x 250+80 Bypass (Total 580 Sheets)
Maximum Paper Capacity:
Acceptable Paper Weight:
Dimensions (H x W x D)
imageRUNNER 2016:
imageRUNNER 2016i:
imageRUNNER 2020:
imageRUNNER 2020i:
Weight
imageRUNNER 2016:
imageRUNNER 2016i:
imageRUNNER 2020:
imageRUNNER 2020i:
Power Requirements:
Power Consumption:
Toner Yield:
Printing Specifications
CPU:
Memory
2016/2020:
2016i/2020i:
PDL Support
2016/2020:
2016i/2020i:
Standard Interfaces:
Network Operating Systems:
4 x 250+80 Bypass (Total 1,080 Sheets)
17 lb. to 24 lb. Bond (Cassette)
17 lb. to 32 lb. Bond (Bypass)
22-7/8" x 24-1/2" x 25"
(580.4mm x 622mm x 633.4mm)
26-1/2" x 24-1/2" x 26-3/8"
(672mm x 622mm x 668mm)
26-1/4" x 24-1/2" x 25"
(665.4mm x 622mm x 633.4mm)
29-7/8" x 24-1/2" x 26-3/8"
(757mm x 622mm x 668mm)
Approx. 87 lb. (39.6kg)
Approx. 110 lb. (49.7kg)
Approx. 101 lb. (46kg)
Approx. 123 lb. (55.5kg)
120V AC, 60Hz, 4.6A
1.55kW (Max.)
8,300 @ 6% Coverage
Canon Custom Processor—Shared
Shared with Main Unit—128MB Std./
256MB Max. (with PCL Printer Kit-J1)
Shared with Main Unit–256MB Std.
Printer Drivers
UFR II LT:
PCL 5e/6:**
Utility Software:
Send Capabilities▲▲
Sending Methods:
One-Touch Buttons:
File Formats
Black and White:
Color:
Sending Sizes:
Windows 98/Me/2000/XP
Windows Server 2003
Citrix MetaFrame
Macintosh OS X (OS 10.2.8 or later)▲
Windows 98/Me/2000/XP
Windows NT 4.0/Server 2003
Citrix MetaFrame
Remote UI
NetSpot Device Installer
NetSpot Console
USB Class Driver, Fax Driver
Canon LPR 2
Canon Font Manager
Address Book Conversion Utility
E-Mail, I-Fax, Super G3 Fax (Opt.),
File Server (FTP, SMB)
500 Destinations
TIFF, PDF
JPEG, PDF (Compact)
Statement to 11" x 17"
Accessories
UFR II LT (Std.)
PCL 5e/6 (Opt. with PCL Printer Kit-J1)
UFR II LT, PCL 5e/6 (Std.)
10/100Base-TX (RJ-45),
USB 2.0 High Speed
Novell® NetWare® v. 5.1, 6, 6.5†††
Windows® 98/Me
Windows NT® 4.0/2000/XP/Server
2003 (TCP/IP)
Apple® Macintosh® OS X
or Higher▲
Duplexing Automatic Document Feeder-P1**
Paper Capacity:
50 Sheets
(Letter, Letter-R, Statement)
Acceptable Original Sizes:
Statement to 11" x 17"
Acceptable Paper Weights:
10 lb. to 32 lb. Bond (One Sheet)
14 lb. to 28 lb. Bond (Multiple Sheets)
Document Scanning Speed:
20 Sheets/Minute (Letter, B/W)
Dimensions (H x W x D):
4-7/8" x 22-1/4" x 19-1/4"
(122mm x 565mm x 489.4mm)
Weight:
Approx. 16 lb. (7kg)
05129 CA iR 2016-2016.p04
10/18/05
9:50 AM
Page 4
DADF-P1**
Platen Cover
Document Tray-J1
Inner 2-Way
Tray-E1
Finisher-U1
Cassette Feeding
Module-J1***
Cassette Feeding
Module-K1
Cassette Feeding Module-J1 (Optional)***
Paper Capacity:
1 x 250-Sheet Paper Cassette
Acceptable Paper Size:
11" x 17", Legal, Letter,
Letter-R, Statement
Acceptable Paper Weight:
17 lb. to 24 lb. Bond
Dimensions (H x W x D):
4-5/8" 22-7/8" x 22-3/8"
(116mm x 580.3mm x 569.3mm)
Weight:
Approx. 13 lb. (6kg)
Cassette Feeding Module-K1 (Optional)
Paper Capacity:
2 x 250-Sheet Paper Cassettes
Acceptable Paper Size:
11" x 17", Legal, Letter,
Letter-R, Statement
Acceptable Paper Weight:
17 lb. to 24 lb. Bond
Dimensions (H x W x D):
8" x 22-7/8" x 22-3/8"
(201.8mm x 580.3mm x 569.3mm)
Weight:
Approx. 26 lb. (12kg):
Inner 2-Way Tray-E1 (Optional)
Number of Trays:
Two
Acceptable Paper Size:
Statement to 11" x 17"
Tray Capacity
Upper Output Tray:
100 Sheets (Letter)
50 Sheets (Other Sizes)
Lower Output Tray:
250 Sheets (Letter)
100 Sheets (Other Sizes)
Dimensions (H x W x D)
(Inside Main Unit):
6" x 19-1/8" x 17-3/4"
(151.2mm x 485.5mm x 451mm)
Weight:
Approx. 3 lb. (1.5kg)
Finisher-U1 (Optional)
Number of Trays:
Tray Capacity
Single Tray:
Additional Finisher Tray-C1
imageRUNNER
2016i/2020i
Main Unit*
imageRUNNER
2016/2020
Main Unit*
One (Second Tray Optional)
770 Sheets
(Letter, Statement, Statement-R)
380 Sheets
(Legal, Letter-R, 11" x 17")
Cabinet-S1
Cabinet-R1
With Additional Finisher Tray-C1:
200 Sheets Each Tray
(Letter, Statement, Statement-R)
150 Sheets Each Tray
(Legal, Letter-R, 11" x 17")
Staple Position/Size:
Corner Stapling
(Letter, Letter-R, Legal, 11" x 17")
Max. Stapling Capacity:
Up to 50 Sheets (Letter)
Up to 30 Sheets
(Letter-R, Legal, 11" x 17")
Dimensions (H x W x D)
(Inside Main Unit):
11-7/8" x 18-1/8" x 20-1/2"
(300mm x 480mm x 520mm)
Weight:
Approx. 22 lb. (10kg)
Attachable Accessories:
Optional Additional Finisher Tray-C1
Additional Finisher Tray-C1 (Opt. for Finisher-U1)
Tray Capacity
200 Sheets
(Letter, Statement, Statement-R)
150 Sheets
(Legal, Letter-R, 11" x 17")
Dimensions (H x W x D)
(Inside Main Unit):
3-2/5" x 8-1/10" x 15-3/8"
(86mm x 204mm x 390mm)
Weight:
Approx. 4 lb. (1.8kg)
Super G3 Fax Board-T1 (Optional)
Applicable Line:
Public Switched Telephone
Network (PSTN), Facsimile Network
Connection Lines:
One
One-Touch Buttons
2016/2020:
200 Destinations
2016i/2020i:
500 Destinations
Sending/Original Sizes:
Statement to 11" x 17"
Recording/Printing Sizes:
Statement to 11" x 17"
Transmission Time▲▲▲
ECM-MMR:
Approx. 3.2 Seconds/Page (33.6 Kbps)
G3MR Method:
Approx. 13 Seconds/Page (33.6 Kbps)
G3MH Method:
Approx. 13 Seconds/Page (33.6 Kbps)
JBIG:
Approx. 2.6 Seconds/Page (33.6 Kbps)
Scan Line Density
Standard:
Fine:
Super Fine:
Ultra Fine:
Image Memory
8 pels/mm x 3.85 lines/mm
8 pels/mm x 7.7 lines/mm
8 pels/mm x 15.4 lines/mm
16 pels/mm x 15.4 lines/mm
Approx. 1,000 Pages
Additional Supplies and Accessories
AXIS 1650 Print Server
Basic Card Set
Braille Label Kit-A1
Cabinet-R1 (Large)
Cabinet-S1 (Small)
Card Reader Attachment-D1
Card Reader-E1
Copy Card Sets
Document Tray-J1
Serial Interface Board-A1▲
Stamp Ink Cartridge-B1
Staple Cartridge-J1
Options for imageRUNNER 2016/2020 only
Duplex Unit-A1
Fax Panel-A1
PCL Printer Kit-J1
Platen Cover
* Standard configuration of the imageRUNNER 2020/2020i shown;
the imageRUNNER 2016/2016i devices ship standard with one paper cassette.
** Standard on imageRUNNER 2016i/2020i; optional on
imageRUNNER 2016/2020.
*** Option for imageRUNNER 2016/2016i only.
† At room temperature of 20˚C/68˚F.
†† UFR II LT only. Requires 256MB RAM.
††† Requires AXIS 1650 Print Server.
▲
▲▲
▲▲▲
Available in 1H 2006.
Standard on imageRUNNER 2016i/2020i only.
Approximate 3-second-per-page fax transmission time based on ITU-T no. 1 Chart
(JBIG, Standard Mode) at 33.6 Kbps modem speed when transmitting to another
V.34 machine. The Public Switched Telephone Network (PSTN) currently supports
28.8 Kbps modem speeds or lower, depending on telephone line conditions.
