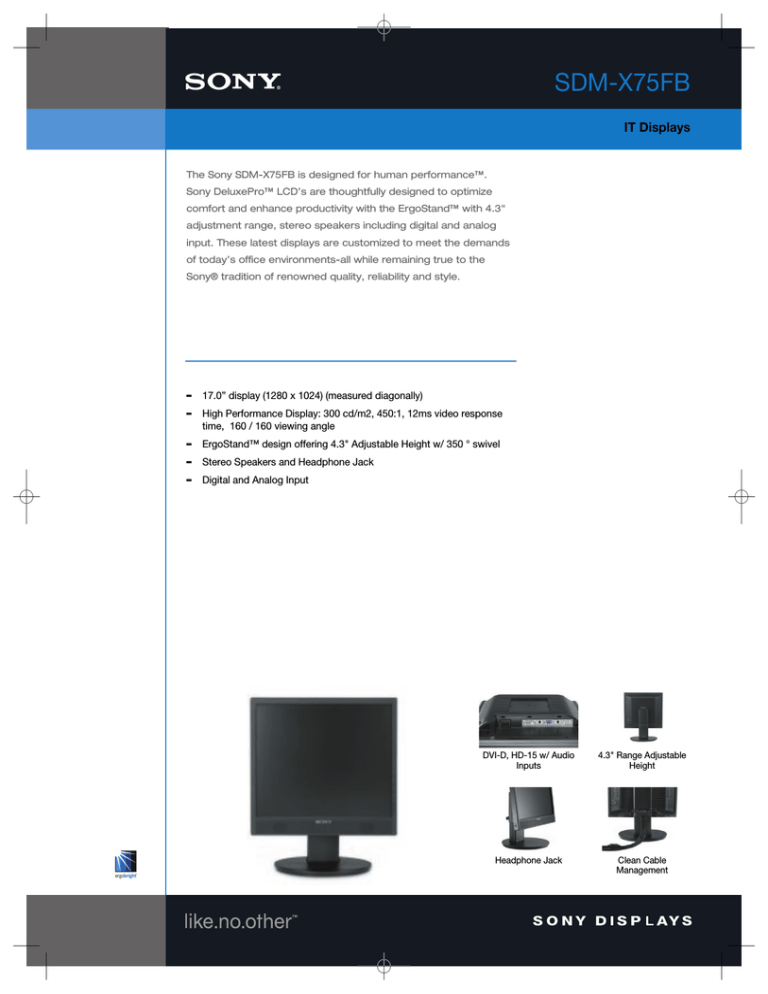

Sony 17" DeluxePro™ LCD, Black

SDM-X75FB
IT Displays
The Sony SDM-X75FB is designed for human performance™.
Sony DeluxePro™ LCD’s are thoughtfully designed to optimize
comfort and enhance productivity with the ErgoStand™ with 4.3"
adjustment range, stereo speakers including digital and analog
input. These latest displays are customized to meet the demands
of today’s office environments-all while remaining true to the
Sony® tradition of renowned quality, reliability and style.
O
O
17.0” display (1280 x 1024) (measured diagonally)
High Performance Display: 300 cd/m2, 450:1, 12ms video response
time, 160 / 160 viewing angle
O
ErgoStand™ design offering 4.3" Adjustable Height w/ 350 ° swivel
O
Stereo Speakers and Headphone Jack
O
Digital and Analog Input
DVI-D, HD-15 w/ Audio
Inputs
4.3" Range Adjustable
Height
Headphone Jack
Clean Cable
Management
SDM-X75FB
IT Displays
Features and Benefits
O
O
O
O
O
O
O
O
4.3" Height Adjustment - 4.3" range of Adjustable Height
5 Gamma presets - A greater ability to set proper tonal curve to match
the application
Auto-input sensing - Easy set up: connect and go without manually
switching inputs
VESA Wall Mount - 100mm centered VESA wall or arm mount
Tilt and Swivel - All models with a base-stand include a tilt and wide
350° swivel
Streamlined profile - Space-efficient design keeps workspace looking
organized and clutter-free
ErgoBright™ technology - Optimizes brightness at the push of a
button, reducing eyestrain
Versatile and easy to use - Sony’s automatic image adjustment
feature optimizes your display’s performance instantly. Macintosh® and
PC compatible
Specifications
PART NUMBER
SCREEN SIZE
NATIVE RESOLUTION
SCREEN TREATMENT
PIXEL PITCH
HORIZONTAL SCAN RANGE
VERTICAL REFRESH RANGE
RESPONSE TIME
LUMINANCE
CONTRAST RATIO
COLORS
VIEWING ANGLE
INPUT(S)
WALL/ARM MOUNT
CABLE MANAGEMENT SYSTEM
ON SCREEN CONTROLS
ERGOSTAND™ DESIGN
KENSINGTON LOCK
FORMAT
INPUT POWER
POWER CONSUMPTION
POWER MANAGEMENT
EMISSIONS/ERGONOMICS
PLUG & PLAY
LIMITED WARRANTY
EXTENDED WARRANTY
OPERATING SYSTEM COMPATIBILITY
WEIGHT
DIMENSIONS (WXHXD)
PACKAGE CONTENTS
WARRANTY
SDM-X75FB
17.0"
1280 x 1024
Anti-Glare / Protective Coating
0.264 mm
28k-80kHz
48-75Hz
12ms
300cd/m2
450:1
16.2 million
160°/160°
Video Input Connector(s): Digital (DVI-D), Analog
(HD15)
100mm VESA Standard
Yes
Power, Menu, Contrast, Brightness, Sharpness, Eco
Mode, Color, Temperature, Backlight, Auto Adjust, H/V
Adjust, Phase, Pitch, Reset, Gamma, Menu Lock, OSD
Position, Multi Lang. (Eng, Fre, Spa, Ita, Ger, Jap, Dut,
Swe, Rus, Chi)
Height Adjustment Range: Adjustable 4.3"; Tilt: Yes, -5
to 20; Swivel: Swivel Range 350º
Yes
Integrated Stereo Speakers and Head Phone Jack
Internal Power Supply 100-240Vac. 50/60Hz
50w max, 39w typ, 1w Active off. 0w Switch off
International Energy Star
TCO 99
DDC/Ci
3 years (Parts, Labor, Backlight)
4th and 5tn year available
Designed For: PC2001, Windows® 98, 2000, NT, XP
and Macintosh®
16.8 lb; 9.7 lbs w/o base stand, 20.5 lbs packaged
14.5" x 15.5-19.8" x 10"; 14.5" x 13.3" x 2.6" w/o
base stand
CD-ROM User Manual
AC Power Cord
DVI-D Digital Cable
HD15 Video Signal Cable
Audio cable (stereo mini jack)
Quick Setup Guide
Windows® & Macintosh® Utility Files
Warranty Card
3 years (Parts, Labor, Backlight)
4th and 5tn year available
©2005 Sony Electronics Inc.
Sony and ErgoStand are trademarks of Sony. All other trademarks are property of their
respective owners. Microsoft and Windows are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries. Macintosh is a
registered trademarks of Apple Computer, Inc.
Features and specifications are subject to change without notice. Non-metric weights and
measures are approximate.
®
Sony Electronics, Inc. • 16450 West Bernardo Drive • San Diego, CA 92127 • 1-866-357-7669 • www.sony.com./businesssolutions
Last Updated 2005-07-25
