English for Europe

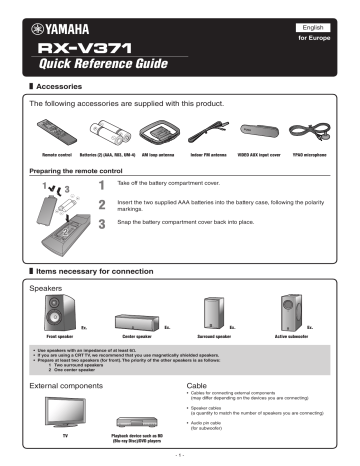

Quick Reference Guide

■

Accessories

The following accessories are supplied with this product.

PUSH

Indoor FM antenna VIDEO AUX input cover YPAO microphone Remote control Batteries (2) (AAA, R03, UM-4) AM loop antenna

Preparing the remote control

1 1 Take off the battery compartment cover.

2 Insert the two supplied AAA batteries into the battery case, following the polarity markings.

3 Snap the battery compartment cover back into place.

■

Items necessary for connection

Speakers

Front speaker

Ex.

Center speaker

Ex.

Surround speaker

• Use speakers with an impedance of at least 6Ω.

• If you are using a CRT TV, we recommend that you use magnetically shielded speakers.

• Prepare at least two speakers (for front). The priority of the other speakers is as follows:

1 Two surround speakers

2 One center speaker

Ex.

External components

Active subwoofer

Ex.

Cable

• Cables for connecting external components

(may differ depending on the devices you are connecting)

• Speaker cables

(a quantity to match the number of speakers you are connecting)

• Audio pin cable

(for subwoofer)

TV Playback device such as BD

(Blu-ray Disc)/DVD players

- 1 -

Connect and install as follows the fi rst time you use this unit.

See the following explanations for the connections for each number.

TV

Front speaker L

Center speaker

Surround speaker L

Front speaker R

Subwoofer

Surround speaker R

This unit

BD/DVD player

(recorder)

1 Connect the speakers

2 Connect a TV

3 Connect playback device such as BD/DVD players and recorders

4 Connect the AC power cord, and turn the power on

When connection and installation is fi nished, set up the speaker parameters automatically 5 .

- 2 -

Connect the speakers

Surround speaker

R L

Front speaker

R L

SUBWOOFER

FM

ANTENNA

GND AM

SPEAKERS

SURROUND CENTER

FRONT

Caution:

• Remove the AC power cord of this unit from the power outlet before connecting the speakers.

• Generally speaker cables consist of two parallel insulated cables. One of these cables is a different color, or has a line running along it, to indicate different polarity. Insert the different colored (or lined) cable into the “+” (positive, red) terminal on this unit and the speakers, and the other cable into the “-” (minus, black) terminal.

• Be careful that the core of the speaker cable does not touch anything or come into contact with the metal areas of this unit. This may damage this unit or the speakers. If the speaker cables short circuit, “CHECK SP WIRES!” will appear on the front panel display when this unit is switched on.

Subwoofer Center speaker

Connecting front speakers

KERS

3

2

FR

ONT

1

4

1 Remove approximately 10mm of insulation from the ends of the speaker cables, and twist the bare wires of the cables together fi rmly so that they will not cause short circuits.

2 Loosen the speaker terminals.

3 Insert the bare wire of the speaker cable into the gap on the side of the terminal.

4 Tighten the terminal.

Connecting center speakers / surround speakers

SURR

OUND

SPEAKE

CENTER

1

3

2

1 Press the tab on the speaker terminal down.

2 Insert the speaker cable end into the terminal.

3 Lift the tab to fi x the speaker cable in place.

Connecting the subwoofer

1 Connect the subwoofer input jack to the SUBWOOFER jack on this unit with an audio pin cable.

- 3 -

2 Set the subwoofer volume as follows.

Volume: Set to approximately half volume (or slightly less than half).

Crossover frequency (if available): Set to maximum.

CROSSOVER/

HIGH CUT VOLUME

MIN MAX

MIN MAX

Subwoofer examples

Connect a TV

Video input to this unit is output to a TV using output jacks of the same kind.

When you have made connections using different types of video such as HDMI and component video, make the same connection with your TV. When viewing, be sure to switch the input source on your TV to match the playback device.

Input

HDMI

COMPONENT

VIDEO

VIDEO

Output

HDMI

COMPONENT

VIDEO

VIDEO

HDMI input

Component video input

Video input

If your TV has multiple inputs, connect with the following priority ( A to C ).

COMPONENT

VIDEO

P

R

P

R

P

B

P

B

P

B

Y

Y

Y

MONITOR OUT

HDMI

ARC

HDMI OUT

COMPONENT

VIDEO

V

V

AUDI

OUT

V

Y

HDMI

HDMI

P

R

COMPONENT

VIDEO

A

When using an HDMI compatible TV.

VIDEO

P

R

P

B

Y

COMPONENT

VIDEO

VIDEO

V

B

When using a component video input-compatible TV.

V

VIDEO

C

When using a TV compatible with video input only.

Listening to TV audio

To playback TV audio on this unit, connect the TV audio output to this unit.

Connect the following input jacks, matching the audio output jacks on your TV. When viewing your TV, select the appropriate input source on this unit.

OPTICAL

Audio output

O

COMPONENT

VIDEO

ARC

(BD/DVD)

HDMI 1

COMPONENT

VIDEO

O

OPTICAL

AV 1

COAXIAL

AV 2

COAXIAL

(CD)

AV 3

OPTICAL

( TV )

AV 4 AV 5

When using an HDMI compatible TV that supports Audio

Return Channel functions and / or HDMI Control functions (Ex.

Panasonic VIERA Link), you can enjoy the TV sound on this unit as follows:

When using a TV that supports the Audio Return

Channel functions and HDMI Control functions

The audio / video output from the unit to the TV and audio output from the TV to the unit are possible using a single HDMI cable.

The input source is switched automatically to match operations carried out on the TV, and that makes TV sound control easier to use.

For the connections and settings, refer to “Single HDMI cable input to TV audio with Audio Return Channel function” in

Owner’s Manual.

When using a TV that supports HDMI Control functions

When HDMI Control functions are enabled on the unit, input source can be switched automatically to match operations carried out on the TV.

For the connections and settings, refer to “Switching the input source on this unit automatically when listening to TV audio” in

Owner’s Manual.

Audio output from TV

Optical digital output

Input jack on this unit

AV1 or AV4

Coaxial digital output

Analog output

AV2 or AV3

AV5, AUDIO1, AUDIO2, or

V-AUX

HDMI Audio Return Channel

(Described in the right column)

HDMI OUT

✽ Connecting to AV4 allows you to playback TV audio just by pressing the “TV” under “SCENE” key.

- 4 -

Connect playback device such as BD/DVD players and recorders

If your playback device has multiple audio/video outputs, connect with the following priority ( A to D ) to enjoy a higher quality sounds and images.

A

When playback device is capable of HDMI output

HDMI

HDMI

B

When playback device is capable of component video output (with optical digital audio output)

COMPONENT

VIDEO

P

R

P

B

Y

OPTICAL

O

C

When playback device is capable of component video output (with coaxial digital audio output)

COMPONENT

VIDEO

P

R

P

B

Y

COAXIAL

C

D

When playback device is capable of video output (with analog audio output) only

VIDEO

V

AUDIO

L

R

COMPONENT

VIDEO

HDMI

P

R

P

R

P

B

Y

Y

COMPONENT

VIDEO

(BD/DVD)

HDMI 1

P

R

P

B

O O

OPTICAL

AV 1

COAXIAL

AV 2

C

AV 5

V

L

R

AUDIO

OUT

• When playback, select the corresponding input source the jack is connected.

• Connecting to HDMI1 allows you to select the HDMI input just by pressing the “BD/DVD” under “SCENE” key.

• Connecting to AV3 allows you to select the AV3 input just by pressing the “CD” under “SCENE” key.

• If necessary, you can connect components that cannot be connected using the above methods, such as devices that output video from component video output jacks and audio from analog output jacks. Refer to Owner’s Manual for details.

Connect the AC power cord, and turn the power on

Be sure to aim the remote control directly at the remote control sensor on this unit during operation.

AC power cord

To the power outlet.

30 30 within

6 m

1

1

5

V-AUX

TRANSMIT

RECEIVER

SLEEP

2

HDMI

3

AV

2 3

4

4

1

AUDIO

2

DOCK

Press

- 5 -

Set up the speaker parameters automatically (YPAO)

When connection is fi nished, adjust the status, sizes, and volume balance of the speakers to provide an optimal sound fi eld. This unit is equipped with a YPAO

(Yamaha Parametric room Acoustic Optimizer) function that adjusts the speaker balance automatically with a simple procedure.

When you use YPAO, a test tone will be output from the speakers for approximately three minutes and acoustic measuring will be performed. When using YPAO, be careful of the following.

• The test tone is output at high volume. Please refrain from using this function at night when it may be a nuisance to others nearby.

• Please take care that the test tone does not frighten any small children.

1 Check the following before using YPAO.

This unit

• The headphones are removed.

Subwoofer

• The power is turned on.

• The auto power-off function (if present) is set to off.

• Volume is set to approximately half, and the cross-over frequency (if present) is set to maximum.

CROSSOVER/

HIGH CUT VOLUME

MIN MAX MIN MAX

Subwoofer examples

2 Place the supplied YPAO microphone at ear height in your listening position.

YPAO microphone

3

When positioning the microphone, we recommend that you use equipment that allows you to adjust the height (such as a tripod) as a microphone stand. When using a tripod, use the tripod screws to fi x the microphone in place.

Continues to the next page

- 6 -

4 Connect the YPAO microphone to the YPAO MIC jack on the front panel.

YPAO microphone

“MIC ON. YPAO START” appears on the front panel display, and then changes to display the following.

YPAO

Press [SETUP]

VOL.

L

SL

SW

C

R

SR

This completes preparations. To achieve more accurate results, be careful of the following when measuring.

• Measuring will take approximately three minutes. Keep the room as quiet as possible during measurement.

• Wait in the corner of the listening room during measurement or leave it entirely, to avoid becoming an obstruction between the speakers and the YPAO microphone.

5

Progress

YPAO

Progress 00%

VOL.

L

SL

SW

C

R

SR

The following display appears if measurement fi nishes without any problems.

YPAO

YPAO Complete

VOL.

L

SL

SW

C

R

SR

Note

When a problem occurs, an error message or a warning message appears either during or after measurement. Refer to “Set up the speaker parameters automatically (YPAO)” in Owner’s

Manual to solve the problem, and carry out YPAO again.

6

YPAO

Disconnect MIC

VOL.

L

SL

SW

C

R

SR

7 Remove the YPAO microphone.

YPAO fi nishes automatically when the YPAO microphone is removed.

RECEIVER A

SETUP

ENTER

- 7 -

Operation guide

A Switches this unit between on and standby modes

This unit switches between on and standby mode every time you press this key.

B

Choose an input source to listen to

The name of the selected input source appears on the front panel display.

VOL.

HDMI1

L

SL

SW

C

R

SR

C Select sound fi eld programs and sound decoders

Front panel

Remote control

Description

PROGRAM

MOVIE

MUSIC

ENHANCER

STEREO

Selects sound fi eld programs optimized for viewing movies, dramas, and sports.

Selects sound fi eld programs optimized for appreciating music.

Selects settings for stereo playback or enhancers for compressed audio.

SUR. DECODE

Selects surround decoders such as Dolby Pro Logic II.

STRAIGHT

STRAIGHT

Switches to straight decoding mode for faithful reproduction of audio / video.

D

Adjusts the volume level

The current volume level is displayed on the front panel display.

VOL.

Volume -18.5dB

L

SL

SW

C

R

SR

E Mutes the sound

The indicator blinks while the sound is muted.

F Switches between input settings

You can switch input sources and sound fi eld programs with a single key.

SCENE

BD/DVD

TV

CD

RADIO

Input

HDMI 1

AV4

AV3

TUNER

Sound field program

STRAIGHT

STRAIGHT

STRAIGHT

5ch Enhancer

- Pressing and holding this key allows you to store input sources/sound fi eld programs.

- Press this key when this unit is in standby mode to switch on the unit.

G Adjusting high/low-frequency sound (Tone control)

1 Press to select “Treble” or “Bass.”

TONE

VOL.

SW Treble 0.0dB

L

SL

C

R

SR

2 Press l / h to increase the setting.

- You can set the tone control for speakers and headphones separately. Connect the headphones when adjusting the headphone tone control.

- If you set an extreme tone balance, sounds may not match those from other channels.

© 2011 Yamaha Corporation

- 8 -

1

1

TRANSMIT

RECEIVER

SLEEP

2

HDMI

3

AV

2 3

4

4

1

AUDIO

2

DOCK

5

V-AUX

TUNER

FM AM

PRESET TUNING

INFO MEMORY

MOVIE MUSIC

ENHANCER SUR. DECODE

STEREO

STRAIGHT

BD

DVD

SETUP

SCENE

TV CD

OPTION

RADIO

VOLUME

RETURN

ENTER

MUTE

YD282A0/QREN2
