Panasonic BB-HCM381 Indoor Network Camera Datasheet
Add to my manuals2 Pages
Panasonic BB-HCM381 is an indoor network camera with a 42x zoom function, two-way voice communication, and image recording capabilities. With its 21x optical zoom and 2x digital zoom, you can view objects near and far with great detail. The camera also features enhanced image expression thanks to its CCD sensor. The built-in microphone and speaker enable two-way voice communication, allowing you to interact with people on the other side of the camera. Images and audio can be recorded directly onto an SD Memory Card (sold separately). The camera supports multi-camera setup and Viewnetcam.
advertisement

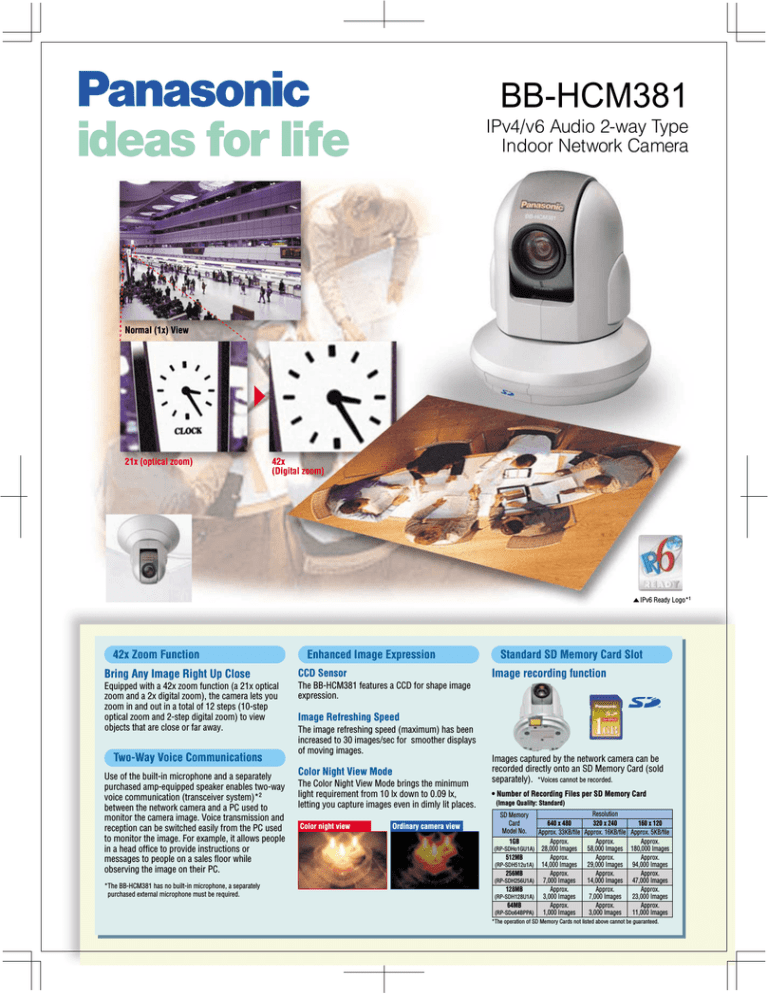

BB-HCM381
IPv4/v6 Audio 2-way Type
Indoor Network Camera
Normal (1x) View
21x (optical zoom) 42x
(Digital zoom)
IPv6 Ready Logo* 1
42x Zoom Function
Bring Any Image Right Up Close
Equipped with a 42x zoom function (a 21x optical zoom and a 2x digital zoom), the camera lets you zoom in and out in a total of 12 steps (10-step optical zoom and 2-step digital zoom) to view objects that are close or far away.
Enhanced Image Expression
CCD Sensor
The BB-HCM381 features a CCD for shape image expression.
Two-Way Voice Communications
Use of the built-in microphone and a separately purchased amp-equipped speaker enables two-way voice communication (transceiver system)* 2 between the network camera and a PC used to monitor the camera image. Voice transmission and reception can be switched easily from the PC used to monitor the image. For example, it allows people in a head office to provide instructions or messages to people on a sales floor while observing the image on their PC.
*The BB-HCM381 has no built-in microphone, a separately
purchased external microphone must be required.
Image Refreshing Speed
The image refreshing speed (maximum) has been increased to 30 images/sec for smoother displays of moving images.
Color Night View Mode
The Color Night View Mode brings the minimum light requirement from 10 lx down to 0.09 lx, letting you capture images even in dimly lit places.
Color night view Ordinary camera view
Standard SD Memory Card Slot
Image recording function
Images captured by the network camera can be recorded directly onto an SD Memory Card (sold separately).
*Voices cannot be recorded.
• Number of Recording Files per SD Memory Card
(Image Quality: Standard)
SD Memory
Card
Model No.
1GB
(RP-SDHo1GU1A)
512MB
(RP-SDH512u1A)
256MB
(RP-SDH256U1A)
128MB
(RP-SDH128U1A)
64MB
(RP-SDo64BPPA)
640 x 480
Resolution
320 x 240 160 x 120
Approx. 33KB/file Approx. 16KB/file Approx. 5KB/file
Approx.
Approx.
Approx.
28,000 Images 58,000 Images 180,000 Images
Approx.
Approx.
Approx.
14,000 Images 29,000 Images 94,000 Images
Approx.
7,000 Images
Approx.
3,000 Images
Approx.
1,000 Images
Approx.
14,000 Images
Approx.
7,000 Images
Approx.
3,000 Images
Approx.
47,000 Images
Approx.
23,000 Images
Approx.
11,000 Images
*The operation of SD Memory Cards not listed above cannot be guaranteed.
BB-HCM381 Network Camera
Multi-Camera Setup Supported
Simultaneous monitoring of images and two-way voice communication (transceiver system)* using up to four network cameras. Images from up to four camera units can be assigned as a group, and the monitor display can be switched to any of three image groups.
*Simultaneous display of still images from up to 12 camera units
without audio.
Alarm-Controlled and Timer-Controlled
Image Transfer Functions
The Alarm-Controlled Image Transfer function uses a commercially available external Sensor or switch and sends the image only when there is an action such as turning on the light or opening the door. The Timer-
Controlled Image Transfer function automatically transmits images according to the set time zone and the day of the week. These convenient functions eliminate your need to constantly check the image.
*When e-mail function is used to transfer images or messages, e-mail transmission may not be possible in some cases due to the mail server authentication system (SMTP authentication, etc.) used by your Internet service provider.
*The image transfer functions can be used only with a PC. With a cell phone, only the e-mail transmission function can be used.
Expanded Preset Functions
A total of 20 presets can be registered in addition to two alarm settings. This large variety of presets makes sure that you are able to monitor exactly what you want on your cell phone or PC.
Pan and Tilt Movement
Ceiling mounted
AC adaptor connector
The included Audio/Video Cable can be used to connect an external microphone, speaker, or TV.
AV Terminal
Audio/Video
Cable
Pan (350
°
maximum)
Tilt (90
°
maximum)
I/O connector (2 Inputs/1 Outputs)
Ethernet connector (10/100Base-T(X))
Microphone Input/Speaker Output
Platform mounted
Pan (350
°
maximum)
Tilt (120
°
maximum)
For speaker (red)
(Output impedance 560
Ω
line level)
Speaker cable
(Ø 3.5 mm stereo mini plug)
Microphone cable
(Ø 3.5 mm mini plug)
To speaker
For microphone (white)
(Plug-in power +3.3 V)
For TV (yellow) Video cable
To microphone
To TV
Supporting Viewnetcam.com service
Viewnetcam.com service allows you to access the camera over the Internet with your favorite domain name (e.g. bob.viewnetcam.com) instead of a global IP address. For more information on Viewnetcam.com service, Please access www.viewnetcam.com for more information.
IPsec*
4
Supported
IPsec is a technology used to encrypt data packets in order to prevent eavesdropping by third parties. When combined with a conventional authentication function based on user names and passwords, IPsec offers enhanced security.
IPv6-Ready
Our new network cameras allow the use of a virtually unlimited number of IP addresses* 3 by supporting IPv6, a next-generation protocol. The IPv4/IPv6 dual-stack feature enables you to use IPv4 at the present and switch over to IPv6 in the future.
* 1 This logo mark is issued by the IPv6 Ready Logo Program Committee, an IPv6 promotion group established mainly by the IPv6 Forum.
* 2 This function can be used with a PC only. It cannot be used with a mobile phone. To hear the voice transmitted from the PC, a commercially available speaker with a built-in amp must be installed. The transceiver system does not allow simultaneous transmission and reception of voices. The BB-
HCM381 may require a version upgrade.
For the latest information, visit Panasonic's support Web site (http://panasonic.biz/netsys/netwkcam/support/).
* 3 An IP address is a unique number assigned to each user so that the user can be identified on the Internet.
* 4 IPsec is an IP security protocol for data encryption standardized by IETF, an international community devoted to the standardization of Internet specifications.
Specifications of BB-HCM381 Network Camera
Model No.
Product type
Image data compression system
Resolution
Image quality
Frame rate* 1
Security
Encryption algorithm
IPsec function* 3
Supported Protocol
User access limit
Buffered images* 4
Zoom
Viewing Angle
Pan
Tilt
Revolving speed
Number of pixels
Lens focal point
Lens brightness
Required light intensity
Voice direction
Voice data compression system
Voice band
Audio input
Audio output* 5
Network Interface
I/O connector for sensor
SD Memory Card slot
Analog Video Output
Operating temperature
Operating humidity
Dimensions (W x H x D)
Weight
Power Supply
Consumption
BB-HCM381
Indoor type and voice function
JPEG (Motion JPEG for moving image display)
640 x 480, 320 x 240, 160 x 120
3 modes (Favor Clarity, Standard, Favor Motion)
Max. 30 frames/sec (320 x 240, 160 x 120), Max. 12 frames/sec (640 x 480)* 2
User ID, password, IPsec
DES-CBC, 3DES-CBC, AES-CBC
ESP encryption, EPS authentication, transport mode (main mode only)/tunnel mode
IKE (Internet Key Exchange)
IPv4/IPv6 dual stack
IPv4: TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP, IPsec, UPnP
IPv6: TCP, UDP, IP, HTTP, FTP, SMTP, DNS, ICMv6, POP3, NDP, NTP, IPsec
Max. 30 simultaneous accesses (max. 10 accesses with voice reception)
Approx. 125 images: 320 x 240 resolution, standard image quality
(approx. 16 KB per image) (without using SD Memory Card)
Maximum 42x (21x optical, 2x digital)
Tele: 2.6
°
(Optical)/1.3
°
(Digital), Wide: 51
°
–175
°
up to +175
°
–120
°
up to 0
°
(On the table), 0
°
up to +90
°
(On the celling)
Pan: Max. 300
°
/sec, Tilt: Max. 200
°
/sec
1/4 inch, approx. 380,000 pixels, CCD sensor
Auto/Manual (40 steps)
F1.6 (Wide) – 3.6 (Tele)
3 to 100,000 lx (in Color Night View mode: 0.09 to 100,000 lx)
Half-duplex two-way communication (transceiver system)
ADPCM 32 kbps
300 Hz ~ 3.4 kHz
Built-in microphone or external microphone (sold separately), external microphone input terminal (3.5-mm dia. mini-jack)
Audio line output terminal for external speaker
(3.5-mm dia. stereo mini-jack, monaural output)
Ethernet (10Base-T/100Base-TX)
G GND
1 External Senser Input
G GND
2 External Senser Input
3 External Device Control Output
4 DC Power Output Terminal (10.5–13.5V DC)
Full size (operation guaranteed for 1GB, 512MB, 256MB, 128MB and 64MB SD Memory Cards)
Analog composite (NTSC)
0 ° to 40 ° C
20% to 80% (No condensation)
140 x 123 x 123 mm (Only the unit)
640 g (Only the unit)
AC adaptor: Input 120V AC, Output 12V DC
12W
* 1 This varies depending on the subject, image quality, network environment, PC performance, etc.
* 2 The image update speed may decrease when motion-priority mode is set, when images are recorded onto an SD Memory Card, and when IPsec is used, as well as due to the network environment and PC performance.
* 3 Transport mode (mode for IPsec communication between terminals, for IPv4 only) operating environment: Microsoft ® Windows ® XP Service Pack 1 only, tunnel mode (mode for IPsec between VPN routers, IPv4/IPv6)
* 4 The number of images that can be stored varies depending on the subject. * 5 Install an amp or use a speaker with a built-in amp.
Specifications for Compatible PC
OS
CPU
Protocol
Interface
Web browser
Audio
For IPv4
Microsoft ® Windows ® XP, Windows ® 2000,
Windows ® Me, Windows ® 98SE
For IPv6
Microsoft ® Windows ® XP, Service Pack 1 or later
• For monitoring of image from one camera unit: Pentium RIII (800 MHz or greater)
• For monitoring of images from multiple camera units: Pentium R4 (1.8 GHz or greater)
TCP/IP (HTTP, TCP, UDP, IP, DNS, ARP,
ICMP) protocol must be installed.
TCP/IP (HTTP, TCP, UDP, IP, DNS, ICMPv6,
NDP) protocol must be installed.
10/100-Mbps LAN card must be installed.
Internet Explorer 6.0 or later
Audio input/output function (microphone, speaker, etc.)
http://panasonic.co.jp/pcc/products/en/netwkcam/
Design and specifications are subject to change without notice. 0M0405SK-HCM381-LT.US
