ROTATING MEMORY

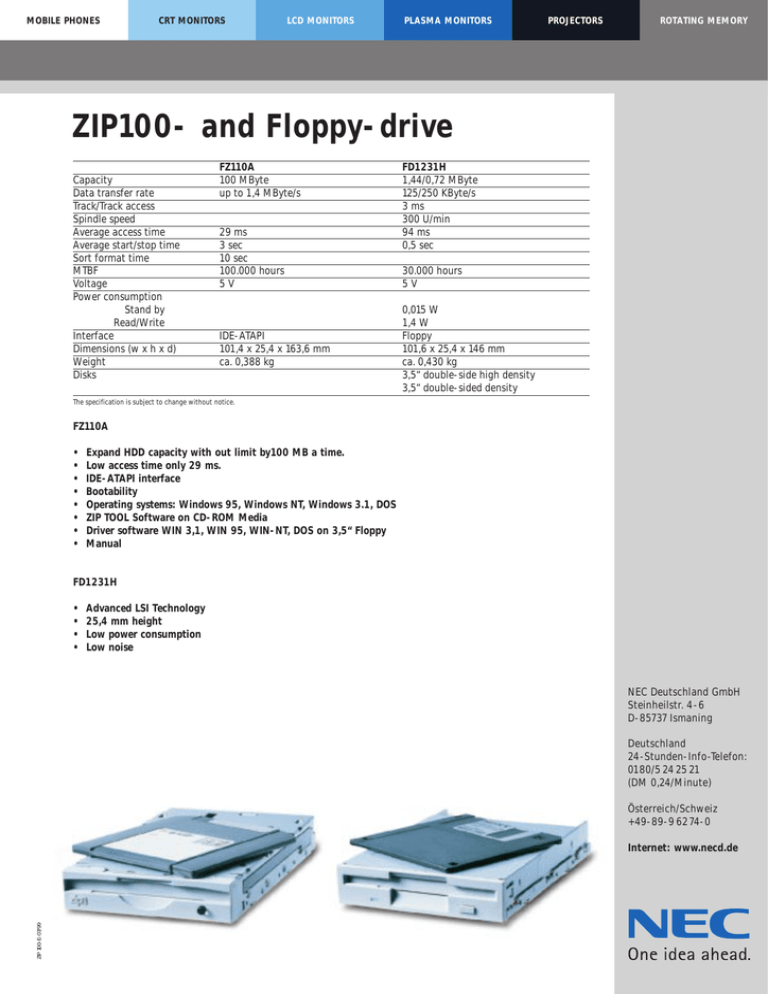

ZIP100- and Floppy-drive
Capacity
Data transfer rate
Track/Track access
Spindle speed
Average access time
Average start/stop time
Sort format time
MTBF
Voltage
Power consumption
Stand by
Read/Write
Interface
Dimensions (w x h x d)
Weight
Disks
FZ110A
100 MByte
up to 1,4 MByte/s
29 ms
3 sec
10 sec
100.000 hours
5V
IDE-ATAPI
101,4 x 25,4 x 163,6 mm
ca. 0,388 kg
FD1231H
1,44/0,72 MByte
125/250 KByte/s
3 ms
300 U/min
94 ms
0,5 sec
30.000 hours
5V
0,015 W
1,4 W
Floppy
101,6 x 25,4 x 146 mm
ca. 0,430 kg
3,5“ double-side high density
3,5“ double-sided density
The specification is subject to change without notice.
FZ110A
•
•
•
•
•
•
•
•
Expand HDD capacity with out limit by100 MB a time.
Low access time only 29 ms.
IDE-ATAPI interface
Bootability
Operating systems: Windows 95, Windows NT, Windows 3.1, DOS
ZIP TOOL Software on CD-ROM Media
Driver software WIN 3,1, WIN 95, WIN-NT, DOS on 3,5“ Floppy
Manual
FD1231H
•
•
•
•
Advanced LSI Technology
25,4 mm height
Low power consumption
Low noise
NEC Deutschland GmbH
Steinheilstr. 4-6
D-85737 Ismaning
Deutschland
24-Stunden-Info-Telefon:
0180/5 24 25 21
(DM 0,24/Minute)
Österreich/Schweiz
+49-89-9 6274-0
ZIP 100-E-07/99
Internet: www.necd.de
