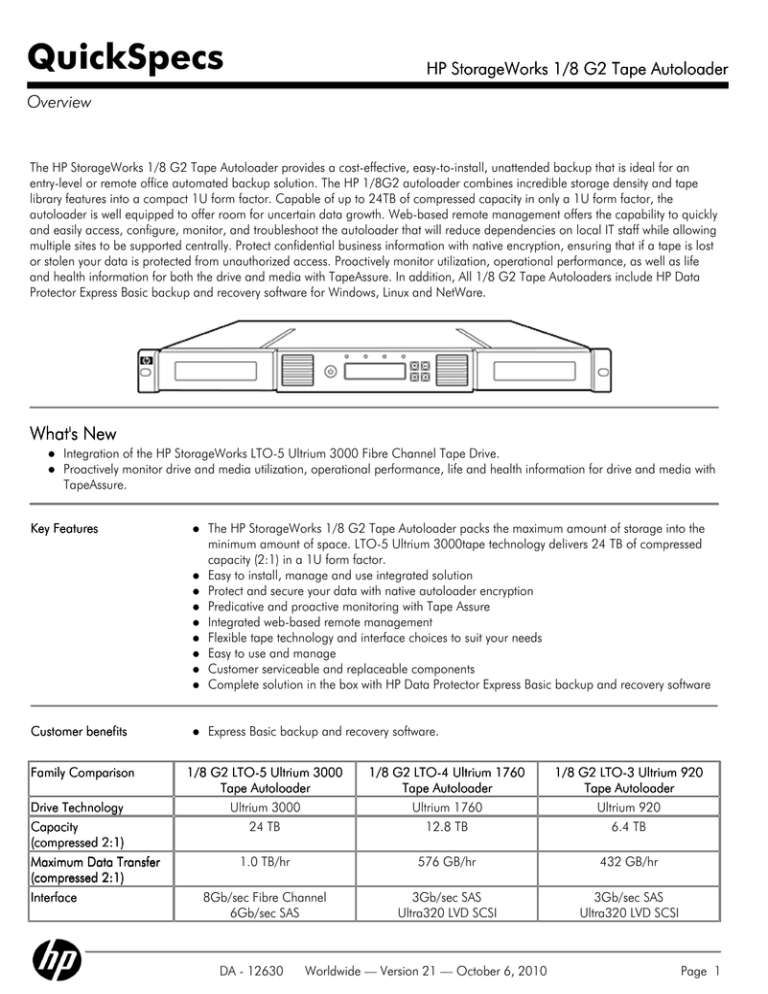

QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Overview
The HP StorageWorks 1/8 G2 Tape Autoloader provides a cost-effective, easy-to-install, unattended backup that is ideal for an
entry-level or remote office automated backup solution. The HP 1/8G2 autoloader combines incredible storage density and tape
library features into a compact 1U form factor. Capable of up to 24TB of compressed capacity in only a 1U form factor, the
autoloader is well equipped to offer room for uncertain data growth. Web-based remote management offers the capability to quickly
and easily access, configure, monitor, and troubleshoot the autoloader that will reduce dependencies on local IT staff while allowing
multiple sites to be supported centrally. Protect confidential business information with native encryption, ensuring that if a tape is lost
or stolen your data is protected from unauthorized access. Proactively monitor utilization, operational performance, as well as life
and health information for both the drive and media with TapeAssure. In addition, All 1/8 G2 Tape Autoloaders include HP Data
Protector Express Basic backup and recovery software for Windows, Linux and NetWare.
What's New
Integration of the HP StorageWorks LTO-5 Ultrium 3000 Fibre Channel Tape Drive.
Proactively monitor drive and media utilization, operational performance, life and health information for drive and media with
TapeAssure.
Key Features
The HP StorageWorks 1/8 G2 Tape Autoloader packs the maximum amount of storage into the
minimum amount of space. LTO-5 Ultrium 3000tape technology delivers 24 TB of compressed
capacity (2:1) in a 1U form factor.
Easy to install, manage and use integrated solution
Protect and secure your data with native autoloader encryption
Predicative and proactive monitoring with Tape Assure
Integrated web-based remote management
Flexible tape technology and interface choices to suit your needs
Easy to use and manage
Customer serviceable and replaceable components
Complete solution in the box with HP Data Protector Express Basic backup and recovery software
Customer benefits
Express Basic backup and recovery software.
Family Comparison
Drive Technology
Capacity
(compressed 2:1)
Maximum Data Transfer
(compressed 2:1)
Interface
1/8 G2 LTO-5 Ultrium 3000
Tape Autoloader
Ultrium 3000
24 TB
1/8 G2 LTO-4 Ultrium 1760
Tape Autoloader
Ultrium 1760
12.8 TB
1/8 G2 LTO-3 Ultrium 920
Tape Autoloader
Ultrium 920
6.4 TB
1.0 TB/hr
576 GB/hr
432 GB/hr
8Gb/sec Fibre Channel
6Gb/sec SAS
3Gb/sec SAS
Ultra320 LVD SCSI
3Gb/sec SAS
Ultra320 LVD SCSI
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 1
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Product Highlights
Easy Installation
The 1/8 G2 Tape Autoloader ships as a rack-ready unit. A separate 1/8 G2 Tape Autoloader Rack Kit
must be purchased to allow installation in a variety of HP racks which include the 10000 series, 9000
series, 5000 series and System/E racks.
A set of rubber feet are included in the box if you choose to use the unit on a tabletop or desk. For
additional structural rigidity, HP recommends the purchase of the 1/8 G2 Rack-to-Tabletop conversion
kit which has a maximum load of 33 pounds (15 kilograms) and fully encloses the unit.
Included backup and
recovery software
The HP StorageWorks 1/8 G2 Tape Autoloaders include HP Data Protector Express Basic backup and
recovery software. Data Protector Express Basic is based on HP Data Protector Express software. It is an
easy-to-use backup and recovery application that is installed in minutes and includes all the features
needed to protect a single machine by backup to a HP StorageWorks tape product. Data Protector
Express Basic includes pre-defined and customizable media rotation schemes so you can define when
you backup and how long your backups are retained, while easily managing your tape data cartridges.
For more information please visit: http://www.hp.com/go/dataprotectorexpress/basic.
NOTE: Data Protector Express Basic will run in evaluation mode for up to 60 days from installation. For
continued use a free permanent license key is acquired by registration at https://webware.hp.com. For
more information see www.hp.com/go/dataprotectorexpress/basic/register
NOTE: Data Protector Express 5.0 Basic replaces Data Protector Express Single Server Edition as the
software included with the HP StorageWorks 1/8 tape autoloaders. If your tape drive includes Data
Protector Express Single Server Edition you should register this. At the end of the registration process you
will be able to download Data Protector Express Basic.
Easy and economical
An additional benefit is a discount to the purchase of Data Protector Express. This discount is delivered
upgrade of the included using a special part number only available for customers of HP StorageWorks tape products. Part
software to Data Protector number TC333AAE enables Data Protector Express Basic to be upgraded to Data Protector Express for 1
Express
Server at a significant discount to the regular buy price. Upgrading to Data Protector Express for 1 Server
unlocks all the features of Data Protector Express while retaining all the jobs and settings created while
using Data Protector Express Basic. Once upgraded to Data Protector Express for 1 Server, additional
licenses can be purchased to protect other servers and to take advantage of the unique and all inclusive
licensing of Data Protector Express.
For more information please visit: http://www.hp.com/go/dataprotectorexpress/basic/upgrade.
If the HP StorageWorks DAT tape drive is for a large environment that requires UNIX support and/or
Data Protector backup
and recovery software
enterprise class application and feature support then HP Data Protector is the recommended backup and
recovery software. There is no upgrade path from Data Protector Express Basic or Data Protector Express
to Data Protector. If current or future requirements will require Data Protector, this software should be
installed from day 1. For more information and evaluation software please visit:
http://www.hp.com/go/dataprotector.
NOTE: Backup and recovery applications write to tape using different formats. Tape cartridges should
not be shared between autoloaders and libraries running Data Protector, Data Protector Express or other
backup applications because they are incompatible.
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 2
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Product Highlights
Manageability
The 1/8 G2 Tape Autoloader allows web-based remote manageability; the unit can be monitored and
managed from across the room or across the globe. Functions included in the management tool include:
Status information on the drive and system
System configuration operations and reporting
System error and status logs
Library and drive firmware upload capabilities
Diagnostic tests and information
Cartridge movement for maintenance and management purposes
Cleaning cartridge support
Security and access control
SNMP support for IP communications
Proven Reliability
With a rating of 2,000,000 robot load/unload cycles, the 1/8 G2 Tape Autoloader provides necessary
high reliability for today's demanding environment. To improve reliability and longevity, all HP Ultrium
products feature Data Rate Matching (DRM). This allows the tape drive to dynamically and continuously
adjust the speed of the drive, from 7 MB/s to 140 MB/s, to match the speed of the host or network. This
increases performance, reduces mechanical wear on the tape drive and extends tape life.
Encryption
The HP Secure Advantage portfolio is expanding to include a new offering intended for data protection
in small to medium businesses. The HP StorageWorks 1/8 G2 & MSL Encryption Kit provides a libraryenabled encryption solution that greatly enhances data privacy, confidentiality, and integrity of your
critical business data while supporting compliance requirements. While there are a wide range of
encryption solutions available, the HP StorageWorks 1/8 G2 & MSL Encryption Kit is intended to be an
easy and affordable library-enabled solution for small businesses.
Protect the confidentiality and integrity of your data:
The encryption kit includes two USB key server tokens, product documentation, and firmware support.
One encryption kit is needed per library or autoloader and it must be physically accessible so that the
USB token can be inserted into the automation device. One of the two tokens will plug into the USB port
in the autoloader or library and will generate and maintain encryption keys for the LTO-5 and LTO-4
drives/libraries. The USB key server token uses a hardware random number generator, a cryptographic
module running on FIPS 140-2 Level 3 validated hardware, password authentication, and digital
envelopes for strong encryption keys and security operations. The second USB token is intended to
provide a backup to the first. The keys are transferred securely token-to-token for backup or export, with
no exposure to insecure PCs, servers, or networks. The encryption kit provides a self-contained solution
for MSL libraries with no additional software, PCs, or servers required or involved.
Protect IT resources and meet compliance requirements:
With the HP StorageWorks 1/8 G2 & MSL Encryption Kit, users can enable or disable encryption,
configure the USB key server tokens, restore encrypted data, as well as a variety of other tasks. In
addition, the LTO-5 and LTO-4 tape drives use the Advanced Encryption Standard (AES) with the longest
and most secure keys -- 256 bits. AES-256 encryption is implemented using the Galois Counter Mode
(GCM). This method adds Message Authentication Codes to ensure the integrity as well as privacy of the
backup data stored on tape. The HP LTO-5 and LTO-4 Ultrium Tape Drives are designed to be
compliant with the emerging standard for tape media security (IEEE 1619.1).
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 3
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Product Highlights
Serviceability
Modular in construction, the 1/8 G2 Tape Autoloader has easily replaceable components minimizing
the Mean-Time-to-Repair on the unit. Replaceable components include the tape drive, the magazines,
and the chassis (includes robot, power supply, and controller board). HP StorageWorks Library and Tape
Tools (L&TT) provides easy access to the 1/8 G2 Tape Autoloader error log, generates support tickets,
and enables firmware downloads. L&TT can be downloaded for free at:
http://www.hp.com/support/tapetools
LTO Ultrium Technology HP StorageWorks LTO (Linear Tape Open) Ultrium Tape Drives use best of breed technology. By taking
the best features from other tape technologies and combining them into a single new technology,
Ultrium tape drives are in a league of their own. Inclusion of innovative features such as Adaptive Tape
Speed (ATS) ensure that Ultrium drives can meet the performance and reliability demands of a library
environment. LTO technology is an open industry standard format; thus data written on HP
StorageWorks Ultrium Tape Drives can be interchanged directly with Ultrium Tape Drives from other
vendors.
Data Rate Matching
Data Rate Matching combines sophisticated buffer management with the HP exclusive variable Adaptive
Tape Speed technology, to allow the tape drive to match its transfer rate to the host speed dynamically
and continuously across the wide range of transfer rates. This feature ensures that the tape drive
continues to stream data regardless of the environment, and brings three big advantages:
It optimizes performance and maximizes overall efficiency, allowing the drive to respond
immediately to any speed changes from the host.
It minimizes rewinding and repositioning of the tape, significantly reducing physical wear and
increasing reliability.
It minimizes the power requirements for the drive by reducing the number of repositions needed.
LTO Ultrium Tape Drive
HP LTO-5 Ultrium 3000
HP LTO-4 Ultrium 1760
HP LTO-3 Ultrium 920
HP Ultrium WORM
ATS data transfer rate range (native)
47 to 140 MB/s
33 to 80 MB/s
26 to 60 MB/s
Critical to the success of data retention policies in highly regulated environments is the ability to store
and manage data in an unalterable state. Following stringent guidelines set forth by regulatory agencies
such as the SEC and HIPPA, IT organizations must now integrate new solutions and policies that can
verify the integrity of stored data for periods that can extend well beyond seven years.
The LTO-5, LTO-4, and LTO-3 Ultrium tape drives feature the ability to archive and store data in a nonrewriteable format that meets the most stringent regulatory guidelines. Using a combination of integrated
fail-safe features in the drive firmware, cartridge memory, and tape formatting, the LTO-5, LTO-4, and
LTO-3 Ultrium can archive large amounts of data for periods of up to 30 years in a secure, untampered
state. Since all LTO-5, LTO-4, and LTO-3 Ultrium tape drives include support for both rewritable and
WORM media, IT organizations can now easily integrate a secure, long-term archiving solution into their
current data protection strategy. As compared to other technologies that feature support for WORM
storage, the LTO-5, LTO-4 and LTO-3 Ultrium tape drives offer the advantages of:
A single drive to support all backup and archiving needs
Two distinctive tape cartridges to easily distinguish and manage both rewriteable and WORM data
cartridges
A specially designed WORM data cartridge with multiple integrated fail-safe features to prevent
accidental or intentional overwriting of data
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 4
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Product Highlights
High-capacity, low-cost HP WORM media that can store up to 3.0 TB of data on a single data
cartridge
Support from many backup and archiving software vendors, providing the most comprehensive
and mainstream support in the industry
The LTO open standard that offers greater choice and compatibility across all third- and fourthgeneration LTO Ultrium products
NOTE: While all HP LTO-5, LTO-4 and LTO-3 Ultrium tape drives support LTO Ultrium WORM media,
some third, fourth and fifth -generation LTO Ultrium tape drives from other manufacturers may not
include read and write support for LTO Ultrium WORM media. For non-HP third- and fourth-generation
LTO Ultrium tape drives, please check the manufacturers' specifications to ensure this support is provided
if you are using your WORM media. If WORM support is not provided, the drive will eject the WORM
tape cartridge immediately upon insertion into to the tape drive.
HP StorageWorks Library The 1/8 G2 Tape Autoloader is supported on The HP industry-leading diagnostic tool - HP
and Tape Tools
StorageWorks Library and Tape Tools (L&TT). L&TT is a single, convenient program that's a snap to
install and simple to operate. L&TT's intuitive user interface eliminates the need for training and deploys
in less than five minutes. This robust diagnostic tool is designed for both the experienced professional
and the untrained administrator. It ensures product integrity through self-diagnostics and fast resolution
to device concerns. Additional information on L&TT plus download information can be found at:
http://www.hp.com/support/tapetools.
HP Storage Media
HP recommends that you use HP-branded cartridges in the 1/8 G2 Tape Autoloader to assure the
highest level of protection for your valuable data. The test program for HP media is the most thorough
and comprehensive in the industry.
All HP cartridges must satisfy an exhaustive battery of additional tests that relate directly to real life
situations, where real data and real businesses are at stake. The benefit of the HP brand specification for
media is consistent quality. Through the testing of thousands of HP drives and HP cartridges, the ideal
formulation for backup performance is defined and then continuously monitored. This hugely resourceintensive process is unique to HP and affords deep insight into the HP+HP backup solution for a wide
range of environments and duty cycles. Your best choice for ease of support and maximum dependability
is to use HP-branded Ultrium cartridges at all times.
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed. Customization must comply with all relevant product specifications
and factory supported configurations.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, and HP
9000 servers as well as MSA, VA7xxx, EVA, and XP disk arrays, rackable tape libraries and configurable
network switches.
Type of service support varies by platform and product family. For more information on Factory Express
services for your specific server model or storage device please contact your sales representative or go
to: http://www.hp.com/go/factory-express.
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 5
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Compatibility
The HP extensive compatibility testing program assures that your HP StorageWorks 1/8 G2 Tape Autoloader works with leading
servers, operating systems, and backup applications - and not just those sold by HP. The 1/8 G2 Tape Autoloader works seamlessly
in many environments, making them especially suitable if you have a mixed system environment. For the latest list of servers,
workstations, operating systems, and backup software that support the 1/8 G2 Tape Autoloader, check the HP StorageWorks
Enterprise Backup Solution compatibility matrix at: http://www.hp.com/go/ebs.
NOTE: The 1/8 G2 Tape Autoloader requires an HBA with multiple LUN support and should not be used with RAID or Array
controllers.
Server Compatibility
The 1/8 G2 Tape Autoloader is supported on a wide range of HP systems. For details of which 1/8 G2
Tape Autoloader works with which systems, including third-party systems, reference the EBS compatibility
matrix at: http://www.hp.com/go/ebs for the latest hardware compatibility information.
OS Support
Reference the EBS compatibility matrix for the most up-to-date OS compatibility information at:
http://www.hp.com/go/ebs.
Software Support
Reference the EBS compatibility matrix for the most up-to-date software compatibility information at:
http://www.hp.com/go/ebs.
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 6
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Service and Support, HP Care Pack, and Warranty Information
Warranty
The warranty for this product consists of 1-year parts exchange, next business day.
For increased uptime, productivity and ROI -HP Care Pack packaged services for Storage
These days, you need to get the most out of your storage investment-you can't afford not to. When you buy HP storage products and
solutions, it's also a good time to think about what levels of service and support you may need. To help take the worry out of
deploying, designing, maintaining, and managing your environment, we've designed a portfolio of service options that are as:
flexible, reliable and scalable as your storage. Unlike storage-only vendors, we take a holistic approach to your entire environment,
bridging storage, servers, blades, software and network infrastructures with our HP Care Pack packaged services for Storage.
Protect your business beyond the warranty
When it comes to robustness and reliability, standard warranties on today's computing equipment have matured just as the
technologies have matured. Good news on some fronts-but also a source of potential problems and subsequent consequences that
come from depending on standard warranties alone. Standard warranty protects against product defects and some causes of
downtime- but not the business. By using a standard approach to warranty uplifts, such as HP Care Pack Services, you can reduce
downtime risks and be more certain of operational consistency for both mission-critical and standard business computing. Simply
put, HP Care Pack Services normalize the warranty of combined products - helping you proactively guard against unplanned
downtime.
Extending warranties with HP Care Pack Services
For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a suite of standard reactive hardware
and software support services that are sold separately, or combined as with our Support Plus and Support Plus 24 services. The
portfolio also provides a combination of proactive and reactive services, such as Proactive 24 Service and Critical Service. In
addition, with HP Proactive Select we offer an innovative approach to service delivery that gives you the flexibility to acquire the
specific proactive services you need today, then add services as your needs evolve. HP Proactive Select offers a broad set of
technical or per-event type service options - including server, storage, and network, SAN device, and software, environment,
installation and education services. Services that you can mix and match depending on your specific requirements, from preliminary
planning and equipment delivery to installation, configuration, integration, and testing, through every level of ongoing support. Our
HP Care Pack packaged services for Storage assures help when you need it most. And for many products, post-warranty HP Care
Pack Services are available when your original warranty has expired.
HP Storage Services: Offering reliability, flexibility and value-just like your storage
HP Storage Services offers a full spectrum of customer care, from technology support to complex migrations to complete completely
managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP
Education offers flexible, comprehensive training on storage networking, disk storage systems, and storage software to help your IT
staff get the most out of your investments. And HP Financial solutions extend innovative financing and asset management programs
to cost-effective buy, manage and eventually retire your older equipment.
HP Storage Services, the trusted business technology experts who manage your technology in action, because when technology
works, business works. http://www.hp.com/hps/storage
NOTE: Care Pack Services availability may vary by product and country.
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at
http://www.hp.com/go/lookuptool
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 7
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Service and Support, HP Care Pack, and Warranty Information
Recommended HP Care Pack Services for optimal satisfaction with your HP product.
Recommended Services
3-Year HP Support Plus 24
For a higher return on your storage investment, HP Support Plus 24 provides integrated hardware and
software support services designed specifically for your technology. Available 24x7, this 3-year
combined reactive support option delivers onsite hardware support and over-the-phone software support
around-the-clock. Leverage the full strength of HP Technology Services - customers can trust the services
professionals at HP to work collaboratively with them, putting our strategic and technical know-how to
work across their entire infrastructure.
Improve uptime with responsive hardware and software services
Enjoy consistent service coverage across geographically dispersed sites
Update HP software at a predictable cost
Increase customer satisfaction-with no interoperability gaps
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EN.pdf
HP Install Storage Autoloader/Tape Drive Array Service
For smooth startup and better business outcomes, HP Install Storage Autoloader/Tape Drive Array
Service- this service provides initial hardware installation into your server technology environment (system
configuration is not included). Leverage the full strength of HP Technology Services - customers can trust
the services professionals at HP to work collaboratively with them, putting our strategic and technical
know-how to work across their entire infrastructure.
Allows your IT resources to stay focused on their core tasks and priorities
Reduces implementation time, impact and risk to your storage environment
http://h71028.www7.hp.com/ERC/downloads/5981-9356EN.pdf
HP Proactive Select Service
HP Proactive Select Service improves your IT performance and manageability through the use of cost
effective flexible services. HP provides technical expertise and best practices to accelerate ROI of your
technology investment. Selectable proactive services span a wide range of technology and process
services - a flexible way to purchase proactive services that fit your particular environment and situation.
HP Proactive Select Service is technology agnostic and purchased in addition to your choice of
underlying reactive support.
Access to a list of flexible and customizable proactive service activities
Enhance customers' in-house IT team with complementary assistance from HP
Improved time to solution
Reduce business risk and project costs by accessing HP specialists
Simplify IT operational procedures by leveraging HP best practices
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 8
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Service and Support, HP Care Pack, and Warranty Information
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit http://www.hp.com/support
Customer Technical
Training
Consider education as an integral part of your strategy to get the best return on investment for your HP
storage solution. HP offers a variety of training courses on storage software, networking, archiving and
disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led
courses at one of our 80 training centers worldwide to on-site training customized to your needs or
online. www.hp.com/learn/storage
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our services
team's dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction. For a list of all our awards, please visit
http://h20219.www2.hp.com/services/cache/433028-0-0-225-121.htm
Additional Services
Information
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/hps/storage
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP" http://www.hp.com
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 9
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Configuration Information
NOTE: The HP StorageWorks 1/8 G2 Tape Autoloader comes standard as a one drive, 8-slot unit (includes both a right and left 4slot magazine) which is shipped rack-ready. The separate 1/8 G2 Tape Autoloader Rack Kit must be purchased to complete the rack
installation. Each library includes a US power cord (C13, 10A) and PDU power cord (C13/C14, 10A). For additional or specific
regional power cord requirements, a separate power cord must be ordered.
Step 1 – Base Configuration
Select one:
Model Name
Model Description
HP StorageWorks 1/8 G2 HP 1/8 G2 LTO-5 Ultrium 3000 Fibre Channel Tape Autoloader
Tape Autoloader
HP 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader
HP 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
HP 1/8 G2 LTO-4 Ultrium 1760 SCSI Autoloader
HP 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader
HP 1/8 G2 LTO-3 Ultrium 920 SCSI Tape Autoloader
Kit Contents (for each autoloader):
Part Number
BL541A
BL536A
AK377A
AJ816A
AH558A
AH165A
SCSI models:
models
(1) 1.83M US Power Cord, C13, 10A
(1) 2.5M PDU Power Cord, C13/C14, 10A
(1) 6' VHDCI to HDTS68 SCSI cable
(1) RJ-45 Ethernet cable
(1) HDTS68 SCSI terminator
Set of six rubber feet (for tabletop use)
HP Data Protector Express Basic backup and recovery software for
Windows/Linux/NetWare.
Getting Started Poster
SAS models:
models
(1) 1.83M US Power Cord, C13, 10A
(1) 2.5M PDU Power Cord, C13/C14, 10A
(1) 2M External Infiniband (SFF8470) to Mini SAS (SFF8088) 1x SAS
Cable
(1) RJ-45 Ethernet cable
Set of six rubber feet (for tabletop use)
HP Data Protector Express Basic backup and recovery software for
Windows/Linux/NetWare.
Getting Started Poster
FC models:
models
(1) 1.83M US Power Cord, C13, 10A
(1) 2.5M PDU Power Cord, C13/C14, 10A
(1) RJ-45 Ethernet cable
Set of six rubber feet (for tabletop use)
HP Data Protector Express Basic backup and recovery software for
Windows/Linux/NetWare.
Getting Started Poster
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 10
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Configuration Information
Step 2 – Required Options
Select each required option with quantities specified:
Power Cord
Quantity
Description
Part Number
1 each
Power Cord, US, C13, 10A, 1.83m
AF556A
NOTE: This cord ships standard with each 1/8 G2 Tape
Autoloader; can be used to connect the rack-mounted device to
PDUs with NEMA 5-15R receptacles.
1 each
PDU Power Cord, C13/C14, 10A, 2.5m
142257-002
NOTE: This cord ships standard with each 1/8 G2 Tape
Autoloader; can be used to connect the rack-mounted device to
PDUs with IEC-320 receptacles.
1 each
Power Cord, Euro, C13, 10A, 1.83m
AF568A
1 each
Power Cord, UK, C13, 10A, 1.83m
AF570A
1 each
Power Cord, Danish, C13, 10A, 1.83m
AF566A
1 each
Power Cord, Swiss, C13, 10A, 1.83m
AF565A
1 each
Power Cord, Italian, C13, 10A, 1.83m
AF571A
1 each
Power Cord, South Africa, C13, 10A, 2.5m
AF567A
1 each
Power Cord, Taiwan, C13, 12A, 1,83m
AF561A
1 each
Power Cord, China, C13, 10A, 1.83m
AF557A
1 each
Power Cord, Japan, C13, 12A, 2.0m
AF572A
1 each
Power Cord, Australia, C13, 10A, 2.5m
AF569A
1 each
Power Cord, Argentina, C13, 10A, 2.5m
AF558A
1 each
Power Cord, Brazil, C13, 10A, 1.83m
AF559A
1 each
Power Cord, Korea, C13, 10A, 1.83m
AF560A
1 each
Power Cord, Israel, C13, 10A, 1.83m
AF564A
1 each
Power Cord, India, C13, 10A, 2.0m
AF562A
NOTE: One power cord is required; please select the correct power cord for your geographical location.
WARNING: This product can ONLY be used with an HP approved power cord for your specific
geographic region. Use of a non-HP approved power cord may result in: 1) not meeting individual
country specific safety requirements; 2) insufficient conductor ampacity that could result in overheating
with potential personal injury and/or property damage; and 3) an unapproved power cord could fracture
resulting in the internal contacts being exposed, which potentially could subject the user to a shock
hazard. HP disclaims all liability in the event a non-HP approved power cord is used.
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 11
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Related Options
Factory Racking
Factory integrate the 1/8 G2 Tape Autoloader with other HP products such as HP
ProLiant Servers.
NOTE: #0D1 will appear after the 1/8 G2 Tape Autoloader part number on the
sales order if HP factory integration is indicated.
HP Factory Rack Mount Shelf Kit
NOTE: Required to safely ship the 1/8 G2 Tape Autoloader via the factory integration
option (#0D1); shelf can be removed after the rack is received at the customer site.
#0D1
AB469A
Rack Kit
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the unit in a standard 19-inch rack; includes rails and
rackmount instructions.
AH166A
Rack-to-Tabletop
Conversion Kit
HP StorageWorks 1/8 G2 Rack-to-Tabletop Conversion Kit
NOTE: For use in converting the rack-ready 1/8 G2 Tape Autoloader into a
structurally rigid and fully enclosed tabletop model; maximum load up to 33 pounds
(15 kilograms).
AH199A
Magazine Kit
HP StorageWorks 1/8 G2 Right Magazine Kit
NOTE: For use only on the right side of the 1/8 G2 Tape Autoloader; additional 4slot magazine.
HP StorageWorks 1/8 G2 Tape Autoloader Left Magazine Kit
NOTE: For use only on the left side of the 1/8 G2 Tape Autoloader; additional 4-slot
magazine which includes an import/export slot.
AH167A
HP StorageWorks 1/8 G2 Tape Autoloader and MSL2024/MSL4048/MSL8096 Tape
Library LTO-4 Encryption Kit
NOTE: For use with new or installed LTO-5 or LTO-4 Ultrium 1/8 G2 Tape
Autoloaders and MSL2024/4048/8048/8096 Tape Libraries. The encryption token
will generate and retain encryption keys for HP LTO-5 or LTO-4 Ultrium tape drives in
the autoloader or library.
AM495A
Encryption
DA - 12630
Worldwide — Version 21 — October 6, 2010
AH862A
Page 12
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Related Options
Rack Cabinets
10622 (22U) Universal Rack Cabinet - Shock Pallet
10636 (36U) Universal Rack Cabinet - Shock Pallet
10636 (36U) Universal Rack Cabinet with extension - Shock Pallet
10642 (42U) Universal Rack Cabinet - Shock Pallet
10642 (42U) Universal Rack Cabinet with extension - Shock Pallet
NOTE: The 1/8 G2 Tape Autoloader is certified to ship in HP 10000 series racks
which include a shock pallet. It is mandatory to use a shock pallet in order to ship
racks with equipment installed.
NOTE: This rack ships unassembled and boxed on a standard size pallet. It is an
industry standard 19" wide rack with side panels and rear doors; it does not ship with
the front door or casters.
AF022A
AF012A
AF014A
AF002A
AF004A
NOTE: For additional HP ProLiant rack information, visit:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/index.html
SAS Host Bus Adapters
SCSI Host Bus Adapters
HP Modular Smart Array SC44Ge 1-ports Int/1-ports Ext PCIe x8 SAS Host Bus
Adapter
NOTE: Serial-attached SCSI (SAS) HBA that enables HP StorageWorks MSL Tape
Libraries to connect with HP ProLiant G5 servers. PCI-Express SAS HBA with one
external SFF8470 port.
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller
NOTE: Recommended for Proliant G6 or G7 SAS tape automation connect. 256MB
or larger write cache recommended for more than two tape drives.
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller
NOTE: Recommended for Proliant G6 SAS tape automation connect.
HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller
NOTE: Recommended for Proliant G6 SAS tape automation connect.
HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller
NOTE: Recommended for Proliant G6 SAS tape automation connect.
HP Smart Array P700m/256 4-ports Ext PCIe x8 SAS Controller
NOTE: For direct connection of the 1/8 G2 Autoloader to HP ProLiant BladeServers,
the P700 controller is used to connect the BladeServer to the SAS switch. The
autoloader is connected to the same SAS switch. The supported SAS switches are the
HP StorageWorks 3Gb SAS BL Switch - Single Pack (AJ864A) and the HP
StorageWorks 3Gb SAS BL Switch - Dual Pack (AJ865A).
HP Smart Array P700m/512 4-ports Ext PCIe x8 SAS Controller
NOTE: For direct connection of the 1/8 G2 Autoloader to HP ProLiant BladeServers,
the P700 controller is used to connect the BladeServer to the SAS switch. The
autoloader is connected to the same SAS switch. The supported SAS switches are the
HP StorageWorks 3Gb SAS BL Switch - Single Pack (AJ864A) and the HP
StorageWorks 3Gb SAS BL Switch - Dual Pack (AJ865A).
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter
NOTE: Single channel PCI-Express (PCI-e) SCSI Ultra 320 HBA that enables HP
StorageWorks MSL Tape Libraries to connect to HP ProLiant servers.
HP StorageWorks U320e SCSI Dual Channel Host Bus Adapter
NOTE: Dual channel PCI-Express (PCI-e) SCSI Ultra320 HBA that enables HP
StorageWorks MSL Tape Libraries to connect with HP ProLiant servers.
DA - 12630
Worldwide — Version 21 — October 6, 2010
416096-B21
462828-B21
462834-B21
462830-B21
462832-B21
507925-B21
508226-B21
412911-B21
AH627A
Page 13
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Related Options
Reference the EBS compatibility matrix for the most up-to-date HBA compatibility
information at: http://www.hp.com/go/ebs.
Cable Kits
(SCSI, SAS, FC)
6 ft VHDCI/HDTS68 SCSI Cable Kit
12 ft VHDCI/HDTS68 SCSI Cable Kit
2m External Infiniband (SFF8470) to 4 Mini SAS (SFF8088) 1x SAS Cable Kit
NOTE: One cable is required for every four autoloaders or every four library drives.
Use this cable to connect HP StorageWorks MSL SAS Tape Libraries to HP SAS
controllers with Infiniband (SFF8470) connectors.
2m External mini-SAS to 4x1 mini-SAS Cable Kit
NOTE: One cable is required for every four autoloaders or every four library drives.
Use this cable to connect HP StorageWorks MSL SAS Tape Libraries to Mini-SAS
(SFF8088) ports.
4m External mini-SAS to 4x1 mini-SAS Cable Kit
NOTE: One cable is required for every four autoloaders or every four library drives.
Use this cable to connect HP StorageWorks MSL SAS Tape Libraries to Mini-SAS
(SFF8088) ports.
HP SAS Min-Min 1x-2M Cable Assembly Kit
NOTE: One SAS autoloader only. Use this cable to connect HP StorageWorks SAS
external tape devices to HP SAS controllers with external Mini-SAS (SFF8088)
connectors.
4m SFF8088-to-SFF8088 1x SAS Cable Kit
NOTE: One SAS autoloader only. Use this cable to connect HP StorageWorks SAS
external tape devices to HP SAS controllers with external Mini-SAS (SFF8088)
connectors.
Controller/HBA & Cable Recommended HBA/ Controller HBA/ Controller
Recommendation Matrix
for tape automation
Product Number
HP StorageWorks SC44Ge SAS
416096-B21
SAS
Host Bus Adapter
NOTE: Recommended for
Proliant G5 SAS tape automation
connect.
HP P212 Smart Array Controller 462828-B21
Zero Memory
NOTE: Recommended for
Proliant G6 SAS tape automation
connect. 256MB or larger write
cache recommended for more
than two tape drives.
HP P212 Smart Array Controller 462834-B21
256MB Memory
NOTE: Recommended for
Proliant G6 SAS tape automation
connect.
DA - 12630
Recommended Cables
2m SFF8470-to-4 SFF8088 1x
SAS Cable Kit
341176-B21
341177-B21
AH587A
AN975A
AN976A
AE470A
AE465A
Cable Product
Number
AH587A
For one autoloader:
AE470A -- 2m SFF8088-to-SFF8088 1x SAS
Cable Kit
NOTE: one SAS tape drive only.
AE465A -- 4m SFF8088-to-SFF8088 1x SAS
Cable Kit
NOTE: one SAS tape drive only.
For two or more autoloaders or tape drives:
AN975A -- 2m SFF8088-to-4 SFF8088 1x
SAS Cable Kit
NOTE: One cable is required for every four
drives.
Worldwide — Version 21 — October 6, 2010
Page 14
QuickSpecs
Related Options
SCSI
HP StorageWorks 1/8 G2 Tape Autoloader
SAS Cable Kit
HP P411 Smart Array Controller 462830-B21
NOTE: One cable is required for every four
256MB
drives.
NOTE: Recommended for
AN976A -- 4m SFF8088-to-4 SFF8088 1x
Proliant G6 SAS tape automation
SAS Cable Kit
connect.
NOTE: One cable is required for every four
drives.
HP P411 Smart Array Controller 462832-B21
512MB
NOTE: Recommended for
Proliant G6 SAS tape automation
connect.
507925-B21
HP P700m Smart Array
Controller 256MB
NOTE: Recommended for C
series blade enclosure tape
automation connect.
508226-B21
HP P700m Smart Array
Controller 512MB
NOTE: Recommended for C
series blade enclosure tape
automation connect.
412911-B21 6 ft VHDCI/HDTS68 SCSI Cable
341176-B21
HP SC11Xe SCSI Host Bus
Adapter
Kit
NOTE: Single channel PCI12 ft VHDCI/HDTS68 SCSI
341177-B21
Express (PCI-e) SCSI Ultra 320
Cable
Kit
HBA.
AH627A
6 ft VHDCI/HDTS68 SCSI Cable
341176-B21
HP StorageWorks U320e SCSI
Host Bus Adapter
Kit
NOTE: Dual channel PCI12 ft VHDCI/HDTS68 SCSI
341177-B21
Express (PCI-e) SCSI Ultra 320
Cable
Kit
HBA.
Controller information (both SAS and SCSI) are located in two locations:
Smart Array: http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html
HBA: http://h18004.www1.hp.com/products/servers/proliantstorage/adapters/index.html
Reference the EBS compatibility matrix for the most up-to-date HBA compatibility information at:
http://www.hp.com/go/ebs
You may also visit: www.hp.com/go/ProLiant, and click on the Storage link
Media
HP LTO5 Ultrium 3TB RW Data Cartridge (1 pack)
HP LTO5 Ultrium 3TB WORM Data Cartridge (1 pack)
HP LTO4 Ultrium 1.6TB RW Data Cartridge (1 pack)
HP LTO4 Ultrium 1.6TB WORM Data Cartridge (1 pack)
HP Ultrium 800GB RW Data Cartridge (1 pack)
HP Ultrium 800GB WORM Data Cartridge (1 pack)
HP Ultrium 400GB Data Cartridge (1 pack)
HP Ultrium 200GB Data Cartridge (1 pack)
DA - 12630
Worldwide — Version 21 — October 6, 2010
C7975A
C7975W
C7974A
C7974W
C7973A
C7973W
C7972A
C7971A
Page 15
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Related Options
HP Ultrium Universal Cleaning Cartridge (1 pack)
HP LTO5 Ultrium RW Bar Code Labels (100 pack)
HP LTO5 Ultrium WORM Bar Code Labels (100 pack)
HP LTO4 Ultrium RW Bar Code Labels (100 pack)
HP LTO4 Ultrium WORM Bar Code Labels (100 pack)
HP Ultrium 3 RW Bar Code Labels (100 pack)
HP Ultrium 3 WORM Bar Code Labels (100 pack)
HP Ultrium 2 Bar Code Labels (100 pack)
HP Ultrium 1 Bar Code Labels (100 pack)
Custom labeled Data Cartridges
NOTE: Custom labeled products allow customers to customize a specific sequence
printed on each label.
HP LTO-5 Ultrium 3TB RW Custom Labeled Data Cartridge (20 pack)
HP LTO-5 Ultrium 3TB RW Eco Pack (no case) Data Cartridge (20 pack)
HP LTO-5 Ultrium 3TB WORM Custom Labeled Data Cartridge (20 pack)
HP LTO4 Ultrium 1.6TB RW Custom Labeled Data Cartridge (20 pack)
HP LTO4 Ultrium 1.6TB WORM Custom Labeled Data Cartridge (20 pack)
HP Ultrium 800GB RW Custom Labeled Data Cartridge (20 pack)
HP Ultrium 800GB WORM Custom Labeled Data Cartridge (20 pack)
HP Ultrium 400GB Custom Labeled Data Cartridge (20 pack)
HP Ultrium 200GB Custom Labeled Data Cartridge (20 pack)
Non-Custom Labeled Data Cartridges
NOTE: Non-Custom labels will come pre-labeled with a pre-determined number
sequence.
HP LTO5 Ultrium 3TB RW Non-Custom Labeled Data Cartridge (20 pack)
HP LTO4 Ultrium 1.6TB RW Non-Custom Labeled Data Cartridge (20 pack)
HP Ultrium 800GB RW Non-Custom Labeled Data Cartridge (20 pack)
HP Ultrium 400GB Non-Custom Labeled Data Cartridge (20 pack)
HP Ultrium 200GB Non-Custom Labeled Data Cartridge (20 pack)
Storage Media Kits
NOTE: Kit includes 20 HP Ultrium data cartridges, one HP Ultrium Universal cleaning
cartridge, 20 colored labels, a protective carrying case that can be used to securely
store or transport data cartridges, one copy of "The Essentials of Successful Tape
Backup", and one copy of HP StorageWorks Data Protector Express Evaluation
Software (60 day free trial).
HP Ultrium 800GB Storage Media Kit
HP Ultrium 400GB Storage Media Kit
HP Ultrium 200GB Storage Media Kit
Upgrade included
Upgrade to HP Data Protector Express for 1 Server from HP Data eDelivery
software to Data Protector Protector Express Basic
media kit
Express
DA - 12630
Worldwide — Version 21 — October 6, 2010
C7978A
Q2009A
Q2010A
Q2007A
Q2008A
Q2002A
Q2001A
C7975AL
C7975AC
C7975WL
C7974AL
C7974WL
C7973AL
C7973WL
C7972AL
C7971AL
C7975AN
C7974AN
C7973AN
C7972AN
C7971AN
C8017A
C8014A
C8013A
TC333AAE
TC333A
Page 16
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Related Options
HP Care Pack Options
Same Day Response
Warranty upgrade to 1-year, 13x5, 4 hour response/onsite, electronic
Warranty upgrade to 1-year, 24x7, 4 hour response/onsite, electronic
Warranty upgrade to 1-year, 24x7, call-to-repair, 6 hour response/onsite, electronic
Warranty upgrade to 3-year, 13x5, 4 hour response/onsite, electronic
Warranty upgrade to 3-year, 24x7, 4 hour response/onsite, electronic
Warranty upgrade to 3-year, 24x7, call-to-repair, 6 hour response/onsite, electronic
Warranty upgrade to 5-year, 13x5, 4 hour response/onsite, electronic
Warranty upgrade to 5-year, 24x7, call-to-repair, 6 hour response/onsite, electronic
Next Business Day Response
Warranty upgrade to 3-year next business day/parts exchange, electronic
Warranty upgrade to 3-year next business day/onsite, electronic
Hardware Services
Installation services, electronic
NOTE: In order to maximize ROI and product uptime, and minimize the cost of
ownership, Hewlett-Packard recommends the 3-year, 24 x 7 service options. These
offerings will ensure that any product issue can be tackled when they occur (most back
up issues will occur outside standard business hours) and that the service coverage
regarding period, covers the minimum expected life of the host system.
DA - 12630
Worldwide — Version 21 — October 6, 2010
U6364E
U6365E
U6366E
H5526E
H4624E
U6367E
U9376E
U9377E
H2698E
H4619E
U2090E
Page 17
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Technical Specifications
Drive Technology
Number of Drives
Number of Slots
Drive Interface
Capacity
Native
Compressed
(2:1)
Maximum
Native
Transfer Rate Compressed
(2:1)
Dimensions Out-of-Box
(HxWxD)
Shipping
(HxWxD)
Weight
Out-of-Box
Shipping
Reliability
MSBF
(mean
swaps
between
failures)
MTBF
(mean time
between
failures)
Cartridge Swap Time
Initialization Time
Inventory Time
Connectors
LED Indicators
(on front panel)
Management Interface
Power
Input Requirements
Relative Humidity
(non-condensing)
1/8 G2 LTO-5 Ultrium 3000
Tape Autoloader
Ultrium 3000
1
8
8 Gb Native Fibre Channel
6Gb/sec SAS
12 TB
24TB
1/8 G2 LTO-4 Ultrium 1760
Tape Autoloader
Ultrium 1760
1
8
3Gb/sec SAS
Ultra320 LVD SCSI
6.4 TB
12.8 TB
1/8 G2 LTO-3 Ultrium 920
Tape Autoloader
Ultrium 920
1
8
3Gb/sec SAS
Ultra320 LVD SCSI
3.2 TB
6.4 TB
504 GB/ hr
1 TB/hr
288 GB/hr
576 GB/hr
216 GB/hr
432 GB/hr
1.7 x 19 x 31.9 in (4.4 x 48.2 x 80.9 cm)
10 x 23 x 39 in (25 x 58 x 99 cm)
25.4 lb (11.5 kg)
33.7 lb (15.3 kg)
2 Million robot load/unload cycles
100,000 hours (based on 1M MSBF)
34 seconds average (drive to slot, slot to drive)
76 seconds
52 seconds (with bar code labeled cartridges)
Mini-SAS (located on back of 1/8 G2 SAS models only)
68-pin HDTS (located on back of 1/8 G2 SCSI models only)
(1) RJ-45 (located on back of 1/8 G2)
(1) USB port (located on back of 1/8 G2)
Ready LED (Green): shows ready status information
Clean LED (Amber): shows fault status information
Attention LED (Amber): shows fault status information
Error LED (Amber): shows fault status information
10/100 Mbytes/second, auto-configuring interface. RJ-45 connection. Https configurable.
80 Watts (max)
100 to 240 VAC, 50 to 60 Hz
Operating
20% to 80%
Shipping
20% to 90%
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 18
QuickSpecs
HP StorageWorks 1/8 G2 Tape Autoloader
Technical Specifications
Temperature Range
(wet bulb)
Operating
Shipping
Operating
Shipping
Altitude
50° to 95° F (10° to 35° C)
-40° to 140° F (-40° to 60° C)
10,000 ft (3,048 m)
35,000 ft (10,668 m)
© Copyright 2010 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For tape drives and media, 1 GB = 1 billion bytes. Actual formatted capacity is less.
DA - 12630
Worldwide — Version 21 — October 6, 2010
Page 19
