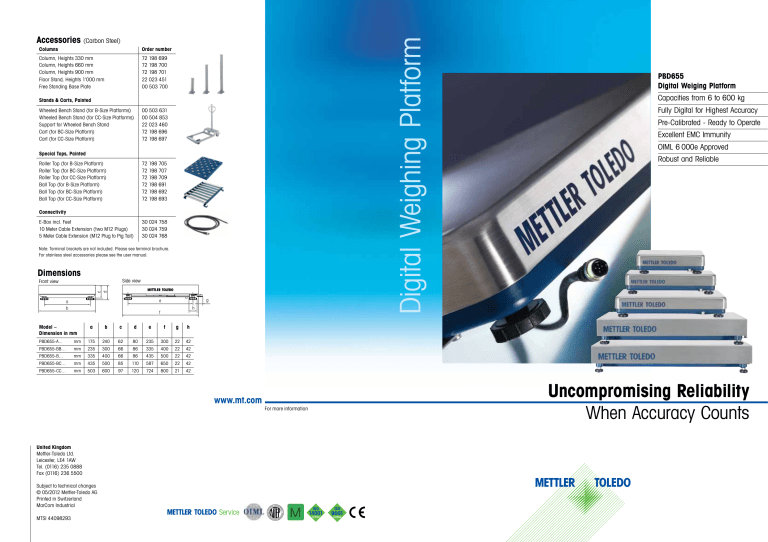

D igital W eighing Platform

Columns
Order number
Column, Heights 330 mm
Column, Heights 660 mm
Column, Heights 900 mm
Floor Stand, Heights 1'000 mm
Free Standing Base Plate
72 198 699
72 198 700
72 198 701
22 023 451
00 503 700
Digital Weighing Platform
Accessories (Carbon Steel)
Stands & Carts, Painted
Wheeled Bench Stand (for B-Size Platforms)
Wheeled Bench Stand (for CC-Size Platforms)
Support for Wheeled Bench Stand
Cart (for BC-Size Platform)
Cart (for CC-Size Platform)
00 503 631
00 504 853
22 023 460
72 198 696
72 198 697
Special Tops, Painted
Roller Top (for B-Size Platform)
Roller Top (for BC-Size Platform)
Roller Top (for CC-Size Platform)
Ball Top (for B-Size Platform)
Ball Top (for BC-Size Platform)
Ball Top (for CC-Size Platform)
72 198 705
72 198 707
72 198 709
72 198 691
72 198 692
72 198 693
Connectivity
E-Box incl. Feet
10 Meter Cable Extension (two M12 Plugs)
5 Meter Cable Extension (M12 Plug to Pig Tail)
30 024 758
30 024 759
30 024 768
Note: Terminal brackets are not included. Please see terminal brochure.
For stainless steel accessories please see the user manual.
Dimensions
SSidideevvieieww
ccc
ddd
FFFrrooronnntt tvvviieeiew
ww
ggg
eee
aa
bb
hhh
f ff
Model –
Dimension in mm
a
b
c
d
e
f
g
h
PBD655-A...
mm
175
240
62
80
235
300
22
42
PBD655-BB…
mm
235
300
66
86
335
400
22
42
PBD655-B…
mm
335
400
66
86
435
500
22
42
PBD655-BC…
mm
435
500
85
110
587
650
22
42
PBD655-CC…
mm
503
600
97
120
724
800
21
42
www.mt.com
For more information
United Kingdom
Mettler-Toledo Ltd.
Leicester, LE4 1AW
Tel. (0116) 235 0888
Fax (0116) 236 5500
Subject to technical changes
© 05/2012 Mettler-Toledo AG
Printed in Switzerland
MarCom Industrial
MTSI 44098293
99
9
PBD655
Digital Weiging Platform
Capacities from 6 to 600 kg
Fully Digital for Highest Accuracy
Pre-Calibrated - Ready to Operate
Excellent EMC Immunity
OIML 6 000e Approved
Robust and Reliable
Uncompromising Reliability
When Accuracy Counts
Ergonomic Operation
Extension cables and other smart accessories make the platform
series highly flexible and the right choice for many different working
environments. Columns are available in three different heights and
can be mounted on either the short or long side of the platform.
PBD655 Digital Weighing Platform
The Plug and Weigh Design
Ready to Operate in Seconds
The PBD655 extremely robust and rugged platform series is a true
digital device designed for simplicity and dependability. It features
an exclusively tailored METTLER TOLEDO load cell and an approvable resolution of OIML 6 000e. This combined with a stable and
fast A/D Converter, provides optimal weighing and counting precision while still being cost effective.
For optimum convenience, these platforms are shipped precalibrated from the factory. Simply unpack, plug the platform into
a suitable terminal or directly into a process control unit and start
weighing.
Rugged & Reliable Signal Transmission
The shielded polyurethane scale cable and
the industrial M12 connector offer a high level
of resistance to wear and abrasion and help to
guarantee a long product life time.
The PBD655 digital platform series is IP65 approved and the
perfect choice for harsh dry and dust-contaminated environments
such as in receiving, inspection, manufacturing, warehousing,
packaging and shipping.
Technical Specification
Resolution
Construction per Size
Easy Leveling – Assured Protection
up to 60 000d (6000d default uncertified)
OIML Class III, 6000e (600 kg - 2 x 3000e MR)
A
240 x 300 mm
Ingress Protection
IP65
BB
300 x 400 mm
Material
Platform frame: Powder coated, carbon steel
Load plate: Brushed stainless steel (AISI304)
BB
400 x 500 mm
Load Cell
Aluminum potted
Cable length
2.5 m
Interface
RS422 for direct connection
BC 500 x 650 mm
to process control unit (w/o terminal)
Update rate
90 values per second
Power supply
6 to 18 VDC
Suitable indicators
ICS4_5d, ICS685d, IND890
CC 600 x 800 mm
High Durability
Reliable operation in rough environments
is achieved with a sophisticated frame
construction and a hard-wearing powder
coated surface treatment. All platforms feature a brushed stainless steel platter which
further enhances sturdiness and stiffness.
Standard Configurations
Model
PBD655-A
PBD655-BB
PBD655-B
PBD655-BC
PBD655-CC
Platform size
240 x 300 mm
300 x 400 mm
400 x 500 mm
500 x 650 mm
600 x 800 mm
Readability certified
Min. capacity (certified platforms only)
Weighing capacity
6kg
* OIML 2x3000e MR
Model designation example: Size 240 x 300mm/6 kg: PBD655-A6
2
­METTLER ­TOLEDO
PBD655 Digital Weighing Platform
12 kg
30 kg
1g
20 g
Optimally placed and independently adjusted
overload stops ensures best possible load cell
protection. Easy adjustable feet allow for reliable
and precise scale leveling.
2g
40 g
60 kg
60 kg
120 kg
60 kg
120 kg
60 kg
120 kg
Certifiable resolution 1x6000e
5g
10 g
20 g
100 g
200 g
400 g
Zero setting range = 2% of max. capacity Temperature range = –10°C to +40°C
300 kg
300 kg
600 kg
50 g
1 kg
100 g / 200 g*
2 kg
Exceptional Signal Integrity
for Accurate Weighing
Due to excellent immunity of the
digital weigh signal from electromagnetic influences, precise weighing is guaranteed at all times. The
fast update rate of ninety weighing
values per second combine to make
the platform the perfect choice for
dynamic weighing applications.
Preload range = 18% of max. capacity
Taring range subtractive from 0 to max. capacity
­METTLER ­TOLEDO
PBD655 Digital Weighing Platform
3
