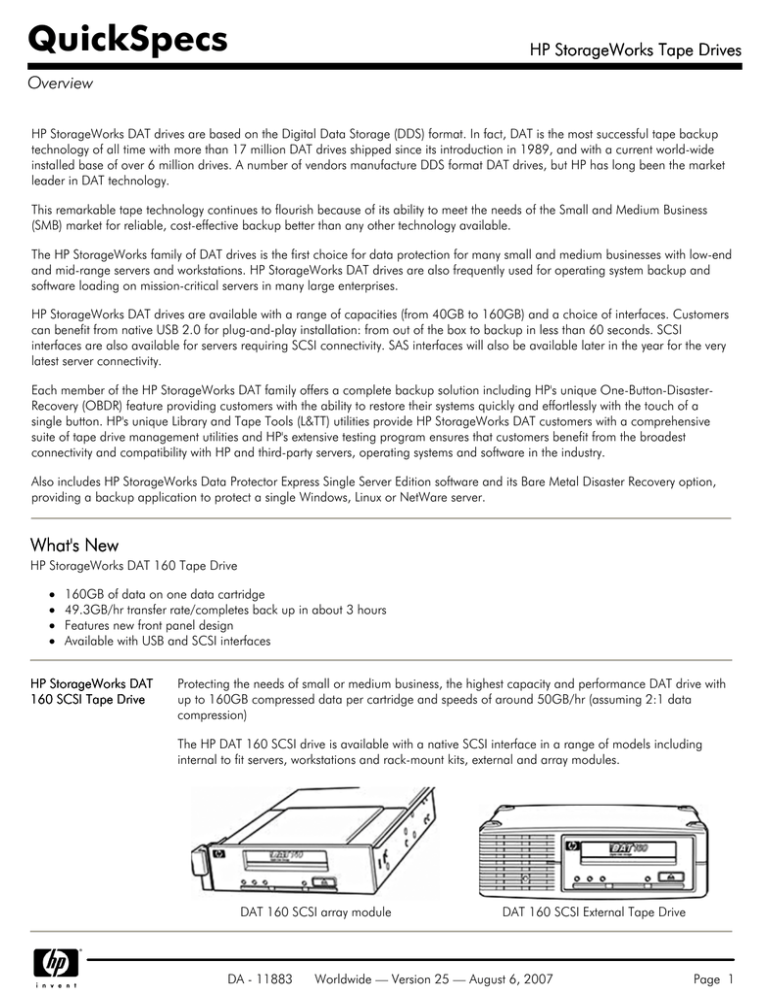

QuickSpecs
HP StorageWorks Tape Drives
Overview
HP StorageWorks DAT drives are based on the Digital Data Storage (DDS) format. In fact, DAT is the most successful tape backup
technology of all time with more than 17 million DAT drives shipped since its introduction in 1989, and with a current world-wide
installed base of over 6 million drives. A number of vendors manufacture DDS format DAT drives, but HP has long been the market
leader in DAT technology.
This remarkable tape technology continues to flourish because of its ability to meet the needs of the Small and Medium Business
(SMB) market for reliable, cost-effective backup better than any other technology available.
The HP StorageWorks family of DAT drives is the first choice for data protection for many small and medium businesses with low-end
and mid-range servers and workstations. HP StorageWorks DAT drives are also frequently used for operating system backup and
software loading on mission-critical servers in many large enterprises.
HP StorageWorks DAT drives are available with a range of capacities (from 40GB to 160GB) and a choice of interfaces. Customers
can benefit from native USB 2.0 for plug-and-play installation: from out of the box to backup in less than 60 seconds. SCSI
interfaces are also available for servers requiring SCSI connectivity. SAS interfaces will also be available later in the year for the very
latest server connectivity.
Each member of the HP StorageWorks DAT family offers a complete backup solution including HP's unique One-Button-DisasterRecovery (OBDR) feature providing customers with the ability to restore their systems quickly and effortlessly with the touch of a
single button. HP's unique Library and Tape Tools (L&TT) utilities provide HP StorageWorks DAT customers with a comprehensive
suite of tape drive management utilities and HP's extensive testing program ensures that customers benefit from the broadest
connectivity and compatibility with HP and third-party servers, operating systems and software in the industry.
Also includes HP StorageWorks Data Protector Express Single Server Edition software and its Bare Metal Disaster Recovery option,
providing a backup application to protect a single Windows, Linux or NetWare server.
What's New
HP StorageWorks DAT 160 Tape Drive
160GB of data on one data cartridge
49.3GB/hr transfer rate/completes back up in about 3 hours
Features new front panel design
Available with USB and SCSI interfaces
HP StorageWorks DAT
160 SCSI Tape Drive
Protecting the needs of small or medium business, the highest capacity and performance DAT drive with
up to 160GB compressed data per cartridge and speeds of around 50GB/hr (assuming 2:1 data
compression)
The HP DAT 160 SCSI drive is available with a native SCSI interface in a range of models including
internal to fit servers, workstations and rack-mount kits, external and array modules.
DAT 160 SCSI array module
DA - 11883
DAT 160 SCSI External Tape Drive
Worldwide — Version 25 — August 6, 2007
Page 1
QuickSpecs
HP StorageWorks Tape Drives
Overview
HP StorageWorks DAT
160 USB Tape Drive
Protecting the needs of small or medium business, the highest capacity and performance DAT drive with
up to 160GB compressed data per cartridge and speeds of around 50GB/hr (assuming 2:1 data
compression)
The USB 2.0 interface provides plug-and-play connectivity, enabling backup to be initiated from straight
out-of-the-box in less than 60 seconds.
DAT 160 USB Internal Tape Drive
DAT 160 USB External Tape Drive
HP StorageWorks DAT 72 Protect your small or medium business, remote office or workgroup with the HP StorageWorks DAT 72
SCSI Tape Drive
SCSI Tape Drive, providing a balance of price and performance with up to 72GB of compressed data on
a single cartridge at speeds of up to 23GB/hr (assuming 2:1 data compression).
DAT 72 SCSI Internal Tape Drive
DAT 72 SCSI External Tape Drive
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 2
QuickSpecs
HP StorageWorks Tape Drives
Overview
HP StorageWorks DAT 72 Protect your small or medium business, remote office or workgroup with the HP StorageWorks DAT 72
USB Tape Drive
USB Tape Drive providing a balance of price and performance with up to 72GB of compressed data on
a single cartridge at speeds of up to 23GB/hr (assuming 2:1 data compression).
The USB 2.0 interface provides plug-and-play connectivity, enabling backup to be initiated from straight
out-of-the-box in less than 60 seconds.
DAT 72 USB Internal Tape Drive
DAT 72 USB External Tape Drive
HP StorageWorks DAT 40 Meeting the needs of small businesses, remote office or workgroups with the HP StorageWorks DAT 40
SCSI Tape Drive
SCSI Tape Drive providing entry-level price and performance with up to 40GB of compressed data on a
single cartridge at speeds of up to 23GB/hr (assuming 2:1 data compression).
The HP DAT 40 SCSI drive is available with a native SCSI interface in a range of models including
internal to fit servers, workstations and rack-mount kits, external and array modules.
DAT 40 SCSI Array Module
DA - 11883
DAT 40 SCSI External Tape Drive
Worldwide — Version 25 — August 6, 2007
Page 3
QuickSpecs
HP StorageWorks Tape Drives
Overview
HP StorageWorks DAT 40 Meeting the needs of small businesses, remote office or workgroups with the HP StorageWorks DAT 40
USB Tape Drive
USB Tape Drive providing entry-level price and performance with up to 40GB of compressed data on a
single cartridge at speeds of up to 23GB/hr (assuming 2:1 data compression).
The USB 2.0 interface provides plug-and-play connectivity, enabling backup to be initiated from straight
out-of-the-box in less than 60 seconds.
DAT 40 USB Internal Tape Drive
DAT 40 USB External Tape Drive
Models
DAT 160 SCSI Tape Drive DAT 160 SCSI Internal Tape Drive
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 160 SCSI External Tape Drive
DAT 160 SCSI Array Module
NOTE: DAT 160 array modules fit into the HP Tape Array 5300 (C7508B).
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 160 USB Tape Drive DAT 160 USB Internal Tape Drive
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 160 USB External Tape Drive
1U USB Rack-Mount Kit with one DAT 160 USB drive
DAT 72 SCSI Tape Drive DAT 72 SCSI Internal Tape Drive
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 72 SCSI External Tape Drive
DAT 72 SCSI Array Module Field-integrated
NOTE: DAT 72 array modules fit into the HP Tape Array 5300 (C7508B).
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 72 USB Tape Drive DAT 72 USB Internal Tape Drive
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 72 USB External Tape Drive
1U USB Rack-Mount Kit with one DAT 72 USB drive
DA - 11883
Worldwide — Version 25 — August 6, 2007
Q1573A
Q1574A
Q1575A
Q1580A
Q1581A
AG703A
Q1522B
Q1523B
Q1524C
DW026A
DW027A
AG594A
Page 4
QuickSpecs
HP StorageWorks Tape Drives
Overview
DAT 40 SCSI Tape Drive
DAT 40 USB Tape Drive
Key Features
DAT 40 SCSI Internal Tape Drive
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 40 SCSI External Tape Drive
DAT 40 SCSI Array Module
NOTE: DAT 40 array modules fit into the HP Tape Array 5300 (C7508B).
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 40 USB Internal Tape Drive
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 40 USB External Tape Drive
C5686C
C5687D
C7497C
DW022A
DW023A
Based on industry-standard DDS technology -- the most popular server backup technology of all
time, providing customers will all the benefits of an open standard including better pricing, wider
availability and faster development cycles
Proven reliability -- HP has increased reliability specifications for HP DAT drives based on real field
data. Mean-Time-Between-Failure rates (MTBF) are now more than 1 million hours at a typical
duty cycle of 12%
Low-cost of ownership - Lowest media price (in $/GB) of any tape backup technology
Up to 80GB native capacity on a single tape -- 160GB at 2:1 compression -- with DAT 160 tape
drive
Up to 6.9 MB/s* native data transfer rate -- 13.8 MB/s* with 2:1 compression -- with DAT 160
tape drives * Where 1KB = 1,000 Bytes
Plug and play -- USB 2.0 interface available for on all drives provides universal native plug-andplay capability and enabling customers to be ready for backup in less than 60 seconds straight out
of the box
SCSI interface also available to enable SCSI system connectivity if required
Flexibility of solutions through a wide choice of models - internal, external, USB, offline hot-swap
array module, and rack-mount configurations
Small size drives and media for easy physical storage -- small, half-height 3.5-inch form-factor
Low ongoing maintenance -- automatic head cleaning minimizes the need for cleaning. Intelligent
cleaning monitors the performance of the drive and cleans accordingly when a cleaning tape is
loaded
Dependable disaster recovery -- HP StorageWorks One-Button Disaster Recovery (OBDR) for
Proliant Systems restores your entire system at the touch of a button
Supporting tools -- HP StorageWorks Library and Tape Tools included with the drive to make
installation, performance tuning and trouble-shooting even easier
Broad compatibility with a wide range of servers, operating systems, and backup software
Includes HP Data Protector Express Single Server Edition software and its Bare Metal Disaster
Recovery option, see http://www.hp.com/go/dataprotectorexpress/sse.
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 5
QuickSpecs
HP StorageWorks Tape Drives
Overview
Customer Benefits
Dependable:
Dependable a long track record of proven reliability
Easy:
Easy supports One-Button Disaster Recovery, simply the easiest way to restore data in the event of
a disaster
Affordable: inexpensive media contributes to an exceptionally low cost of ownership
Manageable:
Manageable includes superior management capabilities that makes it easy to install, use and
support
Low-maintenance:
Low-maintenance automatic head cleaning system reduces the need for cleaning
Well-connected:
Well-connected compatible with leading operating systems, backup software and servers
Future-proof:
Future-proof the tape technology with an illustrious past also has a solid roadmap for the future
Complete:
Complete comes with an easy-to-use backup solution that includes disaster recovery capabilities
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 6
QuickSpecs
HP StorageWorks Tape Drives
Product Highlights
DDS Technology
Within the tape market there is a wide range of tape technologies, the question for SMB customers is
which one to choose. The answer is clear - DDS/DAT continues to be the unit volume leader in the tape
drive market for small and medium businesses with a current installed base of over 6 million and over
17 million DAT drives shipped since its introduction in 1989. This remarkable tape technology continues
to flourish because it meets the needs of the SMB market for cost-effective, reliable backup better than
any other technology available. Of the 1.5 million backup tape drives shipped in 2005, IDC estimates
that approximately 43% were DAT drives.
Unlike AIT, VXA, ADR, SLR, DLT and SDLT, DDS/DAT is based on an open standard format for data
interchange. The influential DAT manufacturers group presides over this open standard with verification
processes that ensure compliance. With multiple manufacturers developing and shipping DDS/DAT
products, customers benefit from increased competition, which leads to better prices, faster development
and more choice.
DDS format for DAT is a helical scan format where data is written diagonally across the width of the
tape. The advantage is that, by allowing subsequent tracks to have different writing angles and to
overlap, a much greater capacity can be achieved for a given length of tape because no guard bands
are necessary. The data format also allows for fast location of tracks and data. To achieve this, the
rotating drum is tilted at a slight angle (6°) from the vertical. The drum has four heads (two write heads
and two read heads), located at 90° intervals. For each rotation of the drum, two tracks are written. The
read heads verify the data that has been written (recorded) and the drive rewrites if necessary. The open
format ensures interchangeability between different DDS format drives.
HP has been involved in the design and development of DAT drives since the beginning and applies
these many years of experience to its current line of DAT products. Not only does an investment in DAT
technology provide the security of a format with a history of outstanding reliability, the legacy of
backward compatibility also provides the potential for future expansion without compromising your
investment in the technology.
The target market for DAT continues to be direct-attach backup. In small and medium sized businesses
cost of ownership, ease of use and a proven history (i.e. low risk) are paramount. DAT technology
provides the capacity and performance needed in a tape backup solution for workstations and entrylevel servers.
Specific Note on DAT 160
The DAT 160 drive employs the same technology as previous DAT products, and uses DAT 160 wide
media in order to achieve higher capacities. However, it maintains the 2 generation backward
compatibility promise and can still read and write data to DAT 72 and DAT 40 (DDS-4) cartridges. It
does this by recognizing the different tapes (wider DAT 160 and the narrower DAT 72/DDS-4).
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 7
QuickSpecs
HP StorageWorks Tape Drives
Product Highlights
NOTE: The DAT 160 has 180o wrap angle around the drum
Backwards Compatibility HP DAT tape drives are backward read-write compatible with two previous generations, thus:
DAT 160 also reads and writes DAT 72 and DDS-4
DAT 72 also reads and writes DDS-4 and DDS-3
DAT 40 also reads and writes DDS-3 and DDS-2
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 8
QuickSpecs
HP StorageWorks Tape Drives
Product Highlights
Proven Reliability
HP DAT drives have proven to be exceptionally reliable. The drives have demonstrated exceptional
performance with customers over many years and across different generations and this has under pinned
their popularity.
The drives are designed with reliability in mind and with the security of customer's data as a priority.
Hardware reliability is typically measured as MTBF (Mean Time Between Failures) associated with duty
cycles which suggests the amount the drive is typically used e.g. 100% duty cycle means the drive is used
for 24 hours per day. As a result of field data, the specification for HP DDS products is stated as
125,000 hours at 100% duty cycle, or 1 million hours at a more typical 12% duty cycle (drive used on
average for 3 hours per day).
Unlike other manufactures DAT drives, this specification is not generated in the laboratory with limited
numbers of prototype drives and assumptions on customer use; it is generated from real customer data
for the products concerned.
Automated Head
Cleaning/Intelligent
cleaning
HP DDS drives benefit from an automatic head cleaning "sweeper" that can be used during the write or
read recovery procedure to dislodge debris from the tape path and recording heads and drive. This
feature reduces the need to use a DDS cleaning cartridge for manual cleaning.
Intelligent cleaning determines the cleaning provided by a cleaning cartridge when loaded by monitoring
the drive performance when in use. If the drive is performing well, a routine maintenance clean is
performed. If the drive has degraded performance the cleaning is automatically made more robust to
recover the drive to optimum performance.
Interfaces
HP DAT drives are currently available with a choice of interfaces: the standard SCSI interface where
legacy SCSI connectivity is required and USB 2.0 interface for universal plug and play connectivity. In the
near future, as SAS interface for the DAT 160 is planned.
The USB (Universal Systems Bus) interface was conceived out of a need to simplify computer peripheral
device connection. It has been so successful that the majority of computer systems and servers shipped
today offer multiple native USB 2.0 ports.
HP is the first company to develop a native USB DDS/DAT tape drive. Where other "USB tape drives" rely
on a USB converter, HP's USB interface is fully integrated with the drive and uses the SCSI command set
within the USB payload. The benefit of this implementation is that it gives the drive full SCSI functionality
and the flexibility of USB without the additional cost of a converter.
By offering native USB 2.0 DAT drives, HP aims to provide customers with a number of benefits:
Greater usability
Plug-and-play connectivity- the system automatically detects and configures the tape drive.
The DAT drive is installed and ready to backup in less than 60 seconds.
Microsoft fully supports USB devices natively in their operating systems providing robust,
secure configuration and installation wizards.
Cables are easily identifiable, easy to attach without the need for thumb-screw and robust
enough to ensure reliable retention.
Resource abundance
Native USB ports are universally available in systems and servers
Multiple ports ensure that port resources are widely available, reducing the conflict between
devices over scarce connectors.
Port expansion is easy, USB hubs can be installed to add additional ports supporting up to
127 devices on a system
Low cost, reliable connectivity
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 9
QuickSpecs
HP StorageWorks Tape Drives
Product Highlights
By providing native USB DDS/DAT drives there is no need for customers to purchase
additional host-bus adapters
HP's USB 2.0 implementation benefits from the built-in reliability and failure recovery
inherent in the underlying SCSI protocol
USB 2.0 has multiple levels of physical error detection and recovery which ensure reliability
on a par with SCSI and Fibre-channel interfaces.
USB 2.0 compliance certification provides thorough, ongoing reliability and quality control.
A well implemented USB network should use only USB 2.0 compliant components,
including USB 2.0 certified cables.
Sustainable performance
In HP tests it has been shown that USB 2.0 can sustain the performance of an HP DDS/DAT
drive at around 30MB/sec, a bandwidth that would sustain the HP DAT 72 drive operating
with a compression ratio of 9:1!
USB 2.0 performance provides sufficient bandwidth to support all future generations of
DDS/DAT drives specified on the DAT Manufacturers Group Roadmap
Compression
DDS uses built-in hardware compression using the 'DCLZ' data compression algorithm. Data
compression is host-selectable with the default that compression is turned on. Typical data compression
is 2:1, but actual compression depends on the type of data being compressed and can be more or less
than 2:1.
SCSI Offline Hot-Swap
Technology
NOTE: this feature is available for SCSI products. USB variants of HP DAT drives already benefit from
hot-plug capability through the USB 2.0 interface.
The HP StorageWorks DAT SCSI tape drives are available as offline hot-swap models to increase your
uptime. With these models, you never have to take down your system to replace a failed or nonresponding tape device.
The HP StorageWorks Tape Array 5300 supports "offline hot-swap" (sometimes referred to as "warmswap") array modules, including DAT drives. This means the drives can be removed and replaced with
the power on and the SCSI cables attached to the server. Because the array's SCSI buses are not
buffered, however, drive replacement should only take place while the SCSI bus is quiescent (no SCSI
activity from the tape drive or any other device on the same bus).
With the HP StorageWorks DAT or array modules, the server does not need to be taken offline to install
the tape drive. Simply insert the tape drive into the server's Tape Array 5300's drive bay and install or
configure the backup software.
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 10
QuickSpecs
HP StorageWorks Tape Drives
Product Highlights
Rack-Mount Tape
Options
HP DAT SCSI drives are supported on the HP StorageWorks 1U and 3U Rack-Mount Kits and the HP
StorageWorks Tape Array 5300. The 3U Rack-Mount Kit and the Tape Array 5300 allow up to four
internal DAT drives to be installed in 3U of rack space, while the 1U Rack-Mount Kit holds two DAT
drives in 1U of space. 1U rack-mount kits use standard internal DAT USB and SCSI drives for a low-cost
solution. 3U rack-mount kits use standard internal DAT SCSI drives while the Tape Array 5300 uses DAT
array modules that provide offline hot-swap capabilities and redundant components for high-availability
environments.
Either of these rack enclosures can be configured with separate SCSI buses (channels) for each drive or
two or more drives per bus using the optional cable kits.
NOTE: Please refer to the QuickSpecs for HP StorageWorks Rack-Mount Kits at
http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.html
or the HP StorageWorks Tape Array 5300 web page at
http://www.hp.com/products1/storage/products/tapebackup/tapearrays/tapearray5300/index.html
for further information.
HP StorageWorks OBDR With HP One-Button Disaster Recovery, you can quickly, reliably and simply restore your entire ProLiant
(One-Button Disaster
system just by inserting the most recent backup tape and pushing one button on the tape drive. Your HP
Recovery)
StorageWorks DAT drive will restore your operating system, configuration, applications, drivers and data
files. There's no longer a need to search for software disks and manuals. And with downtime reduced,
the costs of recovery are minimized too. There's no need to make a new set of disaster recovery disks
each time the network configuration is altered or a peripheral is added. Recovering from a disaster
manually at a stressful time makes for an error-prone process. The sheer simplicity of HP One-Button
Disaster Recovery means less human error. Backup and disaster recovery preparation -- previously two
separate tasks -- become one process. OBDR is simply the best disaster recovery product for small to
medium systems. For a current list of servers, workstations, and software that support OBDR, check the
tape backup compatibility pages at: http://www.hp.com/go/obdr
Software in the Box
The HP StorageWorks DDS/DAT tape drives include HP Data Protector Express Single Server Edition
software. This easy to use backup application, based on Data Protector Express, robustly protects a
single Windows, Linux or NetWare server. Also included is the Data Protector Express Bare Metal
Disaster Recovery (BMDR) option which provides automated system recovery of the server following a
major hardware or software failure. The fastest method to recovery the server is to use the Data Protector
Express BMDR option and the One Button Disaster Recovery feature of the HP StorageWorks DDS/DAT
tape drives. For more information about Data Protector Express Single Server Edition please visit:
http://www.hp.com/go/dataprotectorexpress/sse.
As well as getting the Data Protector Express Single Server Edition software as part of the HP
StorageWorks DDS/DAT tape drives solution, purchasers can easily and economically upgrade to the
class-leading Data Protector Express backup/recovery software. This is a special part number, only
available for registered users of Data Protector Express Single Server Edition for that gives a significant
discount off the regular price of Data Protector Express, to recognize the value of the in-box software..
For more information upgrading Data Protector Express Single Server Edition to Data Protector Express
visit:
http://www.hp.com/go/dataprotectorexpress/sse/upgrade.
If the HP StorageWorks DDS/DAT tape drive is for a large environment that requires UNIX support
and/or enterprise class application and feature support then HP Data Protector is the recommended
backup/recovery software. For more information and evaluation software please visit
http://www.hp.com/go/dataprotector.
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 11
QuickSpecs
HP StorageWorks Tape Drives
Product Highlights
HP StorageWorks Library HP StorageWorks DAT drives are supported on HP's industry-leading diagnostic tool -- HP StorageWorks
and Tape Tools (L&TT)
Library and Tape Tools (L&TT). L&TT is a single, convenient program that's a snap to install and simple to
operate. L&TT's intuitive user interface eliminates the need for training and deploys in less than five
minutes. This robust diagnostic tool is designed for both the experienced professional and the untrained
administrator. It ensures product integrity through self-diagnostics and fast resolution to device concerns.
Additional information on L&TT plus download information can be found at:
http://www.hp.com/support/tapetools
HP DDS Media
HP's test program for HP DAT media is probably the most thorough and comprehensive in the industry.
HP data cartridges must satisfy an exhaustive battery of additional tests that relate directly to real life
situations, where real data and real businesses are at stake. Over 1 million test hours on media and
drives per year ensure that HP data cartridges will always offer maximum reliability even in the most
extreme conditions. HP recommends that customers always use HP branded media to ensure stress-free
backup and complete peace of mind.
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 12
QuickSpecs
HP StorageWorks Tape Drives
Compatibility
HP's extensive compatibility testing program assures that HP StorageWorks DAT drives work with leading servers, operating systems,
and backup applications -- and not just those sold by HP. HP DAT drives work seamlessly in many environments, making them
especially suitable if you have a mixed system environment. For the latest list of servers, workstations, operating systems, and backup
software that support HP DAT drives, check the tape backup compatibility pages at: http://www.hp.com/go/connect.
HP Server and
HP StorageWorks DAT SCSI drives are compatible with HP ProLiant servers, HP 9000 servers, Integrity
Workstation Compatibility Servers, Alpha Servers and HP Workstations, as well as many third-party servers. HP StorageWorks DAT
with SCSI drives
drives are supported on the following classes of HP systems:
HP ProLiant DL servers
HP ProLiant ML servers
HP Alpha Servers
HP 9000 servers
HP Integrity servers
HP Personal and RISC Workstations
For details of which tape drive models work with which systems, including third-party systems, visit
http://www.hp.com/go/connect for the latest hardware compatibility information.
HP Server Compatibility
with
USB drives
HP StorageWorks DAT USB drives are compatible with HP ProLiant servers and HP workstations, as well
as many third-party servers. HP StorageWorks DAT drives are supported on the following classes of HP
systems:
HP ProLiant DL servers
HP ProLiant ML servers
HP Personal Workstations
For details of which tape drive models work with which systems, including third-party systems, visit
http://www.hp.com/go/connect for the latest hardware compatibility information.
NOTE: HP recommends that no more than one DAT USB tape drive be connected to a system at a time.
OS Support for SCSI DAT Microsoft® Windows®, Novell NetWare, HP-UX, Linux (various distributions), HP Tru64, HP OVMS, IBM
drives
AIX, Sun Solaris, and other operating systems
NOTE: Please visit http://www.hp.com/go/connect for the latest compatibility information.
OS Support for USB DAT Microsoft Windows, Linux (various distributions)
drives
NOTE: Please visit http://www.hp.com/go/connect for the latest compatibility information.
Backup Software Support HP Data Protector Software, HP StorageWorks Data Protector Express Software, Symantec Backup Exec,
for SCSI drives
Symantec Netbackup, CA BrightStor ARCServe Backup, Yosemite Technologies TapeWare, Legato
Networker, Dantz Retrospect, Tivoli Storage Manager, NovaBackup, and other backup applications
NOTE: Please visit http://www.hp.com/go/connect for the latest compatibility information.
Backup Software Support HP Data Protector Express, CA BrightStor ARCServe Backup, Symantec Backup Exec, and other backup
for USB drives
applications
NOTE: Please visit http://www.hp.com/go/connect for the latest compatibility information.
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 13
QuickSpecs
HP StorageWorks Tape Drives
Service and Support, HP Care Pack, and Warranty Information
HP Care Pack Information HP Care Pack Services offer upgraded service levels to extend and expand your standard product
warranty with easy to buy, easy to use support packages that help you make the most of your hardware
and software investments. They let you choose the support levels that meet your business requirements,
from basic to mission-critical. They help you contain total cost of ownership.
HP Care Pack warranty extensions can be purchased along with HP products to cost-effectively upgrade
or extend your warranty. For many products, post-warranty HP Care Pack Services are available when
your original warranty has expired.
Why purchase an HP Care Pack service?
Your standard warranty protects against product defects. HP Care Pack Services help you guard against
unplanned downtime, which can reduce your productivity and profitability. These convenient service
packages:
Protect your investment in HP products
Provide consistent, predictable levels of support across your entire department or business
Ease budget planning with fixed-cost support that includes parts and labor
Give you direct access to proven technical and problem-solving expertise
Offer a choice of response-time and repair-time commitments
Deliver prompt, measurable results
Are available whenever and wherever you do business
HP Care Pack availability may vary by country and product.
Supporting your Adaptive Enterprise journey
HP Services helps you make the Adaptive Enterprise real for your organization. The breadth, depth, and
quality of HP hardware and software support services can help you improve the performance of your IT
support processes and resolve the complex software and hardware problems that tax user productivity.
HP Care Pack services help you increase IT environment stability, efficiency, and agility from the desktop
to the data center, and improve the productivity of your employees.
Warranty and Services
Included with the HP
StorageWorks DAT
Products
Hewlett-Packard provides a 3-year, next-day, product exchange, limited warranty, for all StorageWorks
DAT Tape Drives (excluding the StorageWorks DAT24 USB Tape Drive), plus 9x5 phone--support for the
duration of the warranty.
For more information about HP's Global Limited Warranty and Technical Support, visit:
ftp://ftp.compaq.com/pub/products/storageworks/warranty/EN_321708-008.pdf
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 14
QuickSpecs
HP StorageWorks Tape Drives
Service and Support, HP Care Pack, and Warranty Information
Recommended
Services
In order to maximize ROI and product uptime, and minimize the cost of ownership, Hewlett Packard
recommends:
3 years 24 x 7 Hardware Support
Guards against downtime, which reduces productivity and profitability
Eases budget planning with fixed-cost support that includes parts and labor
Direct access to proven technical and problem-solving expertise
3 years 24 x 7 Software Support
Improve the productivity of system managers and operators
Improve system performance and reduce downtime due to software defects
Expedite problem resolution through expert-level technical resources
Enjoy consistent service coverage across geographically dispersed sites
Update HP and selected third-party software at a predictable cost
Take advantage of subscription savings on software updates
Keep your license compliancy up-to-date
Available HP Care Pack Extend your product warranty with a wide choice of cost-saving support packages.
Services
HP Care Pack services are sold by HP and HP authorized enterprise and commercial resellers. Services
for customers purchasing via direct and enterprise resellers are quoted using HP order configuration
tools. Additional information about HP Care Pack service features and benefits is available at
http://www.hp.com/hps/carepack/services/.
Key for HP Care Pack service availability in the table below:
E = Service available for customers purchasing direct and via enterprise resellers
C = Service available for customers purchasing via commercial resellers
N/A = Service not applicable
HP Care Pack Services
Deployment and Per Event Services
HP Installation
HP Installation & Startup
HP Implementation
Service Available
E/C
N/A
N/A
For more information about deployment and per event services for HP storage products, visit
http://www.hp.com/hps/storage/.
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 15
QuickSpecs
HP StorageWorks Tape Drives
Service and Support, HP Care Pack, and Warranty Information
HP Care Pack Services
Availability Services
HP Next Day Hardware Support
HP 4 Hr, 9x5 Hardware Support
HP 4 Hr, 13x5 Hardware Support
HP 4 Hr, 24x7 Hardware Support
HP 6 HR Call-to-Repair Hardware Support
HP Software Support
HP Software Support 24x7
HP Support Plus
HP Support Plus 24
HP Proactive Essentials 9x5, 10 Software
Incidents
HP Proactive Essentials 9x5, 25 Software
Incidents
HP Proactive Essentials 9x5 Unlimited
HP Proactive Essentials 24x7, 25 Software
Incidents
HP Proactive Essentials 24x7, 50 Software
Incidents
HP Proactive Essentials 24x7 Unlimited
HP Proactive 24 Service*
HP Critical Service*
1 yr
3 yr
4 yr
5 yr
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
C
C
C
C
C
C
C
C
E/C
C
C
C
C
C
C
C
C
E/C
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
E/C
E/C
NA
E/C
E/C
NA
NA
NA
NA
NA
NA
*NOTE:
NOTE: Both Proactive 24 & Critical Service only relate to 'reactive elements'. 'Proactive elements' are
available on time & materials basis. (SW is supported separately per package).
Important Notice for Tape NOTE: These Care Packs do not apply to Tape Drives mounted in a 1U or 3U Rack Mount Kit. The HP
Drives Installed in a 1U or Rack Mount Kit Care Pack covers the all possible configurations of Tape Drives. Hence the Care Packs
3U Rack Mount Kit
for 1U & 3U Rack Mount Kit covers all encumberant drives.
Please follow the following URL for the correct Care Pack Services and descriptions.
http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.PDF
Important Notice for
NOTE: These Care Packs do not apply to Internal Tape Drives because they do not have Care Packs
Internal Tape Drives
associated with them if they are mounted in an HP Server. Hence the Care Packs for the HP Server
Installed in an HP Server covers all encumberant drives.
Please follow the following URL for the correct Care Pack Services and descriptions.
For Proliant use - http://h18000.www1.hp.com/products/quickspecs/ProductBulletin.html
For BCS use - http://h18000.www1.hp.com/products/quickspecs/ProductBulletin.html
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 16
QuickSpecs
HP StorageWorks Tape Drives
Service and Support, HP Care Pack, and Warranty Information
Important Notice for Tape NOTE: These Care Packs do not apply to Tape Drives mounted in an HP Tape Array because they do
Drive Modules Installed in not have Care Packs associated with them. Hence the Care Packs for the HP Tape Array covers all
an HP Tape Array
encumberant drives.
Please follow the following url for the correct Care Pack Services and descriptions.
http://h18000.www1.hp.com/products/quickspecs/11878_div/11878_div.PDF
HP Care Pack Service
Product Numbers
Enterprise & Commercial Purchased Care Packs
('A' stands for physical Care Pack, 'E' for electronic Care Pack)
For DAT 40 Range, DAT 72 Range and DAT 160 Range Only
Product
Number
U2090A/E
H3155A/E
H4616A/E
U2068A/E
U6358A/E
U9338A/E
U9339A/E
U9340A/E
U9341A/E
UA450PE
UA451PE
UA452PE
UA453PE
Product Description
Tape Installation Hardware Installation Only
Hardware, "3-year", "Next Business Day", "9x5", "on-site"*
Hardware, "3-year", "4-hour", "13x5", "on-site"
Hardware, "3-year", "4-hour", "24x7", "on-site"
Hardware, "3-year", "6hr Call-to-Repair", "24x7", "on-site"
Hardware, "4-year", "4-hour", "13x5", "on-site"
Hardware, "4-year", "4-hour", "24x7", "on-site"
Hardware, "5-year", "4-hour", "13x5", "on-site"
Hardware, "5-year", "4-hour", "24x7", "on-site"
Hardware, "1-year", "Next Business Day", "9x5", "on-site", "Post Warranty"
Hardware, "1-year", "4-hour", "13x5", "on-site", "Post Warranty"
Hardware, "1-year", "4-hour", "24x7", "on-site", "Post Warranty"
Hardware, "1-year", "6hr Call-to-Repair", "24x7", "on-site", Post Warranty"
Enterprise Purchased Care Packs
For DAT 40 Range, DAT 72 Range and DAT 160 Range Only
Product Description
Tape Installation Hardware Installation Only
Hardware, "3-year", "next-day", "13x5", "on-site"
Hardware, "3-year", "4-hour", "13x5", "on-site"
Hardware, "3-year", "4-hour", "24x7", "on-site"
Hardware, "3-year", "6hr Call-to-Repair", "24x7", "on-site"*
SW, "3-year", "Phone-in", "9x5"
SW, "3-year", "Phone-in", "24x7"
Hardware Only, Support Plus, "3-year", "13x5"
Hardware Only, Support Plus 24, "3-year", "24x7"
Hardware Only, Proactive 24, "3-year", "24x7"*
Hardware Only, Critical Service, "3-year", "24x7"*
Drive Band
Install Band
N/A
455
455
455
455
N/A
N/A
455
455
455
455
596
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Product
Number
HA113A1
HA101A3
HA103A3
HA104A3
HA105A3
HA106A3
HA107A3
HA109A3
HA110A3
HA111A3
HA112A3
*Both Proactive 24 & Critical Service only relate to 'reactive elements', 'proactive elements' are available
on time & materials basis. (SW is supported separately per package).
The Care Pack information quoted above relates to 3 year offerings only, 1yr / 4yr & 5yr packs are
available for each offering (replace A3 with A1, A4 or A5).
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 17
QuickSpecs
HP StorageWorks Tape Drives
Service and Support, HP Care Pack, and Warranty Information
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit http://www.hp.com/support.
HP Education Services
For more information about HP Education Services for Storage and SAN, visit
http://education.hp.com/curr-storsan.html
Additional Services
Information
For more information about Deployment, Per Event, Consulting and Education services for HP Storage,
visit: http://www.hp.com/hps/storage/
For more information about HP Care Pack services for storage products, visit:
http://www.hp.com/hps/carepack/storage/cp_networked.html
For more information about HP storage software, services and updates, visit:
http://h18006.www1.hp.com/storage/software.html
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP" http://www.hp.com/
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 18
QuickSpecs
HP StorageWorks Tape Drives
Kit Contents
HP StorageWorks DAT 40 Tape Drives
Description
Model
DAT 40 SCSI Internal Tape Drive, installation guide, HP StorageWorks CD (containing
DAT 40 SCSI Internal
electronic user's guide, drivers, and HP Library and Tape Tools software diagnostics),
HP Data Protector Express Single Server Edition software and its Bare Metal Disaster
Recovery option, SCSI ribbon cable, screws, HP DDS-4 data cartridge, HP DDS
cleaning cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 40 SCSI External Tape Drive, installation guide, HP StorageWorks CD
DAT 40 SCSI External
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics, HP Data Protector Express Single Server Edition software and its Bare
Metal Disaster Recovery option, SCSI cable (68-pin HD to 68-pin VHD, LVD/SE
Ultra2, 2.5m), LVD/SE SCSI multi-mode terminator, power cord, HP DDS-4 data
cartridge, HP DDS cleaning cartridge.
DAT 40 SCSI Array Module, installation guide, HP StorageWorks CD (containing
DAT 40 Array Module
for Tape Array 5300
electronic user's guide, drivers, and HP Library and Tape Tools software diagnostics,
HP Data Protector Express Single Server Edition software and its Bare Metal Disaster
Recovery option, HP DDS-4 data cartridge, HP DDS cleaning cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 40 USB Internal Tape Drive, installation poster, HP StorageWorks CD (containing
DAT 40 USB Internal
electronic user's guide, drivers, and HP Library and Tape Tools software diagnostics),
HP Data Protector Express Single Server Edition software and its Bare Metal Disaster
Recovery option, standard USB cable, USB cable for internal ProLiant connect, USB
cable for internal connect to an Intel motherboard header, cable routing kit (for
connection to external USB 2.0 ports), screws, HP DDS-4 data cartridge, HP DDS
cleaning cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 40 USB External Tape Drive, installation poster, HP StorageWorks CD
DAT 40 USB External
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP Data Protector Express Single Server Edition software and its Bare
Metal Disaster Recovery option, integral USB cable, power cord, HP DDS-4 data
cartridge, HP DDS cleaning cartridge.
DA - 11883
Worldwide — Version 25 — August 6, 2007
Part Number
C5686C
C5687D
C7497C
DW022A
DW023A
Page 19
QuickSpecs
HP StorageWorks Tape Drives
Kit Contents
HP StorageWorks DAT 72 Tape Drives
Description
Model
DAT 72 SCSI Internal Tape Drive, installation poster, HP StorageWorks CD
DAT 72 SCSI Internal
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP Data Protector Express Single Server Edition software and its Bare
Metal Disaster Recovery option, SCSI ribbon cable (68-pin wide HD LVD), HP DAT 72
data cartridge, HP DDS cleaning cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 72 SCSI External Tape Drive, installation poster, HP StorageWorks CD
DAT 72 SCSI External
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP Data Protector Express Single Server Edition software and its Bare
Metal Disaster Recovery option, SCSI cable (68-pin Wide VHD-HD LVD), LVD/SE SCSI
multi-mode terminator, power cord, HP DAT 72 data cartridge, HP DDS cleaning
cartridge.
DAT 72 SCSI Array Module, installation poster, HP StorageWorks CD (containing
DAT 72 SCSI Array
Module for Tape Array
electronic user's guide, drivers, and HP Library and Tape Tools software diagnostics),
5300
HP Data Protector Express Single Server Edition software and its Bare Metal Disaster
Recovery option, HP DAT 72 data cartridge, HP DDS cleaning cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 72 USB Internal Tape Drive, installation poster, HP StorageWorks CD (containing
DAT 72 USB Internal
electronic user's guide, drivers, and HP Library and Tape Tools software diagnostics),
HP Data Protector Express Single Server Edition software and its Bare Metal Disaster
Recovery option, standard USB cable, USB cable for internal ProLiant connect, USB
cable for internal connect to an Intel motherboard header, cable routing kit (for
connection to external USB 2.0 ports), screws, HP DAT 72 data cartridge, HP DDS
cleaning cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 72 USB External Tape Drive, installation poster, HP StorageWorks CD
DAT 72 USB External
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP Data Protector Express Single Server Edition software and its Bare
Metal Disaster Recovery option, integral USB cable, power cord, HP DAT 72 data
cartridge, HP DDS cleaning cartridge.
Single DAT 72 integrated in a 1U USB Rack-Mount enclosure with power supply and
DAT 72 USB 1U USB
Rack-Mount Kit
fan (up to 2 half-height tape drives supported), installation poster, HP StorageWorks
CD (containing electronic user's guide, drivers, and HP Library and Tape Tools
software diagnostics), HP Data Protector Express Single Server Edition software and its
Bare Metal Disaster Recovery option, integral USB cable, power cord, rail kit, HP DAT
72 data cartridge, HP DDS cleaning cartridge.
NOTE: Single drive installed in a 1U Rack-mount kit
NOTE: 0D1 will appear after this part number on your sales order if factory
integration into a rack is indicated.
DA - 11883
Worldwide — Version 25 — August 6, 2007
Part Number
Q1522B
Q1523B
Q1524C
DW026A
DW027A
AG594A
Page 20
QuickSpecs
HP StorageWorks Tape Drives
Kit Contents
HP StorageWorks DAT 160 Tape Drives
Description
Model
DAT 160 SCSI Internal Tape Drive, installation poster, HP StorageWorks CD
DAT 160 SCSI Internal
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP Data Protector Express Single Server Edition backup/recovery
software CD and the HP StorageWorks Data Protector Express Bare Metal Disaster
Recovery option, SCSI ribbon cable (68-pin wide HD LVD), HP DAT 160 data
cartridge, HP DAT cleaning cartridge II
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 160 SCSI External Tape Drive, installation poster, HP StorageWorks CD
DAT 160 SCSI External
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP Data Protector Express Single Server Edition backup/recovery
software CD and the HP StorageWorks Data Protector Express Bare Metal Disaster
Recovery option, SCSI cable (68-pin Wide VHD-HD LVD), LVD/SE SCSI multi-mode
terminator, power cord, HP DAT 160 data cartridge, HP DAT cleaning cartridge II.
DAT 72 SCSI Array Module, installation poster, HP StorageWorks CD (containing
DAT 160 SCSI Array
Module for Tape Array
electronic user's guide, drivers, and HP Library and Tape Tools software diagnostics),
5300
HP Data Protector Express Single Server Edition backup/recovery software CD and the
HP StorageWorks Data Protector Express Bare Metal Disaster Recovery option, HP
DAT 160 data cartridge, HP DAT cleaning cartridge II .
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 160 USB Internal Tape Drive, installation poster, HP StorageWorks CD
DAT 160 USB Internal
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP Data Protector Express Single Server Edition backup/recovery
software CD and the HP StorageWorks Data Protector Express Bare Metal Disaster
Recovery option, standard USB cable, USB cable for internal ProLiant connect, USB
cable for internal connect to an Intel motherboard header, cable routing kit (for
connection to external USB 2.0 ports), screws, HP DAT 160 data cartridge, HP DAT
cleaning cartridge II .
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 160 USB External Tape Drive, installation poster, HP StorageWorks CD
DAT 160 USB External
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP Data Protector Express Single Server Edition backup/recovery
software CD and the HP StorageWorks Data Protector Express Bare Metal Disaster
Recovery option, integral USB cable, power cord, HP DAT 160 data cartridge, HP
DAT cleaning cartridge II.
Single DAT 160 integrated in a 1U USB Rack-Mount enclosure with power supply and
DAT 160 USB 1U USB
Rack-Mount Kit
fan (up to 2 half-height tape drives supported), installation poster, HP StorageWorks
CD (containing electronic user's guide, drivers, and HP Library and Tape Tools
software diagnostics), HP Data Protector Express Server Edition software and its Bare
Metal Disaster Recovery option, integral USB cable, power cord, rail kit, HP DAT 160
data cartridge, HP DAT cleaning cartridge II .
NOTE: Single drive installed in a 1U Rack-mount kit
NOTE: 0D1 will appear after this part number on your sales order if factory
integration into a rack is indicated.
DA - 11883
Worldwide — Version 25 — August 6, 2007
Part Number
Q1573A
Q1574A
Q1575A
Q1580A
Q1581A
AG703A
Page 21
QuickSpecs
HP StorageWorks Tape Drives
Options
NOTE: This is a list of related options. Some may be discontinued.
64-Bit/133-MHz Single-Channel Ultra320 SCSI Adapter
Host Bus Adapters and
Controllers for ProLiant
HP Single channel U320 PCI-e SC11Xe Host Bus Adapter
Servers
NOTE: Please refer to the following web page for further information:
http://www.hp.com/go/connect
374654-B21
412911-B21
Host Bus Adapters and
Controllers for
AlphaServers
32-bit to LVD Single-Channel SCSI
64-bit Dual-Channel Ultra 3 LVD SCSI Adapter
NOTE: Please refer to the following web page for further information:
http://www.hp.com/go/connect
3X-KZPCA-AA
3X-KZPEA-DB
Controllers for Third-Party HP Single channel U320 PCI-e SC11Xe Host Bus Adapter
Servers
64-Bit/133-MHz Single-Channel Ultra320 SCSI Adapter
NOTE: Please refer to the following web page for further information:
http://www.hp.com/go/connect
412911-B21
374654-B21
Media
HP DDS-2 Data Cartridge, 8GB
HP DDS-3 Data Cartridge, 24GB
HP DDS-4 Data Cartridge, 40GB
HP DAT 72 Data Cartridge, 72GB
HP DAT 160 Data Cartridge, 160GB
HP DDS Cleaning Cartridge
HP DDS/DAT Cleaning Cartridge II
C5707A
C5708A
C5718A
C8010A
C8011A
C5709A
C8015A
Rack-Mount Options
1U Rack-Mount Kit
NOTE: 1U Rack-Mount Kit holds up to two internal DAT drives (and other tape
technologies).
NOTE: Please refer to the following web page for further information:
http://h18006.www1.hp.com/products/storageworks/1urackmount/index.html
1U USB Rack-Mount Kit
NOTE: Please refer to the following web page for further information:
http://h18006.www1.hp.com/products/storageworks/1urackmount/index.html
1U USB Cable Option Kit
NOTE: This cable kit can be purchased to convert a 1U SCSI rack-mount kit to a USB
interface to support the DAT USB drives. It includes 1 - 5 meter USB cable, 1- plastic
grommet, 1- metallic panel, and documentation. All pieces are pre-assembled for
easy implementation.
3U Rack-Mount Kit
NOTE: 3U Rack-Mount Kit holds up to four internal SCSI DAT drives (and other tape
technologies).
NOTE: Please refer to the following web page for further information:
http://h18006.www1.hp.com/products/storageworks/3urackmount/index.html
A7445B
DA - 11883
Worldwide — Version 25 — August 6, 2007
A8007A
396114-B21
274338-B22
Page 22
QuickSpecs
HP StorageWorks Tape Drives
Options
Tape Array 5300
NOTE: Tape Array 5300 holds up to four offline hot-swap DAT array modules (and
other tape technologies).
NOTE: Please refer to the following web page for further information:
http://www.hp.com/products1/storage/products/
tapebackup/tapearrays/tapearray5300/index.html
Cable Kits
C7508B
External SCSI Cable, 68-pin HD/68-pin VHDCI, 12ft/3.66m
SCSI Cable LVD, HVD or SE (Multimd) HDTS68 connector 0.5m
External SCSI Cable, 68-pin HD/68-Pin HD, 16.4ft/5m
SCSI Cable LVD, HVD or SE (Multimd) HDTS68 connector 2.5m
SCSI Cable LVD, HVD or SE (Multimd) HDTS68 connector 5m
341177-B21
C2978B
C2911C
C2924C
C7521A
SCSI Cable LVD, HVD or SE (Multimd) HDTS68 connector 10m
SCSI Cable LVD, HVD or SE (Multimd) VHDTS68/HDTS68 1m
SCSI Cable LVD, HVD or SE (Multimd) VHDTS68/HDTS68 2.5m
SCSI Cable LVD, HVD or SE (Multimd) VHDTS68/HDTS68 5m
SCSI Cable LVD, HVD or SE (Multimd) VHDTS68/HDTS6810m
C7522A
C2361B
C2362B
C2365B
C2363B
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 23
QuickSpecs
HP StorageWorks Tape Drives
Technical Specifications
Dimensions
Form Factor
Physical (HxWxD)
SCSI Internal
Physical (HxWxD)
USB Internal
Physical (HxWxD)
SCSI/USB External
Physical (HxWxD)
Array Module
Shipping (HxWxD)
SCSI Internal
Shipping (HxWxD)
USB Internal
Shipping (HxWxD)
SCSI External
Shipping (HxWxD)
USB External
Shipping (HxWxD)
Array Module
Weight
Out of box SCSI/USB
Internal
Out of box SCSI/ USB
External
Out of box Array Module
Shipping USB/SCSI
Internal
Shipping USB/SCSI
External
Shipping Array Module
Capacity
Native
Compressed
(assumes 2:1data
compression)
Buffer Size
DA - 11883
DAT 40
Half-height, 5¼ inches
(internal and array
module)
1.6 x 5.7 x 6.1 in
(4.0 x 14.5 x 15.5 cm)
1.6 x 5.7 x 6.1 in
(4.0 x 14.5 x 15.5 cm)
2.2 x 7.1 x 8.7 in
(5.7 x 18.1 x 22.2 cm)
1.6 x 6.3 x 11.2 in
(4.0 x 16.0 x 28.5 cm)
9.5 x 9.25 x 9.5 in
(24.0 x 23.5 x 24.0 cm)
9.5 x 9.25 x 9.5 in
(24.0 x 23.5 x 24.0 cm)
11.8 x 11.02 x 12.6 in
(30.0 x 28.0 x 32.0 cm)
11.8 x 11.02 x 12.6 in
(30.0 x 28.0 x 32.0 cm)
11.4 x 17.7 x 12.2 in
(29.0 x 45.0 x 31.0 cm)
DAT 72
Half-height, 5¼ inches
(internal and array
module)
1.6 x 5.7 x 6.1 in
(4.0 x 14.5 x 15.5 cm)
1.6 x 5.7 x 6.1 in
(4.0 x 14.5 x 15.5 cm)
2.2 x 7.1 x 8.7 in
(5.7 x 18.1 x 22.2 cm)
1.6 x 6.3 x 11.2 in
(4.0 x 16.0 x 28.5 cm)
9.5 x 9.25 x 9.5 in
(24.0 x 23.5 x 24.0 cm)
9.5 x 9.25 x 9.5 in
(24.0 x 23.5 x 24.0 cm)
11.8 x 11.02 x 12.6 in
(30.0 x 28.0 x 32.0 cm)
11.8 x 11.02 x 12.6 in
(30.0 x 28.0 x 32.0 cm)
11.4 x 17.7 x 12.2 in
(29.0 x 45.0 x 31.0 cm)
DAT 160
Half-height, 5¼ inches
(internal and array
module)
1.6 x 5.7 x 7 in
(4.0 x 14.5 x 17.7 cm)
1.6 x 5.7 x 7.2 in
(4.0 x 14.5 x 18.3 cm)
2.6 x 7.1 x 9.3 in
(6.7 x 18.1 x 23.6 cm)
1.6 x 6.3 x 11.2 in
(4.0 x 16.0 x 28.5 cm)
6.3 x 9.25 x 9.05 in
(16.0 x 23.5 x 23.0 cm)
6.3 x 9.25 x 9.05 in
(16.0 x 23.5 x 23.0 cm)
8.85 x 12.6 x 11.02 in
(22.5 x 32.0 x 28.0 cm)
8.85 x 12.6 x 11.02 in
(22.5 x 32.0 x 28.0 cm)
10.6 x 17.3 x 11.8 in
(27.0 x 44.0 x 30.0 cm)
DAT 40
2.1 lb (.95 kg)
DAT 72
2.1 lb (.95 kg)
DAT 160
2.7 lb (1.2 kg)
4.2 lb (1.90 kg)
4.2 lb (1.90 kg)
5 lb (2.25 kg)
3.2 lb (1.45 kg)
3.2 lb (1.44 kg)
3.1 lb (1.40 kg)
3.2 lb (1.44 kg)
3.1 lb (1.40 kg)
3.2 lb (1.44 kg)
6.4 lb (2.9 kg)
6.4 lb (2.9 kg)
6.4 lb (2.9 kg)
7.9 lb (3.6 kg)
7.9 lb (3.6 kg)
7.9 lb (3.6 kg)
DAT 40
20 GB
40 GB
DAT 72
36 GB
72GB
DAT 160
80GB
160GB
8 MB
8 MB
16 MB
Worldwide — Version 25 — August 6, 2007
Page 24
QuickSpecs
HP StorageWorks Tape Drives
Technical Specifications
Performance
Sustained Transfer Rate
(native) Where 1KB =
1,000 Bytes
Sustained Transfer Rate
(with 2:1 data
compression) Where 1KB
= 1,000 Bytes
Burst Transfer Rate (SCSI
interface) Where 1KB =
1,000 Bytes
Burst Transfer Rate (USB
interface)Where 1KB =
1,000 Bytes
Data Access Time
Average Load Time
Average Unload Time
Rewind Time
Reliability
DAT 40
3.2 MB/s*
DAT 72
3.2 MB/s*
DAT 160
6.9 MB/s*
6.4 MB/s*
6.4 MB/s*
13.8 MB/s*
6.4 MB/s
(asynchronous)
160 MB/s
(synchronous)
6.4MB/s
(asynchronous)
40 MB/s
(synchronous)
50 s
15 s
15 s
110 s (end to end)
6.4 MB/s
(asynchronous)
160 MB/s
(synchronous)
6.4MB/s
(asynchronous)
40 MB/s
(synchronous)
68 s
15 s
15 s
120 s (end to end)
6.9 MB/s
(asynchronous)
160 MB/s
(synchronous)
6.9MB/s
(asynchronous)
40 MB/s
(synchronous)
50 s
35 s
35 s
92 s (end to end)
Uncorrected Error Rate
DAT 40
125,000 hours
at 100% duty cycle
1x10-17 bits read
Recommended media
DAT 40
DDS-4 (155m)
DAT 72
DAT 72 (170m)
Backward read-write
compatibility
DDS-3 (125m)
DDS-2 (120m)
DDS-4 (155m)
DDS-3 (125m)
MTBF
Media
Tape Format
Recording Method
Recording Format
Data Compression
Error
Detection/Correction
Data Encoding Method
DA - 11883
DAT 40
4 mm helical scan
DDS-4, DDS-3, and
DDS-2
(ANSI/ISO/ECMA)
Lempel-Ziv (DCLZ)
Reed-Solomon
Partial Response
Maximum Likelihood
(PRML)
DAT 72
DAT 160
125,000 hours at 100% 125,000 hours at 100%
duty cycle
duty cycle
1x10-17 bits read
1x10-17 bits read
DAT 160
DAT 160
(150m, wide tape)
DAT 72 (170m)
DDS-4 (155m)
DAT 72
DAT 160
4 mm helical scan
8 mm helical scan
DAT 72, DDS-4, DDS-3 DAT 160, DAT 72, DDS(ANSI/ISO/ECMA)
4,
Lempel-Ziv (DCLZ)
Reed-Solomon
Lempel-Ziv (DCLZ)
Reed-Solomon
Partial Response
Maximum Likelihood
(PRML)
Partial Response
Maximum Likelihood
(PRML)
Worldwide — Version 25 — August 6, 2007
Page 25
QuickSpecs
HP StorageWorks Tape Drives
Technical Specifications
Interface
SCSI Interface
SCSI Connector
USB Interface
USB Connector
Termination - is only
required for the SCSI
product
Power Specifications
DAT 40
DAT 72
DAT 160
SCSI-3 Ultra 160 LVD
SCSI-3 Ultra 160 LVD
SCSI-3 Ultra 160 LVD
Internal: 68-pin wide HD Internal: 68-pin wide HD Internal: 68-pin wide HD
LVD
LVD
LVD
External: 68-pin wide
External: 68-pin wide
External: 68-pin wide
HDLVD, thumbscrew
LVDS, thumbscrew
LVDS, thumbscrew
Hot-plug: 80-pin SCA-2 Hot-plug: 80-pin SCA-2 Array module: 80-pin
(SCSI and power)
(SCSI and power)
EBBI
Array module: 80-pin
Array module: 80-pin
EBBI
EBBI
USB 2.0
USB 2.0
USB 2.0
USB standard series B
USB standard series B
USB standard series B
receptacle
receptacle
receptacle
No terminator is required for internal model (assumes use of terminated
cable).
External model requires termination with multimode terminator (included with
product).
SCSI Array module requires termination with multimode terminator (ordered
separately - p/n C2364A).
DAT 40
Power Requirements
+5V ± 5% (100mV Max
(SCSI-2 internal, hot-plug, ripple) @0.6A
and array module)
+12V ± 10% (150mV
Max ripple) @1.2A
Power Requirements (USB +5V ± 5% (100mV Max
and SCSI-3 internal, and ripple) @0.8A
array module)
+12V ± 10% (150mV
Max ripple) @0.3A
100 to 240 VAC, 50-60
Power Requirements
(external)
Hz, auto-ranging
Power consumption (SCSI) 7.3 Watts
(average)
Power consumption (USB) 7.3 Watts
(average)
DAT 72
DAT 160
+5V ± 5% (100mV Max
ripple) @0.6A
+12V ± 10% (150mV
Max ripple) @1.2A
+5V ± 5% (100mV Max +5V ± 5% (100mV Max
ripple) @0.8A
ripple) @1.1A
+12V ± 10% (150mV
+12V ± 10% (150mV
Max ripple) @0.3A
Max ripple) @0.4A
100 to 240 VAC, 50-60 100 to 240 VAC, 50-60
Hz, auto-ranging
Hz, auto-ranging
7.1 Watts
10.3 Watts
Environmental
Specifications
(all models)
Relative Humidity
5% to 95%
20% to 80%
-40° to 158° F/(-40° to 70° C)
41° to 104° F/(5° to 40° C)
Standards Compliance
cCSAus Certification to C22.2, No. 60950, TÜV EN60950 (IEC 60950), FCC and CE Declaration of
Conformity, C-TICK Approved (AS/NZS CISPR22), VCCI Approved, RRL Approved, BSMI Approved,
GOSH Approved
Temperature Range
DA - 11883
Storage
Operating
Storage
Operating
7.1 Watts
Worldwide — Version 25 — August 6, 2007
10.3 Watts
Page 26
QuickSpecs
HP StorageWorks Tape Drives
Technical Specifications
DAT 72 and DAT 40
drive LED Indicators (with Tape Ready Signal
2 LED indicators)
Tape LED
On steady
Tape Loading Signal
Flashing slowly
Tape Activity Signal
Flashing rapidly
Media Caution Signal
Off or
flashing
Error Condition Signal
Tape Ready
Signal
Tape Loading
Signal
Tape Activity
Signal
Meaning
The data cartridge is loaded and the
drive is ready.
Off
The cartridge is loading or unloading, or
power-on self-test is in progress
Off
The cartridge is loaded, activity is
occurring.
Flashing slowly If the media caution signal is displayed:
Off
OBDR Signal
DAT 160 drive LED
Indicators
(with 4 LED indicators)
Clean LED
Off
On steady
Both flashing slowly
in an alternating pattern
Ready
LED
On steady
Clean
LED
Off
Flashing
slowly
Flashing
rapidly
DA - 11883
The drive has detected that
cleaning is required tot maintain
good performance.
Wait for the current operation to
finish and clean the drive with an
appropriate cleaning media,
ensuring it has not expired.
Continue to use the drive as
before. If the signal repeats,
consider changing the data media
for new media when convenient.
Regular cleaning (every 24 hours
of tape pulling or weekly) can
prevent this signal being shown.
HP DAT drives perform a comprehensive
self-test during power-up. If a hard error
causes the self-test to fail, the clean light
changes to steady amber. Run HP Library
& Tape Tools to help diagnose the
problem.
The tape drive is in disaster recovery
mode, restoring the operating system.
Tape LED Drive LED
Off
Off
Off
Off
Off
Off
Off
Off
Meaning
The data cartridge is loaded and the
drive is ready.
The cartridge is loading or unloading,
or power-on self-test is in progress
The cartridge is loaded, activity is
occurring.
Worldwide — Version 25 — August 6, 2007
Page 27
QuickSpecs
HP StorageWorks Tape Drives
Technical Specifications
Cleaning
Advisory Signal
Media Caution
Signal
Drive Caution
Signal
Off or
flashing
Off or
flashing
Off or
flashing
Error Condition
Signal
DA - 11883
Off
Flashing
slowly
Off
Off
Off
Flashing
slowly
Off
Off
Off
If the cleaning advisory signal is
displayed:
The drive has detected that
cleaning is required to maintain
good performance.
Wait for the current operation to
finish and clean the drive with an
appropriate cleaning media,
ensuring it has not expired.
Continue to use the drive as
before. If the signal repeats,
consider changing the data
media for new media when
convenient.
Regular cleaning (every 24 hours
of tape pulling or weekly) can
prevent this signal being shown.
If the media caution signal is displayed:
The drive has detected that the
data media being used is likely to
be nearing the end of its life,
damaged or degraded.
It is recommended that once the
current operation is complete, the
drive is cleaned with appropriate
media and the data media
changed.
If required, the data from the
media flagged as suspect should
be transferred to a new media
cartridge.
Flashing If the drive caution signal is displayed:
slowly
The drive has detected that the
performance of the drive has
become degraded.
The is an unusual state which is
only triggered when there have
been issues with multiple data
media and the drive has been
cleaned regularly.
If this occurs, please use Library
and Tape Tools to perform further
diagnosis or contact HP support
for further advice.
On steady HP DAT drives perform a comprehensive
self-test during power-up. If a hard error
causes the self-test to fail, the clean light
changes to steady amber. Run HP
Library & Tape Tools to help diagnose
the problem.
Worldwide — Version 25 — August 6, 2007
Page 28
QuickSpecs
HP StorageWorks Tape Drives
Technical Specifications
OBDR Signal
Pulsing (2
flashes
followed
by a
pause)
The tape drive is in disaster recovery
mode, restoring the operating system.
© Copyright 2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 11883
Worldwide — Version 25 — August 6, 2007
Page 29
