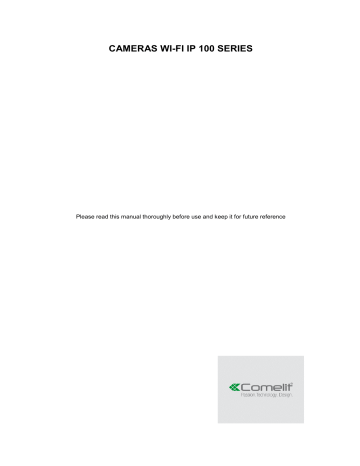

CAMERAS WI-FI IP 100 SERIES

Please read this manual thoroughly before use and keep it for future reference

Contents

1. Login Interface ........................................................................................................................................................ 1

2. Live view ................................................................................................................................................................. 2

2.1 Full-screen Preview ..................................................................................................................................... 2

2.2 Electronic Zoom-in ....................................................................................................................................... 2

2.3 PTZ Control ................................................................................................................................................. 3

3. Playback ................................................................................................................................................................. 4

4. Setup ...................................................................................................................................................................... 5

4.1 Device Info .................................................................................................................................................. 5

4.2 QR Code ..................................................................................................................................................... 6

4.3 ePTZ Setting................................................................................................................................................ 7

4.4 Display Settings ........................................................................................................................................... 7

4.5 Encoding ..................................................................................................................................................... 8

4.6 Video Parameters ........................................................................................................................................ 9

4.7 Motion Detection ........................................................................................................................................ 10

4.8 Video Tampering .........................................................................................................................................11

4.9 Privacy Mask ............................................................................................................................................. 12

4.10 Network Settings...................................................................................................................................... 12

4.11 Wifi Config ............................................................................................................................................... 13

4.12 Platform Management .............................................................................................................................. 15

4.13 Multicast Config ....................................................................................................................................... 15

4.14 DDNS Setting .......................................................................................................................................... 15

4.15 NTP Settings ........................................................................................................................................... 16

4.16 Email Settings .......................................................................................................................................... 17

4.17 FTP Settings ............................................................................................................................................ 18

4.18 Alarm Input .............................................................................................................................................. 18

4.19 Alarm Out ................................................................................................................................................ 19

4.20 Exception Settings ................................................................................................................................... 20

4.21 User Info .................................................................................................................................................. 21

4.22 System Update ........................................................................................................................................ 22

4.23 Auto Reboot ............................................................................................................................................. 22

4.24 Storage Management .............................................................................................................................. 23

4.25 Restore .................................................................................................................................................... 23

4.26 Local Setting ............................................................................................................................................ 24

5. File Management .................................................................................................................................................. 25

5.1 Search ....................................................................................................................................................... 25

5.2 Playback Capture ...................................................................................................................................... 25

5.3 Backup ...................................................................................................................................................... 25

5.4 Linkage Capture ........................................................................................................................................ 25

5.5 Preview Capture ........................................................................................................................................ 26

5.6 File Capture ............................................................................................................................................... 26

5.7 Preview Videos .......................................................................................................................................... 26

5.8 Backup Video Play ..................................................................................................................................... 26

6. Log ....................................................................................................................................................................... 26

7. Exit ....................................................................................................................................................................... 27

Statement

The instruction is for guidance only. Detailed information is in accordance with the product.

The instruction may include some technical inaccuracies or typographical error thought it is prepared with our every effort.

The product or procedures described in the instruction may be changed or updated at any time without advance notice.

Screenshots used in the instruction are from the other machine and are only for indications and explanations.

For any doubts or to request documents about latest procedures and complementary notes, please consult with the after-sales service department.

Precautions

The followings describe information about correct usage and risk prevention as well property loss prevention to be strictly followed.

Please use web cameras in an environment within allowable temperature (-10°C to +50°C) and humidity.

Check if the power supply works normally before operation.

Do not furiously strike on the product and be careful not to fall it over.

Do not install the product in a dusty or moist place, or a place with strong electromagnetic radiation.

Do not place a container or others with liquid on the product or allow liquid flowing into inside the product.

When the product is left unused, place install the preventive dust cover for the image sensor.

Do not disassemble the product without authorization.

1. Login Interface

Input the IP address of the front-end device into the IE browser (default IP address is 192.168.1.188) to access the Login interface, as shown in the following figure:

After entering into the login interface, it will prompt to install the Activex control, as shown in the following figure:

User Name: admin (default setting)

Password: blank (default setting)

Model: IE ActiveX or Non ActiveX. If you use IE browser, then please select IE ActiveX to login. While you use other browsers, then select Non ActiveX to login. (Note: Select Non ActiveX without installing ActiveX control)

Select Language: select the desired language

Click Submit to login.

1

2. Live view

After login, it will enter into the live preview, as shown in the following figure.

Note:The device need to insert micro-SD card for full function display interface, otherwise, it's for simple type interface.

2.1 Full-screen Preview

Click the full-screen icon in the lower right corner to preview full screen. Or you can click right mouse button to enter and exit the full screen display in the preview interface.

2.2 Electronic Zoom-in

It can zoom in the preview image by scrolling the mouse wheel, as shown in the following figure:

2

2.3 PTZ Control

Zoom In/ Out: To adjust degree of zoom in/ out

Focus: To adjust size of focus

Iris: To adjust size of aperture

Speed: Use the slider to regulate the PTZ speed

Bright: To adjust the brightness of the screen

Contrast: To adjust the contrast of the screen

The arrow is used to restore default settings.

Set A Preset Point:Set a preset point by using directional keys on the PTZ control to rotate the camera to the desired location, next select a preset number from the Preset Point drop-down list, and then press button.

Call A Preset Point: Call a preset point by selecting a preset number to be called from the Preset Point drop-down list and press button.

VOICE INTERCOM

Full Screen

Capture

Event Type

Record

Voice Intercom: Click it to enable or disable voice intercom

Capture: Capture for preview. Click the capture icon, it will pop up its storage path automatically.

Full Screen: Display the current preview in full screen

Record: Enable or disable preview interface record

Event Type: Enable or disable disarming/ clear alarm

Note: X indicates the function is off or disabled

3

3. Playback

Click Playback enter into playback interface, click the icon video in need, then click the icon

, next select the date time of the calling

, the record video will search automatically, as shown in the following figure:

Start: Start the current playback

Stop: Stop the current playback

Slow

：

Slow down the playback speed(1/2, 1/4, 1/8, 1/16 times optional)

Fast

：

Speed up the playback speed(2, 4, 8, 16 times optional)

Snapshot: Can be snapshot in playback channel

Backup

：

Can be backup video in playback channel

Frame Play

：

Single frame to play

Full Screen: Playback video will display with full screen

Voice: Adjust the volume of playback audio

Double-click the slider location, it will start to paly the video, or you can click the Start button to playback video.

Note: The device need to support and insert micro-SD card to enable this function.

4

4. Setup

Note:the device need to insert micro-SD card for full function display interface, otherwise, it's for simple type interface

4.1 Device Info

IP Camera Device Info interface as shown in the following figure:

Device Name: Edit the camera name

Device Type: Display the device type

Serial No. : Display the product serial No.

Master Version: Display the software version date

Hardware Version: Display the hardware version number

Audio Source: Select the audio input mode, LineIn or MicIn selectable

Input Volume: Set the size of the input volume

， the range of volume:0-100, default is 50

5

Output Volume: Set the size of the output volume

， the range of volume:0-100, default is 50

Format: Switch to select the PAL and NTSC image scanning system

Device Time: Set and display the device current time

After complete all parameters setting, click Save and then it will take effect immediately.

4.2 QR Code

Scan the QR code to login directly via mobile phone client, the IP camera QR code interface as shown in the following figure:

Note: after enable the corresponding protocol in the platform management interface, then the QR code icon will display. QR code supported: Comelit View 100. During the platform management interface, Comelit View 100_ID protocol should be matched with Comelit View 100 client.

6

4.3 ePTZ Setting

IP Camera ePTZ Set interface as shown in the following figure:

Protocol: Support PelcoD and PelcoP protocol

Address: Support 0-255 address code adjustable

Baud Rate: Support diverse baud rate selectable

After complete all parameters setting, click Save and then it will take effect immediately.

4.4 Display Settings

IP Camera Display Settings interface as shown in the following figure.

7

Name: Modify the appointed channel name

Main Stream OSD: Modify the appointed channel font of main stream OSD

Sub Stream OSD: Modify the appointed channel font of sub stream OSD

Multi OSD:Add multi user-defined OSD, it can be selected Show or not

Time Format: Select different time display mode for the appointed channel

Date Format: Select different date display mode for the appointed channel

Bright: Adjust the brightness for the appointed channel

Contrast: Adjust the contrast for the appointed channel

Saturation: Adjust the saturation for the appointed channel

Hue: Adjust the hue for the appointed channel

CH(Title Location): Set the channel title location for the appointed channel

OSD(Date Adjustment): Set the channel date location for the appointed channel

Multi OSD(position adjustment):Set the position of multi OSD

Cyclotron Arrow: Restore the default parameters(Only for Bright, Contrast, Saturation and Hue)

After complete all parameters setting, click Save and then it will take effect immediately.

4.5 Encoding

IP Camera Encoding setting interface as shown in the following figure:

Compress Type: Primary Stream(Normal)/ Sub Stream selectable

Stream: Include complex stream/ video stream two types

Resolution: The camera supports several relolution, will display here

Frame Rate: Select different frame rate in the drop-down list, default is Full Frame

Video Encode: H.264/ MJPEG two kinds of video encode format

H264 Profile: There are MainProfile/ Baseline/ HighProfile three types optional

I frame Interval: Set the I frame interval time

Bitrate Type: Constant/ Variable selectable

Bitrate: Set different bitrate for different channels

After complete all parameters setting, click Save and then it will take effect immediately.

8

4.6 Video Parameters

IP Camera Video Parameters setting interface as shown in the following figure:

Day&Night Mode: Outside Trigger/ Auto/ Color/ Black White four kinds of mode selectable. Non infrared IP cameras default mode is Auto, and infrared IP cameras default mode is Outside Trigger. According to the IP camera type and actual scene, user can select the Day&Night mode optional

Switching Time: Day&Night switch delay time, 0-30s selectable, and default is 3s

Day-Night: 0-255 selectable, users can adjust it according to the need, default is 45

Night-Day: 0-255 selectable, users can adjust it according to the need, default is 119

Color Mode: Normal/ Bright/ Nature three options, default is Normal

Mirror: Close/ Horizonal Mirror/ Vertical Mirror/ 180° Rotation/90° Rotation/270° Rotation six options, default is

Close

WDR: Close/ Low/ Mid/ High four options, default is Close

3DNR: Close/ Low/ Mid/ Mid-High/ High five levels, default is Close

Sharpness: 0-255 selectable, default is 128

Exposure Control Mode: Auto/ Manual selectable, default is Auto

AGC: Low/ Mid-Low/ Mid/ Mid-High/ High selectable, default is Mid-High. The higher Auto Gain value, the better sensitivity within low illumination, while the noise will be more obvious

Shutter: Manual exposure can be set up, the range of shutter value: 1/30(25)-1/10000

Gamma: CURVE_1_6, CURVE_1_8, CURVE_2_0, CURVE_2_2 totally four modes, default is CURVE_2_0

Anti-Fliker: Close, 50hz, 60hz three types, the default is Close

Aperture: According to the IPC lens type, it can select Manual or Auto for the aperture adjustment, default is

Manual

After complete all parameters setting, click Save, the settings will take effect immediately.

9

4.7 Motion Detection

IP Camera Motion Detection setting interface as shown in the following figure:

Enable: Select whether to enable the Motion Detection function.

Arm Schedule: Set the alarm schedule from Monday to Sunday

Mask Set: Press and darg the left mouse button in the Mask Set preview interface, then draw the small check optional to set the detective areas

Clear: Click Clear to clear the current detective areas

Sensitivity: The higher sensitivity, the more obvious motion detective effect

Email: Click Email. Once alarm triggers that it will send Email to appointed mailbox

Snap: Click Snap. Once alarm triggers that it will linkage camera to snapshot picture and store it in the micro-SD card

Record: Click Record.Once alarm triggers that it will linkage camera to record video and restore it in the micro-SD card.

Alarm Output: There is a active warner connected to the alarm output port. Once alarm triggers that it will linkage embedded relay switch to make alarm output

Snap Interval: Set the alarm interval time

Snap Count: Set the snapshot image count for every time

After complete all parameters setting, click Save, the settings will take effect immediately.

10

4.8 Video Tampering

IP Camera Video Tampering setting interface as shown in the following figure:

Enable: Select whether to enable the Video Tampering function.

Arm Schedule: Set the alarm schedule from Monday to Sunday

Mask Set: Press and darg the left mouse button in the Mask Set preview interface, then draw the small check optional to set the detective areas

Clear: Click Clear to clear the current detective areas

Sensitivity: The higher sensitivity, the more obvious motion detective effect

Email: Click Email. Once alarm triggers that it will send Email to appointed mailbox

Snap: Click Snap. Once alarm triggers that it will linkage camera to snapshot picture and store it in the micro-SD card

Record: Click Record. Once alarm triggers that it will linkage camera to record video and restore it in the micro-SD card.

Alarm Output: There is a active warner connected to the alarm output port. Once alarm triggers that it will linkage embedded relay switch to make alarm output

Snap Interval: Set the alarm interval time

Snap Count: Set the snapshot image count for every time

After complete all parameters setting, click Save, the settings will take effect immediately.

11

4.9 Privacy Mask

IP Camera Privacy Mask setting interface as shown in the following figure:

Enable: Enable or disable the Privacy Mask function

Area Settings: Press and drag the left mouse button in the Area Settings preview interface, then draw the check optional to set the mask area

Clear: Click Clear to delete the current mask area

After complete all parameters setting, click Save and then the settings will take effect immediately.

4.10 Network Settings

IP Camera Network Settings interface as shown in the following figure:

IPV4: IP protocol version No. is 4

IPV6: IP protocol version No. is 6, the feature is not selectable at present

12

Static IP: The device IP address is permanent

DHCP: Enable DHCP, then IP camera will get the IP address from router automatically

IP Address: Input the corresponding numbers to change the IP address

Subnet Mask: Input the corresponding IP subnet mask

Gateway: Input the corresponding gateway address

DNS 1: DNS server IP address

DNS2: DNS server second IP address

HTTP Port: Input the corresponding port ( Default is 80)

HTTPS Port: Input the corresponding port ( Default is 443)

RTSP Port: Use domain name to access and login device need mapping RTSP, default port is 554

RTMP Port: Use domain name to access and login device need mapping RTMP, default port is 1935

Enable UPnp: Enable UPNP, then device port and HTTP port will be mapped to the router automatically

Device Port: Input the corresponding device port(Default is 5050)

After complete all parameters setting, click Save, then the settings will take effect immediately.

4.11 Wifi Config

IP Camera Wifi Config interface as shown in the following figure:

Work Mode: Show the current work mode, there are two work modes optional.AP mode supports matching WIFI via cell phone client and STA mode supports matching WIFI via web client of PC.

Current Status:

Work Mode: Show the current work mode for IPC

SSID: Show the serial number for IPC

AUTH: Show the Wifi authentication method for the current router connected

IP: Show the current wireless IP address for IPC

Wifi Config: Can set specific configuration for Wifi connection in the AP List and Connect Config, the steps to

13

configure as follow:

1. Search Wifi device: Copy the SSID serial number in the Current Status to the blank of SSID part in the

Connect Config, click Save, will automatically switch to STA mode, click Refresh, then AP List will display all the

Wifi device names within the acceptable range, as shown in the following figure:

2. Connect Wifi: click the current Wifi device (that is wireless router) connected via network cable at the IPC, select the AUTH method for router in the Connect Config, then input password and select IP mode (Static: fixed IP settings,

DHCP: assign IP address automatically by router). After finishing above settings, click Save . Click Connect in the AP

List and the wireless IP address will be generated and displayed in the IP position of Current Status, as shown in the following figure:

14

4.12 Platform Management

IP camera Platform Management interface as shown in the following figure:

User can open, close, edit and delete the protocol in the Management Platform interface.

4.13 Multicast Config

IP Camera Multicast Config interface as shown in the following figure:

Default disabling for multicast config. After click"Enable Multicast", users can set IP address,Port and TTL of primary stream video,primary stream audio, sub stream video, sub stream audio.

4.14 DDNS Setting

DDNS is implemented through a dynamic domain resolution server. It requires a PC running in the Server

15

with fixed IP address on the Internet. IP Camera network setting interface as below figure:

Enable DDNS: Enable or Disable DDNS function

Server Type: Select DDNS server type

Server Name: Input server name

Port: Input port.default port is 80

User Name: Input user name

Password: Input password (max 10 char.)

Confirm pwd: Input the password again to confirm it

Domain: Input the hostname

After complete parameters setting, click Save and then the settings will take effect immediately.

4.15 NTP Settings

IP Camera NTP Settings interface as shown in the following figure:

16

Enable NTP: Enable or disable NTP function

Server Address: Input NTP server IP address

NTP Port: Default port is 123

Adjust Time Interval: Input the interval time

Select Time Zone: Different area time format selectable

GMT: Adjust the time to make it more exact

After complete all parameters setting, click Save, then the settings will take effect immediately.

4.16 Email Settings

IP Camera Email Settings interface as shown in the following figure:

(sent)Email Address: Input the address of the outbox

Password: Input the the password of the outbox

17

Confirm pwd: Input the password again to confirm it

(send)SMTP Server: Input the smtp server address of the outbox

SMTP Port: Input the smtp server port of the outbox

Sending Interval: Input the sending interval time. There are 25S/ 35S/ 45S/ 55S four options

Receiver: Input the mail receiver name

Email Address: Input the address of the inbox

After complete all parameters setting, click Save and then the settings will take effect immediately.

4.17 FTP Settings

IP Camera FTP Settings interface as shown in the following figure:

Enable: Click Enable to enable or disable FTP function

Server Address: Input the server address required to upload

Port: Input the server port, default is 21

User Name: Input the user name required to upload

Password: Input the password required to upload

Path: Input the file name of FTP uploading path

After complete all parameters setting, click Save and then the settings will take effect immediately.

4.18 Alarm Input

IP Camera Alarm Input setting interface as shown in the following figure:

18

Alarm Input: Select the alarm input port, then click

Alarm In Name: Input alarm input name can implement following parameters settings

Trigger: Select the alarm status: Normally Open/ Normally Close

Arm Schedule: Alarm schedule can be set from Monday to Sunday

Email: Click Email. Once alarm triggers that it will send Email to appointed mailbox

Snap: Click Snap. Once alarm triggers that it will snapshot current image picture

Record: Click Record. Once alarm triggers that it will record video automatically

Alarm Output: Click Alarm Output. There is a active warner connected to the alarm output port. Once alarm triggers that it will linkage embedded relay switch to make alarm output

Snap Count: Set the snapshot image count for every time

Snap Interval: Set the alarm interval time

After complete all parameters setting, click Save, the settings will take effect immediately.

4.19 Alarm Out

IP Camera Alarm Out setting interface as shown in the following figure:

19

Output Relay Status: Normally Open/ Normally Close selectable

Output Delay: Select the alarm output delay time(when alarm trigger is over, it will output corresponding alarm delay time)

After complete all parameters setting, click Save and the settings will take effect immediately.

4.20 Exception Settings

IP Camera Exception Settings interface as shown in the following figure:

20

Exception Type: There are Network Broken/ IP Address Conflict/ Illegal Access/ three exception types selectable

Record: Click Record, it will linkage to record video as any exception type triggers

Alarm Output: Click Alarm Output, it will Linkage other alarm devices as any exception type triggers

After complete all parameters setting, click Save and then the settings will take effect immediately.

4.21 User Info

IP Camera User Info setting interface as below figure, admin is the administrator (default), default indicates general users.

Modify: The admin user can modify the login password, the default guest user can modify user type. While the new added user can modify user name, login password and user type. Otherwise, the new added user can select

Guest/Operator two types, and set the different permission assignment in the Right Permission setting

Del: Delete the new user

Rights Permission: Permission assignment for the default guest user and new user

Add User: Add a new user in need

Start up and login permission is accord with default user permission(default), as shown in the following figure:

After complete all parameters setting, click Save and then the seetings will take effect immediately.

21

4.22 System Update

IP Camera System Update setting interface as shown in the following figure:

File: Click Browse to find and select the upgrade kit, then click Update.

NOTE: To upgrade must first be uploaded the file whose name starts with (Main fw), then the one whose name

starts (Sub fw). After the upgrade is mandatory to restore the camera to the factory configuration (default)

Non-technician should not try to operate system upgrade, do not cut off the power during upgrade process.

4.23 Auto Reboot

IP Camera Auto Reboot setting interface as below figure. Select Maintenance Mode, there are Disable/ Every

Day/ Every Week/ Once four modes optional, then IPC will reboot as appointed mode.

22

4.24 Storage Management

IP Camera Storage Management setting interface as below figure, you can check current micro-SD card

Capacity(MB)/ Free Spare (MB)/ Status, and format. As shown in the following figure:

Note: Please turn off the power supply, before you insert or take out the micro-SD card.

4.25 Restore

IP Camera Restore setting interface as shown in the following figure:

Export: Export all configurations to PC or USB

Import Config: Import selected configuration to the system

Restore: Restore the factory settings

Reboot: Reboot the device

23

4.26 Local Setting

IP Camera Local Setting interface as shown in the following figure:

Window Mode: Set the preview window mode(Full/ 4:3/ 16:9/ Original Image optional)

Preview Capture: Select and modify the preview capture file storage path

Playback Capture: Select and modify the video record capture file storage path

File Capture: Select and modify the file management capture file storage path

Back Up: Select and modify video record backup file storage path

Rec Capture: Select and modify the preview interface video record file storage path

Record File Type: Only AVI format one option for default

Live View Mode: Realtime/ Smoothway two types selectable, the value of them can be adjustable

After complete all parameters settings, click Save and then the settings will take effect immediately.

24

5. File Management

Note:The device need to insert micro-SD card for full function display interface, otherwise, it's for simple type interface.

5.1 Search

Input the concrete time, and click the button, the lower part displays searched images and videos

(double click to display files)

Note: It can modify video or image storage path, and later chapter will make a brief instruction (more details please refer to

：

Setup Local Setting)

5.2 Playback Capture

To review video record playback capture files, search and double click the image files directly.

5.3 Backup

To review playback video files, search and double click the video files directly.

5.4 Linkage Capture

To review motion detection, tampering alarm, alarm output, ect. alarm linkage capture files, search and double

25

click the image files directly.

5.5 Preview Capture

To review preview capture files, search and double click the image files directly.

5.6 File Capture

To review capture files in file management, search and double click the image files directly.

5.7 Preview Videos

To review preview interface video record files, search and double click the video files directly.

5.8 Backup Video Play

Start: Click button to play the backup video image file

Stop: Click button to stop the play

Slow: Click button to slow play the backup video image file

Fast: Click button to fast play the backup video image file

Frame: Click button to play the backup video image file by frame

Capture: Click button to snap the backup video image during display

Voice: Click button to select turn on/ off the voice during backup video image display

6. Log

Click Search on the Log interface, check device log according to the video type and date time, as shown in the below figure:

26

Main Type: Select the log type to check. There are All/ Alarm/ Exception Settings/ Operation / Setup optional, or click All to check all types of them

Start Time/ End Time: Select the time quantum of log to check

Page Num

：

Select the log number of each page to display on the interface

After finishing all settings above, click Search and then the log information will display on the left blank area

7. Exit

Click Logout to log out, as shown in the following figure:

27
