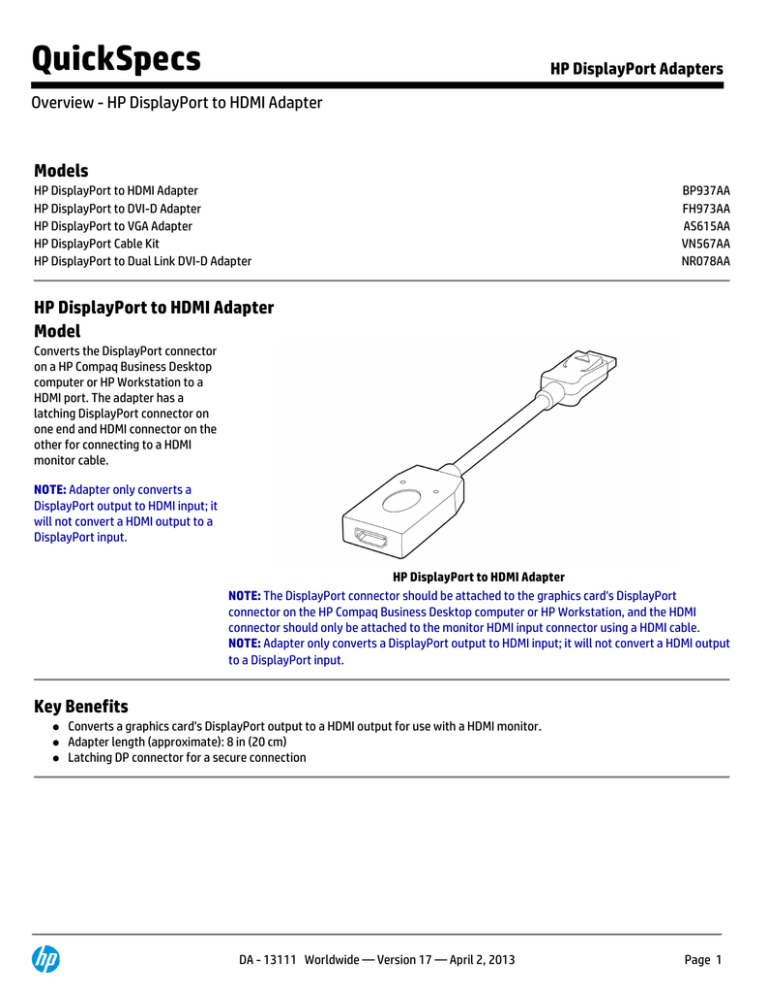

QuickSpecs
HP DisplayPort Adapters
Overview - HP DisplayPort to HDMI Adapter
Models
HP DisplayPort to HDMI Adapter
HP DisplayPort to DVI-D Adapter
HP DisplayPort to VGA Adapter
HP DisplayPort Cable Kit
HP DisplayPort to Dual Link DVI-D Adapter
BP937AA
FH973AA
AS615AA
VN567AA
NR078AA
HP DisplayPort to HDMI Adapter
Model
Converts the DisplayPort connector
on a HP Compaq Business Desktop
computer or HP Workstation to a
HDMI port. The adapter has a
latching DisplayPort connector on
one end and HDMI connector on the
other for connecting to a HDMI
monitor cable.
NOTE: Adapter only converts a
DisplayPort output to HDMI input; it
will not convert a HDMI output to a
DisplayPort input.
HP DisplayPort to HDMI Adapter
NOTE: The DisplayPort connector should be attached to the graphics card's DisplayPort
connector on the HP Compaq Business Desktop computer or HP Workstation, and the HDMI
connector should only be attached to the monitor HDMI input connector using a HDMI cable.
NOTE: Adapter only converts a DisplayPort output to HDMI input; it will not convert a HDMI output
to a DisplayPort input.
Key Benefits
Converts a graphics card's DisplayPort output to a HDMI output for use with a HDMI monitor.
Adapter length (approximate): 8 in (20 cm)
Latching DP connector for a secure connection
DA - 13111 Worldwide — Version 17 — April 2, 2013
Page 1
QuickSpecs
HP DisplayPort Adapters
Overview - HP DisplayPort to HDMI Adapter
Compatibility
The HP DisplayPort to HDMI Adapter supports the products listed below if they have a DisplayPort connector in the back of the system
or if they have a graphics card installed that has a DisplayPort connector. DisplayPort outputs are sometimes notated by the DP++
icon. It supports all HP monitors that feature a HDMI interface.
HP Compaq 6000 Pro MT, HP Compaq 6000 Pro SFF, HP Compaq 4300 Pro SFF, HP Compaq 6005 Pro MT, HP Compaq 6005 Pro SFF, HP
Compaq 6005 Pro USDT, HP Compaq 6200 Pro MT, HP Compaq 6200 Pro SFF, HP Compaq 6300 Pro MT, HP Compaq 6300 Pro SFF, HP
Compaq 6300 Pro AiO, HP Compaq 8200 Elite SFF, HP Compaq 8200 Elite CMT, HP Compaq 8200 Elite MT, HP Compaq 8200 Elite USDT,
HP Compaq 8300 Elite CMT, HP Compaq 8300 Elite MT, HP Compaq 8300 Elite SFF, HP Compaq 8300 Elite USDT, HP Compaq 8300 Pro
AiO, HP Compaq 6305 Pro MT, HP Compaq 6305 Pro SFF, and HP rp5800 Retail System.
HP xw4600, xw9400, Z400, Z600 and Z800 Workstations, HP TouchSmart 9100.
NOTE: Please check this product's web page on HP.com for current compatibility information.
NOTE: Not all models are available in all regions.
Spares information
HP DisplayPort to HDMI Adapter
617450-001
Service and Support
The DisplayPort to HDMI Adapter has either a one-year limited warranty or the remainder of the warranty of the HP product in which it
is installed. Technical support is available seven days a week, 24 hours a day, by phone, as well as online support forums. Certain
restrictions and exclusions apply.
Technical Specifications
Connectors
DisplayPort plug and HDMI receptacle
Adapter length
(approximate)
Adapter weight
8.0 in (20.0 cm)
Option kit contents
HP DisplayPort to HDMI Adapter, documentation
0.10 lbs (0.05 kg)
DA - 13111 Worldwide — Version 17 — April 2, 2013
Page 2
QuickSpecs
HP DisplayPort Adapters
Overview - DisplayPort to DVI-D Adapter
HP DisplayPort to DVI-D Adapter
Model
Converts the DisplayPort connector
on a HP Compaq Business Desktop
computer or HP Workstation to a
single link DVI-D port. The adapter
has a latching DisplayPort connector
on one end and DVI-D connector on
the other for connecting to a DVI-D
monitor cable.
HP DisplayPort to DVI-D Adapter
NOTE: The DisplayPort interface should be attached to the graphics card DisplayPort Adapter on
the HP Compaq Business Desktop computer or HP Workstation, and the DVI-D connection should
only be attached to the monitor DVI-D interface.
NOTE: Adapter only converts a DisplayPort output to DVI-D input; it will not convert a DVI-D
output to a DisplayPort input.
Key Benefits
Converts a graphics card's DisplayPort output to a DVI output for use with a Single Link DVI-D monitor.
Adapter length (approximate): 8 in (20 cm)
Latching DP connector for a secure connection
DA - 13111 Worldwide — Version 17 — April 2, 2013
Page 3
QuickSpecs
HP DisplayPort Adapters
Overview - DisplayPort to DVI-D Adapter
Compatibility
The HP DisplayPort to DVI-D Adapter supports the products listed below if they have a DisplayPort connector in the back of the system
or if they have a graphics card installed that has a DisplayPort connector. DisplayPort outputs are sometimes notated by the DP++
icon. It supports all HP monitors that feature single link DVI interface.
HP Compaq 6000 Pro MT, HP Compaq 6000 Pro SFF, HP Compaq 4300 Pro SFF, HP Compaq 6005 Pro MT, HP Compaq 6005 Pro SFF, HP
Compaq 6005 Pro USDT, HP Compaq 6200 Pro MT, HP Compaq 6200 Pro SFF, HP Compaq 6300 Pro MT, HP Compaq 6300 Pro SFF, HP
Compaq 6300 Pro AiO, HP Compaq 8200 Elite SFF, HP Compaq 8200 Elite CMT, HP Compaq 8200 Elite MT, HP Compaq 8200 Elite USDT,
HP Compaq 8300 Elite CMT, HP Compaq 8300 Elite MT, HP Compaq 8300 Elite SFF, HP Compaq 8300 Elite USDT, HP Compaq 8300 Pro
AiO, HP Compaq 6305 Pro MT, and HP Compaq 6305 Pro SFF.
HP xw4600, xw9400, Z400, Z600 and Z800 Workstations, HP TouchSmart 9100, HP rp5800 Retail System.
NOTE: Please check this product's web page on HP.com for current compatibility information.
NOTE: Not all models are available in all regions.
Spares information
HP DisplayPort to DVI-D Adapter
662727-001
Service and Support
The DisplayPort to DVI-D Adapter has either a one-year limited warranty or the remainder of the warranty of the HP product in which it
is installed. Technical support is available seven days a week, 24 hours a day, by phone, as well as online support forums. Certain
restrictions and exclusions apply.
Technical Specifications
Connectors
DisplayPort and DVI-D single link connector
Adapter length
7.5 in (19.0 cm)
Adapter weight
0.10 lbs (0.05 kg)
Option kit contents
HP DisplayPort to DVI-D Adapter, documentation
DA - 13111 Worldwide — Version 17 — April 2, 2013
Page 4
QuickSpecs
HP DisplayPort Adapters
Overview - DisplayPort to VGA Adapter
HP DisplayPort to VGA Adapter
Model
HP DisplayPort to VGA Adapter
Converts the DisplayPort connector
on a HP Compaq Business Desktop
computer or HP Workstation to a VGA
port. The adapter has a latching
DisplayPort connector on one end
that connects to the graphics source
and VGA connector on the other for
connecting to a VGA monitor cable.
AS615AA
HP DisplayPort to VGA Adapter
NOTE: The DisplayPort interface should be attached to the graphics card DisplayPort Adapter on
the HP Compaq Business Desktop computer or HP Workstation and the VGA connection should
only be attached to the monitor VGA interface.
NOTE: Adapter only converts a DisplayPort output to VGA input; it will not convert a VGA output
to a DisplayPort input.
Key Benefits
Converts a graphics card's DisplayPort output to a VGA output for use with a VGA monitor.
Adapter length (approximate): 8 in (20 cm)
Latching DisplayPort connector for a secure connection
Compatibility
The HP DisplayPort to VGA Adapter supports the products listed below if they have a DisplayPort connector in the back of the system
or if they have a graphics card installed that has a DisplayPort connector. DisplayPort outputs are sometimes notated by the DP++
icon. It supports all HP monitors that feature VGA interface.
HP Compaq 6000 Pro MT, HP Compaq 6000 Pro SFF, HP Compaq 4300 Pro SFF, HP Compaq 6005 Pro MT, HP Compaq 6005 Pro SFF, HP
Compaq 6005 Pro USDT, HP Compaq 6200 Pro MT, HP Compaq 6200 Pro SFF, HP Compaq 6300 Pro MT, HP Compaq 6300 Pro SFF, HP
Compaq 6300 Pro AiO, HP Compaq 8200 Elite SFF, HP Compaq 8200 Elite CMT, HP Compaq 8200 Elite MT, HP Compaq 8200 Elite USDT,
HP Compaq 8300 Elite CMT, HP Compaq 8300 Elite MT, HP Compaq 8300 Elite SFF, HP Compaq 8300 Elite USDT, HP Compaq 8300 Pro
AiO, HP Compaq 6305 Pro MT, and HP Compaq 6305 Pro SFF.
HP xw4600, xw9400, Z400, Z600, Z800 Workstations, HP TouchSmart 9100, HP rp5800 Retail System.
NOTE: Please check this product's web page on HP.com for current compatibility information.
NOTE: Using the HP DisplayPort to VGA Adapter may require an update to the graphics driver installed on your system. To install the
most up-to-date graphics driver go to: www.hp.com.
NOTE: Not all models are available in all regions.
DA - 13111 Worldwide — Version 17 — April 2, 2013
Page 5
QuickSpecs
HP DisplayPort Adapters
Overview - DisplayPort to VGA Adapter
Spares information
HP DisplayPort to VGA Adapter
663103-001
Service and Support
The HP DisplayPort to VGA Adapter has either a one-year limited warranty or the remainder of the warranty of the HP product in which
it is installed. Technical support is available seven days a week, 24 hours a day, by phone, as well as online support forums. Certain
restrictions and exclusions apply.
Technical Specifications
Connectors
DisplayPort and VGA connector
Adapter length
8 in (20 cm)
Adapter weight
0.1 lbs (0.06 kg)
Option kit contents
HP DisplayPort to VGA Adapter, documentation
Maximum vertical refresh 85 Hz
rate
Display support
162 MHz RAMDAC
Display max resolution
1600x1200
HP DisplayPort to VGA adapter display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Using the
HP DisplayPort to VGA Adapter may require an update to the graphics driver installed on your system. To install the most up-to-date
graphics driver go to: www.hp.com.
Resolution
Max refresh rate
640x480
85
800x600
85
1024x768
85
1280x720
85
1280x1024
85
1440x900
75
1600x1200
60
1680x1050
60
1920x1080
60-R
1920x1200
60-R
NOTE: 60-R denotes reduced blanking timings are used. Not all monitors support reduced blanking timing.
DA - 13111 Worldwide — Version 17 — April 2, 2013
Page 6
QuickSpecs
HP DisplayPort Adapters
Overview - DisplayPort Cable Kit
HP DisplayPort Cable Kit
Model
HP DisplayPort Cable Kit
VN567AA
Connects a DisplayPort connector on
an HP Business Desktop computer to
a DisplayPort connector on a
monitor.
HP DisplayPort Cable
Key Benefits
Connects a DisplayPort connector on an HP Business Desktop computer to a DisplayPort connector on a monitor.
6.6 ft (2.0 m) cable
DA - 13111 Worldwide — Version 17 — April 2, 2013
Page 7
QuickSpecs
HP DisplayPort Adapters
Overview - DisplayPort Cable Kit
Compatibility
The HP DisplayPort Cable supports the HP Compaq 6000 Pro MT, HP Compaq 6000 Pro SFF, HP Compaq 4300 Pro SFF, HP Compaq 6005
Pro MT, HP Compaq 6005 Pro SFF, HP Compaq 6005 Pro USDT, HP Compaq 6200 Pro MT, HP Compaq 6200 Pro SFF, HP Compaq 6300
Pro MT, HP Compaq 6300 Pro SFF, HP Compaq 6300 Pro AiO, HP Compaq 8200 Elite SFF, HP Compaq 8200 Elite CMT, HP Compaq 8200
Elite MT, HP Compaq 8200 Elite USDT, HP Compaq 8300 Elite CMT, HP Compaq 8300 Elite MT, HP Compaq 8300 Elite SFF, HP Compaq
8300 Elite USDT, HP Compaq 8300 Pro AiO, HP Compaq 6305 Pro MT, and HP Compaq 6305 Pro SFF.
HP TouchSmart 9100, HP rp5800 Retail System.
Compatible with any graphics card that has a DisplayPort output. DisplayPort outputs are sometimes notated by the DP++ icon.
NOTE: Please check this product's web page on HP.com for current compatibility information.
NOTE: Not all models are available in all regions.
Spares information
HP DisplayPort Cable Kit
487562-001
Service and Support
The HP DisplayPort Cable Kit has either a one-year limited warranty or the remainder of the warranty of the HP product in which it is
installed. Technical support is available seven days a week, 24 hours a day, by phone, as well as online support forums. Certain
restrictions and exclusions apply.
Technical Specifications
Connectors
HP DisplayPort Cable
Adapter length
6.6 ft (2.0 m)
Adapter weight
0.26 lbs (0.120 kg)
Option kit contents
HP DisplayPort Cable, documentation
DA - 13111 Worldwide — Version 17 — April 2, 2013
Page 8
QuickSpecs
HP DisplayPort Adapters
Overview - HP DisplayPort to Dual Link DVI-D Adapter
HP DisplayPort to Dual Link DVI-D Adapter
NR078AA
Converts the DisplayPort connector
on an HP Compaq Business Desktop
computer or HP Workstation to a
dual link DVI port. The adapter has a
latching DisplayPort connector on
one end, and a USB connector and
DVI-D connector on the other end for
connecting to a DVI monitor cable.
HP DisplayPort to Dual Link DVI-D Adapter
NOTE: The USB cable of the DisplayPort to Dual Link DVI-D adapter is for power only and should
be connected to one of the system's rear USB ports. USB hubs may not provide sufficient power
and are not recommended for use with this adapter.
Key Benefits
Converts a graphics card's DisplayPort output to dual link DVI
Resolution up to 2560x1600
Supports all HP monitors that feature dual link DVI interface, including the HP LP3065 30-inch Widescreen LCD Monitor
Latching DP connector for a secure connection
Compatibility
The HP DisplayPort to Dual Link DVI-D Adapter supports the products listed below if they have a DisplayPort connector in the back of
the system or if they have a graphics card installed that has a DisplayPort connector. DisplayPort outputs are sometimes notated by
the DP++ icon. This adapter is supported on the following HP products:
HP Compaq dx2390 Microtower, HP Compaq dx2400 Microtower, HP Compaq dx2450 Microtower, HP Compaq dx7400 Microtower, HP
Compaq dx7500 Microtower, HP Compaq dx7500 Small Form Factor, HP Compaq dc5800 Microtower, HP Compaq dc5850 Microtower,
HP Compaq dc7800 Convertible Minitower, HP Compaq dc7900 Small Form Factor, HP Compaq dc7900 Convertible Minitower, HP
Compaq dc7900 UltraSlim Desktop, HP Compaq 6000 Pro Microtower, HP Compaq 6000 Pro Small Form Factor, HP Compaq 6005 Pro
Microtower Business PC, HP Compaq 6005 Pro Small Form Factor, HP Compaq 6200 Pro Microtower, HP Compaq 6200 Pro Small Form
Factor, HP Compaq 6300 Pro Microtower, HP Compaq 6300 Pro Small Form Factor, HP Compaq 8200 Elite Small Form Factor, HP
Compaq 8200 Elite Convertible Minitower, HP Compaq 8200 Elite Microtower, HP Compaq 8200 Elite Ultra-Slim Desktop, HP Compaq
8300 Elite Convertible Minitower, HP Compaq 8300 Elite Microtower, HP Compaq 8300 Elite Small Form Factor, HP Compaq 4300 Pro
Small Form Factor Business Desktop PCs.
HP xw4600, xw9400, Z400, Z600 and Z800 Workstations, HP TouchSmart 9100, HP rp5800 Retail System.
NOTE: Not all models are available in all regions.
DA - 13111 Worldwide — Version 17 — April 2, 2013
Page 9
QuickSpecs
HP DisplayPort Adapters
Overview - HP DisplayPort to Dual Link DVI-D Adapter
Spares information
HP DisplayPort to Dual Link DVI-D Adapter
572033-001
Service and Support
The DisplayPort to dual link DVI-D Adapter has either a one-year limited warranty or the remainder of the warranty of the HP product in
which it is installed. Technical support is available seven days a week, 24 hours a day, by phone, as well as online support forums.
Certain restrictions and exclusions apply.
Technical Specifications
Connectors
DisplayPort, USB and DVI-D dual link connectors
Adapter length
18.69 in (47.47 cm)
Adapter weight
0.375 lbs (0.17 kg)
Maximum vertical refresh 60 Hz
rate
Monitor support
Supports all HP monitors that feature dual link DVI-D interface
Display max resolution
2560x1600
Option kit contents
HP DisplayPort to Dual Link DVI-D Adapter, documentation
© Copyright 2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
Microsoft and Windows are US registered trademarks of Microsoft Corporation.
DA - 13111 Worldwide — Version 17 — April 2, 2013
Page 10
