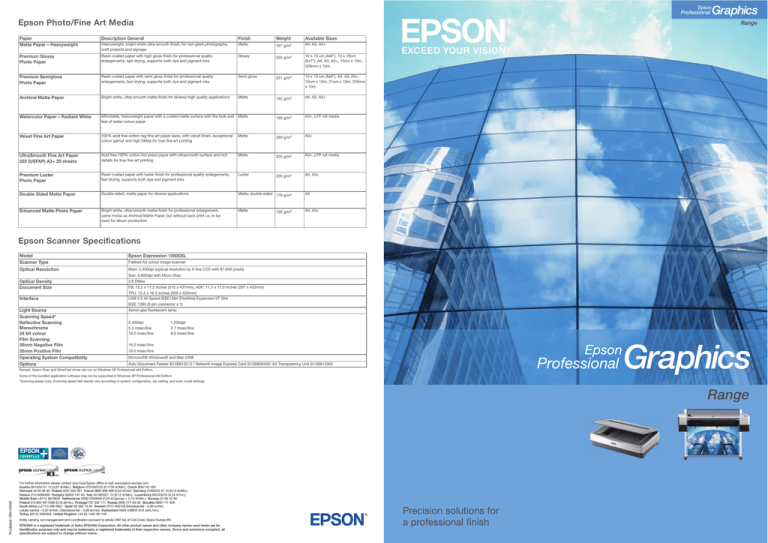

Epson Photo/Fine Art Media
Paper
Matte Paper – Heavyweight
Range
Description General
Finish
Weight
Available Sizes
Heavyweight, bright white ultra-smooth finish, for non-glare photographs,
craft projects and signage
Matte
167 g/m2
A4, A3, A3+
Premium Glossy
Photo Paper
Resin coated paper with high gloss finish for professional quality
enlargements, fast drying, supports both dye and pigment inks
Glossy
255 g/m2
10 x 15 cm (4x6"), 13 x 18cm
(5x7"), A4, A3, A3+, 10cm x 10m,
329mm x 10m
Premium Semigloss
Photo Paper
Resin coated paper with semi gloss finish for professional quality
enlargements, fast drying, supports both dye and pigment inks
Semi gloss
251 g/m2
10 x 15 cm (4x6"), A4, A3, A3+,
10cm x 10m, 21cm x 10m, 329mm
x 10m
Archival Matte Paper
Bright white, ultra-smooth matte finish for diverse high quality applications
Matte
192 g/m2
A4, A3, A3+
Watercolor Paper – Radiant White
Affordable, heavyweight paper with a coated matte surface with the look and
feel of water colour paper
Matte
190 g/m2
A3+, LFP roll media
Velvet Fine Art Paper
100% acid free cotton rag fine art paper base, with velvet finish, exceptional
colour gamut and high DMax for true fine art printing
Matte
260 g/m2
A3+
UltraSmooth Fine Art Paper
325 (USFAP) A3+ 25 sheets
Acid free,100% cotton hot press paper with ultrasmooth surface and rich
details for true fine art printing
Matte
325 g/m2
A3+, LFP roll media
Premium Luster
Photo Paper
Resin coated paper with luster finish for professional quality enlargements,
fast drying, supports both dye and pigment inks
Luster
235 g/m2
A4, A3+
Double Sided Matte Paper
Double sided, matte paper for diverse applications
Matte, double sided 178 g/m2
A4
Enhanced Matte Photo Paper
Bright white, ultra-smooth matte finish for professional enlargement,
same media as Archival Matte Paper, but without back print i.e. to be
used for album production
Matte
A4, A3+
192 g/m2
Epson Scanner Specifications
Model
Scanner Type
Flatbed A3 colour image scanner
Optical Resolution
Main: 2,400dpi (optical resolution by 6 line CCD with 87,840 pixels)
Optical Density
Document Size
Interface
Light Source
Scanning Speed*
Reflective Scanning
Monochrome
24 bit colour
Film Scanning
35mm Negative Film
35mm Positive Film
Operating System Compatibility
Options
Epson Expression 10000XL
Sub: 4,800dpi with Micro Step
3.8 DMax
FB: 12.2 x 17.2 inches (310 x 437mm), ADF: 11.7 x 17.0 inches (297 x 432mm)
TPU: 12.2 x 16.5 inches (309 x 420mm)
USB 2.0 Hi-Speed IEEE1394 (FireWire) Expansion I/F Slot
IEEE 1394 (6 pin connector x 1)
Xenon gas fluorescent lamp
2,400dpi
5.3 msec/line
16.0 msec/line
1,200dpi
2.7 msec/line
8.0 msec/line
16.0 msec/line
16.0 msec/line
Microsoft® Windows® and Mac OS®
Auto Document Feeder B12B813213 / Network Image Express Card B12B808392/ A3 Transparency Unit B12B813363
Remark: Epson Scan and SilverFast driver can run on Windows XP Professional x64 Edition.
Some of the bundled application software may not be supported in Windows XP Professional x64 Edition.
*Scanning speed note: Scanning speed test results vary according to system configuration, dpi setting, and scan mode settings.
Prodlabel-1EN-00/00
Range
For further information please contact your local Epson office or visit www.epson-europe.com
Austria 0810/20 01 13 (0,07 €/Min.) Belgium 070/350120 (0.1735 €/Min.) Czech 800/142 052
Denmark 44 50 85 85 Finland 0201 552 091 France 0892 899 999 (0,34 €/min) Germany 01805/23 41 10 (0,12 €/Min.)
Greece 210-8099499 Hungary 06800 147 83 Italy 02-660321 10 (0,12 €/Min.) Luxemburg 900/43010 (0,24 €/mn.)
Middle East +9714 8818934 Netherlands 0900-5050808 (0.05 €/oproep + 0.15 €/Min.) Norway 22 06 42 80
Poland 0-0-800 4911299 (0,16 zł/min.) Portugal 707 222 111 Russia (095) 777-03-55 Slovakia 0850 111 429
South Africa (+2711) 465-9621 Spain 93 582 15 00 Sweden 0771-400135 (Mobilsamtal – 0,99 kr/min,
Lokala samtal – 0,30 kr/min, Utlandssamtal – 0,89 kr/min) Switzerland 0848 448820 (4-8 cent./mn.)
Turkey (0212) 3360303 United Kingdom +44 (0) 1442 261144
Entity carrying out management and coordination pursuant to article 2497 bis of Civil Code: Epson Europe BV
EPSON® is a registered trademark of Seiko EPSON® Corporation. All other product names and other company names used herein are for
identification purposes only and may be trademarks or registered trademarks of their respective owners. Errors and omissions excepted, all
specifications are subject to change without notice.
Precision solutions for
a professional finish
Take quality, accuracy and reliability to a new level
with the Epson professional graphics range. When
you need the finest, most dependable results, Epson
delivers every time.
Create a whole new world of colour and
consistency with Epson hardware, media
and inks. Whatever the format and finish,
you’ll be impressed with the results, and
so will your customers.
Epson Stylus Pro printers are therefore
capable of true 2880 dpi resolution,
resulting in razor-sharp images that
display superb detail.
Perfect results across the page
• Print up to 44'' wide – easily,
consistently and economically
• Produce superb, durable results
with Epson UltraChromeTM K3 inks
The Micro Piezo™ print head used in the
Epson Stylus Pro printers incorporates
Variable-sized Droplet Technology to
produce different size ink droplets as
small as 3.5 picolitres (depending on the
image and type of media used). This not
only improves the evenness of the ink
relative to the surface of the print, but
also reduces ink consumption.
• Choose the perfect media, from
proofing paper to poster board
• Add versatility and enhance creativity
with inclusive software
• Access features designed specifically
for the graphics market
• Transform the way you work,
but keep costs amazingly low
Stable, durable images with a
wide colour gamut (2.3 DMax)
Rapid image stability, with
impressive durability and
longevity
Superb grey balance and tonal
gradation on mono and colour
Control greyscale gradations
and neutral tones with
3 black inks
Prints look fantastic in any
lighting conditions, every time
The secret’s in the three black inks
Join the graphics printing revolution with
the Epson UltraChrome™ three black ink
system. You can take quality to even
higher levels with the 8-colour ink set
that includes interchangeable Photo and
Matte black cartridges.
Compare results with printers that only
use one black and it’s easy to see the
difference. It’s easy to make a bigger
impact every time you print.
2
www.epson-europe.com
Superb results in mono, colour
and even sepia
Print on matte or gloss media up to A0+
3
Epson UltraChrome K3 inks
A bigger advantage with Epson
Join Epson at the forefront of the digital imaging
revolution. The Stylus Pro series of printers leads the
way for graphics professionals who require consistent
quality to match their creativity.
• Consistent, professional quality in
black and white and colour
• Optimise print quality with
Matte or Photo black inks
• See the difference with Epson
UltraChrome K3 8-colour inks
• Produce superb quality edge-to-edge
prints on a wide range of media
• Printers handle up to A0+,
with manual sheet and roll feeds
• Integrate quickly and easily into
your office or network
• Make a big impact from your desktop
with the smallest A2 printer
• Change between the 3 installed black
inks automatically
Rely on breathtaking quality every time
with 2880dpi resolution
Produce consistently accurate prints with Epson
UltraChrome K3 inks
• Take a big step forward in large format
printing up to A2
• The ideal compact, high performance
remote proofing solution
Images last up to 75 years in colour,
over 100 years in mono*
Keep control of your prints
with the intuitive control
panel
• Set new standards in photo and fine
art printing and proofing
• Create truly spectacular results
up to A0+ (44'') size
*Please refer to www.epson.com for test conditions.
Not all products are available in all countries, please check with your local Epson office for details.
4
www.epson-europe.com
Reproduce every detail and
tone with 3.5pl Epson Ultra
MicroDot
• Make a big impression with superb
prints up to A1 size
• Get connected with USB 2.0,
IEEE1394 FireWire and optional
networking
5
Epson UltraChrome inks
Bring a wide range of graphics printing in-house with
these fast, effective, professional large format printers.
The 4-colour Epson UltraChrome ink set brings superb
quality to any studio.
High production, large format
• Combine speed and quality with
Epson’s exclusive print technologies
• Print reliably and consistently with
Epson Micro Piezo™ print head
• Add vibrant, natural colour with a
wider colour gamut
• Combine low costs with a strong
return on investment
• Print superb quality edge-to-edge
prints up to A0 (44'')
• Work quickly and flexibly with
maximum reliability
• Ideal for fast, high quality, reliable
POS and CAD printing
• Print superb, consistent results on
media up to A2 and 1.5mm thick
Print photorealistic images
with life-like colours and vivid
blacks
Enhance ink delivery with
pressurised cartridges and
dual CMYK configuration
Simplify operation and monitoring
with the intuitive control panel
Handle a range of media up to
A0 (4'') with manual sheet and
roll feed
Print images that last a lifetime with
Epson UltraChrome K3 inks
• Print professional results edge-to-edge
on media up to 24''
• The ideal solution for POS, CAD, GIS
and even mask making
Graphics and photo excellence
Enhance your studio with this exceptional, full A3 graphic arts
scanner. Reproduce every detail with 2400pi and an optical
density of 3.8 DMax.
6
www.epson-europe.com
• Reproduce every detail and colour
with the new Matrix CCD
• Ensure maximum precision with
advanced auto-focus system
• Scan instantly – high brightness Xenon
lamp has zero standby time
• Expand flexibility with optional
networking and Auto Document Feeder
• Integrate quickly and easily with
USB 2.0 and IEEE1394 FireWire
• Scan film up to 5'' x 4'' with the
optional Transparency Unit
7
It's easy to get the most from your photos with Epson
professional software. Print the very best using simple
tools that combine quality, consistency and flexibility.
Epson UltraChrome Large Format Printer Specifications
Models
Size
Print Technology
Ink System
Perfection from start to finish
Turn your vision into reality. Manage your
printing from start to finish and produce
exactly what you need, thanks to high
quality and consistency at every stage
of the creative process.
Resolution
Memory
Speed
Creativity with consistency
• Enhance your work process and final
output with Epson
• Present your work more creatively
with Epson AlbumMaker
• Create a PostScript printer with
Epson Stylus RIP Professional v 3.0
• Ensure consistent colour quality with
Epson ColorBase
• Enlarge and copy with
Epson CopyFactory
• Produce multi-image layouts with
Epson PageProofer EX
Epson Stylus Pro 7400
Epson Stylus Pro 9400
17 inch (A2+)
24 inch (A1)
44 inch (A0)
Epson Micro Piezo™ drop-on-demand inkjet technology
Epson Variable-sized Droplet Technology and 3.5pl Epson Ultra Mirco Dot™
Print head configuration: 180 nozzles x 8 colours
4 colour pigmented ink (C, M, Y, Matte K)
Dual 4 colours pigmented ink (C, M, Y, Matte K)
with CSIC with 8 slots
with CSIC with 8 slots
1440 x 720dpi Epson Variable-sized Droplet Technology
128MB
64MB
Up to 18.7 m2/Hr (A2/Plain Paper/
Draft mode)
Driver
Interfaces
Roll Dimensions
Up to 17.9 m2/Hr (A1/Plain Paper/
Up to 26.4 m2/Hr (B0+/Plain Paper/
Draft mode)
Draft mode)
Mac OS® X, OS® 9
Microsoft® Windows® 2000 / XP
Standard: USB 2.0 (Compatible with 1.1), IEEE 1394 (FireWire)
Option: Expansion slot for Type B interface (Ethernet)
Core diameter 2" or 3"
Max. outside diameter ! 150mm
Paper Handling
Roll Media
Cut Sheet
Print Margins
Roll Media
Control colour calibration, and
save a history of data
Epson Stylus Pro 4400
Maintain quality across
a range of images on a
single page
Sheet Media
Single roll (1 roll < 150mm / outside diameter)
Media width 203.2mm - 431.8mm (8" - 17")
Minimum media length 279mm
Media thickness 0.08mm - 0.50mm
Single roll (1 roll < 150mm /
outside diameter)
Media width 203.2mm - 610mm (8" - 24")
Minimum media length 279mm
Media thickness 0.08mm - 0.50mm
Single roll (1 roll < 150mm /
outside diameter)
Media width 203.2mm - 1118mm (8" - 44")
Minimum media length 279mm
Media thickness 0.08mm - 0.50mm
High capacity paper tray with automatic sheet
feed (up to 250 pcs of Plain Paper)
Manual insertion feeder for media up to 1.5mm
Media width size A4/LTR - A2/C, (210mm 431.8mm)
Media length 279mm - 610mm. Media thickness
0.08mm - 1.50mm
Manual insertion feeder for media
up to 1.5mm
Media width size A4/LTR - A1+/24",
(210mm - 610mm)
Manual insertion feeder for media
up to 1.5mm
Media width size A4/LTR - A0+/44",
(210mm - 1118mm)
Media thickness 0.08mm - 1.50mm
Media thickness 0.08mm - 1.50mm
4 modes available; mode 1: 3mm
on all edges (top, sides, bottom);
mode 2: 15mm (top and bottom), 3mm (sides);
mode 3: 15mm (top, sides, bottom)
mode 4: 25mm (top and bottom) 3mm (side)
3 modes available; mode 1: 3mm
on all edges (top, sides, bottom);
mode 2: 15mm (top and bottom),
3mm (sides);
mode 3: 15mm (top, sides, bottom)
3 modes available; mode 1: 3mm
on all edges edges (top, sides, bottom);
mode 2: 15mm (top and bottom),
3mm (sides);
mode 3: 15mm (top, sides, bottom)
2 modes available; mode 1: 3mm (top, sides,
bottom); mode 2: 3mm (top and sides)
2 modes available; mode 1: 3mm
2 modes available; mode 1: 3mm
(top, sides, bottom);
(top, sides, bottom);
mode 2: 3mm (top and sides)
mode 2: 3mm (top and sides)
14mm (bottom)
14mm (bottom)
110 and 220ml ink capacity, single size packaging
Pressurised, Intellidge cartridge system for ink level control
even on re-inserted cartridges
110ml:
220ml:
Matte Black
C13T566800
C13T567800
Cyan
C13T566200
C13T567200
Magenta
C13T566300
C13T567300
Yellow
C13T566400
C13T567400
Up to 75 years for colour prints
Approx. 48.9Kg (without ink and media).
Approx. 90Kg (without ink and media)
Stand approx. 10.5Kg
1178mm x 501mm x 560mm
1702mm x 678mm x 1196mm
1178mm x 745mm x 1180mm
(with Stand)
14mm (bottom)
Stylus RIP
Ink Cartridges
Lightfastness
Weight
CopyFactory
Dimensions (w x d x h)
Noise Level
Voltage / Current /
Frequency
Power Consumption
AlbumMaker
Warranty
Options
110 and 220ml ink capacity
Intellidge cartridge system for ink level control
even on re-inserted cartridges
220ml:
110ml:
Matte Black
C13T543800
C13T544800
Cyan
C13T543200
C13T544200
Magenta
C13T543300
C13T544300
Yellow
C13T543400
C13T544400
Approx. 39.4Kg (without ink and media)
848mm x 765mm x 354mm
(Paper Tray Storage Min. Size)
848mm x 1105mm x 354mm
(Paper Tray Expand Max. Size)
Approx. 50dB
Printing: 59W or less
Standby: 5W or less
PowerOff: 1W or less
1 year repair or replace
Optional extension to 3 years
2/3 inch Dual Roll Feed Spindle
2/3 inch Dual Roll Feed Spindle
(High Tension)
Auto Cutter Spare Blade
Maintenance Tank
EpsonNet 10/100 Mb
Tx High Speed I/F
Approx. 50dB
100 - 120V version, 220 - 240V version
Approx. 50dB
Printing: 55W or less
Standby: 6W or less
PowerOff: 1W or less
C12C811171
Printing: 50W or less
Standby: 6W or less
PowerOff: 1W or less
1 year on-site repair
Optional extension to 3 years
2/3 inch Dual Roll Feed Spindle
2/3 inch Dual Roll Feed Spindle
(High Tension)
C12C811191
C12C815291
C12C890191
C12C811155
Maintenance Tank (SP 7400 &
SP 9400 x 2)
EpsonNet 10/100 Mb Tx High Speed I/F
(High Tension)
C12C811152
C12C890191
C12C824342
C12C824342
ColorBase
Enhance flexibility with a
range of page layouts and
presentation options
PageProofer EX
8
www.epson-europe.com
9
Epson UltraChrome K3 Large Format Printer Specifications
Models
Size
Print Technology
Epson Stylus Pro 3800
Epson Stylus Pro 4800
17 inch (A2+)
17 inch (A2+)
Ink System
9 colours pigmented ink (C,M,Y,LC,LM,LK,LLK,Photo K,Matte K) with CSIC with 8 slots
Photo K and Matte K are chosen by media selected on printer driver
Resolution
Speed
Driver
Interfaces
Roll Dimensions
Paper Handling
Up to 9.8 m2/Hr (A2/Plain Paper/Draft mode)
1440x720 Bi-D A2 size: 405sec / 2880x1440 Bi-D A2 size: 697sec.
Epson Stylus Pro 7800
Up to 12.8 m2/Hr (A2/Plain Paper/Draft mode)
NA
Cut Sheet
ASF, Rear manual feeding, Front manual rigid media feeding
Manual insertion feeder for media up to 1.5mm
sheet feed (up to 250 pcs of Plain Paper)
Media width size A6 - A2/C, 89mm - 431.8mm(17')
Media thickness 0.08mm - 1.50mm
Up to 14.3 m2/Hr (A1/Plain Paper/Draft mode)
Up to 22.1 m2/Hr (B0+/Plain Paper/Draft mode)
Windows 2000, Windows XP, Windows XP 64bit, MAC OS9, MAC OSX
Standard: USB 2.0 (Compatible with 1.1), IEEE 1394 (FireWire)
Option: Expansion slot for Type B interface (Ethernet)
Standard: USB2.0 (Compatible with 1.1), 10/100 base N/W
Option; NA
NA
Roll Media
Epson Stylus Pro 9800
24 inch (A1)
44 inch (A0)
Epson Micro Piezo™ drop-on-demand inkjet technology
Epson Variable-sized Droplet Technology and 3.5pl Epson Ultra Micro Dot™
Print head configuration: 180 nozzles x 8 colours
9 colour pigmented ink (C, M, Y, LC, LM, LK, LLK, Photo K, Matte K) with CSIC with 8 slots (one slot for interchangable Matte K and Photo K)
Ink conversion cartridges required for ink change between Matte K and Photo K are delivered with the unit
2880 x 1440dpi Bi-Directional, Epson Variable-sized Droplet Technology
Core diameter 2" or 3". Max. outside diameter ! 150mm
Single roll (1 roll < 150mm / Outside diameter)
Media width 203.2mm - 431.8mm (8" - 17")
Minimum media length 279mm
Media thickness 0.08mm - 0.50mm
High capacity paper tray with automatic
sheet feed (up to 250 pcs of Plain Paper)
Manual insertion feeder for media up to 1.5mm
Media width size A4/LTR - A2/C, (210mm - 431.8mm)
Media length 279mm - 610mm.
Media thickness 0.08mm - 1.50mm
Single roll (1 roll < 150mm / Outside diameter)
Media width 203.2mm - 610mm (8" - 24")
Minimum media length 279mm
Media thickness 0.08mm - 0.50mm
Manual insertion feeder for media up to 1.5mm
Media width size A4/LTR - A1+/24", (210mm - 610mm)
Media thickness 0.08mm - 1.50mm
Single roll (1 roll < 150mm / Outside diameter)
Media width 203.2mm - 1118mm (8" - 44")
Minimum media length 279mm
Media thickness 0.08mm - 0.50mm
Manual insertion feeder for media up to 1.5mm
Media width size A4/LTR - A0+/44", (210mm - 1118mm)
Media thickness 0.08mm - 1.50mm
5 modes available;
mode 1: 3mm on all edges 3 modes available;
(top, sides, bottom);
mode 2: 15mm (top and bottom), 3mm (sides);
mode 3: 15mm (top, sides, bottom)
mode 4: 25mm (top and bottom) 3mm (side)
mode 5: Both edge-to-edge and full bleed* for the following media widths:
4 modes available;
mode 1: 3mm on all edges (top, sides, bottom);
mode 2: 15mm (top and bottom), 3mm (sides);
mode 3: 15mm (top, sides, bottom);
mode 4: Both edge-to-edge and full bleed* for the following media widths:
10", 13", 14", 16", 17", 515mm, 594mm, 609.6mm
*Top and bottom edges can be automatically cut to any length
4 modes available;
mode 1: 3mm on all edges (top, sides, bottom);
mode 2: 15mm (top and bottom), 3mm (sides);
mode 3: 15mm (top, sides, bottom);
mode 4: Both edge-to-edge and full bleed* for the following media widths:
10", 13", 14", 16", 17", 515mm, 594mm, 609.6mm, 728mm,
914.4mm, 1117.6mm
*Top and bottom edges can be automatically cut to any length
3 modes available;
mode 1: 3mm (top, sides, bottom);
mode 2: 3mm (top and sides) 14mm (bottom)
mode 3: Edge-to-edge for the following media widths:
10", 13", 14", 16", 17", 515mm, 594mm, 609.6mm
3 modes available;
mode 1: 3mm (top, sides, bottom);
mode 2: 3mm (top and sides) 14mm (bottom)
mode 3: Edge-to-edge for the following media widths:
10", 13", 14", 16", 17", 515mm, 594mm, 609.6mm, 728mm,
914.4mm, 1117.6mm
Print Margins
Roll Media
NA
8"*1, 10", 12", 14", 16", 17", 210mm, 257mm, 300mm, 329mm, 400mm, 420mm*1
*1 8" & 420mm requires spacer
*Top and bottom edges can be automatically cut to any length
Cut Sheet
Top/bottom: 0mm, 3mm, 20mm
Both Sides: 0mm, 3mm
20mm margin is fixed for front sheet loading
Both edge-to-edge and full bleed for the following media widths:
4, 5, 8.5, 11, 13, 17 (inch), 89, 105, 127, 148, 210, 297, 329, 420 (mm)
3 modes available;
mode 1: 3mm Normal Printing (top, sides, bottom);
mode 2: 3mm (top and sides) 14mm (bottom)
mode 3: Edge-to-edge for the following media widths:
10", 12", 14", 16", 17", 210mm, 257mm, 300mm, 329mm, 400mm
2 borderless modes:
1) Auto expand is a default mode
Ink Cartridges
2) Retain size
80ml ink capacity
Intellidge cartridge system for ink level control even on re-inserted cartridges
Photo Black
Cyan
Magenta
Yellow
Light Cyan
Light Magenta
Light Black
Matte Black
Light Light Black
Maintenance Cartridge
80ml
C13T580100
C13T580200
C13T580300
C13T580400
C13T580500
C13T580600
C13T580700
C13T580800
C13T580900
C13T582000
110 and 220ml ink capacity
Intellidge cartridge system for ink level control even on re-inserted cartridges
Matte Black
Photo Black
Light Black
Light Light Black
Cyan
Magenta
Yellow
Light Magenta
Light Cyan
110ml
C13T543800
C13T564100
C13T564700
C13T564900
C13T564200
C13T564300
C13T564400
C13T564600
C13T564500
Lightfastness
Weight
Approx. 19.8Kg (without ink and media)
Approx. 39.4Kg (without ink and media)
Dimensions (w x d x h)
Dimensions: 684mm x 376mm x 257mm
(Paper Tray Storage Min. Size)
684mm x 962 mm x 579 mm (Paper Tray Expand Max. Size)
848mm x 765mm x 354mm
(Paper Tray Storage Min. Size)
848mm x 1105mm x 354mm
(Paper Tray Expand Max. Size)
Approx. 50dB
Printing: 59W or less
Standby: 5W or less
PowerOff: 1W or less
1 year repair or replace
Optional extension to 3 years
2/3 inch Dual Roll Feed Spindle
(High Tension)
Borderless Print Spacer for
420mm and 8 inch Roll Paper
Auto Cutter Spare Blade
Maintenance Tank
EpsonNet 10/100 Mb
Tx High Speed I/F
Noise Level
Power Consumption
Warranty
Options
10
www.epson-europe.com
Approx. 47dB
Printing: 25W or less
Standby: 5.5W or less
PowerOff: 0.4W or less
1 year repair or replace
Optional extension to 3 years
NA
110 and 220ml ink capacity, single size packaging
Pressurised, Intellidge cartridge system for ink level control even on re-inserted cartridges
220ml
C13T544800
C13T565100
C13T565700
C13T565900
C13T565200
C13T565300
C13T565400
C13T565600
C13T565500
110ml:
Matte Black C13T566800
Photo Black C13T562100
Light Black C13T562700
Light Light Black C13T562900
Cyan C13T562200
Magenta C13T562300
Yellow C13T562400
Light Magenta C13T562600
Light Cyan C13T562500
Up to 75 years for colour prints
In excess of 100 years for B&W prints
Approx. 48.9Kg (without ink and media)
Stand approx. 10.5Kg
1178mm x 501mm x 560mm
1178mm x 745mm x 1180mm (with Stand)
Approx. 50dB
Printing: 55W or less
Standby: 6W or less
PowerOff: 1W or less
2/3 inch Dual Roll Feed Spindle
C12C811191
C12C811201
C12C815291
C12C890191
(High tension)
C12C811155
Maintenance Tank (SP 7800 & SP 9800 x 2)
EpsonNet 10/100 Mb Tx High Speed I/F
220ml:
C13T567800
C13T563100
C13T563700
C13T563900
C13T563200
C13T563300
C13T563400
C13T563600
C13T563500
Approx. 90Kg (without ink and media)
1702mm x 678mm x 1196mm
Approx. 50dB
Printing: 50W or less
Standby: 6W or less
PowerOff: 1W or less
1 year on-site repair
Optional extension to 3 years
2/3 inch Dual Roll Feed Spindle
(High tension)
C12C811152
C12C890191
C12C824342
C12C824342
11
