QuickSpecs
HP Tower UPS T750 G2, T1000 G3, T1500 G3
Overview
HP Tower Uninterruptible Power Systems (UPS) provide advanced power protection and secure your computer equipment and your
critical data against damage due to inconsistent and fluctuating power. Designed for small/medium businesses, HP UPSs lower your
power protection cost by allowing you to safeguard all of your equipment. Key benefits include increased power rating, an intuitive
front panel display, Enhanced Battery Management (EBM), prioritized shut-down, hot-swappable battery, Network Transient
Protection, and a serial and USB ports for data exchange with the host computer
HP Power Manager software (free with all HP UPSs) provides the flexibility to monitor power conditions and control the HP UPS
locally or remotely, enables you to broadcast alarms, perform orderly shutdowns in the event of power failures, and allows you to
schedule power-on and power-off to the UPS and attached equipment.
With HP Care Pack Services, have the security of knowing that your HP UPS will be covered at the same service level and coverage
period as your HP server. HP UPSs are backed by a 3-year limited warranty and our exclusive 30-day Battery Pre-Failure Warning.
1.
4.
On/Off
On Battery

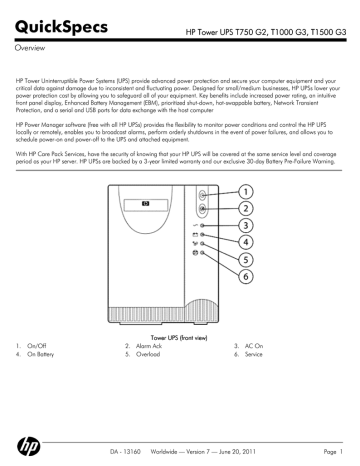

Tower UPS (front view)
2. Alarm Ack
5. Overload
DA - 13160
3. AC On
6. Service
Worldwide — Version 7 — June 20, 2011
Page 1
QuickSpecs
HP Tower UPS T750 G2, T1000 G3, T1500 G3
Overview
1.
2.
3.
4.
5.
6.
7.
HP T750 G2 UPS INTL
Network Transient Protector
(4) IEC C-13 Output Power
Receptacles
IEC 320 C-14 Input Power Receptacle
Site wiring fault indicator
Serial Port
Voltage Configuration
USB Port
HP T750 G2 UPS NA
1.
2.
Network Transient Protector
(4) NEMA 5-15 Output Power
Receptacles
1.
2.
3.
4.
5.
6.
7.
HP T1000 G3 UPS INTL
Network Transient Protector
(4) IEC C-13 Output Power
Receptacles
IEC 320 C-14 Input Power Receptacle
Site wiring fault indicator
Serial Port
Voltage Configuration
USB Port
1.
2.
3.
4.
5.
6.
7.
HP T1500 G3 UPS INTL
Network Transient Protector
(6) IEC C-13 Output Power
Receptacles
IEC 320 C-14 Input Power Receptacle
Site wiring fault indicator
Serial Port
Voltage Configuration
USB Port
HP T1000 G2 UPS NA and T750J UPS HP T1500G2 UPS NA, T100J Japan, and
Japan
T1500J Japan
1. Network Transient Protector
1. Network Transient Protector
(6) NEMA 5-15 Output Power
(6) NEMA 5-15 Output Power
2.
2.
Receptacles
Receptacles
DA - 13160
Worldwide — Version 7 — June 20, 2011
Page 2
QuickSpecs
HP Tower UPS T750 G2, T1000 G3, T1500 G3
Overview
3.
4.
5.
6.
7.
NEMA 5-15 Input Power Cord
Site wiring fault indicator
Serial Port
Voltage Configuration
USB Port
3.
4.
5.
6.
7.
NEMA 5-15 Input Power Cord
Site wiring fault indicator
Serial Port
Voltage Configuration
USB Port
3.
4.
5.
6.
7.
NEMA 5-15 Input Power Cord
Site wiring fault indicator
Serial Port
Voltage Configuration
USB Port
Models
HP T750 G2 UPS Models
HP T750 G2 750VA NA Tower Uninterruptible Power System
HP T750 G2 750VA INTL Tower Uninterruptible Power System
HP T750J JP Uninterruptible Power System
HP T1000 G3 UPS Models
HP T1000 G3 1000VA NA Tower Uninterruptible Power System
HP T1000 G3 1000VA INTL Tower Uninterruptible Power System
HP T1000J JP Uninterruptible Power System
HP T1500 G3 UPS Models
HP T1500 G3 1400VA NA Tower Uninterruptible Power System
HP T1500 G3 1400VA INTL Tower Uninterruptible Power System
HP T1500J JP Uninterruptible Power System
Kit Contents
AF446A
AF447A
AF456A
AF448A
AF449A
AF457A
AF450A
AF451A
AF458A
HP UPS T750 G2, T750J, T1000 G3, T1000J, T1500 G3, or T1500J
Read This First Card
Power Manager Software CD. Software can also be downloaded at:
www.hp.com/products/powermanager
Power Products Documentation CD
6' (1.83 Meters) UPS to computer serial interface cable
6' (1.83 Meters) UPS to computer USB interface cable
NOTE: The International model includes 2 IEC power cords in addition to the above.
DA - 13160
Worldwide — Version 7 — June 20, 2011
Page 3
QuickSpecs
HP Tower UPS T750 G2, T1000 G3, T1500 G3
Standard Features
Key Features
Manageability through USB and Serial ports
Ease of configuration via enhanced front panel display.
Long-term battery reliability with Enhanced Battery Management.
Intelligent manageability with bundled Power Manager software.
Hot-Swappable battery.
Network Transient Protector
Backed by a three-year warranty, with the first year including parts and labor. HP Battery PreFailure Warranty and a $250,000 load protection guarantee
NOTE: Certain restrictions and exclusions apply. Consult the HP Computer Support Center for details.
Easy Configuration via
Intuitive Front Panel
Display
Please see the line art drawing previously shown to identify the front panel with noted button functionality.
Investment Protection with HP UPSs incorporate Enhanced Battery Management; an exclusive, patented technology that doubles
Enhanced Battery
battery service life, optimizes battery recharge time, and provides advance notice of pending battery
Management
failure. With Enhanced Battery Management, you have a lower overall cost of ownership and receive the
best in the industry protection for your critical equipment.
Intelligent Manageability HP UPSs ship with HP Power Manager management software, which enables you to monitor and control
HP UPSs locally or remotely. This software is a versatile, fully configurable, alert response tool that gives
system administrators a full overview of the network's conditions. It enables you to monitor system status
and power conditions, configure shut down timing, customize alert messages, and perform UPS
diagnostic checks quickly and easily.
Ease of Maintenance with HP UPSs are designed with hot-swappable battery packs. With simple access through the front panel.
Hot-Swappable Battery
Users can safely install a new battery without ever powering down connected computer equipment.
Advanced Protection with HP UPSs come standard with Network Transient Protection that guards your network communication
Network Transient
equipment from surges. Low voltage models can also protect modems, fax machines, or other
Protector
telecommunications equipment.
Compatibility
Compatible with all HP ProLiant computer systems and servers ranging from individual workstations to
distributed enterprise and other HP equipment (in tower form factor) based on the equipment load to be
protected.
Tailored for ProLiant /
Integrity
With HP Qualified Options you can focus on growing your business when you optimize your
infrastructure with HP options designed for servers and storage. HP Qualified Options strengthen the
foundation of your data center with high caliber products that are easy to maintain and tailored for
ProLiant and Integrity giving you confidence in your whole infrastructure.
DA - 13160
Worldwide — Version 7 — June 20, 2011
Page 4
QuickSpecs
HP Tower UPS T750 G2, T1000 G3, T1500 G3
Standard Features
HP Quality
Chose an HP UPS, an HP qualified option, and have confidence that HP hardware qualification is the
toughest in the industry. Extensive evaluation, testing, product improvement, and an unsurpassed
warranty guarantee the highest level of system protection, electrical performance, product quality and
compatibility. All products are RoHS compliant.
Warranty
When you need it, use outstanding HP support services for your whole data center environment. With HP
Care Pack Services, have the security of knowing that your HP UPS will be covered at the same service
level and coverage period as your HP server. HP UPSs are backed by a 3-year limited warranty, with the
first year including parts and labor. Also, standard on all HP UPS units is our exclusive 30-day Battery
Pre-Failure Warranty, which ensures that when customers receive notification from HP Power Manager
Software that the battery may fail, the battery is replaced free of charge under the warranty. This warranty
is offered worldwide.
NOTE: $250,000 Computer/Load Protection Guarantee is also provided (applicable in North America
only).
DA - 13160
Worldwide — Version 7 — June 20, 2011
Page 5
QuickSpecs
HP Tower UPS T750 G2, T1000 G3, T1500 G3
Service and Support
HP Care Pack Installation
Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business
requirements, from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with
options including 4 hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMware-based IT solutions
helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support Solution.
NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices, resellers or visit our worldwide
website at: http://www.hp.com/hps/carepack
NOTE: For more complete information on HP Services offerings, customers and resellers, please visit is at: http://www.hp.com/hps
NOTE: Additional information regarding worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
NOTE: For additional information on Server Services, Rack and Power Options, please visit:
http://h20219.www2.hp.com/services/cache/111072-0-0-225-121.html
NOTE: The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind.
NOTE: The warranties for HP products and services are set forth in the express limited warranty statements accompanying such
products and services.
DA - 13160
Worldwide — Version 7 — June 20, 2011
Page 6
QuickSpecs
HP Tower UPS T750 G2, T1000 G3, T1500 G3
Related Options
HP Care Pack
HP Install Universal Power Supply Less Than 3KVA Service
DA - 13160
Worldwide — Version 7 — June 20, 2011
U4690E
Page 7
QuickSpecs
HP Tower UPS T750 G2, T1000 G3, T1500 G3
Technical Specifications
UPS T750 G2 Specifications
T750 G2, NA
AF446A
T750 G2, INTL
AF447A
T750J, Japan
AF456A
Unit Dimensions (WxDxH)
Shipping Dimensions
Unit Weight
Shipping Weight
Operating Voltage
Settings
5.9 x 13.1 x 7.6 inch (150 x 333 x 193 mm)
12.2 x 9.9 x 17.4 inch (310 x 257 x 442 mm)
28.1 lbs (12.7kg)
30.9 lbs (14 kg)
100V, 110V, 120V
NOTE: Part Number AF446A is user selectable for 100V, 110V, or 120V via
dip switch setting on the back of the unit.
Power Out (VA/Watts)
NA: 750VA/500W
Input Connection
Attached 6 foot power cord with
NEMA 5-15P
Output Connection
(4) NEMA 5-15R
Load Segments
1
NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager.
220V, 230V, 240V
Operating Voltage
Settings
NOTE: Part Number AF447A is user selectable for 220V, 230V, or 240V via
dip switch setting on the back of the unit.
750VA/500W
Power Out (VA/Watts)
IEC- 60320 C13
Input Connection
(4) IEC 320 C14
Output Connection
1
Load Segments
NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager.
100V or110V,
Operating Voltage
Settings
NOTE: Part Number AF456A is user selectable for 100V, or 110V, via dip
switch setting on the back of the unit.
NA: 750VA/500W
Power Out (VA/Watts)
Attached 6 foot power cord with
Input Connection
NEMA 5-15P
(6) NEMA 5-15R
Output Connection
1
Load Segments
NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager.
DA - 13160
Worldwide — Version 7 — June 20, 2011
Page 8
QuickSpecs
HP Tower UPS T750 G2, T1000 G3, T1500 G3
Technical Specifications
UPS T1000 G3 Specifications
T1000 G3, NA
AF448A
T1000 G2, INTL
AF449A
T1000J, Japan
AF457A
Unit Dimensions (WxDxH)
Shipping Dimensions
Unit Weight
Shipping Weight
Operating Voltage
Settings
5.9 x 13.1x 7.6 inch (150 x 333 x 193 mm)
12.2 x 9.9 x 17.4 inch (310 x 257 x 442 mm)
28.1 lbs (12.7kg)
30.9 lbs (14 kg)
100V, 110V, 120V
NOTE: Part Number AF448A is user selectable for 100V, 110V, or 120V via
dip switch setting on the back of the unit.
Power Out (VA/Watts)
NA: 1000VA/670W
Input Connection
Attached 6 foot power cord with
NEMA 5-15P
Output Connection
(6) NEMA 5-15R
Load Segments
1
NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager.
220V, 230V, 240V
Operating Voltage
Settings
NOTE: Part Number AF449A is user selectable for 220V, 230V, or 240V via
dip switch setting on the back of the unit.
1000VA/670W
Power Out (VA/Watts)
IEC 320 C13
Input Connection
(6) IEC 320 C14
Output Connection
1
Load Segments
NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager.
100V or 110V,
Operating Voltage
Settings
NOTE: Part Number AF457A is user selectable for 100V or 110V, via dip
switch setting on the back of the unit.
NA: 1000VA/670W
Power Out (VA/Watts)
Attached 6 foot power cord with
Input Connection
NEMA 5-15P
(6) NEMA 5-15R
Output Connection
1
Load Segments
NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager.
DA - 13160
Worldwide — Version 7 — June 20, 2011
Page 9
QuickSpecs
HP Tower UPS T750 G2, T1000 G3, T1500 G3
Technical Specifications
UPS T1500 G3 Specifications
T1500 G3, NA
AF450A
T1500 G3, INTL
AF451A
T1500J, Japan
AF458A
Unit Dimensions (WxDxH)
Shipping Dimensions
Unit Weight
Shipping Weight
Operating Voltage
Settings
5.9 x 15.4 x 7.6 inch (150 x 390 x 193 mm)
12.2 x 9.9 x 17.4 inch (310 x 257 x 518 mm)
37.4 lbs (17.0 kg)
40.5 lbs (18 kg)
100V, 110V, 120V
NOTE: Part Number AF450A is user selectable for 100V, 110V, or 120V via
dip switch setting on the back of the unit.
Power Out (VA/Watts)
NA: 1400VA/950W
Input Connection
Attached 6 foot power cord with
NEMA 5-15P
Output Connection
(6) NEMA 5-15R
Load Segments
1
NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager.
220V, 230V, 240V
Operating Voltage
Settings
NOTE: Part Number AF451A is user selectable for 220V, 230V, or 240V via
dip switch setting on the back of the unit.
1400VA/950W
Power Out (VA/Watts)
IEC 320 C13
Input Connection
(6) IEC 320 C14
Output Connection
1
Load Segments
NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager.
100V, 110V,
Operating Voltage
Settings
NOTE: Part Number AF458A is user selectable for 100V or 110V via dip
switch setting on the back of the unit.
NA: 1400VA/950W
Power Out (VA/Watts)
Attached 6 foot power cord with
Input Connection
NEMA 5-15P
(6) NEMA 5-15R
Output Connection
1
Load Segments
NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager.
HP UPS T750 G2, T1000 G3, and T1500 G3, Models Specifications
Electrical Input
Voltage Range
Frequency
Connections
Online Efficiency
Surge Suppression
DA - 13160
100V-120V and 208V-230V models
See Model Specifications for nominal and user selectable voltage settings
50/60 Hz
See Model Selection Matrix
95%
High Energy 6500A peak
Worldwide — Version 7 — June 20, 2011
Page 10
QuickSpecs
HP Tower UPS T750 G2, T1000 G3, T1500 G3
Technical Specifications
Electrical Output
Battery
Communications
Environmental and
Safety/EMC
Online Regulation
On battery Regulation
Voltage Wave Form
Connections
Output Protection
Type
Recharge Time
Battery String Voltage
-10% to +6% of nominal voltage
±5% of nominal voltage
Sine wave
See Model Specifications
Re-settable circuit protectors
Maintenance-free, sealed, valve-regulated lead acid (VRLA)
<3 hours to 90% usable capacity; <24 hours for complete recharge
T750 G2 and T750J: 24V (2x12V)
T1000 G3: 24V (2X12V)
T1000J: 36V (3x12V)
T1500 G3 and T1500J: 36V (3X12V)
Battery Ampere Hour (ah) T750 G2: 7.2ah
T750J: 9ah
T1000 G3 and T1000J: 9ah
T1500 G3 and T1500J: 9ah
Standard communication port (ships with 6' Serial communication cable)
Serial Ports
Standard communication port (ships with 6' USB communication cable)
USB Port
Power On/Off button
LED Indicators
Alarm Acknowledgement - Turns off the alarm buzzer.
Power LED
Green- AC is present
Battery LED
Amber- The unit is running off of the battery.
Overload LED
Red - Output is overloaded.
Service LED
Red- Faulty battery or battery failed test.
Audible Alarm- The unit detects an operational fault or changes in the
battery mode.
Operating Temperature 32° to 104° F (0° to 40° C)
-5° to 131° F (-15° to 55° C)
Transit and Storage
Temperature
5% to 95% (non-condensing)
Relative Humidity
(Operating)
Up to 4921 feet (1500 Meters) above sea level
Operating Altitude
Less than 45 dBA max
Audible Noise
UL, GS, S Mark, NOM, EK, GOST, TISI
Safety Markings
CE, FCC, ICES, C-Tick, VCCI
EMC Markings
Conforms to IEC 61000-4-5, Level 3EEE 587B and ANSI C62.41
Surge Suppression
FCC CFR 47, Part 15 Class B, CISPR 22, EN55022
Emissions
EN55024, EN62040-2
Immunity
DA - 13160
Worldwide — Version 7 — June 20, 2011
Page 11
QuickSpecs
HP Tower UPS T750 G2, T1000 G3, T1500 G3
Technical Specifications
Estimated Backup Times Chart (In Minutes)
T750 G2 and T750J
Load, percent
Load, Watts
50%
100%
250
500
Estimated battery runtime at 100% battery
charge
15 minutes
5 minutes
T1000 G3 and T1000J
Load, percent
Load, Watts
50%
100%
335
670
Estimated battery runtime at 100% battery
charge
15 minutes
5 minutes
T1500 G3 and T1500J
Load, percent
Load, Watts
50%
100%
475
950
Estimated battery runtime at 100% battery
charge
15 minutes
5 minutes
NOTE: Backup times are estimated for typical applications. Actual performance will depend on load and battery conditions.
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2011 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 13160
Worldwide — Version 7 — June 20, 2011
Page 12
