EPSON STYLUS PRO 7900
EPSON STYLUS PRO 9900

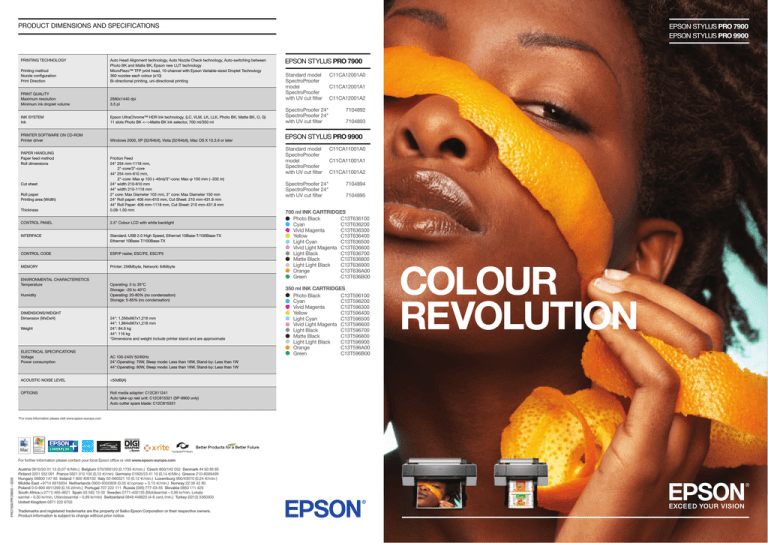

PRODUCT DIMENSIONS AND SPECIFICATIONS
PRINTING TECHNOLOGY
Printing method
Nozzle configuration
Print Direction
Auto Head Alignment technology, Auto Nozzle Check technology, Auto-switching between
Photo BK and Matte BK, Epson new LUT technology
MicroPiezo™ TFP print head, 10-channel with Epson Variable-sized Droplet Technology
360 nozzles each colour (x10)
Bi-directional printing, uni-directional printing
Standard model
SpectroProofer
model
SpectroProofer
with UV cut filter
C11CA12001A0
C11CA12001A1
PRINT QUALITY
Maximum resolution
Minimum ink droplet volume
2880x1440 dpi
3.5 pl
INK SYSTEM
Ink
Epson UltraChrome™ HDR Ink technology, (LC, VLM, LK, LLK, Photo BK, Matte BK, O, G)
11 slots Photo BK <-->Matte BK ink selector, 700 ml/350 ml
SpectroProofer 24"
SpectroProofer 24"
with UV cut filter
PRINTER SOFTWARE ON CD-ROM
Printer driver
Windows 2000, XP (32/64bit), Vista (32/64bit), Mac OS X 10.3.9 or later
EPSON STYLUS PRO 9900
PAPER HANDLING
Paper feed method
Roll dimensions
Thickness
Friction Feed
24" 254 mm-1118 mm,
2"-core/3"-core
44" 254 mm-610 mm,
2"-core: Max φ 103 (~45m)/3"-core: Max φ 150 mm (~202 m)
24" width 210-610 mm
44" width 210-1118 mm
2" core: Max Diameter 103 mm, 3" core: Max Diameter 150 mm
24" Roll paper: 406 mm-610 mm, Cut Sheet: 210 mm-431.8 mm
44" Roll Paper: 406 mm-1118 mm, Cut Sheet: 210 mm-431.8 mm
0.08-1.50 mm
CONTROL PANEL
2.5" Colour LCD with white backlight
INTERFACE
Standard: USB 2.0 High Speed, Ethernet 10Base-T/100Base-TX
Ethernet 10Base-T/100Base-TX
CONTROL CODE
ESP/P raster, ESC/P2, ESC/P3
MEMORY
Printer: 256Mbyte, Network: 64Mbyte
Cut sheet
Roll paper
Printing area (Width)
ENVIRONMENTAL CHARACTERISTICS
Temperature
Humidity
DIMENSIONS/WEIGHT
Dimension (WxDxH)
Weight
ELECTRICAL SPECIFICATIONS
Voltage
Power consumption
Operating: 5 to 35°C
Storage: -20 to 40°C
Operating: 20-80% (no condensation)
Storage: 5-85% (no condensation)
24": 1,356x667x1,218 mm
44": 1,864x667x1,218 mm
24": 84.5 kg
44": 116 kg
*Dimensions and weight include printer stand and are approximate
AC 100-240V 50/60Hz
24":Operating: 70W, Sleep mode: Less than 16W, Stand-by: Less than 1W
44":Operating: 80W, Sleep mode: Less than 16W, Stand-by: Less than 1W
ACOUSTIC NOISE LEVEL
<50dB(A)
OPTIONS
Roll media adapter: C12C811241
Auto take-up reel unit: C12C815321 (SP-9900 only)
Auto cutter spare blade: C12C815331
*For more information please visit www.epson-europe.com
CERTIFIED PRINTER
For further information please contact your local Epson office or visit www.epson-europe.com
PRO7900/PRO9900 – 0209
EPSON STYLUS PRO 7900
Austria 0810/20 01 13 (0,07 €/Min.) Belgium 070/350120 (0.1735 €/min.) Czech 800/142 052 Denmark 44 50 85 85
Finland 0201 552 091 France 0821 010 100 (0,12 €/min) Germany 01805/23 41 10 (0,14 €/Min.) Greece 210-8099499
Hungary 06800 147 83 Ireland 1 800 409132 Italy 02-660321 10 (0,12 €/min.) Luxemburg 900/43010 (0,24 €/min.)
Middle East +9714 8818934 Netherlands 0900-5050808 (0.05 €/oproep + 0.15 €/min.) Norway 22 06 42 80
Poland 0-0-800 4911299 (0,16 zł/min.) Portugal 707 222 111 Russia (095) 777-03-55 Slovakia 0850 111 429
South Africa (+2711) 465-9621 Spain 93 582 15 00 Sweden 0771-400135 (Mobilsamtal – 0,99 kr/min, Lokala
samtal – 0,30 kr/min, Utlandssamtal – 0,89 kr/min) Switzerland 0848 448820 (4-8 cent./min.) Turkey (0212) 3360303
United Kingdom 0871 222 6702
Trademarks and registered trademarks are the property of Seiko Epson Corporation or their respective owners.
Product information is subject to change without prior notice.
Standard model
SpectroProofer
model
SpectroProofer
with UV cut filter
SpectroProofer 24"
SpectroProofer 24"
with UV cut filter
C11CA12001A2
7104892
7104893
C11CA11001A0
C11CA11001A1
C11CA11001A2
7104894
7104895
700 ml INK CARTRIDGES
Photo Black
C13T636100
Cyan
C13T636200
Vivid Magenta
C13T636300
Yellow
C13T636400
Light Cyan
C13T636500
Vivid Light Magenta C13T636600
Light Black
C13T636700
Matte Black
C13T636800
Light Light Black
C13T636900
Orange
C13T636A00
Green
C13T636B00
350 ml INK CARTRIDGES
Photo Black
C13T596100
Cyan
C13T596200
Vivid Magenta
C13T596300
Yellow
C13T596400
Light Cyan
C13T596500
Vivid Light Magenta C13T596600
Light Black
C13T596700
Matte Black
C13T596800
Light Light Black
C13T596900
Orange
C13T596A00
Green
C13T596B00
COLOUR
REVOLUTION
CONTENTS
The choice of professionals
03
Accuracy, speed and flawless colour
04
The fine art of printing
06
Picture perfect
07
More colour, more accuracy
08
A new era in colour performance
09
The mathematics of colour
10
A clear difference
11
Quality with productivity
12
Enhancing efficiency
13
Big screen
14
Intelligent printing
15
Professional colour, automatically
16
Making colour management easy
17
Easy colour
18
Set the industry-standard
19
THE CHOICE OF
PROFESSIONALS
Set new standards of quality and productivity with
Epson’s latest 24" and 44" professional printers.
These 10-colour printers achieve incredible colour
accuracy at high speeds and with very little user
intervention. Whatever your professional printing
needs, the Epson Stylus Pro 7900 and 9900 enhance
productivity and efficiency throughout the process.
Simply choose your size.
03
04
ACCURACY, SPEED AND
FLAWLESS COLOUR
05
Whatever your business, the Epson Stylus Pro 7900
and 9900 will enhance your prints and streamline the
way you work. They deliver superb results quickly and
easily – perfect for a fast turnaround on a tight budget
or the ultimate reproduction for one-off display.
Colour Proofing
Experience colour accuracy and consistency on a large
scale. With very fast speeds, easy operation and even
automatic maintenance, there are no limits to your
productivity and creativity.
From proofing, POS and CAD through to photography
and fine art, you always get perfectly consistent, stable
colour for industry-standard results that are sure to make
a very big impact.
Make an impact
The Epson Stylus Pro 7900 and 9900
are perfect for a range of applications,
including:
• Proofing
• Packaging
• Photography
• Fine Art
• POS
• CAD
• Package proofing and
high level dot proofing
• Auto colour management
and remote proofing
• Superb colour accuracy
and consistency means
higher productivity
POS and CAD
• Maximum impact, minimum
cost and fast turnaround
• Create high quality posters
with Epson Copy Factory
• Easy maintenance with
high capacity inks and
auto nozzle check
• HDI drivers add speed
and accuracy for graphics
Fast, easy and
maintenance-free
It doesn’t matter how complex or
demanding your print job, improved
paper handling, auto nozzle cleaning
and easy operation means the
printing process will always be
smooth and simple.
06
THE FINE ART OF
PRINTING
The new 10-colour Epson UltraChrome™ HDR
(High Dynamic Range) Ink system creates a wider
colour gamut for optimum performance on fine art
papers. The inks are specially formulated for superb
prints that look exactly the same under a range of
lighting conditions and are ready for immediate
display and sale.
PERFECT
Accurate, consistent
and very fast
The new Epson MicroPiezo™ TFP
(Thin Film Piezo) printhead has the
power to produce the most complex
images quickly and accurately, even
on fine art papers.
Photographers can achieve consistent, accurate,
long-lasting results in colour and black and white.
Both matte and photo black inks can be installed
together, with automatic switching to produce the
best results on different media. Prints are dry and
stable in just minutes, and will be lightfast for up
to 200 years*.
07
Long-lasting
vibrant colour
• Colour accuracy, consistency
and high productivity
• Wider colour gamut suits the
latest fine art papers
• Ideal for lab and reproduction
applications
08
MORE COLOUR,
MORE ACCURACY
A NEW ERA IN
COLOUR
PERFORMANCE
With 11 installed inks including new orange and green, Dry and ready to
the 10-colour Epson UltraChrome™ HDR (High
go in minutes
Dynamic Range) pigment ink sets a new benchmark.
Epson UltraChrome™ HDR Ink is
The combination of a wider tonal range and total colour quick-drying and stable in minutes,
accuracy and consistency means you can extend your which saves you time. Your prints will
also be highly water-resistant, and
capabilities and give your clients the best service.
lightfast for up to 200 years*.
The new green and orange inks enhance colour
performance, particularly in the vivid green to yellow
and yellow to red areas of the colour space. This gives
you vivid, natural tones in everything from grass and
foliage to sunsets. It also significantly reduces the
graininess previously seen on skin tones.
Matte
Black
Black
Light
Black
Cyan
Light
Cyan
Vivid
Magenta
Yellow
Green
Orange
Light Light
Black
09
Expanding the world
of colour
Epson UltraChrome™ HDR Ink
Epson UltraChrome™ K3 Ink
Three levels of black further enhance performance
with more subtle light and shadow, and autointerchangeable matte and photo blacks optimise
performance on different media. These blacks also
help to reduce colour inconstancy, so your prints will
look equally perfect under any lighting conditions.
Whatever you print, the inks
combined give you extraordinary
accuracy, so however subtle the
shades and complex the image, you
can count on outstanding quality and
consistency every time.
Vivid Light
Magenta
These new inks are available in
both 350 ml and 700 ml cartridges.
The higher capacity gives you the
flexibility to set long and overnight
print runs and work longer between
changes.
Epson UltraChrome™ K3 Ink with
Vivid Magenta
Epson UltraChrome™ HDR Ink
10
THEMATHEMATICS
OF COLOUR
A CLEAR
DIFFERENCE
The number of colours a 10-colour printer can produce
is virtually infinite, which makes creating the exact
colours and shades you need a very complex task.
Epson new Look-Up Table Technology (LUT) does this
consistently, time after time.
The benefits of Epson new Look-Up Table Technology
(LUT) can be seen in all areas of each superb print:
Epson new Look-Up Table Technology (LUT)
automatically converts RGB or CYMK colour
information and selects the optimum combination of
inks to be blended by the printer to create each
finished shade. This process is very fast and makes
best use of the expanded colour gamut to ensure you
get exactly the right colours.
• Maximises use of the wider colour gamut
• Ensures the highest fidelity to the original image
• Provides a smoother colour gamut for finely detailed
gradations between colours
• Reduces graininess in skin tones by optimising
the fine colour dispersion in each pixel. This is
particularly useful in portrait and commercial
photography
• Helps to virtually eliminate colour inconstancy
so prints look identical under any light conditions
Poor gradation
Good gradation
Colour gamut
with non-smooth
LUT gradation
Colour gamut
with smooth
LUT gradation
11
The scientific approach
Epson new LUT was developed
jointly by scientists at Epson and the
Munsell Colour Science Laboratory,
the pre-eminent academic laboratory
for science education and research
and part of the Rochester Institute
of Technology.
12
QUALITY WITH
PRODUCTIVITY
ENHANCING
EFFICIENCY
The new advanced MicroPiezo™ TFP (Thin Film Piezo) Working in perfect
printhead is the latest in precision, reliability and speed. harmony with Epson
With 360 nozzles for each colour it delivers perfectly
UltraChrome™ HDR Ink
accurate dots with virtually no misting or satellites.
These printers re-define print quality and make the
printing process easier. With comprehensive connectivity,
automatic maintenance and significantly improved paper
handling and finishing they are packed with features that
can help you improve the way you work.
This is our most advanced printhead ever. It’s twice
as fast on plain paper as previous models, and can
produce high quality dot proofing sheets three times
faster in special 1440x1440 dpi mode.
13
Cleans while you print
Printhead
Ink drop
Sensor
Print speed comparison
The new Epson MicroPiezo™ TFP
printhead is optimised to work with
the latest Epson UltraChrome™ HDR
Ink, using Variable-sized Droplet
Technology to produce different
sized dots as small as 3.5 picolitres.
Premium Photo Paper series
Fine
Super Fine
SP-7900/9900
SP-7880/9880
(720x720)
Advanced ink droplet detection
technology automatically and
efficiently cleans nozzles when
clogging is detected, or can be set
to run between jobs. It takes just
15 seconds, uses no media and
only a miniscule amount or ink.
(720x1440)
Super Photo (2880x1440)
0
5
10
15
20
25
Time (min.)
Quality you can
count on
Speed
Compared to previous Epson models, print speeds are improved across all media.
On plain paper, printing in all quality modes is around twice as fast as before.
Perfectly accurate
dot shape
Even under very high workloads you
can rely on a perfect performance
every time. The Epson MicroPiezo™
TFP printhead is not only fast and
accurate, it also has an ink-repellent
coating to keep the printing process
cleaner and more reliable.
Cutting speed and efficiency
The new rotary paper cutter is faster and more durable, with cutting times down
to just 2 seconds. It can cut any media, including cloth, canvas and adhesive
paper. No need for optional manual cutters.
Total connection
Bring the best in Epson large format printing performance to your studio with
out-of-the-box networking for high workload environments.
Sharper
720x720 mode
1400x1400 mode
720x720 mode
1400x1400 mode
The new 1400x1400 dpi mode gives
you sharper results than previous
proofing modes, and delivers
proofing sheets three times faster.
14
BIG
SCREEN
INTELLIGENT
PRINTING
We’ve further improved our range of printer features
to make the printing process even easier and more
flexible. For example, the large control panel has a
320 x 200 dot colour LCD that is highly visible in any
light, so it’s quick and easy to view and check printer
information and even consult the operating manual.
Photo Black – Matte
Black ink change
PF Roller release
and close
Efficient inks
The intuitive user interface is very easy to use, giving
you a range of print and media settings to choose
from. The menu display can be customised so you
can get rid of on-screen clutter and access the exact
tools and information that suits your workflow.
The ink set includes 11 inks, as both
matte and photo blacks are installed
with auto-switching between them.
To enhance productivity in busy
times or during overnight printing,
high capacity 700 ml cartridges
are available.
myEpsonPrinter.eu
Easy media handling
Ink cartridge holder
cover open
Paper cut
Barcode printing
Before you change a roll, you can print a barcode on it with an Epson media
ID or custom number. This tells you the type of media and remaining length
to prevent ‘paper out’ misprints.
The single paper flange handles all
types of paper, and is spindleless for
easy changes in less space. Simply
switch 2 and 3 inch positions – the
intelligent feeding system sets the
skew automatically and controls
back tension.
High quality software
for efficient working
This web-based solution helps you to manage your fleet of Epson large
format printers online. Access up-to-date status and job cost information,
receive e-mail notification of issues such as low ink levels and keep your
printers at their most productive and cost effective wherever you are.
Subscribe to the Epson Return & Recycle program as a myepsonprinter.eu
member and you can earn additional benefits for returning your empty ink
cartridges.
For more details on how to join please visit www.myepsonprinter.eu
Pause/job cancel
15
The new Epson LFP Remote Panel 2
Utility Software has four key functions
to keep you in control, informed and
up-to-date:
• Firmware Updater – connect
automatically to the Internet
and download the latest firmware
from Epson
• Printer Watcher – monitor and
display status of your selected
printer
• Paper Feed Adjuster – fine tune
paper feed settings
• Custom Paper Setup – register
new papers with user-defined
names
16
PROFESSIONAL COLOUR,
AUTOMATICALLY
MAKING COLOUR
MANAGEMENT EASY
The SpectroProofer makes precision colour
measurement and calibration quick and easy. Specially
designed for the Epson Stylus Pro 7900 and 9900, it
conforms to industry ISO standards and simplifies all
aspects of the colour management process.
The SpectroProofer is
the user-friendly way to
higher productivity, with
major developments in
the following areas:
Conventional process
From small studios with limited manpower and tight
deadlines through to high volume businesses with
multiple printers on several sites, the SpectroProofer
ensures complete colour accuracy within the range
set for your system. It’s fast, simple, accurate and
compact – and also compatible with major third-party
RIP packages.
• Faster workflow with extensive
automation
• Simpler operation with just a few
mouse clicks
• Higher accuracy within your
system’s range
• No extra space required – fits right
into your printer
17
RIP
Original data
Print to natural
drying
Final measurement
Completed
Measurement
Repeated test printing and manual colour measurement
add time and cost to a job, meaning higher overall costs
and slower workflow
SpectroProofer process
Automatic Colour Calibration
RIP or
Epson
tool
Original data
Measurement to
auto-drying
On-board dryer reduces
drying time
Print/Measurement
Automated measurement
and calibration requires
less time and improves
colour accuracy
• Quality control – eliminate subtle colour differences, achieve
high quality mass production, reliable overnight printing
• Enhanced productivity – includes on-board fan for speedy
drying times
• Certification – can be used for contract proofing,
prints a certification results chart
• RIP compatible – open platform supports third-party RIP software
• Optimisation and target profile – records and exports data
for creation of ICC profiles
• Printer-to-matching – incorporates industry-standard
X-Rite technology
• High quality software – includes SpectroProofer utilities
• UV or non-UV – two models available
Final print
Final printing with absolute
colour accuracy is achieved
quickly
Completed
18
EASY
COLOUR
The SpectroProofer is compact but powerful, and fits
right into your printer. It handles all colour matching
workflows, which is much easier than the manual
process, and includes features such as the on-board
drying fan to save you even more time. It not only
improves colour accuracy, it enhances productivity too.
SET THE
INDUSTRY-STANDARD
Consistent, perfect
colour from concept
to delivery
All aspects of the colour process are
achieved with high precision, from
profile creation, colour calibration
and certification to Pantone
matching and measurement.
You can use the bundled SpectroProofer utilities
software or major third-party RIP packages to work
at a level of performance that satisfies contract
proofing, colour certification and spot colours.
Previously, achieving the highest standards used
to take time and manpower. Now you can count on
perfect results with a few mouse clicks and the push
of a button.
Incorporates X-Rite
technology
X-Rite technology is an industrystandard innovation that gives you
perfect colour matching from printer
to printer. It’s perfect for multiple
printer set-ups and very high
workloads where only perfection
will do.
19
