Key features
•Zero-configuration service interface
•Advanced bandwidth management
capabilities
•Complete IP routing and networking
services
•Integrated MultiService Access Point

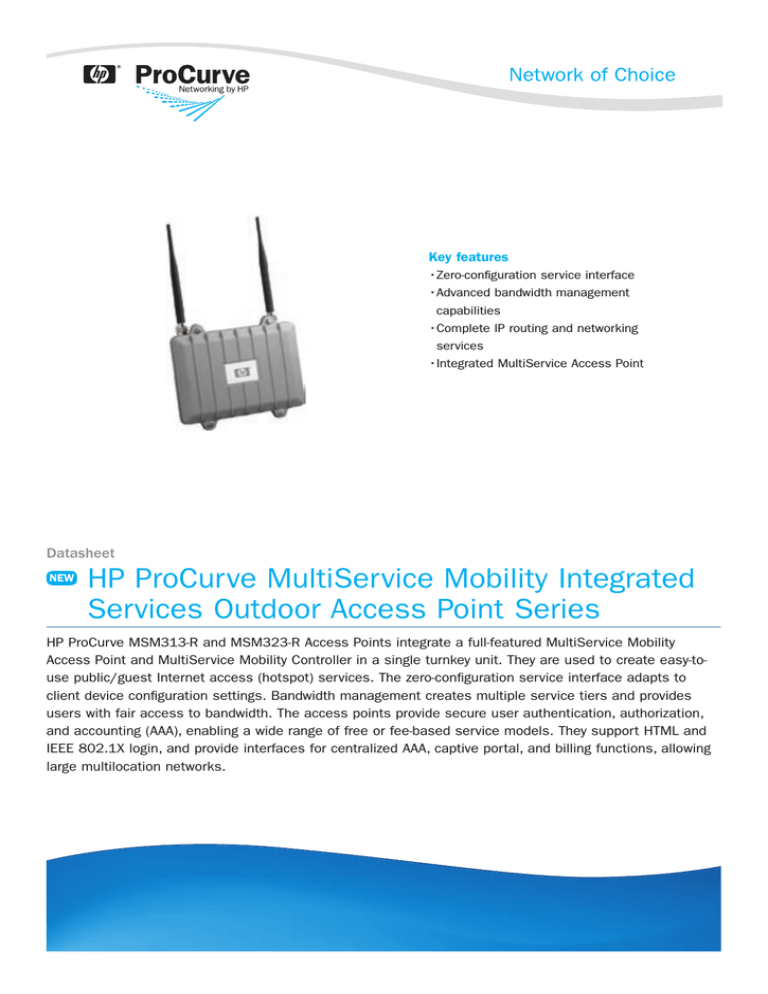

Datasheet
NEW
HP ProCurve MultiService Mobility Integrated
Services Outdoor Access Point Series
HP ProCurve MSM313-R and MSM323-R Access Points integrate a full-featured MultiService Mobility
Access Point and MultiService Mobility Controller in a single turnkey unit. They are used to create easy-touse public/guest Internet access (hotspot) services. The zero-configuration service interface adapts to
client device configuration settings. Bandwidth management creates multiple service tiers and provides
users with fair access to bandwidth. The access points provide secure user authentication, authorization,
and accounting (AAA), enabling a wide range of free or fee-based service models. They support HTML and
IEEE 802.1X login, and provide interfaces for centralized AAA, captive portal, and billing functions, allowing
large multilocation networks.
HP ProCurve MultiService Mobility Integrated Services Outdoor Access Point Series
Features and benefits
Mobility
•All-in-one simplicity: The HP ProCurve MSM313-R and
MSM323-R Access Points combine a full-featured multiservice
access point and multiservice controller in a single easy-todeploy outdoor enclosure that is ideally suited for public
hotspot networks and small enterprise deployments.
•Award-winning public/guest Internet access service: The
ProCurve MSM313-R and MSM323-R Access Points provide
high-speed guest Internet access for up to 25 patrons, guests,
and partners. Guest access can be segmented from corporate
applications. Easy, Web-based login via a captive, customized
portal and zero-configuration service adapts to any client
device’s IP address and Web proxy settings.
•Rich management features: Activity statistics support per-user
billing by data volume and elapsed session time. There is also
integrated support for leading third-party hotspot billing
services. The self-healing configuration automatically adjusts to
changes in the RF environment. The series provides advanced
IP networking capabilities, including Adaptive NAT, SMTP
redirect, and DHCP services for transparent application
support.
•Location flexibility:
– T he series features a NEMA-rated enclosure for outdoor
mounting and is powered by IEEE 802.3af Power over
Ethernet (PoE) for mounting away from AC power sources.
Warranty and support
•Warranty: one-year hardware limited warranty with nextbusiness-day advance replacement (available in most
countries); warranty extensions are available
•Rock-solid security: Security policies based on user credentials
(IEEE 802.1X/EAP), hardware identifiers (MAC address and
•Electronic and telephone support: limited electronic and
WEP key), or HTML login are enforced at the network edge to
telephone support is available from HP. Refer to the HP Web
safeguard network and information integrity. Standards-based
site at www.procurve.com/support for details on the support
RADIUS interface provides remote authentication, authorization,
provided and the period during which support is available.
and accounting (AAA) system integration and hardware-assisted
•Software releases: refer to the HP Web site at
encryption using WPA2/AES (IEEE 802.11i), WPA/RC4, and/or
www.procurve.com/support for details on the software releases
WEP. There is a built-in stateful firewall for secure connection to
provided and the period during which software releases are
the Internet.
available.
•High-performance, multiservice networking: ProCurve
MSM313-R and MSM323-R Access Points can deliver multiple
services simultaneously: networking policies tailored for Quality
of Service (QoS), authentication, encryption, bandwidth
allocation, and VLANs based on user, device, or application
identity. End-to-end QoS is based on TOS/DiffServ, IEEE
802.1p, and TCP/UDP port. IEEE 802.11e Wireless MultiMedia
(WMM) and SpectraLink Voice Priority (SVP) provide voice
performance.
2
HP ProCurve MultiService Mobility Integrated Services Outdoor Access Point Series
Specifications
Ports
Physical characteristics
Dimensions (D x W x H)
Weight
Enclosure
HP ProCurve MSM323-R Access Point WW (J9345A)
HP ProCurve MSM313-R Access Point WW (J9354A)
1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type 10Base-T,
IEEE 802.3u Type 100Base-TX)
Duplex: half or full
1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type 10Base-T,
IEEE 802.3u Type 100Base-TX)
Duplex: half or full
8.44 x 7.25 x 2.14 in. (21.44 x 18.42 x 5.44 cm)
9 lb. (4.08 kg)
Die cast aluminum with 3-point silicone rubber gasket; compliant with
IP65 and EN61373
8.44 x 7.25 x 2.14 in. (21.44 x 18.42 x 5.44 cm)
9 lb. (4.08 kg)
Die cast aluminum with 3-point silicone rubber gasket; compliant with
IP65 and EN61373
Mounting
Includes pole top U-bolts and wall-mounting brackets
Includes pole top U-bolts and wall-mounting brackets
Environment
Operating temperature
Operating relative humidity
Non-operating/Storage temperature
Non-operating/Storage relative humidity
–4ºF to 122ºF (–20ºC to 50ºC)
5% to 95%, non-condensing
–40ºF to 176ºF (–40ºC to 80ºC)
5% to 95%, non-condensing
–4ºF to 122ºF (–20ºC to 50ºC)
5% to 95%, non-condensing
–40ºF to 176ºF (–40ºC to 80ºC)
5% to 95%, non-condensing
Electrical characteristics
Description
Power consumption
Antenna Connector
Antenna
IEEE 802.3af PoE compliant
8.6 W
(2) Waterproof N-type female (one per radio)
(2) 5.5 dBi 2.4 GHz omnidirectional
IEEE 802.3af PoE compliant
6.5 W
(2) Waterproof N-type female with diversity
(2) 5.5 dBi 2.4 GHz omnidirectional
2.412–2.462 GHz (11 channels)
5.180–5.240 GHz (4 channels)
5.745–5.825 GHz (5 channels)
2.412–2.462 GHz (11 channels)
5.180–5.240 GHz (4 channels)
5.745–5.825 GHz (5 channels)
European Union
2.412–2.472
5.180–5.240
5.260–5.320
5.500–5.700
2.412–2.472
5.180–5.240
5.260–5.320
5.500–5.700
Radio
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300
328; ARIB STD-T66; IDA Registration (Singapore); MIC approval (Korea);
RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU)
Frequency band and Operating
FCC (US and Canada)
GHz
GHz
GHz
GHz
(13 channels)
(4 channels)
(4 channels)
(11 channels)
GHz
GHz
GHz
GHz
(13 channels)
(4 channels)
(4 channels)
(11 channels)
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300
328; ARIB STD-T66; IDA Registration (Singapore); MIC approval (Korea);
RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU)
Safety
UL 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03
UL 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03
Emissions
EN 301 489-1; EN 301 489-17
EN 301 489-1; EN 301 489-17
RSS-102; EN 50385
RF Exposure
RSS-102; EN 50385
Notes
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g WPA and WPA2 Wireless Multimedia (WMM), WMM Powersave EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/
EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM** IEEE 802.11d, IEEE 802.11h
Maximum transmit power varies by country.
Services
3-year, parts only, global next-day advance exchange (UN530E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UN527E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN528E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
support (UN529E)
1 Year Post Warranty Next Bus. Day Exchange (UN534PE)
1 Year Post Warranty 4 hour response 13x5 Onsite Support (UN531PE)
1 Year Post Warranty 4 hour response 24x7 Onsite Hardware Support
(UN532PE)
1 Year Post Warranty Hardware and Software 24x7 Phone Support
(UN533PE)
3-year, parts only, global next-day advance exchange (UN546E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UN543E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN544E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
support (UN545E)
1 Year Post Warranty Next Bus. Day Exchange (UN550PE)
1 Year Post Warranty 4 hour response 13x5 Onsite Support (UN547PE)
1 Year Post Warranty 4 hour response 24x7 Onsite Hardware Support
(UN548PE)
1 Year Post Warranty Hardware and Software 24x7 Phone Support
(UN549PE)
Refer to the HP Web site at www.procurve.com/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local
HP sales office.
Refer to the HP Web site at www.procurve.com/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local
HP sales office.
3
HP ProCurve MultiService Mobility Integrated Services Outdoor Access Point Series
Specifications (continued)
HP ProCurve MSM323-R Access Point WW (J9345A)
HP ProCurve MSM313-R Access Point WW (J9354A)
HP ProCurve MSM323-R Access Point WW (J9345A)
Radio characteristics: Dual IEEE 802.11a/b/g
Data rate
Receiver sensitivity
Transmit power
IEEE
802.11a
6 Mbps
–87 dBm
18 dBm
IEEE
802.11a
54 Mbps
–67 dBm
12 dBm
IEEE
802.11g
6 Mbps
–87 dBm
18 dBm
IEEE
802.11g
54 Mbps
–70 dBm
13 dBm
IEEE
802.11b
1 Mbps
–87 dBm
18.5 dBm
IEEE
802.11b
11 Mbps
–87 dBm
18.5 dBm
IEEE
802.11a/j
54 Mbps
–67 dBm
12 dBm
IEEE
802.11g
6 Mbps
–87 dBm
18 dBm
IEEE
802.11g
54 Mbps
–70 dBm
13 dBm
IEEE
802.11b
1 Mbps
–87 dBm
18.5 dBm
IEEE
802.11b
11 Mbps
–87 dBm
18.5 dBm
HP ProCurve MSM313-R Access Point WW (J9354A)
Radio characteristics: IEEE 802.11a/j/b/g
Data rate
Receiver sensitivity
Transmit power
4
IEEE
802.11a/j
6 Mbps
–87 dBm
18 dBm
HP ProCurve MultiService Mobility Integrated Services Outdoor Access Point Series
Specifications
HP ProCurve MSM323-R Access Point US (J9342A)
HP ProCurve MSM313-R Access Point US (J9351A)
1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type 10Base-T,
IEEE 802.3u Type 100Base-TX)
Duplex: half or full
1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type 10Base-T,
IEEE 802.3u Type 100Base-TX)
Duplex: half or full
8.44 x 7.25 x 2.14 in. (21.44 x 18.42 x 5.44 cm)
9 lb. (4.08 kg)
Die cast aluminum with 3-point silicone rubber gasket; compliant with
IP65 and EN61373
8.44 x 7.25 x 2.14 in. (21.44 x 18.42 x 5.44 cm)
9 lb. (4.08 kg)
Die cast aluminum with 3-point silicone rubber gasket; compliant with
IP65 and EN61373
Mounting
Includes pole top U-bolts and wall-mounting brackets
Includes pole top U-bolts and wall-mounting brackets
Environment
Operating temperature
Operating relative humidity
Non-operating/Storage temperature
Non-operating/Storage relative humidity
–4ºF to 122ºF (–20ºC to 50ºC)
5% to 95%, non-condensing
–40ºF to 176ºF (–40ºC to 80ºC)
5% to 95%, non-condensing
–4ºF to 122ºF (–20ºC to 50ºC)
5% to 95%, non-condensing
–40ºF to 176ºF (–40ºC to 80ºC)
5% to 95%, non-condensing
Electrical characteristics
Description
Power consumption
Antenna Connector
Antenna
IEEE 802.3af PoE compliant
8.6 W
(2) Waterproof N-type female (one per radio)
(2) 5.5 dBi 2.4 GHz omnidirectional
IEEE 802.3af PoE compliant
6.5 W
(2) Waterproof N-type female with diversity
(2) 5.5 dBi 2.4 GHz omnidirectional
2.412–2.462 GHz (11 channels)
5.180–5.240 GHz (4 channels)
5.745–5.825 GHz (5 channels)
2.412–2.462 GHz (11 channels)
5.180–5.240 GHz (4 channels)
5.745–5.825 GHz (5 channels)
European Union
2.412–2.472
5.180–5.240
5.260–5.320
5.500–5.700
2.412–2.472
5.180–5.240
5.260–5.320
5.500–5.700
Radio
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300
328; ARIB STD-T66; IDA Registration (Singapore); MIC approval (Korea);
RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU)
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300
328; ARIB STD-T66; IDA Registration (Singapore); MIC approval (Korea);
RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU)
Safety
UL 60950-1
UL 60950-1
Emissions
EN 301 489-1; EN 301 489-17
EN 301 489-1; EN 301 489-17
RF Exposure
FCC Bulletin OET-65C
FCC Bulletin OET-65C
Notes
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g WPA and WPA2 Wireless Multimedia (WMM), WMM Powersave EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/
EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM** IEEE 802.11d, IEEE 802.11h
Maximum transmit power varies by country.
Services
3-year, parts only, global next-day advance exchange (UN530E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UN527E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN528E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
support (UN529E)
1 Year Post Warranty Next Bus. Day Exchange (UN534PE)
1 Year Post Warranty 4 hour response 13x5 Onsite Support (UN531PE)
1 Year Post Warranty 4 hour response 24x7 Onsite Hardware Support
(UN532PE)
1 Year Post Warranty Hardware and Software 24x7 Phone Support
(UN533PE)
3-year, parts only, global next-day advance exchange (UN546E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UN543E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN544E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
support (UN545E)
1 Year Post Warranty Next Bus. Day Exchange (UN550PE)
1 Year Post Warranty 4 hour response 13x5 Onsite Support (UN547PE)
1 Year Post Warranty 4 hour response 24x7 Onsite Hardware Support
(UN548PE)
1 Year Post Warranty Hardware and Software 24x7 Phone Support
(UN549PE)
Refer to the HP Web site at www.procurve.com/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local
HP sales office.
Refer to the HP Web site at www.procurve.com/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local
HP sales office.
Ports
Physical characteristics
Dimensions (D x W x H)
Weight
Enclosure
Frequency band and Operating
FCC (US and Canada)
GHz
GHz
GHz
GHz
(13 channels)
(4 channels)
(4 channels)
(11 channels)
GHz
GHz
GHz
GHz
(13 channels)
(4 channels)
(4 channels)
(11 channels)
5
HP ProCurve MultiService Mobility Integrated Services Outdoor Access Point Series
Specifications (continued)
HP ProCurve MSM323-R Access Point US (J9342A)
HP ProCurve MSM313-R Access Point US (J9351A)
HP ProCurve MSM323-R Access Point US (J9342A)
Radio characteristics: Dual IEEE 802.11a/b/g
Data rate
Receiver sensitivity
Transmit power
IEEE
802.11a
6 Mbps
–87 dBm
18 dBm
IEEE
802.11a
54 Mbps
–67 dBm
12 dBm
IEEE
802.11g
6 Mbps
–87 dBm
18 dBm
IEEE
802.11g
54 Mbps
–70 dBm
13 dBm
IEEE
802.11b
1 Mbps
–87 dBm
18.5 dBm
IEEE
802.11b
11 Mbps
–87 dBm
18.5 dBm
IEEE
802.11a/j
54 Mbps
–67 dBm
12 dBm
IEEE
802.11g
6 Mbps
–87 dBm
18 dBm
IEEE
802.11g
54 Mbps
–70 dBm
13 dBm
IEEE
802.11b
1 Mbps
–87 dBm
18.5 dBm
IEEE
802.11b
11 Mbps
–87 dBm
18.5 dBm
HP ProCurve MSM313-R Access Point US (J9351A)
Radio characteristics: IEEE 802.11a/j/b/g
Data rate
Receiver sensitivity
Transmit power
6
IEEE
802.11a/j
6 Mbps
–87 dBm
18 dBm
HP ProCurve MultiService Mobility Integrated Services Outdoor Access Point Series
HP ProCurve MultiService Mobility Integrated Services Outdoor Access Point Series
accessories
HP ProCurve 1-Port Power Injector (J9407A)
7
For more information
To learn more about HP ProCurve Networking, please visit ProCurve.com
© Copyright 2008 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in
the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or
editorial errors or omissions contained herein.
4AA2-3261ENN, November 2008
