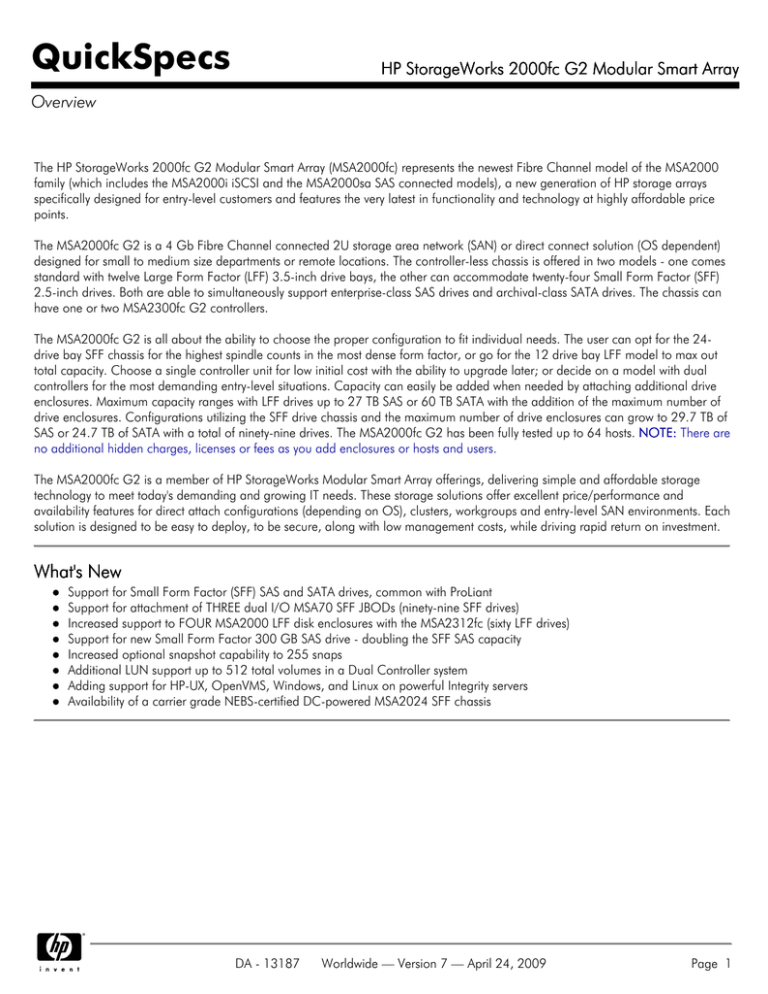

QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Overview
The HP StorageWorks 2000fc G2 Modular Smart Array (MSA2000fc) represents the newest Fibre Channel model of the MSA2000
family (which includes the MSA2000i iSCSI and the MSA2000sa SAS connected models), a new generation of HP storage arrays
specifically designed for entry-level customers and features the very latest in functionality and technology at highly affordable price
points.
The MSA2000fc G2 is a 4 Gb Fibre Channel connected 2U storage area network (SAN) or direct connect solution (OS dependent)
designed for small to medium size departments or remote locations. The controller-less chassis is offered in two models - one comes
standard with twelve Large Form Factor (LFF) 3.5-inch drive bays, the other can accommodate twenty-four Small Form Factor (SFF)
2.5-inch drives. Both are able to simultaneously support enterprise-class SAS drives and archival-class SATA drives. The chassis can
have one or two MSA2300fc G2 controllers.
The MSA2000fc G2 is all about the ability to choose the proper configuration to fit individual needs. The user can opt for the 24drive bay SFF chassis for the highest spindle counts in the most dense form factor, or go for the 12 drive bay LFF model to max out
total capacity. Choose a single controller unit for low initial cost with the ability to upgrade later; or decide on a model with dual
controllers for the most demanding entry-level situations. Capacity can easily be added when needed by attaching additional drive
enclosures. Maximum capacity ranges with LFF drives up to 27 TB SAS or 60 TB SATA with the addition of the maximum number of
drive enclosures. Configurations utilizing the SFF drive chassis and the maximum number of drive enclosures can grow to 29.7 TB of
SAS or 24.7 TB of SATA with a total of ninety-nine drives. The MSA2000fc G2 has been fully tested up to 64 hosts. NOTE: There are
no additional hidden charges, licenses or fees as you add enclosures or hosts and users.
The MSA2000fc G2 is a member of HP StorageWorks Modular Smart Array offerings, delivering simple and affordable storage
technology to meet today's demanding and growing IT needs. These storage solutions offer excellent price/performance and
availability features for direct attach configurations (depending on OS), clusters, workgroups and entry-level SAN environments. Each
solution is designed to be easy to deploy, to be secure, along with low management costs, while driving rapid return on investment.
What's New
Support for Small Form Factor (SFF) SAS and SATA drives, common with ProLiant
Support for attachment of THREE dual I/O MSA70 SFF JBODs (ninety-nine SFF drives)
Increased support to FOUR MSA2000 LFF disk enclosures with the MSA2312fc (sixty LFF drives)
Support for new Small Form Factor 300 GB SAS drive - doubling the SFF SAS capacity
Increased optional snapshot capability to 255 snaps
Additional LUN support up to 512 total volumes in a Dual Controller system
Adding support for HP-UX, OpenVMS, Windows, and Linux on powerful Integrity servers
Availability of a carrier grade NEBS-certified DC-powered MSA2024 SFF chassis
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 1
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Overview
HP StorageWorks 2024fc G2 Modular Smart Array
StorageWorks 2012fc G2 Modular Smart Array
Models
StorageWorks 2000fc G2 Controller-less CHASSIS & MSA2300fc G2 FC Controller
Modular Smart Array
HP StorageWorks 2012 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)
(Will accept one or two controllers or Disk Enclosure I/O modules)
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)
(Will accept one or two controllers)
HP StorageWorks 2300fc G2 Modular Smart Array Controller
Disk Enclosures
HP StorageWorks MSA2000 Single I/O 3.5-inch 12 LFF Drive Enclosure
(w/ two .6m SAS to SAS cables) Used with single controller array head
HP StorageWorks MSA2000 Dual I/O 3.5-inch inch 12 LFF Drive Enclosure
(w/ two .6m SAS to SAS cables) Used with dual controller array head
HP StorageWorks MSA2000 Drive Enclosure I/O Module
(no cable included)
HP StorageWorks MSA70 2.5-inch 25 SFF Drive Enclosure 2.5 in Drive Enclosure
(single I/O, single domain) (w/one .5m miniSAS to miniSAS cable)
HP StorageWorks Dual Domain I/O Module for MSA70 enclosure
(upgrades MSA70 to dual domain) (w/ one .5m miniSAS to miniSAS cable)
MSA2300fc SAN Starter Kits
HP StorageWorks 2312fc G2 Single Controller Modular Smart Array SAN Starter Kit
(LFF)
(includes single controller, 12-drive bay LFF array head, 8-port 8Gb switch, two 8Gb
HBAs, SFPs and cables)
HP StorageWorks 2324fc G2 Single Controller Modular Smart Array SAN Starter Kit
(SFF)
(includes single controller, 24-drive bay SFF array head, 8-port 8Gb switch, two 8Gb
HBAs, SFPs and cables)
HP StorageWorks 2300fc G2 Modular Smart Array SAN Starter HA Upgrade Kit
(includes additional single controller, 8-port 8Gb switch, two more 8Gb HBAs, SFPs
and cables) For upgrading AJ954A or AJ955A to dual controller, high availability
configurations
DA - 13187
Worldwide — Version 7 — April 24, 2009
AJ948A
AJ949A
AJ798A
AJ749A
AJ750A
AJ751A
418800-B21
AG779A
AJ954A
AJ955A
AJ956A
Page 2
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Overview
Configured Units
HP StorageWorks 2312fc G2 Dual Controller Modular Smart Array (LFF)
(Pre-configured with two array controllers)
HP StorageWorks 2324fc G2 Dual Controller Modular Smart Array (SFF)
(Pre-configured with two array controllers)
Controller-less Chassis: DC-powered units
HP StorageWorks 2012 Modular Smart Array 3.5-in Drive Bay DC-power Chassis
(LFF) (can add one or two MSA2300fc G2 controllers or MSA2000 JBOD I/O
modules)
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay DC-power Chassis
(SFF) (can add one or two MSA2300fc G2 controllers. No MSA2000 JBOD I/O
module support)
Controller-less Carrier Grade Chassis
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay Carrier-Grade Chassis
(SFF)
Related Option
HP StorageWorks 2000fc Modular Smart Array Controller (limited use)
(for use only with an AJ948A LFF chassis for those needing to configure an older
MSA2012fc. Only supports older features, functionalities. No SFF or MSA70 JBOD
support, max 48 LFF drives, max 64 snaps; no HP-UX, OpenVMS, or Integrity server
support)
DA - 13187
Worldwide — Version 7 — April 24, 2009
AJ795A
AJ797A
AJ950A
AJ951A
AM337A
AJ744A
Page 3
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Features and Benefits
Key Hardware Features
Highly efficient consolidation and sharing of storage geared to departmental and small to medium business requirements
Cost efficient plus high-availability choices
Flexibility in drives: LFF MSA2 3.5-inch or HP ProLiant SFF 2.5-inch drives
Enterprise-class SAS or archival-class SATA drives as the need and budget dictates
Dual-ported SAS drives for enterprise needs
Large capacity SATA drives for inexpensive archival storage
Able to mix SAS and SATA drives within the same drive enclosure
Choose either single or dual controller array models to fit the budget
Choice of low cost single I/O or high-availability dual I/O drive enclosure models
Customer Benefits
The HP StorageWorks 2000 Modular Smart Array family manages growing storage requirements across multiple HP ProLiant,
Integrity, or a selection of PA-RISC servers for customers who need a centralized dedicated storage solution for applications
(check model for specific server support). SANs allow for controlled, cost-effective growth and increased protection of data.
Its ease of management allows a department or small company to effectively handle growing storage requirements with a
minimum of complexity.
Depending on the model chosen, the modular design allows the user to start relatively small but supports future growth to
hundreds of users and up to 27 TB of LFF SAS or 60 TB of LFF SATA storage, or 29.7 TB of SFF SAS or 24.7 TB of SFF SATA
storage.
The optional controller-based snapshot and clone capability of the MSA2000 family allows the smaller departmental user or
company to implement functionality once only available to much larger firms with expensive arrays. The MSA2300fc G2
controller supports up to 255 snaps.
HP MSA2000fc G2 Models At a Glance:
High performance Modular Smart Array controller(s), each with two 4Gb Fibre Channel ports
Single or dual controller capability
1 GB transportable cache per controller - battery-free cache backup with super capacitors and compact flash
512 LUNs with LUN size up to 16TB
2U rack mount chassis combining both the controller and disk shelf
Twelve 3.5-inch or twenty-four 2.5-inch dual-ported SAS or SATA drive bays (supports mixing of drive types in a single shelf)
Supports expansion to 4 additional LFF enclosures for a total of 60 LFF disks
Supports expansion to 3 additional SFF enclosures (MSA70) for a maximum total of 99 SFF disks
Redundant power supplies and fans are standard
RAID levels 0, 1, 3, 5, 6, 10, 50
Non-disruptive on-line controller code upgrade (requires dual controllers w/ multi-pathing software)
Heterogeneous support for 32-bit and 64-bit Windows, Red Hat and SuSE Linux, and HP-UX
Windows Server 2008 x64 Hyper-V, VMware
Qualified and certified for Windows, Linux, and HP-UX and OpenVMS clustering
Optional controller-based snapshot and clone functionality
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 4
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Features and Benefits
HP MSA2024fc G2
Carrier-Grade
Components
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay Carrier-Grade Chassis
AM337A
The MSA2000fc G2 is a 4 Gb Fibre Channel connected 2U storage area network
(SAN) or direct connect solution designed for network equipment providers (NEPs) and
communication service providers. Suited for those who need a robust telecom
infrastructure--- they need storage devices to catch videos, photos, text, new services--need a place to have the data stored and cached.
The MSA is a high-quality entry-level FC array, ideal for customers with limited
budgets.
The HP MSA2024 Carrier-Grade Chassis (AM337A) is a controller-less chassis
capable of supporting one or two MSA2300fc G2 Fibre Channel controllers (AJ798A)
and has twenty-four Small Form Factor (SFF) drive bays. It comes equipped with two
DC-power power supplies.
When used in conjunction with the Seismic cabinet (AH343A) and specific ProLiant
SFF SAS drives, the solution is NEBS certified. NEBS level-3 certification provides the
assurance that the equipment is safe to operate and sturdy enough to withstand
certain physical (for example, acoustics) and environmental (for example, fire,
earthquakes) conditions.
Certifications
Controller
Qualified Drives
Racking
Mezz Card (HBA)
Supported Interconnect
Maximum capacity is achieved with twenty-four 146 GB drives yielding 3.5 TB in 2U
of rack space. No JBODs or disk enclosures are part of the NEBS certification
This Storage array augments HP's Carrier-Grade portfolio of solutions and will attach
to both the Bladeserver and ProLiant carrier-grade rack mount servers.
NEBS Level 3 (GR-63 and GR-1089), Seismic Zone 4
HP StorageWorks 2300fc G2 Modular Smart Array Controller (1 or 2)
HP 72GB 3G 10K SAS 2.5-inch SFF DP HDD
HP 146GB 3G 10K SAS 2.5-inch SFF DP HDD
Order stand-alone or to be racked in HP seismic rack
QLogic for BL460c
QLogic for BL860c
c7000-cg - Brocade SAN 4/12 and 4/24
For more information on HP Carrier Grade Platforms go to
http://www.hp.com/products1/servers/carrier_grade/index.html?jumpid=reg_
R1002_USEN
DA - 13187
Worldwide — Version 7 — April 24, 2009
AJ798A
384842-B21
418367-B21
Page 5
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Family Information
MSA2000fc G2
MSA2000i
MSA2000sa
Capacity
Minimum / with maximum
additional drive
enclosures
LFF:
LFF 5.4 TB SAS
or 12 TB SATA
w/ 4 drive enclosures:
27 TB SAS
or 60 TB SATA
SFF:
SFF 7.2 TB SAS
or 6 SATA
w/ 3 MSA70 JBODs:
29.7 TB SAS
or 24.7 TB SATA
LFF:
LFF 5.4 TB SAS
or 12 TB SATA
w/ 3 drive enclosures:
21.6 TB SAS
or 48 TB SATA
(LFF only)
LFF:
LFF 5.4 TB SAS
or 12 TB SATA
w/ 3 drive enclosures
21.6 TB SAS
or 48 TB SATA
(LFF only)
Controller Cache
Total LUNs
Host connect
MSA2000 have 1 or 2
controllers, EVA has 2
controllers standard
Maximum Drives
w/ expansion
Maximum host supported
Snapshot, clone
1 GB per controller
512
Two 4 Gb
Fibre Channel ports
per controller
1 GB per controller
256
Two 1 GbE
iSCSI ports
per controller
1 GB per controller
256
Two 3 Gb
SAS ports
per controller
60 LFF/99 SFF
48
48
2 GB per controller
1024
Two 4 Gb
Fibre Channel ports
per controller
(Ten w/switch)
96
64
Snapshot (max 255)
clone
Primary Storage
with SAS.
Secondary with SATA
16
Snapshot (max 64)
clone
Primary Storage
with SAS.
Secondary with SATA
4
Snapshot (max 64)
clone
Primary Storage
with SAS.
Secondary with SATA
512
Snapshot, clone,
remote data replication
Primary Storage
with FC
Secondary with FATA
Use for Storage
Comparison w/
EVA4400
LFF: 5.4 TB FC
LFF
or 12 TB FATA
w/ 8 drive enclosures
43 TB FC
or 96 TB FATA
(LFF only)
NOTE: maximum available storage capacity depends on the RAID level being implemented, and is based on maximum number of
LUNs and LUN size.
Product Technology
4 Gb Fibre Channel
technology
Modular Chassis
Drives available
DA - 13187
Two host ports per controller, shipped with SFPs. the MSA2000fc G2 controller
can run in either point-to-point or FCAL (loop). The default is FCAL which is
used in Direct Connect, particularly with two controllers. The PtP (fabric) mode
is used with almost all switches.
2U rack height. 12 Large Form Factor or 24 Small Form Factor drive bays,
accommodating SAS and SATA. Comes with space for one or two controllers,
or MSA2000 3.5-inch disk Enclosure I/O modules (LFF chassis only)
The new MSA2000fc G2 controller supports either the MSA2 3.5-inch Large
Form Factor (LFF) drives, or the HP ProLiant 2.5-inch Small Form Factor (SFF)
drive
Serial Attached SCSI (SAS) enterprise-class drives designed for high volume,
24x7 usage. Serial-ATA (SATA) are usually reserved for archival of data as
they are both relatively inexpensive and are available in very large capacities.
The MSA2000 family of arrays can accommodate both SAS and SATA drives
within the same enclosure making it ideal to have both business-critical, high
activity files on SAS drives while using Snapshot or clone capability to keep
back-up or archival data on the less expensive drives.
For investment protection, the MSA2300fc G2 controller will support single
Worldwide — Version 7 — April 24, 2009
Page 6
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Family Information
port SAS & SATA drives in a single-domain MSA70. This support allows current
owners of MSA70s to migrate their single port drives (in their MSA70 only) to
be attached to an MSA2300fc. They can only cascade to another single I/O
MSA70. This is not a data-in-place transition.
SAS drive performance can be approximately 30% greater than SATA
performance on sequential host I/O. SAS performance excels in sequential
lower latency response time and random I/O per second transaction
performance due to higher rpm disk speeds yielding lower seek times. SAS
drive random performance is generally twice that of SATA drives.
NOTE: MSA2 3.5-inch Large Form Factor (LFF) drives are for use only in the
MSA2000 family. The 2.5-inch Small Form Factor (SFF) drives are supported
only with the MSA2300fc G2 controller and are common with and are the
same part numbers as the ProLiant optional 2.5-inch drives.
Optional Disk enclosures Just as the user has a choice of chassis for the array head (LFF and SFF drive
bays), so also do they have a choice of expansion disk enclosures
accommodating either drive size. (NOTE:
NOTE: these are not supported as part of a
NEBS-certified with the MSA Carrier Grade Chassis.)
enclosure. This 2U unit has twelve LFF (3.5-inch)
MSA2000 3.5-inch drive enclosure
drive bays and accepts for MSA2 dual-ported SAS and SATA drives. One
model (AJ749A) has a single I/O module that matches with a single controller
array head, giving a single path to the drives. The second model (AJ750A)
comes standard with two I/O modules installed, required when paired with a
dual controller array head, giving two paths to the drives for higher
availability.
This 3.5-inch drive enclosure can be attached to either the MSA2312fc
or MSA2324fc array head. In addition it continues to support the
MSA2000i and MSA2000sa.
Each model ships standard with two .6m SAS to SAS cables for
cascading to other MSA2000 drive enclosures
For connection to either form-factor MSA2300fc array head, miniSAS to
SAS cable(s) must be purchased.
The single I/O model can be upgraded to a dual model with the
purchase of an additional MSA2000 Drive Enclosure I/O module
(AJ751A). No cable is included with this upgrade.
Up to four MSA2000 3.5-inch enclosures can be attached to an
MSA2300fc G2 controller in the array head.
enclosure. This 2U storage enclosure (418800-B21) is
MSA70 2.5-inch drive enclosure
designed to support twenty five ProLiant 2.5-inch Universal form factor (SFF)
SAS or SATA hard drives. It ships standard with a single I/O module installed.
This 2.5-inch drive enclosure can only be attached to an MSA2324fc
G2 controller (SFF)array head. It cannot be attached to the MSA2312fc
(LFF) or the MSA2000i or MSA2000sa models.
The MSA70 enclosure ships with a single .5m miniSAS to miniSAS
cable.
To support a dual controller MSA2124fc G2 array head, the user needs
to purchase and install an MSA70 Dual Domain I/O Module
(AG779A). This option ships standard with an additional .5m miniSAS
to miniSAS cable.
Up to three MSA70s may be attached to the array head, given total
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 7
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Family Information
support for 99 SFF drives.
The MSA2300fc G2 controller is designed to allow an installation to begin
with smaller capacity and be able to grow gradually as needed. The flexibility
of SAS or SATA drive technology, form factors, sizes, speeds, and costs per GB
allows a system to easily fit in almost any budget.
Scalability
LUNs
RAID 0, 1, 3, 5, 6, 10,
50
Performance
DA - 13187
Large Form Factor configurations can scale up to 5.4 TB SAS or 12 TB
SATA, expandable to 27 TB SAS or 60 TB SATA with the addition of a
maximum of four MSA2000 3.5-inch Drive Enclosures.
Small Form Factor configurations can scale from 7.2 TB SAS or 6 TB
SATA. With the addition of three MSA70 JBODs, the MSA2324fc G2
can support 29.7 TB SAS or 24.7 TB SATA.
Users may configure a 24-drive MSA2324fc G2 SFF array head with up
to three 12-drive LFF MSA2000 3.5-inch disk enclosures. This is an
excellent method for a configuration that support fast SFF enterpriseclass SAS drives in the array head, combined with economical LFF drives
staged for archival purposes, all in the same array.
Qualification of larger capacity drives is ongoing.
The MSA2000 family of arrays supports 512 LUNs (total volumes in a dual
controller system) and LUN sizes up to 16 TB. The array supports expansion
and deletion of any LUN.
In addition to the usual RAID levels, the MSA2000 family features several
important additional levels. RAID 6 is the highest level of RAID protection. It
allocates two sets of parity data across drives and allows simultaneous write
operations. It can withstand two simultaneous drive failures without downtime
or data loss. RAID 10 is mirroring and striping without parity. It is the most
popular of the multiple RAID levels, allowing large arrays with high
performance in most cases and superior fault tolerance. RAID 50 combines
the block striping and parity of RAID 5 with the straight block striping of RAID
0, yielding higher performance than RAID 5 through the addition of RAID 0,
particularly during writes.
Performance numbers are a guideline as established by tests using RAW I/O in
an Operating System Agnostic test lab environment. A total of 96 72GB 15K
SAS drives were used in a dual controller configuration of eight 12 Disk vdisks,
eight 806 GB volumes, and two volumes per host. Four hosts directly attached
to the MSA2000fc G2 were used in this test configuration (results cannot be
expected with a single host). Results were achieved in Sequential Writes with
256K blocks; all random tests were based on 8K block sizes.
Number and type of applications, drive type, operating system used, and the
number of hosts will affect overall performance.
Worldwide — Version 7 — April 24, 2009
Page 8
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Family Information
Workload
Host Connect
MSA2300fc
4 Gb Fibre
Channel
MSA2000sa
3 Gb SAS
MSA2000 RAID 10 Performance Results (rounded)
Random Reads IOPs
21,400
10,600
Random Writes IOPs
8,800
4,900
Random Mix IOPs 60/40
13,500
6,800
read/write
Sequential Reads MB
1,300
700
Sequential Writes MBs
560
350
MSA2000 RAID 5 Performance Results (rounded)
Random Reads IOPs
20,500
10,200
Random Writes IOPs
2,400
2,000
Sequential Reads MBs
1,300
700
Sequential Writes MBs
780
380
Random Mix IOPs
5,900
3,300
60/40 read/write
MSA2000 RAID 6 Performance Results (rounded)
Random Reads IOPs
20,500
10,100
Random Writes IOPs
1,600
1,400
Sequential Reads MBs
1,300
700
Sequential Writes MBs
820
380
Random Mix IOPs 60/40
4,500
2,750
read/write
MSA2000i
1GbE Ethernet
8,200
4,500
6,100
300
260
7,800
1,600
300
270
3,200
7,800
1,200
300
270
2,560
DC-power chassis
HP is making the two models of controller-less chassis available with direct
current (DC) power supplies. They each have the two empty bays where users
can insert one or two MSA2300fc G2 controller(s). In addition, the MSA2012
LFF drive bay can have MSA2000 3.5-inch I/O modules inserted to create a
LFF DC-power JBOD.
The 500 watt power supply is designed to operate over the input range of 40VDC to -75VDC. This is specifically intended to conform to Telco
requirements. Certification is in process but no claims are made at this time.
HP StorageWorks 2012 Modular Smart Array 3.5-in
AJ950A
Drive Bay DC-power Chassis (LFF)
HP StorageWorks 2024 Modular Smart Array 2.5-in
AJ951A
Drive Bay DC-power Chassis (SFF)
Configuration and
HP StorageWorks MSA Storage Management Utility (SMU). Management
Management Tools
access, out-of-band: WEB GUI, CLI. Interface Types: Mini DB9 RS232,
10/100 Ethernet Protocols Supported SNMP, SSL, SSH, SMTP, HTTP, Telnet
Hot Plug Expansion and All MSA2000 models support hot plug expansion and replacement of
Replacement Support
redundant controllers, enclosures, fans, power supplies, and I/O modules for
simple, fast installation and maintenance.
Snapshot and Clone
Optional controller based functionality. Offers higher levels of data protection,
enabling an almost instant recovery from data failure or corruption. Offers
alternative development testing of 'offline' production data and the ability to
backup snapped/cloned data.
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 9
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Family Information
Overview
Server Compatibility
Industry Standard X86
servers support
OS Support (x86)
OS Support
(Integrity, HP9000)
Web Browser support
The MSA2000fc G2 comes integrated with web browser based software for storage and RAID
management, setup, configuration and troubleshooting. This reduces the cost of ownership by reducing
the training and technical expertise necessary to install and maintain your HP storage solution.
The SPOCK database provides interoperability information for thousands of components and millions of
component combinations. It is available to all users on the HP.com website.
http://www.hp.com/storage/spock
Supports most HP ProLiant and Integrity servers including
HP ProLiant DL, ML
HP ProLiant c-Class Blade Servers
Integrity servers, IA64 & PA Risc
Supports most multi-vendor industry standard 32-bit Intel and AMD based (x86) servers. HP
requires the Third-Party Server to be logo'd and listed on the Microsoft Windows Server Catalog.
Refer to the Microsoft website: http://www.microsoft.com/windows/catalog/server/
HP StorageWorks Division recommends that the Third-Party Server Vendor is an active member of
TSANet. Refer to the TSANet website for details: www.tsanet.com
Microsoft Windows Server 2008 IA32, x64, IA64 (Standard, Enterprise, Datacenter)
Microsoft Windows 2003 and 2003 R2 IA32, x64, IA64
Red Hat Linux (32/64)
SuSE SLES (32/64)
Microsoft Windows Server 2008 x64 Hyper-V
VMware ESX 3.0.1, 3.0.2, 3.5
HP-UX 11i V3 Integrity, HP9000
HP-UX 11i V2 Integrity, HP9000
OpenVMS 8.3. OpenVMS 8.3-1H1
MSA2000 support target based management, and includes a Web interface and a telnet
interface, and requires a web browser for management. Only Microsoft Internet Explorer V6.X and
above (Internet Explorer V7.X is strongly encouraged), and Mozilla Firefox 1.0.7 or later are
supported
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 10
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Optional Software
MSA2300 Snapshot and Product Features
Volume Copy Software
Data Protection
Snapshots create up to 255 point-in-time pictures of data
Volume Copies create up to 128 point-in-time copies of data
Recovery is instant - revert data from any previous Snapshot or Volume Copy
Backup 'snapped' data to disk, virtual tape, or physical tape without a backup window
Data Testing
Snap or clone data to test the performance of a software application on 'offline' production data
Snap or clone data to test how a software patch or enhancement will function on 'offline;
production data
HP StorageWorks 2000 Modular Smart Array Snapshot 255 Software LTU1
HP StorageWorks 2000 Modular Smart Array Snapshot 64 Software LTU
HP StorageWorks 2000 Modular Smart Array Snapshot 8 Software LTU
HP StorageWorks 2000 Modular Smart Array Snapshot 8/255 Upgrade Software
LTU1
HP StorageWorks 2000 Modular Smart Array Snapshot 64/255 Upgrade Software
LTU1
HP StorageWorks 2000 Modular Smart Array Snapshot 8 to 64 Upgrade Software
LTU
HP StorageWorks 2000 Modular Smart Array Volume Copy Software LTU
1 The snapshot software is supported on the MSA2324 and MSA2312 (G2) models
only
Path failover (MPIO)
T5539A
T5512A
T5513A
T5540A
T5541A
T5515A
T5514A
MPIO Basic Failover for Windows provides a single multi-path solution for HP StorageWorks
MSA2000fc Modular Smart Array on HP ProLiant servers by providing basic path failover. Supports
Windows 2003, Windows 2003 R2, and Windows 2003 X64 operating systems.
HP MPIO Full Featured DSM for MSA2000fc v2.2.0.22
Microsoft Windows 2008: Microsoft MPIO is bundled with Windows Server 2008 and must be
installed as an operating system feature.
Failover support for Linux is with Device Mapper 4.0.
HP-UX PV-Links
HP StorageWorks Storage HP StorageWorks Storage Mirroring Software provides host-based, continuous replication for customers
Mirroring
seeking a low-cost alternative to fabric or array-based replication. Patented replication and failover
technology continuously captures byte-level data changes as they happen and replicates those changes
to one or more target servers at any location without geographic limitations. By replicating only the bytes
that change, Storage Mirroring Software uses the absolute minimum bandwidth on your existing LAN or
WAN to replicate your data. Storage Mirroring also provides server failover where a production server
can automatically be 'replaced' by the storage mirroring server in the event of failure. Couple Storage
Mirroring with MSA2000 Snapshots and/or Volume Copy to achieve an Enterprise class data protection
strategy creating different data recovery points using continuous data protection with Storage Mirroring
and point-in-time data protection with Snapshots and/or Volume Copy.
Storage Mirroring Software supports:
Any DAS, NAS, and SAN storage device.
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 11
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Optional Software
Any Windows or Linux ProLiant server including all ML, DL, and BL platforms
Many Windows platforms including Windows Server 2000, Windows Server 2003, Windows
Server 2003 R2, Windows Storage Server 2003, Windows Storage Server 2003 R2, 64bit
Windows, and Windows on Itanium
Some Linux platforms including Red Hat Linux Enterprise 4.4-4.6, 5.x
For more information visit http://h18006.www1.hp.com/products/storage/software/sm/index.html
HP StorageWorks Storage Mirroring Software Windows Server Edition 1 LTU
T5438A
HP StorageWorks Storage Mirroring Software Windows Enterprise Server Edition 1
T5440A
LTU
HP StorageWorks Storage Mirroring Software Windows NAS Edition 1 LTU
T5442A
HP StorageWorks Storage Mirroring Software for AiO Edition 1 LTU
T5446A
HP StorageWorks Storage Mirroring Software for 5 Virtual Machines 1 LTU
T5444A
HP StorageWorks Storage Mirroring SW Linux 1 LTU
T5448A
HP StorageWorks Storage Mirroring Virtual Infrastructure 1 LTU
T5450A
NOTE: For more information visit
http://h18006.www1.hp.com/products/storage/software/sm/index.html
HP ProLiant Storage
Server gateways:
Add more value to your
MSA array
Stretch your MSA2000 array investment by adding file & print services, iSCSI connectivity, and
management hosting with a ProLiant Storage Server gateway platform. HP ProLiant Storage Servers are
optimized file and print server solutions that are built on industry-standard HP ProLiant servers and come
with either Microsoft Windows Storage Server 2003 R2 or Windows Unified Data Storage Server 2003
operating system pre-installed. Since they're Windows-based, network integration is easy, your tools and
data protection applications run right on the box, and management has a familiar look and feel. Like
many Network Attached Storage (NAS) devices, they support heterogeneous file serving environments
and are pre-configured to install in minutes.
A DL380 G5 x64 SAN Storage Server is a file/iSCSI gateway that adds IP-based services to your Fibre
Channel array or SAN. So it not only enhances your MSA investment with file and print services, but it
helps you save even more by enabling tiered (Fibre Channel and iSCSI) block access for application
servers. All of your important client and server data can be managed, scaled, and protected on a single
MSA2000 array.
NOTE: For more information visit: http://www.hp.com/go/storageservers
HP ProLiant DL380 G5 Base Storage Server
NOTE: Microsoft Windows Storage Server 2003 R2 Standard x64 Edition O/S with
file/print services on a 2U rack form factor platform. For more information, go to:
http://h18006.www1.hp.com/products/quickspecs/12559_div/12559_div.html
HP ProLiant DL380 G5 SAN Gateway Storage Server
NOTE: Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition
O/S with file/print, iSCSI, and cluster services on a 2U rack form factor platform. For
more information, go to:
http://h18006.www1.hp.com/products/quickspecs/12559_div/12559_div.html
HP ProLiant SB460c SAN Gateway Storage Server
NOTE: Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition
O/S with file/print, iSCSI, and cluster services on a blade form factor platform. For
more information, go to:
http://h18006.www1.hp.com/products/quickspecs/13114_div/13114_div.html
Fibre Channel HBA options for DL380 G5 Storage Servers
DA - 13187
Worldwide — Version 7 — April 24, 2009
AG815B
AG771B
AN583A
Page 12
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Optional Software
HP StorageWorks FC2142SR 4Gb PCIe HBA
HP StorageWorks FC2242SR Dual Channel 4 Gb PCIe HBA
HP StorageWorks FC1142SR 4Gb PCIe HBA
HP StorageWorks FC1242SR Dual Channel 4 Gb PCIe HBA
HP StorageWorks 81Q PCI-e FC HBA
HP 82Q 8Gb Dual Port PCI-e FC HBA
HP StorageWorks 81E 8Gb SP PCI-e FC HBA
HP 82E 8Gb Dual-port PCI-e FC HBA
Fibre Channel HBA options for the SB460c SAN Gateway Storage Server
Emulex LPe1105 FC Dual Channel 4Gb, PCI-E-to-Fibre Channel Host Bus Adapter
403621-B21
QLogic QMH2462 4Gb FC HBA for HP c-Class BladeSystem
403619-B21
DA - 13187
Worldwide — Version 7 — April 24, 2009
A8002A
A8003A
AE311A
AE312A
AK344A
AJ764A
AJ762A
AJ763A
Page 13
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
Warranty
Three-year limited warranty
Three years parts exchange
Next Business day delivery
Enclosures, Hard drives, and Options for the MSA2000fc carry their own warranty. Refer to HP's Limited
Warranty Statement for more information.
The MSA2000fc has been designed with customer self repairable parts to minimize repair time and
provide greater flexibility in performing defective parts replacement. Please refer to HP's limited warranty
Statement and parts replacement instructions for further details.
http://h18006.www1.hp.com/products/storageworks/warranty.html
Products included in various Kits carry their own individual warranties.
NOTE: The warranty of the hard drive options purchased with the MSA2000fc product is different for
SAS hard drives versus SATA hard drives. SAS hard drive options have a three year warranty and SATA
hard drives options have a one year warranty.
HP Care Pack Services. Scalable, Flexible, Dependable. Like your storage.
Your storage is evolving. Get scalable support that evolves with it. HP Care Pack Services is an easy-to-buy, easy-to-use portfolio of
packaged services covering your lifecycle needs. You can rely on our highly skilled, HP certified professionals to offer a breadth of
expertise across leading storage technologies, and work side by side with you for optimal results. Push services beyond expectations
and choose support that meets the changing needs of your business with the same reliability, scalability and flexibility you demand of
your storage.
Protect your business beyond the warranty
Standard warranty protects against product defects and some causes of downtime. HP Care Pack Services helps you proactively
guard against unplanned downtime which can reduce your productivity and profitability. By using a standard approach to warranty
uplifts, such as HP Care Pack Services, customers can be more sure of consistency of operations for both mission-critical and
standard business computing.
Extending warranties with HP Care Pack Services
The key to normalizing the warranty of combined solutions-is making service uplift simple: HP Care Pack Services. This portfolio of
predefined packages, extending across the entire IT lifecycle, offering consulting, education, technical support, optimization, risk
assessment, and more. It's entirely flexible allowing customers to extend the cover to the precise level of support required. Customer's
standard hardware warranty, for example, can be upgraded to next-business-day response, to same-day coverage, or even to a
committed six-hour call-to-repair service available 24 hours every day of the week.
Provide consistent, predictable levels of support across your entire department or business
Give you direct access to proven technical and problem-solving expertise
Offer a choice of response-time and repair-time commitments
Are available whenever and wherever you do business
For many products, post-warranty HP Care Pack Services are available when your original warranty has expired. Choose the support
levels that meet your business requirements, from basic to mission-critical. http://www.hp.com/hps/storage
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 14
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
NOTE: Care Pack Services availability may vary by product and country.
Related Services
Services that will enhance the user experience in many product deployments
HP SAN Solution Service Get your SAN implementation right - right from the start.
Storage has become essential to the growth and agility of your business.
That's why choosing an HP SAN as your data management solution is a
smart business decision. But your SAN can deliver the results you need only if
it is implemented correctly and integrated with your business.
SAN installation, startup, and integration call for specialized expertise in
planning and design, hardware configuration, network software installation,
and operability verification. Your SAN needs to be configured for high
performance and availability. And it needs to be integrated with your
applications, management environment, and business processes.
HP Data Migration Service Minimize the risks involved in transferring data to your HP StorageWorks
SAN.
You need to move your critical enterprise data to your new HP StorageWorks
SAN platform. And you need to accomplish that without losing data. And
without interrupting your ongoing business operations.
HP Backup & Recovery
Solution Service - ISV
HP Data Migration Service helps you lessen the risk of data loss, minimize
threats to data integrity, and avoid productivity-sapping performance
slowdowns during data transport. A highly experienced HP Services storage
specialist works with you to rapidly and securely migrate mission-critical
business information across your data center or around the globe regardless of the complexity of your environment.
This service consists of installation of the ISV backup software for the
supported SAN environment per HP's and the ISV's quality standards by a
trained service specialist. HP Backup and Recovery Solution Service for ISV
Backup Software provides for the implementation of the supported ISV
backup software in a SAN environment. The two levels of service described
here are based on the size and complexity of the backup environment.
This service is available for VERITAS NetBackup, VERITAS Backup Exec,
CommVault Galaxy, and Legato NetWorker. Implementation of CommVault
Galaxy is only available as a Level 3 service.
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 15
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit: http://www.hp.com/support
Remote Support Technology (RST)-HP Remote Support Pack
Taking a more proactive approach to IT support, the HP Remote Support pack plug-in module easily
integrates with HP Systems Insight Manager to provide a powerful, unified "single pane of glass" solution
for onsite and remote management.
HP Remote Support Pack enhances HP Systems Insight Manager with intelligent event diagnosis plus the
automatic submission of hardware event notifications securely to HP support, including acknowledgment
and status returns. It adds remote configuration collections to allow the delivery of assessment and
proactive services for your SAN storage and HP-UX environments.
Customer Technical
Training
Consider education as an integral part of your strategy to get the best return on investment for your HP
storage solution. HP offers a variety of training courses on storage software, networking, archiving and
disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led
courses at one of our 80 training centers worldwide to on-site training customized to your needs or
online. www.hp.com/learn/storage
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our services
team's dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction. For a list of all our awards, please visit http://h20129.ww2.hp.com/services/cache/773180-0-225-121.html.
Additional Services
Information
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/hps/storage
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP" http://www.hp.com
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 16
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
Warranty Upgrade
Options
Response - Upgrade on-site response from next business day to same day 4-hour response or 6
Hour Call To Repair
Coverage - Extend hours of coverage from next business day to 9 hours x 5 days to 24 hours x 7
days
Duration Select duration of coverage for a period of 1, 3, 4 or 5 years
Software Product Services Product support provides the customer access to HP's experienced technical support
resources, as well as access to HP's Information Services database for support on a variety of multivendor/multiplatform software products. Product support includes escalation and problem coordination
with the appropriate engineering group. HP Services offer a variety of options to allow you to tailor your
product service to meet the needs of your organization. Basic warranty on products can be uplifted from
day one to ensure you receive the service you need when you need it.
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 17
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
Dual Controller MSA2000fc G2
3. CLI Port
4. Ethernet Ports
1. Power Switch
2. Fibre Channel Ports
5. Service Ports
6. Expansion Ports
MSA70 Dual I/O 2.5-inch 25 Drive Enclosure
Rear Panel components
1. Power Supply 1
2. System fan 1
3. Dual 7 segment display board (for
future use)
4. SAS in connector
5. SAS out connector
6. I/O module bay
7. I/O module bay
8. System fan 2
9. Power supply 2
MSA2000 Dual I/O 3.5-inch 12 Drive Enclosure
Rear Panel components
1. Service Port
2. Unit Locator
3. Power Switch
4. DC Voltage / Fan Fault
5. AC Power Good
DA - 13187
6. SAS In Port
7. SAS Out Port
Worldwide — Version 7 — April 24, 2009
Page 18
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
Configure to Order Program Information
HP introduces the new Configure to Order program for the MSA2000 family The MSA2000 models and options may or may not be
factory installed in a rack with add-on controllers, switches, hubs, MSA2000 disk enclosures and hard drives. The MSA2000 arrays
may be integrated with ProLiant servers or as standalone storage.
Orders to be shipped through the CTO process must have a minimum of two drives ordered per controller. SAN Starter Kits are not
eligible for CTO. The Small Form Factor 300GB drive is not available for rack-level CTO at this time.
Description
Product #
HP StorageWorks 2012 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)
AJ948A#0D1
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)
AJ949A#0D1
HP StorageWorks 2300fc G2 Modular Smart Array Controller
AJ798A#0D1
HP StorageWorks 2312fc G2 Dual Controller Modular Smart Array (LFF)
AJ795A#0D1
HP StorageWorks 2324fc G2 Dual Controller Modular Smart Array (SFF)
AJ797A#0D1
HP 2000fc Modular Smart Array Controller (ONLY for use by those wishing to build an older model MSA2012fc))
AJ744A#0D1
HP MSA2000 3.5in Single I/O 12 Drive Encl
AJ749A#0D1
HP MSA2000 3.5in Dual I/O 12 Drive Encl
AJ750A#0D1
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay Carrier-Grade Chassis
AM337A#0D1
HP StorageWorks 2012 Modular Smart Array 3.5-in Drive Bay DC-power Chassis (LFF)
AJ950#A0D1
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay DC-power Chassis (SFF)
AJ951A#0D1
HP MSA2000 Drive Enclosure I/O Module (for CTO, only available for use in a AJ950A DC-powered chassis)
AJ751A#0D1
HP MSA2 146GB 3G 15K 3.5-inch SAS HDD
AJ735A#0D1
HP MSA2 300GB 3G 15K 3.5 inch SAS HDD
AJ736A#0D1
HP MSA2 450GB 3G 15K 3.5 inch SAS HDD
AJ737A#0D1
HP MSA2 500GB 7.2K 3.5 inch SATA HDD
AJ738A#0D1
HP MSA2 750GB 7.2K 3.5 inch SATA HDD
AJ739A#0D1
HP MSA2 1TB 7.2K 3.5 inch SATA HDD
AJ740A#0D1
MSA70
Single I/O, single domain
25 Small Form Factor (SFF) drive bays
MSA70 I/O Module
HP StorageWorks Dual Domain I/O Module
Makes the standard MSA70 (above) into a dual I/O, dual domain JBOD
NOTE: The I/O Module is a field upgradeable Option Kit the addition of which in the
MSA70 will allow dual domain capability providing higher level of redundancy and
reliability
SAS Drives (SFF 2.5-inch) HP 72GB 3G 10K SAS 2.5-inch SFF DP HDD
HP 146GB 3G 10K SAS 2.5-inch SFF DP HDD
HP 300GB 3G 10K SAS 2.5-inch SFF DP HDD
HP 36GB 3G 15K SAS 2.5-inch SFF DP HDD
HP 72GB 3G 15K SAS 2.5-inch SFF DP HDD
HP 146GB 3G 15K SAS 2.5-inch SFF DP HDD
DA - 13187
Worldwide — Version 7 — April 24, 2009
418800-B21
AG779A
384842-B21
418367-B21
492620-B21
418369-B21
418371-B21
504062-B21
Page 19
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
SATA Drives (SFF 2.5inch)
NOTE: Only Dual Port (DP) drives will work as dual-port in a Dual Domain
environment. Dual Domain environment requires the HP StorageWorks Dual Domain
I/O Module Option (# AG779A).
HP 60 GB 1.5 G SATA 5.4K 2.5-inch SFF HDD
HP 120 GB 1.5G SATA 5.4K 2.5-inch SFF HDD
HP 250 GB 3G 5.4K 2.5-inch SFF SATA ETY HDD
NOTE: SATA drives for the MSA70 are not dual port (DP) drives.
NOTE: Go to the HP Hard Drive Compatibility table for complete drive compatibility
information (http://www.hp.com/products/harddiskdrives). Using hard drives in
unsupported configurations will result in voiding the warranty and could result in
damage to the drive and/or loss of data.
379306-B21
458924-B21
460355-B21
Step 1 - MSA2000fc G2 - Base Configuration
Select one:
Model Description:
Part Number
Model Name
HP StorageWorks 2012
Controller-less chassis with twelve Large Form Factor (LFF) MSA2 drive bays. Space
AJ948A
Modular Smart Array 3.5- for two controllers.
inch Drive Bay Chassis
HP StorageWorks 2024
Controller-less chassis with twenty-four Small Form Factor (SFF) ProLiant drives bays.
AJ949A
Modular Smart Array 2.5- Space for two controllers.
inch Drive Bay Chassis
There are two array-head chassis - one with twelve 3.5-inch large form factor bays, the other with twenty-four 2.5-inch small form
factor drive bays. For additional twelve additional drive bays purchase an MSA2000 3.5-inch Disk Enclosure. You may attach a
total of four MSA2000 Drive Enclosures for a total of sixty LFF drive bays. For 25 additional SFF drive bays purchase an MSA70
JBOD with the 2nd I/O module. You may attach a total of three MSA70 JBODs for a total of ninety-nine SFF drive bays. Single
controller arrays support Single I/O Disk Enclosures; dual controller arrays support Dual I/O Disk Enclosures.
Step 2 - Options
Select each option with quantities specified.
Step 2a - Options
Description with Parts Shipped:
HP StorageWorks 2300fc G2 Modular Smart Array Controller
(for either the LFF MSA2012, SFF MSA2024, or the two DC-powered chassis)
Quantity
1 or 2
Part Number
AJ798A
Step 2b - SAS and SATA Drive Options
NOTE: SATA drives are designed for archival or reference data. They should not be used in a heavy or intense I/O environment.
Those situations require the use of enterprise-class SAS drives. MSA2 3.5-inch drives are for use only with MSA2000 products.
MSA2 Large Form Factor (LFF) SAS drives for MSA2312fc and MSA2000 3.5-inch Disk Enclosure
HP StorageWorks MSA2 146GB 3G 15K 3.5 inch Dual-port SAS LFF HDD
AJ735A
HP StorageWorks MSA2 300GB 3G 15K 3.5 inch Dual-port SAS LFF HDD
AJ736A
HP StorageWorks MSA2 450GB 3G 15K 3.5 inch Dual-port SAS LFF HDD
AJ737A
MSA2 Large Form Factor (LFF) SATA drives for MSA2312fc and MSA2000 3.5-inch Disk Enclosure
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 20
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
HP StorageWorks MSA2 500GB 7.2K 3.5-inch SATA LFF HDD
HP StorageWorks MSA2 750GB 7.2K 3.5-inch SATA LFF HDD
HP StorageWorks MSA2 1TB 7.2K 3.5-inch SATA LFF HDD
ProLiant Small Form Factor (SFF) SAS drives for MSA2324fc G2 and MSA70 JBOD
HP 72GB 3G 10K 2.5-inch SAS SFF DP HDD
HP 146GB 3G 10K 2.5-inch SAS SFF DP HDD
HP 300GB 3G 10K SAS 2.5-inch SFF DP HDD (not supported for rack-level CTO at this
time)
HP 36GB 3G 15K 2.5-inch SAS SFF DP HDD
HP 72GB 3G 15K 2.5-inch SAS SFF DP HDD
ProLiant Small Form Factor (SFF) SATA drives for MSA2324fc G2 and MSA70 JBOD
AJ738A
AJ739A
AJ740A
384842-B21
418367-B21
492620-B21
HP 60 GB 1.5 G 5.4K 2.5-inch SATA SFF HDD
HP 120 GB 1.5G 5.4K 2.5-inch SATA SFF HDD
HP 250 GB 3G 5.4K 2.5-inch SFF SATA ETY HDD
379306-B21
458924-B21
460355-B21
418369-B21
418371-B21
Step 2c - Drive Enclosure Options
Should you want a drive enclosure, the model you choose depends on which array model it attaches to. If it is a single controller
array, then choose the JBOD designated as "Single I/O". If it is attaching to a dual controller array then choose the "Dual I/O" JBOD
HP StorageWorks MSA2000 Single I/O 3.5-inch 12 Drive Enclosure
AJ749A
(use with single controller array heads. Ships with two .6m SAS to SAS cables)
HP StorageWorks MSA2000 Drive Enclosure I/O Module
AJ751A
(Use to upgrade the Single I/O model to dual I/O. No cable included)
HP StorageWorks MSA2000 Dual I/O 3.5-inch 12 Drive Enclosure
AJ750A
(use with dual controller array heads. Ships with two .6m SAS to SAS cables)
HP StorageWorks 70 Modular Smart Array (MSA70) SFF 2.5-inch drive Single I/O JBOD
418800-B21
Single I/O, single domain. 25 Small Form Factor (SFF) drive bays
(use only with MSA2324fc array head. Includes one miniSAS to miniSAS cable)
HP StorageWorks Dual Domain I/O Module for MSA70
AG779A
Makes the standard MSA70 (above) into a dual I/O, dual domain JBOD
(Includes one miniSAS to miniSAS cable)
MSA70 NOTE: Only Dual Port (DP) drives will work in the Dual Domain environment. Dual Domain environment requires the HP
StorageWorks Dual Domain I/O Module Option (# AG779A).
For more information on the MSA70, go to the MSA70 Home Page:
http://h18006.www1.hp.com/storage/disk_storage/msa_diskarrays/drive_enclosures/msa70/index.html
Step 2c - SAS Cable Options
miniSAS to miniSAS Cables:
Connecting MSA2300fc controller to MSA70 JBOD if a longer cable is desired.
HP Ext miniSAS to miniSAS 1m Cable
HP Ext miniSAS to miniSAS 2m Cable
SAS to miniSAS Cables:
Connecting MSA2300fc controller to MSA2000 3.5-inch Disk Enclosure
HP SAS to miniSAS .5m Cable
DA - 13187
Worldwide — Version 7 — April 24, 2009
407337-B21
407339-B21
419569-B21
Page 21
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
HP SAS to miniSAS 1m Cable
HP SAS to miniSAS 2m Cable
SAS Cables (SAS to SAS)
Older MSA2000fc controller to MSA2000 3.5-inch Disk Enclosure or cascading two
MSA2000 3.5-inch Disk Enclosures if included .6m cables is not of sufficient length
HP Ext SAS to SAS 1m Cable
HP Ext SAS to SAS 2m Cable
419570-B21
419571-B21
389665-B21
389668-B21
Step 3 - Other MSA2300fc Options
Description
Quantity
Part Number
st
1 generation HP StorageWorks 2000fc Modular Smart Array Controller (older version)
1 or 2
AJ744A
(ONLY for those desiring to configure an older MSA2012fc by using the MSA2012 chassis and installing either one or two of this
model controller. The resulting array head will have the attributes of the first generation MSA2012fc with no support for SFF drives,
no HP-UX, limited total drive count, limited snaps, etc.)
Choose optional Power Cord for Non-U.S. Configurations
NOTE: Shipped standard with all units.
2 ea. Power Cord, 110/220 VAC, US/Canada/Mexico 227099-001
Power Cord, 220/240 VAC, (US/Canada/Mexico)
2
227099-001
Power Cord, (Australia/China/New Zealand)
2
227098-001
Power Cord, (Central Europe)
2
157215-001
Power Cord, (United Kingdom/Hong Kong)
2
157216-001
Power Cord, (Switzerland)
2
157219-001
Power Cord, (Italy)
2
157217-001
Power Cord, (Denmark)
2
157218-001
Power Cord, (Japan)
2
139867-001
Power Cord, (South East Asia/India)
2
157220-001
Management Cable
HP MSA2 DB9 Controller Management cable
AP761A
Step 4 - Choose Supported Options For Fibre Channel Infrastructure
Fibre Channel
Host Bus Adapters X86 servers
Model
FC2242SR
FC2142SR
FC2243
FC2143
FC1242SR
FC1142SR
FC1243
FC1143
Bladeserver HBA
DA - 13187
Description
4Gb PCI-E Dual Channel HBA for Windows and Linux
4Gb PCI-E for Windows and Linux
4Gb PCI-X Dual Channel for Windows and Linux
4Gb PCI-X 2.0 for Windows and Linux
4Gb PCI-E Dual Channel HBA for Windows and Linux
4Gb PCI Express HBA for Windows and Linux
4Gb PCI-X 2.0 Dual Channel for Windows and Linux
4Gb PCI-X 2.0 for Windows and Linux
Lpe1105-HP 4Gb FC HBA for HP c-Class BladeSystem
Worldwide — Version 7 — April 24, 2009
Part Number
A8003A
A8002A
AD168A
AD167A
AE312A
AE311A
AE369A
AB429A
403621-B21
Page 22
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
Bladeserver HBA
Bladeserver HBA
81E
82E
81Q
82Q
Fibre Channel
Host Bus Adapters Integrity, PA-Risc servers
Fibre Channel Switches
Integrity and HP9000
HP-UX v3 and v2
Integrity and HP9000
HP-UX v3, and v2
Integrity
HP-UX v3 and v2
Integrity server blades
BL860c and BL870c
HP-UX v3 and v2
Integrity
HP-UX v3 and v2
Integrity
HP-UX v3 and v2
Integrity server blades
BL860c and BL870c
HP-UX v3
Integrity
HP-UX v3
Integrity
HP-UX v3
Integrity
HP-UX v3
Integrity and HP9000
HP-UX v3 and v2
Integrity and HP9000
HP-UX v3 and v2
Integrity and HP9000
HP-UX v3 and v2
QMH2462 4Gb FC HBA for HP c-Class BladeSystem
Windows and Linux
QLogic QMH4062 1GbE iSCSI Adapter for HP
BladeSystem c-Class, Windows and Linux
StorageWorks 8Gb, PCIe to Fibre Channel Host Bus
Adapter for Windows, Windows Server, and Linux
StorageWorks 8Gb, PCIe to Fibre Channel Host Bus
Adapter for Windows, Windows Server, and Linux
StorageWorks 8Gb, PCIe to Fibre Channel Host Bus
Adapter for Windows, Windows Server, and Linux
StorageWorks 8Gb, Dual Channel PCIe to Fibre Channel
Host Bus Adapter for Windows, Windows Server, and
Linux
488074-B21
AJ762A
AJ763A
AK344A
AJ764A
HP PCI-X 2.0 1Port 4Gb
AB378B
HP PCI-X 2.0 2Port 4Gb Fibre Channel HBA
AB379B
HP PCIe 2Port 4Gb Fibre Channel HBA
AD300A
HP BLc QLogic QMH2462 FC HBA Opt Kit
403619-B21
HP PCIe 1Port 4Gb Fibre Channel HBA
AD299A
HP PCIe 2-Port 4Gb Fibre Channel HBA
AD335A
HP BLc Emulex LPe1105 FC HBA Opt Kit
403621-B21
HP PCIe 1p 4Gb FC and 1p 1000BT Adapter
AD221A
HP PCIe 2p 4Gb FC and 2p 1000BT Adapter
AD222A
HP PCIe 2p 4Gb FC and 2p 1000BSX Adapter
AD393A
PCI-X 2Gb Fibre Channel/1000Base-SX HBA
A9782A
HP PCI-x 1p 4Gb FC and 1p 1000BT Adapter
AD193A
HP PCI-x 2p 4Gb FC and 2p 1000BT Adapter
AD194A
Brocade 4/12 SAN Switch for HP c-Class Blade System, Base
Brocade 4/24 SAN Switch for HP c-Class Blade System, Full Fabric
Brocade 4/24 SAN Switch for HP c-Class Blade System, Power Pack
DA - 13187
403619-B21
Worldwide — Version 7 — April 24, 2009
AE370A
AE372A
AE371A
Page 23
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
HP StorageWorks 4/8 Base SAN Switch
HP StorageWorks 4/16 SAN Switch
HP StorageWorks 4/16 SAN Switch Power Pack
HP StorageWorks 4/8 SAN Switch
HP StorageWorks 4/32B Base SAN Switch
HP StorageWorks 4/32B Full SAN Switch
HP StorageWorks 4/32B Power Pack SAN Switch
HP StorageWorks 8/8 Base SAN Switch
HP StorageWorks 8/8 SAN Switch
HP StorageWorks 8/24 Base SAN Switch
A7984A
A7985A
A7987A
A8000A
AG756A
AG757A
AG758A
AM866A
AM867A
AM868A
HP StorageWorks 8/40 Base SAN Switch
HP StorageWorks 8/40 Power Pack+ SAN Switch
HP StorageWorks 8/80 Power Pack+ SAN Switch
HP StorageWorks 8/80 Base SAN Switch
HP StorageWorks 4/256 SAN Director
HP StorageWorks 4/256 Power Pack SAN Director
HP StorageWorks DC SAN Backbone Director
Brocade 8/12c SAN Switch for HP BladeSystem c-Class
Brocade 8/24c SAN Switch for HP BladeSystem c-Class
Brocade 8/24c SAN Switch for HP BladeSystem c-Class Power Pack+
8 Gb Simple SAN Connection
HP StorageWorks 8/20q Fibre Channel Switch (8 switch ports active)
HP StorageWorks 8Gb Simple SAN Connection Kit (8 switch ports active)
HP StorageWorks 8/20q Fibre Channel Switch (16 switch ports active)
Cisco MDS 9124 8-ports Active Fabric Switch
Cisco MDS 9124 16-ports Active Fabric Switch
Cisco MDS 9124 24-ports Active Fabric Switch
Cisco MDS 9124e 12-port Fabric Switch for HP c-Class BladeSystem
Cisco MDS 9124e 24-port Fabric Switch for HP c-Class BladeSystem
Cisco MDS 9134 24-ports Active Fabric Switch
Cisco MDS 9134 32-ports Active Fabric Switch
Cisco MDS 9134 26-ports Active w/kit for 48 port solution
Cisco MDS 9134 34-ports Active w/kit for 64 port solution
MDS 9222i Multiservice Modular Switch w/0 SFPs
Cisco MDS 9216i w/o Ethernet SFP switch
Cisco MDS 9216i
MDS 9506 Director with Supervisor 2
MDS 9509 Director with Supervisor 2
MDS 9513 Director with Supervisor 2
MDS 9513 Director with Fabric 2 Module
AM869A
AM870A
AM872A
AM871A
A7988A
A7989A
AK857A
AJ820A
AJ821A
AJ822A
DA - 13187
Worldwide — Version 7 — April 24, 2009
AQ233A
AK241A
AK242A
AG646A
AG647A
AG648A
AG641A
AG642A
AG874A
AG875A
AJ732A
AJ733A
AG851A
AE390A
AE390A
AE388A
AE389A
AE376A
AJ905A
Page 24
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
Fibre Channel Cables
2 m LC-LC Multi-Mode Fibre Channel Cable
5 m LC-LC Multi-Mode Fibre Channel Cable
15 m LC-LC Multi-Mode Fibre Channel Cable
30 m LC-LC Multi-Mode Fibre Channel Cable
50 m LC-LC Multi-Mode Fibre Channel Cable
2 m LC-SC Multi-Mode Fibre Channel Cable
5 m LC-SC Multi-Mode Fibre Channel Cable
15 m LC-SC Multi-Mode Fibre Channel Cable
30 m LC-SC Multi-Mode Fibre Channel Cable
50 m LC-SC Multi-Mode Fibre Channel Cable
221692-B21
221692-B22
221692-B23
221692-B26
221692-B27
221691-B21
221691-B22
221691-B23
221691-B26
221691-B27
Step 5 - Choose Rack Options
Select each required option with quantities specified.
Rack Cabinet, Customer Assembled
5642 - 5000 Series rack
14U rack
HP S10614 Rack with Shock Pallet
358254-B21
292302-B22
Rack Cabinets 10622 G2
10622 G2 Universal Rack w/Shock Pallet
10622 G2 Universal Rack w/Standard Pallet
AF022A
AF021A
Rack Cabinets under 10636 G2
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
AF011A
AF012A
AF013A
AF014A
Rack Cabinets 10642 G2
10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
Modular Cooling System G2 (MCS G2)
MCS G2 10642 G2 Expansion Rack
AF001A
AF002A
AF003A
AF004A
AF025A
AF026A
Rack Cabinets 10842 G2
10842 G2 Universal Rack w/Shock Pallet
10842 G2 Universal Rack w/Standard Pallet
AF042A
AF041A
Rack Cabinets 10647 G2
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 25
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
10647 Rack G2 Pallet
DA - 13187
AF031A
Worldwide — Version 7 — April 24, 2009
Page 26
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Technical Specifications
MSA2000fc G2
POWER REQUIREMENTS
Input Power Requirements 110 VAC 3.6A/394W; 220VAC 1.9/385W
(typ)
Max Input Power
100-240 VAC, 50/60 Hz., 4.5-1.9A; 48-60 VDC 10.4A/8.3A
Heat Dissipation
1622 BTU/hr
TEMPERATURE AND HUMIDITY RANGES
Operating Temperature
41°F to 104°F (5oC to 40°C)
Shipping Temperature
-40°F to 158°F (-40°C to 70°C)
Operating Humidity
10% to 90% RH @ 104°F (40°C) non-condensing
Non-Operating Humidity Up to 93% RH @ 104°F (40°C)
DECLARED ACOUSTIC NOISE LEVELS
Sound Power
< 6.5 Bels
Sound Pressure
< 57 dBA
SHOCK AND VIBRATION
Shock, Operational
5G's for 11 milliseconds, half sine
Shock, Non-Operational 15G 11ms half sine
Vibration, Operational
5-500Hz, 0.21Grms flat spectrum0.000089g2/HZ Random Vibration
Vibration, Non5-500-5Hz, 0.5 G peak to peak, sinusoidal
Operational
PHYSICAL
Height
3.436 in/ 8.727 cm
Depth (excluding cables) MSA2024: 20.28 in / 51.510 cm
(back of ear to back of
MSA2012: 21.8 in. / 55.372 cm
controller handle)
Width (body only)
17.55 in / 44.58 cm (w/ ears 19 in / 48.26 cm)
Chassis Weight
MSA2012 chassis: 44 lbs. MSA2024 chassis: 43 lbs
(no controllers)
Modular SAN Array
2300fc G2 Controller
User Interface
- Status and activity provided via management interfaces Status Indicators on
front of Controller
RAID Support
0, 1, 3, 5, 6, 10, 50
Cache Memory
1GB Read/Write. ECC protection with backup to Flash memory (indefinite
backup)
Cache Backup
ECC protection with back up to flash memory (indefinite backup)
Upgradeable Firmware
yes
Disk Drive and Enclosure 3 Gb SAS - Serial Attached SCSI / 3 Gb SATA II
Protocol Support
MSA2000fc SAS (SFF8470) 4x lane 3 Gb SAS
Expansion Port
MSA2300fc SAS (SFF8088) 4x lane 3 Gb SAS
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 27
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
Technical Specifications
Regulatory
Safety
Electromagnetic
Compatibility
RoHS and WEEE
Country Approvals
UL 60950-1 (USA)
CAN/CSA-C22.2 No.60950-1-03 (Canada)
EN 60950-1 (European Union)
IEC 60950-1 ( International )
VCCI:2008-04 Class A
ICES-003 Issue 4 Class A (Canada)
EN55022 : (European Union Class A); CISPR 22 (International)
EN61000-3-2 : (Harmonics)
EN61000-3-3 : (Flicker)
EN 55024 (European Union, Immunity);CISPR 24 (International Immunity)
CNS 13438 Taiwan
KN22 Class A (Emissions); KN24 (Immunity)
RoHS-5 Compliance, China RoHS, WEEE
Australia/New Zealand, Canada, China (PRC), European Union, Germany
(GS Mark), Japan, South Korea, Taiwan, United States
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 13187
Worldwide — Version 7 — April 24, 2009
Page 28
