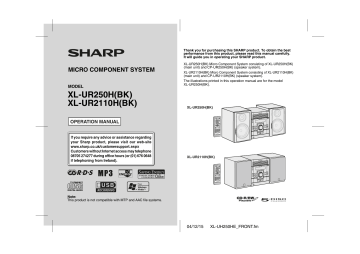

Sharp | XL-UR2110HBK | XLUR2110HBK | Operation manual | XL-UR250H(BK)/UR2110H(BK) Operation-Manual GB

MICRO COMPONENT SYSTEM

MODEL

XL-UR250H(BK)

XL-UR2110H(BK)

OPERATION MANUAL

Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully.

It will guide you in operating your SHARP product.

XL-UR250H(BK) Micro Component System consisting of XL-UR250H(BK)

(main unit) and CP-UR250H(BK) (speaker system).

XL-UR2110H(BK) Micro Component System consisting of XL-UR2110H(BK)

(main unit) and CP-UR2110H(BK) (speaker system).

The illustrations printed in this operation manual are for the model

XL-UR250H(BK).

XL-UR250H(BK)

XL-UR2110H(BK)

Note:

This product is not compatible with MTP and AAC file systems.

04/12/15 XL-UH250HE_FRONT.fm

XL-UR250H(BK)

XL-UR2110H(BK)

Special notes

NOTES FOR USERS IN THE U.K. AND IRELAND

The mains lead of this product is fitted with a non-rewireable

(moulded) plug incorporating a 3A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or

and of the same rating as above, which is also indicated on the pin face of the plug must be used.

Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.

In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut-off the mains plug and fit an appropriate type.

Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three pin plug.

Before replacing the plug cover, make sure that:

● If the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug.

● The cord grip is clamped over the sheath of the mains lead and not simply over the lead wires.

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELEC-

TRICIAN.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner.

Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet as a serious electric shock may occur.

To fit an appropriate plug to the mains lead, follow the instructions below:

SERVICE INFORMATION

In the unlikely event of your equipment requiring repair, please contact the dealer or supplier from whom it was purchased. Where this is not possible, please visit our web-site www. sharp.co.uk/ customersupport.

Customers without internet access may telephone 08

70

527 4277 during office hours (or (01) 676 0648 if telephoning from lreland).

Please note; all calls will be charged at local rate.

Certain replacement parts and accessories may be obtained from our main parts distributor.

IMPORTANT:

The wires in the mains lead are coloured in accordance with the following code:

Blue : Neutral

Brown : Live

As the colours of the wires in the mains lead of this product may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

● The wire which is coloured blue must be connected to the plug terminal which is marked N or coloured black.

● The wire which is coloured brown must be connected to the plug terminal which is marked L or coloured red.

WILLOW VALE ELECTRONICS LTD.

0121 766 5414

In the unlikely event of this equipment requiring repair during the guarantee period, you will need to provide proof of the date of purchase to the repairing company.

Please keep your invoice or receipt, which is supplied at the time of purchase.

2

WARNINGS

When the ON/STAND-BY button is set at STAND-BY position, mains voltage is still present inside the unit. When the ON/

STAND-BY button is set at STAND-BY position, the unit may be brought into operation by the timer mode or remote control.

This unit contains no user serviceable parts. Never remove covers unless qualified to do so. This unit contains dangerous voltages, always remove mains plug from the socket before any service operation and when not in use for a long period.

To prevent fire or shock hazard, do not expose this appliance to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION

This product is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

Laser Diode Properties

Material: GaAs + GaAIAs

Wavelength: 780 nm

Emission Duration: continuous

Laser Output: max. 0.4 mW

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN.

DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH

OPTICAL INSTRUMENTS.

WARNUNG-UNSICHTBARE LASERSTRAHLUNG WENN GERÄT

GEÖFFNET. NICHT IN DIE STRAHLUNG SCHAUEN ODER

DIREKT MIT OPTISCHEN HILFSMITTELN BETRACHTEN.

ATTENTION-RAYON LASER INVISIBLE EN CAS D'OUVERTURE.

NE PAS REGARDER LE FAISCEAU DIRECTEMENT OU AVEC DES

INSTRUMENTS OPTIQUES.

Information on Proper Disposal

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

XL-UR250H(BK)

XL-UR2110H(BK)

3

XL-UR250H(BK)

XL-UR2110H(BK)

Special Note

Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue-generating streaming applications

(via Internet, intranets and/or other networks), other revenuegenerating content distribution systems (pay-audio or audio-ondemand applications and the like) or on revenue-generating physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com

MPEG Layer-3 audio coding technology licensed from Fraunhofer

IIS and Thomson.

Accessories

Please confirm that the following accessories are included.

Remote control 1

FM aerial 1

Note:

Only the above accessories are included.

AM loop aerial 1

Contents

Page

General Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 8

Preparation for Use

System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 11

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Basic Operation

General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Setting the clock (Remote Control only) . . . . . . . . . . . . . . . . . 14

CD or MP3/WMA disc Playback

Listening to a CD or MP3/WMA disc . . . . . . . . . . . . . . . . 15 - 17

Advanced CD or MP3/WMA disc playback . . . . . . . . . . . 18 - 19

Advanced CD playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

MP3/WMA folder mode (only for MP3/WMA files) . . . . . . 21 - 22

USB Memory Playback

Listening to USB mass storage device / MP3 Player . . . 23 - 24

To remove USB memory device . . . . . . . . . . . . . . . . . . . . . . . . 24

Advanced USB playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Recording on USB Memory device . . . . . . . . . . . . . . . . . 26 - 27

Radio

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 - 29

Advanced Features

Using the Radio Data System (RDS) . . . . . . . . . . . . . . . . 30 - 34

Timer and sleep operation (Remote Control only) . . . . . 35 - 38

Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 - 40

References

Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 - 42

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 - 43

TERMS OF GUARANTEE . . . . . . . . . . . . . . . . . . . . . . Back Cover

4

Precautions

General

Please ensure that the equipment is positioned in a well-ventilated area and ensure that there is at least 10 cm (4") of free space along the sides, top and back of the equipment.

10 cm (4") 10 cm (4")

10 cm (4")

Hold the AC power plug by the head when removing it from the wall socket, as pulling the lead can damage internal wires.

The AC power plug is used as disconnect device and shall always remain readily operable.

10 cm (4")

Do not remove the outer cover, as this may result in electric shock. Refer internal service to your local SHARP service facility.

Use the unit on a firm, level surface free from vibration.

Keep the unit away from direct sunlight, strong magnetic fields, excessive dust, humidity and electronic/electrical equipment (home computers, facsimiles, etc.) which generate electrical noise.

Do not place anything on top of the unit.

Do not expose the unit to moisture, to temperatures higher than

60

˚

C (140

˚

F) or to extremely low temperatures.

If your system does not work properly, disconnect the AC power lead from the wall socket. Plug the AC power lead back in, and then turn on your system.

In case of an electrical storm, unplug the unit for safety.

The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.

No naked flame sources, such as lighted candles, should be placed on the apparatus.

Attention should be drawn to the environmental aspects of battery disposal.

This unit should only be used within the range of 5˚C - 35˚C

(41˚F - 95˚F).

The apparatus is designed for use in moderate climate.

Warning:

The voltage used must be the same as that specified on this unit.

Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is specified.

Volume control

The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

XL-UR250H(BK)

XL-UR2110H(BK)

5

XL-UR250H(BK)

XL-UR2110H(BK)

Controls and indicators

1

9

10

7

8

2

3

4

5

6

11

12

13

14

Front panel

Reference page

1. Disc Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2. Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4. Disc or USB Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5. Disc or USB Play or Repeat Button . . . . . . . . . . . . . . . 15, 19

6. ON/STAND-BY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

8. Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 30

9. Video/Auxiliary/USB Button . . . . . . . . . . . . . . . . . . . . . . . . 23

10. USB Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

11. Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

12. Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

13. Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . 15

14. Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . 15

6

1 2

1

2

3

4 5 6 7 8 9 10 11

3

4

6

7

8

12

18 19

13

14 15 16

20 21

17

Display

Reference page

1. Disc Number Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2. MP3/WMA Folder Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 23

3. MP3/WMA Title Indicators . . . . . . . . . . . . . . . . . . . . . . . 22, 24

4. MP3 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 23

5. WMA Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 23

6. RDS Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7. Traffic Announcement Indicator . . . . . . . . . . . . . . . . . . . . . 30

8. Dynamic PTY Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

9. Traffic Programme Indicator . . . . . . . . . . . . . . . . . . . . . . . . 30

10. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

11. Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

12. USB Record Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 27

13. MP3/WMA Total Indicator . . . . . . . . . . . . . . . . . . . . . . . 16, 23

14. Daily Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

15. FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 28

16. FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 28

17. Extra Bass Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

18. Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 29

19. Disc or USB Repeat Play Indicator . . . . . . . . . . . . . . . . 19, 25

20. Disc or USB Pause Indicator . . . . . . . . . . . . . . . . . . . . . . . . 17

21. Disc or USB Play Indicator . . . . . . . . . . . . . . . . . . . . . . 16, 24

Rear panel

Reference page

1. Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2. AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3. FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . 10

4. AM Aerial Earth Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5. AM Loop Aerial Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6. Video/Auxiliary (Audio Signal) Input Sockets . . . . . . . . . . 39

7. Cooling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

8. Subwoofer Pre-output Socket . . . . . . . . . . . . . . . . . . . . . . 40

Speaker system

1. Tweeter

2. Woofer

3. Bass Reflex Duct

4. Speaker Wire

1

3

2

4

XL-UR250H(BK)

XL-UR2110H(BK)

7

XL-UR250H(BK)

XL-UR2110H(BK)

Controls and indicators (continued)

2

3

4

5

6

7

8

1

9

10

11

16

12

17

18

19

20

26

27

21

22

23

24

25

13

14

28

29

15

30 31 32

Remote control

Reference page

1. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . 12

2. Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . 15

3. USB Recording Enter Button . . . . . . . . . . . . . . . . . . . . 26, 27

4. USB Recording Mode Button . . . . . . . . . . . . . . . . . . . . 26, 27

5. Clock/Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . 14, 35, 38

6. Disc Direct Search Buttons . . . . . . . . . . . . . . . . . . . . . . . . . 18

7. Equaliser Mode Select Button . . . . . . . . . . . . . . . . . . . . . . . 13

8. Extra Bass/Demo Button . . . . . . . . . . . . . . . . . . . . . . . . 11, 13

9. On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

10. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

11. Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 30

12. Video/AUX/USB Button . . . . . . . . . . . . . . . . . . . . . . . . . 23, 39

13. MP3/WMA Folder Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

14. MP3/WMA Display Button. . . . . . . . . . . . . . . . . . . . . . . . . . . 23

15. Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . 13

16. Clear/Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 20

17. Disc or USB Random Button . . . . . . . . . . . . . . . . . . . . . 19, 25

18. Disc Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

19. USB Recording Button . . . . . . . . . . . . . . . . . . . . . . . . . 28, 29

20. USB Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

21. Memory Button . . . . . . . . . . . . . . . . . . . . . . . 14, 20, 29, 35, 38

22. Disc Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

23. Disc Play and Repeat Button . . . . . . . . . . . . . . . . . . . . 17, 19

24. USB Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

25. USB Play and Repeat Button . . . . . . . . . . . . . . . . . . . . 24, 25

26. Tuning Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 28

27. Disc Track Up or Fast Forward, Tuner Preset Up,

Time Up Button . . . . . . . . . . . . . . . . . . . . . . . 14, 17, 23, 29, 35

28. Disc Track Down or Fast Reverse, Tuner Preset Down,

Time Down Button . . . . . . . . . . . . . . . . . . . . 14, 17, 23, 29, 35

29. Tuning Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 28

30. RDS ASPM Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

31. RDS PTY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

32. RDS Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

8

System connections

Make sure to unplug the AC power lead before any connections.

Aerial connection (see page 10)

FM aerial AM loop aerial

Right speaker

Left speaker

XL-UR250H(BK)

XL-UR2110H(BK)

Speaker connection

(see page 10)

Wall socket

(AC 230 V, 50 Hz)

AC power connection (see page 11)

9

XL-UR250H(BK)

XL-UR2110H(BK)

System connections (continued)

Aerial connection

Supplied FM aerial:

Connect the FM aerial wire to the FM 75 OHMS socket and position the FM aerial wire in the direction where the strongest signal can be received.

Supplied AM loop aerial:

Connect the AM loop aerial to the AM and Earth (GND) terminals.

Position the AM loop aerial for optimum reception. Place the AM loop aerial on a shelf, etc., or attach it to a stand or a wall with screws (not supplied).

FM

ANTENNA

GND AM

75 OHMS

Note:

Placing the aerial on the unit or near the AC power lead may cause noise pickup. Place the aerial away from the unit for better reception.

Installing the AM loop aerial:

< Assembling > < Attaching to the wall >

Speaker connection

Connect the black wire to the minus (-) terminal, and the red wire to the plus (+) terminal.

SPEAKERS

RATED SPEAKER IMPEDANCE:

6 OHMS MIN.

RIGHT LEFT

Red Black

Caution:

XL-UR250H(BK)

Use speakers with an impedance of 6 ohms or more, as lower impedance speakers can damage the unit.

XL-UR2110H(BK)

Use speakers with an impedance of 4 ohms or more, as lower impedance speakers can damage the unit.

XL-UR250H(BK)/XL-UR2110H(BK)

Do not mistake the right and the left channels. The right speaker is the one on the right side when you face the unit.

SPEAKERS

6 OHMS M

PEDANCE:

IN.

Do not let the bare speaker wires touch each other.

Do not allow any objects to fall into or to be placed in the bass reflex ducts.

Do not stand or sit on the speakers. You may be injured.

RIGHT

LEFT

Incorrect

Speaker grilles are removable

Make sure nothing comes into contact with the speaker diaphragm when you remove the speaker grilles.

Wall Screws (not supplied)

10

AC power connection

After checking all the connections have been made correctly, plug the AC power lead of this unit into the wall socket. If you plug in the unit first, the unit will enter the demonstration mode.

Wall socket

(AC 230 V, 50 Hz)

Note:

Unplug the AC power lead from the wall socket if the unit will not be in use for a prolonged period of time.

Cooling fan:

The main unit is built with a cooling fan at the rear of the unit for improved cooling. Please do not cover the opening of the fan with any obstacles, as this will block proper ventilation.

Demonstration mode

The first time the unit is plugged in, the unit will enter the demonstration mode.

You will see words scroll.

To cancel the demonstration mode:

When the unit is in the power standby mode (demonstration mode), press the X-BASS/DEMO button on the remote control. The unit will enter the low power consumption mode.

To return to the demonstration mode:

When the unit is in the power stand-by mode, press the X-BASS/

DEMO button on the remote control again.

Note:

When the power is on, the X-BASS/DEMO button can be used to select the extra bass mode.

External FM aerial

Use an external FM aerial if you require better reception.

Consult your dealer.

FM

ANTENNA

GND AM

External

FM aerial

75 OHMS

75 ohms coaxial cable

Note:

When an external FM aerial is used, disconnect the supplied FM aerial wire.

XL-UR250H(BK)

XL-UR2110H(BK)

11

XL-UR250H(BK)

XL-UR2110H(BK)

Remote control

Battery installation

Use 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar).

Batteries are not included.

1 Open the battery cover.

2 Insert the supplied batteries according to the direction indicated in the battery compartment.

When inserting or removing the batteries, push them towards the

battery terminals.

3 Close the cover.

Notes concerning use:

Replace the batteries if the operating distance is reduced or if the operation becomes erratic.

Periodically clean the transmitter on the remote control and the sensor on the unit with a soft cloth.

Exposing the sensor on the unit to strong light may interfere with operation. Change the lighting or the direction of the unit if this occurs.

Keep the remote control away from moisture, heat, shock, and vibrations.

Test of the remote control

Check the remote control after checking all the connections (see pages 9 - 11).

Point the remote control directly at the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy music.

Precautions for battery use:

Replace all old batteries with new ones at the same time.

Do not mix old and new batteries.

Remove the batteries if the unit will not be used for long periods of time. This will prevent potential damage due to battery leakage.

Caution:

Do not use rechargeable batteries (nickel-cadmium battery, etc.).

Installing the batteries incorrectly may cause the unit to malfunction.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Battery removal:

Open the battery cover and pull up the battery to take out.

12

General control

Volume control

Main unit operation:

When the VOLUME control is turned clockwise, the volume will increase. When it is turned anti-clockwise, the volume will decrease.

Remote control operation:

Press the VOLUME (+ or -) button to increase or decrease the volume.

XL-UR250H(BK)

XL-UR2110H(BK)

0 .....

30 MAXIMUM

Bass control

When the power is first turned on, the unit will enter the extra bass mode which emphasises the bass frequencies, and “X-BASS” will appear. To cancel the extra bass mode, press the X-BASS/DEMO button on the remote control.

To turn the power on

Press the ON/STAND-BY button to turn the power on.

After use:

Press the ON/STAND-BY button to enter the power stand-by mode.

Illumination light control

When the power is turned on, the ring around the volume control lights up. To turn on/off the light, hold down the CLEAR/DIMMER button on the remote control for more than 2 seconds.

Volume auto fade-in

If you turn off and on the main unit with the volume set to 27 or higher, the volume starts at 16 and fades in to the last set level.

Equaliser

When the EQUALIZER MODE button on the remote control is pressed, the current mode setting will be displayed. To change to a different mode, press the EQUALIZER MODE button repeatedly until the desired sound mode appears.

FLAT

ROCK

CLASSIC

POPS

VOCAL

JAZZ

No equalisation.

For rock music.

For classical music.

For pop music.

Vocals are enhanced.

For jazz.

13

XL-UR250H(BK)

XL-UR2110H(BK)

Setting the clock (Remote Control only)

5

Press the or button to adjust the hour and then press the MEMORY button.

Press the or button once to advance the time by 1 hour.

Hold it down to advance continuously.

6

Press the or button to adjust the minutes and then press the MEMORY button.

14

In this example, the clock is set for the 24-hour (0:00) display.

1

Press the ON/STAND-BY button to turn the power on.

2

Press the CLOCK/TIMER button.

3

Within 10 seconds, press the or button to select

“CLOCK”, and then press the MEMORY button.

4

Press the

“0:00”

“AM 12:00”

“AM 0:00”

or button to select 24-hour or 12-hour display and then press the MEMORY button.

The 24-hour display will appear.

(0:00 - 23:59)


(AM 12:00 - PM 11:59)


(AM 0:00 - PM 11:59)

Press the or button once to advance the time by 1 minute. Hold it down to change the time in 5-minute intervals.

To confirm the time display:

[When the unit is in the stand-by mode]

Press the CLOCK/TIMER button.

The time display will appear for about 10 seconds.

[When the power is on]

Press the CLOCK/TIMER button.

Within 10 seconds, press the or button to display the time.

The time display will appear for about 10 seconds.

Note:

The “CLOCK” will appear or time will flash to confirm the time display when the AC power supply is restored after a power failure or unplugging the unit. If incorrect, readjust the clock as follows.

To readjust the clock:

Perform “Setting the clock” from step 1. If the “CLOCK” does not appear in step 3, step 4 (for selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

1 Clear all the programmed contents. [Refer to “Factory Reset,

Clearing All Memory” on page 41 for details.]

2 Perform “Setting the clock” from step 1 onwards.

Listening to a CD or MP3/WMA disc

This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA files, but cannot record on them.

Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording.

MP3:

MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3.

MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound quality.

This system supports MPEG 1 Layer 3, MPEG 2 Layer 3, and

VBR files.

During VBR file playback, time counter in the display may differ from its actual playback time.

Bitrate which is supported by MP3 is 32 ~ 320 kbps.

WMA:

WMA files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec.

WMA is developed by Microsoft as an audio format file for Windows Media Player.

“MP3” and “WMA” indicator will light up after the unit reads information on an MP3 or WMA disc.

Bitrate which is supported by WMA is 64 ~ 160 kbps.

Auto power on function:

When you press any of the following buttons, the unit turns on.

CD button (main unit and remote control): The unit turns on and the “CD” function is activated.

CD / button on the remote control: The unit turns on and CD playback starts (regardless of the last function).

/ button on the main unit: The unit turns on and playback of the last function starts (CD,TUNER,VIDEO/AUX/USB).

Auto power off function:

In the stop mode of CD, MP3 or WMA operation, the main unit enters the stand-by mode after 15 minutes of inactivity.

XL-UR250H(BK)

XL-UR2110H(BK)

15

XL-UR250H(BK)

XL-UR2110H(BK)

Listening to a CD or MP3/WMA disc (continued)

1


2

Press the CD button.

3

Press the 1 button and within 5 seconds, press the

OPEN/CLOSE button to open the disc tray 1.

4

Place the disc on the disc tray 1, label side up.

Be sure to place 8 cm (3") disc in the middle of the disc trays.

12 cm (5") 8 cm (3")

ON/

STAND-BY

CD

VIDEO

/AUX

VOLUME

OPEN/

CLOSE

5

Press the OPEN/CLOSE button to close the disc tray 1.

[CD]

TOTAL indicator

[MP3/WMA]

MP3 indicator

WMA indicator

Total number of tracks on the disc

Total playing time of the disc

Total number of files

Due to the structure of the disc information, it takes longer to read an MP3/WMA disc than a normal CD (approximately 20 to 90 seconds).

6

You can place discs on the trays 2 - 5 by following steps

3 - 5.

7

Press the / button to start playback.

Playback will begin from track 1 on DISC 1. After that disc finishes playing, the next disc will be automatically played.

After the last track on the fifth disc is played, the unit will stop automatically.

When there is no disc in one of the disc trays (1 - 5), the empty tray will be skipped to the next tray with a disc.

To exchange other discs whilst playing a disc:

Press one of the 1 - 5 buttons for the stopped disc and within 5 seconds, press the OPEN/CLOSE button and exchange discs.

To remove the discs:

In the stop mode, press the 1 - 5 buttons and within 5 seconds, press the OPEN/CLOSE button.

To skip to a desired disc:

Press one of the 1 - 5 buttons and within 5 seconds, press the

(CD ) button.

Caution:

Do not place two discs in the same tray.

Do not play discs of special shapes (heart, octagon, etc).

It may cause malfunctions.

Do not push the disc tray whilst it is moving.

If the power fails whilst the tray is open, wait until the power is restored.

If the disc tray is stopped with force, “ER-CD21” will appear on the display for 3 seconds and the unit will not function. If this occurs, press the ON/STAND-BY button to enter the power stand-by mode and then turn the power on again.

If TV or radio interference occurs during CD operation, move the unit away from the TV or radio.

If a disc is damaged, dirty, or loaded upside down, the disc will be skipped.

Disc play indicator

16

Various disc functions

Function Main unit Remote control

Play

Stop

Pause

Track up/

Track down

Fast forward/Fast reverse

Operation

Press in the stop mode.

Press in the playback mode.

Press in the playback mode. Press the / button to resume playback from the paused point.

Press in the playback or stop mode.

If you press the button in the stop mode, press the / button to start the desired track.

Press and hold down in the playback mode.

Release the button to resume playback.

Notes for CD or MP3/WMA disc:

Track up/track down is possible only within individual disc.

Fast forward/fast reverse is possible only within individual disc.

When the end of the last track is reached during fast forward,

“END” will appear on the display and CD operation will be paused. When the beginning of the first track is reached during fast reverse, the unit will enter the playback mode.

Rewritable multi-session discs which writing is not finished, can still be played.

When a disc (CD, WMA or MP3) is input, “TOC READING” will be displayed for several seconds depending on the number of files in the disc. If this indication is displayed for an indefinite period of time due to unspecified file being played or external noise etc.,switch off the main AC power supply and then switch it on again.

XL-UR250H(BK)

XL-UR2110H(BK)

17

XL-UR250H(BK)

XL-UR2110H(BK)

Advanced CD or MP3/WMA disc playback

To specify a disc to play

You can play a disc by specifying the disc number.

1

Press one of the 1 - 5 buttons to select the desired disc.

Selected disc number

2

Within 5 seconds, press the / button on the main unit.

Direct track search

By using the direct search buttons, the desired tracks on the current disc can be played.

Use the direct search buttons on the remote control to select the desired track whilst playing the selected disc.

Selected track number

The direct search buttons allow you to select up to number 9.

When selecting number 10 or higher, use the “+10” button.

A. For example, to choose 13

1 Press the “+10” button once.

2 Press the “1” button.


18

Playback will begin from track 1 on the chosen disc.

After the last track on the last disc is played, the unit stops automatically.

Note:

If a disc tray with no disc is selected, playback will not start and the disc indicator will disappear.

To stop playback:

Press the (CD ) button.

B. For example, to choose 130

1 Press the “+10” button twice.




Notes:

A track number higher than the number of tracks on the disc cannot be selected.

During random play, direct search is not possible.

To stop playback:

Press the (CD ) button.

Repeat play

Repeat play can play one disc, all 5 discs or a programmed sequence continuously.

To repeat one disc:

Press the / button twice.

To repeat all tracks on up to 5 discs:

Press the / button three times.

To repeat desired tracks (CD only):

Perform steps 1 - 6 in “Programmed play” section on page 20 and then press the / button twice.

Random play

The tracks on the disc(s) can be played in random order automatically.

To random play all tracks on up to 5 discs:

Press the RANDOM button on the remote control.

To cancel repeat play:

Press the / button again until “ ” will disappear.

To cancel random play:

Press the / button.

“R” will disappear.

Notes:

If you press the button during random play, you can move to the track selected next by the random operation. However, the button does not allow you to move to the previous track. It will go to the beginning of the current track instead.

In random play, the unit will select and play tracks automatically.

(You cannot select the order of the tracks.)

Caution:

After performing repeat or random play, be sure to press the (CD

) button. Otherwise, the disc(s) will play continuously.

XL-UR250H(BK)

XL-UR2110H(BK)

19

XL-UR250H(BK)

XL-UR2110H(BK)

Advanced CD playback

Programmed play

You can choose up to 32 selections for playback in the order you like.

1

Whilst in the stop mode, press the MEMORY button on the remote control to enter the programming save mode.

2

Press one of the 1 - 5 buttons to select the desired disc.

Selected disc number

3

Press the direct search buttons on the remote control to select the desired track.

Selected track number

You can also select a track by pressing the or button.

4

Press the MEMORY button to save the track number.

5

Repeat steps 2 - 4 for other tracks. Up to 32 tracks can be programmed.

If you make a mistake, the programmed tracks can be cleared by pressing the CLEAR/DIMMER button.

6

Press the (CD ) button.

The total number in memory will appear.

7

Press the / button to start playback.

To clear the programmed selections:

Press the CLEAR/DIMMER button on the remote control whilst the “MEMORY” indicator is flashing.

Each time the button is pressed, one track will be cleared, beginning with the last track programmed.

To cancel the programmed play mode:

Whilst in the stop mode and the “MEMORY” indicator is lit, press the

CLEAR/DIMMER button on the remote control. The “MEMORY” indicator will disappear and all the programmed contents will be cleared.

Adding tracks to the programme:

If a programme has been previously stored, the “MEMORY” indicator will be displayed. Then follow steps 1 - 6 to add tracks. The new tracks will be stored after the last track of the original programme.

To check which tracks are programmed:

Whilst the unit is stopped in the programmed play mode, press the

or button.

Notes:

When a disc with programmed tracks is ejected, the programme is automatically cancelled.

Even if you press the ON/STAND-BY button to enter the stand-by mode or change the function from CD to another, the programmed selections will not be cleared.

During the programme operation, random play is not possible.

20

MP3/WMA folder mode (only for MP3/WMA files)

To playback MP3/WMA (Windows Media Audio) file

There are many music sites on the internet that you can download

MP3/WMA (Windows Media Audio) music files. Follow the instructions from the website on how to download the music files.

You can then playback these downloaded music files by burning them to a CD-R/RW disc or by connecting a USB Memory Player device.

Your downloaded song/files are for personal use only. Any other usage of the song without owner’s permission, is against the law.

About folder playback order

If MP3/WMA files are recorded in several folders, a folder number will be set to each folder automatically.

These folders can be selected by the FOLDER button on the remote control. If there is no supported file formats inside the selected folder, the folder is skipped and the next folder will be selected.

Example: How to set folder number if MP3/WMA format files are recorded as below figure.

1. ROOT folder is set as folder 1.

2. As for folders inside ROOT folder (Folder A and Folder B), the folder which is recorded earlier on the disc will be set as folder 2 and folder 3.

3. As for folder inside Folder A (Folder C and Folder D), the folder which is recorded earlier on the disc will be set as folder 4 and folder 5.

4. Folder E that is inside Folder D will be set as folder 6.

The folder and file order information which is recorded on the disc depends on the writing software. There maybe possibilities that this unit will playback the files not according to our expected playback order.

For CD MP3/WMA, 512 numbers of folders and files inclusives of the folders which have non playable files can be read.

Folder mode on/off can be operated by the FOLDER button on the remote control. Files that are played when folder mode is set to the on position, may differ from those played back when folder mode is turned off.

Folder Mode Off case:

All the files starting from the selected file will be played back. If file 3 inside Folder C is selected, all the files starting from file 3 will be played back until file 10 of Folder E.

Folder Mode On case:

All the files inside the selected folder will be played back.

In case Folder D is selected, file 6, 7 and 8 will be played back. File

9 and 10 in Folder E will not be played back.

ROOT

(FOLDER 1)

FOLDER A

(FOLDER 2)

FOLDER C

(FOLDER 4)

FOLDER D

(FOLDER 5)

FILE 3

FILE 4

FILE 5

FILE 6

FILE 7

FILE 8

FOLDER E

(FOLDER 6)

FILE 9

FILE 10

XL-UR250H(BK)

XL-UR2110H(BK)

FOLDER B

(FOLDER 3)

FILE 1

FILE 2

21

XL-UR250H(BK)

XL-UR2110H(BK)

MP3/WMA folder mode (only for MP3/WMA files) (continued)

Procedure to play back MP3/WMA disc with folder mode on

To play back CD-R/RW.

1

Press the CD button, and load an MP3/WMA disc.

After disc is loaded, the disc info will be displayed.

MP3 indicator

WMA indicator

Disc Name

TOTAL indicator

Disc 1 Blinking


4

Press the / (CD / ) button.

Playback will start and file name will be displayed.

Title, Artist & Album name are displayed if they are recorded on the disc.

Display content can be changed by pressing the DISPLAY button.

File Name Display

TITLE-1 Indicator

Title Display

Function Display

TITLE-2 Indicator

Artist Display

2

Press the FOLDER button, and press the TUNING ( or ) button to select desired playback folder. (Folder mode on)

FOLDER indicator

( )

Clock Display

TITLE-3 Indicator

Album Display

FOLDER number Total files in Folder 3

3

Select desired file to be played back by pressing the

or

button.

In folder mode on, pressing the TUNING ( or ) button on the folder to be selected even though it is in playback/pause mode.

It will continue playback/pause mode in the first track of the selected folder.

( ) Only appears when clock is already set.

Note:

If “NO SUPPORT” is displayed, it means “Copyright protected

WMA file” or “Not supported playback file” is selected.

22

Listening to USB mass storage device / MP3 Player

3

Press the / (USB / ) button.

Playback will start and the file name will be displayed.

Title, Artist & Album name are displayed if they are recorded in the USB memory device.


File Name Display

TITLE-1 Indicator

Title Display

XL-UR250H(BK)

XL-UR2110H(BK)

USB

Function Display

TITLE-2 Indicator

Artist Display

Note:

This product is not compatible with MTP and AAC file systems.

To play back USB/MP3 Player with Folder mode off

1

Press the VIDEO/AUX/USB (USB/AUX) button, and lift up the USB door. Connect the USB Memory device that has

MP3/WMA format files on the unit.

When the USB memory is connected to the main unit, the device information will be displayed.

Volume ID

MP3 indicator

WMA indicator

TOTAL indicator


2

Select desired file to be played back by pressing the or

button.

( )

Clock Display

TITLE-3 Indicator

Album Display


Note:

To pause playback:

Press the USB button.


In the stop mode of USB operation, the main unit enters the stand-by mode after 15 minutes of inactivity.

To play back USB/MP3 Player with Folder mode on

1

Press the VIDEO/AUX/USB (USB/AUX) button, and lift up the USB door. Connect the USB Memory device that has

MP3/WMA format files on the unit.

When the USB memory is connected to the main unit, the device information will be displayed.

Volume ID

MP3 indicator

WMA indicator

TOTAL indicator

Total number of files continued to the next page.

23

XL-UR250H(BK)

XL-UR2110H(BK)

24

Listening to USB mass storage device /

MP3 Player (continued)

2

Press the FOLDER button, and press the TUNING ( or ) button to select desired playback folder.

FOLDER indicator

To remove USB memory device

1

Press the USB button to stop playback. Then press the

USB button again and wait until “UNPLUG OK” is displayed.

Always remove the USB memory device after “UNPLUG OK” appears on the display. Improper removal of the USB memory device may cause irregularities such as continuous appearance of “FAT READING”. Should this happen, turn off the unit and then turn it on again.

2

Disconnect USB memory device from the USB terminal.

FOLDER number

Total files in Folder 2

To start playback with folder mode on, go to step 4.

To change the playback folder, press the TUNING ( or ) button to select another folder.

3

Select desired file to be played back by pressing the or

button.

4

Press the / (USB / ) button.

Playback will start and the file name will be displayed.

Title, Artist & Album name are displayed if they are recorded in the USB memory device.


File Name Display

( •

TITLE-1 Indicator

Title Display

Function Display

( )

Clock Display

( •

TITLE-2 Indicator

Artist Display

( •

TITLE-3 Indicator

Album Display


Note:

To pause playback:

Press the USB button.


In the stop mode of USB operation, the main unit enters the stand-by mode after 15 minutes of inactivity.

Notes:

SHARP will not be held liable for the loss of data whilst the USB memory device is connected to the audio system.

Files compressed in MP3 and / or WMA format can be played back when connected to the USB terminal.

This USB memory’s format supports FAT 16 or FAT 32.

SHARP cannot guarantee that all USB memory devices will work on this audio system.

USB cable is not recommended for use in this audio system to connect to USB memory device. Use of the USB cable will affect the performance of this audio system.

This USB memory cannot be operated via USB hub.

The USB terminal in this unit is not intended for a PC connection but is used for music streaming with a USB memory device.

External HDD-storage cannot be played back via USB terminal.

If the data inside the USB memory is large, it may take longer time for the data to be read.

This product can play WMA and MP3 files. It will automatically detect the file type being played. If unplayable file is played on this product,

“NO SUPPORT” is indicated and the file will be automatically skipped.

This will take a few seconds. If abnormal indications appear on the display due to the unspecified file, turn off the unit and then turn it on again.

This product relates to USB mass storage devices and MP3 players.It may however face some irregularities due to various unforeseen reasons from some devices. Should this happen, turn off the unit and then turn it on again.

Advanced USB playback

Repeat play

Repeat play can play all tracks sequence continuously.

To repeat all tracks:

Press the / button twice.

To cancel repeat play:

Press the / button again until “ ” will disappear.

Random play

The tracks can be played in random order automatically.

To random play all tracks:

Press the RANDOM button on the remote control.

To cancel random play:

Press the / button. “R” will disappear.

Notes:

If you press the button during random play, you can move to the track selected next by the random operation. However, the button does not allow you to move to the previous track. It will go to the beginning of the current track instead.

In random play, the unit will select and play tracks automatically.

(You cannot select the order of the tracks.)

Note:

( ) When folder mode is on, the selected play mode can be used for the files in the selected folder only.

Notes:

This unit only supports “MPEG-1 Audio Layer-3” format.

(Sampling Frequency is 32, 44.1, 48kHz)

“MPEG-2 Audio Layer-3” , “MPEG-2.5 Audio Layer-3” and MP1,

MP2 format are not supported.

Programme playback for USB memory is not available.

Playback order for MP3 files may differ depending on the writing software used during file download.

Bitrate which is supported by MP3 is 32~320 kbps, WMA is

64~160 kbps.

For MP3/WMA files, please put “.MP3” “.WMA” extension. Files cannot be played back if there is no MP3/WMA extension.

Playlists are not supported on this unit.

This unit can display Folder Name or File Name up to 32 characters.

Maximum total number of MP3/WMA files is 65535. Maximum total number of folders is 128 not inclusive of root directory.

Folders with non playable files are also counted.

The display playback time may not be displayed correctly when playing back a variable bitrate file.

Time display cannot be changed by the DISPLAY button.

The ID3TAG information supported are TITLE, ARTIST and

ALBUM only.

Title name, artist name and album name can be displayed by pressing the DISPLAY button during file playback or pause mode.

WMA meta tag also supports title, artist and album name which are recorded in WMA files.

Copyright protected WMA files cannot be played back.

File Erase

1. At USB STOP condition, press or key to select the desired

MP3 or WMA file to be erased.

2. Press MODE key, and the display will show “ERASE” menu.

3. Within 10 seconds press ENTER key. “ERASE?” will be displayed.

To cancel file erase operation, press USB STOP key.

4. Press ENTER key again to confirm the file erase selection. “FILE

ERASE” will be displayed.

5. “COMPLETE” will be displayed for a few seconds once erasing process is finished.

Folder Erase

1. At USB STOP condition (Folder mode on), press TUNING ( or

) key to select the desired folder to be erased.

2. Press MODE key, and the display will show “ERASE” menu.

3. Within 10 seconds press ENTER key. “ERASE?” will be displayed.

To cancel folder erase operation, press USB STOP key.

4. Press ENTER key again to confirm the folder erase selection.

“FOL ERASE” will be displayed.

5. “COMPLETE” will be displayed for a few seconds once erasing process is finished.

XL-UR250H(BK)

XL-UR2110H(BK)

25

XL-UR250H(BK)

XL-UR2110H(BK)

Recording on USB Memory device

This system can record a standard CD, CD-R/RW in the CD format or

CD-R/RW with MP3 files, TUNER or AUX function to the USB device.

CD to USB recording

There are four kinds of recording from CD to USB.

1. One File Recording (for CD) or One File Copy (for MP3 disc).

2. One Disc Recording (for CD) or One Disc Copy (for MP3 disc).

3. Programme Recording (for CD only).

4. One Folder Copy (for MP3 disc only).

Select the bitrate before starting recording.

Press the MODE button and “BIT RATE” will be displayed and then press ENTER button.

This bitrate selection is valid for CD, TUNER and AUX function only.

Within 10 seconds, press the

or

button to select the desired bitrate, and press the ENTER button.

5

After the selected song finishes playing, the unit will stop playback and recording process automatically and

“WRITING USB” will be displayed for a few seconds.

Disc Recording (for CD) or Disc Copy (for MP3 disc)

1

Perform steps 1 - 5 in “Listening to a CD or MP3/WMA disc” section on page 16.

2

Whilst in the stop mode, press the RECORD button to start

USB recording.

“REC START” will be displayed for a few seconds and recording will start after the USB device has been initialised.

[128 kbps]

[192 kbps]

[96 kbps]

One File Recording (for CD) or One File Copy (for MP3 disc)

1

Perform steps 1 - 5 in “Listening to a CD or MP3/WMA disc” section on page 16.

2

Press

or button to select the desired file to be recorded.

3

Press the RECORD button to start USB recording at the selected track.


4

During file recording, the display will show normal CD playback but during file copy process for MP3 disc, “COPY” will be displayed.

[CD]

3

During disc recording, the display will show normal CD playback but during disc copy process for MP3 disc,

“COPY” will be displayed.

4

After the last track of the disc is played, the unit will stop playback and recording process automatically, and

“WRITING USB” will be displayed for a few seconds.

Programme Recording (for CD only)

1

Perform steps 1 - 6 in “Programmed play” section on page 20.

2

Whilst in the stop mode, press the RECORD button to start USB recording.


3

During recording process, the display will show normal CD programme playback.

4

After the last programme track is played, the unit will stop playback and recording process automatically, and “WRITING USB” will be displayed for a few seconds.

[MP3]

26

One folder copy (for MP3 disc only)

1

Perform steps 1 - 2 in “Procedure to playback MP3/WMA disc” section on page 22.

2

Whilst in the stop mode, press the RECORD button to start

USB recording.


3

During folder copy process, “COPY” will be displayed.

4

After the last track of a selected folder finishes playing, the unit will stop playback and recording process automatically and “WRITING USB” will be displayed for a few seconds.

Tuner or Video/Aux to USB recording

1

To select tuner, press the TUNER (BAND) button and select desired band station (see “Tuning” on page 28).

To select video/aux, perform steps 1 - 3 in “Listening to the playback sounds from VCR, DVD, etc.” section on page 39.

2

Press the RECORD button to start recording.


3

During recording process, the display show as normal TUNER or

VIDEO/AUX function.

[TUNER]

[VIDEO/AUX]

To stop recording:

Press the USB STOP button. The unit will stop the recording process and “WRITING USB” will be displayed for a few seconds.

Notes:

Recording can be operated in CD stop mode only. During CD playback, the RECORD button is invalid.

The sound is heard during CD disc recording but not with an MP3 disc.

Bitrate selection is valid for CD disc, TUNER and VIDEO/AUX recording only. It is invalid for MP3 disc. The default bitrate recording is 128 kbps.

Disc Recording (for CD) can record up to 5 discs.

Disc Copy (for MP3 disc) can copy only 1 disc.

It is not possible to display ID3 tag information during MP3 disc copy process.

Do not POWER OFF the main unit whilst “WRITING USB” still shows on the display. Wait until “WRITING USB” display disappears before turning it off.

This system does not support WMA disc recording.

“USB FULL” message will be displayed if USB device is set in write-protect mode or if there is insufficient free space in it.

USB playback order is the same as MP3/WMA playback order

(see page 21) and follow the recording order of the folder.

USB folder structure (of recorded files)

When recording files to USB memory, folders inside it will be created automatically according to the source selected.

Example:

If recording from CD to USB, the files will be saved in a folder named

CDREC001. For next recording session, the next folder will be created and named CDREC002 and so on.

If the source is TUNER (FM band), folder FMREC001 will be created.

For TUNER (AM band), folder AMREC001 will be created.

If source is VIDEO/AUX, folder EXREC001 will be created.

ROOT

First layer

RECORD

Second layer

CDREC001

CDRECn

FMREC001

Third layer (files)

Disc3T05.mp3, Disc1T04.mp3

(For CD-DA disc)

ABC001.mp3, DEF001.mp3

(For CD MP3 disc)

TUN_FMT01.mp3

FMRECn

AMREC001

TUN_FMT01.mp3

TUN_AMT01.mp3

AMRECn

EXREC001

TUN_AMT01.mp3

AUX-T01.mp3

EXRECn

AUX-T01.mp3

Maximum number of folders that can be created is 128.

XL-UR250H(BK)

XL-UR2110H(BK)

27

XL-UR250H(BK)

XL-UR2110H(BK)

Listening to the radio

Auto power on function:


TUNER (BAND) button (main unit and remote control): The unit turns on and the “TUNER” function is activated.


Tuning

1


2

Press the TUNER (BAND) button repeatedly to select the desired frequency band (FM or AM).

3

Press the TUNING ( or ) button on the remote control to tune in to the desired station.

Manual tuning:

Press the TUNING ( or ) button repeatedly to the tune in to the desired station.

Auto tuning:

When the TUNING ( or ) button is pressed for more than 0.5

seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

Notes:

When radio interference occurs, auto scan tuning may stop automatically at that point.

Auto scan tuning will skip weak signal stations.

To stop the auto tuning, press the TUNING ( or ) button again.

When an RDS (Radio Data System) station is tuned in, the frequency will be displayed first, and then the RDS indicator will light up. Finally, the station name will appear.

Full auto tuning can be achieved for RDS stations “ASPM”, see page 31.

To receive an FM stereo transmission:

Press the TUNER (BAND) button to select stereo mode and “ST” indicator will be displayed.

“ ” will appear when an FM broadcast is in stereo.

If the FM reception is weak, press the TUNER (BAND) button to extinguish the “ST” indicator. The reception changes to monaural, and the sound becomes clearer.

FM stereo mode indicator

FM stereo receiving indicator

28

Memorising a station

You can store 40 AM and FM stations in memory and recall them at the push of a button. (Preset tuning)

1

Perform steps 1 - 3 in “Tuning” on page 28.

2

Press the MEMORY button to enter the preset tuning saving mode.

To recall a memorised station

Press the PRESET ( or ) button for less than 0.5 seconds to select the desired station.

To scan the preset stations

The stations saved in the memory can be scanned automatically.

(Preset memory scan)

1 Press the PRESET ( or )

The preset number will flash and the programmed stations will be tuned in sequentially, for 5 seconds each.

2 Press the PRESET ( or ) button again when the desired station is located.

3

Within 30 seconds, press the PRESET ( or ) button to select the preset channel number.

Store the stations in memory, in order, starting with preset channel 1.

4

Within 30 seconds, press the MEMORY button to store that station in memory.

XL-UR250H(BK)

XL-UR2110H(BK)

If the “MEMORY” and preset number indicators disappear before the station is memorised, repeat the operation from step

2.

5

Repeat steps 1 - 4 to set other stations, or to change a preset station.

When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased.

Note:

The backup function protects the memorised stations for a few hours should there be a power failure or the AC power lead become disconnected.

To erase entire preset memory

1 Press the ON/STAND-BY button to enter the stand-by mode.

2 Whilst pressing down the 1 button and the 5 button, press the TUNER (BAND) button until “TUNER CLEAR” appears.

29

XL-UR250H(BK)

XL-UR2110H(BK)

Using the Radio Data System (RDS)

RDS is a broadcasting service which a growing number of FM stations provide. These FM stations send additional signals along with their regular programme signals. They send their station names, and information about the type of programme such as sport, music, etc.

When tuned to an RDS station, “RDS” and the station name will be displayed.

“TP” (Traffic Programme) will appear on the display when the received broadcast carries traffic information, and “TA” (Traffic

Announcement) will appear whilst a traffic information is on air.

“PTYI” (Dynamic PTY Indicator) will appear whilst the Dynamic PTY station is received.

Information provided by RDS

Each time the RDS DISPLAY button is pressed, the display will switch as follows:

30

You can control the RDS by using the buttons on the remote control only.

Station name (PS) Programme type (PTY)

Frequency Radio text (RT)

When tuning in to a station other than an RDS station or to an RDS station which sends weak signal, the display will change in the following order:

NO PS

FM 98.80 MHz

NO PTY

NO RT

Using the Auto Station Programme Memory

(ASPM)

Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 40 stations can be stored.

If you have already stored some stations in the memory, the number of new stations you can store will be less.

1

Press the TUNER (BAND) button to select the FM band.

2

Press and hold down the RDS ASPM button on the remote control for at least 3 seconds.

1 After “ASPM” has flashed for about 4 seconds, scanning will start (87.50 - 108.00 MHz).

2 When an RDS station is found, “RDS” will appear for a short time and the station will be stored in memory.

3 After scanning, the number of stations stored in memory will be displayed for 4 seconds, and then “END” will appear for

4 seconds.

To stop the ASPM operation before it is completed:

Press the RDS ASPM button whilst it is scanning for stations.

The stations which are already stored in memory will be kept there.

Notes:

If the same station is broadcasting on different frequencies, the strongest frequency will be stored in the memory.

Any station which has the same frequency as the one stored in the memory will not be stored.

If 40 stations have already been stored in the memory, scanning will be aborted. If you want to redo the ASPM operation, erase the preset memory.

If no stations have been stored in the memory, “END” will appear for about 4 seconds.

If the RDS signals are very weak, station names may not be stored in the memory.

To erase all of the contents of preset memory:

1 Press the ON/STAND-BY button to enter the power stand-by mode.

2 Whilst pressing down the 1 button and the 5 button, press the

TUNER (BAND) button until “TUNER CLEAR” appears.

After performing this operation, all of the preset memory information will be erased.

To store a station name again if the wrong name was stored in memory:

It may be impossible to store station names in the memory using the

ASPM function if there is lots of noise or if the signal is too weak. In this case, perform as follows.

1 Press the PRESET ( or ) button to check whether the names are correct.

2 If you find a wrong name during receiving the station, wait until the correct name will be displayed. And then press the MEMORY button.

3 Within 30 seconds, press the MEMORY button whilst the preset channel number is flashing.

The new station name has been stored in memory correctly.

XL-UR250H(BK)

XL-UR2110H(BK)

31

XL-UR250H(BK)

XL-UR2110H(BK)

Using the Radio Data System (RDS) (continued)

Notes:

The same station name can be stored in different channels.

In a certain area or during certain period, the station names may temporarily be different.

Notes for RDS operation

If any of the following events occur, it does not mean that the unit is faulty:

“PS”, “NO PS” and a station name appear alternately, and the unit does not operate properly.

If a particular station is not broadcasting properly or a station is conducting tests, the RDS reception function may not work properly.

When you receive an RDS station whose signal is too weak, information like the station name may not be displayed.

“NO PS”, “NO PTY” or “NO RT” will flash for about 5 seconds, and then the frequency will be displayed.

Notes for radio text:

The first 10 characters of the radio text will appear for 4 seconds and then they will scroll across the display.

If you tune in to an RDS station which is not broadcasting any radio text, “NO RT” will be displayed when you switch to the radio text position.

Whilst radio text data is received or when the text contents change, “RT” will be displayed.

To recall stations in memory

To specify programmed types and select stations (PTY search):

You can search a station by specifying the programme type (news, sports, traffic programme, etc. ... see pages 33 - 34) from the stations in the memory.

1

Press the TUNER (BAND) button to select the FM.

2

Press the RDS PTY button on the remote control.

“SELECT” and “PTY TI” will appear alternately for about 6 seconds.

3

Within 6 seconds, press the PRESET ( or ) button to select the programme type.

Each time the button is pressed, the programme type will appear. If the button is held down for more than 0.5 seconds, the programme type will appear continuously.

4

Whilst the selected programme type is flashing (within 6 seconds), press the RDS PTY button again.

After the selected programme type has been lit for 2 seconds,

“SEARCH” will appear, and the search operation will start.

32

Notes:

If the display stops flashing, start again from step 2. If the unit finds the desired programme type, the corresponding channel number will flash for about 4 seconds, and then the station name will flash for 7 seconds, which will remain lit.

If you want to listen to the same programme type of another station, press the RDS PTY button whilst the channel number or station name is flashing. The unit will look for the next station.

If no station can be found, “NOT FOUND” will appear for 4 seconds.

If you select the traffic programme:

If you select the traffic programme (TP) in step 3, “TP” will appear.

(This does not mean that you can listen to the traffic information at that time.)

When the traffic information is broadcast, “TA” will appear.

Descriptions of the PTY (Programme Type) codes, TP (Traffic

Programme) and TA (Traffic Announcement).

You can search for and receive the following PTY, TP and TA signals.

NEWS

AFFAIRS

INFO

SPORT

EDUCATE

DRAMA

CULTURE

SCIENCE

VARIED

POP M

ROCK M

EASY M

Short accounts of facts, events and publicly expressed views, reportage and actuality.

Topical programme expanding or enlarging upon the news, generally in different presentation style or concept, including debate, or analysis.

Programmes whose purpose is to impart advice in the widest sense.

Programme concerned with any aspect of sport.

Programme intended primarily to educate, of which the formal element is fundamental.

All radio plays and serials.

Programmes concerned with any aspect of national or regional culture, including language, theatre, etc.

Programmes about the natural sciences and technology.

Used for mainly speech-based programmes usually of light-entertainment nature, not covered by other categories. Examples include: quizzes, panel games, personality interviews.

Commercial music, which would generally be considered to be of current popular appeal, often featuring in current or recent record sales charts.

Contemporary modern music, usually written and performed by young musicians.

Current contemporary music considered to be

“easy-listening”, as opposed to Pop, Rock or

Classical, or one of the specialised music styles,

Jazz, Folk or Country. Music in this category is often but not always, vocal, and usually of short duration.

XL-UR250H(BK)

XL-UR2110H(BK)

33

XL-UR250H(BK)

XL-UR2110H(BK)

Using the Radio Data System (RDS) (continued)

LIGHT M

Classical music for general, rather than specialist appreciation. Examples of music in this category are instrumental music, and vocal or choral works.

CLASSICS

Performances of major orchestral works, symphonies, chamber music, etc., and including

Grand Opera.

OTHER M

Musical styles not fitting into any of the other categories. Particularly used for specialist music of which Rhythm & Blues and Reggae are examples.

WEATHER

Weather reports and forecasts and meteorological information.

FINANCE

Stock Market reports, commerce, trading, etc.

CHILDREN

For programmes targeted at a young audience, primarily for entertainment and interest, rather than where the objective is to educate.

SOCIAL

Programmes about people and things that influence them individually or in groups. Includes: sociology, history, geography, psychology and society.

RELIGION

Any aspect of beliefs and faiths, involving a God or

Gods, the nature of existence and ethics.

PHONE IN

Involving members of the public expressing their views either by phone or at a public forum.

TRAVEL

Features and programmes concerned with travel to near and far destinations, package tours and travel ideas and opportunities. Not for use for announcements about problems, delays, or roadworks affecting immediate travel where TP/TA should be used.

LEISURE

JAZZ

Programmes concerned with recreational activities in which the listener might participate. Examples include, Gardening, Fishing, Antique collecting,

Cooking, Food & Wine, etc.

Polyphonic, syncopated music characterised by improvisation.

COUNTRY

Songs which originate from, or continue the musical tradition of the American Southern States.

Characterised by a straightforward melody and narrative story line.

NATION M

Current Popular Music of the Nation or Region in that country's language, as opposed to

International “Pop” which is usually US or UK inspired and in English.

OLDIES

Music from the so-called “golden age” of popular music.

FOLK M

DOCUMENT

Programme concerned with factual matters, presented in an investigative style.

TEST

Broadcast when testing emergency broadcast equipment or receivers.

ALARM !

Music which has its roots in the musical culture of a particular nation, usually played on acoustic instruments. The narrative or story may be based on historical events or people.

NONE

TP

TA

Emergency announcement made under exceptional circumstances to give warning of events causing danger of a general nature.

No programme type (receive only).

Broadcasts which carry traffic announcements.

Traffic announcements are being broadcast.

34

Timer and sleep operation (Remote Control only)

Timer playback:

The unit turns on and plays the desired source (CD, TUNER, USB,

AUX) at a preset time.

Timer recording:

The unit turns on and starts recording from the desired source

(TUNER, AUX) at the preset time.

This unit has 2 types of timer: ONCE TIMER and DAILY TIMER.

Once timer:

Once timer play or once timer recording works for one time only at a preset time.

For example, if you are away but want to record a programme on a radio station.

Daily timer:

Daily timer play or daily timer recording works at the same preset time every day.

For example, set the timer as a wake-up call every morning.

Using the once timer and daily timer in combination:

For example, use the once timer to listen to a radio programme, and use the daily timer to wake up.

1 Set the daily timer (pages 35 - 37).

2 Set the once timer (pages 35 - 37).

Timer playback or timer recording

Before setting timer:

1 Check that the clock is set to the correct time (refer to page 14).

If it is not set, you cannot use the timer function.

2 For timer playback: Plug in USB or load discs to be played.

For timer recording: Plug in USB for recording in the USB terminal.

XL-UR250H(BK)

XL-UR2110H(BK)

1 minute or more

Daily timer Once timer

Start Stop Start Stop

Note:

When set times for the daily timer and once timer overlap, the once timer takes priority. Allow an interval of at least 1 minute between operations.

1


2


3


“ONCE” or “DAILY”, and press the MEMORY button.

Set the clock to the correct time if “ONCE” or “DAILY” does not appear.

Continued to the next page

35

XL-UR250H(BK)

XL-UR2110H(BK)

Timer and sleep operation (Remote Control only) (continued)

4


“ONCE SET” or “DAILY SET”, and press the MEMORY button.

5

Press the or button to select “PLAY” or “REC”, and press the MEMORY button.

The illustrations show the daily timer setting.

6

Press the or button to adjust the hour and then press the MEMORY button.

9

Switch input with the or button, and then press the

MEMORY button.

To select the timer playback source: CD, TUNER, USB or AUX.

To select the timer recording source: TUNER or AUX.

When you select the tuner, select a station by pressing the

or button, and then press the MEMORY button.

If a station has not been programmed, “NO PRESET” will be displayed and timer setting will be cancelled.

10

Adjust the volume using the VOLUME control, and then press the MEMORY button.

Do not turn the volume up too high.

11

Press the ON/STAND-BY button to enter the power stand- by mode.

The “TIMER” indicator lights up and the unit is ready for timer playback.

The illustrations show the timer playback setting in the daily timer mode.

7

Press the or button to adjust the minutes and then press the MEMORY button.

8

Set the time to finish as in steps 6 and 7 above.

36

12

When the preset time is reached, playback or recording will start.

The volume will increase gradually until it reaches the preset volume.

13

When the timer end time is reached, the system will enter

the power stand-by mode automatically.

Once timer:

The timer will be cancelled.

The “r” indicator will blink during timer playback.

Daily timer:

The timer operates at the same time every day. It will continue until the daily timer setting is cancelled. Cancel the daily timer when it is not in use.

The “DAILY r” indicator will blink during timer playback.

Notes:

When performing timer playback or recording using another unit connected to the USB terminal or AUX IN sockets, select “USB” or “AUX” in step 9.

This unit will turn on or enter the power stand-by mode automatically. However, the connected unit will not turn on or off.

During timer playback or timer recording, TIMER indicator light and timer indicator on display r, will blink.

To stop the blinking, follow step “Cancelling the timer setting in

the timer stand-by mode” on the right hand side of this page.

Checking the timer setting in the timer stand-by mode:

1 Press the CLOCK/TIMER button.

2 Within 10 seconds, press the or button to select “ONCE” or “DAILY”, and press the MEMORY button.

3 Within 10 seconds, press the or button to select “ONCE

CALL” or “DAILY CALL”, and press the MEMORY button.

The unit returns to the timer stand-by mode after displaying the settings in order.

Cancelling the timer setting in the timer stand-by mode:

1 Press the CLOCK/TIMER button.



OFF” or “DAILY OFF”, and press the MEMORY button.

Timer will be cancelled (the setting will not be cancelled).

Reusing the memorised timer setting:

The timer setting will be memorised once it is entered. To reuse the same setting, perform the following operations.

1 Turn the power on and press the CLOCK/TIMER button.



ON” or “DAILY ON”, and press the MEMORY button.


XL-UR250H(BK)

XL-UR2110H(BK)

37

XL-UR250H(BK)

XL-UR2110H(BK)

Timer and sleep operation (Remote Control only) (continued)

Sleep operation

The radio, compact disc and USB can all be turned off automatically.

1

Play back the desired sound source.

2


3

Within 10 seconds, press the

or button to select

“SLEEP”, and press the

MEMORY button.

4

Press the or button to select the time.

(Maximum: 3 hours - Minimum: 1 minute)

3 hours - 5 minutes 5-minute intervals

5 minutes - 1 minute 1-minute intervals

5

Press the MEMORY button.

“SLEEP” will appear.

To cancel the sleep operation:

Press the ON/STAND-BY button whilst “SLEEP” is indicated.

To cancel the sleep operation without setting the unit to the stand-by mode, proceed as follows.

1 Whilst “SLEEP” is indicated, press the CLOCK/TIMER button.

2 Within 10 seconds, press the or button to select “SLEEP

OFF”, and press the MEMORY button.

To use timer and sleep operation together

Sleep and timer playback:

For example, you can fall asleep listening to the radio and wake up to CD in the next morning.

1 Set the sleep time (see left, steps 1 - 5).

2 Whilst the sleep timer is set, set the timer playback (steps 2 -

10, pages 35 - 36).

6

The unit will enter the power stand-by mode automatically after the preset time has elapsed.

The volume will be turned down 1 minute before the sleep operation finishes.

To confirm the remaining sleep time:

1 Whilst “SLEEP” is indicated, press the CLOCK/TIMER button.

2 Within 10 seconds, press the or button to select “SLEEP

X : XX”.

“X : XX” is sleep remaining time.

The remaining sleep time is displayed for about 10 seconds.

You can change the remaining sleep time whilst it is displayed by pressing the MEMORY button (steps 4 - 5).

Sleep timer setting

1 minute - 3 hours

Timer playback setting

Sleep operation will automatically stop.

End time

Desired time

Timer playback start time

38

Enhancing your system

The connection lead is not included. Purchase a commercially available lead as shown below.

VIDEO/AUX IN

RIGHT LEFT

Listening to the playback sounds from VCR,

DVD, etc.

1

Use a connection lead to connect the VCR, DVD, etc. to the

VIDEO/AUX IN sockets.

When using video equipment, connect the audio output to this unit and the video output to a television.

2


3

Press the VIDEO/AUX/USB button.

4

Play the connected equipment.

Note:

To prevent noise interference, place the unit away from the television.

Headphones

Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

Before plugging in or unplugging the headphones, reduce the volume.

Be sure your headphones have a 3.5 mm (1/8") diameter plug and impedance between 16 and 50 ohms. The recommended impedance is 32 ohms.

Plugging in the headphones disconnects the speakers automatically. Adjust the volume using the VOLUME control.

XL-UR250H(BK)

XL-UR2110H(BK)

Auto power on function (USB/AUX):


VIDEO/AUX/USB button (main unit and remote control): The unit turns on and the “USB” or “AUX” function is activated.


39

XL-UR250H(BK)

XL-UR2110H(BK)

Enhancing your system (continued)

Subwoofer connection

When a commercially available subwoofer with a built-in amplifier is connected to this unit, you can enjoy sound with emphasised bass.

Connect an RCA lead from a commercially available speaker with a built-in amplifier to the SUBWOOFER PRE-OUT socket.

Subwoofer with a built-in amplifier

Troubleshooting chart

Many potential problems can be resolved by the owner without calling a service technician.

If something is wrong with this product, check the following before calling your authorised SHARP dealer or service centre.

General

Symptom

The clock is not set to the correct time.

When a button is pressed, the unit does not respond.

No sound is heard.

Possible cause

Did a power failure occur? Reset the clock. (Refer page 14)

Set the unit to the power standby mode and then turn it back on.

If the unit still malfunctions, reset it. (Refer page 41)

Is the volume level set to “0”?

Are the headphones connected?

Are the speaker wires disconnected?

CD player

Symptom

Playback does not start.

Playback stops in the middle or is not performed properly.

Playback sounds are skipped, or stopped in the middle of a track.

Possible cause

Is the disc loaded upside down?

Does the disc satisfy the standards?

Is the disc distorted or scratched?

Is the unit located near excessive vibrations?

Is the disc very dirty?

Has condensation formed inside the unit?

40

Remote control

Symptom

The remote control does not operate.

Possible cause

Is the AC power lead of the unit plugged in?

Is the battery polarity correct?

Are the batteries dead?

Is the distance or angle incorrect?

Does the remote control sensor receive strong light?

Tuner

Symptom

The radio makes unusual noises continuously.

Possible cause

Is the unit placed near the TV or computer?

Is the FM aerial or AM loop aerial placed properly? Move the aerial away from the

AC power lead if it's located nearby.

USB

Symptom

Device cannot be detected.

Playback does not start.

Wrong time display.

Wrong file name display.

Recording cannot start.

Possible cause

Is there any MP3/WMA file available?

Is the device properly connected?

Is it MTP device?

Does the device contain AAC file only?

Is it the copyright protected WMA file?

Is it the false MP3 file?

Is Variable Bitrate file being played back?

Is the File Name written in Chinese or

Japanese characters?

Is the USB device in write protect mode?

Is it a CD-WMA disc?

Is the device’s memory already full?

Condensation

Sudden temperature changes, storage or operation in an extremely humid environment may cause condensation inside the cabinet (CD pickup, etc.) or on the transmitter on the remote control.

Condensation can cause the unit to malfunction. If this happens, leave the power on with no disc in the unit until normal playback is possible (about 1 hour). Wipe off any condensation on the transmitter with a soft cloth before operating the unit.

If trouble occurs

When this product is subjected to strong external interference

(mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.

If such problem occurs, do the following:

1 Set the unit to the stand-by mode and turn the power on again.

2 If the unit is not restored in the previous operation, unplug and plug in the unit again, and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by resetting it.

Factory Reset, Clearing All Memory


2 Whilst pressing down the 1 button and the 5 button, press the ON/STAND-BY button until “CLEAR ALL” appears.

ON/

STAND-BY

Caution:

This operation will erase all data stored in memory including clock, timer settings, tuner preset, and CD programme.

XL-UR250H(BK)

XL-UR2110H(BK)

41

XL-UR250H(BK)

XL-UR2110H(BK)

Troubleshooting chart (continued)

Before transporting the unit

Remove all CDs from the unit. Make sure there is no CD in the disc tray. Then, set the unit to the power stand-by mode. Carrying the unit with discs left inside can damage the unit.

Care of compact discs

Compact discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your CD collection and player.

Do not write on either side of the disc, particularly the non-label side from which signals are read. Do not mark this surface.

Keep your discs away from direct sunlight, heat, and excessive moisture.

Always hold the CDs by the edges. Fingerprints, dirt, or water on the CDs can cause noise or mistracking. If a CD is dirty or does not play properly, clean it with a soft, dry cloth, wiping straight out from the centre, along the radius.

NO YES

Correct

Maintenance

Cleaning the cabinet

Periodically wipe the cabinet with a soft cloth and a diluted soap solution, then with a dry cloth.

Caution:

Do not use chemicals for cleaning (petrol, paint thinner, etc.). It may damage the cabinet finish.

Do not apply oil to the inside of the unit. It may cause malfunctions.

Specifications

As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

General (XL-UR250H(BK))

Power source

Power consumption

Dimensions

Weight

AC 230 V, 50 Hz

Power on: 90 W

Power stand-by: 0.6 W(*)

Width: 175 mm (6-3/4")

Height: 240 mm (9-1/2")

Depth: 315 mm (12-1/5")

5.4 kg (11.7 lbs.)

General (XL-UR2110H(BK))

Power source

Power consumption

Dimensions

Weight

AC 230 V, 50 Hz

Power on: 60 W

Power stand-by: 0.6 W(*)

Width: 175 mm (6-3/4")

Height: 240 mm (9-1/2")

Depth: 315 mm (12-1/5")

4.9 kg (10.8 lbs.)

( * )This power consumption value is obtained when the demonstration mode is cancelled in the power stand-by mode. Refer to page 11 to cancel the demonstration mode.

Amplifier (XL-UR250H(BK))

Output power

Output terminals

Input terminals

PMPO: 660 W

MPO: 330 W (165 W + 165 W) (DIN 45 324)

RMS: 160 W (80 W + 80 W) (DIN 45 324)

RMS: 128 W (64 W + 64 W) (DIN 45 500)

Speakers: 6 ohms

Headphones: 16 - 50 ohms

(recommended: 32 ohms)

Subwoofer pre-out (audio signal):

200 mV/10 k ohms at 70 Hz

Video/Auxiliary (audio signal):

500 mV/47 k ohms

42

Amplifier (XL-UR2110H(BK))

Output power

Output terminals

Input terminals

PMPO: 160 W

MPO: 80 W (40 W + 40 W) (DIN 45 324)

RMS: 40 W (20 W + 20 W) (DIN 45 324)

RMS: 26 W (13 W + 13 W) (DIN 45 500)

Speakers:

4 ohms

Headphones: 16 - 50 ohms

(recommended: 32 ohms)

Subwoofer pre-out (audio signal):

200 mV/10 k ohms at 70 Hz

Video/Auxiliary (audio signal):

500 mV/47 k ohms

USB

USB host interface

Support file

Bitrate support

Other

File system support

Complies with USB 1.1 (Full Speed)/ 2.0

Mass-Storage-Class.

Supports Bulk only and CBI protocol.

MPEG 1 Layer 3

MPEG 2/2.5 Layer 3

WMA (Non DRM)

MP3 (32 ~ 320 kbps)

WMA (64 ~ 160 kbps)

Maximum total number of MP3/WMA files is 65 535.

Maximum total number of folders is 512

INCLUSIVE of root directory. (Folders with non playable files are also counted.)

The ID3TAG information supported are

TITLE, ARTIST and ALBUM only.

Supports ID3TAG version 1 and version 2.

Maximum number of folders that can be recorded is 128.

Maximum number of files in a folder that can be recorded is 128.

Supports USB devices with Microsoft

Windows/DOS/FAT 12/ FAT16/ FAT 32.

2 kbyte block length for sector.

CD player

Type

Signal readout

5-disc multi-play compact disc player

Non-contact, 3-beam semiconductor laser pickup

D/A Multi-bit converter

D/A converter

Frequency response

20 - 20,000 Hz

Dynamic range

90 dB (1 kHz)

Tuner

Frequency range

FM: 87.5 - 108 MHz

AM: 522 - 1,620 kHz

40 presets (AM and FM).

Support preset memory

Speaker (XL-UR250H(BK))

Type

2-way type speaker system

5 cm (2") tweeter

12 cm (4-3/4") woofer

Maximum input power 160 W

Rated input power

80 W

Impedance

Dimensions

6 ohms

Width: 148 mm (5-13/16")

Height: 260 mm (10-1/4")

Depth: 224 mm (8-13/16")

Weight

2.7 kg (6.0 lbs.)/each

Speaker (XL-UR2110H(BK))

Type

2-way type speaker system

2.5 cm (1") tweeter

10 cm (4") woofer

Maximum input power 40 W

Rated input power

20 W

Impedance

Dimensions

Weight

4 ohms

Width: 140 mm (5-1/2")

Height: 240 mm (9-7/16")

Depth: 190 mm (7-1/2")

2.0 kg (4.4 lbs.)/each

XL-UR250H(BK)

XL-UR2110H(BK)

43

TERMS OF GUARANTEE

Sharp Electronics (UK) Ltd. (“Sharp”) guarantees to provide for the repair, or at its option the replacement, of this product subject to the conditions listed below:-

1. This guarantee shall only apply to faults which are due to inferior workmanship or materials. It does not cover faults or damage caused by accident, misuse, fair wear and tear, neglect, tampering with the product, or repair other than by a Service Facility appointed by Sharp.

2. As this product is intended for private domestic use only, the guarantee will not apply if the product is used in the course of a business, trade or profession.

3. To benefit from this guarantee, any fault which occurs must be notified to Sharp, or its appointed

Service Facility within one year from the date this product was purchased. Proof of purchase must be provided.

4. The guarantee does not cover carriage costs, audio tapes, compact discs or batteries.

5. In the unlikely event of this product requiring repair, please contact the supplier from whom it was purchased. Where this is not possible, please contact the Sharp Customer Information Centre on the telephone number given below.

6. No person has any authority to vary the terms or conditions of this guarantee.

7. This guarantee is offered as an additional benefit to your statutory rights, and does not affect these rights in any way.

If you have any difficulty operating this product, or would like information on other Sharp products, please telephone the Sharp Customer Information Centre on the number given below.

Sharp Customer Information Centre - Telephone 08705 274277

(or (01) 676 0648 if telephoning from Ireland)

Customer support website address - www.sharp.co.uk/customersupport.aspx

SHARP ELECTRONICS (U.K) LTD.

4 Furzeground Way, Stockley Park, Uxbridge, Middlesex, UB11 IEZ.

SHARP CORPORATION

03/12/17 XL-UR250HE_BACK.fm

TINSEA167AWZZ

07C R MW 1
