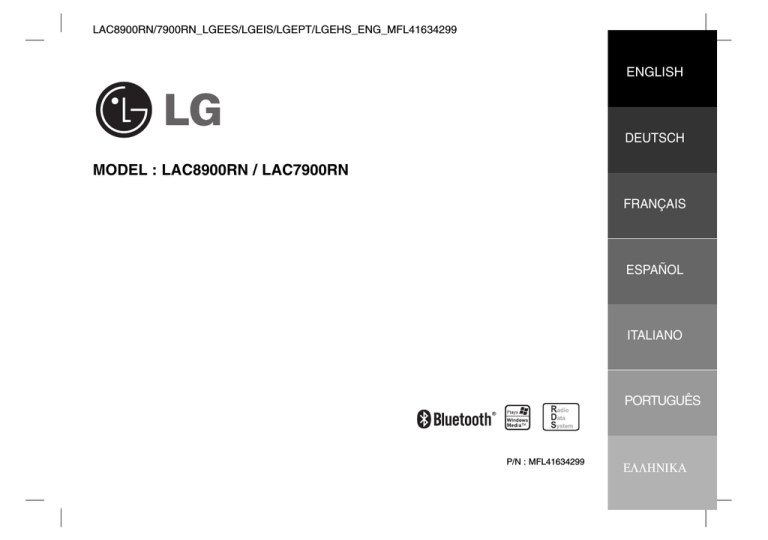

LAC8900RN/7900RN_LGEES/LGEIS/LGEPT/LGEHS_ENG_MFL41634299
ENGLISH
DEUTSCH
MODEL : LAC8900RN / LAC7900RN
FRANÇAIS
ESPAÑOL
ITALIANO
PORTUGUÊS
P/N : MFL41634299
∂§§H¡π∫A
Table of Contents
2
3
4
5
6
7
8
9
10
11
12
2
Table of Contents
Safety Note
[LAC8900RN] Front Panel / Remote Control
[LAC7900RN] Front Panel / Remote Control
[LAC8900RN] About Detachable Control Panel
[LAC7900RN] About Detachable Control Panel
Installation
Basic installation
Removing the existing receiver unit
ISO-DIN installation
Battery installation
Connection
Basic operation
Mute
Using the EQ
Adjusting the sound level
XDSS+
Checking the clock
Setting the clock
Listening to a CD
Pause or restart a CD
Search for a section within a track / file
Skip to another track / file
Intro scan
Repeat
Shuffle
MP3/WMA Track -10 / +10
MP3/WMA Folder UP/DOWN
Checking information about your music
Listening to the radio
Auto search memory
Storing and recalling broadcast frequencies
To scan the preset stations
To tune in the preset stations
Listening RDS broadcasting
Connecting USB device
CAR CD/MP3/WMA Receiver
13
14-15
16
17-18
19
20
Connecting an Auxiliary Equipment
Changing settings
Connecting a Bluetooth wireless technology
Disconnecting a phone
Answering and Ending a call
Rejecting a call
Making a call saved preset number
Missed call notification
Audio transfer
Making a call from the latest call
Paring your unit and device with Bluetooth wireless technology
Playing MP3 files
Storing a call number in last answered
Bluetooth wireless technology profiles information
The buttons with bluetooth wireless technology
Adjusting the setting (Bluetooth wireless technology)
Phone compatibility list (Bluetooth wireless technology)
Troubleshooting
Specifications
This product is manufactured to comply with Directive 2006/28/EC
(ANNEX I , 3.2.9), 72/245/EEC, 99/5/EC, and 2006/95/EC.
European representative:
LG Electronics Service Europe B.V. Veluwezoom 15, 1327 AE Almere, The
Netherlands (Tel: +31-036-547-8940)
The unit is compatible with the steering wheel remote control.
The function allows operation by sending the steering wheel
remote control signal to the unit.
For details, consult with your dealer.
Safety Note
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT SPLIT COVER(OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
Always operate the vehicle in a safe manner.
Do not become distracted by the vehicle while driving, and always be fully
aware of all driving condition. Do not change settings, or any functions.
Pull over in a safe and legal manner before attempting such operations.
Do not use for many hours at extremely low or high temperature.
(-10~60’C)
To reduce the risk of electric shock, do not remove the cover or back of
this product. There are no user-serviceable parts inside.
Refer servicing to qualified service personnel.
To reduce the risk of fire or electric shock, do not expose this product to
dripping or splashing water, rain, or moisture.
The temperature of unit’s outside can be extremely high, please use the
unit after proper installation in your vehicle.
8 cm
CAUTION : This product uses a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and
retain it for future reference.
Should the unit require maintenance, contact an authorized service center. Performing
controls, adjustments, or carrying out procedures other than those specified herein
may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible
laser radiation when open. DO NOT STARE INTO BEAM.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product, it
means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of
separately from the municipal waste stream via designated collection
facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance,
please contact your city office, waste disposal service or the shop
where you purchased the product.
Caution
When being connected in a wrong way, the unit displays as follows.
- Antenna port short : “ANTENNA ON PORT SHORT CIRCUIT CHECK”
After connecting it again, restart the unit.
This unit cannot play 8cm disc (use 12cm disc only).
You have to set the disc format option to [Mastered] in order to make the discs
compatible with the LG players when formatting rewritable discs.
When setting the option to Live File System, you cannot use it on LG players.
(Mastered/Live File System : Disc format system for Windows Vista)
CAR CD/MP3/WMA Receiver
3
[LAC8900RN] Front Panel / Remote Control
1
2
3
4 5
6
7
8
9
10
11
1
2
10
3
4
BACK
21
20
U/AS]
• Auto Store [U
u/PS]
• Preset Scan [u
u
• MP3/WMA Track +10/-10 U/u
u
• Folder Up/Down U/u
Skip / Search / Seek / Tune B?+
• ENTER
• Volume
• [MUTE]
• Power [PWR]
• Equalizer [EQ]
• Extreme Dynamic Sound System
[XDSS+]
Bluetooth wireless technology [B/T]
SOURCE [SRC]
Remote Sensor
Display window
1
2
3
4
5
6
7
8
19
18
9
10
11
12
13
14
15
16
17
18
19
20
21
17
16
15
14
• Traffic Announcement [TA]
• Programme Type [PTY]
Display [DISP]
Release
USB slot
AUX in
Preset Station [1~6]
Shuffle [SHF]
Repeat [RPT]
Intro Scan [INT]
Play/Pause BX
• [BAND]
• [DRIVE]
Select [SEL] / [MENU]
Skip / Search / Seek / Tune / Back
-?b
11
INT
12
5
6
7
13
8
14
9
15
16
13 12
1
2
3
4
5
6
7
8
Power [POWER] / Mute
Select [MENU/SEL]
Source [SRC]
Play / Pause B/X
Intro Scan [INT]
Shuffle [SHF]
• MP3/WMA Track +10
• Folder Up U
• CD Skip / Search
• Seek / Tune ?m m
9
10
11
12
13
14
15
16
• [BAND]
• DRIVE [DRV]
Volume Up
/ Down
Number [#]
Repeat [RPT]
Number [0 -9]
• CD Skip / Search
• Seek / Tune M M?
Display [DISP.]
• MP3/WMA Track -10
• Folder Down u
Note
There is the microphone in the left top position of the unit when you
detach the control panel.
4
CAR CD/MP3/WMA Receiver
[LAC7900RN] Front Panel / Remote Control
1 2 3
4
5 6
7
8
9
10
11 12 13
1
2
10
3
11
INT
4
23
1
2
3
4
5
6
7
8
9
22
21
SOURCE [SRC]
U/AS]
• Auto Store [U
u/PS]
• Preset Scan [u
u
• MP3/WMA Track +10/-10 U/u
u
• Folder Up/Down U/u
Skip / Search / Seek / Tune B?+
• ENTER
• Volume
• [MUTE]
• Power [PWR]
• Equalizer [EQ]
• Extreme Dynamic Sound System
[XDSS+]
Bluetooth wireless technology [B/T]
Remote Sensor
Slot CD
Display window
20
19
18
17
16
10 • Traffic Announcement [TA]
• Programme Type [PTY]
11 Display [DISP]
12 Eject
13 Release
14 USB slot
15 AUX in
16 Preset Station [1~6]
17 Shuffle [SHF]
18 Repeat [RPT]
19 Intro Scan [INT]
20 Play/Pause BX
21 • [BAND]
• [DRIVE]
22 Select [SEL] / [MENU]
23 Skip / Search / Seek / Tune / Back
-?b
15
12
5
6
7
13
8
14
9
15
16
14
1
2
3
4
5
6
7
8
Power [POWER] / Mute
Select [MENU/SEL]
Source [SRC]
Play / Pause B/X
Intro Scan [INT]
Shuffle [SHF]
• MP3/WMA Track +10
• Folder Up U
• CD Skip / Search
• Seek / Tune ?m m
9
10
11
12
13
14
15
16
• [BAND]
• DRIVE [DRV]
Volume Up
/ Down
Number [#]
Repeat [RPT]
Number [0 -9]
• CD Skip / Search
• Seek / Tune M M?
Display [DISP.]
• MP3/WMA Track -10
• Folder Down u
Note
There is the microphone in the left top position of the unit when you
detach the control panel.
CAR CD/MP3/WMA Receiver
5
[LAC8900RN] About Detachable Control Panel
Attaching the control panel
1
2
D
Microphone
B
C
3
Detaching the control panel
Attach part A of the control panel to
part B of the unit.
Attach part C of the control panel to
part D of the unit while pushing the
control panel to left.
Close the control panel.
1
2
3
4
A
Press the “
” button to unlock
the control panel.
Push the control panel to left.
Pull the control panel out of the
unit.
Put the detached control panel
into the protective case.
Microphone
Caution
• When detaching or attaching the control panel, do not press the display or
control buttons.
• The control buttons may not work properly if the control panel is not attached
properly. If this occurs, gently press the control panel.
• Do not leave the control panel in any area exposed to high temperatures or
direct sunlight.
• Do not drop the control panel or otherwise subject it to strong impact.
• Do not allow such volatile agents as benzine, thinner, or insecticides to come
into contact with the surface of the control panel.
• Do not try to disassemble the control panel.
6
CAR CD/MP3/WMA Receiver
Microphone
Control panel
Protective Case
Note
Periodically wipe the contacts on the back of the control
panel with a cotton swap moistened with alcohol. For safety,
turn off the ignition before cleaning, and remove the key
from the ignition switch.
[LAC7900RN] About Detachable Control Panel
Attaching the control panel
1
2
Detaching the control panel
Align the left side of the panel with
the stopper.
Push the right side or panel into the
unit until it clicks.
1
Microphone
1
2
2
3
4
Press the “
” (RELEASE) to
open the control panel.
Hold the right part of the control
panel.
Pull out the control panel.
Place the control panel in the
supplied protective case.
2
3
1
Caution
• The control buttons may not work properly if the control panel is not
attached properly. If this occurs, gently press the display.
4
• Do not leave the control panel in any area exposed to high temperatures or
direct sunlight.
• Do not drop the control panel or otherwise subject it to strong impact.
• Do not allow such volatile agents as benzine, thinner, or insecticides to
come into contact with the surface of the control panel.
Microphone
Control panel
Protective Case
Note
Periodically wipe the contacts on the back of the control
panel with a cotton swap moistened with alcohol. For safety,
turn off the ignition before cleaning, and remove the key
from the ignition switch.
CAR CD/MP3/WMA Receiver
7
Installation
ISO-DIN Installation
Basic Installation
1
Before installing, make sure that the
ignition-switch is set to OFF and
remove the terminal of the car battery
to avoid short-circuiting.
Bend the claws
according to
the thickness
of the
dashboard
1
2
3
4
Remove the existing receiver unit.
Make the necessary connections.
Install the installation sleeve.
Install the unit into the installation
sleeve.
Control panel
2
1
4
5
3
3
6
Control panel
2
4
5
6
Slide the unit into the ISO-DIN
frame.
Fit screws removed from the old
unit.
Slide the unit and frame into the
dash opening.
Install the dash panel or adapter
plate.
Install the trim ring to the unit.
Install the control panel to the unit.
Battery Installation
1
Pull out the battery holder with a
sharp product like a ball point pen.
2
Put the battery with
and
correctly on the battery holder.
Push the battery holder back into its
original position.
Removing the existing receiver unit
If there is already an installation
sleeve for the receiver unit in the
dashboard, it must be removed.
A
1
2
A
8
CAR CD/MP3/WMA Receiver
3
Remove the rear support from the
unit.
Remove the control panel and trim
ring from the unit.
Insert the lever A into the hole on
one side of the unit.
Perform the same operation on
the other side and pull the unit out
from the mounting sleeve.
3
Note
• Use only one CR2025 (3V) lithium battery.
• Remove the battery if the remote control is not used for a long period of
time.
• Do not leave the product in a hot or humid place.
• Do not handle the battery with metallic tools.
• Do not store the battery with metallic materials.
Connection
Before connecting, make sure that the ignition switch is set to OFF, and remove the battery # terminal to avoid short circuits.
Wired remote input (Black): Hard-wired remote control adaptor can be connected
(Not supplied/Optional).
To Audio out
To Audio in
Front Left
Front Right
Rear Left (Sub-woofer Left)
Rear Right (Sub-woofer Right)
*Sub-woofer is optional.
B
A
1
2
3
4
1
2
3
4
5
6
7
8
5
6
7
8
A8
Power Antenna(Blue)
A7
Dimmer(Pink)
A2
To Ignition(Red)
A1
To Battery(+)(Yellow)
Power
Antenna
Control Relay
Dimmer Switch
Ignition Switch
B 1
B 2
B 3
B 4
A5
Ground(-)(Black)
BATTERY
B 5
B 6
B 7
B 8
A3
Remote On(Blue/White)
A4
Phone Mute(Orange)
A6
: Not connected
Amplifier
(Optional)
B
B
B
B
B
B
B
B
1
2
3
4
5
6
7
8
Violet / Black Stripe : Rear Right –
Violet : Rear Right +
Gray / Black Stripe : Front Right –
Gray : Front Right +
Green/ Black Stripe : Rear Left –
Green : Rear Left +
White/Black Stripe : Front Left –
White : Front Left +
Amplifier
(Optional)
CAR CD/MP3/WMA Receiver
9
Adjusting the sound level
Basic Operation
ON PLAYER
1. Turn the unit on.
PWR/MUTE
2. Select a source.
SRC
3. Adjust the volume.
Rotate PWR
ON REMOTE
POWER
SRC
VOLUME
Basic operation - more you can do
Mute
Press PWR/MUTE (POWER
cancel it, press again.
on the remote control) to cut the sound. To
Using the EQ
EQ is to increase or decrease the signal strength of audio frequencies. The function helps you to enjoy sound more plentifully. Press EQ/XDSS+ repeatedly. The
screen lights up in the following order.
POP t CLASSIC t ROCK t JAZZ t VOCAL t SALSA t SAMBA t
REGGAE t RUSSY t USER1 t USER2 t Off (not displayed)
Note
• When XDSS+ is set to “Off”, you can adjust the EQ settings.
• You can adjust sound level to your preference. Once you select a USER mode
and then make an adjuatment, it will be automatically stored for the currently
selected USER mode. Refer to the “Adjusting the sound level” for USER
mode.
10
CAR CD/MP3/WMA Receiver
Press SEL/MENU (SEL/MENU on the remote control) repeatedly to select the
mode you want to adjust from VOL (volume), BAL (left/right speaker), FAD
(front/rear speaker) and SUB (Sub-woofer: optional). To adjust sound quality,
rotate PWR or press VOLUME
Note
When EQ and XDSS+ is set to “Off”, you can also adjust the sound level (BAS
(bass), MID (middle), TRB (treble)) settings.
XDSS+ (Extreme Dynamic Sound System)
Press and hold EQ/XDSS+. (XDSS+ : Improves the treble, bass sound.)
To cancel it, press and hold again.
Checking the clock
You can see the clock pressing DISP (DISP. on the remote control).
Setting the clock
When RDS CT information is not received and then you set C-T to OFF, you
can adjust the time by yourself.
Refer to the page 13 for setting the C-T (Clock Time) ON/OFF.
1 Press the DISP (DISP. on the remote control) and then, press and hold DISP
for more 1 second.
2 Press the B?+ (M M? on the remote control) to adjust the hour.
3 Press the -?b (?m m on the remote control) to adjust the minute.
4 Press the DISP (DISP. on the remote control) again to finish the setting.
Shuffle
Listening to a CD
ON PLAYER
ON REMOTE
-
-
-
1. Open the front panel.
[Only in LAC8900RN]
2. Insert a CD.
3. Adjust the volume.
Rotate PWR
Press or press and hold SHF on the player (SHF on the remote control). Each
files in the current selected folder (
SHF) or all of the tracks/files (SHF) on
the disc is played randomly. Press SHF again to cancel it.
Note
During random playback, if you press -?b , you won’t go back to the previous
track.
VOLUME
MP3/WMA Track -10 / +10
Listening a CD - more you can do
(If there is no folder or one folder.) During playback push the button down to
u/PS to go back 10 tracks, and push it up to U/AS to go forward 10 tracks.
Pause or restart a CD
MP3/WMA Folder UP/DOWN
Press B[] on the player (B
B/[] on the remote control) during playback. Press this
button again to resume play.
(If there are more than two folders.) During playback, push the button down to
u/PS to go back to the previous folder, and push it up to U/AS to go forward to
the next folder.
Search for a section within a track / file
Press and hold -?b / B?+ on the player (.bb/BB> on remote control) for
about 1 second during playback and then release at the point you want.
Skip to another track / file
Press -?b / B?+ on the player (.bb/BB> on remote control.). To skip to
previous track, press briefly -?b within 3 seconds of playing time. Press [#] and
a number you want to move on remote control to move the files/track.
Intro scan
Press or press and hold INT on the player (INT on remote control). Each files in
the current selected folder (
INT) or the first 10 seconds of each tracks/files
(INT) on the disc are played. To cancel it, press the button again.
Repeat
Press or press and hold RPT on the player (RPT on the remote control). The
current selected tracks/files (1 RPT) or folder (
RPT) on the disc is played
repeatedly. To cancel it, press the button again.
Checking information about your music
MP3/WMA files often come with tags. The tag gives the Title, Artist or Album.
Press DISP repeatedly during MP3/WMA/CD TEXT file playback. If there is no
information, “NO TEXT” will be shown in the display window.
Note
•
: The icon is displayed during MP3/WMA playback.
• MP3/WMA Disc compatibility with this unit is limited as follows:
1. Sampling Frequency / 8 - 48kHz (MP3) 22.05 - 48kHz (WMA)
2. Bit rate / within 8 - 320kbps (include VBR) (MP3) 32 -320kbps (WMA)
3. CD-R/CD-RW file system should be “ISO 9660”
4. If you record MP3/WMA files using software which cannot create a FILE
SYSTEM, for example “Direct-CD” etc., it will not be possible to playback
MP3/WMA files. We recommend that you use “Easy-CD Creator” which creates an ISO9660 file system.
Customers should also note that permission is required in order to download MP3/WMA files and music from the Internet. Our company has no
right to grant such permission. Permission should always be sought from
the copyright owner.
CAR CD/MP3/WMA Receiver
11
Listening to the radio
Listening RDS broadcasting
ON PLAYER
ON REMOTE
SRC
SRC
2. Select a band.
BAND
3. Auto seek.
Manual seek.
-?b / B?+
Press and hold
-?b / B?+
BAND
?mm/MM?
Press and hold
?mm/MM?
1. Select a source to tuner.
Listening to the radio - more you can do
Auto search memory
Push the button up to U/AS. The six strongest broadcast frequencies will be
stored under preset button 1-6 in the order of their signal strength. To cancel,
push the button up to U/AS.
Storing and recalling broadcast frequencies
1 Press BAND to select desired band you want to store.
2 Select the desired frequency and press one of preset buttons 1-6 and hold
until the beep sound.
3 Repeat steps 1-2 to preset other stations. The next time, you press the same
preset button, the radio station frequency is recalled from the memory.
To scan the preset stations
Push the button down to u/PS. Each preset station appears. To cancel, push
the button down to u/PS.
ON PLAYER
1. Select a source to tuner.
CAR CD/MP3/WMA Receiver
Press and hold
TA/PTY
-
1- 6
1-6
RDS broadcasting information
Press and hold the TA/PTY repeatedly for selecting each mode.
Music group t Speech Group t Search off
NO. MUSIC GROUP
1.
2.
3.
4.
5.
6.
POP M, ROCK M
EASY M, LIGHT M.
CLASSICS, OTHER M
JAZZ, COUNTRY
NATION M, OLDIES
FOLK M
NO. SPEECH GROUP
1. NEWS, AFFAIRS, INFO
2. SPORT, EDUCATE, DRAMA
3. CULTURE, SCIENCE, VARIED
4. WEATHER, FINANCE, CHILDREN
5. SOCIAL, RELIGION, PHONE IN
6. TRAVEL, LEISURE, DOCUMENT
Connecting USB device
ON PLAYER
ON REMOTE
1. Open the USB cover.
-
-
2. Connect the USB device.
-
To tune in the preset stations
12
BAND
4. Select a station in PTY type.
3. Adjust the volume.
Press BAND to select the desired band and press the desired preset button 1-6
(preset button 1-6 on the remote control).
Note
When a station is stored on the preset numbers on which another station of the
same band has already been preset, the previously preset station is automatically erased.
SRC
BAND
2. Select a band to FM.
3. Select a programme types.
ON REMOTE
SRC
Rotate PWR
VOLUME
Moving to another drive
When connecting this unit to multi reader, press BAND/DRIVE (BAND/DRV on
remote control) to go to the next drive. Each time you press the button, the driver modes changes.
Note
• If the USB device is already connected, press SRC (SRC on remote control.)
to select a source to USB.
• Pause / Intro Scan / Repeat / Shuffle / ... functions are same with “Listening a
CD - more you can do”. Refer to the page 11.
Connecting an Auxiliary Equipment
1. Connect an auxiliary equipment to the AUX jack with line
input cable.
2. Select a source to AUX.
3. Play the connected Auxiliary
Equipment.
4. Adjust the volume.
ON PLAYER
ON REMOTE
-
-
SRC
SRC
-
-
Rotate PWR
VOLUME
Changing settings
1. Select one item.
2. Select a source.
3. Finish the setting.
ON PLAYER
ON REMOTE
Press and hold
SEL/MENU
Press and hold
SEL/MENU
Rotate PWR
Press and hold
SEL/MENU
VOLUME
Press and hold
SEL/MENU
AF (Alternative frequency) ON / OFF
When the reception quality drops, the tuner automatically changes to another
station in the network, broadcasting a better reception quality, using the PI
and AF codes.
REG (Region) ON / OFF
REG ON : The unit switches to another station, within the same network,
broadcasting the same program when the receiving signals from
the current station become weak.
REG OFF : The unit switches to another station, within the same network
when the receiving signals from the current station become weak.
(This mode, the program may differ from the one currently
received.)
TA(Traffic Announcement) ALARM / SEEK
TA ALARM : When the tuned station does not receive TP information for 5 seconds, a double beep sound is output.
TA SEEK : When the tuned station does not receive TP information for
5 seconds, the receiver retunes to the next station that has the TP
information.
PI (Programme Identification) SOUND / MUTE
PI SOUND : If the sound of a station with different PI is heard intermittently,
the receiver mutes the sound after 1 second.
PI MUTE : If the sound of a station with different PI is heard intermittently, the
receiver mutes the sound right now.
C-T (Clock Time) ON / OFF
You can use the RDS CT information to update the time. When RDS CT information is not received and then you set C-T to OFF, you can adjust the time
by yourself. Refer to the page 10 for setting the clock.
AUX (Auxiliary) ON / OFF
It is possible to use auxiliary equipment with this unit. Activate the auxiliary
setting when using auxiliary equipment connected to this unit.
AUX (Auxiliary) 00dB / +6dB
Only when you set AUX to ON as switching sources, you can adjust the volume
level of each source to prevent radical changes in volume.
You can set to 0 dB or +6 dB. You may be surprised at a loud sound when
you change the source from the external component to another source.
DEMO OFF/ ON
You can change the initial indication on the display to information name (function name, EQ name, etc...) while listen to a source.
LCD WHI / RED
You can change the LCD window colour. WHI (white) <-> RED (red)
LED BLU/RED/AUTO
You can change the button color. BLU (Blue) <-> RED (Red) <-> AUTO
COL TM (Color changing time)
Only when you set LED to AUTO, you can set LED color changing time from 5
to 60 seconds.
SW (Subwoofer) OFF / 55HZ / 85HZ / 120HZ
You can enable the subwoofer.
DIM (Dimmer) OFF / ON / AUTO
You can change the brightness of the display window during the power-on
status. When you set DIMMER to AUTO, the dimmer operates according to
the car dimmer setting.
DIM L (Dimmer Level)
When you set DIM to ON/AUTO, you can adjust the dimmer level. (-2,-1,0,+1,+2)
A-EQ (AUTO EQ) ON/OFF
AUTO EQ operates only in the music file supported with Genre in the device.
When you set AUTO EQ to ON, POP, CLASSIC or ROCK is automatically
according to the music genre.
BEEP 2ND / ALL
BEEP 2ND : The beep is generated when a key is long pressed. (1 sec)
BEEP ALL : The beep is generated when any key is pressed.
CAR CD/MP3/WMA Receiver
13
Connecting a Bluetooth wireless technology
Before you start the pairing procedure, make sure the Bluetooth wireless technology is turned on in to your phone. Refer to your phone’s user
guide. Pairing links your unit and phone with Bluetooth wireless technology, and is required only once for the initial setup. If the connection is successful, the phone is registered (Device 1–5) and the flashing of indicator
stops on the unit. The process of pairing may be different depend on the
phones. The PIN CODE is 1234.
ON PLAYER
1. Enter the menu.
B/T
Making a call saved preset number
Press B/T and preset number (1~6).
Missed call notification
When an incoming call is not answered, the missed call message is displayed
on the display window (without headset profile). When the “
” appears, go to
the menu (B/T -> CALL -> MISSED). You can check the list of missed call. To
place a call, press B/T. And to end the call and hang up the phone, press and
hold B/T.
2. Find the “CONNECTION” menu.
Rotate PWR
Audio transfer
3. Search the phones supported Bluetooth
wireless technology.
Press PWR
4. Select a phone you want to connect.
Rotate PWR
5. Connect the phone.
Press PWR
6. Select the “CONNECT” menu.
Press PWR
It is possible to switch the audio connection between your phone equipped with
Bluetooth wireless technology and this unit.
1 Press B/T to answer the call.
2 Press B/T again. The “Private” is displayed.
If the private mode is selected on the unit, press B/T to return to the call to
hands-free mode.
Making a call from the latest call
Using a Bluetooth wireless technology - more
you can do
Disconnecting a phone.
Refer to page 16. Go to the menu (B/T -> CONNECTION -> Connected device
name -> DISCONNECT)
Answering and Ending a call.
When your unit rings, press B/T to answer a call. To end a call, press and hold
B/T.
Rejecting a call
When your unit rings, press and hold B/T.
14
CAR CD/MP3/WMA Receiver
The lists are sorted from newest to oldest entries. Your unit keeps recorded of
your recently received and dialed on phone. Refer to the page 16.
Note
• When you want to make an international call, press B?+ to add “+” and to
delete it press again.
• “+” can only be added when the detail list of Missed call, Dialled call or
Received call is selected.
• Rejecting a call / Making a call saved preset number / Missed call notification
(These features are only available on phones with Headset profile.)
Paring your unit and device with Bluetooth wireless technology
(MP3 Player, MP3 Phone...)
When you activate your Bluetooth device’s linked unit, you can listen to MP3 with
wireless connections. The method of use for a Bluetooth device is the same as
when using a Bluetooth phone. Refer to the phone’s user guide for using this
function.
The buttons with bluetooth wireless technology
B/T : Press it to enter B/T setting.
B?+ : When you write some words on the
unit, press it to move next space
on display.
Playing MP3 files
When you turn Bluetooth on, your device supported Bluetooth wireless technology
displays “Bluetooth” on the home screen. The Bluetooth remains on until you turn the
device off. Press SRC repeatedly to select “BT Music”. To play an MP3 file stored
on your device. Refer to the phone’s user guide for using this function.
Storing a call number in last answered.
You can easily store up to 6 phone numbers and laster recall with the press the
button. Refer to the page 14. Go to the menu (CALL -> RECEIVED -> Rotate
PWR the phone number you want to save -> SAVE -> select 1~6).
Bluetooth wireless technology profiles information.
In order to use Bluetooth wireless technology, devices must be able to interpret
certain profiles. This unit is compatible with following profiles.
GAP (Generic Access Profile)
HFP (Hands Free Profile)
HSP (Hands Set Profile)
GAVDP (Generic Audio/Video Distribution Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Distribution Remote Control Profile)
OPP (Object Push Profile)
• Press PWR : Go to the next contents of
the setting.
• Rotate PWR : Move the contents
vertically on the setting or choose a spell
when you write the words on the unit.
BACK
[LAC8900RN]
-?b : Press it to delete a spell or go back
previous contents. Press more 1
second to delete all words entered
on display when you write some
words on the unit.
Note
The position of LAC7900RN’s B/T button is different with LAC8900RN. But the
features are same.
CAR CD/MP3/WMA Receiver
15
Adjusting the setting.
B/T
CALL
(Bluetooth wireless technology)
RECEIVED
DIALED
MISSED
PRESET
REDIAL
DIAL
PHONEBOOK
LIST
SEARCH
GET (ADD)
CONNECTION
SETUP
Searching the phone number in the list. (English and Russian only)
Press B?+ more 1 second to change the languages between Russian and English.
GET : Getting the Phonebook from the phone automatically.
(This menu is only available with phones supported this function.)
ADD (Under disconnection) : PHONEBOOK -> ADD-> Press PWR -> “000/500” will be
displayed. Then send the phonebook data from your phone. Depend on your phone, the
sending process is different. Refer to your phone’s guide.
VISIBILITY
VISIBILITY : You can make it is impossible to search this unit. (SHOWN <-> HIDDEN)
MIC VOLUME
NAME
PIN-1234
ADDRESS
CAR CD/MP3/WMA Receiver
DIAL : Entering the number directly on the unit. To select the 1~10 rotate the volume.
Press B?+ to make the phone number. To call it, Press B/T.
LIST : Checking the list of the phone numbers saved by phonebook.
Connected Device Name will be displayed.
When the unit is not under connection, you can search the phones available to connect.
Select the register in the Connection contents.
AUTO
ANSWER
16
PRESET : Checking and deleting the phone number saved preset number. To delete the
phone number, select the preset number by rotating PWR. And then press PWR. Press
PWR again when the “DELETE” is displayed.
REDIAL : Adjusting the counts of redial. (1 TIME <-> 2 TIMES.)
Connected
Device
Name
AUTO CONN
BT INFO
RECEIVED/DIALED/MISSED Phone number list.
To call the phone number, select the phone number and press B/T.
To save it, select the phone number and press PWR. “SAVE” will be shown. Press PWR
again. Rotate PWR to select a preset number(1~6). Press PWR again. The phone number
be saved.
AUTO CONN : Adjusting connection with automatically or not. (ON <-> OFF)
AUTO ANSWER : You can adjust answering automatically or not. (ON <-> OFF)
MIC VOLUME : Adjusting microphone volume on the phone from 1 to 5. While you are
on the phone with bluetooth wireless technology, rotate PWR to adjust
the MIC volume.
NAME : Changing the name of this unit.
PIN code : Changing the PIN code. Default is 1234.
ADDRESS : Checking the address.
Phone compatibility list
H : Handsfree
A : Audio Streming (A2DP)
Bluetooth list and manufacturing
company applicable.
Company
List
H
Nokia
3230
3250
3650
5300
6021
6103
6120
6131
6230
6270
6280
6600
6630
6650
6670
6680
6681
6820
7370
7380
7610
7650
7600
7610
7650
8600
8800
9500
3650 (Italy)
5500 SPORT
6230i
6820a
7500prism
7650 (Italy)
8910i
9300i
E50
E60
E61
E62
E70
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
A
O
P
O
O
O
O
O
O
O
O
O
O
O
O
V
Company
List
H
Nokia
N70
N71
N73
N77
N80
N90
N91
N92
N93
N95
N-Gage
N-Gage QD
O
O
O
O
O
O
O
O
O
O
O
O
A1000
A780
E1000
E1070
E398
E550
E680
E680i
KRZR K1
L72
RAZR V3
RAZR V3i
RIZR Z8
ROKR E2
ROKR E6
SLVR L7
U6
V195
V360
V3X
V500
V525
V600
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
P : Phonebook Sync (GET)
V : Object Push(Vcard, ADD)
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
(Bluetooth wireless technology)
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
Motorola
A
P
O
V
Company
List
H
A
P
V
O
O
O
O
SONY
ERICSSON
K610i
K618i
K700i
K750i
K770i
K800i
M600i
P990i
S500i
S700i
T610
T618
T628
T68i
V600
V800
W550i
W710i
W800i
W810i
W850i
Z1010
Z600
Z608
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
D500
D600
D820
D900
E770
E900
i600
T509
X820
Z540V
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
SAMSUNG
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
CAR CD/MP3/WMA Receiver
17
H : Handsfree
A : Audio Streming (A2DP)
Bluetooth list and manufacturing
company applicable.
Company
List
H
SIEMENS
EF81
S55
S65
S88
SK65
SL75
SX1
SXG75
O
O
O
O
O
O
O
O
BLACK
BERRY
8100(PEARL)
8800
8707v
O
O
O
O
O
HP
HW6915
O
O
O
PALM
Treo750v
O
1.
2.
3.
4.
A
P
V
Company
List
H
A
O
O
O
O
O
O
O
O
O
LG
CU500
KE970
KG245
KG800
U880
U890
KF600
KE850 PRADA
KG290
KE500
KM500
KU990 VIEWTY
KU580
KU970
KU960
U370
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
P : Phonebook Sync (GET)
V : Object Push(Vcard, ADD)
O
O
O
O
O
O
O
O
O
P
V
O
O
O
O
O
O
O
O
O
O
O
O
O
Company
List
H
A
O
O
O
O
PHILIPS
KE770
M4410
O2 Xda Atom
GX15
GX25
O
O
I-MATE
K-JAM
O
PANTECH
PG6200
O
NEC
N750
N930
O
O
SAGEM
MYX6-2
O
SHARP
P
V
O
O
O
O
O
O
O
O
O
Note
When the phone features <Bluetooth Power Save> function, you should make the function turned on to maintain connection.
When you switch the call mode from handsfree to phone, the connection may e disconnected.
Some phones don’t support Reject function.
Low battery in phone may cause the problems.
“The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under
license. Other trademarks and trade names are those of their respective owners.”
Bluetooth® wireless technology is a system which allows radio contact between electronic devices within a max. range of 10 meters.
Connecting individual devices under Bluetooth® wireless technology does not incur any charges. A mobile phone with Bluetooth® wireless technology can
be operated via the Cascade if the connection was made via Bluetooth® wireless technology.
Operating condition for using a Bluetooth wireless technology function
- Close windscreen.
- Turn off the air conditioner/ heater.
- Stop the vehicle or drive at low speed.
- Make the call in a quiet location.
• There may be differences in call quality depending on phone type, road conditions weather, etc.
• Using the phone while driving may cause unexpected accidents.
• The Bluetooth wireless technology function may not operate properly with certain types of phones equipped with Bluetooth wireless technology.
18
CAR CD/MP3/WMA Receiver
Troubleshooting
Symptom
General
Power doesn’t turn on / The
unit doesn’t operate.
Cause
Leads and connectors are not properly.
The fuse is blown.
CD
Radio
Noise and other factors are causing the builtin microprocessor to operate incorrectly.
No sound is heard / The vol- Cables are not connected correctly.
ume level will not rise.
There’s audio skipping.
This unit is not firmly secured.
The playback is not possi
The disc is dirty.
ble.
The loaded disc is of a type this unit cannot
play.
The signal strength of the stations is too weak
Radio stations cannot be
(when tuning in with automatic tuning.)
tuned in.
Correction
Confirm once more that all connections are
correct.
Rectify the problem that caused the fuse to
blow, and then replace it. Be very sure to
install the correct fuse with the same rate.
Turn the unit off and then on.
Connect the cables correctly.
Secure this unit firmly.
Clean disc.
Check what type the disc.
Tune in the stations manually.
No station have been preset or preset stations Preset the stations. (Refer to the page 12)
have been cleared (when tuning by scanning
preset stations.)
Remote
control
Battery power is low.
The unit does not operate
correctly even when the
appropriate remote
control buttons are pressed.
Load new battery.
CAR CD/MP3/WMA Receiver
19
Specifications
General
Output Power
Power Source
Speaker impedance
Ground System
Dimensions (W x H x D)
Net Weight
Tuner
FM
Frequency Range
S/N Ratio
Distortion
Usable Sensitivity
AM (MW)
Frequency Range
S/N Ratio
Distortion
Usable Sensitivity
CD
Frequency Response
S/N Ratio
Distortion
Channel Separation (1kHz)
AUX
Frequency Response
S/N Ratio
Distortion
Channel Separation (1kHz)
Max Input Level (1kHz)
Bluetooth
TX POWER
Frequency Range
Version
USB
Version
Line OUT
Subwoofer (optional)
Frequency Response
Output Volatage
Line out
Frequency Response
Output Volatage
53 W x 4 CH (Max.)
DC 12V
4Ω
Negative
180 x 50 x 176 mm (Without Control Panel)
1.3 kg
87.5-107.9, 87.5-108 MHz
55 dB
0.7 %
12 dBµV
520-1720 or 522-1620 kHz
50 dB
1.0 %
28 dBµV
20 Hz-20 kHz
80 dB
0.12 %
55 dB
20 Hz-20 kHz
80 dB
0.1 %
45 dB
1.1 V
4 dBm
2402 ~ 2480MHz
Bluetooth Specification 2.0 + EDR
USB 1.1
20 Hz - 120 Hz
1.8 V (Max.)
20Hz - 20 KHz
1.8 V (Max.)
Designs and specifications are subject to change without notice.
20
CAR CD/MP3/WMA Receiver
