QuickSpecs
HP BladeSystem c7000 Enclosure
Overview

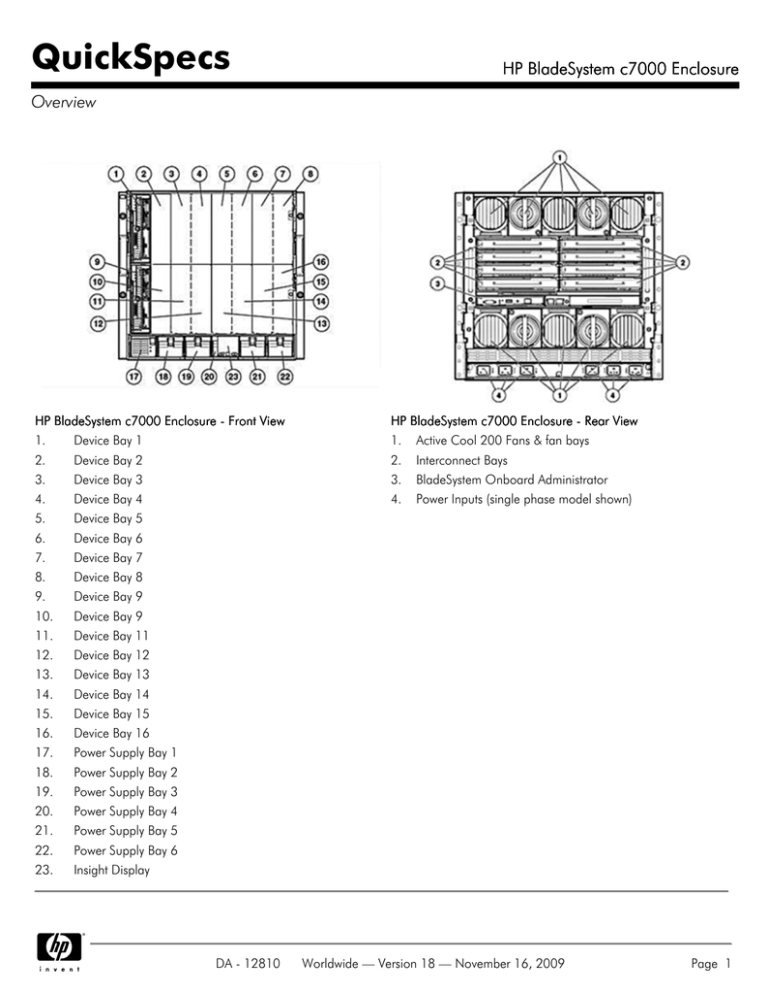

HP BladeSystem c7000 Enclosure - Front View
1.
Device Bay 1
2.
Device Bay 2
3.
Device Bay 3
4.
Device Bay 4
5.
Device Bay 5
6.
Device Bay 6
7.
Device Bay 7
8.
Device Bay 8
9.
Device Bay 9
10.
Device Bay 9
11.
Device Bay 11
12.
Device Bay 12
13.
Device Bay 13
14.
Device Bay 14
15.
Device Bay 15
16.
Device Bay 16
17.
Power Supply Bay 1
18.
Power Supply Bay 2
19.
Power Supply Bay 3
20.
Power Supply Bay 4
21.
Power Supply Bay 5
22.
Power Supply Bay 6
23.
Insight Display
DA - 12810
HP BladeSystem c7000 Enclosure - Rear View
1. Active Cool 200 Fans & fan bays
2. Interconnect Bays
3. BladeSystem Onboard Administrator
4. Power Inputs (single phase model shown)
Worldwide — Version 18 — November 16, 2009
Page 1
QuickSpecs
HP BladeSystem c7000 Enclosure
Overview
What's New
Support for Ethernet and FC SAN interconnects
At A Glance
This document covers the HP BladeSystem c7000 Enclosure. For more information on HP ProLiant Server Blades and HP
BladeSystem c-Class Interconnect Components please see the following QuickSpecs:
HP ProLiant c-Class Server Blades:
http://h18000.www1.hp.com/products/quickspecs/division/12534.html
HP BladeSystem c-Class Interconnect QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12524_div/12524_div.html
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html
HP BladeSystem solutions start with a BladeSystem c7000 Enclosure, optional c7000 hot-plug power supplies, HP Active Cool Fans,
and an optional redundant BladeSystem Onboard Administrator module. Once the enclosure has been selected, the following
components can be added: networking interconnect modules, HP ProLiant and Integrity Server Blades, and Insight Control
management software. Reference the QuickSpecs listed above.
Warranty - This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP
Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase.
Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered
under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack
services or customized service agreements.
Enclosure: Three-year parts and labor, on-site limited global warranty. Certain restrictions and exclusions apply
Enclosure options: Fans, Power Supplies, BladeSystem Onboard Administrator, 1 Year parts only or enclosure warranty
HP BladeSystem Interconnects: 1 Year parts and labor, on-site regardless of the warranty period for the system in which
they are installed
HP Storage Fibre Channel switches have a maximum warranty period of one (1) year regardless of the warranty period
for the system in which they are installed
Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details.
For additional information please visit: http://www.hp.com/go/bladesystem
DA - 12810
Worldwide — Version 18 — November 16, 2009
Page 2
QuickSpecs
HP BladeSystem c7000 Enclosure
HP BladeSystem c-Class Overview
HP BladeSystem c-Class
c7000 Enclosure
A BladeSystem c7000 enclosure holds up to 16 server and/or storage blades plus redundant network
and storage switches. It includes a shared, multi-terabit high-speed mid-plane for wire-once connectivity
of server blades to network and shared storage. Power is delivered through a pooled power backplane
that ensures the full capacity of the redundant hot-plug power supplies is available to all blades.
Each c7000 enclosure is built with the following functions:
Up to 16 half-height and/or up to 8 full-height server blades and/or storage blades per
enclosure.
Up to 4 different interconnect fabrics (Ethernet, FC, IB, iSCSI, SAS, etc.) supported simultaneously
within the enclosure.
Choice of a single-phase, three-phase or a -48V DC power subsystem for flexibility in connecting
to datacenter power.
HP Thermal Logic technology for lower power consumption and airflow.
Four (4) or Ten (10) Active Cool 200 fans as standard. For redundancy and improved power
consumption and acoustics; additional Active Cool 200 Fan kits can be added for a maximum of
10 fans.
Redundant hot-plug cooling, redundant hot-plug power supplies, redundant connections,
redundant interconnect modules, optional redundant BladeSystem Onboard Administrator
management modules.
Lowest cost of ownership.
Full AC redundancy - with no power zones.
An BladeSystem Onboard Administrator management module is built in to the enclosure with the
following functions:
Robust, multiple enclosure setup and control.
Reports asset and inventory information for the devices in the enclosure.
Reports thermal and power information, including real-time actual power usage per server and
per enclosure.
Front-mounted Insight Display for easy management within the datacenter.
Integrated access to all server blade iLOs from a single cable.
Provides integrated access to interconnect bay device management ports from the single
BladeSystem Onboard Administrator cable.
Single sign-on capability for all devices in the enclosure
Role-based security locally and/or with LDAP directory services.
Provides a wizard-based initial setup process for easy configuration.
A BladeSystem c7000 enclosure provides the following benefits:
With local and remote hardware management integrated across the solution, one full enclosure
can be managed as easily as one server.
Scalable: Management and network interconnects extend scalability beyond a single enclosure,
allowing resources to be pooled and shared across multiple enclosures.
Investment protection: Accommodates multiple server and network designs in one enclosure.
Lower costs per server, in comparison to rack-mounted servers
Lower power consumption, in comparison to rack-mounted servers.
Lower airflow requirements, in comparison to rack-mounted servers
DA - 12810
Worldwide — Version 18 — November 16, 2009
Page 3
QuickSpecs
HP BladeSystem c7000 Enclosure
HP BladeSystem c-Class Overview
HP c3000 Enclosure
For customers that need a smaller system the c3000 is the perfect solution. Supporting up to 8 blades
and 4 interconnects the c3000 enclosure provides and ideal solution for Small and Medium businesses
and remote sites for more information refer to the c3000 QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html
HP ProLiant & Integrity
Server Blades
Delivering best-in-class performance, choice and reliability on AMD Opteron™, Intel® Xeon® and
Intel® Itanium 2® processors for Windows, Linux, Solaris, or HP-UX based servers; the HP portfolio of
server blades supports a variety of application requirements for scale-out architectures. HP offers one-,
two-, and four-processor server blades, with the widest range of performance, and form factors.
For more information please see:
http://h18000.www1.hp.com/products/quickspecs/division/12534.html
HP SB40c Storage Blade Direct attached storage
The StorageWorks SB40c Storage Blade delivers direct attached storage for c-Class servers, with support
for up to six hot plug small form factor (SFF) SAS or SATA hard disk drives. The enclosure backplane
provides a PCI Express connection to the adjacent c-Class server blade and enables high performance
storage access without any additional cables. The SB40c Storage Blade features an onboard Smart Array
P400 controller with 256 MB battery-backed write cache, for increased performance and data
protection.
Shared storage
Use HP LeftHand P4000 Virtual SAN Appliance (VSA) software to turn the SB40c into an iSCSI SAN for
use by all severs in the enclosure and any server on the network. HP LeftHand VSA software is installed in
a virtual machine on a VMware ESX host server adjacent to the SB40c. HP LeftHand P4000 VSA turns
the SB40c into a scalable and robust iSCSI SAN, featuring, storage clustering for scalability, Network
RAID for storage failover, thin provisioning, snapshots, remote replication, and cloning. Expand capacity
within the same enclosure or to other BladeSystem enclosures by adding additional SB40c Storage
Blades and HP LeftHand VSA licenses.
http://h18000.www1.hp.com/products/quickspecs/12587_div/12587_div.html
HP Ultrium Tape Blades
The HP StorageWorks SB1760c is an LTO-4 Ultrium, 1.6 TB capacity on a single cartridge (2:1
compression), 576 GB/hr performance (2:1 compression), 128 MB buffer size, WORM capability, AES
256-bit hardware data encryption capability.
The HP StorageWorks SB920c Tape Blade is an LTO-3 Ultrium tape blade that provides up to 800GB of
capacity on a single data cartridge (2:1 compression) and performance up to 432GB/hr (2:1
compression).
The Ultrium 448c Tape Blade is an LTO-2 Ultrium tape blade the provides up to 400GB of capacity on
a single data cartridge (2:1 compression) and performance up to 173GB/hr (2:1 compression).
Tape blades are ideal for HP BladeSystem c-Class customers who need a data protection solution but
are not connected into a Storage Area Network (SAN). They provide direct attach data protection for the
adjacent server and network backup protection for all other data within the enclosure. The HP
StorageWorks tape blades are the industry's first bladed tape drives and are developed exclusively for the
BladeSystem c-Class enclosures.
For more information, please visit:
DA - 12810
Worldwide — Version 18 — November 16, 2009
Page 4
QuickSpecs
HP BladeSystem c7000 Enclosure
HP BladeSystem c-Class Overview
http://h18000.www1.hp.com/products/quickspecs/12729_div/12729_div.html
Dynamic Power Capping HP Dynamic Power Capping is the industry's first and only power capping solution that lets you reclaim
trapped power and cooling capacity without putting electrical infrastructure or server performance at
risk. The enclosure Dynamic Power Cap will be shared amongst all of the installed devices and
individual server caps will be changed to match the server load. This will optimize the performance of the
servers while ensuring that the enclosure stays below the cap value. Dynamic Power Capping solution is
available only through the HP Insight Control management software.
Rack Airflow
Requirements
Rack 10000 G2 series cabinets
The increasing power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The G2 10000 Series Racks provide enhanced airflow for maximum
cooling, allowing these racks to be fully loaded with servers using the latest processors.
NOTE: For operation with the DC Input Module the G2 1000 Series Rack Extension is required to allow
DC Power Cabling to be installed.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and rear doors, you must
allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit
adequate airflow (equivalent to the required 64 percent open area for ventilation).
The clearance from face of rack to inside of the front door needs to be 1.75" minimum.
Side: The clearance between the installed rack component and the side panels of the rack must be
a minimum of 2.75 inches (7 cm).
Depth: Minimum 39.4 inches (1000mm) for AC power, 47 inches (1200mm) for DC Power Input
Adjustable rack rails are shipped with each enclosure:
Minimum rail length: 25 inches (635mm)
Maximum rail length: 34 inches (864mm)
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This
arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling
that can lead to thermal damage.
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging and custom packaging. HP products supported through Factory Express include: a wide array of
servers and storage: HP Integrity, HP ProLiant & HP ProLiant & Integrity Server Blades, HP BladeSystem,
HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable
network switches.
For more information on Factory Express services for your specific server model please contact your sales
representative or go to: http://www.hp.com/go/factory-express
DA - 12810
Worldwide — Version 18 — November 16, 2009
Page 5
QuickSpecs
HP BladeSystem c7000 Enclosure
HP BladeSystem c-Class Overview
HP Enterprise
Configurator
The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware
portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our
valued customers. If you require "custom" rack configuration, please contact HP's Customer Business
Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
HP Insight management
software
HP Insight Foundation
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex
Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecycle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: http://www.hp.com/go/foundation.
The foundation pack includes:
HP SmartStart
HP Management
HP ProLiant Firmware Maintenance
SmartStart version supported (minimum): SmartStart 7.60.
http://www.hp.com/servers/smartstart
HP ProLiant Onboard Administrator (powered by the HP Integrated LightsOut 2 management processor) simplifies server setup, health monitoring,
power and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP ProLiant Onboard Administrator functions
without additional software, and can be accessed from any location via a
web browser. It works hand-in-hand with HP Systems Insight Manager,
Insight Control, and the Insight Dynamics-for ProLiant helping customers
unlock the value of the ProLiant platform and deliver the highest possible
quality of IT service to the business. See: www.hp.com/go/ProLiantOA
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to
deploy, monitor, remote control, and optimize your IT infrastructure through
a single, simple management console.
ProLiant Onboard
Administrator
HP Insight Control
Two versions of Insight Control are available, to serve environments requiring
either a Linux-based or a Windows-based central management servers: HP
Insight Control for Linux, and HP Insight Control. See
www.hp.com/go/insightcontrol
HP Insight Dynamics for
ProLiant
DA - 12810
HP Insight Control includes one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff and
proactive delivery of software updates. For more information about this
service, please visit: http://www.hp.com/services/insight.
HP Insight Dynamics for ProLiant, a product option, is an integrated
command center that enables IT Staff personnel to continuously analyze and
optimize a converged infrastructure, while automating and reducing the cost
of common data center tasks by as much as 40 percent. As a powerfully
Worldwide — Version 18 — November 16, 2009
Page 6
QuickSpecs
HP BladeSystem c7000 Enclosure
HP BladeSystem c-Class Overview
integrated by design toolkit to accelerate complex technology projects and
simplify daily operations that ultimately enable IT Staff personnel to
dynamically keep pace with the organizations changing business
requirements. It enables them to plan capacity and power continuously,
balance across physical and virtual resources, and ensure cost-effective high
availability. It also enables IT organizations to provision infrastructure
consistently and automatically from pools of shared resources using a selfservice portal. Resources provisioned can range from a single virtual
machine to complex multi-tier environments and their associated physical
and virtual resource requirements. In addition to the previous functional
benefits, it also provides a cost-effective disaster recovery for physical and
virtual environments that works with HP StorageWorks Continuous Access
software for both the Enterprise Virtual Array and the XP storage array
allowing application environments to be reactivated in minutes with the touch
of a button to a remote location.
NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics
HP BladeSystem Power
Sizer
The HP BladeSystem Power Sizer helps in sizing the power infrastructure needed for a HP BladeSystem
solution. This sizer enables effective planning for the power consumption and heat load of the
BladeSystem at its site.
The sizer enables you to:
Select the type and number of components within each Blade Server and Blade Enclosure.
View the effect of component changes on the power consumption and heat loading.
Review server loading and determine power supply and power subsystem requirements.
Approximate electrical and heat load for facilities planning purposes.
The sizing estimate is based on component level power measurements for a system operating at very
high enterprise application loads.
Values obtained from the BladeSystem Power Sizer are estimates for planning purposes only. Actual
measured power consumption can be significantly lower or higher than the Power Sizer estimates. Actual
power consumption varies with application type, application utilization, and ambient temperature.
The p-class BladeSystem and the c-Class BladeSystem solutions are supported in the BladeSystem Power
Sizer.
HP Power Advisor
Available at: www.hp.com/go/bladesystem/powercalculator
The HP Power Advisor is a tool provided by Hewlett-Packard to assist in the estimation of power
consumption and proper selection of components including power supplies at a system, rack, and multirack level. A variety of additional features are also provided including a condensed bill of materials, a
cost of owner ship calculator, and a power report. The HP Power Advisor allows for the mixing of rack,
tower, blade, and other products in a single environment.
Available at: www.hp.com/go/hppoweradvisor
DA - 12810
Worldwide — Version 18 — November 16, 2009
Page 7
QuickSpecs
HP BladeSystem c7000 Enclosure
HP BladeSystem c-Class Overview
Service and Support
HP Care Pack services provide total care and support expertise with committed response designed to
meet your IT and business needs.
The HP Care Pack service for HP ProLiant BL c-Class server blades, cover the server blade and all HP
branded hardware options qualified for the server, purchased at the same time or afterwards, internal to
the server.
HP Care Pack services for the c7000 and c3000 enclosures cover the enclosure, power supplies and
fans. HP qualified rack options are covered by these services when installed within the same rack. HP
supported c-Class enclosure devices including pass thru, Ethernet interconnect and virtual connect
modules are also covered by the c7000 and c3000 enclosure Care Pack services.
NOTE:
NOTE SAN/Fabric switches for the HP c-Class BladeSystem are not covered under the c7000 enclosure
Care Packs, SAN/Fabric switches carry separate Care Packs. SAN/Fabric Switch Care Pack service level
support should always be uplifted to match existing storage or server service level.
To fully capitalize on your HP BladeSystem servers' capabilities requires a service partner who thoroughly
understands your server technology and systems environment. HP Services, an industry leader in
provision of multi vender support solutions provides a range of support services designed to meet the
varying needs of business. Whether an SMB or large global corporation HP has a HP BladeSystem server
support offer to help you speedily deploy and maximize system uptime.
Recommended Service - Simplify ProLiant solution implementation, maintenance and management.
Support Service - 4-Hour Response Coverage, 3-Year, 24 x 7, Same Business Day
Deployment Service - Installation and Start Up for HP BladeSystem Infrastructure
Enhanced Service - Optimize service level to increase IT performance and availability
Support Service - HP Proactive BladeSystem Service, 1-Year
Deployment Service - Enhanced Network Installation and Start-up for HP BladeSystem Switches
Installation & Start-Up service for HP BladeSystem Infrastructure plus HP BladeSystem Enhanced Network
Installation and Start-UP as per the Customer Description and/or Data Sheet. To be delivered on a
scheduled basis 8am-5pm, M-F, excluding HP holidays.
For a complete listing of service offerings and information visit:
http://www.hp.com/services/bladesystemservices
http://h20219.www2.hp.com/services/us/en/always-on/servers-bladesystem.html
DA - 12810
Worldwide — Version 18 — November 16, 2009
Page 8
QuickSpecs
HP BladeSystem c7000 Enclosure
Configuration Information Factory Integrated Models
For a complete configuration of the HP BladeSystem, please do the following:
Step 1: Select desired model, configuration and quantity of HP ProLiant server and Storage
blades
NOTE: For server blade information, please visit:
http://h18000.www1.hp.com/products/quickspecs/division/12534.html
NOTE: For Storage Blade information, please visit:
http://h18000.www1.hp.com/products/quickspecs/12587_div/12587_div.html
Step 2: Determine quantity of HP BladeSystem c-Class Enclosures to purchase and choose
Required Options (One of the following from each list unless otherwise noted):
NOTE: Each HP BladeSystem c-Class Server Blade Enclosure holds up to 16 half-height blades. Server blanks will be shipped in all
empty bays.
Base Server Blade Enclosure Configuration
HP BladeSystem BLc7000 HP BLc7000 CTO Enclosure
c-Class Server Blade
HP BLc7000 BCS CTO c-Class Enclosure
Enclosures
NOTE: CTO models include 1x BladeSystem Onboard Administrator with KVM, 4x
Active Cool 200 Fans and 0x power supplies.
NOTE: All c-Class enclosures support HP ProLiant, Integrity and StorageWorks blades
in either mixed or homogenous configurations. The AD361C enclosure is suggested
for configurations primarily used with Integrity blades.
507019-B21
AD361C
Required Options (one of the following from each category unless otherwise noted)
c-Class Power Modules
(1 per enclosure)
c-Class Power Supply
(Up to 6)
c-Class Active Cool Fan
(Up to 6)
HP BLc7000 Single Phase Power Module, FIO
HP BLc7000 Three Phase Power Module, FIO, INT'L
HP BLc7000 Three Phase Power Module, FIO, NA/JPN
HP BLc7000 -48V DC Power Input Module
6x HP 2400W High Efficiency Hot-Plug Power Supply Bundle, FIO
NOTE: The bundle includes a quantity of 6 HP 2400W High Efficiency PSU so a full
enclosure can be configured with a single part number.
HP 2400W High Efficiency Hot-Plug Power Supply (Single PSU supplied with 2m/6ft
IEC C20 - C19 jumper cord)
HP c7000 Enclosure 2250W Hot-Plug -48V DC Power Supply (single PSU)
NOTE: Only compatible with -48V DC Power Input Module.
NOTE: Mixing of power supplies in the same enclosure is not supported. All power
supplies must be of the same type. All HP 2400W HE, all HP2250W or all -48V DC.
NOTE: If Three Phase Power Module selected, a minimum of 3 Power Supply Option
Kits are needed. For full redundancy 6 Power Supply Option Kits are required.
6x HP Active Cool 200 Fan Bundle, FIO
NOTE: The bundle includes a quantity of 6 HP Active Cool 200 Fans so a full
enclosure can be configured with a single part number.
HP Active Cool 200 Fan Option Kit (single fan)
NOTE: A minimum of 4 Active Cool 200 Fans is required, 8 Active Cool 200 Fans
can support a full blade enclosure, 10 Active Cool 200 Fans should be ordered for
reduced power consumption and noise reduction.
DA - 12810
Worldwide — Version 18 — November 16, 2009
413379-B21
413381-B21
413380-B21
AH331A
517521-B21
499243-B21
AH332A
517520-B21
412140-B21
Page 9
QuickSpecs
HP BladeSystem c7000 Enclosure
Configuration Information Factory Integrated Models
NOTE: Single-Phase models may require additional power supplies. Fans should be
added to provide redundancy, reduce power consumption and reduce noise.
NOTE: Three-Phase models require a minimum of 6 Active Cool 200 Fans.
NOTE: Some Blade configurations require 10 fans.
Step 3: Select optional software bundle (if nothing is selected system will ship with 16 Insight
Control and Insight Control for Linux Trial Licenses):
Enclosure Options
HP c-Class Insight Control for BladeSystem 16 Licenses, including 1 year of 24x7
Technical Support and Updates, FIO
HP c-Class Insight Control for BladeSystem 8 Licenses, including 1 year of 24x7
Technical Support and Updates, FIO
417688-B23
439034-B23
Step 4: Select optional Redundant BladeSystem Onboard Administrator Capability
HP c7000 Onboard Administrator with KVM Option
NOTE: With 1 Gb/s Adapters.
NOTE: Models of the c7000 enclosure (part numbers 507019-B21 and AD361C) come with a BladeSystem
Onboard Administrator with KVM as standard. Order this part number (456204-B21) when a second redundant
BladeSystem Onboard Administrator is desired for a c7000 enclosure.
456204-B21
Step 5: Select 1 or more interconnect modules for each enclosure
The following is a list of various HP BladeSystem c-Class interconnect modules (Virtual Connect, Ethernet, Fibre Channel, InfiniBand,
and SAS interconnects). For detailed interconnect options consult the specific interconnect QuickSpecs:
http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
A pair of interconnects must be ordered if redundancy is required.
NOTE: Options for specific c-Class interconnects are NOT included in the list below. Consult the individual interconnect
QuickSpecs to obtain part numbers for interconnect options such as cables, SFPs, etc.
HP BladeSystem
c-Class Network
Interconnects
HP Virtual Connect Flex-10 10Gb Ethernet Module for the c-Class BladeSystem
HP 1/10Gb-F Virtual Connect Ethernet Module for c-Class BladeSystem
HP 1/10Gb Virtual Connect Ethernet Module for c-Class BladeSystem
HP ProCurve 6120G/XG Blade Switch
HP ProCurve 6120XG Blade Switch
Ethernet Pass-Through Module for HP BladeSystem
HP 10GbE Pass-Thru Module
HP BladeSystem c-Class Virtual Connect 1Gb SX SFP Option Kit
HP BladeSystem c-Class Virtual Connect 1Gb RJ-45 SFP Option Kit
Cisco Catalyst Blade Switch 3120X for HP
Cisco Catalyst Blade Switch 3120G for HP
Cisco Catalyst Blade Switch 3020 for HP c-Class BladeSystem
GbE2c Layer 2/3 Ethernet Blade Switch for c-Class BladeSystem
DA - 12810
Worldwide — Version 18 — November 16, 2009
455880-B21
447047-B21
399593-B22
498358-B21
516733-B21
406740-B21
538113-B21
453151-B21
453154-B21
451439-B21
451438-B21
410916-B21
438030-B21
Page 10
QuickSpecs
HP BladeSystem c7000 Enclosure
Configuration Information Factory Integrated Models
HP BladeSystem
c-Class SAN
Interconnects
HP StorageWorks SAS
Switch
HP BladeSystem
InfiniBand Interconnects
HP GbE2c Layer 2/3 Ethernet Blade Switch Advanced Functionality Software
NOTE: Provides additional feature functionality such as Hot Links, PVLAN Edge and
IGMPv3 Snooping. Purchase of this SW entitles users to three years of additional
software upgrades as made available. This option may be purchased at any time.
HP 1:10 Gb Ethernet BL-c Switch
HP 1:10 GbE BLc Advanced Functionality Software
NOTE: Provides additional feature functionality such as Hot Links, PVLAN Edge and
IGMPv3 Snooping. Purchase of this SW entitles users to three years of additional
software upgrades as made available. This option may be purchased at any time.
HP 10Gb Ethernet BL-c Switch
NOTE: The purchase the HP 10Gb Ethernet BL-c Switch, also requires the purchase
HP 10GbE Dual Port Mezzanine Adapter for HP BladeSystem c-Class (P/N 516936B21) per server blade that requires 10Gbit support.
HP 10GbE BLc Advanced Functionality Software
NOTE: Provides additional feature functionality such as Hot Links, PVLAN Edge and
IGMPv3 Snooping. Purchase of this SW entitles users to three years of additional
software upgrades as made available. This option may be purchased at any time.
NOTE: The HP BladeSystem c-Class Network Interconnects ship as single units. The
above interconnects must be ordered in quantities of two for redundancy support.
HP 4Gb Virtual Connect Fibre Channel Module for c-Class BladeSystem
HP Virtual Connect 8Gb 24-Port Fibre Channel Module for c-Class BladeSystem
HP Virtual Connect 8Gb 20-Port Fibre Channel Module for c-Class BladeSystem
16 port FC Pass-thru Module for c-Class BladeSystem
Brocade 8/12c SAN Switch for HP BladeSystem c-Class, Full Fabric
Brocade 8/24c SAN Switch for HP BladeSystem c-Class, Full Fabric
Brocade 8/24c SAN Switch Power Pack for HP BladeSystem c-Class, Full Fabric
Brocade 8/12c SAN Switch 12-port Upgrade LTU
HP Brocade 4/12 SAN Switch
HP Brocade 4/24 SAN Switch Power Pack
HP Brocade 4/24 SAN Switch
HP Brocade 4/12 SAN Switch Upgrade LTU
Cisco MDS 9124e 12-port Fabric Switch
Cisco MDS 9124e 24-port Fabric Switch
Cisco MDS 9124e 12-port Upgrade LTU
HP StorageWorks 3Gb SAS BL Switch - Single Pack
HP StorageWorks 3Gb SAS BL Switch - Dual Pack
QLogic BLc 4X QDR IB Switch for HP BladeSystem c-Class
QLogic BLc 4X QDR IB Management Module
HP BLc 4X QDR IB Switch Module for HP c-Class BladeSystem
485192-B21
438031-B21
485193-B21
445860-B21
485194-B21
409513-B21
466482-B21
572018-B21
403626-B21
AJ820A
AJ821A
AJ822A
T5517A
AE370A
AE371A
AE372A
AE373A
AG641A
AG642A
T5169A
AJ864A
AJ865A
505958-B21
505959-B21
489184-B21
Step 6: Select rack power distribution for single-phase models
NOTE: A pair of PDUs must be ordered for AC Feed redundancy.
DA - 12810
Worldwide — Version 18 — November 16, 2009
Page 11
QuickSpecs
HP BladeSystem c7000 Enclosure
Configuration Information Factory Integrated Models
HP Monitored Power
Distribution Unit
HP Modular Power
Distribution
Units
HP 17.3 kVA S348 Monitored PDU- single input, 3Ø, 48A (NA/JPN)
HP 14.4 kVA S340 Monitored PDU - single input 3Ø, 40A (NA/JPN)
HP 22 kVA S332 Monitored PDU- single input, 3-phase, 32A (INTL)
HP 17.3 kVA Modular PDU, 48A 3Ø, Core Only (NA/JPN)
HP 14.4 kVA Modular PDU, 40A 3Ø, Core Only (NA/JPN)
HP 22 kVA Modular PDU, 32A 3Ø, Core Only (Intl)
HP 8.6 kVA Modular PDU 24A 3Ø Core Only (NA/JPN)
HP 11 kVA Modular PDU 16A 3Ø Core Only (Intl)
HP 8,3k VA Modular PDU 40 Amp Core Only (NA/JPN)
HP 9.2kVA Modular PDU 40 Amp Core Only (Intl)
AF916A
AF536A
AF917A
AF511A
AF519A
AF518A
AF512A
AF513A
252663-D75
252663-B34
HP7.3kVA Modular PDU 32 Amp Core Only (Intl)
HP 4.9kVA Modular PDU 24 Amp Core Only (NA/JPN)
NOTE: The Core Only Modular Power Distribution Unit Kits excludes the extension
bars as they are not required with the HP BladeSystem
HP Two C-13 PDU Extension Bars
NOTE: Each extension bar has a C19 input and 7 C13 receptacles. The option is
ideal for model S348, and, model S332, which both have only C19 outlets (12) and
for all Core Only Modular PDUs.
252663-B33
252663-D74
AF500A
Step 7: Select optional Power Cords for Single Phase Model (country specific power cords are
listed under options)
NOTE: Default power cord is a 6ft IEC C19 - C20 cord
PDU cords
(HP C19 to C20)
HP 16A IEC320-C19 to C20 1.2m/4ft PDU cord, Grey
HP 16A IEC320-C19 to C20 2m /6ft PDU cord, Grey
HP 16A IEC320-C19 to C20 2.5m/8ft PDU cord, Black
HP 16A IEC320-C19 to C20 4.5m/15ft PDU cord, Black
DA - 12810
Worldwide — Version 18 — November 16, 2009
AF575A
AF574A
295633-B22
E7804A
Page 12
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
HP BladeSystem
c-Class Server Blade
Enclosures
HP BladeSystem c7000 Enclosure with 16 Insight Control licenses
NOTE: Single-Phase with 2 Power Supplies, 4 Fans with 16 Insight Control licenses,
including 1 year of 24x7 Technical Support and Updates.
HP BladeSystem c7000 Enclosure with 16 Insight Control licenses
NOTE: Three-Phase North America/Japan with 6 Power Supplies, 10 Fans with 16
Insight Control licenses, including 1 year of 24x7 Technical Support and Updates.
HP BladeSystem c7000 Enclosure with 16 Insight Control licenses
NOTE: Three-Phase International with 6 Power Supplies,10 Fans with 16 Insight
Control licenses, including 1 year of 24x7 Technical Support and Updates.
HP BladeSystem c7000 Enclosure with 8 HP Insight Control 30 Day Trial Licenses
NOTE: Single-Phase with 2 Power Supplies, 4 Fans, with 8 HP Insight Control 30 Day
Trial Licenses.
NOTE: All c7000 BTO enclosures will ship with 15 server blanks. CTO enclosures
will ship with the required number of server blanks.
NOTE: New models of the c7000 enclosure (part numbers 5070xx-B21) come as
standard with the HP 2400W HE PSU and Onboard Administrator with KVM.
507015-B21
c7000 Enclosure Options HP c7000 Onboard Administrator with KVM
NOTE: Models of the c7000 enclosure (P/Ns 507019-B21: 507015-B21, 507017B21, 507016-B21, 507014-B21) come with an BladeSystem Onboard Administrator
with KVM as standard. Order (P/N 456204-B21) when a second redundant
BladeSystem Onboard Administrator is desired for a c7000 enclosure.
HP c7000 Enclosure 10K Rack Ship Bracket Option Kit
NOTE: The shipping bracket is required when shipping a c7000 enclosure when
installed in a rack. It is not required for normal operation.
HP BladeSystem Replacement Enclosure Miscellaneous Blanks kit (contains 1 each of
Power Supply Blank, Interconnect Module Blank, BladeSystem Onboard Administrator
Blank, Active Cool Fan Blank)
NOTE: This kit should only be ordered to replace lost or damaged blanks.
HP c-Class Server Blank and Coupler Option Kit (contains 1 x half-height server blank
with coupler)
NOTE: The coupler allows half-height server blanks to be coupled together to create
a full-height server blank.
NOTE: This kit should only be ordered to replace lost or damaged blanks.
HP 2400W High Efficiency Hot-Plug Power Supply (supplied with 2m/6ft IEC C20 c7000 Power Options
C19 jumper cord)
HP c7000 Enclosure 2250W Hot-Plug -48V DC Power Supply
HP BLc7000 -48V DC Power Input Module
NOTE: Mixing of power supplies in the same enclosure is not supported. All power
supplies must be of the same type, all HP 2400W HE, all HP2250W or all -48V DC.
NOTE: HP BladeSytem Power supplies meet multiple Energy Efficiency Initiatives:
2400W, 92%: Climate Savers Computing Initiative GOLD and ECOS Consulting 80
Plus GOLD.
NOTE: The 80 PLUS program is a unique forum that unites electric utilities, the
computer industry, and consumers in an effort to bring energy efficient technology
solutions to the marketplace. 80 Plus independently tests power supply efficiency and
publically posts the results on 80Plus.org."
456204-B21
DA - 12810
Worldwide — Version 18 — November 16, 2009
507017-B21
507016-B21
507014-B21
433718-B21
412148-B21
412150-B21
499243-B21
AH332A
AH331A
Page 13
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
c-Class Active Cool Fan
HP BladeSystem
c-Class Network
Interconnects
HP Active Cool 200 Fan Option Kit
NOTE: A minimum 4 Active Cool 200 Fans is required, 8 Active Cool 200 Fans can
support a full blade enclosure, 10 Active Cool 200 Fans should be ordered for
reduced power consumption and noise reduction. Some Blade configurations require
10 fans.
HP Virtual Connect Flex-10 10Gb Ethernet Module for the c-Class BladeSystem
HP BLc 10Gb SR SFP+ Option
HP BLc 10Gb LR SFP+ Option
HP BLc 10Gb LRM SFP+ Option
HP BLc SFP+ .5m 10-GbE Copper Cable Option
HP BLc SFP+ 1m 10-GbE Copper Cable Option
412140-B21
HP BLc SFP+ 3m 10-GbE Copper Cable Option
HP BLc SFP+ 5m 10-GbE Copper Cable Option
HP BLc SFP+ 7m 10-GbE Copper Cable Option
HP Virtual Connect Flex-10 Enterprise Edition Option for c7000 c-Class BladeSystem
NOTE: Includes two HP Virtual Connect Flex-10 10Gb Ethernet Modules for c-Class
BladeSystem, plus one BL c7000 enclosure license for HP Virtual Connect Enterprise
Manager software (VCEM). The VCEM license allows one BL-c7000 enclosure to be
managed for the life of the enclosure, and includes 1 year of 24x7 Technical Support
and Updates. Customer will receive a printed license entitlement certificate, which
must be redeemed online or via fax to obtain the license activation key(s). NOTE: For
additional license kits, please visit:
http://h18000.www1.hp.com/products/quickspecs/12860_div/12860_div.html
HP 1/10Gb-F Virtual Connect Ethernet Module for c-Class BladeSystem
HP 1/10Gb Virtual Connect Ethernet Module for c-Class BladeSystem
HP ProCurve 6120G/XG Blade Switch
HP ProCurve 6120XG Blade Switch
Ethernet Pass-Through Module for HP BladeSystem
HP 10GbE Pass-Thru Module
HP BladeSystem c-Class Virtual Connect 1Gb SX SFP Option Kit
HP BladeSystem c-Class Virtual Connect 1Gb RJ-45 SFP Option Kit
Cisco Catalyst Blade Switch 3120X for HP
Cisco Catalyst Blade Switch 3120G for HP
Cisco Catalyst Blade Switch 3020 for HP c-Class BladeSystem
HP GbE2c Layer 2/3 Ethernet Blade Switch
HP GbE2c Layer 2/3 Ethernet Blade Switch Advanced Functionality Software
NOTE: Provides additional feature functionality such as Hot Links, PVLAN Edge and
IGMPv3 Snooping. Purchase of this SW entitles users to three years of additional
software upgrades as made available. This option may be purchased at any time.
Cisco 10GBASE-CX4 X2 Module
Cisco 10GBASE-SR X2 Module
Cisco 10GBASE-LRM X2 Module
HP 10Gb SR XFP Module
HP 10Gb LR XFP Module
487655-B21
537963-B21
487658-B21
591973-B21
DA - 12810
Worldwide — Version 18 — November 16, 2009
455880-B21
455883-B21
455886-B21
455889-B21
487649-B21
487652-B21
447047-B21
399593-B22
498358-B21
516733-B21
406740-B21
538113-B21
453151-B21
453154-B21
451439-B21
451438-B21
410916-B21
438030-B21
485192-B21
459005-B21
459006-B21
459007-B21
443756-B21
443757-B21
Page 14
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
HP BladeSystem
c-Class SAN
Interconnects
HP StorageWorks SAS
Switch
HP BladeSystem
InfiniBand Interconnects
HP 1:10 Gb Ethernet BL-c Switch
HP 1:10 GbE BLc Advanced Functionality Software
NOTE: Provides additional feature functionality such as Hot Links, PVLAN Edge and
IGMPv3 Snooping. Purchase of this SW entitles users to three years of additional
software upgrades as made available. This option may be purchased at any time.
HP 10Gb Ethernet BL-c Switch
NOTE: The purchase the HP 10Gb Ethernet BL-c Switch, also requires the purchase
HP 10GbE Dual Port Mezzanine Adapter for HP BladeSystem c-Class (P/N 516936B21) per server blade that requires 10Gbit support.
HP 10GbE Dual Port Mezzanine Adapter for HP BladeSystem c-Class
HP 10GbE BLc Advanced Functionality Software
NOTE: Provides additional feature functionality such as Hot Links, PVLAN Edge and
IGMPv3 Snooping. Purchase of this SW entitles users to three years of additional
software upgrades as made available. This option may be purchased at any time.
NOTE: The HP BladeSystem c-Class Network Interconnects ship as single units. The
above interconnects must be ordered in quantities of two for redundancy support.
HP Virtual Connect 4Gb Fibre Channel Module for c-Class BladeSystem
HP Virtual Connect 8Gb 24-Port Fibre Channel Module for c-Class BladeSystem
HP Virtual Connect 8Gb 20-Port Fibre Channel Module for c-Class BladeSystem
16 port FC Pass-thru Module for c-Class BladeSystem
Brocade 8/12c SAN Switch for HP BladeSystem c-Class, Full Fabric
Brocade 8/24c SAN Switch for HP BladeSystem c-Class, Full Fabric
Brocade 8/24c SAN Switch Power Pack for HP BladeSystem c-Class, Full Fabric
Brocade 8/12c SAN Switch 12-port Upgrade LTU
HP Brocade 4/12 SAN Switch
HP Brocade 4/24 SAN Switch Power Pack
HP Brocade 4/24 SAN Switch
HP Brocade 4/12 SAN Switch Upgrade LTU
Cisco MDS 9124e 12-port Fabric Switch
Cisco MDS 9124e 24-port Fabric Switch
Cisco MDS 9124e 12-port Upgrade LTU
HP StorageWorks 3Gb SAS BL Switch - Single Pack
HP StorageWorks 3Gb SAS BL Switch - Dual Pack
QLogic BLc 4X QDR IB Switch
QLogic BLc 4X QDR IB Mgmt Module
HP BLc 4X QDR IB Switch Module for HP c-Class BladeSystem
DA - 12810
Worldwide — Version 18 — November 16, 2009
438031-B21
485193-B21
445860-B21
516936-B21
485194-B21
409513-B22
466482-B21
572018-B21
403626-B21
AJ820A
AJ821A
AJ822A
T5517A
AE370A
AE371A
AE372A
AE373A
AG641A
AG642A
T5169A
AJ864A
AJ865A
505958-B21
505959-B21
489184-B21
Page 15
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
HP Insight Software
Insight Control
HP Insight Control, No Media, 8 Electronic Licenses for bundling with an enclosure
including 1 year of 24x7 Technical Support and Updates
HP Insight Control, No Media, 16 Electronic Licenses for bundling with an enclosure
including 1 year of 24x7 Technical Support and Updates
HP Insight Control, No Media 1-Server License including 1 year of 24x7 Technical
Support and Updates
HP Insight Software Media Kit
NOTE: Insight Software DVD media without licenses. Contains Insight Control, Insight
Dynamics and Virtual Connect Enterprise Manager. Uses an integrated installer to
perform quick and accurate software installation and updates.
NOTE: Licenses ship without media. The Insight Control Media Kit can be ordered
separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: The "for bundling with an enclosure" license kits can only be ordered together
with a BladeSystem c3000 or c7000 enclosure on the same order.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single
activation key, and is available in all countries except China and Japan. Customers in
China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Insight Control for Linux
HP Insight Control for Linux, 1-server license, including one year of 24x7 Technical
Support and Updates, Electronic
HP Insight Control for Linux, No Media, 1-Server license, including one year of 24x7
Technical Support and Updates
HP Insight Control for Linux, Media pack (DVD) - No licenses included
NOTE: Media pack DVD contains HP Insight Control for Linux, HP Systems Insight
Manager, HP Insight Control power management, HP Insight Control virtual machine
management, and an integrated installer. Licenses must be acquired separately.
NOTE: Licenses ship without media. The Media pack for Insight Control for Linux can
be ordered separately, or can be downloaded at: http://www.hp.com/go/ic-linux
(click on Download button).
NOTE: Electronic licenses can be used to purchase multiple licenses with a single
activation key, and is available in all countries except China and Japan. Customers in
China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
DA - 12810
Worldwide — Version 18 — November 16, 2009
TC276AAE
TC277AAE
452148-B22
436222-B21
T9084BAE
464423-B22
464422-B22
Page 16
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
HP Virtual Connect
Enterprise Manager
HP Virtual Connect Enterprise Manager for BL-c7000, No Media, 1-Enclosure License
including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 BL-c7000 enclosure to be managed with VCEM.
Customer will receive a printed license entitlement certificate via physical shipment.
The license entitlement certificate must be redeemed online or via fax to obtain the
license activation key(s). Includes one year of 24 x 7 HP Software Technical Support
and Update Service.
NOTE: For additional license kits, please visit:
http://h18000.www1.hp.com/products/quickspecs/12860_div/12860_div.html
459864-B21
HP c-Class Storage
Blades
HP StorageWorks SB40c storage blade
411243-B21
HP PCI Express Mezzanine pass-thru card for HP BladeSystem
NOTE: The mezzanine card is needed to support the SB40c storage blade (P/N
411243-B21) with HP c-Class BladeSystem full-height server blades.
HP StorageWorks SB40c Storage Blade and HP LeftHand VSA bundle
NOTE: Includes the SB40c Storage Blade and a single LeftHand P4000 VSA license.
LeftHand VSA software is installed in a virtual machine on a VMware ESX host server
adjacent to the SB40c.
NOTE: Includes 1 yr 9x5 software support for LeftHand P4000 VSA software.
NOTE: LeftHand P4000 VSA is supported on VMware ESX 3.0.2, 3.5 and ESX i
version 3.5
For detailed deployment information, see the HP LeftHand P4000 VSA in an HP
BladeSystem environment solution guide:
http://bizsupport1.austin.hp.com/bc/docs/support/SupportManual/c01729139/
c01729139.pdf
NOTE: For additional license kits, please visit:
http://h18000.www1.hp.com/products/quickspecs/12587_div/12587_div.html
431643-B21
HP PCI Expansion Blades PCI Expansion Blade
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12753_div/12753_div.html
HP PCI Express Mezzanine pass-thru card for HP BladeSystem
NOTE: The mezzanine card is needed to support the PCI Expansion Blade (P/N
448018-B21) with HP c-Class BladeSystem full-height server blades.
DA - 12810
Worldwide — Version 18 — November 16, 2009
AT459A
448018-B21
431643-B21
Page 17
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
HP Ultrium Tape Blades
HP StorageWorks All-inOne Storage Systems
HP Ultrium 448c Tape Blade
HP StorageWorks SB1760c Tape Blade
HP StorageWorks SB920c Tape Blade
NOTE: LTO-3 Ultrium technology.
HP PCI Express Mezzanine pass-thru card for HP BladeSystem
NOTE: The HP PCI Express Mezzanine Pass-Thru Card for HP BladeSystem (431643B21) is required when installing a tape blade adjacent to a full-height server blade
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12729_div/12729_div.html
440947-B21
AQ697A
AJ401A
HP StorageWorks X1800sb Network Storage Blade
NOTE: HP StorageWorks X1800sb Network Storage Blade is a flexible storage server
solution for BladeSystem environments. Combine the X1800sb with the SB40c Storage
Blade to enable file serving and iSCSI shared storage inside the BladeSystem
enclosure. The flexibility of the X1800sb extends to external storage as well. The
X1800sb can also be used as a low cost SAN gateway to provide consolidated fileserving access to FC, SAS, or iSCSI SANs.
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12786_div/12786_div.html
HP StorageWorks X3800sb Network Storage Gateway
NOTE: The X3800sb Network Storage Gateway Blade is used to access FC, SAS, or
iSCSI SAN storage, translating file data from the server into blocks for storage to
provide consolidated file, print, and management hosting services in a cluster-able
package.
Built on the HP ProLiant BL460c Server Blade, the HP StorageWorks X3800sb
Network Storage Gateway Blade is a ready to deploy SAN gateway solution, with
Microsoft Storage Server 2008, Enterprise x64 Edition pre-installed. The HP Rapid
Start-up Wizard accelerates new deployments by walking you through basic system
settings step-by-step. The X3800sb also includes a Microsoft Cluster Server (MSCS)
license and Microsoft iSCSI Software Target.
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18006.www1.hp.com/products/quickspecs/13334_div/13334_div.html
StorageWorks Storage Mirroring for AiO Edition 1 LTU
NOTE: This optional software is for mirroring data between AiO Storage blades in
different locations. This is host-based data replication software for disaster recovery
and data protection.
NOTE: Order 1 unit for each AiO SB600c Storage Blade.
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12786_div/12786_div.html
AP805A
DA - 12810
Worldwide — Version 18 — November 16, 2009
431643-B21
AP806A
T5321A
Page 18
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
Power Cords
HP LV Power Cords100 - 120V AC
HP 15A 125V NEMA 5-15P/IEC320-C19 3.6m/12ft, NA
HP 12A 125V NEMA 5-15P/ IEC320-C19 3.6m/12ft, JAPAN
HP 18A 125V NEMA 5-20P 4.5m/15ft, NA
HP C19 - C20 Jumper Cords
HP 16A IEC320-C19 to C20 1.2m/4ft, PDU cord, Flint Gray
HP 16A IEC320-C19 to C20 2m/6ft, PDU cord, Flint Gray
HP 16A IEC320--C19 to C20 2.5m/8ft PDU cord, Black
HP 16A IEC320-C19 to C20 4.5m/15ft, PDU cord, Black
HP HV Power Cords 200 - 240V AC
HP 16A 250V L6-30P/IEC320-C19 4.5m/15ft, NA
HP 16A 250V NEMA L 6-20P/IEC320-C19 3.6m/12ft, NA
HP 16A 250V NBR 14136/ IEC320-C19 2.5m/8ft, Brazil
HP 16A 250V IRAM 2073/IEC320-C19 2.5m/8ft, AR
HP 13A 250V BS-1363/IEC320-C19 3.6m /12ft, UK/Sing/HK
HP 16A 250V CEE7-VII/IEC320- C19 3.6m/12ft, EU
HP 15A 250V AS3112-3/IEC320-C19 3.6m/12ft, AU/NZ
HP 16A 250V SABS 164/IEC320-C-9 3.6m /12ft, S.AFRICA
HP 16A 250V CEI23-50/IEC320-C19 3.6m /12ft, ITALY/CHILE
HP 16A 250V IEC309/IEC320-C19 3.6m/12ft, Denmark/Switzerland
HP 16A 250V IS 1293/IEC320-C19 2.5m /8ft, INDIA
HP 16A 250V SI-32/IEC320-C19 2.5m/8ft, ISRAEL
HP 16A 250V GB1002/IEC320-C19 2.5m/8 ft, CHINA
HP 16A 250V CNS690/IEC320-C19 2.5m/8 ft, TAWAIN
HP 16A 250V stripped end/IEC320-C19 4.5m /15ft, WW
HP Single-Phase UPS
HP 3-Phase UPS
HP R5500 VA 3U UPS, International
HP R5500 VA 3U UPS, NA/JPN
NOTE: For more information on the R5500 please consult the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11871_div/11871_div.html
HP R8000/3 Uninterruptible Power System 6U North America
HP R8000/3 Uninterruptible Power System 6U International
HP R12000/3 Uninterruptible Power System 6U North America
HP R12000/3 Uninterruptible Power System 6U International
NOTE: For more information on the HP 3-Phase UPS products please consult the
QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/12857_div/12857_div.html
DA - 12810
Worldwide — Version 18 — November 16, 2009
235603-001
391222-291
E7802A
AF575A
AF574A
295633-B22
E7804A
E7805A
AF593A
AF592A
AF578A
359615-031
AF576A
AF577A
AF579A
AF580A
AF581A
AF582A
AF583A
AF584A
AF585A
E7806A
AF416A
AF426A
AF431A
AF432A
AF429A
AF430A
Page 19
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
HP Rack Series
HP Rack 10000 G2 Series (Graphite Metallic)
10622 G2 (22U) Rack Cabinet Shock
10622 G2 (22U) Rack Cabinet Pallet
10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet 1200mm Deep - Shock Pallet
10642 G2 (42U) Rack Cabinet 1200mm Deep - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
10642 G2 (42U) Rack Shock Pallet- for field racking (NA only)
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet, without door - Shock Pallet
10647 G2 (47U) Rack Cabinet 1200mm Deep - Shock Pallet
10647 G2 (47U) Rack Cabinet 1200mm Deep - Pallet
10647 G2 (47U) Rack Cabinet - Pallet
10842 G2 (42U) Rack Cabinet Shock
10842 G2 (42U) Rack Cabinet Pallet
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html
(Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following
URL: www.racksolutions.com/hp
HP Rack Options
Keyboards and Monitors
TFT7600 Rackmount Keyboard Monitor US
TFT7600 Rackmount Keyboard Monitor UK
TFT7600 Rackmount Keyboard Monitor FR
TFT7600 Rackmount Keyboard Monitor SP
TFT7600 Rackmount Keyboard Monitor DEN
TFT7600 Rackmount Keyboard Monitor NOR
TFT7600 Rackmount Keyboard Monitor SWI
TFT7600 Rackmount Keyboard Monitor BEL
TFT7600 Rackmount Keyboard Monitor RUS
TFT7600 Rackmount Keyboard Monitor INTL
1U Rackmount Keyboard with USB, US
1U Rackmount Keyboard with USB, UK
1U Rackmount Keyboard with USB, GR
1U Rackmount Keyboard with USB, FR
1U Rackmount Keyboard with USB, ITL
1U Rackmount Keyboard with USB, SP
DA - 12810
Worldwide — Version 18 — November 16, 2009
AF022A
AF021A
AF001A
AF034A
AF038A
AF002A
AF003A
AF007A
AF011A
AF012A
AF013A
AF014A
AF044A
AF045A
AF031A
AF042A
AF041A
AG052A
AG053A
AG055A
AG057A
AG058A
AG059A
AG061A
AG063A
AG065A
AG066A
AG072A
AG073A
AG074A
AG075A
AG076A
AG077A
Page 20
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
1U Rackmount Keyboard with USB, DEN
1U Rackmount Keyboard with USB, NOR
1U Rackmount Keyboard with USB, SE/FI
1U Rackmount Keyboard with USB, SWI
1U Rackmount Keyboard with USB, PORT
1U Rackmount Keyboard with USB, BEL
1U Rackmount Keyboard with USB, JPN2
1U Rackmount Keyboard with USB, RUS
1U Rackmount Keyboard with USB, INTL
NOTE: For additional information regarding Rack Options, please see the following
URL: www.racksolutions.com/hp
HP KVM Switch Options
2x1x16 IP Console Switch with Virtual Media
4x1x16 IP Console Switch with Virtual Media
2x16 Server Console Switch with Virtual Media
HP 2x8 Server Console Switch G2
HP 2x16 Server Console Switch G2
USB Interface Adapter - 1 pack
USB Virtual Media Interface Adapter
Serial Interface adapter - 1 Pack with power supply
NOTE: VT100 terminal emulation.
NOTE: Cat5e cables are required to connect Interface Adapters to Consoles
Switches. Cat52 cables can be found at the following URL:
http://www.hp.com/go/kvm
NOTE For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following URL:
http://www.hp.com/go/kvm
HP Serial Console Server Options
HP 16 Port Serial Console Server (worldwide)
HP 48 Port Serial Console Server (worldwide)
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console
Servers. Additional Serial Adapters and Cat5e cables can be found at the following
URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following URL:
http://www.hp.com/go/kvm.
DA - 12810
Worldwide — Version 18 — November 16, 2009
AG078A
AG079A
AG080A
AG081A
AG082A
AG083A
AG084A
AG085A
AG086A
AF601A
AF602A
AF600A
AF616A
AF617A
336047-B21
AF603A
373035-B21
AF101A
AF102A
AF103A
AF110A
Page 21
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
Rack Options
HP 10642 G2 Front Door ALL
HP 10636 G2 Front Door ALL
10642 G2 (42U) Side Panels (set of two) (Graphite Metallic)
10636 G2 (36U) Side Panels (set of two) (Graphite Metallic)
10636 G2 Rear Extension Kit
600mm G2 Stabilizer Option Kit (Graphite)
600mm G2, Heavy Duty Stabilizer Option Kit (Graphite)
800mm G2, Heavy Duty Stabilizer Option Kit (Graphite)
NOTE: Supports 10000 G2 Series only.
HP 10000 G2 Rack Grounding Kit
600W 10K G2 Rack Tie Down
NOTE: For additional information regarding Rack Options, please see the following
URL: www.racksolutions.com/hp.
HP Airflow Optimization
HP 10000 Series Rack Airflow Optimization Kit
NOTE: The Airflow Optimization kit is designed to prevent hot and cold air from
mixing thus optimizing the temperature at which the chilled air enters the racked
servers.
NOTE: When configuring racks through Factory Express, a Rack Optimization kit will
automatically ship with the rack. This kit is recommended for all other rack
configurations also.
Tape Storage
The following options are supported in an Enterprise Backup Solution (EBS)
environment with the HP BladeSystem c-Class enclosure. Please visit:
http://www.hp.com/go/ebs for complete compatibility details.
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 4GB FC Library
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 SCSI Drive Library
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 4GB FC Library
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SCSI Drive Library
HP StorageWorks MSL2024 2 LTO-3 Ultrium 920 SCSI Drive Library
HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library
HP StorageWorks MSL2024 2 LTO-2 Ultrium 448 SCSI Drive Library
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1840 SCSI Drive Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 4GB FC Library
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1840 4GB FC Library
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SCSI Tape Library
HP StorageWorks MSL4048 2 LTO-3 Ultrium 920 SCSI Tape Library
DA - 12810
Worldwide — Version 18 — November 16, 2009
AF009A
AF019A
AF054A
AF056A
AF060A
AF062A
AF064A
AF068A
AF074A
AF076A
AF090A
AJ033A
AJ034A
AG115A
AG326B
AH169A
AH170A
AG116A
AG117A
AJ035A
AJ037A
AJ036A
AJ038A
AH171A
AH172A
Page 22
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
Disk-Based Backup
Service and Support
Offerings
(HP Care Pack Services)
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 SCSI Drive Library
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 4GB FC Library
HP StorageWorks MSL4048 2 LTO-3 Ultrium 960 SCSI Drive Library
HP StorageWorks MSL4048 2 LTO-3 Ultrium 960 4GB FC Library
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information or to create a complete solution; reference current compatibility
information at: http://www.hp.com/go/ebs.
HP StorageWorks Virtual Library Systems
HP StorageWorks 12000 Virtual Library System Gateway Base Library
HP StorageWorks 9030 Virtual Library System
HP StorageWorks 6218 Virtual Library System
AG322A
AG324B
AG323A
AG325B
HP StorageWorks 6227 Virtual Library System
HP StorageWorks 6636 Virtual Library System
HP StorageWorks 6653 Virtual Library System
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information or to create a complete solution. Reference current compatibility
information at: http://www.hp.com/go/ebs.
AH810A
AH811A
AH812A
HP D2D Backup Systems
HP StorageWorks D2D2504i Backup System
NOTE: HP Care Pack services for the c7000 Enclosure cover the enclosure, power
supplies and fans. HP qualified rack options are covered by these services when
installed within the same rack. HP supported c-Class enclosure devices including pass
thru, Ethernet interconnect and virtual connect modules are also covered by the
c7000 enclosure Care Pack services.
NOTE: SAN/Fabric switches for the HP c-Class BladeSystem are not covered under
the c7000 enclosure Care Packs, SAN/Fabric switches carry separate Care Packs.
SAN/Fabric Switch Care Pack service level support should always be uplifted to match
existing storage or server service level.
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
NOTE: Uplifts the Ethernet devices to the same level of service as the c-class
enclosure
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
Support Plus 24
Onsite HW support 24x7, 4hr response and Insight Control for Linux SW Updates, SW
Tech support offsite, onsite at HP's discretion, 24x7 2hr response time including. HP
holidays, Electronic
DA - 12810
Worldwide — Version 18 — November 16, 2009
AH814A
AG306A
AH809A
EJ002A
UE477E
UE478E
UE479E
UE480E
UK137E
Page 23
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
Onsite HW support 24x7, 4hr response and Insight Control for BladeSystem SW
Updates, SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time
including. HP holidays, Electronic
Onsite HW support 24x7, 4hr response and Insight Control Data Center Edition SW
Updates, SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time
including. HP holidays, Electronic
Installation & Start-up Services
HP BladeSystem c7000 Infrastructure Installation and Startup Service for Blade
Hardware and Insight Control Software, Electronic
HP BladeSystem C7000 Enhanced Network Installation and Startup Service, Electronic
ProLiant BL c-Class Enclosure and Blade Hardware Installation, Electronic
UH322E
ProLiant BL c-Class Blade Server Hardware Installation, Electronic
NOTE: For more information, customer/resellers can contact:
http://www.hp.com/services/bladesystemservices
NOTE: The HP Care Pack service part numbers below covers the HP Brocade 4Gb,
12 Port SAN Switch and Brocade 4/24/ SAN Switch.
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
Hardware Installation, Electronic
NOTE: The HP Care Pack service part numbers below covers the Brocade 4/24 SAN
Switch Power Pack.
Hardware Services On-site Service
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and SW Tech support offsite,
onsite at HP's discretion, 8am-9pm, M-F 2hr response time excluding HP holidays,
Electronic
Support Plus 24
Onsite HW support 24x7, 4hr response and SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time including HP holidays, Electronic
NOTE: The HP Care Pack service part numbers below covers the HP Cisco MDS
9124e 12 port and 24 port Fabric Switch.
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
Hardware Installation, Electronic
Software Installation and StartUp Services
UE493E
DA - 12810
Worldwide — Version 18 — November 16, 2009
UH323E
UE602E
UE603E
UE494E
UE436E
UE437E
UE438E
UE439E
U5988E
UE728E
UE729E
UF313E
UF972E
UF973E
UF974E
U5988E
Page 24
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
Provides for the Installation and Start-up of HP Insight Rapid Deployment software,
Electronic
NOTE: Provides installation on a Customer supplied server designated as a
Deployment Server. Includes the deployment of a single server. This new server will be
deployed using either one of the pre-configured scripts or an image. In addition, the
service will provide for the capture and storage of the configuration of the newly
deployed server and orientation on product usage. To be delivered during standard
office ours, standard office days.
Provides for the Installation and Start-up of HP Insight Rapid Deployment software
Implementation of HP Insight Rapid Deployment software (Basic) (Electronic)
Provides for the Installation and Start-up of System Insight Manager (Electronic)
Provides for the Installation and Start-up of System Insight Manager Agents (Electronic)
U5683E
Provides for the Installation and Startup of Insight Control for Linux
Provides for the Installation and Startup of HP Insight Virtual Machine Manager
software for ProLiant & HP Insight Server Migration software for ProLiant
Software Operating Environment Care Packs
1 Year Microsoft operating environment software support 24x7 - 10 incidents
1 Year Red Hat operating system software support 24x7 - 10 incidents
1 Year SuSE operating system software support 24x7 - 10 incidents
NOTE: For more information, customer/resellers can contact:
http://www.hp.com/hps/carepack/services/
BCS Flexible Care Packs Integrity blade server enclosure
NOTE: HP Care Pack services for the c7000 Enclosure cover the enclosure, power
supplies and fans. HP qualified rack options are covered by these services when
installed within the same rack. HP supported c-Class enclosure devices including pass
thru, Ethernet interconnect and virtual connect modules are also covered by the
c7000 enclosure Care Pack services.
NOTE: SAN/Fabric switches for the HP c-Class BladeSystem are not covered under
the c7000 enclosure Care Packs, SAN/Fabric switches carry separate Care Packs.
SAN/Fabric Switch Care Pack service level support should always be uplifted to match
existing storage or server service level.
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
NOTE: Uplifts the Ethernet devices to the same level of service as the c-class
enclosure.
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
Support Plus
Support Plus Service, 5-Day x 13-Hour Coverage
Support Plus 24
Support Plus 24 Service
Proactive 24 Service - Mission Critical proactive environment 24x7 4hr onsite HW
support
UF372E
UD546E
DA - 12810
Worldwide — Version 18 — November 16, 2009
UA042E
UA041E
UA040E
U9269E
U3408E
U9936E
HA101A3#6Q6
HA103A3#6Q6
HA104A3#6Q6
HA105A3#6Q6
HA109A3#6Q6
HA110A3#6Q6
HA111A3#6Q6
Page 25
QuickSpecs
HP BladeSystem c7000 Enclosure
Related Options
Critical Service - Mission Critical proactive environment 6-Hour Call-to-Repair onsite
HW support
Installation & Start-up Services
HP BladeSystem c7000 Infrastructure Installation and Startup Service for Blade
Hardware and Insight Control Software, Electronic
NOTE: The HP Care Pack service part numbers below covers the HP Brocade 4Gb,
12 Port SAN Switch and Brocade 4/24 SAN Switch.
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
HA112A3#6Q6
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
Hardware Installation, Electronic
NOTE: The HP Care Pack service part numbers below covers the Brocade 4/24 SAN
Switch Power Pack.
Hardware Services On-site Service
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and SW Tech support offsite,
onsite at HP's discretion, 8am-9pm, M-F 2hr response time excluding HP holidays,
Electronic
Support Plus 24
Onsite HW support 24x7, 4hr response and SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time including HP holidays, Electronic
NOTE: The HP Care Pack service part numbers below covers the HP Cisco MDS
9124e 12 port and 24 port Fabric Switch.
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
NOTE: Uplifts the Ethernet devices to the same level of service as the c-class
enclosure.
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
Hardware Installation, Electronic
NOTE: For more information, customer/resellers can contact:
http://www.hp.com/hps/carepack/services/
HA105A3#85J
DA - 12810
Worldwide — Version 18 — November 16, 2009
HA114A1#57A
HA101A3#85J
HA103A3#85J
HA104A3#85J
HA113A1#5D2
HA109A3#85K
HA110A3#85K
HA101A3#87L
HA103A3#87L
HA104A3#87L
HA105A3#87L
HA113A1#5D2
Page 26
QuickSpecs
HP BladeSystem c7000 Enclosure
Storage
Figure 1
Installing a tape blade adjacent to a half-height
server blade.
Installing Tape or Storage Blade
Description
Quantity
Position
Supported
Supported
Connecting a tape or
Up to 8 per HP Odd or Even slots
storage blade to an
BladeSystem cnext to partner
adjacent half-height server
Class c7000
server blade
blade (Figure 1)
Enclosure
Connecting a tape or
storage blade to an
adjacent full-height server
blade (Figure 2)
Up to 4 per HP Slots 10, 12, 14,
BladeSystem cor 16
Class c7000
(lower bays only)
Enclosure
DA - 12810
Figure 2
Installing a tape blade adjacent to a full-height
server blade.
Comments
A tape or storage blade supports one partner server blade,
and one partner server blade supports one tape or storage
blade.
Identify the partner server blade to be installed with the taoe
or storage. The two blades always occupy a pair of slots, as
follows: 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12, 13 &
14, 15 & 16.
If the partner server blade is installed in an odd-numbered
bay, the tape or storage blade is installed in the adjacent
even-numbered bay to the right.
If the partner server blade is installed in an even-numbered
bay, the tape or storage blade is installed in the adjacent
odd-numbered bay to the left.
A tape or storage blade supports one partner server blade,
and one partner server blade supports one tape or storage
blade.
When partnering a tape or storage blade with a full height
server blade, an HP PCI Express Mezzanine Pass-Thru Card
for BladeSystem c-Class (431643-B21) is required. This card
is installed in mezzanine 3 connector in the server blade.
Identify the partner server blade to be installed with the tape
or storage blade. The two blades always occupy a pair of
Worldwide — Version 18 — November 16, 2009
Page 27
QuickSpecs
HP BladeSystem c7000 Enclosure
Storage
slots, as follows: 9 & 10, 11 & 12, 13 & 14, 15 & 16.
The partner server blade is installed in an odd-numbered
bay. The tape or storage blade is installed in the adjacent
even-numbered bay to the right.
The tape or storage blade is always located on the lower row
of the enclosure in an even-numbered bay (slots 10, 12, 14
or 16)
DA - 12810
Worldwide — Version 18 — November 16, 2009
Page 28
QuickSpecs
HP BladeSystem c7000 Enclosure
Technical Specifications
Server Blade and Fan Population Guidelines
Fan bay numbering
Fans must be placed in the following bays
Number of Fans
Fan Bays Used
4
4, 5, 9, 10
6
3, 4, 5, 8, 9, 10
8
1, 2, 4, 5, 6, 7, 9, 10
10
1, 2, 3, 4, 5, 6, 7, 8, 9, 10
NOTE: For correct operation fans and server blades must be installed in the correct bays. The BladeSystem Onboard Administrator
will ensure that fans and blades are correctly placed before allowing systems to power on.
DA - 12810
Worldwide — Version 18 — November 16, 2009
Page 29
QuickSpecs
HP BladeSystem c7000 Enclosure
Technical Specifications
Half-height server blade bay numbering
1. Device Bay 1
9. Device Bay 9
2. Device Bay 2
10. Device Bay 10
3. Device Bay 3
11. Device Bay 11
4. Device Bay 4
12. Device Bay 12
5. Device Bay 5
13. Device Bay 13
6. Device Bay 6
14. Device Bay 14
7. Device Bay 7
15. Device Bay 15
8. Device Bay 8
16. Device Bay 16
NOTE: Half-height servers should be populated from top and bottom from left to right from the front of the enclosure. So the first
two half-height servers would be placed in bays 1 & 9 the second two half-height servers would be placed in bays 2 & 10 and so on
until the enclosure is full.
Full-height server blade bay numbering
1. Device Bay 1
2. Device Bay 2
3. Device Bay 3
5. Device Bay 5
6. Device Bay 6
7. Device Bay 7
DA - 12810
Worldwide — Version 18 — November 16, 2009
Page 30
QuickSpecs
HP BladeSystem c7000 Enclosure
Technical Specifications
4. Device Bay 4
8. Device Bay 8
NOTE: Full-height servers should be populated from left to right.
Mixed Configuration - Full Height and Half-Height Population rules
The c7000 enclosure is divided into 4 quadrants by the vertical support metalwork. Within each quadrant a removable divider is
used to support half height devices. To install a full-height blade in any quadrant this divider must be removed. As a consequence a
quadrant can only contain either full-height server blades or half-height server blades.
NOTE: Storage blades and Tape blades can be installed in the same quadrant as both full-height and half-height blades, a bracket
ships with each SB40c/Tape Blade that allows a half-height blade to be mounted on top of the storage blade.
NOTE: The lower tape or storage blade cannot be removed without first removing the upper half height blade.
HP BladeSystem
c7000 Server Blade
Enclosure
Dimensions
Shipping Dimensions
Single Phase Enclosure
Weight
Three -Phase Enclosure
NA/JPN Weight
Three-Phase Enclosure
International Weight
DC Input Enclosure
Weight
DA - 12810
Height
Width
Depth
Height
Width
Depth
Unboxed
Shipping
Unboxed
Shipping
Unboxed
Shipping
Unboxed
Shipping
17.4 in (442 mm)
17.6 in (447.04 mm)
32 in (813 mm)
29.88 in (759 mm)
23.88 in (607 mm)
39.88 in (1013 mm)
192 lb (87 Kg)
235 lb (106.6 Kg)
222 lb (100.7 Kg)
265 lb (120.2 Kg)
222 lb (100.7 Kg)
265 lb (120.2 Kg)
151 lb (68.5 Kg)
194 lb (88 Kg)
Worldwide — Version 18 — November 16, 2009
Page 31
QuickSpecs
HP BladeSystem c7000 Enclosure
Technical Specifications
450 lb (204 Kg)
493 lb (223.6 Kg)
Temperature Range
50° to 95° F (10° to 35° C)
-22° to 140° F (-30° to 60° C)
Relative Humidity
10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, noncondensing.
Non-Operating
5 to 95% relative humidity (Rh), 38.7°C
(101.7°F)maximum wet bulb temperature, noncondensing.
NOTE: Operating temperature has an altitude derating of 1.8° F (1° C) per 1,000 ft (304.8 m). No
direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating
limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a
maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.
Power
Max Enclosure Weight
(approximate)
Unboxed
Shipping
Operating
Non-Operating
Operating
Input Requirements Single Phase Model
Rated input frequency
2400W PSU
Input Requirements Three Phase NA/JPN
Model
Rated input voltage
Rated input frequency
2250W PSU
2400W PSU
Input Requirements Rated input voltage
Three Phase International
Model
Rated input frequency
2250W PSU
2400W PSU
DA - 12810
50 to 60 Hz
Rated input voltage
Rated input current
per power supply
200 to 240 VAC
13.9 A at 200 VAC
13.3 A at 208 VAC
12.6 A at 220 VAC
2780 VA
Rated input power
per power supply
200 to 208 VAC Line to Line
3-Phase Delta
50 to 60 Hz
Max input current per line 22.6A at 200 VAC
cord
21.8A at 208 VAC
Max input power
7836VA Max
per line cord
Max input current per line 24A at 200 VAC
cord
23.1A at 208 VAC
Max input power
8340 VA Max
per line cord
346 VAC to 415 VAC Line to Line
200 VAC to 240 VAC Line to Neutral
3-Phase WYE
50 to 60 Hz
Max input current per line 11.9 A at 220 VAC
cord
10.9 A at 240VAC
Max input power
7836 VA Max
per line cord
Max input current per line 12.6 A at 220 VAC
cord
11.5 A at 240VAC
Max input power
8340 VA Max
per line cord
Worldwide — Version 18 — November 16, 2009
Page 32
QuickSpecs
HP BladeSystem c7000 Enclosure
Technical Specifications
Input Requirements DC
Power
Power Cords
Rated Input Voltage
Max Input Current per line
cord
Max Input Power per line
Cord
Single Phase
3-Phase NA/JPN
36 to -72 VDC
75A
3-Phase International
2 x IEC-309 200/346 V - 240/415 V, 5-Pin, 6h
16A 2.44m (10 ft)
Terminal lug: 45DG 4AWG 1/4 2H
-48V DC Power
Output
Specifications
(per power supply)
Acoustic Noise
DA - 12810
2700W
IEC-320 C19-C20 1.22m (6 ft)
2 x NEMA L15-30p 2.44m (10 ft)
Two-hole lug
45 degree bend
0.25in. (6.4mm) stud hole size
0.63in. (16mm) hole spacing
HP 2400W High Efficiency 200 - 240 VAC 2400 W 92% Efficiency
Hot-Plug Power Supply
HP 2250W -48V DC Hot- 2250W
Plug Power Supply
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions
were measured in accordance with ISO 7779 (ECMA 74) and declared in
accordance with ISO 9296 (ECMA 109).
Idle
LWAd
7.5 Bels
LpAm
57 dB
Idle
LWAd
7.5 Bels
LpAm
57 dB
Worldwide — Version 18 — November 16, 2009
Page 33
QuickSpecs
HP BladeSystem c7000 Enclosure
Technical Specifications
Option Kits
Power Supply Option
Shipping Dimensions
Fan Option Shipping
Dimensions
BladeSystem Onboard
Administrator Option
Shipping Dimensions
Enviornmental-friendly
Products and Approach
End-of-life Management
and Recycling
Height
Width
Depth
Weight
Height
Width
Depth
Weight
Height
Width
8.75 in (223 mm)
8.63 in (219 mm)
35.13 in (892 mm)
8.5 lbs (3.85 Kg)
8.75 in (223 mm)
9.75 in (248 mm)
15.88 in (403 mm)
4.0 lbs (1.8 Kg)
2.50 in (63.5 mm)
9.88 in (251 mm)
Depth
Weight
13.50 in (343 mm)
4.0 lbs (1.8 Kg)
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
DA - 12810
Worldwide — Version 18 — November 16, 2009
Page 34
QuickSpecs
HP BladeSystem c7000 Enclosure
Power Specifications
NOTE:
To review maximum system power ratings for facilities planning purposes use the Active Answers Power Calculator which is available
via the online tool located at URL: http://www.hp.com/go/bladesystem/powercalculator
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.
Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
AMD Opteron™ is a US registered trademark of AMD Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 12810
Worldwide — Version 18 — November 16, 2009
Page 35
