D-Link DFL-2560 firewall (hardware)

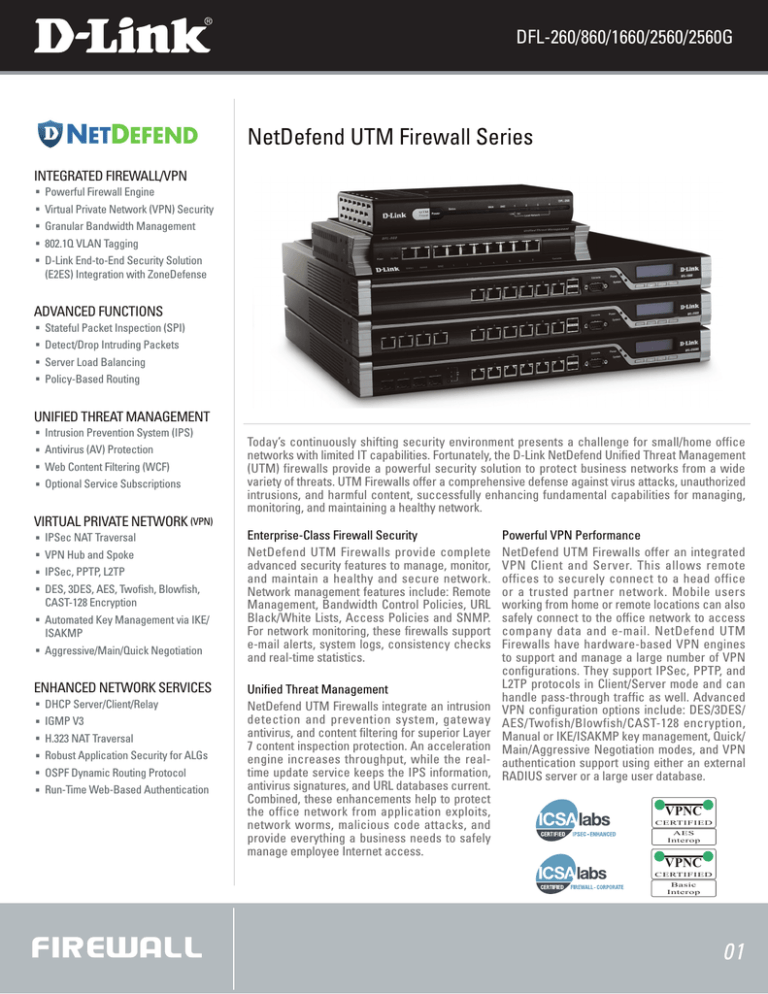

DFL-260/860/1660/2560/2560G
NetDefend UTM Firewall Series
Integrated Firewall/VPN
ƒƒƒPowerful Firewall Engine
ƒƒƒVirtual Private Network (VPN) Security
ƒƒƒGranular Bandwidth Management
ƒƒƒ802.1Q VLAN Tagging
ƒƒƒD-Link End-to-End Security Solution
(E2ES) Integration with ZoneDefense
Advanced Functions
ƒƒƒStateful Packet Inspection (SPI)
ƒƒƒDetect/Drop Intruding Packets
ƒƒƒServer Load Balancing
ƒƒƒPolicy-Based Routing
Unified Threat Management
ƒƒƒIntrusion Prevention System (IPS)
ƒƒƒAntivirus (AV) Protection
ƒƒƒWeb Content Filtering (WCF)
ƒƒƒOptional Service Subscriptions
Virtual Private Network (VPN)
ƒƒƒIPSec NAT Traversal
ƒƒƒVPN Hub and Spoke
ƒƒƒIPSec, PPTP, L2TP
ƒƒƒDES, 3DES, AES, Twofish, Blowfish,
CAST-128 Encryption
ƒƒƒAutomated Key Management via IKE/
ISAKMP
ƒƒƒAggressive/Main/Quick Negotiation
Enhanced Network Services
ƒƒƒDHCP Server/Client/Relay
ƒƒƒIGMP V3
ƒƒƒH.323 NAT Traversal
ƒƒƒRobust Application Security for ALGs
ƒƒƒOSPF Dynamic Routing Protocol
ƒƒƒRun-Time Web-Based Authentication
Today’s continuously shifting security environment presents a challenge for small/home office
networks with limited IT capabilities. Fortunately, the D-Link NetDefend Unified Threat Management
(UTM) firewalls provide a powerful security solution to protect business networks from a wide
variety of threats. UTM Firewalls offer a comprehensive defense against virus attacks, unauthorized
intrusions, and harmful content, successfully enhancing fundamental capabilities for managing,
monitoring, and maintaining a healthy network.
Enterprise-Class Firewall Security
NetDefend UTM Firewalls provide complete
advanced security features to manage, monitor,
and maintain a healthy and secure network.
Network management features include: Remote
Management, Bandwidth Control Policies, URL
Black/White Lists, Access Policies and SNMP.
For network monitoring, these firewalls support
e-mail alerts, system logs, consistency checks
and real-time statistics.
Unified Threat Management
NetDefend UTM Firewalls integrate an intrusion
detection and prevention system, gateway
antivirus, and content filtering for superior Layer
7 content inspection protection. An acceleration
engine increases throughput, while the realtime update service keeps the IPS information,
antivirus signatures, and URL databases current.
Combined, these enhancements help to protect
the office network from application exploits,
network worms, malicious code attacks, and
provide everything a business needs to safely
manage employee Internet access.
Powerful VPN Performance
NetDefend UTM Firewalls offer an integrated
VPN Client and Server. This allows remote
offices to securely connect to a head office
or a trusted partner network. Mobile users
working from home or remote locations can also
safely connect to the office network to access
company data and e-mail. NetDefend UTM
Firewalls have hardware-based VPN engines
to support and manage a large number of VPN
configurations. They support IPSec, PPTP, and
L2TP protocols in Client/Server mode and can
handle pass-through traffic as well. Advanced
VPN configuration options include: DES/3DES/
AES/Twofish/Blowfish/CAST-128 encryption,
Manual or IKE/ISAKMP key management, Quick/
Main/Aggressive Negotiation modes, and VPN
authentication support using either an external
RADIUS server or a large user database.
VPNC
CERTIFIED
AES
Interop
VPNC
CERTIFIED
Basic
Interop
DFL-260/860/1660/2560/2560G
NetDefend UTM Firewall Series
Performance Optimization
ƒƒƒUTM Acceleration Engine
ƒƒƒMultiple WAN Interfaces for Traffic
Load Sharing
DFL-260
ƒƒƒFirewall Throughput: 80Mbps
ƒƒƒVPN Performance: 25Mbps (3DES/AES)
ƒƒƒ1 10/100 Ethernet WAN Ports
ƒƒƒ4 10/100 Ethernet LAN Ports
ƒƒƒ1 10/100 Ethernet DMZ Port
DFL-860
ƒƒƒFirewall Throughput: 150Mbps
ƒƒƒVPN Performance: 50Mbps (3DES/AES)
ƒƒƒ2 10/100 Ethernet WAN Ports
ƒƒƒ7 10/100 Ethernet LAN Ports
ƒƒƒ1 10/100 Ethernet DMZ Port
DFL-1660
ƒƒƒFirewall Throughput: 1.2Gbps
ƒƒƒVPN Performance: 350Mbps (3DES/AES)
ƒƒƒ6 Configurable Gigabit Ethernet Ports
DFL-2560(G)
ƒƒƒFirewall Throughput: 2Gbps
ƒƒƒVPN Performance: 1Gbps (3DES/AES)
ƒƒƒ10 Configurable Gigabit Ethernet Ports
ƒƒƒ4 SFP Ports (DFL-2560G)
UTM Services
Maintaining an effective defense against the various threats originating from the Internet requires
that all three databases used by the NetDefend UTM Firewalls are kept up-to-date. In order to
provide a robust defense, D-Link offers optional NetDefend Firewall UTM Service subscriptions
which include updates for each aspect of defense: Intrusion Prevention Systems (IPS), Antivirus
and Web Content Filtering (WCF). NetDefend UTM Subscriptions ensure that each of the firewall's
service databases are complete and effective.
Robust Intrusion Prevention
The NetDefend UTM Firewalls employ component-based signatures, a unique IPS technology
which recognizes and protects against all varieties of known and unknown attacks. This
system can address all critical aspects of an attack or potential attack including payload, NOP
sled, infection, and exploits. In terms of signature coverage, the IPS database includes attack
information and data from a global attack sensor-grid and exploits collected from public sites such
as the National Vulnerability Database and Bugtrax. The NetDefend UTM Firewalls constantly
create and optimize NetDefend signatures via the D-Link Auto-Signature Sensor System without
overloading existing security appliances. These signatures ensure a high ratio of detection
accuracy and a low ratio of false positives.
Stream-Based Virus Scanning
The NetDefend UTM Firewalls examine files of any size, using a stream-based virus scanning
technology which eliminates the need to cache incoming files. This zero-cache scanning method
not only increases inspection performance but also reduces network bottlenecks. NetDefend UTM
firewalls use virus signatures from Kaspersky Labs to provide systems with reliable and accurate
antivirus protection, as well as prompt signature updates. Consequentially, viruses and malware
can be effectively blocked before they reach the network's desktops or mobile devices.
Web Content Filtering
Web Content Filtering helps administrators monitor, manage, and control employee usage of and
access to the Internet. The NetDefend UTM Firewalls implement multiple global index servers
with millions of URLs and real-time website data to enhance performance capacity and maximize
service availability. These firewalls use highly granular policies and explicit black/white lists
to control access to certain types of websites for any combination of users, interfaces and IP
networks. The firewall can actively handle Internet content by stripping potential malicious
objects, such as Java Applets, JavaScripts/VBScripts, ActiveX objects, and cookies.
NetDefend UTM Subscription
The standard NetDefend UTM Subscription provides your firewall with UTM service updates
for 12 months* starting from the day you activate or extend your service. The NetDefend UTM
Subscription can be renewed regularly to provide your firewalls with the most up-to-date security
service available from D-Link.
NetDefend Center: http://security.dlink.com.tw
*Actual service package may vary depending on region.
DFL-260/860/1660/2560/2560G
NetDefend UTM Firewall Series
Powerful VPN Engine
Hardware-based data encryption and authentication for IPSec, PPTP, and
L2TP in Client/Server mode enable fast and safe handling of VPN traffic.
Professional Intrusion Prevention System (IPS)
Automatic updates from a comprehensive IPS signature database focus on
attack payloads to protect the network against zero-day attacks.
Real-Time Antivirus Inspection (AV)
The antivirus engine scans using the most complete, most up-to-date antivirus
signature database. Streaming-based pattern matching provides the effective
protection against viruses.
Fast, Efficient Web Content Filtering
Multiple index server implementation, highly granular policies, black lists
and active content handling enhance performance and effectiveness of web
surfing control.
Acceleration Engine for Unified Threat Management
A powerful processor allows the firewall to carry out IPS and Antivirus
scanning simultaneously without performance degradation.
Licensed for Unlimited Users
Optional subscription services for IPS, Antivirus Scanning, and Web Content Filtering are priced per firewall rather than per user, thus
reducing the total cost of ownership for licensing.
WAN Link Load-Balancing and Fault-Tolerance
Multiple WAN ports support traffic load balancing and failover, thus guaranteeing Internet availability and bandwidth.
D-Link End-to-End Security (E2ES) Solution*
The ZoneDefense mechanism operating in conjunction with D-Link xStack switches automatically quarantines infected workstations and
prevents them from flooding the internal network with malicious traffic.
*For DFL-860, DFL-1660, and DFL-2560(G) only
D-Link Green Certified
The DFL-1660 and DFL-2560(G) have attained D-Link Green Certification. These firewalls are built with an 80 PLUS internal power supply.
80 PLUS certified power supplies offer increased reliability due to greater efficiency, and provide a reduced cost of ownership through
longer equipment life. Additionally, 80 PLUS power supplies help to prevent pollution by limiting energy consumption, and run at a lower
temperature to reduce cooling costs.
D-Link Green certified devices comply with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic
Equipment) directives. RoHS directives restrict the use of specific hazardous materials during manufacturing, while WEEE implements
standards for proper recycling and disposal. Together, these considerations make D-Link Green firewall products the environmentally
responsible choice.
DFL-260/860/1660/2560/2560G
Technical Specifications
Interfaces
DFL-260
DFL-860
DFL-1660
DFL-2560(G)
1 10/100 WAN Port
1 10/100 DMZ Port
4 10/100 LAN Ports
2 10/100 WAN Ports
1 10/100 DMZ Port
7 10/100 LAN Ports
6 Configurable Gigabit Ports
10 Configurable Gigabit
Ports
SFP
–
–
–
4 SFP Ports (DFL-2560G only) 7
USB
–
–
2 USB Ports (reserved)
2 USB Ports (reserved)
1 DB-9 RS-232
1 DB-9 RS-232
1 DB-9 RS-232
1 DB-9 RS-232
Firewall Throughput2
80Mbps
150Mbps
1.2Gbps
2Gbps
Ethernet
Console
System Performance1
VPN Throughput
25Mbps
45Mbps
350Mbps
1Gbps
IPS Throughput4
20Mbps
40Mbps
400Mbps
600Mbps
Antivirus Throughput4
10Mbps
20Mbps
225Mbps
450Mbps
Concurrent Sessions
10,000
20,000
600,000
1,500,000
2,000
4,000
15,000
20,000
Policies
500
1,000
4,000
6,000
Transparent Mode
ü
ü
ü
ü
NAT, PAT
ü
ü
ü
ü
Dynamic Routing
Protocol
–
H.323 NAT Traversal
ü
ü
ü
ü
Time-Scheduled
Policies
ü
ü
ü
ü
Application Layer
Gateway
ü
ü
ü
ü
Proactive End-Point
Security
–
DHCP Server/Client
ü
ü
ü
ü
DHCP Relay
ü
ü
ü
ü
Policy-Based
Routing
ü
ü
ü
ü
IEEE 802.1q VLAN
8
16
1024
2048
3
New Sessions
(per second)
Firewall System
Networking
5
5
OSPF
ZoneDefense
IP Multicast
Virtual Private Network
(VPN)
Encryption Methods
IGMP v3
ü
ü
ü
ü
Dedicated VPN
Tunnels
100
200 5
2,500
5,000
PPTP/L2TP Server
ü
ü
ü
ü
Hub and Spoke
ü
ü
ü
ü
IPSec NAT Traversal
ü
ü
ü
ü
(DES/ 3DES/ AES/ Twofish/
Blowfish/ CAST-128)
DFL-260/860/1660/2560/2560G
Technical Specifications
Traffic Load Balancing
DFL-260
DFL-860
DFL-1660
DFL-2560(G)
Outbound Load
Balancing
ü
ü
ü
ü
Server Load
Balancing
–
ü
ü
ü
Outbound Load
Balance Algorithms
Bandwidth
Management
High Availability (HA)
Intrusion Detection &
Prevention System
(IDP/IPS)
Content Filtering
Round-robin, Weight-based Round-robin, Destination-based, Spill-over
Traffic Redirect at
Fail-Over
ü
ü
ü
ü
Policy-Based Traffic
Shaping
ü
ü
ü
ü
Guaranteed
Bandwidth
ü
ü
ü
ü
Maximum
Bandwidth
ü
ü
ü
ü
Priority Bandwidth
ü
ü
ü
ü
Dynamic Bandwidth
Balancing
ü
ü
ü
ü
WAN Fail-Over
ü6
ü
ü
ü
Active-Passive
Mode
–
–
ü
ü
Device Failure
Detection
–
–
ü
ü
Link Failure
Detection
–
–
ü
ü
FW/VPN Session
SYN
–
–
ü
ü
Automatic Pattern
Update
ü
ü
ü
ü
DoS, DDoS
Protection
ü
ü
ü
ü
Attack Alarm via
E-mail
ü
ü
ü
ü
Advanced IDP/IPS
Subscription
ü
ü
ü
ü
IP Blacklist by
Threshold or IDP/IPS
–
ü
ü
ü
ü
ü
HTTP Type
URL Blacklist/Whitelist
Script Type
Java, Cookie, ActiveX, VB
E-mail Type
E-mail Blacklist/Whitelist
External Database
Content Filtering
ü
ü
DFL-260/860/1660/2560/2560G
Technical Specifications
Antivirus
DFL-260
DFL-860
DFL-1660
DFL-2560(G)
Real Time AV
Scanning
ü
ü
ü
ü
Unlimited File Size
ü
ü
ü
ü
Scans VPN Tunnels
ü
ü
ü
ü
Supports
Compressed Files
ü
ü
ü
ü
ü
ü
Signature Licensor
Automatic Pattern
Update
Physical &
Environmental
Power Suppy
Dimensions
Kaspersky
ü
ü
External Power Adapter
235 x 162 x 36 mm
Desktop Size
80 PLUS Internal Power Supply
280 x 214 x 44 mm
Desktop Size
440 x 400 x 44 mm
19” Standard Rack-Mount
Operating
Temperature
0° to 40° C
Storage
Temperature
-20° to 70° C
Operating Humidity
5% to 95% non-condensing
EMI
FCC Class A
CE Class A
C-Tick
VCCI
Safety
UL LVD (EN60950-1)
LVD (EN60950-1)
MTBF
186,614 Hours
140,532 Hours
cUL, CB
400,000 Hours
Actual performance may vary depending on network conditions and activated services.
The maximum Firewall plaintext throughput is based on RFC2544 testing methodologies.
VPN throughput is measured using UDP traffic at 1420 byte packet size adhering to RFC 2544.
4
IPS and Anti-Virus performance test is based on HTTP protocol with a 1Mb file attachment run on the IXIA IxLoad. Testing is done with multiple flows through multiple port pairs.
5
Performance based on firmware 2.26.00 and above
6
Available when DMZ port is configured as WAN port
7
Compatible with D-Link SFP module transceivers: DEM-330T, DEM-330R, DEM-331T, DEM-331R, DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-315GT, and DGS-712
1
2
3
310,000 Hours
DFL-260/860/1660/2560/2560G
Secure Network Implementation Using NetDefend™ UTM Firewalls
ƒƒƒServer Load Balancing
ƒƒƒBandwidth Management
DFL-260/DFL-860
ƒƒƒAnti-Virus Scanning
ƒƒƒIntrusion Prevention System
ƒƒƒWAN Failover
ƒƒƒURL / E-mail Filtering
ƒƒƒJavascript / ActiveX / Cookie Filtering
ƒƒƒIM/P2P Program Filtering
ƒƒƒBandwidth Management
ƒƒƒMulti-WAN Interfaces for Traffic Load Sharing
DFL-1660/DFL-2560(G)
ACN 052 202 838
D-Link Corporation
No. 289 Xinhu 3rd Road, Neihu, Taipei 114, Taiwan
Specifications are subject to change without notice.
D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries.
All other trademarks belong to their respective owners.
©2009 D-Link Corporation. All rights reserved.
Release 03 (November 2009)
