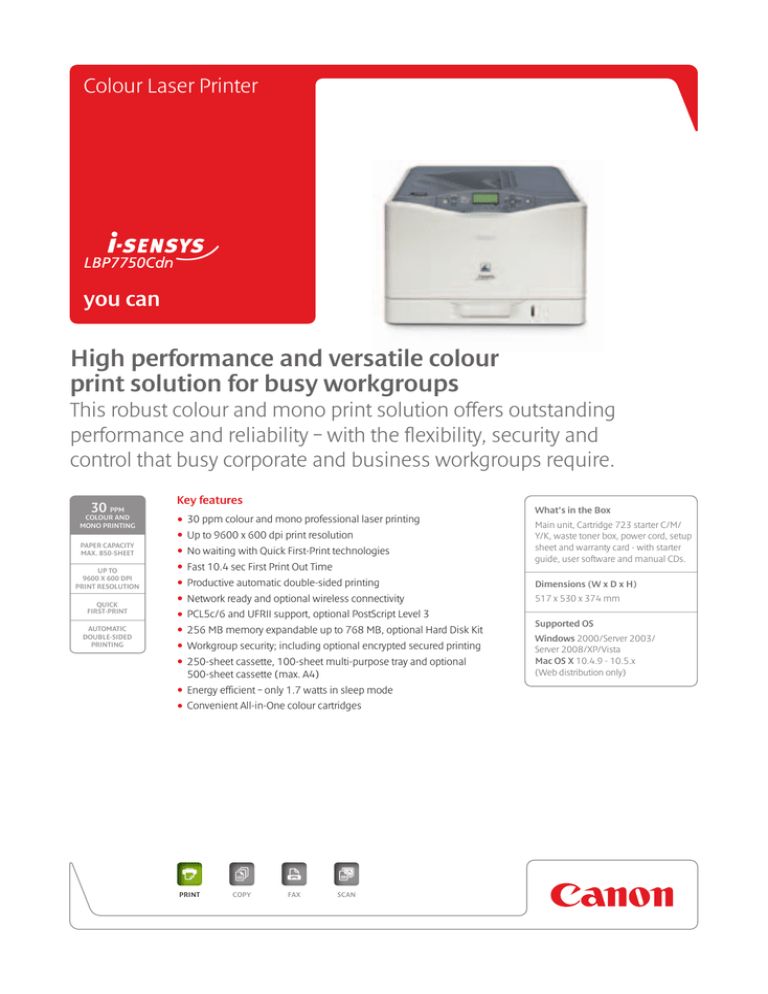

Colour Laser Printer
you can
High performance and versatile colour
print solution for busy workgroups
This robust colour and mono print solution offers outstanding
performance and reliability – with the flexibility, security and
control that busy corporate and business workgroups require.
30
PPM
COLOUR AND
MONO PRINTING
PAPER CAPACITY
MAX. 850-SHEET
UP TO
9600 X 600 DPI
PRINT RESOLUTION
QUICK
FIRST-PRINT
AUTOMATIC
DOUBLE-SIDED
PRINTING
Key features
• 30 ppm colour and mono professional laser printing
• Up to 9600 x 600 dpi print resolution
• No waiting with Quick First-Print technologies
• Fast 10.4 sec First Print Out Time
• Productive automatic double-sided printing
• Network ready and optional wireless connectivity
• PCL5c/6 and UFRII support, optional PostScript Level 3
• 256 MB memory expandable up to 768 MB, optional Hard Disk Kit
• Workgroup security; including optional encrypted secured printing
cassette, 100-sheet multi-purpose tray and optional
• 250-sheet
500-sheet cassette (max. A4)
• Energy efficient – only 1.7 watts in sleep mode
• Convenient All-in-One colour cartridges
PRINT
COPY
FAX
SCAN
What’s in the Box
Main unit, Cartridge 723 starter C/M/
Y/K, waste toner box, power cord, setup
sheet and warranty card - with starter
guide, user software and manual CDs.
Dimensions (W x D x H)
517 x 530 x 374 mm
Supported OS
Windows 2000/Server 2003/
Server 2008/XP/Vista
Mac OS X 10.4.9 - 10.5.x
(Web distribution only)
5-line LCD display
100-sheet multi-purpose tray
Specifications
250-sheet cassette
Optional 500-sheet cassette
Cartridge 723
(4 colours available: Cyan, Magenta, Yellow and Black)
PRINTER ENGINE
Print speed
Printing method
Print quality
Print resolution
Warm-up time
First Page Out Time
Duty cycle
Print margins
MEDIA HANDLING
Paper input (Standard)
Paper input (option)
Paper output
Media types
Media sizes
CONTROLLER
Processor Speed
Memory
Printer languages
Up to 30 ppm colour and mono (A4)
Colour laser beam printing
Up to 9600 x 600 dpi with Automatic Image Refinement
Up to 600 x 600 dpi
Approx. 60 seconds or less from power on
Mono: Approx. 10.2 seconds or less
Colour: Approx. 10.4 seconds or less
Max. 75,000 pages per month
5 mm-top, bottom, left and right
Fonts
Interface and connectivity
Software and
printer management
Operating
systems compatibility
250-sheet cassette
100-sheet multi-purpose tray
500-sheet cassette
200-sheet face down
Plain paper, Recycled paper, Heavy Paper, Transparency, Label,
Envelope
Cassette (Standard):
A4, B5, A5, Letter, Executive, 16K,
Custom sizes: Width 148 to 215.9 mm; Length 210.0 to 297mm
CONSUMABLES
All-in-One cartridges
Multi-purpose tray:
A4, B5, A5, Legal, Letter, Executive, Statement, 16K, Envelope DL,
Envelope COM10, Envelope C5, Envelope Monarch, Envelope B5,
Custom sizes: Width 98.4 to 215.9 mm; Length 148.0 to 355.6mm
Media weights
Double sided printing
GENERAL FEATURES
Power requirements
Power consumption
Noise level
Dimensions (W x D x H)
Weight
Operating environment
Control panel
ACCESSORIES/OPTIONS
Items
Cassette (Optional):
A4, B5, A5, Legal, Letter, Executive, 16K
Custom sizes: Width 148 to 215.9 mm; Length 210.0 to 355.6mm
Cassette (Standard): 60 to 163 g/m²
Multi-purpose tray: 60 to 176 g/m²
Cassette (Optional): 60 to 176 g/m²
Automatic
220-240V (±10%) 50/60Hz (±2Hz)
Maximum: 1185 W or less
Active: Approx. 569 W or less
Standby: Approx 44 W
Sleep mode: Approx 18 W
Deep sleep mode: Approx 1.7 W
Typical Electricity Consumption (TEC): 4.919 kWh/week
Sound power¹:
Active: 7 B or less
Standby: 5 B or less
400 MHz + 533 MHz
256 MB expandable up to 768 MB
UFRII (Ultra Fast Rendering), PCL5c, PCL6, PostScript Level 3
Emulation(optional)², Direct PDF printing v1.4 (optional)³
93 Scalable fonts, 10 Bitmap fonts, 136 PS fonts (option)
USB 2.0 High-Speed, 10BASE-T/100BASE-TX, IEEE802.11b/g Wireless
Print Server (optional)
NetSpot Device Installer, Remote User Interface (RUI), Secure Print
and Encrypted Secure Print with optional Hard Disk Kit HD-723,
Department ID Management
2000/ Server 2003/ Server 2008/ XP/ Vista
Mac OS X version 10.4.9 - 10.5.x4
Cartridge 723 Black (5,000 pages5)6
Cartridge 723H Black (10,000 pages5)6
Cartridge 723 Cyan (8,500 pages5)6
Cartridge 723 Magenta (8,500 pages5)6
Cartridge 723 Yellow (8,500 pages5)6
Waste Toner Box: WT-723 (Approx.18,000 A4 pages)
PAPER FEEDER PF-723 (500-sheet cassette)
HARD DISK KIT HD-723 (60 GB Hard Disk Drive)
RAM ER-128A (128 MB RAM memory module)
RAM ER-256A (256 MB RAM memory module)
RAM ER-512A (512 MB RAM memory module)
PS ROM-A723 (PostScript 3 Emulation ROM module)
PS/Barcode ROM-A723A (PostScript 3 Emulation and Barcode
ROM module)
Wireless Network Interface Board NB-W2
(IEEE802.11b/g Wireless Print Server)
All specifications subject to change without notice
Declared noise emission in accordance with ISO 9296
PostScript Level 3 Emulation support requires either PS ROM-A723 or PS/Barcode ROM-A723A option
PDF Direct Print requires the following accessories RAM (ER-256A or ER-512A), Hard Disk Kit HD-723 and PS ROM-A723 or
PS/Barcode ROM-A723A
4
Web distribution only
5
Based on ISO/IEC 19798
6
Printer ships with 3,000 pages K (Black) and 4,100 pages CMY (Cyan, Magenta and Yellow) starter cartridges
1
2
3
Sound pressure¹:
Active: 53 dB(A) or less
Standby: 50 dB(A) or less
517 mm x 530 mm x 374 mm
Approx. 35 kg
Temperature: 10 to 30°C (50 to 86°F)
Humidity 20 to 80% RH (no condensation)
LCD 22 characters X 5 line graphical display
9 LED indicators
10 Operation keys
