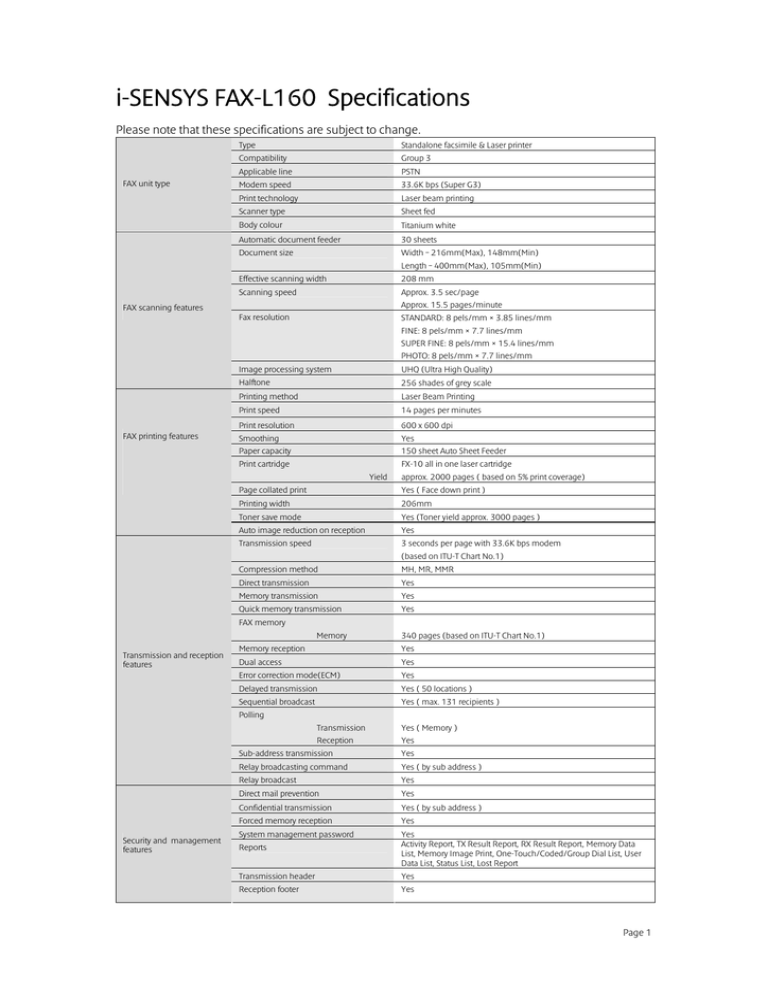

i-SENSYS FAX-L160 Specifications
Please note that these specifications are subject to change.
FAX unit type
Type
Standalone facsimile & Laser printer
Compatibility
Group 3
Applicable line
PSTN
Modem speed
33.6K bps (Super G3)
Print technology
Laser beam printing
Scanner type
Sheet fed
Body colour
Titanium white
Automatic document feeder
30 sheets
Document size
Width – 216mm(Max), 148mm(Min)
Effective scanning width
208 mm
Length – 400mm(Max), 105mm(Min)
Scanning speed
Approx. 3.5 sec/page
Approx. 15.5 pages/minute
FAX scanning features
Fax resolution
STANDARD: 8 pels/mm × 3.85 lines/mm
FINE: 8 pels/mm × 7.7 lines/mm
SUPER FINE: 8 pels/mm × 15.4 lines/mm
PHOTO: 8 pels/mm × 7.7 lines/mm
FAX printing features
Image processing system
UHQ (Ultra High Quality)
Halftone
256 shades of grey scale
Printing method
Laser Beam Printing
Print speed
14 pages per minutes
Print resolution
600 x 600 dpi
Smoothing
Yes
Paper capacity
150 sheet Auto Sheet Feeder
Print cartridge
FX-10 all in one laser cartridge
Yield
Page collated print
approx. 2000 pages ( based on 5% print coverage)
Yes ( Face down print )
Printing width
206mm
Toner save mode
Yes (Toner yield approx. 3000 pages )
Auto image reduction on reception
Yes
Transmission speed
3 seconds per page with 33.6K bps modem
(based on ITU-T Chart No.1)
Compression method
MH, MR, MMR
Direct transmission
Yes
Memory transmission
Yes
Quick memory transmission
Yes
FAX memory
Memory
Transmission and reception
features
340 pages (based on ITU-T Chart No.1)
Memory reception
Yes
Dual access
Yes
Error correction mode(ECM)
Yes
Delayed transmission
Yes ( 50 locations )
Sequential broadcast
Yes ( max. 131 recipients )
Polling
Transmission
Reception
Sub-address transmission
Security and management
features
Yes ( Memory )
Yes
Yes
Relay broadcasting command
Yes ( by sub address )
Relay broadcast
Yes
Direct mail prevention
Yes
Confidential transmission
Yes ( by sub address )
Forced memory reception
Yes
System management password
Yes
Activity Report, TX Result Report, RX Result Report, Memory Data
List, Memory Image Print, One-Touch/Coded/Group Dial List, User
Data List, Status List, Lost Report
Reports
Transmission header
Yes
Reception footer
Yes
Page 1
Telephony features
One-touch dials
15
Coded dials
100
Group dials
15 ( max. 50 locations)
Program dial
Yes
Redial
Yes ( automatic and manual )
Dial search
Yes
FAX/TEL auto switch
Yes
Answering machine Hook-up
Yes
Extension Telephone Hook-up
Yes
Remote reception
Yes
On Hook key
Yes
Telephone handset
Type
Cradle
Copier features
Copy
Yes
Copy resolution
TEXT/PHOTO mode, TEXT mode, PHOTO mode: 203 dpi × 300 dpi
Copy speed ( Mono )
12 pages per minutes
Multiple copy
Up to 99 copies
Zoom
50% - 200% in 1% increments
Pre-set enlargement reduction ratios
No
First copy output time(FCOT)
Less than 23 secs
Others
Other features
Option
Telephone 6
Included with handset
Display
12 seconds warm-up from power ON, 16MB (Shared) memory
Type
Size
Languages
backlight LCD
20 x 2
17 languages
(Czech, Danish, Dutch, English, Finnish, French, German,
Hungarian, Italian, Norwegian, Polish, Portuguese, Russian,
Slovenian, Spanish, Swedish, Turkish)
Energy saver key
Yes
Others
Auto Summer time adjustment
PC interface
USB 2.0 high speed
Microsoft Windows 2000
CPU: Intel Pentium/133MHz or faster
Memory: 128MB or more
Microsoft Windows Server 2003
CPU: Intel Pentium/Celeron series
133MHz or faster
Memory: 128MB or more
Microsoft Windows XP
CPU: Intel Pentium/Celeron series
300MHz or faster
Memory: 128MB or more
Microsoft Windows Vista
CPU: Intel Pentium 800MHz or faster
Memory: 512MB or more
System requirements
PC related features
Printer function
Yes-(via UFRII-LT print driver)
Windows 2000/ SERVER 2003/XP/VISTA
MAC OS X 10.2.x, 10.3.x, 10.4.x, 10.5.x (Available via web
distribution only)
PC FAX
No
Scan to PC
No
Scan to E mail
No
Network connectivity
No
Bundled software
No
Page 2
