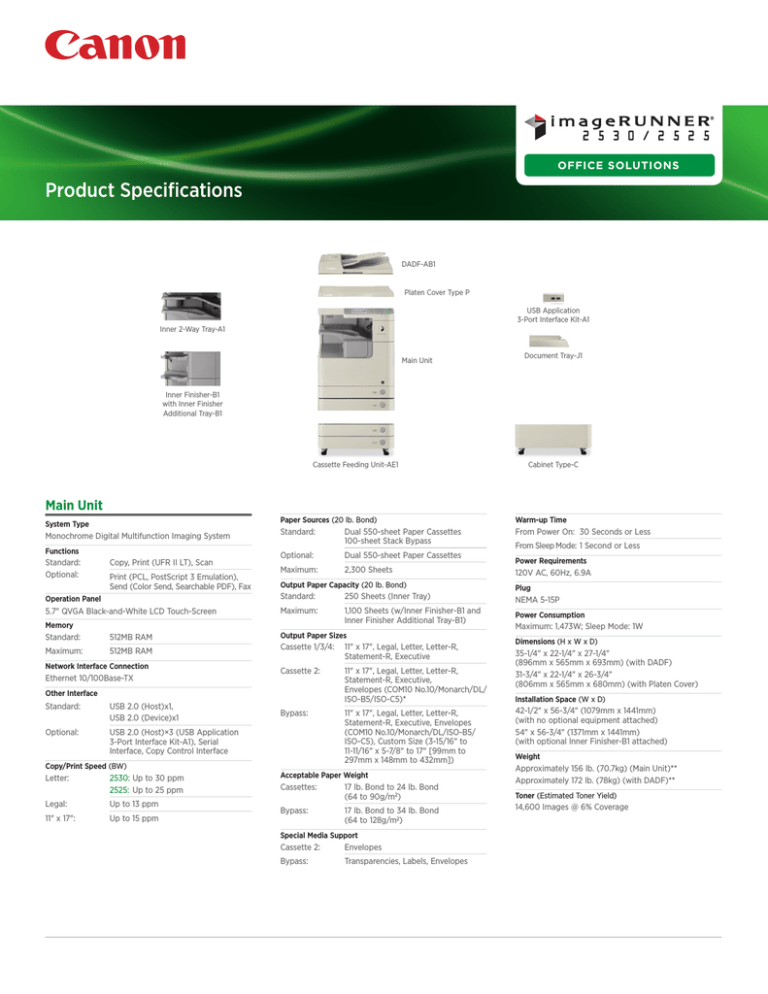

OFFICE SOLUTIONS
Product Specifications
DADF-AB1
Platen Cover Type P
USB Application
3-Port Interface Kit-A1
Inner 2-Way Tray-A1
Main Unit
Document Tray-J1
Inner Finisher-B1
with Inner Finisher
Additional Tray-B1
Cassette Feeding Unit-AE1
Cabinet Type-C
Main Unit
System Type
Monochrome Digital Multifunction Imaging System
Functions
Standard:
Optional:
Copy, Print (UFR II LT), Scan
Print (PCL, PostScript 3 Emulation),
Send (Color Send, Searchable PDF), Fax
Paper Sources (20 lb. Bond)
Warm-up Time
Standard:
Dual 550-sheet Paper Cassettes
100-sheet Stack Bypass
From Power On: 30 Seconds or Less
Optional:
Dual 550-sheet Paper Cassettes
Maximum:
2,300 Sheets
Output Paper Capacity (20 lb. Bond)
Operation Panel
Standard:
250 Sheets (Inner Tray)
5.7" QVGA Black-and-White LCD Touch-Screen
Maximum:
1,100 Sheets (w/Inner Finisher-B1 and
Inner Finisher Additional Tray-B1)
Memory
Standard:
512MB RAM
Maximum:
512MB RAM
Network Interface Connection
Ethernet 10/100Base-TX
Output Paper Sizes
Cassette 1/3/4:
11" x 17", Legal, Letter, Letter-R,
Statement-R, Executive
Cassette 2:
11" x 17", Legal, Letter, Letter-R,
Statement-R, Executive,
Envelopes (COM10 No.10/Monarch/DL/
ISO-B5/ISO-C5)*
Bypass:
11" x 17", Legal, Letter, Letter-R,
Statement-R, Executive, Envelopes
(COM10 No.10/Monarch/DL/ISO-B5/
ISO-C5), Custom Size (3-15/16" to
11-11/16" x 5-7/8" to 17" [99mm to
297mm x 148mm to 432mm])
Other Interface
Standard:
USB 2.0 (Host)x1,
USB 2.0 (Device)x1
Optional:
USB 2.0 (Host)×3 (USB Application
3-Port Interface Kit-A1), Serial
Interface, Copy Control Interface
Copy/Print Speed (BW)
Letter:
2530: Up to 30 ppm
2525: Up to 25 ppm
Legal:
Up to 13 ppm
11" x 17":
Up to 15 ppm
Acceptable Paper Weight
Cassettes:
17 lb. Bond to 24 lb. Bond
(64 to 90g/m2)
Bypass:
17 lb. Bond to 34 lb. Bond
(64 to 128g/m2)
Special Media Support
Cassette 2:
Envelopes
Bypass:
Transparencies, Labels, Envelopes
From Sleep Mode: 1 Second or Less
Power Requirements
120V AC, 60Hz, 6.9A
Plug
NEMA 5-15P
Power Consumption
Maximum: 1,473W; Sleep Mode: 1W
Dimensions (H x W x D)
35-1/4" x 22-1/4" x 27-1/4"
(896mm x 565mm x 693mm) (with DADF)
31-3/4" x 22-1/4" x 26-3/4"
(806mm x 565mm x 680mm) (with Platen Cover)
Installation Space (W x D)
42-1/2" x 56-3/4" (1079mm x 1441mm)
(with no optional equipment attached)
54" x 56-3/4" (1371mm x 1441mm)
(with optional Inner Finisher-B1 attached)
Weight
Approximately 156 lb. (70.7kg) (Main Unit)**
Approximately 172 lb. (78kg) (with DADF)**
Toner (Estimated Toner Yield)
14,600 Images @ 6% Coverage
Main Unit (continued)
Copy Specifications
First-Copy-Out Time (Letter)
5.4 Seconds
Scan Specifications
Environmental Information
Network TWAIN Scan
• ENERGY STAR® Qualified
• RoHS Compliant
• Ecomark
• Blue Angel
• WEEE Directive
Standard
Network Scan Utility
Color Network ScanGear
Multiple Copies
1 to 999
Color Send Specifications (Optional)
Copy Exposure
Automatic or Manual (9 Levels)
Sending Method
Magnification
E-Mail, I-Fax, File Server (FTP, SMB), Super G3 Fax
(Optional)
25% - 400% (1% Increments)
Color Mode
Preset Reductions
Color, BW
25%, 50%, 64%, 73%, 78%
Scan Resolution (dpi)
Preset Enlargements
121%, 129%, 200%, 400%
600 x 600, 400 x 400, 300 x 300, 200 x 400,
200 x 200, 200 x 100, 150 x 150, 100 x 100
Basic Copy Features
Address Book Capacity
Preset R/E Ratios by Area, Finishing, Two-sided,
Exposure Adjustment, Original Type Selection
Max. 500 Destinations (Includes 200 One-Touch Buttons)
Communication Protocol
Special Copy Features
File:
FTP (TCP/IP), SMB (TCP/IP)
E-Mail/I-Fax:
SMTP, POP3, I-Fax (Simple)
ID Card Copy, Two-page Separation, Image
Combination, Frame Erase, Different Size Original,
Sharpness, Mode Memory, Booklet
File Format
Optional Accessories
DADF-AB1 l
Scan Method:
Duplexing Automatic
Document Feeder
Acceptable
Originals:
11" x 17", Legal, Letter, Letter-R,
or Statement
Acceptable
Paper Weight:
14 lb. Bond to 28 lb. Bond
(52 to 105g/m2)
28 lb. Bond to 34 lb. Bond
(105 to 128g/m2) when scanning
a single-page document
Scan Speed
(BW/Color;
Letter):
Copy: 25 ipm (600 dpi)
Scan: 35/25 ipm (300 dpi)
TIFF, JPEG, PDF, PDF (Compact), PDF (OCR)***
Paper Capacity: 50 Sheets (Letter)
Print Specifications
I-Fax Data Format
Processor
TIFF (MH)
Power Source/
Consumption:
From the Main Unit/Approximately
27.1W (Maximum)
Dimensions
(H x W x D):
5" x 21-3/8" x 22-1/4"
(126mm x 544mm x 565mm)
Weight:
Approximately 15.4 lb. (7.0kg)
Canon Custom Processor (Shared)
Fax Specifications (Optional)
Memory
Standard:
512MB RAM
Number of Connection Lines
Maximum:
512MB RAM
1 (Maximum)
Paper Supply Options
Modem Speed
Engine Resolution
1200 x 1200 dpi (Maximum)
Super G3:
33.6 Kbps
PDL Support
G3:
14.4 Kbps
Standard:
UFR II LT
Compression Method
Optional:
PCL 5e/6, PostScript 3 Emulation
MH, MR, MMR, JBIG
17 lb. Bond to 24 lb. Bond
(64 to 90g/m2)
Acceptable
Paper Size:
11" x 17", Legal, Letter, Letter-R,
Statement-R, Executive
Acceptable
Paper Type:
Plain, Recycled, Color (17 lb. Bond
to 21 lb. Bond/64 to 80g/m2),
Pre-Punched
Power Source/
Consumption:
From the Main Unit/Approximately
17.4W (Maximum)
Dimensions
(H x W x D):
9-3/4" x 22-1/4" x 26-3/4"
(97mm x 565mm x 680mm)
Security Specifications
Weight:
Approximately 52.9 lb. (24.0kg)
Department ID Management, User ID Management,
IPv6, Restricting Features (Restricting the Send
Function, Restricting New Addresses on Address
Book, Address Book Password, Allow Fax Driver TX,
Restrict Recall, Confirm Entered Fax Numbers, Restrict
Sequential Broadcast), SNMPv1, MAC/IP Address
Filtering, SMTP Authentication, POP Authentication
before SMTP
Envelope Feeder Attachment-D1††
Resolution (dpi)
UFR II LT,
PostScript 3
Emulation:
400 x 400, 200 x 400, 200 x 200, 200 x 100
PCL 5e/6:
Windows (Windows 2000/XP/Vista/
Windows 7/Server 2003/Server 2008),
Citrix Presentation Server 4.0/4.5,
Citrix XenApp 5.0, XenDesktop
2.0/2.1/3.0, SAP
Print Features
Watermark, Page Border, Header/Footer, Page Layout,
Two-sided Printing, Collating, Booklet Printing, Grouping,
Mixed Paper Sizes/Orientations, Offsetting, Printing on
Transparencies, Front/Back Covers, Toner Reduction,
Poster Printing, Generic PCL 6 Driver
Paper Capacity: 550 Sheets x 2 Cassettes
(20 lb. Bond)
Acceptable
Paper Weight:
Print Driver Supported OS
Windows® (Windows 2000/XP/Vista®/
Windows 7/Server 2003/Server 2008),
Citrix Presentation Server 4.0/4.5,
Citrix XenApp 5.0, XenDesktop
2.0/2.1/3.0, Macintosh® (OS X 10.6.1),
SAP (PS3 Only)
Cassette Feeding Unit-AE1
Sending/Recording Size
Statement-R to 11" x 17"
Fax Features
Job Forwarding, Different Size Originals, Sharpness,
Delayed Send, Finished Stamp, Two-sided Original
Paper Capacity: 50 Sheets (or 30mm in height)
Acceptable
Envelope Size:
COM10 No.10, Monarch, DL,
ISO-B5, ISO-C5
Print Speed:
Up to 10 ppm
Optional Accessories (continued)
Other Optional Accessories
Type of Staple:
Staple-J1 (5,000 x 3)
Inner Finisher-B1†††
Power Source/
Consumption:
From the Main Unit/Approximately
43.9 W (Maximum)
Number of
Trays:
Up to 2 Trays (w/Inner Finisher
Additional Tray-B1)
Dimensions
(H x W x D):
Total Output
Capacity:
Without Inner Finisher Additional Tray-B1:
1,000 Sheets
With Inner Finisher Additional Tray-A1:
Upper Tray: 100 Sheets (Letter)
Lower Tray: 1,000 Sheets (Letter)
11-3/5" x 27-3/4" x 21-7/8"
(295mm x 703mm x 554mm)
(When the auxiliary tray is extended)
Weight:
Approximately 27.6 lb. (12.5kg)
Output Options
Acceptable
Paper Weight:
17 lb. Bond to 34 lb. Bond
(64 to 128g/m2)
Acceptable
Paper Size:
11" x 17", Legal, Letter, Letter-R,
Statement, Statement-R, Executive
Acceptable
Paper Type:
Plain, Recycled, Color (17 lb. Bond
to 21 lb. Bond), 3-hole punch, Heavy
Paper 1 (22 lb. Bond to 24 lb. Bond),
Heavy Paper 2 (24 lb. Bond to 28 lb.
Bond), Heavy Paper 3 (28 lb. Bond
to 34 lb. Bond)
Staple
Positions:
Inner 2-Way Tray-G1†††
Number of
Trays:
2
Total Output
Capacity:
Top Tray: 100 Sheets (Letter)
Lower Tray: 250 Sheets (Letter)
Acceptable
Paper Weight:
17 lb. Bond to 34 lb. Bond
(64 to 128g/m2)
Acceptable
Paper Size:
11" x 17", Legal, Letter, Letter-R,
Statement-R, Executive
Acceptable
Paper Type:
Plain, Recycled, Color (17 lb. Bond
to 21 lb. Bond), 3-Hole Punch, Heavy
Paper 1 (22 lb. Bond to 24 lb. Bond),
Heavy Paper 2 (24 lb. Bond to 28 lb.
Bond), Heavy Paper 3 (28 lb. Bond
to 34 lb. Bond)
Corner/Double Stapling: 11" x 17",
Legal, Letter, Letter-R
Stapling
50 Sheets (Letter)
Capacity (Max.): 30 Sheets (11" x 17", Legal, Letter-R)
(17 lb. Bond to 21 lb. Bond)
Paper Capacity Top Tray: 15 Sets (or 3/8" in height)
of Staple Mode: Lower Tray: 30 Sets (or 4-7/8" in height)
Dimensions
(H x W x D):
4-1/4" x 16-3/4" x 16-1/4"
(109mm x 426mm x 413mm)
Weight:
Approximately 1.3 lb. (0.6kg)
• Platen Cover Type P l
• Cabinet Type-C†
• Inner Finisher Additional Tray-B1
• Document Tray-J1
• PCL Printer Kit-AF1
• PS Printer Kit-AF1
• Barcode Printing Kit-B1 ▲
• Color Send Kit-Y1
• Searchable PDF Kit-C1 ▲▲
• Super G3 Fax Board-AG1
• Card Reader-E1 ▲▲▲ ◆
• Card Reader Attachment-D3
• ADF Access Handle-A1
• Braille Label Kit-F1
• USB Application 3-Port Interface Kit-A1
• USB Keyboard (Cherry)
• Copy Control Interface Cable-A1◆
* The optional Envelope Feeder Attachment-D1 is required.
** Includes consumables.
*** The optional Searchable PDF Kit-C1 is required.
l You must install either the DADF-AB1 or Platen Cover
Type P with the main unit.
†The Cassette Feeding Unit-AE1 and Cabinet Type-C
cannot be installed at the same time.
†† Installs on the second paper cassette.
†††The Inner Finisher-B1 and Inner 2-Way Tray cannot
be installed at the same time.
▲
▲▲
▲▲▲
Requires PCL Printer Kit-AF1.
Requires Color Send Kit-Y1.
Requires the Card Reader Attachment-D3 for installation.
Card Reader-E1 and Copy Control Interface Cable-A1
cannot be installed at the same time.
◆
