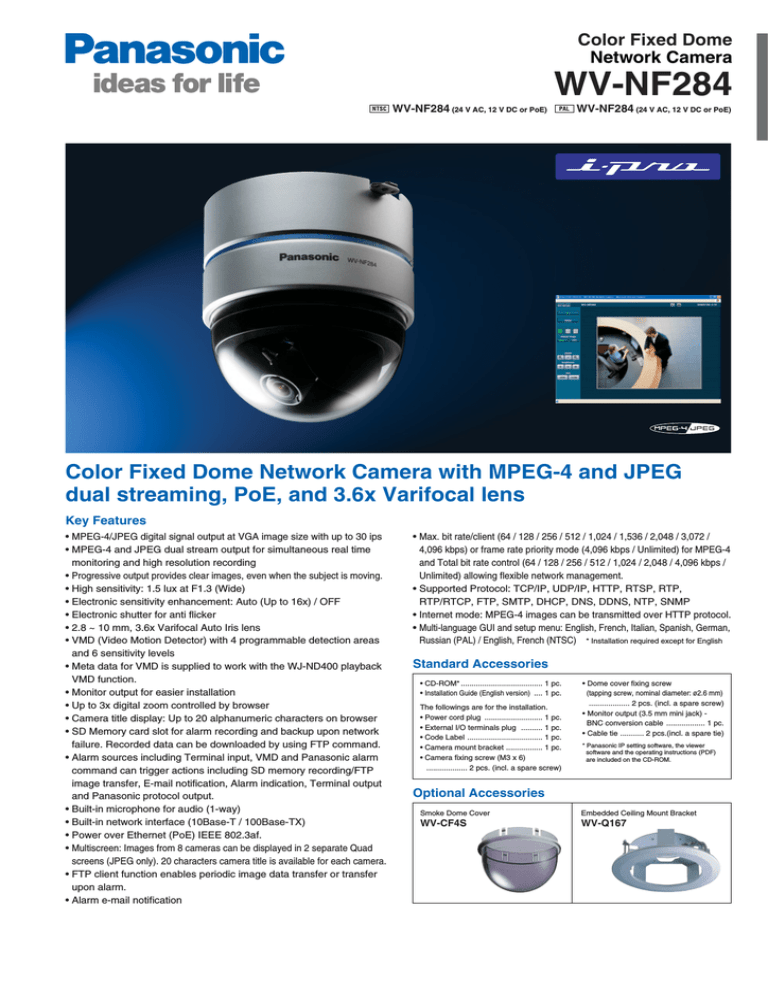

Color Fixed Dome
Network Camera
WV-NF284
WV-NF284 (24 V AC, 12 V DC or PoE)
WV-NF284 (24 V AC, 12 V DC or PoE)
Color Fixed Dome Network Camera with MPEG-4 and JPEG
dual streaming, PoE, and 3.6x Varifocal lens
Key Features
• MPEG-4/JPEG digital signal output at VGA image size with up to 30 ips
• MPEG-4 and JPEG dual stream output for simultaneous real time
monitoring and high resolution recording
• Progressive output provides clear images, even when the subject is moving.
• High sensitivity: 1.5 lux at F1.3 (Wide)
• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
• Electronic shutter for anti flicker
• 2.8 ~ 10 mm, 3.6x Varifocal Auto Iris lens
• VMD (Video Motion Detector) with 4 programmable detection areas
and 6 sensitivity levels
• Meta data for VMD is supplied to work with the WJ-ND400 playback
VMD function.
• Monitor output for easier installation
• Up to 3x digital zoom controlled by browser
• Camera title display: Up to 20 alphanumeric characters on browser
• SD Memory card slot for alarm recording and backup upon network
failure. Recorded data can be downloaded by using FTP command.
• Alarm sources including Terminal input, VMD and Panasonic alarm
command can trigger actions including SD memory recording/FTP
image transfer, E-mail notification, Alarm indication, Terminal output
and Panasonic protocol output.
• Built-in microphone for audio (1-way)
• Built-in network interface (10Base-T / 100Base-TX)
• Power over Ethernet (PoE) IEEE 802.3af.
• Multiscreen: Images from 8 cameras can be displayed in 2 separate Quad
screens (JPEG only). 20 characters camera title is available for each camera.
• FTP client function enables periodic image data transfer or transfer
upon alarm.
• Alarm e-mail notification
• Max. bit rate/client (64 / 128 / 256 / 512 / 1,024 / 1,536 / 2,048 / 3,072 /
4,096 kbps) or frame rate priority mode (4,096 kbps / Unlimited) for MPEG-4
and Total bit rate control (64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps /
Unlimited) allowing flexible network management.
• Supported Protocol: TCP/IP, UDP/IP, HTTP, RTSP, RTP,
RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP
• Internet mode: MPEG-4 images can be transmitted over HTTP protocol.
• Multi-language GUI and setup menu: English, French, Italian, Spanish, German,
Russian (PAL) / English, French (NTSC) * Installation required except for English
Standard Accessories
• CD-ROM* ...................................... 1 pc.
• Installation Guide (English version) .... 1 pc.
The followings are for the installation.
• Power cord plug ........................... 1 pc.
• External I/O terminals plug .......... 1 pc.
• Code Label ................................... 1 pc.
• Camera mount bracket ................. 1 pc.
• Camera fixing screw (M3 x 6)
................... 2 pcs. (incl. a spare screw)
• Dome cover fixing screw
(tapping screw, nominal diameter: ø2.6 mm)
................... 2 pcs. (incl. a spare screw)
• Monitor output (3.5 mm mini jack) BNC conversion cable .................. 1 pc.
• Cable tie ........... 2 pcs.(incl. a spare tie)
* Panasonic IP setting software, the viewer
software and the operating instructions (PDF)
are included on the CD-ROM.
Optional Accessories
Smoke Dome Cover
Embedded Ceiling Mount Bracket
WV-CF4S
WV-Q167
Specifications
Digital Zoom
Camera Title
Clock Display
Alarm Control
One Shot Capture
Audio
GUI / Setup Menu
Language
System Log
Supported OS
Supported Browser
Network
Network IF
Image Resolution
Image Compression
Image Refresh Rate
Audio Compression
Total Bit Rate
Max. Bit Rate /
Client (MPEG-4)
Supported Protocol
FTP Client
No. of Simultaneous Users
SD Memory Card
(Option)
Alarm E-mail
User Registration
User/Host Level
Security Measures
Alarm
Alarm Source
Alarm Actions
Input /
Output
Monitor Output
General
External I/O Terminals
Safety/EMC Standard
Power Source /
Consumption
Ambient Operating Temperature
Ambient Operating Humidity
Dimensions
Weight
* Flicker may appear when the object is darker than specified level.
Mounting side
DO
INSE
ME
CO
RT
VE
AD R
JU
ST
LO
CK
Camera mount bracket
(provided as a standard accessory)
DO
ME
CO
VE
R
LEDs (Indicators)
Indicators ON/OFF Switch
Monitor Out Connector (for Adjustment)
(ø3.5 mm mini jack)
Image Tilt Adjustment Ring
SD Memory Card Slot
Zoom Ring
Focus Ring
Tilting Table
Panning Table Fixing Screw [LOCK]
Panning Table
Dome Cover Lock Marker
Microphone Hole
Inner Dome
Clear Dome
External I/O Terminals
Power Cord Terminals
INITIAL SET Button
Network Connector
Safety Wire Holder
Safety Wire
Appearance
136(5-3/8")
83.5(3-5/16")
73(2-7/8")
4-ø4.7
46(1-13/16")
Pan and
Tilt
Browser
GUI
Inside the dome cover
Explanatory label
ø122(ø4-13/16")
Lens
White Balance
Light Control
BLC
AGC
Electronic Shutter
Electronic Sensitivity UP
Digital Zoom
Video Motion Detector
Back Focus Adjustment
Lens Mount
Synchronization
Focal Length
Angular Field of View
Maximum Aperture Ratio
Focusing Range
Panning Range
Tilting Range
Camera Control
Display Mode
Part Names and Functions
NTSC
PAL
1/4 inch progressive scan CCD
659 (H) x 494 (V)
Progressive scan
3.59 (H) x 2.70 (V) mm
Color (30IRE): 1.5 lux (Sens up: OFF),
0.09 lux (Sens up: 16x) at F1.3 (Wide)
AUTO / HOLD
ALC with ELC (1/30 ~ 1/100)
ON / OFF
Always ON
For flicker less mode: 1/100 ~ 3/100 (Auto select)
OFF / AUTO (2x, 4x, 8x, 16x)
1x, 1.5x, 2x, 2.5x, 3x, Controlled by browser GUI
4 areas, 6 Sensitivity: High / Middle / Low
Manual
Original
Internal
2.8 ~ 10 mm, 3.6x varifocal
H : 20.8° (Tele) ~ 73.5° (Wide) V : 15.6° (Tele) ~ 54.4° (Wide)
1 : 1.3 (Wide) ~ 1 : 3.1 (Tele)
1.2 m (3.9 ft.) ~ ∞
180° (clockwise), 140° (counterclockwise)
±75°, Image tilt adjustment range: ±100°
Brightness, AUX ON/OFF
Spot, Quad: Image from 8 cameras can be displayed in 2 different
Quad screens (JPEG only). 20 characters camera title available.
1x, 1.5x, 2x, 2.5x, 3x, zoom by camera
Up to 20 alphanumeric characters
Time: 12H / 24H,
Date: 5 formats on the browser, Summer time (Manual)
Reset
A still picture is displayed on a newly opened window.
ON / OFF
English, French
English, French, Italian,
(Installation required for French) Spanish, German, Russian
(Installation required except for English)
Up to 100 (Internal), Up to 4,000 (SD memory) error logs
Microsoft® Windows Vista® Business 32 bit,
Microsoft® Windows® XP Home/Professional SP2,
Microsoft® Windows® 2000 Professional SP4
The language of the OS must be same as selected GUI language.
Windows® Internet Explorer® 7.0 (Microsoft® Windows Vista® Business 32 bit),
Microsoft® Internet Explorer® 6.0 SP2 (Microsoft® Windows® XP Home/Professional SP2),
Microsoft® Internet Explorer® 6.0 SP1 (Microsoft® Windows® 2000 Professional SP4)
10Base-T / 100Base-TX, RJ45 connector IEEE 802.3af. PoE compatible
VGA (640 x 480 ) / QVGA (320 x 240)
MPEG-4: Image quality: LOW / NORMAL / FINE,
Transmission type: UNICAST / MULTICAST
JPEG: Image quality: 10 steps, Transmission type: PULL / PUSH
MPEG-4 and JPEG dual streaming, JPEG multi-resolution supported.
0.1 / 0.2 / 0.33 / 0.5 / 1 / 2 / 3 / 5 / 6 / 10 / 15 / 30 ips (Max. rate will be 5 ips-VGA,
10 ips-QVGA when transmitting JPEG and MPEG-4 simultaneously)
G.726 (ADPCM) 32 kbps / 16 kbps
64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps / unlimited
64 / 128 / 256 / 512 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 kbps
or Frame rate priority (4,096 kbps / Unlimited)
TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP, SMTP,
DHCP, DNS, DDNS, NTP, SNMP
Alarm image transfer, FTP Periodic transfer
8 (Depends on network conditions)
Alarm REC / Backup upon network failure.
Compatible SD card: Panasonic 64 MB, 128 MB, 256 MB, 512 MB, 1 GB, 2 GB model
Up to 4 e-mail addresses
Up to 16 users
3 Levels: Administrator, Camera control, Live only
User authentication (ID 32 digit, PW 32 digit),
Host authentication (IP address)
VMD, Command alarm, Terminal input
SD memory recording/FTP image transfer, e-mail notification,
Terminal output, Indication on browser, Panasonic protocol output
1.0 V [p-p] / 75 Ω / NTSC
1.0 V [p-p] / 75 Ω, PAL
composite signal / ø3.5 mm mini jack composite, ø3.5 mm mini jack
1x Alarm input / 1x Alarm output, 1x AUX output
UL (6500), FCC (Part15 ClassA), CE (EN55022 ClassB, EN55024),
C-UL (CAN/CSA C22.2 No.E60065), GOST (GOST R 51558)
DOC (ICES003 ClassA)
24 V AC 50/60 Hz: 4.0 W, 12 V DC: 350 mA,
PoE (IEEE802.3af): 4.0 W
–10 °C ~ +50 °C (14 °F ~ 122 °F)
90 % or less (without condensation)
ø122 mm x 136 mm (ø4-13/16" x 5-3/8")
Approx. 640 g (1.41 lbs.)
N
TV System
Camera
Image Sensor
Effective Pixels
Scanning Mode
Scanning Area
Minimum Illumination
SR55
Unit: mm (inches)
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– "Super Dynamic", "SDII", "SDIII" and "i-Pro" logos are trademarks or registered trademarks of
Panasonic Corporation.
Important
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that
reside on the network.
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
