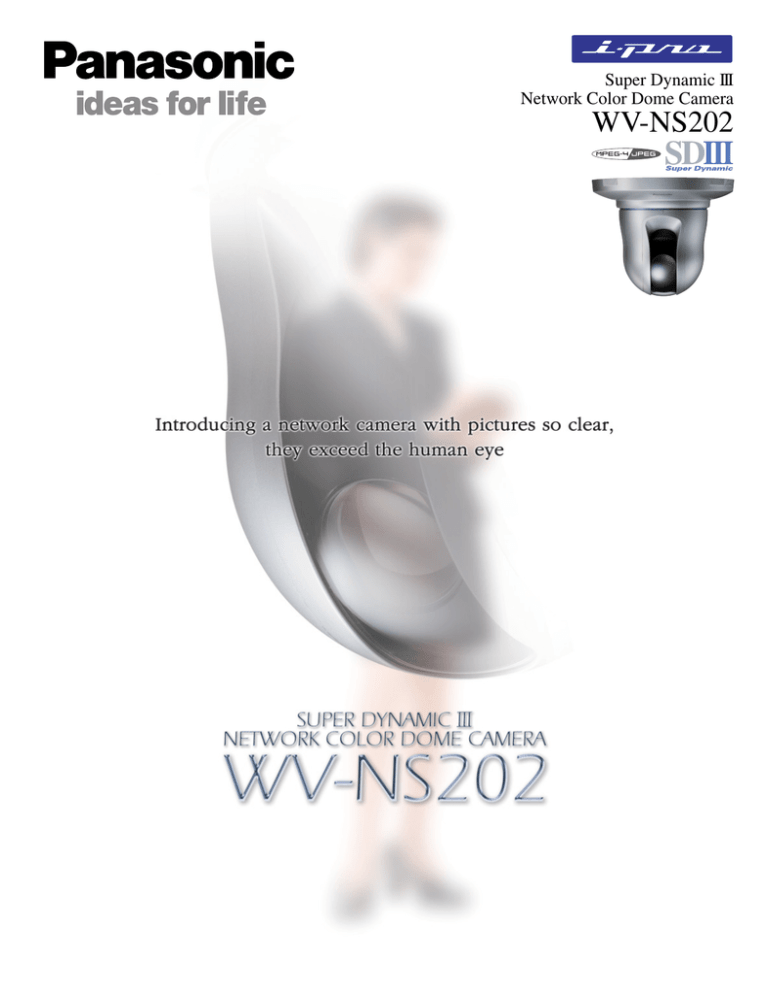

Super Dynamic III
Network Color Dome Camera
WV-NS202
Exceptional quality, reliable performance,
extreme versatility. Panasonic's i-Pro
WV-NS202 network surveillance camera
has arrived.
Versatile operation
Highly resistant to network interference
MPEG-4 and JPEG images can be output simultaneously. For example,
MPEG-4 for monitoring and JPEG for high-resolution recording. Full-rate
transmission of up to 30 fps is possible in either MPEG-4 or JPEG mode.
Whether using MPEG-4, JPEG or both, the WV-NS202 allows for versatile
operation.
In the event of network interference, surveillance
images are automatically backed up to an SD
memory card. Even during network interruption,
surveillance images can be viewed later. Manual
recording on the SD memory card is also possible.
SD memory card slot
MPEG-4/JPEG dual streaming
Panasonic, the leader in video surveillance, introduces a PTZ network camera ahead
of its time. Featuring Super Dynamic III and progressive output, Panasonic has
created unparalleled high-sensitivity and high-resolution image reproduction.
The highly reliable WV-NS202 features image backup functions and industrial grade
mechanisms while remaining cost effective. Designed for professional surveillance
applications, the WV-NS202 PTZ network camera is worthy of the leading role.
WV-NS202
Live monitoring in
MPEG-4 offering
smooth movement
PC
MPEG-4
MPEG-4
Voice exchange
2-way audio feature
Network
JPEG
High-quality image
recording using JPEG
JPEG
Network Disk Recorder
WJ-ND200
Main Menu
Dealing with a variety of subjects
Moving subjects are smooth and easy to see
Super Dynamic III performs gradation compensation of contrast on the
pixel base, ensuring
accurate reproduction
of subjects in any
situation. It achieves
the 128x dynamic range
by using images taken
at 1/60-second and
Conventional
Super Dynamic III
1/8,000-second shutter
Depending on subject position,
Pixel Based 128x Dynamic
speeds.
the image may be marred by
Range faithfully
Progressive output is utilized for smooth reproduction of moving objects.
Compared to interlaced output, images of moving people and passing cars
are smooth and easy to see.
Pixel Based 128x Dynamic Range
black spots or halo effects.
Progressive Output
reproduces every subject.
Live Screen
Audio monitoring of the peripheral area is made possible by connecting a
microphone directly to the camera. Furthermore, the provision of audio
output enables voice public-addressing from a PC by connecting an
amplifier-integrated
Viewing Location
Camera Location
WV-NS202
loudspeaker. (Voice
Speaker
Speaker
alternates between
Router
transmission and
Mic
Network
Mic
reception.) (ITU-T
Router
Standard G.726
PC
Voice Function)
Full Screen
Motion Detection:
When any movement occurs within the camera image, the
movement is detected and an alarm signal is transmitted. The
VMD areas can be set for each preset position (up to 64 areas).
Powerful in low light situations
Minimum illumination of 0.7 lux (0.07 fc)
FTP server transfer:
The WV-NS202 features a minimum illumination of 0.7 lux (0.07 fc).
Surveillance is possible in color, even at nighttime. The electronic
sensitivity feature (up to
32x) ensures use for
night surveillance.
JPEG images can be transferred to a pre-designated FTP server.
Alarm mail notification:
Capturing remote subjects smoothly
Conventional
SYSTEM EXAMPLE
Images can be stored
in the camera’s onboard SD memory card
slot with a single click.
22x Zoom Lens
A 22x optical zoom lens with a focal distance f of 3.79-83.4mm comes
standard. Combined with the 10x electronic zoom, 220x magnification is
achieved, allowing for
high-power surveillance
and the capture of
subjects at long range.
E-mails can be transmitted to up to four mail addresses that
are registered in advance.
Camera
control tab
WV-NS202
Camera image
WV-NS202 x 9
L2 Switch
• Up to 16 cameras can be viewed on a multi-screen display, or 4 cameras through a quad display.
• Pan and tilt camera control on a quad-display is possible.
• Full screen mode is available simply by clicking on a button.
• Mouse controls allow for zoom, pan and tilt operations.
22x
PC
PC
Network Disk Recorder
WJ-ND200
FRAME RATE CHART
JPEG
Resolution
Easy installation and IP configuration
Power Over Ethernet
With PoE (Power over Ethernet) IEEE802.3af, a separate power supply is not
required. Both power and images are transmitted through the same cable. Just
connect the cable to a PoE switch or PoE adapter for simple installation.
0
Super Fine
128
Image Size (KB)
VGA
10
Frame Rate (fps)
(640 x 480)
10.2
Bit Rate (Mbps)
44
Image Size (KB)
QVGA
26
Frame Rate (fps)
(320 x 240)
9.2
Bit Rate (Mbps)
Various settings can
be adjusted while
monitoring the camera image
Mode
1
Fine
96
14
10.8
40
28
9.0
2
3
80
17
10.9
36
30
8.6
64
21
10.8
32
30
7.7
Image Settings
4
5
Normal
56
48
24
30
10.8
11.5
28
24
30
30
6.7
5.8
MPEG-4
6
7
8
40
30
9.6
20
30
4.8
32
30
7.7
16
30
3.8
28
30
6.7
14
30
3.4
9
Low
24
30
5.8
12
30
2.9
Resolution
VGA
(640 x 480)
QVGA
(320 x 240)
Mode
Low
Normal
Fine
Low
Normal
Fine
4,096
kbps
30
30
27
30
30
30
3,072
kbps
30
30
22
30
30
28
2,048
kbps
30
30
19
30
30
28
MPEG-4 Bit Rate Settings
1,536 1,024
512
256
kbps kbps
kbps kbps
25
22
10
5
22
14
8
3
13
9
4
1.5
30
30
28
24
29
28
24
12
28
27
12
5
128
kbps
2
1
0.5
10
4
2
64
kbps
1
0.4
0.2
4
1.5
0.5
(fps)
(above all figures are approximate, actual figures may differ depending on the network under the conditions.)
Various settings, such as white balance, intensified sensitivity ON/OFF and
shutter speeds can be adjusted while monitoring the actual camera image.
Setup panel
One-touch Fitting Mechanism
Versatile installations for various applications
Achieve a secure fit by aligning the recessed part of the main unit to the
protruding part of the attached mounting bracket,
and rotating the main unit clockwise.
Various optional fixtures are available, ensuring versatile installation; direct
ceiling mount, embedded mount and wall mount. The use of the supplied black
cover conceals the direction the camera is facing.
Safety wire
Ceiling mount
Embedded ceiling mount
T
ON
FR
OPEN
Wall mount
Safety wire holder
Industrial grade mechanism
Up to 64 preset positions
Heavy duty materials are used for rotating sections. The
unit is designed to operate over a long period of time as
a result of Panasonic's expertise in manufacturing highly
reliable, industrial grade surveillance cameras.
Auto Tracking
Up to 64 camera positions can be registered in advance.
The positions can be selected through simple operations.
Panning and tilting are automatically executed so that a
moving subject can be centered on the screen.
Privacy Zone Masking
High-speed rotation of
300 degrees/sec.
The camera rotates 350 degrees
30˚
horizontally at a rotation speed of
300 degrees/sec., max. (when
moving between preset positions),
120˚
enabling the quick capture of
subjects. Vertical rotation is also Tilting Spead
100˚/s
quick at up to 100 degrees/sec.
When private images exist within an image, masking those
portions is possible. Up to eight masks can be applied.
Versatile alarm functions
Alarms from external sensors, VMD camera alarms, and
command alarms from other devices can be set in advance.
350˚
Panning Spead
300˚/s
360-degree map-shot function
When still images of eight locations in a 360 degree arc are
displayed as thumbnails and an image is clicked, the
camera is directed to that position and displays a live image
of the location.
The above photographs were taken for the purpose of this explanation; actual performance
and images may vary depending on environmental or other conditions.
LO
CK
Camera
Panasonic Logo Plate
SD Memory Card Slot Cover
SD Memory Card Error Indicator
SD Memory Card Slot
Link LED
DIMENSIONS
4-ø7(4-ø9/32")
64(2-17/32")
For Camera Mount (Depth: 6mm(1/4"))
121.5(4-25/32")
83.5(3-9/32")
110(4-5/16")
132(5-3/16")
ø185(ø7-9/32")
Unit : mm (inches)
1/4-20UNC
8-ø5(8-ø3/16")
2(3/32")
0° ~ 350°
Manual: Approx. 1°/s ~ 100°/s, preset: up to approx. 300°/s
–30° ~ 90° (upward - level - downward)
Selectable Tilting Angle 0° /–5° /–10° /–15° /–20° /–25° /–30°
Tilting Speed
MANUAL Approx. 1°/s ~ 100°/s, preset: up to approx. 100°/s
Number of The Preset Positions 64
Auto Mode
OFF/preset sequence/auto pan/auto track
Map Shot
360° map shot/preset map shot
Network
Network
10BASE-T/100BASE-TX, RJ45 connector
Resolution
VGA (640 x 480)/QVGA (320 x 240)
Image Compression
MPEG-4 Image quality: LOW/NORMAL/FINE
Method
Transmission type: UNICAST/MULTICAST
Image quality: 0 SUPER FINE/1 FINE/2~5 NORMAL/6~9 LOW (10 steps: 0~9)
JPEG
Transmission type: PULL/PUSH
Refresh Interval (MPEG-4) 0.1 fps ~ 30 fps
(Frame rate of JPEG display will be limited when displaying JPEG and MPEG-4 simultaneously.)
Audio Compression Method G.726 (ADPCM) 32 kbps/16 kbps
Bandwidth Control
64 kbps/128 kbps/256 kbps/512 kbps/1,024 kbps/2,048 kbps/4,096 kbps/Unlimited
Protocol
TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP
Microsoft® Windows® 2000 Professional SP4, Microsoft® Windows® XP Home Edition SP2,
OS
Microsoft® Windows® XP Professional SP2
Web Browser
Microsoft® Internet Explorer® 6.0SP2 (Microsoft® Internet Explorer® 6.0 SP1 only
when using Windows® 2000 Professional SP4)
Max. Access Number
8 Concurrently (Depends on network conditions)
FTP Client
Alarm image transmission, FTP periodic transmission
Images from 16 cameras (4 cameras x 4 groups) can be displayed simultaneously.
Multi-Screen
SD Memory Card (Option) Manufactured by Panasonic (Performance with this camera has been checked.)
Capacity: 64MB, 128MB, 256MB, 512MB, 1GB and 2GB
General Specifications
Power Source
DC 12 V, PoE (IEEE802.3af compliant)
Power Consumption
DC 12 V Approx. 1,000 mA, PoE: Approx. 12.0 W (Class 0 device)
Ambient Temperature
–10 °C ~ +50 °C (14 °F ~ 122 °F)
Recommended operating temperature +35 °C (95 °F)
Ambient Humidity
90 % or less
Monitor Output
VBS 1.0 V [P-P]/75 Ω, composite (BNC), ø3.5 mm mini jack (monaural)
External I/O Terminals
ALARM IN 1, ALARM IN 2/ALARM OUT, ALARM IN 3/AUX OUT (x1 each)
Microphone Input
MIC IN (Applicable microphone: Plug-in power type)
Supply voltage: 2.5 V ±0.5 V
Input impedance: 3 kΩ ±10 %
Audio Output
AUDIO OUT ø3.5 mm stereo mini jack (monaural output) Line level
Dimensions
ø115 mm x 154 mm (H) (ø4-17/32" x 6-1/16" (H))
(excluding the DC 12 V power cord plug)
Weight
Camera: Approx. 850 g (1.87 lbs.)
Accessories (Camera mounting bracket, decorative cover): Approx. 200 g (0.44 lbs.)
Network Connector
DC 12 V Power Terminals
Power LED
Access LED
[INITIAL SET] Button
Cable Guide
Audio Output Connector
Monitor Out Connector
Safety Wire Holder
Microphone In Connector
External I/O Terminals
Mounting Bracket
Safety Wire
Decorative Cover
Rear View
ø115(ø4-17/32")
153.5(6-1/32")
151.5(5-31/32")
22x
3.79 mm ~ 83.4 mm
1 : 1.6 (WIDE) ~ 3.0 (TELE)
1.6 m
F1.6 ~ 22, Close
2.6° (TELE) ~ 51.7° (WIDE)
2.0° (TELE) ~ 39.9° (WIDE)
Front View
46
(1-13/16")
60(2-3/8")
1/4-type interline transfer CCD
768 (H) x 494 (V)
3.59 mm (H) x 2.70 mm (V)
2:1 interlace scan (with motion adaptive interlace/progressive conversion function)
0.7 lux (0.07 fc) (sensitivity up: OFF, AGC: HIGH)
0.07 lux (0.007 fc) (sensitivity up: 10x, AGC: HIGH)
52 dB typ. (Super Dynamic III: ON, Shutter speed: OFF)
ON (LOW)/ON (MID)/ON (HIGH)/OFF
OFF (1/60), AUTO, 1/100
Up to 32x
ATW1/ATW2/AWC
LOW/HIGH
Up to 10x
Up to 16 characters (alphanumeric characters, marks) ON/OFF
ON/OFF, 4 areas available
ON/OFF
ON/OFF (up to 8 zones available)
2(3/32")
Dynamic Range
Gain
Shutter Speed
Sensitivity Up
White Balance
Digital Noise Reduction (DNR)
Electronic Zoom
Camera Title
VMD Alarm
Image Hold
Privacy Zone
Lens
Zoom Ratio
Focal Length
Maximum Aperture Ratio
Macro
Aperture Range
Horizontal Angle of View
Vertical Angle of View
Panning/Tilting Platform
Panning Range
Panning Speed
Tilting Range
MAJOR OPERATING CONTROLS & TERMINALS
38
(1-1/2")
Camera
Image Sensor
Effective Pixels
Scanning Area
Scanning System
Minimum Illumination
154(6-1/16")
156(6-5/32")
SPECIFICATIONS
OPTIONAL COMPONENTS & ACCESSORIES
Ceiling Mount Bracket
Embedded Ceiling Mount Bracket
Direct Ceiling Installation
WV-Q152S
WV-Q151S
WV-Q105
WV-Q152C
(Smoke)
(Clear)
(Smoke)
Wall Mount Bracket
WV-Q150S
WV-Q151C
(Clear)
WV-Q150C
Network Disk Recorder
WJ-ND200
(Smoke)
(Clear)
Trademarks and registered trademarks – Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– SD logo is a trademark.
Important – Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
• All TV pictures/menu are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
DISTRIBUTED BY:
Panasonic System Solutions Company
Unit Company of Panasonic Corporation of North America
Security Systems
Website : www.panasonic.com/security
For Customer Support : call 1.877.733.3689
Executive Office : Three Panasonic Way 2H-2, Secaucus, New Jersey 07094
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905) 624-5010
PANASONIC PUERTO RICO INC.
DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA
San Gabriel Industrial Park, 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 (809) 750-4300
Printed in Japan
WV-JHNS202C(2P-550)
