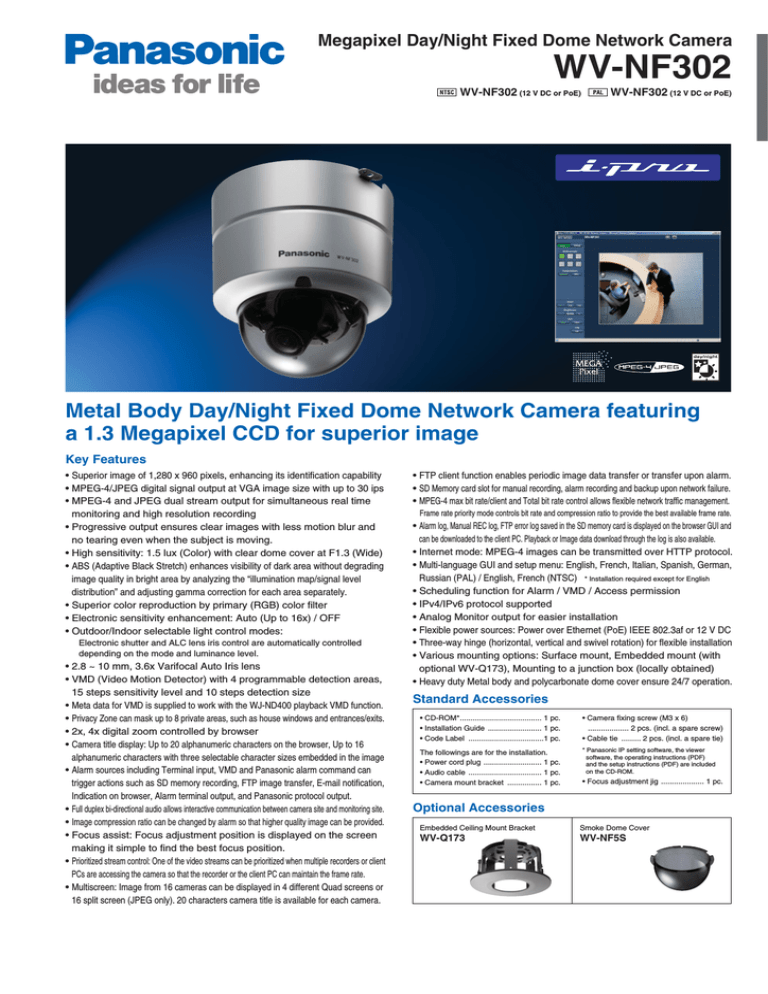

Megapixel Day/Night Fixed Dome Network Camera
WV-NF302
WV-NF302 (12 V DC or PoE)
WV-NF302 (12 V DC or PoE)
Metal Body Day/Night Fixed Dome Network Camera featuring
a 1.3 Megapixel CCD for superior image
Key Features
• Superior image of 1,280 x 960 pixels, enhancing its identification capability
• MPEG-4/JPEG digital signal output at VGA image size with up to 30 ips
• MPEG-4 and JPEG dual stream output for simultaneous real time
monitoring and high resolution recording
• Progressive output ensures clear images with less motion blur and
no tearing even when the subject is moving.
• High sensitivity: 1.5 lux (Color) with clear dome cover at F1.3 (Wide)
• ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading
image quality in bright area by analyzing the “illumination map/signal level
distribution” and adjusting gamma correction for each area separately.
• Superior color reproduction by primary (RGB) color filter
• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
• Outdoor/Indoor selectable light control modes:
Electronic shutter and ALC lens iris control are automatically controlled
depending on the mode and luminance level.
• 2.8 ~ 10 mm, 3.6x Varifocal Auto Iris lens
• VMD (Video Motion Detector) with 4 programmable detection areas,
15 steps sensitivity level and 10 steps detection size
• Meta data for VMD is supplied to work with the WJ-ND400 playback VMD function.
• Privacy Zone can mask up to 8 private areas, such as house windows and entrances/exits.
• 2x, 4x digital zoom controlled by browser
• Camera title display: Up to 20 alphanumeric characters on the browser, Up to 16
alphanumeric characters with three selectable character sizes embedded in the image
• Alarm sources including Terminal input, VMD and Panasonic alarm command can
trigger actions such as SD memory recording, FTP image transfer, E-mail notification,
Indication on browser, Alarm terminal output, and Panasonic protocol output.
• Full duplex bi-directional audio allows interactive communication between camera site and monitoring site.
• Image compression ratio can be changed by alarm so that higher quality image can be provided.
• Focus assist: Focus adjustment position is displayed on the screen
making it simple to find the best focus position.
• Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client
PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate.
• Multiscreen: Image from 16 cameras can be displayed in 4 different Quad screens or
16 split screen (JPEG only). 20 characters camera title is available for each camera.
• FTP client function enables periodic image data transfer or transfer upon alarm.
• SD Memory card slot for manual recording, alarm recording and backup upon network failure.
• MPEG-4 max bit rate/client and Total bit rate control allows flexible network traffic management.
Frame rate priority mode controls bit rate and compression ratio to provide the best available frame rate.
• Alarm log, Manual REC log, FTP error log saved in the SD memory card is displayed on the browser GUI and
can be downloaded to the client PC. Playback or Image data download through the log is also available.
• Internet mode: MPEG-4 images can be transmitted over HTTP protocol.
• Multi-language GUI and setup menu: English, French, Italian, Spanish, German,
Russian (PAL) / English, French (NTSC) * Installation required except for English
• Scheduling function for Alarm / VMD / Access permission
• IPv4/IPv6 protocol supported
• Analog Monitor output for easier installation
• Flexible power sources: Power over Ethernet (PoE) IEEE 802.3af or 12 V DC
• Three-way hinge (horizontal, vertical and swivel rotation) for flexible installation
• Various mounting options: Surface mount, Embedded mount (with
optional WV-Q173), Mounting to a junction box (locally obtained)
• Heavy duty Metal body and polycarbonate dome cover ensure 24/7 operation.
Standard Accessories
• CD-ROM*...................................... 1 pc.
• Installation Guide ......................... 1 pc.
• Code Label ...................................1 pc.
• Camera fixing screw (M3 x 6)
................... 2 pcs. (incl. a spare screw)
• Cable tie ......... 2 pcs. (incl. a spare tie)
The followings are for the installation.
• Power cord plug ........................... 1 pc.
• Audio cable .................................. 1 pc.
• Camera mount bracket ................ 1 pc.
* Panasonic IP setting software, the viewer
software, the operating instructions (PDF)
and the setup instructions (PDF) are included
on the CD-ROM.
• Focus adjustment jig .................... 1 pc.
Optional Accessories
Embedded Ceiling Mount Bracket
Smoke Dome Cover
WV-Q173
WV-NF5S
Specifications
Supported Browser
Network
Network IF
Image Resolution
Image Compression
Image Refresh Rate
Audio Compression
Audio Mode
Total Bit Rate
Max Bit Rate/Client
(MPEG-4)
Supported Protocol
FTP Client
Alarm
Input /
Output
No. of Simultaneous Users
SD Memory Card
(Option)
Alarm E-mail
Schedule
User Registration
User/Host Level
Security Measures
Alarm Source
Alarm Actions
Monitor Output
Microphone Input
Audio Output
External I/O Terminals
Part Names and Functions
Inside the dome cover
Mounting side
Dome cover
Camera mount bracket
(provided as a standard accessory)
Monitor Out Connector
(for adjustment)(RCA jack)
Indicators ON/OFF Switch
LEDs (Indicators)
SD Memory Card Slot
Focus Assist (F.A.) Button
Focus Ring
Zoom Ring
Tilting Table
Image Tilt Adjustment Ring
Panning Table Fixing Screw
Panning Table
Upper Cover
Clear Dome
External I/O Terminals
<Ratings>
AUX Output (AUX)
Alarm Output
(ALARM OUT)
Alarm Input (ALARM IN)
INITIAL SET Button
12 V DC Power Terminal
Audio Input/Output Terminal
Network Connector/Access LED, Link LED
Safety Wire Holder
Safety Wire
Appearance
4-ø4.7
83.5(3-5/16")
Digital Zoom
Camera Title
Clock Display
Alarm Control
One Shot Capture
Audio
GUI /
Setup Menu Language
System Log
Supported OS
NTSC
PAL
UL (UL60065), FCC (Part15 ClassA), CE (EN55022 ClassB, EN55024),
C-UL (CAN/CSA C22.2 No.60065), GOST (GOST R 51558)
DOC (ICES003 ClassA)
Power Source / Consumption 12 V DC: 510 mA, PoE (IEEE802.3af): 6.4 W
Ambient Operating Temperature –10 °C ~ +50 °C (14 °F ~ 122 °F)
Ambient Operating Humidity 90 % or less (without condensation)
Dimensions
ø124 mm x 135 mm (H) (ø4-14/16" x 5-5/16" (H))
Weight (approx.)
930 g (2.05 lbs.) (including the camera mount bracket)
ø124(ø4-14/16")
0.3
Back Light Compensation
AGC
Adaptive Black Stretch
Electronic Sensitivity UP
Black and White Mode
Digital Zoom
Video Motion Detection
Privacy Zone
Other Image Controls
Camera Title (OSD)
Back Focus Adjustment
Lens Mount
Synchronization
Lens
Focal Length
Angular Field of View
Maximum Aperture Ratio
Focusing Range
Adjusting Horizontal
Angle
Vertical
Browser Camera Control
GUI
Display Mode
TV System
General
Safety/EMC Standard
89(3-1/2")
White Balance
Light Control
NTSC
PAL
1/3 inch progressive scan CCD
1,296 (H) x 976 (V)
Progressive Scan
4.86 mm (H) x 3.65 mm (V)
Color: 1.5 lux at F1.3 (Wide, clear dome)
B/W: 0.9 lux at F1.3 (Wide, clear dome)
AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
Outdoor: Automatic integration of ALC and ELC (up to 1/2,000 sec.)
Indoor: Automatic integration of ALC and ELC (up to 3/100 sec.)
ON (Auto) / OFF (with 8 x 6 mask area)
ON (LOW, MID, HIGH) / OFF
ON / OFF
OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))
OFF / AUTO (No IR filter moving)
1x, 2x, 4x, Controlled by browser GUI
4 areas, Sensitivity: 15 steps, Detection size: 10 steps
Up to 8 zones, Gray/Mosaic
R-gain, B-gain, Croma gain, Pedestal, Aperture (Sharpness)
Up to 16 alphanumeric characters (3 selectable character sizes)
Manual with Focus Assist
Original
Internal
2.8 mm ~ 10 mm, 3.6x varifocal
H : 27.7° (Tele) ~ 100.3° (Wide) V : 20.8° (Tele) ~ 73.5° (Wide)
1 : 1.3 (Wide) 1 : 3.1 (Tele)
1.2 m ~ ∞
180° (clockwise), 160° (counterclockwise)
±75°, Image tilt adjustment range: ±100°
Brightness, AUX ON/OFF, Zoom (1x, 2x, 4x)
Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad
screens or 16 split screen (JPEG only). 20 characters camera title available.
1x, 2x, 4x Controlled by browser GUI
Up to 20 alphanumeric characters
ON/OFF, Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
Reset
A still picture is displayed on a newly opened window.
Mic Input: ON/OFF, Audio Output: ON/OFF
English, French, Italian, Spanish, German,
English, French
(Installation required for French) Russian (Installation required except for English)
Up to 100 (Internal), Up to 4,000 (SD memory) error logs
Microsoft® Windows Vista® Business (32 bit) Microsoft® Windows® XP Home Edition SP2
Microsoft® Windows® XP Professional SP2
Windows® Internet Explorer® 7.0 Microsoft® Internet Explorer® 6.0 SP2 (only with
Microsoft® Windows® XP Home Edition SP2 or Microsoft® Windows® XP Professional SP2)
10Base-T / 100Base-TX, RJ45 connector, IEEE 802.3af. PoE compatible
1,280 x 960 (JPEG) / VGA (640 x 480) / QVGA (320 x 240)
MPEG-4: Image quality: LOW/NORMAL/FINE, Transmission type: UNICAST/MULTICAST
JPEG: Image quality: 10 steps, Transmission type: PULL/PUSH
MPEG-4 and JPEG dual streaming, JPEG multi-resolution supported.
0.1 / 0.2 / 0.33 / 0.5 / 1 / 2 / 3 / 5 / 6 / 10 / 15 / 30 ips
(Frame rate of JPEG will be reduced when displaying JPEG and MPEG-4 simultaneously)
G.726 (ADPCM) 32 kbps / 16 kbps
OFF / Mic input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps / Unlimited
Constant bit rate mode: 64 / 128 / 256 / 512 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 kbps
Frame rate priority mode: 4,096 kbps / unlimited
IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS,
NTP, SNMP IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP
Alarm image transfer, FTP Periodic transfer, Active/Passive selectable (When the FTP
periodic transmission is failed, backup on an optional SD memory card is available.)
16 (Depend on network conditions)
Manual REC/Alarm REC/Backup upon network failure. Compatible SD card: Panasonic
64 MB, 128 MB, 256 MB, 512 MB, 1 GB, 2 GB model. SDHC card is not supported.
Up to 4 e-mail addresses
Alarm, VMD, Access permission can be enabled/disabled by time schedule
Up to 20 users
3 Levels: Administrator, Camera control, Live only
User authentication (ID 1 ~ 32 digit, PW 4 ~ 32 digit), Host authentication (IP address)
VMD, Command alarm, Terminal input
SD memory recording, E-mail notification, Alarm terminal output,
Indication on browser, FTP image transfer, Panasonic protocol output
1.0 V [p-p] / 75 Ω / NTSC composite signal / RCA jack 1.0 V [p-p] / 75 Ω / PAL composite signal / RCA jack
ø3.5 mm mini-jack (applicable microphone: plug-in-power type)
Supply voltage: 2.5 V ±0.5 V, Input impedance: 3 kΩ ±10 %
ø3.5 mm stereo mini-jack (line-level, monaural output)
1x Alarm input, 1x Alarm output, 1x AUX output
46(1-13/16")
135(5-5/16")
TV System
Camera
Image Sensor
Effective Pixels
Scanning Mode
Scanning Area
Minimum Illumination
SR41.5
Unit: mm (inches)
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– "Super Dynamic", "SDII", "SDIII" and "i-Pro" logos are trademarks or registered trademarks of Panasonic Corporation.
Important
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
DISTRIBUTED BY:
http://panasonic.net/security/
Printed in Japan (2A-034CA)
