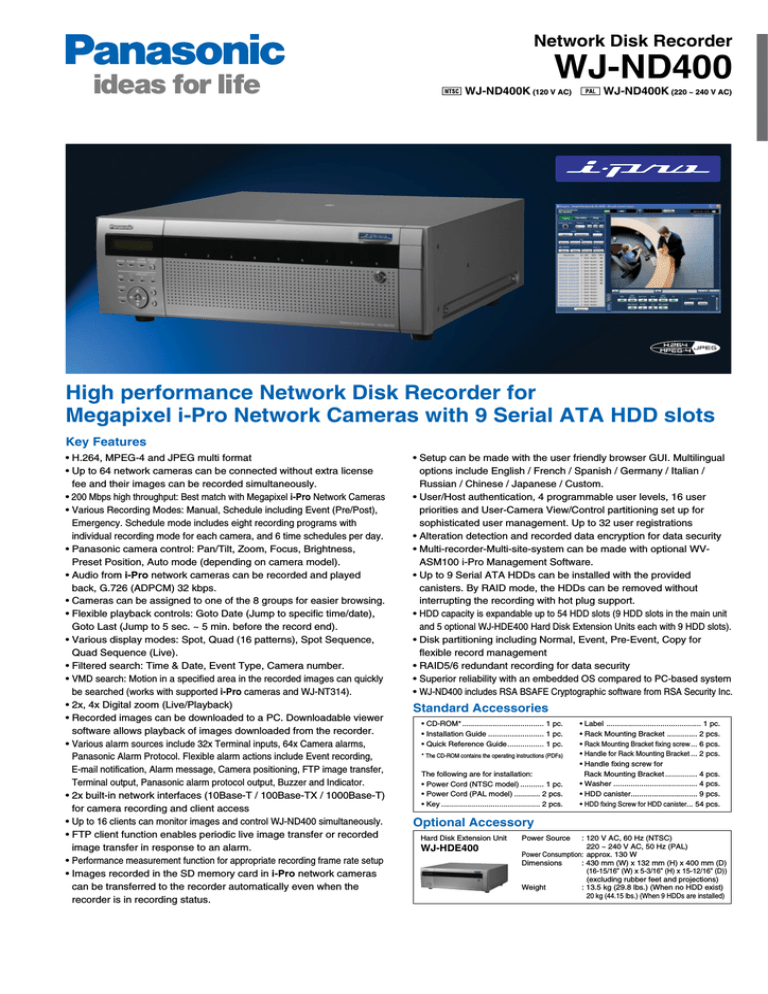

Network Disk Recorder
WJ-ND400
WJ-ND400K (120 V AC)
WJ-ND400K (220 ~ 240 V AC)
High performance Network Disk Recorder for
Megapixel i-Pro Network Cameras with 9 Serial ATA HDD slots
Key Features
• H.264, MPEG-4 and JPEG multi format
• Up to 64 network cameras can be connected without extra license
fee and their images can be recorded simultaneously.
• 200 Mbps high throughput: Best match with Megapixel i-Pro Network Cameras
• Various Recording Modes: Manual, Schedule including Event (Pre/Post),
Emergency. Schedule mode includes eight recording programs with
individual recording mode for each camera, and 6 time schedules per day.
• Panasonic camera control: Pan/Tilt, Zoom, Focus, Brightness,
Preset Position, Auto mode (depending on camera model).
• Audio from i-Pro network cameras can be recorded and played
back, G.726 (ADPCM) 32 kbps.
• Cameras can be assigned to one of the 8 groups for easier browsing.
• Flexible playback controls: Goto Date (Jump to specific time/date),
Goto Last (Jump to 5 sec. ~ 5 min. before the record end).
• Various display modes: Spot, Quad (16 patterns), Spot Sequence,
Quad Sequence (Live).
• Filtered search: Time & Date, Event Type, Camera number.
• VMD search: Motion in a specified area in the recorded images can quickly
be searched (works with supported i-Pro cameras and WJ-NT314).
• 2x, 4x Digital zoom (Live/Playback)
• Recorded images can be downloaded to a PC. Downloadable viewer
software allows playback of images downloaded from the recorder.
• Various alarm sources include 32x Terminal inputs, 64x Camera alarms,
Panasonic Alarm Protocol. Flexible alarm actions include Event recording,
E-mail notification, Alarm message, Camera positioning, FTP image transfer,
Terminal output, Panasonic alarm protocol output, Buzzer and Indicator.
• 2x built-in network interfaces (10Base-T / 100Base-TX / 1000Base-T)
for camera recording and client access
• Up to 16 clients can monitor images and control WJ-ND400 simultaneously.
• FTP client function enables periodic live image transfer or recorded
image transfer in response to an alarm.
• Performance measurement function for appropriate recording frame rate setup
• Images recorded in the SD memory card in i-Pro network cameras
can be transferred to the recorder automatically even when the
recorder is in recording status.
• Setup can be made with the user friendly browser GUI. Multilingual
options include English / French / Spanish / Germany / Italian /
Russian / Chinese / Japanese / Custom.
• User/Host authentication, 4 programmable user levels, 16 user
priorities and User-Camera View/Control partitioning set up for
sophisticated user management. Up to 32 user registrations
• Alteration detection and recorded data encryption for data security
• Multi-recorder-Multi-site-system can be made with optional WVASM100 i-Pro Management Software.
• Up to 9 Serial ATA HDDs can be installed with the provided
canisters. By RAID mode, the HDDs can be removed without
interrupting the recording with hot plug support.
• HDD capacity is expandable up to 54 HDD slots (9 HDD slots in the main unit
and 5 optional WJ-HDE400 Hard Disk Extension Units each with 9 HDD slots).
• Disk partitioning including Normal, Event, Pre-Event, Copy for
flexible record management
• RAID5/6 redundant recording for data security
• Superior reliability with an embedded OS compared to PC-based system
• WJ-ND400 includes RSA BSAFE Cryptographic software from RSA Security Inc.
Standard Accessories
• CD-ROM* ...................................... 1 pc.
• Installation Guide .......................... 1 pc.
• Quick Reference Guide................. 1 pc.
* The CD-ROM contains the operating instructions (PDFs)
The following are for installation:
• Power Cord (NTSC model) ........... 1 pc.
• Power Cord (PAL model) ............ 2 pcs.
• Key .............................................. 2 pcs.
• Label ............................................ 1 pc.
• Rack Mounting Bracket .............. 2 pcs.
• Rack Mounting Bracket fixing screw ... 6 pcs.
• Handle for Rack Mounting Bracket ... 2 pcs.
• Handle fixing screw for
Rack Mounting Bracket ............... 4 pcs.
• Washer ....................................... 4 pcs.
• HDD canister............................... 9 pcs.
• HDD fixing Screw for HDD canister... 54 pcs.
Optional Accessory
Hard Disk Extension Unit
WJ-HDE400
Power Source : 120 V AC, 60 Hz (NTSC)
220 ~ 240 V AC, 50 Hz (PAL)
Power Consumption: approx. 130 W
Dimensions
: 430 mm (W) x 132 mm (H) x 400 mm (D)
(16-15/16” (W) x 5-3/16” (H) x 15-12/16” (D))
(excluding rubber feet and projections)
Weight
: 13.5 kg (29.8 lbs.) (When no HDD exist)
20 kg (44.15 lbs.) (When 9 HDDs are installed)
Specifications
Alarm Control
Event log
Network Interface
Maximum Band Width
Bandwidth Control (Client Port)
Supported Protocol
E-mail
FTP Client
No. of Simultaneous Users
User Registration
User level
Partitioning
Security Method
External
Interface
Alarm Connector Alarm
(D-sub25pin)
Alarm/Control Alarm
Connector
Control
(D-sub25pin)
Recording Indicator
Timer Indicator
Operate Indicator
Arrow Buttons
SET Button
Escape Button
Link Indicators
Front Cover
USE Button
HDD Unit
HDD Status Indicator
HDD Access Indicator
HDD Bay Slots
RAID Mode Switch
Removal Knob
Rear View
Handle for Maintenance
Alarm/Control Connector
Alarm Connector
Cable Clamp Fixing Holes
External Storage Connector
Client PC Port
Camera Port
Signal GND Terminal
Power Cord Inlet
Power Switch
Appearance
Alarm input 8 ~ 16*1, 1x Alarm output*2, 1x Alarm reset input*1, 1x Alarm suspend input*1
Emergency recording input*1, Power outage detection input*1, External
recording mode switching*1, Power outage recovery completion output*3,
Time adjustment input/output*4, +5 V output*5
Error/
Network error output*2, Available disk space warning output*2,
Warning HDD error output*2, Camera error output*2, Error output*2
External Storage
High-speed serial interface 1.5 Gbps (theoretical value) Only for WJ-HDE400 Extension Unit
Other
Time Synchronization
Terminal (Master or Slave), NTP (Server/Client)
Functions Summer Time
User definable (using menu setup)
HDD
Type
3.5 inch Serial ATA HDD, Up to 9x HDDs can be installed.
Maximum Capacity
54 HDD slots (with 5x WJ-HDE400 Extension Units, 9x HDDs installed in each unit)
RAID
RAID 5/6 supported
Partitioning
Normal / Event / Pre-Event / Copy
Play, Rev Play, Pause, FF, REW, Prev Record, Next Record, Prev Image, Next image
Viewer
Playback Control
Software Additional Functions
Alteration detection, Save as JPEG, Two times zoom, Print
Supported OS, Language Same as browser GUI, Language of the software will be English
General
Safety/EMC Standard
UL (UL60065), FCC (Part15 ClassA), CE (EN60065, EN55022 ClassB,
Specifications
C-UL (CAN/CSA C22.2 No.60065),
EN55024), GOST (GOST R 51558)
DOC (ICES003 ClassA)
Trademarks and registered trademarks
– RSA and BSAFE are either registered trademarks or trademarks of RSA Security Inc. in the U.S.
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– Axis is a registered trademark of Axis Communications AB.
– "Super Dynamic", "SDII", "SDIII" and "i-Pro" logos are trademarks or registered trademarks of Panasonic Corporation.
Important
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
480 (18-7/8")
465 (18-5/16")(Mounting Pitch)
430 (16-15/16")
132 (5-3/16")
372 (14-5/8")
267 (10-1/2")
Network
Alarm Source
Event Mode
Alarm Action
Error Indicator
Alarm Indicator
Alarm Suspention Indicator
Buzzer Stop Button
LCD
HDD Indicators
Key Hole
Maintenance Port
126.4 (5")
Alarm/
Event
JPEG/
MPEG-4
H.264
Front View
63
13
(1/2") (2-1/2")
Required PC
Part Names and Functions
10.3 (3/8")
SD Memory Data
Download
Copy
Camera Title
Clock Display
Alarm Control
Digital Zoom
System Log
System Setup
GUI Language
Supported OS
and Browser
Combination
*1: Non-voltage make contact, +5 V pull-up 150 Ω *2: Open collector output, 24 V max., –100 mA
*3: High (+5 V ~ +12 V, 6.3 mA maximum) *4: 52 kΩ, 5 V pull-up, –100 mA / make contact *5: 200 mA at maximum
400 (15-3/4")
Display Mode
Camera Grouping
Image Download
Weight
NTSC
PAL
120 V AC, 60 Hz
220 ~ 240 V AC, 50 Hz
approx. 170 W
+5 °C ~ +45 °C (41 °F ~ 113 °F)
5 % ~ 90 % (no condensation)
2,000 m (6,500 feet) above sea level
430 mm (W) x 132 mm (H) x 400 mm (D)
(16-15/16" (W) x 5-3/16" (H) x 15-3/4" (D))
(excluding rubber feet and projections)
13 kg (28.6 lbs.) without Canister and HDD
20 kg (44.15 lbs.) with 9 HDDs
33.5 (1-5/16")
Search Mode
TV System
General
Power Source
Specifications Power Consumption
Ambient Operating Temperature
Ambient Operating Humidity
Maximum Operating Altitude
Dimensions
57.1 (2-1/4")
(Mounting Pitch)
Browser
GUI
Scheduled Recording Mode
Frame Rate/Camera
Camera Control
REC/Playback Control
NTSC
PAL
Panasonic i-Pro series Network cameras (Contact Panasonic for BB series and Axis® cameras)
H.264, MPEG-4, JPEG, M-JPEG
2,048 x 1,536, 1,280 x 960, 960 x 720, 640 x 480, 320 x 240 (Depending on the camera)
G.726 (ADPCM) 32 kbps
64
Manual, Schedule including Event (Pre/Post), Emergency
Up to 15 minutes with dedicated HDD for Pre-Event.
Shorter Pre-Event recording is possible without dedicated HDD.
8 programs, 6 time zones/day, Independent setup for each day of the week
Up to 30 ips (Depending on the Camera)
Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode
REC, PLAY, Rev PLAY, Pause, Stop, FF, REW, Prev Record, Next Record,
Prev Image, Next image, Goto Date, Goto Last (5 sec. ~ 5 min.)
Filtered search: Time date, Event type, Camera number
VMD search: one detection areas per search (works with supported i-Pro cameras and WJ-NT314)
Spot/Quad (16 patterns) / Spot Sequence / Quad Sequence (Sequence: Live only)
8 groups each with 16 characters title
Recorded data of selected camera and time range can be downloaded
to a PC. Viewer software can be downloaded separately.
Images recorded in the SD card in the i-Pro series cameras can be
transferred to the recorder automatically.
Recorded data of selected cameras and time date range can be copied to the COPY partition.
On the browser, Up to 16 Characters
On the browser. Time: 12 H/24 H, Date: 3 formats (YY.MM.DD, MMM.DD.YY, DD.MMM.YY)
Reset, Suspend
2x, 4x
Operator access (100), Network error (1,000), Error (100), Event (750)
Setup page in English, French, Italian, Spanish, German, Russian, Chinese, Japanese
English, French, Italian, Spanish, German, Russian, Chinese, Japanese, Custom
Microsoft® Windows® 7 Professional 64 bit/32 bit & Windows® Internet Explorer® 8.0 32 bit,
Microsoft® Windows Vista® 32 bit SP1 & Windows® Internet Explorer® 7.0,
Microsoft® Windows® XP Home/Professional SP3 & Windows® Internet Explorer® 6.0
The language of OS must be the same as selected GUI language.
CPU: Intel® Pentium® 4 3.0 GHz or faster, RAM: 1 GB or more,
VRAM: 128 MB or more (Min. 64 MB), Microsoft® DirectX® 9.0c or later
CPU: Intel® CoreTM i7-920 or faster, RAM: 3 GB or more,
VRAM: 128 MB or more (Min. 64 MB), Microsoft® DirectX® 9.0c or later
32x Terminal inputs, 64x Camera alarms, Panasonic Alarm Protocol
Off / On
Alarm recording, e-mail notification, Alarm message, Camera positioning, FTP
image transfer, Terminal output, Panasonic alarm protocol output, Buzzer, Indicator
Reset, Suspend
750
Camera port: 10Base-T / 100Base-TX / 1000Base-T (RJ-45) Client port: 10Base-T /
100Base-TX / 1000Base-T (RJ-45) Maintenance port: 10Base-T (RJ-45)
Total 200 Mbps
32 K / 64 k / 128 k / 256 k / 512 k / 1,024 k / 2 M / 5 M / 10 M (bps) and unlimited
TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, RTP
Upon Alarm or Warning
Upon alarm or Periodic transfer
16
Up to 32 users
4 Levels (Programmable)
User - Camera (View only, View & Control, No Access)
User authentication (ID and password), Host authentication (IP address),
Alteration detection, HTTP Port No. (1 ~ 65,535 except for reserved numbers),
FTP Port No. (1 ~ 65,535 except for reserved numbers)
Alarm input 1 ~ 7, 17 ~ 32*1
128
21
(13/16") (5-1/16")
TV System
Supported Supported Cameras
Cameras Supported Image Format
Supported Image Resolution
Supported Audio Format
Maximum Number of Cameras
Recording Recording Mode
Pre-Event Recording
Unit: mm
(inches)
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• All product pictures are NTSC models.
DISTRIBUTED BY:
http://panasonic.net/security/
Printed in Japan (2A-036EA)
