S
P
E
C
F
I
L
E

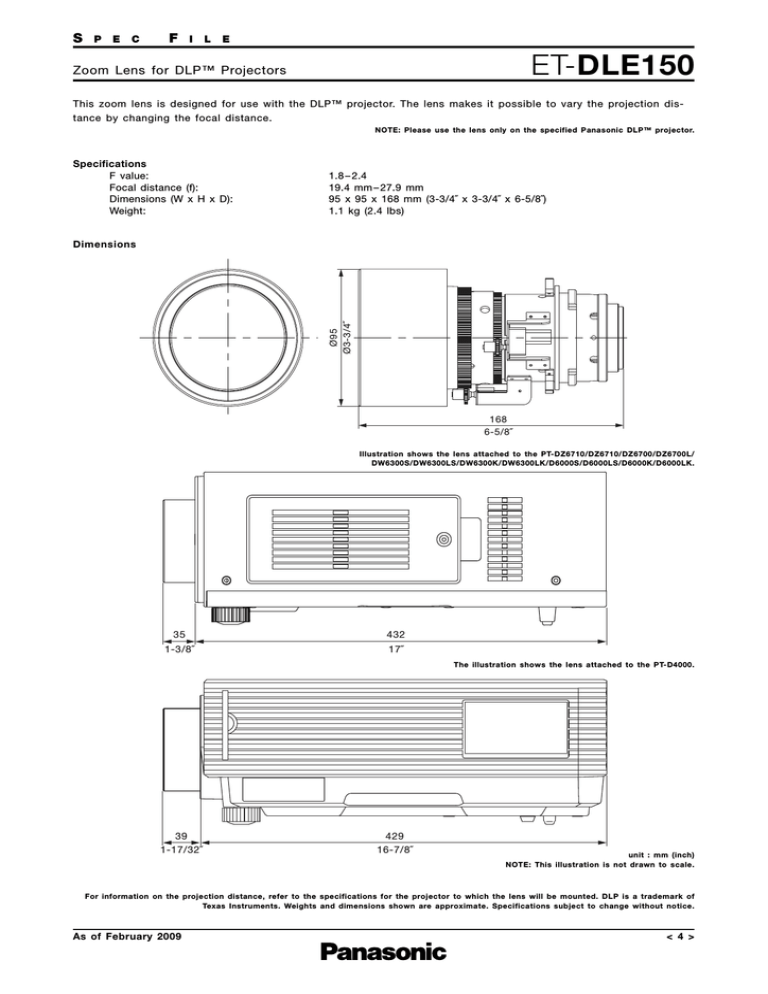

ET-DLE150
Zoom Lens for DLP™ Projectors
This zoom lens is designed for use with the DLP™ projector. The lens makes it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic DLP™ projector.
Specifications
F value:
Focal distance (f):
Dimensions (W x H x D):
Weight:
1.8 – 2.4
19.4 mm – 27.9 mm
95 x 95 x 168 mm (3-3/4˝ x 3-3/4˝ x 6-5/8˝)
1.1 kg (2.4 lbs)
Ø95
Ø3-3/4˝
Dimensions
168
6-5/8˝
Illustration shows the lens attached to the PT-DZ6710/DZ6710/DZ6700/DZ6700L/
DW6300S/DW6300LS/DW6300K/DW6300LK/D6000S/D6000LS/D6000K/D6000LK.
35
432
1-3/8˝
17˝
The illustration shows the lens attached to the PT-D4000.
39
1-17/32˝
429
16-7/8˝
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
For information on the projection distance, refer to the specifications for the projector to which the lens will be mounted. DLP is a trademark of
Texas Instruments. Weights and dimensions shown are approximate. Specifications subject to change without notice.
As of February 2009
< 4 >
