Panasonic NCPC-BARE power cable

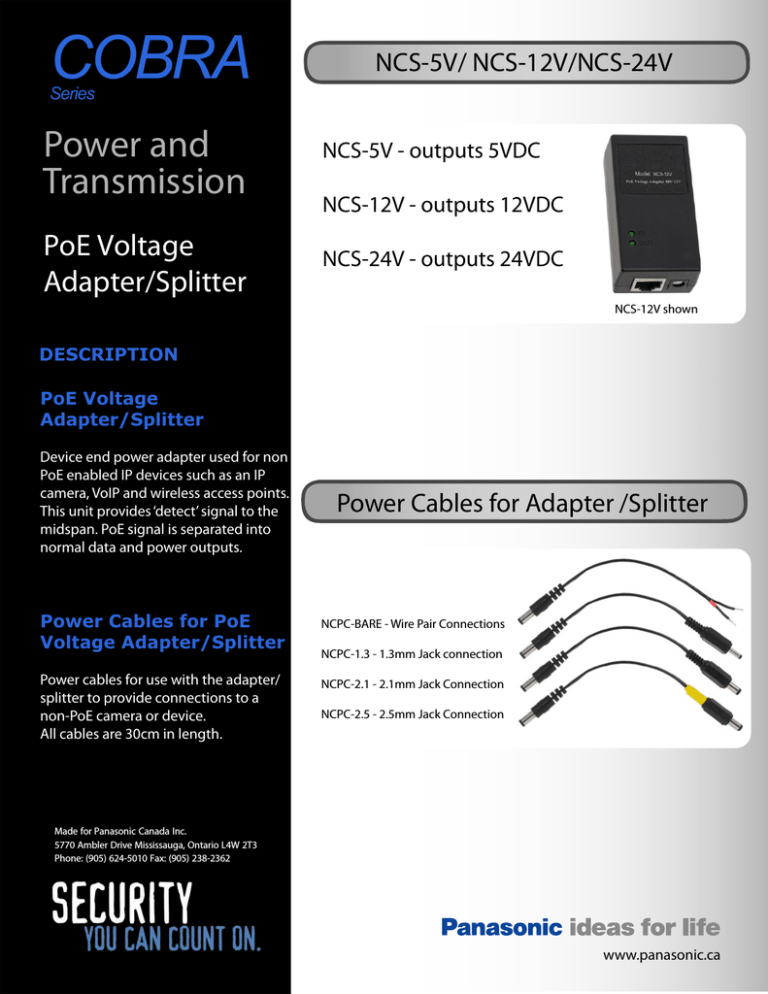

COBRA
Series
Power and
Transmission
PoE Voltage
Adapter/Splitter
NCS-5V/ NC-4HP
NCS-12V/NCS-24V
NCS-5V - outputs 5VDC
NCS-12V - outputs 12VDC
NCS-24V - outputs 24VDC
NCS-12V shown
DESCRIPTION
PoE Voltage
Adapter/Splitter
Device end power adapter used for non
PoE enabled IP devices such as an IP
camera, VoIP and wireless access points.
This unit provides ‘detect’ signal to the
midspan. PoE signal is separated into
normal data and power outputs.
Power Cables
for Adapter /Splitter
NC-4HP
Power Cables for PoE
Voltage Adapter/Splitter
NCPC-BARE - Wire Pair Connections
Power cables for use with the adapter/
splitter to provide connections to a
non-PoE camera or device.
All cables are 30cm in length.
NCPC-2.1 - 2.1mm Jack Connection
NCPC-1.3 - 1.3mm Jack connection
NCPC-2.5 - 2.5mm Jack Connection
Made for Panasonic Canada Inc.
5770 Ambler Drive Mississauga, Ontario L4W 2T3
Phone: (905) 624-5010 Fax: (905) 238-2362
www.panasonic.ca
