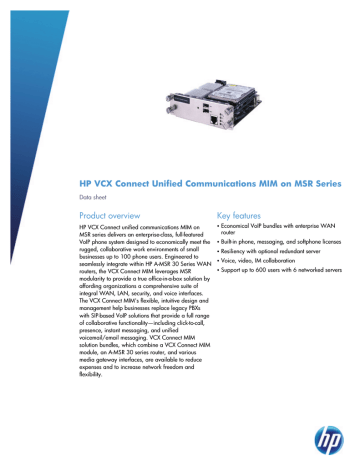

HP VCX Connect Unified Communications MIM on MSR Series

Data sheet

Product overview

HP VCX Connect unified communications MIM on

MSR series delivers an enterprise-class, full-featured

VoIP phone system designed to economically meet the rugged, collaborative work environments of small businesses up to 100 phone users. Engineered to seamlessly integrate within HP A-MSR 30 Series WAN routers, the VCX Connect MIM leverages MSR modularity to provide a true office-in-a-box solution by affording organizations a comprehensive suite of integral WAN, LAN, security, and voice interfaces.

The VCX Connect MIM's flexible, intuitive design and management help businesses replace legacy PBXs with SIP-based VoIP solutions that provide a full range of collaborative functionality—including click-to-call, presence, instant messaging, and unified voicemail/email messaging. VCX Connect MIM solution bundles, which combine a VCX Connect MIM module, an A-MSR 30 series router, and various media gateway interfaces, are available to reduce expenses and to increase network freedom and flexibility.

Key features

b Economical VoIP bundles with enterprise WAN router b Built-in phone, messaging, and softphone licenses b Resiliency with optional redundant server b Voice, video, IM collaboration b Support up to 600 users with 6 networked servers

Features and benefits

Quality of Service (QoS)

Echo cancellation: automatically adjusts and removes echo from a telephone call

Voice activity detection: proprietary algorithm designed to reduce/filter background noise

Comfort noise generation: provides low audible artificial background noise to improve VoIP communications

802.1p/Q VLAN tagging: delivers data to devices based on the priority and type of traffic; supports IEEE 802.1Q

Resiliency and high availability

Enhanced high availability: backup VCX systems, whether co-located with the primary VCX or deployed in another office on the same network, provide geographic survivability and rapid failover for mission-critical communications

Optional redundant power supply: provides seamless business continuity and data protection

Ease of use

Built-in licensing: VCX Connect MIM system ships with default licenses—VCX IP Telephony/IP

Messaging Server license, 25 business phone licenses, 25 IP messaging seat licenses, 25 Desktop

Communicator softphone licenses, 25 Convergence

Client softphone licenses, and 4 analog/entry licenses

LDAP synchronization with Microsoft®

Active Directory, IBM Lotus Domino, Linux

OpenLDAP: easily integrate, filter, and synchronize employee contact information, thereby simplifying administration and ensuring reliable connections based on the most current user information

Ease of deployment: VCX Connect MIM's out-of-the-box first-time configuration provides simpler installations using a Web-based, wizard-like interface that walks you through the installation process

Easy to use: GUI-driven central management and configuration

Configuration

Media gateway support: streamline migration to IP communications and provide PSTN connectivity with a full range of either integrated or standalone

VoIP gateways

Scalability

Supported devices: pay as you grow up to 100 devices per platform and up to 600 devices in total via VCX global directory, which enables up to six

VCX Connect MIM platforms to function as a single system

Integration

Converged IP telephony and data:

Seamlessly integrate the VCX Connect MIM

(multifunction interface module) into an HP A-MSR

30 Series Power over Ethernet (PoE) or non-PoE router to experience enterprise-class routing and telephony functionality

Investment protection

All-in-one solution: decrease capital and operating expenses and increase network freedom and flexibility by integrating a comprehensive suite of available telephony, routing, switching, and security interfaces and features—all in the same box

Analog phone support: leverage existing investment in analog phones while implementing a full set of PBX features

Additional information

Optional mobility for telecommuters: optional HP VCX IP Telecommuting Module allows remote users the full benefit of their corporate IP telephony system without compromising security

Optional multimedia conference bridge: when businesses require a dense conferencing system to reduce the overhead and cost of expensive third-party conferencing products, then the HP VCX IP Conferencing Module is the choice; capabilities include host and participant Web-based conference controls, instant and emergency conferences with automatic dial-out options, scheduled and meet-me restricted conferences

(requires participant passcode), peer-to-peer and one-to-many conferences, and more

Optional network management: use the HP

Intelligent Management Center (IMC) and Voice

Services Manager (VSM) to configure, monitor, and optimize the performance of media servers, gateways, and endpoints; to monitor VoIP traffic; and to control voice network quality

2

Product architecture

Multi-site architecture: highly flexible architecture eliminates the dependency on any single component for unprecented resiliency and end-to-end survivability; use Web-based centralized administration, global directory, and global voicemail to seamlessly link VCX systems together to scale your IP-PBX network as your business grows

Standards-based IP-PBX: support for standard

PBX and advanced telephony and messaging features based on the IETF Session Initiation Protocol

(SIP) standards; support for third-party SIP-based applications and devices

Integrated server: IP telephony and IP messaging modules run on Linux OS

Voice functionality

Hot desking: mobile users can effortlessly traverse within the VCX system, log into another handset, and have all their desktop extension settings, including voicemail, at their fingertips

Call admission control: fine-tune and throttle media traffic to prevent VoIP over-subscription—even down to a particular extension

Pin codes: prevent unauthorized outbound dialing and/or manage and record telephony calls via forced account codes and customer account and billing codes; pin code portability allows users to roam the VCX system and utilize their existing data

Hunt groups: built-in call distribution provides agent log-in functionality; support for 3 selectable call routing algorithms

Automatic call distribution: add-on economical call center application that includes 5 selectable routing algorithms, the ability to capture real-time statistics, and support for remote agents in various

VCX locations

Technical features

Ad hoc conferencing: VCX Connect MIM supports up to 30 sessions of ad hoc conferencing with a maximum of six parties per conference

Shared lines and extension status: single-line and multi-line phone support and bridged extensions for executives and administrators

User productivity

Unified Communications: increase employee collaboration thru the audio, video, instant messaging, file sharing, and presence capabilities within the HP Desktop Communicator; extend the

Microsoft environment with HP Desktop

Communicator Outlook Edition add-on to enable click-to-call/conference via Microsoft Outlook, to capture and retrieve call notes with Microsoft

Journal, and to perform desktop call recording; HP

VCX is fully integrated with Lotus Sametime

Unified Messaging: consolidate users' voicemail, email and faxes into a single inbox for flexible, location-independent retrieval and management; schedule appropriate times when messages are delivered; send voicemails to individuals or groups using extensive and easy-to-maintain distribution lists; set up find me/follow me services to conveniently manage one’s own anywhere, anytime access to ensure important calls are never missed; auto-deliver incoming fax calls to email and send fax from email

Web user interface: listen to and manage voicemail messages

Warranty and support

1-year warranty: with advance replacement and 30-calendar-day delivery (available in most countries)

Electronic and telephone support: limited electronic and telephone support is available from

HP; refer to www.hp.com/networking/warranty for details on the support provided and the period during which support is available

Software releases: refer to www.hp.com/networking/warranty for details on the software releases provided and the period during which software releases are available for your product(s)

Media warranty: removable media on which HP distributes the software is warranted for ninety (90) days from purchase

3

HP VCX Connect Unified Communications MIM on MSR Series

Specifications

Ports

Physical characteristics

Dimensions

Weight

Memory and processor

Module

Mounting

Environment

Operating temperature

Operating relative humidity

Non-operating/Storage temperature

Electrical characteristics

Voltage

Frequency

Management

Notes

Services

HP VCX Connect Primary MIM Module (JE252A)

1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type

10Base-T, IEEE 802.3u Type 100Base-TX); Duplex: half or full

2 USB 2.0

HP VCX Connect Secondary MIM Module (JE253A) HP MSR 30-16 Router with VCX Connect Primary

MIM, 4-port FXO and 2-port FXS Modules (JD025A)

1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type

10Base-T, IEEE 802.3u Type 100Base-TX); Duplex: half or full

2 USB 2.0

3 RJ-45 auto-sensing 10/100 ports (IEEE 802.3

Type 10Base-T, IEEE 802.3u Type 100Base-TX);

Duplex: half or full

3 USB 2.0

4 RJ-11 FXO ports

2 RJ-11 FXS ports

1 Compact Flash port

8.27(d) x 5.91(w) x 1.57(h) in. (21 x 15 x 4 cm)

(1U height)

2.43 lb. (1.1 kg)

8.27(d) x 5.91(w) x 1.57(h) in. (21 x 15 x 4 cm)

2.43 lb. (1.1 kg)

17.39(d) x 17.4(w) x 1.74(h) in. (44.17 x 44.2 x

4.42 cm) (1U height)

16.25 lb. (7.37 kg) including bundle components

Intel® Celeron® @ 600 MHz, 1 GB DDR SODIMM; storage: 160 GB HD

VCX Connect Primary module slides into HP A-MSR

30 Series router MIM slot

Intel® Celeron® @ 600 MHz, 1 GB DDR SODIMM; storage: 160 GB HD

VCX Connect Secondary module slides into HP

A-MSR 30 Series router MIM slot

VCX Connect Primary module slides into HP A-MSR

30 Series router MIM slot; A-MSR30 router mounts in EIA-standard 19 inch telco rack or equipment cabinet or table top (hardware included)

41°F to 104°F (5°C to 40°C)

10% to 80%

-40°F to 158°F (-40°C to 70°C)

41°F to 104°F (5°C to 40°C)

10% to 80%

-40°F to 158°F (-40°C to 70°C)

41°F to 104°F (5°C to 40°C)

10% to 80%

-40°F to 158°F (-40°C to 70°C)

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;

HTTPS

Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or voicemail ports supported

Support for standalone VCX V7111, VCX V7122,

MSR 20-xx, and MSR 30 Series analog, ISDN, and digital gateways

Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;

HTTPS

Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or voicemail ports supported

Support for standalone VCX V7111, VCX V7122,

MSR 20-xx, and MSR 30 Series analog, ISDN, and digital gateways

Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

100-240 VAC

50 / 60 Hz

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;

HTTPS

Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or voicemail ports supported

MSR 30-16 integrated voice gateways options:

• Supports up to a maximum of twelve (12) analog voice ports

• Supports up to a maximum of eight (8) ISDN voice ports

• Supports up to a maximum of four (4) E1 or T1 digital voice spans

Support for standalone VCX V7111, VCX V7122,

MSR 20-xx, and MSR 30 Series analog, ISDN, and digital gateways

Bundle includes MSR 30-16 router with VCX

Connect Primary MIM, 2-port FXO SIC (qty 2), and

2-port FXS SIC modules

Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

4

HP VCX Connect Unified Communications MIM on MSR Series

Specifications (continued)

Ports

Physical characteristics

Dimensions

Weight

Mounting

Environment

Operating temperature

Operating relative humidity

Non-operating/Storage temperature

Electrical characteristics

Voltage

Frequency

Management

Notes

Services

HP MSR 30-40 Router with VCX Connect Primary MIM, 8-port FXO and 4-port

FXS Modules (JD026A)

1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type 10Base-T, IEEE 802.3u

Type 100Base-TX); Duplex: half or full

4 USB 2.0

8 RJ-11 FXO ports

4 RJ-11 FXS ports

2 RJ-45 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE

802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Duplex:

10Base-T/100Base-TX: half or full; 1000Base-T: full only

2 SFP

1 Compact Flash port

HP MSR 30-40 Router with VCX Connect Primary MIM, 8-port BRI-ST and 4-port

FXS Modules (JD027A)

1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type 10Base-T, IEEE 802.3u

Type 100Base-TX); Duplex: half or full

4 USB 2.0

8 RJ-45 ISDN voice ports

4 RJ-11 FXS ports

2 RJ-45 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE

802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Duplex:

10Base-T/100Base-TX: half or full; 1000Base-T: full only

2 SFP

1 Compact Flash port

16.62(d) x 17.4(w) x 3.47(h) in. (42.21 x 44.2 x 8.81 cm) (2U height)

30.29 lb. (13.74 kg) including bundle components

VCX Connect Primary module slides into HP A-MSR 30 Series router MIM slot;

A-MSR30 router mounts in EIA-standard 19 inch telco rack or equipment cabinet or table top (hardware included)

16.62(d) x 17.4(w) x 3.47(h) in. (42.21 x 44.2 x 8.81 cm) (2U height)

30.34 lb. (13.76 kg) including bundle components

VCX Connect Primary module slides into HP A-MSR 30 Series router MIM slot;

A-MSR30 router mounts in EIA-standard 19 inch telco rack or equipment cabinet or table top (hardware included)

41°F to 104°F (5°C to 40°C)

10% to 80%

-40°F to 158°F (-40°C to 70°C)

41°F to 104°F (5°C to 40°C)

10% to 80%

-40°F to 158°F (-40°C to 70°C)

100-240 VAC

50 / 60 Hz

IMC - Intelligent Management Center; command-line interface; Web browser;

SNMP Manager; Telnet; HTTPS

Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or voicemail ports supported

MSR 30-40 integrated voice gateways options:

• Supports up to a maximum of twenty-four (24) analog voice ports

• Supports up to a maximum of sixteen (16) ISDN voice ports

• Supports up to a maximum of five (5) E1 or T1 digital voice spans

Support for standalone VCX V7111, VCX V7122, MSR 20-xx, and MSR 30

Series analog, ISDN, and digital gateways

Bundle includes MSR 30-40 router with VCX Connect Primary MIM, 4-port FXO

MIM (qty 2), and 4-port FXS MIM modules

Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

100-240 VAC

50 / 60 Hz

IMC - Intelligent Management Center; command-line interface; Web browser;

SNMP Manager; Telnet; HTTPS

Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or voicemail ports supported

MSR 30-40 integrated voice gateway options:

• Supports up to a maximum of twenty-four (24) analog voice ports

• Supports up to a maximum of sixteen (16) ISDN voice ports

• Supports up to a maximum of five (5) E1 or T1 digital voice spans

Support for standalone VCX V7111, VCX V7122, MSR 20-xx, and MSR 30

Series analog, ISDN, and digital gateways

Bundle includes MSR 30-40 router with VCX Connect MIM Primary, 4-port

BRI-ST MIM (qty 2), and 4-port FXS MIM modules

Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

5

HP VCX Connect Unified Communications MIM on MSR Series

Specifications (continued)

Ports

Physical characteristics

Dimensions

Weight

Mounting

Environment

Operating temperature

Operating relative humidity

Non-operating/Storage temperature

Electrical characteristics

Voltage

Frequency

Management

Notes

Services

HP MSR 30-40 Router with VCX Connect Primary MIM, T1, 4-port FXO and

4-port FXS Modules (JD028A)

1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type 10Base-T, IEEE 802.3u

Type 100Base-TX); Duplex: half or full

4 USB 2.0

1 RJ-45 T1 port

4 RJ-11 FXO ports

4 RJ-11 FXS ports

2 RJ-45 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE

802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Duplex:

10Base-T/100Base-TX: half or full; 1000Base-T: full only

2 SFP

1 Compact Flash port

HP MSR 30-40 Router with VCX Connect Primary MIM, E1, 4-port BRI-ST and

4-port FXS Modules (JD029A)

1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type 10Base-T, IEEE 802.3u

Type 100Base-TX); Duplex: half or full

4 USB 2.0

1 E1 port

4 RJ-45 ISDN voice ports

4 RJ-11 FXS ports

2 RJ-45 auto-sensing 100/1000 ports (IEEE 802.3u Type 100Base-TX, IEEE

802.3ab Type 1000Base-T); Duplex: 100Base-TX: half or full; 1000Base-T: full only

2 SFP

1 Compact Flash port

16.62(d) x 17.4(w) x 3.47(h) in. (42.21 x 44.2 x 8.81 cm) (2U height)

30.23 lb. (13.71 kg) including bundle components

VCX Connect Primary module slides into HP A-MSR 30 Series router MIM slot;

A-MSR30 router mounts in EIA-standard 19 inch telco rack or equipment cabinet or table top (hardware included)

16.62(d) x 17.4(w) x 3.47(h) in. (42.21 x 44.2 x 8.81 cm) (2U height)

30.23 lb. (13.71 kg) including bundle components

VCX Connect Primary module slides into HP A-MSR 30 Series router MIM slot;

A-MSR30 router mounts in EIA-standard 19 inch telco rack or equipment cabinet or table top (hardware included)

41°F to 104°F (5°C to 40°C)

10% to 80%

-40°F to 158°F (-40°C to 70°C)

41°F to 104°F (5°C to 40°C)

10% to 80%

-40°F to 158°F (-40°C to 70°C)

100-240 VAC

50 / 60 Hz

IMC - Intelligent Management Center; command-line interface; Web browser;

SNMP Manager; Telnet; HTTPS

Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or voicemail ports supported

MSR 30-40 integrated voice gateway options:

• Supports up to a maximum of twenty-four (24) analog voice ports

• Supports up to a maximum of sixteen (16) ISDN voice ports

• Supports up to a maximum of five (5) E1 or T1 digital voice spans

Support for standalone VCX V7111, VCX V7122, MSR 20-xx, and MSR 30

Series analog, ISDN, and digital gateways

Bundle includes MSR 30-40 router with VCX Connect Primary MIM, 1-port T1

MIM, 24-Channel VPM, 4-port FXO MIM, and 4-port FXS MIM modules

Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

100-240 VAC

50 / 60 Hz

IMC - Intelligent Management Center; command-line interface; Web browser;

SNMP Manager; Telnet; HTTPS

Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or voicemail ports supported

MSR 30-40 integrated voice gateway options:

• Supports up to a maximum of twenty-four (24) analog voice ports

• Supports up to a maximum of sixteen (16) ISDN voice ports

• Supports up to a maximum of five (5) E1 or T1 digital voice spans

Support for standalone VCX V7111, VCX V7122, MSR 20-xx, and MSR 30

Series analog, ISDN, and digital gateways

Bundle includes MSR 30-40 router with VCX Connect Primary MIM, 1-port E1

MIM, 32-Channel VPM, 4-port BRI-ST MIM, and 4-port FXS MIM modules

Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

6

HP VCX Connect Unified Communications MIM on MSR Series

Specifications (continued)

Features SYSTEM

Ad hoc conferencing

Centralized management

Call detail records

Converged application based architecture

Emergency services

End-to-end SIP signaling

Global directory

Global voice mail

IP telephony

IP unified messaging

Linux operating system with additional security

SIP back-to-back user Agent

Standards-based connectivity

System redundancy

Web services SDK

RESILIENCY

Redundancy, IP telephony

Redundancy, IP messaging

Redundancy, IP phones and media gateways

Redundancy, optional RAID

Redundancy, optional power supply

SYSTEM ADMINISTRATION

Add VCX licenses

Administration access control

Administration secure access

Audit trails and logging enhancements

Command Line Interface

Configuration back-up and restore

CPU, memory, I/O statistics

First-time configuration

First-time data import

Importing data

Installed component versions

Multiple administrators

Multiple language support

Online administrator help

Password support, administrator and system access

Provisioning; bulk moves, adds, changes

Remove previous software versions

Resetting a VCX server

Reset to defaults

Root directory access

Searches

Site configuration data

Software upgrades and rollbacks

Switch software versions

System information

User data LDAP synchronization: Lotus Domino running on IBM; Lotus Domino running on

Windows® Server 2003, 2008; Microsoft Active

Directory on Windows Server 2003, 2008;

OpenLDAP on Linux

VCX service licensing

View VCX licensing data

Virtual numbers

QUALITY OF SERVICE

DSCP tagging

Dynamic jitter buffer

G.711 audio codec

G.729ab audio codec

Packet-loss rate

Pay-load length

QoS: 802.1p tagging (Prioritization)

QoS: 802.1Q tagging (VLAN)

Video codec

Video resolution

Wide-band audio codec

SECURITY

Network security policies

Operating system security

Secure access

Security: Locking MAC addresses to switches

User authentication methods

SYSTEM MANAGEMENT

Alarm notification

Audio performance reporting (local)

Auto discovery and management of IP devices

Intelligent Management Center Voice Service

Manager: centralized management

Maintenance, graceful shutdown of services

Operating system updates

Quality of service end of call reporting

SNMP MIB access

SNMP traps

SNMP v1, v3

System back-ups

REPORTING

Call detail records (reporting)

Call detail records (structure)

IP TELEPHONY CALLING

Anonymous all

Anonymous next

Anonymous call reject

Automatic call distribution (ACD)

ACD groups (call coverage)

ACD groups (calling groups)

ACD groups (CDR reporting)

ACD groups (circular)

ACD groups (feature interactions)

ACD groups (least-call count)

ACD groups (linear)

ACD groups (login/logout)

ACD groups (malicious call trace)

ACD groups (message-waiting indication)

ACD groups (most idle agent)

ACD groups (multisite)

ACD groups (real-time statistics)

ACD groups (view ACD group status)

Automatic line selection (Multiple system appearance)

Bridged line appearance

Bridge line appearance (MWI)

Bridge line appearance (shared hold)

Busy lamp field

Call conference (drop)

Call conference (six-way calling)

Call conference (three-way calling)

Call coverage

Call drop

Call duration display

Call forward all (universal)

Call forward busy

Call forward no answer

Call forward out-of-coverage

Call forward programmable

Call forward reminder

Call forward remote

Call history (missed/answered/placed logs)

Call history display sort

Call hold

Call hold reminder

Call park/retrieve

Call park (button mapping)

Call park (fallback)

Call pick-up (directed)

Call pick-up (group)

Call restrictions (black list)

Call restrictions (blocking inbound)

Call restrictions (blocking outbound)

Call restrictions (call screening)

Call restrictions (forward to trunk)

Call restrictions (toll screening)

Call restrictions (transfer to trunk)

Call restrictions (white list)

Call return

Call transfer (attended)

Call transfer (fallback on transfer failure)

Call transfer (unattended)

Call transfer (restrictions)

Call waiting

Caller ID (called party)

Caller ID (calling party number)

Caller ID (calling party name)

Caller ID (privacy)

Camp on busy (automatic call back)

Class of service override

Customer account and billing codes

Delayed or no ringing

Directory (local user)

Directory (global user)

Distinctive ringing, ring patterns (different call types)

Distinctive ringing, selective ringing (ident-a-call)

Do not disturb

DTMF dialing

Feature codes

Feature access codes

Forced account codes

Forward to mail

Hands-free support

Hotline (hot ring down circuits)

Hunt groups

Hunt groups (call coverage)

Hunt groups (calling group)

Hunt groups (circular)

Hunt groups (feature interactions)

Hunt groups (linear)

Hunt groups (login/logout)

Hunt groups (malicious call trace)

Hunt groups (message-waiting indication)

Hunt groups (multisite)

Hunt groups (view hunt group status)

Last number redial

Malicious call trace

Message-waiting indication (MWI), audio

Message-waiting indication (MWI), visual

Missed call indicator

Mobility (multisite hot desking)

Mobility (single-region hot desking)

Music on hold

Mute

Paging (analog external paging system)

Paging (group - zone)

Paging (phone-to-phone), send beep with calling number

Paging (SIP external paging system)

Phone lock/unlock

Privacy (block silect monitor/barge-in)

Privacy (calling number suppression)

Serial calling (transfer with callback)

Silent monitor/barge-in

Simultaneous Ringing

Speed dial (personal)

Speed dial (system)

Transfer to voicemail (direct)

Voicemail access

Warmline (warm ring down circuits)

IP TELEPHONY ROUTING

Calendar bands

Call admission control

Call blocking

Daytime bands

Dialing prefixes

Direct Inward Dialing (DID)

Direct Outward Dialing (DOD)

DNIS (Dialed Number Identification Service)

E.164 numbering plan

External directory access

Holidays

NANP support

Network abbreviated dialing

Number translations

Outdial patterns

Patterns

Prioritization of trunks/routes

Private line service

Requestors

Routes

Route (plans and plan wizard)

Routing (alternate)

Routing (blacklist)

Routing (call coverage)

Routing (first available)

Routing (global directory)

Routing (IP to PSTN)

Routing (IP to IP)

Routing (least cost)

Routing (PSTN to IP)

Routing (source based)

7

HP VCX Connect Unified Communications MIM on MSR Series

Specifications (continued)

Features Routing (VPN numbering plan)

Routing (white list)

Trusted end points

Weekday bands

IP MESSAGING ARCHITECTURAL

G.711

G.729

Global voicemail central server

Redundancy (intelligent mirroring)

IP MESSAGING

Message annotation

Message append

Message auto-delivery

Message auto playback

Message broadcast

Message delete

Message delete retrieval

Message delivery report

Message delivery to non-subscribers

Message deposit

Message deposit treatment options

Message folders

Message forward

Message notification

Message notification options

Message priority

Message record options

Message reply

Message retrieval

Message review

Message review options

Message review playback controls

Message save

Message schedule delivery

Message send

Message send treatment options

Mailbox login

GREETING

Default system greeting

Personal busy greeting

Personal extended absence greeting

Personal normal greeting

Personal scheduled greetings

DISTRIBUTION LIST

Administrator distribution lists

Personal distribution lists

System distribution lists

DIRECTORY

Directory search

Directory search (dial-by-name)

USER PRODUCTIVITY

Auto attendants

Bulletin board

Call back

Call monitor

Family mailbox

Force password change

Listen and manage voicemail messages from Web user interface

Mailbox alias

Mailbox auto login

Mailbox full alert

Mailboxes for announcements

Mailboxes for forms (Q&A)

Mailboxes for information

Mailboxes for surveys

Mailboxes for system bulletins/broadcasts

Message-waiting indication

Music-on-hold

Outline help

Personal address book

Personal auto-attendant

Privacy

Prompt bypass

Set-up assistant tutorial

Shortcut keys

User password change

User provisioning through TUI

User provisioning through Web

Virtual calling card

Zero out

FIND ME/FOLLOW ME

Find me/follow me

Find me/follow me call intercept

FAX MAIL

Electronic fax sending

Fax auto-delivery to email

Fax auto-delivery to fax machine

Fax delivery to fax machine

Fax message deposit

Fax message retrieval

Never-busy fax

EMAIL INTEGRATION

Client integration

Email auto delivery

Email integration

Email synchronization

Fax attachment in email (.tif or .pdf formats)

Unified inbox for Domino on Windows

Voicemail POP3/IMAP4 client integration

IP MESSAGING ADMINISTRATION

Administration of all parameters through X-terminal interface

Class of service administration

Company/division administration

Export mailbox/COS

Import mailbox/COS

IMAP SSLv3 support

IP messaging Web portal

Mailbox administration

Mailbox on-the-fly

Mailbox un-login

Multiple administration

Multiple language support

Multiple permission levels

Pager templates

Send-user groups

Support for multi-language voicemail

Telephone user interface (native)

Telephone user interface (traditional)

Time zones

Upload audio files via Web interface

VPIM support

IP MESSAGING MANAGEMENT

System alarms

System backup

System restoration

System status

LANGUAGE SUPPORT

Chinese (Mandarin), Dutch, English (Australian, UK and US), French (Canadian and Parisian), German,

Italian, Korean, Portuguese (Brazilian), Russian and

Spanish (Castilian and LAT)

8

HP VCX Connect Unified Communications MIM on MSR Series accessories

Cables

HP X260 E1 BNC 75 ohm 3m Router Cable (JD175A)

HP X260 E1 RJ45 3m Router Cable (JD509A)

HP X260 E1 RJ45 BNC 75-120 ohm Conversion Router

Cable (JD511A)

HP X260 E1 BNC 20m Router Cable (JD514A)

HP X260 E1 BNC 75 ohm 40m Router Cable (JD516A)

HP X260 E1 RJ45 20m Router Cable (JD517A)

HP X260 T1 Router Cable (JD518A)

Power Supply

HP RPS 800 A Redundant Power Supply (JD183A)

License

HP VCX Business IP Phone License (JE427A)

HP VCX Basic IP Phone License (JE426A)

HP VCX Third Party IP Phone License (JE444A)

HP VCX Business IP Phone License 50 Bundle (JE332A)

HP VCX Basic IP Phone License 50 Bundle (JE329A)

HP VCX Business IP Phone License 250 Bundle (JE331A)

HP VCX Basic IP Phone License 250 Bundle (JE328A)

HP VCX Entry/Analog Phone License (JE425A)

HP VCX IP Messaging Seat License (JE301A)

HP VCX IP Messaging Seat License 50 Bundle (JC515A)

HP VCX IP Messaging Seat License 250 Bundle (JC514A)

HP VCX Desktop Communicator Standalone Soft Phone

License (JE435A)

HP VCX Desktop Communicator Outlook Edition Standalone

Soft Phone License (JE436A)

HP VCX Desktop Communicator to Outlook Edition Upgrade

Soft Phone License (JE437A)

HP VCX Desktop Communicator Soft Phone License 50

Bundle (JE334A)

HP VCX Desktop Communicator Outlook Edition Soft Phone

License 50 Bundle (JE336A)

HP VCX Desktop Communicator Soft Phone License 250

Bundle (JE333A)

HP VCX Desktop Communicator Outlook Edition Soft Phone

License 250 Bundle (JE335A)

HP VCX Convergence Center Client Standalone License

(JE434A)

HP VCX ACD Agent License (JE422A)

HP VCX ACD 5 Agent License (JE424A)

HP VCX ACD 10 Agent License (JE423A)

Routers

HP A-MSR30-16 Multi-Service Router (JF233A)

HP A-MSR30-16 PoE Multi-Service Router (JF234A)

HP A-MSR30-20 Multi-Service Router (JF284A)

HP A-MSR30-20 PoE Multi-Service Router (JF802A)

HP A-MSR30-40 Multi-Service Router (JF229A)

HP A-MSR30-40 PoE Multi-Service Router (JF803A)

HP A-MSR30-60 Multi-Service Router (JF230A)

HP A-MSR30-60 PoE Multi-Service Router (JF804A)

Router Modules

HP 24-Channel Voice Processor A-MSR Module (JD599A)

HP 32-Channel Voice Processor A-MSR Module (JD598A)

HP Voice Co-Processor Module A-MSR Module (JD610A)

HP 1-port FXO SIC A-MSR Module (JD559A)

HP 2-port FXO SIC A-MSR Module (JD558A)

HP 1-port FXS SIC A-MSR Module (JD561A)

HP 2-port FXS SIC A-MSR Module (JD560A)

HP 2FXS+1FXO Voice Interface SIC A-MSR Module

(JD632A)

HP 2-port ISDN-S/T Voice Interface SIC Module (JF821A)

HP 1-port E1-Voice SIC A-MSR Module (JD575A)

HP 1-port T1-Voice SIC A-MSR Module (JD576A)

HP 4-port Voice E/M MIM A-MSR Module (JD539A)

HP 2-port FXO MIM A-MSR Module (JD543A)

HP 4-port FXO MIM A-MSR Module (JD542A)

HP 4-port FXS MIM A-MSR Module (JD553A)

HP 16-port FXS Voice Interface MIM Module (JF822A)

HP 4-port ISDN BRI S/T Voice Interface MIM Module

(JF837A)

HP 1-Port E1 Voice MIM A-MSR Module (JD565A)

HP 1-port T1 Voice MIM A-MSR Module (JD566A)

HP 2-port E1-Voice MIM A-MSR Module (JD567A)

HP 2-port T1-Voice MIM A-MSR Module (JD568A)

To learn more, visit www.hp.com/networking

© Copyright 2010 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Intel and Celeron are trademarks of Intel Corporation in the U.S. and other countries. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.

4AA3-0836ENW, Created August 2010

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
