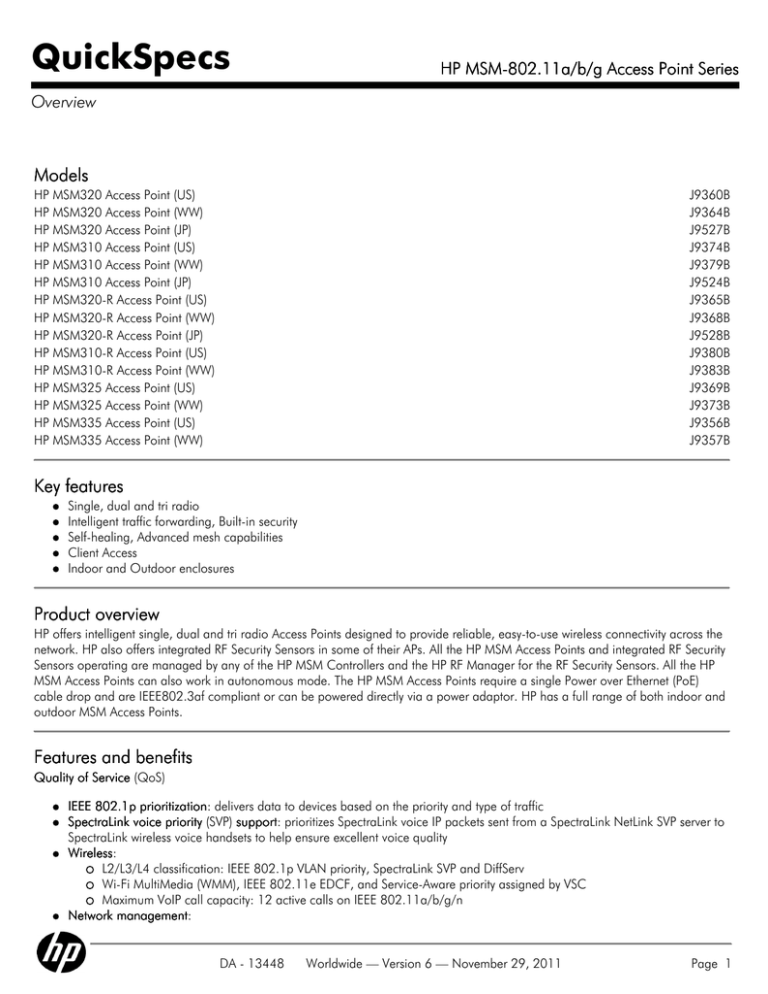

QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Overview
Models
HP MSM320 Access Point (US)
HP MSM320 Access Point (WW)
HP MSM320 Access Point (JP)
HP MSM310 Access Point (US)
HP MSM310 Access Point (WW)
HP MSM310 Access Point (JP)
HP MSM320-R Access Point (US)
HP MSM320-R Access Point (WW)
HP MSM320-R Access Point (JP)
HP MSM310-R Access Point (US)
HP MSM310-R Access Point (WW)
HP MSM325 Access Point (US)
HP MSM325 Access Point (WW)
HP MSM335 Access Point (US)
HP MSM335 Access Point (WW)
J9360B
J9364B
J9527B
J9374B
J9379B
J9524B
J9365B
J9368B
J9528B
J9380B
J9383B
J9369B
J9373B
J9356B
J9357B
Key features
Single, dual and tri radio
Intelligent traffic forwarding, Built-in security
Self-healing, Advanced mesh capabilities
Client Access
Indoor and Outdoor enclosures
Product overview
HP offers intelligent single, dual and tri radio Access Points designed to provide reliable, easy-to-use wireless connectivity across the
network. HP also offers integrated RF Security Sensors in some of their APs. All the HP MSM Access Points and integrated RF Security
Sensors operating are managed by any of the HP MSM Controllers and the HP RF Manager for the RF Security Sensors. All the HP
MSM Access Points can also work in autonomous mode. The HP MSM Access Points require a single Power over Ethernet (PoE)
cable drop and are IEEE802.3af compliant or can be powered directly via a power adaptor. HP has a full range of both indoor and
outdoor MSM Access Points.
Features and benefits
Quality of Service (QoS)
IEEE 802.1p prioritization:
prioritization delivers data to devices based on the priority and type of traffic
SpectraLink voice priority (SVP) support:
support prioritizes SpectraLink voice IP packets sent from a SpectraLink NetLink SVP server to
SpectraLink wireless voice handsets to help ensure excellent voice quality
Wireless:
Wireless
L2/L3/L4 classification: IEEE 802.1p VLAN priority, SpectraLink SVP and DiffServ
Wi-Fi MultiMedia (WMM), IEEE 802.11e EDCF, and Service-Aware priority assigned by VSC
Maximum VoIP call capacity: 12 active calls on IEEE 802.11a/b/g/n
Network management:
management
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 1
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Overview
Fully manageable using HP PCM 3.0 AU1 and HP Mobility Manager 3.0 AU2
SNMP v2c, SNMP v3, MIB-II with Traps, and RADIUS Authentication Client MIB (RFC 2618)
Embedded HTML management tool with secure access (SSL and VPN)
Scheduled configuration and firmware upgrades from central server
Diagnostic:
Diagnostic
Client event log records association, authentication, and DHCP events
Packet capture tool for Ethernet and IEEE 802.11 interfaces (PCAP format)
Data rate matrix
RF management:
management
Automatically selects channel on power-up and continuously improves channel selection based on background
interference scan
Configurable background rogue scanning
Automatically adjusts transmit power to reduce interference
Connectivity
Auto-MDIX:
Auto-MDIX automatically adjusts for straight-through or crossover cables on all 10/100 ports
IEEE 802.3af Power over Ethernet (PoE) support:
support simplifies deployment and dramatically reduces installation costs by helping
to eliminate the time and cost involved in supplying local power at each access point location
Mobility
Anytime wireless coverage:
coverage
Single, dual, and tri-radio IEEE 802.11a/b/g access points
Per-radio software-selectable configuration of frequency bands
Self-healing, self-optimizing local mesh extends network availability
Wi-Fi Alliance certified for interoperability with all 802.11a/b/g client devices
IEEE 802.3af PoE or external power cord on selected models
Interoperability:
Interoperability Wi-Fi Alliance certifications, including IEEE 802.11g Wi-Fi and WPA2 to help ensure multivendor
interoperability
Virtual Service Communities (VSCs):
Up to 16 SSIDs, each with unique MAC address, configurable SSID broadcasts
Individual security and QoS profiles per VSC
Configurable DTIM and minimum data rate per VSC
Each VSC can be mapped to separate IEEE 802.1Q VLANs
WMM and/or WMM-PS
Security filter
IP filter
AP client access control functions:
functions
IEEE 802.1X authentication using EAP-SIM, EAP-FAST, EAP-TLS, EAP-TTLS, and PEAP
MAC address authentication using local or RADIUS access lists
RADIUS AAA using EAP-MD5, PAP, CHAP, and MS-CHAPv2
RADIUS Client (RFC 2865 and 2866) with location-aware support
Layer 2 wireless client isolation
Auto Channel Select (ACS): helps reduce radio co-channel interference by automatically selecting the radio channel with the
least interference
E-MSM325 and E-MSM335 with HP RF sensor license Included:
Included ready, out of the box, to function as an RF monitor for the
HP RF Manager IDS/IPS system
Security
Choice of IEEE 802.11i, Wi-Fi Protected Access 2 (WPA2),, or WPA:
WPA locks out unauthorized wireless access by authenticating
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 2
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Overview
users prior to granting network access; robust Advanced Encryption Standard (AES) or Temporal Key Integrity Protocol (TKIP)
encryption secures the data integrity of wireless traffic
Local wireless bridge client traffic filtering:
filtering when enabled, prevents communication between wireless devices associated with
the same access point
IEEE 802.1X:
802.1X provides port-based user authentication with support for Extensible Authentication Protocol (EAP) MD5, TLS,
TTLS, and PEAP with choice of AES, TKIP, and static or dynamic WEP encryption for protecting wireless traffic between
authenticated clients and the access point
Warranty and support
Lifetime Warranty:
Warranty
for as long as you own the product, with next-business-day advance replacement (available in most countries)
Electronic and telephone support:
support limited electronic and telephone support is available from HP; refer to the HP Web site at:
www.hp.com/networking/support for details on the support provided and the period during which support is available
Software releases:
releases refer to the HP Web site at: www.hp.com/networking/support for details on the software releases provided
and the period during which software releases are available
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 3
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Technical Specifications
HP MSM320 Access Point (US) (J9360B)
HP MSM320 Access Point (WW) (J9364B)
HP MSM320 Access Point (JP) (J9527B)
2 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX);
Ports
Duplex: half or full
Dual (a/b/g)
AP characteristics
Radios
Radio operation modes Client access, Local mesh, Packet capture, Optional RF security
Autonomous and controlled
AP operation modes
a/b/g Wi-Fi Certified
Wi-Fi Alliance
Certification*
Certification
Physical characteristics
Environment
Electrical characteristics
Frequency band and
Operating channels
Radio
Safety
Emissions
RF Exposure
* HP access points and access devices are Wi-Fi Certified, providing our customers with the assurance
that these products have met and passed the rigorous interoperability testing preformed by the Wi-Fi
Alliance Organization. See the Specifications section of this series for more information.
6.52(d) x 6.4(w) x 1.88(h) in. (16.56 x 16.26 x 4.78 cm)
Dimensions
1.5 lb. (0.68 kg)
Weight
Indoor, plenum rated
Enclosure
32°F to 113°F (0°C to 45°C)
Operating temperature
5% to 95%, noncondensing
Operating relative
humidity
-40°F to 176°F (-40°C to 80°C)
Nonoperating/Storage
temperature
5% to 95%, noncondensing
Nonoperating/Storage
relative humidity
IEEE 802.3af PoE compliant or 5 VDC from available AC power supply
Description
8.6 W
Maximum power rating
(4) RP-SMA with diversity
Antenna Connector
(4) 2 dBi dual-band 2.4/5 GHz omnidirectional antennas
Antenna
4
Number of external
antennas
2.412 - 2.462 GHz (1 - 11 channels)
FCC
5.180 - 5.240 GHz (36 - 48 channels)
5.745 - 5.825 GHz (149 - 165 channels)
2.412 - 2.472 GHz (1 - 13 channels)
EN
5.180 - 5.240 GHz (36 - 48 channels)
2.412 - 2.472 GHz (1 - 13 channels)
RCR
5.170 - 5.230 GHz (34 - 46 channels)
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; ARIB STD-T66; IDA
Registration (Singapore); MIC approval (Korea); RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU)
UL 2043; IEC 60950-1; EN 60950-1; CSA 22.2 No. 950-95; CAN/CSA-C22.2 No. 60950-1-03; EN
60601-1-2
EN 55022 Class B; EN 60601-1-2; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part 15,
Class B
FCC Bulletin OET-65C; RSS-102
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 4
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Technical Specifications
Features
Notes
Services
Optional
- Security sensor software upgrade for use with the HP RF Manager IDS/IPS system
Maximum transmit power varies by country.
3-year, 4-hour onsite, 13x5 coverage for hardware (UN683E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN684E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UN686E)
3-year, 24x7 SW phone support, software updates (UN685E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR939E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR940E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support
(HR941E)
4-year, 4-hour onsite, 13x5 coverage for hardware (US013E)
4-year, 4-hour onsite, 24x7 coverage for hardware (US014E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (US015E)
4-year, 24x7 SW phone support, software updates (US016E)
5-year, 4-hour onsite, 13x5 coverage for hardware (US017E)
5-year, 4-hour onsite, 24x7 coverage for hardware (US018E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (US019E)
5-year, 24x7 SW phone support, software updates (US020E)
3 Yr 6 hr Call-to-Repair Onsite (UW416E)
4 Yr 6 hr Call-to-Repair Onsite (UW417E)
5 Yr 6 hr Call-to-Repair Onsite (UW418E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR943E)
1-year, 24x7 software phone support, software updates (HR942E)
1-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HS830E)
1-year, 24x7 software phone support, software updates + 4 hour hardware exchange (HS831E)
3-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HS832E)
3-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HS832E)
3-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HS833E)
4-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HS834E)
4-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HS835E)
5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HS836E)
5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HS837E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
HP MSM310 Access Point (US) (J9374B)
HP MSM310 Access Point (WW) (J9379B)
HP MSM310 Access Point (JP) (J9524B)
2 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX);
Ports
Duplex: half or full
Single (a/b/g)
AP characteristics
Radios
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 5
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Technical Specifications
Physical characteristics
Environment
Electrical characteristics
Frequency band and
Operating channels
Radio
Safety
Emissions
RF Exposure
Notes
Services
Radio operation modes Client access, Local mesh, Packet capture
Autonomous and controlled
AP operation modes
a/b/g Wi-Fi Certified
Wi-Fi Alliance
Certification*
Certification
* HP access points and access devices are Wi-Fi Certified, providing our customers with the assurance
that these products have met and passed the rigorous interoperability testing preformed by the Wi-Fi
Alliance Organization. See the Specifications section of this series for more information.
6.52(d) x 6.4(w) x 1.88(h) in. (16.56 x 16.26 x 4.78 cm)
Dimensions
1.41 lb. (0.64 kg)
Weight
Indoor, plenum rated
Enclosure
32°F to 122°F (0°C to 50°C)
Operating temperature
Operating relative
humidity
Nonoperating/Storage
temperature
Nonoperating/Storage
relative humidity
Description
Maximum power rating
Antenna Connector
Antenna
Number of external
antennas
FCC
5% to 95%, noncondensing
-40°F to 176°F (-40°C to 80°C)
5% to 95%, noncondensing
IEEE 802.3af PoE compliant or 5 VDC from available AC power supply
6.5 W
(2) RP-SMA with diversity
2) 2 dBi dual-band 2.4/5 GHz omnidirectional antennas
2
2.412 - 2.462 GHz (1 - 11 channels)
5.180 - 5.240 GHz (36 - 48 channels)
5.745 - 5.825 GHz (149 - 165 channels)
EN
2.412 - 2.472 GHz (1 - 13 channels)
5.180 - 5.240 GHz (36 - 48 channels)
RCR
2.412 - 2.472 GHz (1 - 13 channels)
5.170 - 5.230 GHz (34 - 46 channels)
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; ARIB STD-T66; IDA
Registration (Singapore); MIC approval (Korea); RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU)
UL 2043; IEC 60950-1; EN 60950-1; EN 60601-1-2
EN 55022 Class B; EN 60601-1-2; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part 15,
Class B
FCC Bulletin OET-65C; RSS-102; EN 50385
Maximum transmit power varies by country.
3-year, 4-hour onsite, 13x5 coverage for hardware (UN687E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN688E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UN690E)
3-year, 24x7 SW phone support, software updates (UN689E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR924E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR925E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support
(HR926E)
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 6
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Technical Specifications
4-year, 4-hour onsite, 13x5 coverage for hardware (US021E)
4-year, 4-hour onsite, 24x7 coverage for hardware (US022E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (US023E)
4-year, 24x7 SW phone support, software updates (US024E)
5-year, 4-hour onsite, 13x5 coverage for hardware (US025E)
5-year, 4-hour onsite, 24x7 coverage for hardware (US026E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (US027E)
5-year, 24x7 SW phone support, software updates (US028E)
3 Yr 6 hr Call-to-Repair Onsite (UW419E)
4 Yr 6 hr Call-to-Repair Onsite (UW420E)
5 Yr 6 hr Call-to-Repair Onsite (UW421E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR928E)
1-year, 24x7 software phone support, software updates (HR927E)
1-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HV150E)
1-year, 24x7 software phone support, software updates + 4 hour hardware exchange (HV151E)
3-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HV152E)
3-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HU318E)
4-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HU319E)
4-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HU320E)
5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HU321E)
5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HU322E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
Radio characteristics: IEEE 802.11a/b/g
IEEE 802.11a
6 Mbps
Data rate
-87 dBm
Receiver sensitivity
18 dBm
Transmit power
IEEE 802.11a
54 Mbps
-67 dBm
12 dBm
IEEE 802.11b
1 Mbps
-94 dBm
18.5 dBm
IEEE 802.11b
11 Mbps
-87 dBm
18.5 dBm
IEEE 802.11g
6 Mbps
-87 dBm
18 dBm
IEEE 802.11g
54 Mbps
-70 dB
13 dBm
HP MSM320-R Access Point (US) (J9365B)
HP MSM320-R Access Point (WW) (J9368B)
HP MSM320-R Access Point (JP) (J9528B)
1 RJ-45 autosensing 10/100 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex:
Ports
half or full
Dual (a/b/g)
AP characteristics
Radios
Radio operation modes Client access, Local mesh, Packet capture
Autonomous and controlled
AP operation modes
a/b/g Wi-Fi Certified
Wi-Fi Alliance
Certification*
Certification
* HP access points and access devices are Wi-Fi Certified, providing our customers with the assurance
that these products have met and passed the rigorous interoperability testing preformed by the Wi-Fi
Alliance Organization. See the Specifications section of this series for more information.
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 7
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Technical Specifications
Physical characteristics
Mounting
Environment
Electrical characteristics
Frequency band and
Operating channels
Radio
Safety
Emissions
RF Exposure
Features
Notes
Services
Dimensions
Weight
Enclosure
8.44(d) x 7.25(w) x 2.14(h) in. (21.44 x 18.42 x 5.44 cm)
2.91 lb. (1.32 kg) mounting bracket
Die cast aluminum with 3-point silicone rubber gasket; compliant with IP65
and EN61373
Includes pole top U-bolts and wall mounting brackets
Operating temperature
-4°F to 122°F (-20°C to 50°C)
5% to 95%, noncondensing
Operating relative
humidity
-40°F to 176°F (-40°C to 80°C)
Nonoperating/Storage
temperature
5% to 95%, noncondensing
Nonoperating/Storage
relative humidity
IEEE 802.3af PoE compliant
Description
8.6 W
Maximum power rating
(2) Waterproof N-type female (one per radio)
Antenna Connector
(2) 5.5 dBi 2.4 GHz omnidirectional
Antenna
2
Number of external
antennas
2.412 - 2.462 GHz (1 - 11 channels)
FCC
5.180 - 5.240 GHz (36 - 48 channels)
5.745 - 5.825 GHz (149 - 165 channels)
2.412 - 2.472 GHz (1 - 13 channels)
EN
2.412 - 2.472 GHz (1 - 13 channels)
RCR
5.170 - 5.230 GHz (34 - 46 channels)
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; ARIB STD-T66; IDA
Registration (Singapore); MIC approval (Korea); RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU)
UL 60950-1; EN 60950-1
EN 55022 Class B; EN 60601-1-2; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part 15,
Class B
FCC Bulletin OET-65C; RSS-102; EN 50385
Optional
- Security sensor software upgrade for use with the HP RF Manager IDS/IPS system
Maximum transmit power varies by country.
3-year, parts only, global next-day advance exchange (UN551E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UN552E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN553E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UN554E)
3-Year, 9x5 SW phone support, software updates (UY959E)
3-year, 24x7 SW phone support, software updates (UY960E)
1-year, post-warranty, parts only, global next-day advance exchange (UN635PE)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (UN636PE)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (UN637PE)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support
(UN638PE)
3 Yr 6 hr Call-to-Repair Onsite (UW330E)
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 8
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Technical Specifications
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
HP MSM310-R Access Point (US) (J9380B)
HP MSM310-R Access Point (WW) (J9383B)
1 RJ-45 autosensing 10/100 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex:
Ports
half or full
Single (a/b/g)
AP characteristics
Radios
Radio operation modes Client access, Local mesh, Packet capture
Autonomous and controlled
AP operation modes
a/b/g Wi-Fi Certified
Wi-Fi Alliance
Certification*
Certification
* HP access points and access devices are Wi-Fi Certified, providing our customers with the assurance
that these products have met and passed the rigorous interoperability testing preformed by the Wi-Fi
Alliance Organization. See the Specifications section of this series for more information.
8.44(d) x 7.25(w) x 2.14(h) in. (21.44 x 18.42 x 5.44 cm)
Physical characteristics
Dimensions
2.54 lb. (1.15 kg) mounting bracket
Weight
Die cast aluminum with 3-point silicone rubber gasket; compliant with IP65
Enclosure
and EN61373
Outdoor Access Point, includes pole top U-bolts and wall mounting brackets
Mounting
-4°F to 122°F (-20°C to 50°C)
Environment
Operating temperature
5% to 95%, noncondensing
Operating relative
humidity
-40°F to 176°F (-40°C to 80°C)
Nonoperating/Storage
temperature
5% to 95%, noncondensing
Nonoperating/Storage
relative humidity
5% to 95%, noncondensing
Electrical characteristics Description
6.5 W
Maximum power rating
(2) Waterproof N-type female with diversity
Antenna Connector
(2) 5.5 dBi 2.4 GHz omnidirectional
Antenna
2
Number of external
antennas
2.412 - 2.462 GHz (1 - 11 channels)
Frequency band and
FCC
Operating channels
5.745 - 5.825 GHz (149 - 165 channels)
2.412 - 2.472 GHz (1 - 13 channels)
EN
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; ARIB STD-T66; IDA
Radio
Registration (Singapore); MIC approval (Korea); RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU)
UL 60950-1
Safety
EN 55022 Class B; EN 60601-1-2; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part 15,
Emissions
Class B
FCC Bulletin OET-65C; RSS-102; EN 50385
RF Exposure
Outdoor Access Point
Features
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 9
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Technical Specifications
Notes
Services
Maximum transmit power varies by country.
The HP ProCurve MSM310-R Access Point WW J9383A is no longer shipping into Japan
3-year, parts only, global next-day advance exchange (UN647E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UN648E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN649E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UN650E)
1-year, post-warranty, parts only, global next-day advance exchange (UN651PE)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (UN652PE)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (UN653PE)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support
(UN654PE)
3 Yr 6 hr Call-to-Repair Onsite (UW332E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
HP MSM325 Access Point (US) (J9369B)
HP MSM325 Access Point (WW) (J9373B)
2 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX); Duplex:
Ports
half or full
Dual (a/b/g)
AP characteristics
Radios
Radio operation modes Client access, Local mesh, Packet capture, RF security
Autonomous and controlled
AP operation modes
a/b/g Wi-Fi Certified
Wi-Fi Alliance
Certification*
Certification
* HP access points and access devices are Wi-Fi Certified, providing our customers with the assurance
that these products have met and passed the rigorous interoperability testing preformed by the Wi-Fi
Alliance Organization. See the Specifications section of this series for more information.
6.52(d) x 6.40(w) x 1.88(h) in. (16.56 x 16.26 x 4.78 cm)
Physical characteristics
Dimensions
1.5 lb. (0.68 kg)
Weight
Indoor, plenum rated
Enclosure
32°F to 113°F (0°C to 45°C)
Environment
Operating temperature
5% to 95%, noncondensing
Operating relative
humidity
-40°F to 176°F (-40°C to 80°C)
Nonoperating/Storage
temperature
5% to 95%, noncondensing
Nonoperating/Storage
relative humidity
IEEE 802.3af PoE compliant or 5 VDC from available AC power supply
Electrical characteristics Description
8.6 W
Maximum power rating
(4) RP-SMA with diversity
Antenna Connector
(4) 2 dBi dual-band 2.4/5 GHz omnidirectional antennas
Antenna
4
Number of external
antennas
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 10
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Technical Specifications
Frequency band and
Operating channels
Radio
Safety
Emissions
RF Exposure
Features
Notes
Services
FCC
2.412 - 2.462 GHz (1 - 11 channels)
5.180 - 5.240 GHz (36 - 48 channels)
5.745 - 5.825 GHz (149 - 165 channels)
EN
2.412 - 2.472 GHz (1 - 13 channels)
5.180 - 5.240 GHz (36 - 48 channels)
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; ARIB STD-T66; IDA
Registration (Singapore); MIC approval (Korea); RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU)
UL 2043; UL 60950; IEC 60950; IEC 60950-1; EN 60950-1; CSA 22.2 No. 950-95; CAN/CSAC22.2 No. 60950-1-03; EN 60601-1-2
EN 55022 Class B; EN 60601-1-2; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part 15,
Class B
FCC Bulletin OET-65C; RSS-102; EN 50385
Integrated security sensor for use with the HP RF Manager system.
Maximum transmit power varies by country.
The HP MSM325 Access Point WW J9373A is no longer shipping into Japan.
3-year, 4-hour onsite, 13x5 coverage for hardware (HR944E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UN679E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN680E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UN682E)
3-year, 24x7 SW phone support, software updates (UN681E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR945E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support
(HR946E)
4-year, 4-hour onsite, 13x5 coverage for hardware (US005E)
4-year, 4-hour onsite, 24x7 coverage for hardware (US006E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (US007E)
4-year, 24x7 SW phone support, software updates (US008E)
5-year, 4-hour onsite, 13x5 coverage for hardware (US009E)
5-year, 4-hour onsite, 24x7 coverage for hardware (US010E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (US011E)
5-year, 24x7 SW phone support, software updates (US012E)
3 Yr 6 hr Call-to-Repair Onsite (UW413E)
4 Yr 6 hr Call-to-Repair Onsite (UW414E)
5 Yr 6 hr Call-to-Repair Onsite (UW415E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR948E)
1-year, 24x7 software phone support, software updates (HR947E)
1-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HV142E)
1-year, 24x7 software phone support, software updates + 4 hour hardware exchange (HV143E)
3-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HV144E)
3-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HV145E)
4-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HV146E)
4-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HV147E)
5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HV148E)
5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HV149E)
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 11
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Technical Specifications
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
HP MSM335 Access Point (US) (J9356B)
HP MSM335 Access Point (WW) (J9357B)
1 RJ-45 autosensing 10/100/1000 port (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX,
Ports
IEEE 802.3ab Type 1000Base-T); Media Type: Auto-MDIX; Duplex: 10Base-T/100Base-TX: half or full;
1000Base-T: full only
1 RS-232C DB-9 console port
Triple (a/b/g)
AP characteristics
Radios
Radio operation modes Client access, Local mesh, Packet capture, RF security
Autonomous and controlled
AP operation modes
a/b/g Wi-Fi Certified
Wi-Fi Alliance
Certification*
Certification
* HP access points and access devices are Wi-Fi Certified, providing our customers with the assurance
that these products have met and passed the rigorous interoperability testing preformed by the Wi-Fi
Alliance Organization. See the Specifications section of this series for more information.
6.7(d) x 8.8(w) x 2.6(h) in. (17.02 x 22.35 x 6.6 cm)
Physical characteristics
Dimensions
3.97 lb. (1.8 kg) mounting bracket
Weight
Indoor, plenum rated
Enclosure
32°F to 122°F (0°C to 50°C)
Environment
Operating temperature
5% to 95%, noncondensing
Operating relative
humidity
-40°F to 176°F (-40°C to 80°C)
Nonoperating/Storage
temperature
5% to 95%, noncondensing
Nonoperating/Storage
relative humidity
IEEE 802.3af PoE compliant; IEEE 802.3af PoE for Gigabit Ethernet or
Electrical characteristics Description
External power supply available as accessory
12 W
Maximum power rating
(3) RP-SMA
Antenna Connector
(3) Integrated, dual-band 2.4/5 GHz omnidirectional or directional patch
Antenna
antennas (per flap)
6
Number of internal
antennas
3
Number of external
antennas
2.412 - 2.462 GHz (1 - 11 channels)
Frequency band and
FCC
Operating channels
5.180 - 5.240 GHz (36 - 48 channels)
5.745 - 5.825 GHz (149 - 165 channels)
2.412 - 2.472 GHz (1 - 13 channels)
EN
5.180 - 5.240 GHz (36 - 48 channels)
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; ARIB STD-T66; IDA
Radio
Registration (Singapore); MIC approval (Korea); RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU)
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 12
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Technical Specifications
Safety
Emissions
RF Exposure
Features
Notes
Services
UL 2043; UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03
EN 55022 Class B; EN 60601-1-2; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part 15,
Class B
FCC Bulletin OET-65C; RSS-102
Accepts external IEEE 802.11a/b/g (non-diversity)
Will operate all 3 radios; full power on IEEE 802.3af for Gigabit Ethernet
Integrated security sensor for use with the HP RF Manager IDS/IPS system
Maximum transmit power varies by country.
The HP E-MSM335 Access Point WW J9357A is no longer shipping into Japan.
3-year, 4-hour onsite, 13x5 coverage for hardware (UN671E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN672E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UN674E)
3-year, 24x7 SW phone support, software updates (UN673E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR964E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR965E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support
(HR966E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UR988E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UR989E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UR990E)
4-year, 24x7 SW phone support, software updates (UR991E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UR992E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UR993E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UR994E)
5-year, 24x7 SW phone support, software updates (UR995E)
3 Yr 6 hr Call-to-Repair Onsite (UW407E)
4 Yr 6 hr Call-to-Repair Onsite (UW408E)
5 Yr 6 hr Call-to-Repair Onsite (UW409E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR968E)
1-year, 24x7 software phone support, software updates (HR967E)
1-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HV126E)
1-year, 24x7 software phone support, software updates + 4 hour hardware exchange (HV127E)
3-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HV128E)
3-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HV129E)
4-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HV130E)
4-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HV131E)
5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HV132E)
5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HV133E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 13
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Technical Specifications
Standards and protocols Mobility
(applies to all products in IEEE 802.11a High Speed Physical Layer in the 5 GHz Band
series)
IEEE 802.11b Higher-Speed Physical Layer Extension in the 2.4 GHz Band
IEEE 802.11d Global Harmonization
IEEE 802.11g Further Higher Data Rate Extension in the 2.4 GHz Band
IEEE 802.11i Medium Access Control (MAC) Security Enhancements
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 14
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Accessories
HP MSM-802.11a/b/g
Access Point Series
accessories
Power Supply
HP MSM31x/MSM32x Power Supply
HP MSM335/MSM422 Power Supply
HP 1-Port Power Injector
Mounting Kit
HP MSM310/MSM320 Access Point Mounting Bracket
External Antenna
HP 5 dBi @2.4GHz Indoor/Outdoor Omnidir Antenna
HP 8 dBi @ 2.4GHz Outdoor Omnidirectional Antenna
HP 3 dBi Dual-Band Diversity Antenna
HP 7 dBi Dual-Band Directional Antenna
HP Antenna Lightning Arrester
Wireless Antenna
HP Dual Band Indoor Short Omnidirectional Antenna
HP MSM320 Access Point (US) (J9360B)
HP MSM320 RF Sensor License
HP MSM320 Access Point (WW) (J9364B)
HP MSM320 RF Sensor License
HP MSM320 Access Point (JP) (J9527B)
HP MSM320 RF Sensor License
HP MSM320-R Access Point (US) (J9365B)
HP MSM320 RF Sensor License
HP MSM320-R Access Point (WW) (J9368B)
HP MSM320 RF Sensor License
HP MSM320-R Access Point (JP) (J9528B)
HP MSM320 RF Sensor License
DA - 13448
Worldwide — Version 6 — November 29, 2011
J9406A
J9405A
J9407A
J9403A
J8441A
J8444A
J8997A
J8999A
J8996A
J9401A
J9384A
J9384A
J9384A
J9384A
J9384A
J9384A
Page 15
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Accessory Product Details
NOTE: Details are not available for all accessories. The following specifications were available at the time of publication.
HP MSM335/MSM422
Power Supply (J9406A)
Physical characteristics
Weight
Operating temperature
Operating relative
humidity
Nonoperating/Storage
temperature
Environment
Electrical characteristics
Safety
Emissions
Services
DA - 13448
Dimensions
Nonoperating/Storage
relative humidity
Voltage
Current
Maximum power rating
Frequency
Notes
2.64(d) x 4.17(w) x 1.5(h) in. (6.7 x 10.6 x 3.8
cm)
0.73 lb. (0.33 kg)
32°F to 104°F (0°C to 40°C)
5% to 95%, noncondensing
-40°F to 185°F (-40°C to 85°C)
5% to 95%, noncondensing
100-240 VAC
0.3/0.2 A
50 W
50/60 Hz
Maximum power rating and maximum heat
dissipation are the worst-case theoretical
maximum numbers provided for planning the
infrastructure with fully loaded PoE (if equipped),
100% traffic, all ports plugged in, and all
modules populated.
UL 60950; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03
EN 55022 Class B; EN 55024; FCC Part 15, Class B
Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP sales
office.
Worldwide — Version 6 — November 29, 2011
Page 16
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Accessory Product Details
HP E-MSM31x and EMSM32x Power Supply
(J9405A)
Physical characteristics
Environment
Electrical characteristics
HP 1-port Power Injector Physical characteristics
(J9407A)
Environment
Electrical characteristics
Notes
DA - 13448
Weight
Operating temperature
Operating relative
humidity
Nonoperating/Storage
temperature
Nonoperating/Storage
relative humidity
Voltage
3.35(d) x 1.97(w) x 1.27(h) in. (8.5 x 5 x 3.22
cm)
0.88 lb. (0.4 kg)
32°F to 104°F (0°C to 40°C)
5% to 95%, noncondensing
-4°F to 176°F (-20°C to 80°C)
5% to 95%, noncondensing
100-240 VAC
Current
0.5/0.3 A
50/60 Hz
Frequency
Output voltage: 5 VDC
Notes
Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP sales
office.
Services
Safety
Emissions
Dimensions
Dimensions
5.71(d) x 2.36(w) x 1.22(h) in. (14.5 x 6 x 3.1
cm)
1 lb. (0.45 kg)
32°F to 104°F (0°C to 40°C)
5% to 93%, noncondensing
Weight
Operating temperature
Operating relative
humidity
-4°F to 158°F (-20°C to 70°C)
Nonoperating/Storage
temperature
5% to 95%, noncondensing
Nonoperating/Storage
relative humidity
up to 10,000 ft. (3 km)
Altitude
100-240 VAC
Voltage
0.3/0.2 A
Current
50/60 Hz
Frequency
IEEE 802.3af compliant
Notes
UL 60950; EN 60950
EN 55024; EN 55022 (CISPR 22) Class B with FTP Cabling; FCC Part 15,
Class B with FTP cabling
The 1-port power converter has 1 AC power cord input, 1 RJ-45
10/100/1000 Mbps port for data coming from the network infrastructure,
and 1 RJ-45 for data plus IEEE 802.3af-compliant PoE for Gigabit Ethernet
to power the access point.
Worldwide — Version 6 — November 29, 2011
Page 17
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Accessory Product Details
Services
Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP sales
office.
HP 5 dBi @2.4GHz
Electrical characteristics
Indoor/Outdoor Omnidir
Antenna (J8441A)
Physical characteristics
Environment
Services
DA - 13448
Frequency range 1
Gain 1 dBi (with antenna
cable)
VSWR max
E-Plane (3 dB beamwidth)
H-Plane (3 dB beamwidth)
2400 - 2500
4.4
1.7:1
31 degrees
Omnidirectional
Polarization
Linear (vertical)
50
Impedance (Ohms)
Reverse SMA (male)
RF connector
2.75 ft. (0.84 m)
Cable length
11.5(h) in. (29.21 cm)
Dimensions
0.08 sq. ft. (0.01 sq. m)
Wind surface area
125.1 mph (201.13 km/hr)
Wind survival
0.30 lb. (0.14 kg)
Weight
Ceiling T-bar, I-beam, or mast
Mounting style
Polycarbonate
Enclosure
-22ºF to 131ºF (-30ºC to 55ºC)
Operating temperature
-40ºF to 149ºF (-40ºC to 65ºC)
Nonoperating/Storage
temperature
Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP sales
office.
Worldwide — Version 6 — November 29, 2011
Page 18
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Accessory Product Details
HP 8 dBi @ 2.4GHz
Electrical characteristics
Outdoor Omnidirectional
Antenna (J8444A)
Physical characteristics
Services
Electrical characteristics
DA - 13448
2400 - 2500
8
1.5:1
13 degrees
Omnidirectional
Linear (vertical)
50
N (male)
2.75 ft. (0.84 m)
25.25(h) in. (64.14 cm)
Wind surface area
0.11 sq. ft. (0.01 sq. m)
125 mph (201.13 km/hr)
Wind survival
0.5 lb. (0.23 kg)
Weight
Mast
Mounting style
Polycarbonate
Enclosure
-22ºF to 131ºF (-30ºC to 55ºC)
Operating temperature
-40ºF to 149ºF (-40ºC to 65ºC)
Nonoperating/Storage
temperature
Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP sales
office.
Environment
HP 3 dBi Dual-Band
Diversity Antenna
(J8997A)
Frequency range 1
Gain 1 dBi (with antenna
cable)
VSWR max
E-Plane (3 dB beamwidth)
H-Plane (3 dB beamwidth)
Polarization
Impedance (Ohms)
RF connector
Cable length
Dimensions
Frequency range 1
Gain 1 dBi (with antenna
cable)
Frequency range 2
Gain 2 dBi (with antenna
cable)
VSWR max
E-Plane (3 dB beamwidth)
E-plane radiation plots
H-Plane (3 dB beamwidth)
H-plane radiation plots
Impedance (Ohms)
Grounding
RF connector
Cable length
2400 - 2500
3
4900 - 5990
4
2.0:1
60 degrees
2.45 GHz, E Plane
Omnidirectional
2.45 GHz, H Plane
50
DC
Reverse SMA (male)
2.75 ft. (0.84 m)
Worldwide — Version 6 — November 29, 2011
Page 19
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Accessory Product Details
Physical characteristics
Services
Electrical characteristics
Physical characteristics
Environment
Services
DA - 13448
6.16(d) x 3.66(w) x 0.89(h) in. (15.65 x 9.3 x
2.26 cm)
0.5 lb. (0.23 kg)
Ceiling grid
PVC/Acrylic
-22ºF to 131ºF (-30ºC to 55ºC)
-40ºF to 149ºF (-40ºC to 65ºC)
Weight
Mounting style
Enclosure
Operating temperature
Nonoperating/Storage
temperature
Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP sales
office.
Environment
HP 7 dBi Dual-Band
Directional Antenna
(J8999A)
Dimensions
Frequency range 1
Gain 1 dBi (with antenna
cable)
Frequency range 2
Gain 2 dBi (with antenna
cable)
VSWR max
E-Plane (3 dB beamwidth)
E-plane radiation plots
H-Plane (3 dB beamwidth)
H-plane radiation plots
Polarization
Impedance (Ohms)
RF connector
Cable length
Dimensions
2400 - 2500
6.9
4900 - 5990
7.7
2.0:1
66 degrees
E Plane 2.45 GHz
68 degrees
H Plane 2.45 GHz
Linear (vertical)
50
Reverse SMA (male)
2.75 ft. (0.84 m)
5.16(d) x 5.16(w) x 1.37(h) in. (13.11 x 13.11 x
3.48 cm)
0.12 sq. ft. (0.01 sq. m)
120 mph (193.08 km/hr)
0.5 lb. (0.23 kg)
Flush wall mount, articulating wall, or mast
PVC/Acrylic
10
-22ºF to 131ºF (-30ºC to 55ºC)
-40ºF to 149ºF (-40ºC to 65ºC)
Wind surface area
Wind survival
Weight
Mounting style
Enclosure
Front-to-back ratio (dB)
Operating temperature
Nonoperating/Storage
temperature
Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP sales
office.
Worldwide — Version 6 — November 29, 2011
Page 20
QuickSpecs
HP MSM-802.11a/b/g Access Point Series
Accessory Product Details
HP Antenna Lightning
Arrester (J8996A)
Electrical characteristics
Physical characteristics
Notes
Services
HP Dual Band Indoor
Short Omnidirectional
Antenna (J9401A)
Physical characteristics
Notes
Electrical characteristics
Services
VSWR max
Dimensions
1.4:1
2.4(d) x 0.9(w) x 1.2(h) in. (6.1 x 2.29 x 3.05
cm)
Input RF power, 100 MHz/6000 MHz: 250 W/10 W
50 Meg Ohm insulation resistance
Maximum insertion loss of 0.4 dB
Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP sales
office.
Dimensions
3.78(h) in. (9.59 cm)
0.37 in. (0.93 cm)
Base diameter
2.1 dBi (2.45 GHz), 2.4 dBi (4.9 GHz), 2.6 dBi (5.25 GHz), 3.4 dBi (5.875
GHz)
Polarization: vertical, omnidirectional
VSWR 2:1 max. across all bands
Connector
RP-SMA
Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP sales
office.
To learn more, visit: www.hp.com/networking
© Copyright 2011 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without
notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products
and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or
editorial errors or omissions contained herein.
DA - 13448
Worldwide — Version 6 — November 29, 2011
Page 21
