HP JE340A IP communication server

HP VCX Connect 100 Unified Communications Series

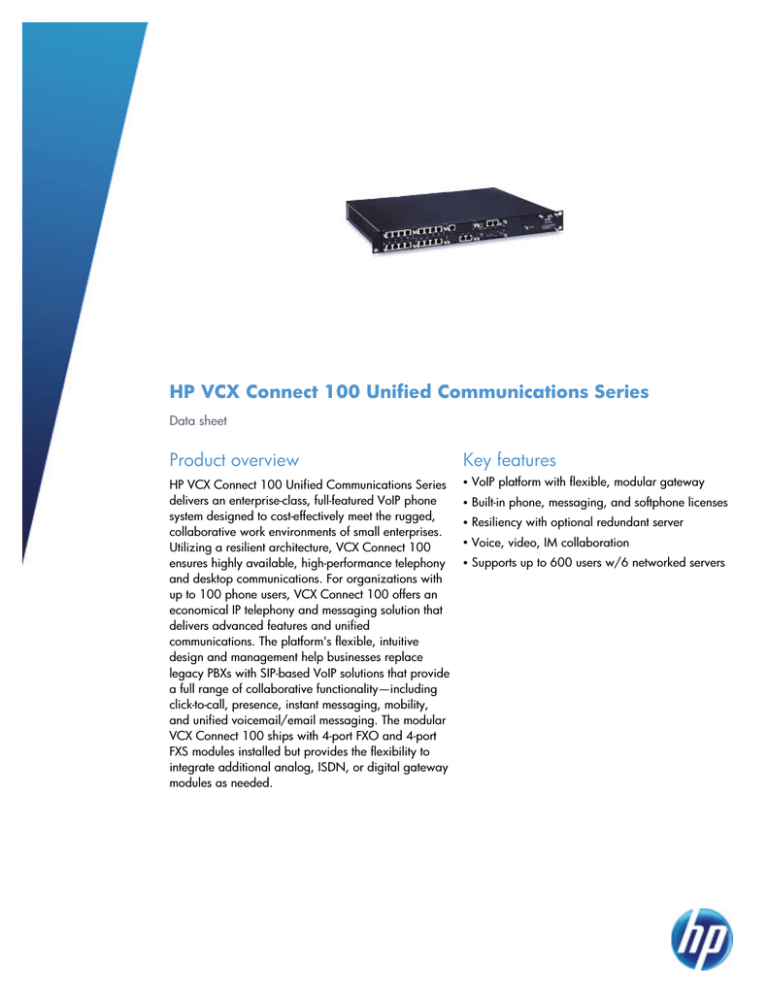

Data sheet
Product overview
Key features
HP VCX Connect 100 Unified Communications Series
delivers an enterprise-class, full-featured VoIP phone
system designed to cost-effectively meet the rugged,
collaborative work environments of small enterprises.
Utilizing a resilient architecture, VCX Connect 100
ensures highly available, high-performance telephony
and desktop communications. For organizations with
up to 100 phone users, VCX Connect 100 offers an
economical IP telephony and messaging solution that
delivers advanced features and unified
communications. The platform's flexible, intuitive
design and management help businesses replace
legacy PBXs with SIP-based VoIP solutions that provide
a full range of collaborative functionality—including
click-to-call, presence, instant messaging, mobility,
and unified voicemail/email messaging. The modular
VCX Connect 100 ships with 4-port FXO and 4-port
FXS modules installed but provides the flexibility to
integrate additional analog, ISDN, or digital gateway
modules as needed.
b
VoIP platform with flexible, modular gateway
b
Built-in phone, messaging, and softphone licenses
b
Resiliency with optional redundant server
b
Voice, video, IM collaboration
b
Supports up to 600 users w/6 networked servers
Features and benefits
Quality of Service (QoS)
• Echo cancellation: automatically adjusts and
removes echo from a telephone call
• Dynamic programmable jitter buffer:
software-configurable setting designed to ensure
voice frames arrive at the same rate
• Voice activity detection: proprietary algorithm
designed to reduce/filter background noise
• Comfort noise generation: provides low
audible artificial background noise to improve VoIP
communications
• 802.1p/Q VLAN tagging: delivers data to
devices based on the priority and type of traffic;
supports IEEE 802.1Q
Resiliency and high availability
• Enhanced high availability: backup VCX
systems, whether co-located with the primary VCX or
deployed in another office on the same network,
provide geographic survivability and rapid failover
for mission-critical communications
• Optional RAID disk: helps ensure resiliency in
the event of component failure
• Optional redundant power supply: provides
seamless business continuity and data protection
Configuration
• Media gateway support: streamlines migration
to IP communications and provides PSTN
connectivity with a full range of either integrated or
standalone VoIP gateways
Investment protection
• Lower total cost of ownership: reduce capital
and operating expenses and increase network
freedom and flexibility by integrating voice gateway
modules
• Analog phone support: leverage existing
investment in analog phones while implementing a
full set of PBX features
Ease of use
• Built-in licensing: VCX Connect 100 system ships
with default licenses—VCX IP Telephony/IP
Messaging Server license, 25 business phone
licenses, 25 IP messaging seat licenses, 25 Desktop
Communicator softphone licenses, 25 Convergence
Client softphone licenses, and 4 analog/entry
licenses
• LDAP synchronization with Microsoft®
Active Directory, IBM Lotus Domino, Linux
OpenLDAP: easily integrate, filter, and
synchronize employee contact information, thereby
simplifying administration and ensuring reliable
connections based on the most current user
information
• Ease of deployment: VCX Connect 100's
out-of-the-box first-time configuration provides
simpler installations using a Web-based, wizard-like
interface that walks you through the installation
process
• Easy to use: GUI-driven central management and
configuration
Scalability
• Supported devices: pay as you grow up to 100
devices per platform and up to 600 devices in total
via VCX global directory, which enables up to six
VCX Connect 100 platforms to function as a single
system
Additional information
• Optional mobility for telecommuters:
optional HP VCX IP Telecommuting Module allows
remote users the full benefit of their corporate IP
telephony system without compromising security
• Optional multimedia conference bridge:
when businesses require a dense conferencing
system to reduce the overhead and cost of
expensive third-party conferencing products, then
the HP VCX IP Conferencing Module is the choice;
capabilities include host and participant Web-based
conference controls, instant and emergency
conferences with automatic dial-out options,
scheduled and meet-me restricted conferences
(requires participant passcode), peer-to-peer and
one-to-many conferences, and more
• Optional network management: use the HP
Intelligent Management Center (IMC) and Voice
Services Manager (VSM) to configure, monitor, and
optimize the performance of media servers,
gateways, and endpoints; to monitor VoIP traffic;
and to control voice network quality
2
Product architecture
Voice functionality
• Multisite architecture: highly flexible
architecture eliminates the dependency on any
single component for unprecedented resiliency and
end-to-end survivability; use Web-based centralized
administration, global directory, and global
voicemail to seamlessly link VCX systems together to
scale your IP-PBX network as your business grows
• Hot desking: mobile users can effortlessly traverse
within the VCX system, log into another handset,
and have all their desktop extension settings,
including voicemail, at their fingertips
• Standards-based IP-PBX: support for standard
PBX and advanced telephony and messaging
features based on the IETF Session Initiation Protocol
(SIP) standards; support for third-party SIP-based
applications and devices
• Integrated server: IP telephony and IP
messaging modules run on Linux OS
Technical features
• Ad hoc conferencing: VCX Connect 100
supports up to 30 sessions of ad hoc conferencing
with a maximum of six parties per conference
• Shared lines and extension status: single-line
and multi-line phone support and bridged extensions
for executives and administrators
User productivity
• Unified Communications: increase employee
collaboration thru the audio, video, instant
messaging, file sharing, and presence capabilities
within the HP Desktop Communicator; extend the
Microsoft environment with HP Desktop
Communicator Outlook Edition add-on to enable
click-to-call/conference via Microsoft Outlook, to
capture and retrieve call notes with Microsoft
Journal, and to perform desktop call recording; HP
VCX is fully integrated with Lotus Sametime
• Call admission control: fine-tune and throttle
media traffic to prevent VoIP over-subscription—even
down to a particular extension
• Pin codes: prevent unauthorized outbound dialing
and/or manage and record telephony calls via
forced account codes and customer account and
billing codes; pin code portability allows users to
roam the VCX system and utilize their existing data
• Hunt groups: built-in call distribution provides
agent log-in functionality; support for 3 selectable
call routing algorithms
• Automatic call distribution: add-on economical
call center application that includes 5 selectable
routing algorithms, the ability to capture real-time
statistics, and support for remote agents in various
VCX locations
Warranty and support
• 1-year warranty: with advance replacement
and 30-calendar-day delivery (available in most
countries)
• Electronic and telephone support: limited
electronic and telephone support is available from
HP; refer to www.hp.com/networking/warranty for
details on the support provided and the period
during which support is available
• Software releases: refer to
www.hp.com/networking/warranty for details on
the software releases provided and the period
during which software releases are available for
• Unified Messaging: consolidate users' voicemail,
your product(s)
email and faxes into a single inbox for flexible,
location-independent retrieval and management;
• Media warranty: removable media on which HP
schedule appropriate times when messages are
distributes the software is warranted for ninety (90)
delivered; send voicemails to individuals or groups
days from purchase
using extensive and easy-to-maintain distribution
lists; set up find me/follow me services to
conveniently manage one’s own anywhere, anytime
access to ensure important calls are never missed;
auto-deliver incoming fax calls to email and send
fax from email
• Web user interface: listen to and manage
voicemail messages
3
HP VCX Connect 100 Unified Communications Series
Specifications
HP VCX Connect 100 Unified Communications Primary Server (JE340A)
HP VCX Connect 100 Unified Communications Secondary Server (JE342A)
6 voice interface module I/O slots
6 voice interface module I/O slots
1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type 10Base-T, IEEE 802.3u
Type 100Base-TX); Duplex: half or full
1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type 10Base-T, IEEE 802.3u
Type 100Base-TX); Duplex: half or full
4 RJ-11 FXO ports
4 RJ-11 FXO ports
4 RJ-11 FXS ports
4 RJ-11 FXS ports
1 RS-232C
1 RS-232C
Physical characteristics
Dimensions
13.82(d) x 19.02(w) x 1.75(h) in. (35.1 x 48.3 x 4.45 cm) (1U height)
13.82(d) x 19.02(w) x 1.75(h) in. (35.1 x 48.3 x 4.45 cm) (1U height)
Weight
16 lb. (7.26 kg) Shipping Weight
16 lb. (7.26 kg) Shipping Weight
Mounting
Mounts in EIA standard 19 inch telco rack or equipment cabinet (hardware
included)
Mounts in EIA standard 19 inch telco rack or equipment cabinet (hardware
included)
Environment
Operating temperature
32°F to 113°F (0°C to 45°C)
32°F to 113°F (0°C to 45°C)
Operating relative humidity
10% to 90%, non-condensing
10% to 90%, non-condensing
Non-operating/Storage temperature
14°F to 158°F (-10°C to 70°C)
14°F to 158°F (-10°C to 70°C)
Electrical characteristics
Voltage
100-240 VAC
100-240 VAC
Frequency
50 / 60 Hz
50 / 60 Hz
Safety
UL 60950-1; EN 60950-1
UL 60950-1; EN 60950-1
Emissions
EN 55022 Class B; EN 55024; FCC CFR 47 Part 15 Class B; EN 300 386;
EN 61000-3-2; EN 61000-3-3
EN 55022 Class B; EN 55024; FCC CFR 47 Part 15 Class B; EN 300 386;
EN 61000-3-2; EN 61000-3-3
Management
IMC - Intelligent Management Center; command-line interface; Web browser;
SNMP Manager; Telnet; HTTPS
IMC - Intelligent Management Center; command-line interface; Web browser;
SNMP Manager; Telnet; HTTPS
Notes
Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant,
music-on-hold, fax or voicemail ports supported
Integrated Gateways Options
• Supports up to a maximum of six (6) analog modules
• Supports up to a maximum of five (5) BRI modules
• Supports up to a maximum of two (2) digital spans
Support for stand-alone VCX V7111, VCX V7122, MSR 20-xx and MSR-30
Series analog, ISDN and digital gateways
Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant,
music-on-hold, fax or voicemail ports supported
Integrated Gateways Options
• Supports up to a maximum of six (6) analog modules
• Supports up to a maximum of five (5) BRI modules
• Supports up to a maximum of two (2) digital spans
Support for stand-alone VCX V7111, VCX V7122, MSR 20-xx and MSR-30
Series analog, ISDN and digital gateways
Services
3-year, parts only, global next-day advance exchange (UW162E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UW163E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UW166E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
support (UW169E)
3-year, 24x7 SW phone support, software updates (UW172E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UW164E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UW167E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
(UW170E)
4-year, 24x7 SW phone support, software updates (UW173E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UW165E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UW168E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
(UW171E)
5-year, 24x7 SW phone support, software updates (UW174E)
3 Yr 6 hr Call-to-Repair Onsite (UW175E)
4 Yr 6 hr Call-to-Repair Onsite (UW176E)
5 Yr 6 hr Call-to-Repair Onsite (UW177E)
3-year, parts only, global next-day advance exchange (UW162E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UW163E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UW166E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
support (UW169E)
3-year, 24x7 SW phone support, software updates (UW172E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UW164E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UW167E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
(UW170E)
4-year, 24x7 SW phone support, software updates (UW173E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UW165E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UW168E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
(UW171E)
5-year, 24x7 SW phone support, software updates (UW174E)
3 Yr 6 hr Call-to-Repair Onsite (UW175E)
4 Yr 6 hr Call-to-Repair Onsite (UW176E)
5 Yr 6 hr Call-to-Repair Onsite (UW177E)
Refer to the HP website at www.hp.com/networking/services for details on the
service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local HP sales office.
Refer to the HP website at www.hp.com/networking/services for details on the
service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local HP sales office.
Ports
4
HP VCX Connect 100 Unified Communications Series
Specifications (continued)
Features
System
Ad hoc conferencing
Centralized management
Call detail records
Converged application based architecture
Emergency services
End-to-end SIP signaling
Global directory
Global voice mail
IP telephony
IP unified messaging
Linux operating system with additional security
SIP back-to-back user Agent
Standards-based connectivity
System redundancy
Web services SDK
Resiliency
Redundancy,
Redundancy,
Redundancy,
Redundancy,
Redundancy,
IP telephony
IP messaging
IP phones and media gateways
optional RAID
optional power supply
System administration
Add VCX licenses
Administration access control
Administration secure access
Audit trails and logging enhancements
Command Line Interface
Configuration back-up and restore
CPU, memory, I/O statistics
First-time configuration
First-time data import
Importing data
Installed component versions
Multiple administrators
Multiple language support
Online administrator help
Password support, administrator and system access
Provisioning; bulk moves, adds, changes
Remove previous software versions
Resetting a VCX server
Reset to defaults
Root directory access
Searches
Site configuration data
Software upgrades and rollbacks
Switch software versions
System information
User data LDAP synchronization: Lotus Domino
running on IBM; Lotus Domino running on
Windows® Server 2003, 2008; Microsoft Active
Directory on Windows Server 2003, 2008;
OpenLDAP on Linux
VCX service licensing
View VCX licensing data
Virtual numbers
Quality of service
DSCP tagging
Dynamic jitter buffer
G.711 audio codec
G.729ab audio codec
Packet-loss rate
Pay-load length
QoS: 802.1p tagging (Prioritization)
QoS: 802.1Q tagging (VLAN)
Video codec
Video resolution
Wide-band audio codec
Security
Network security policies
Operating system security
Secure access
Security: Locking MAC addresses to switches
User authentication methods
System management
Alarm notification
Audio performance reporting (local)
Auto discovery and management of IP devices
Intelligent Management Center Voice Service
Manager: centralized management
Maintenance, graceful shutdown of services
Operating system updates
Quality of service end of call reporting
SNMP MIB access
SNMP traps
SNMPv1, v3
System back-ups
Reporting
Call detail records (reporting)
Call detail records (structure)
IP telephony calling
Anonymous all
Anonymous next
Anonymous call reject
Automatic call distribution (ACD)
ACD groups (call coverage)
ACD groups (calling groups)
ACD groups (CDR reporting)
ACD groups (circular)
ACD groups (feature interactions)
ACD groups (least-call count)
ACD groups (linear)
ACD groups (login/logout)
ACD groups (malicious call trace)
ACD groups (message-waiting indication)
ACD groups (most idle agent)
ACD groups (multisite)
ACD groups (real-time statistics)
ACD groups (view ACD group status)
Automatic line selection (multiple system
appearance)
Bridged line appearance
Bridge line appearance (MWI)
Bridge line appearance (shared hold)
Busy lamp field
Call conference (drop)
Call conference (six-way calling)
Call conference (three-way calling)
Call coverage
Call drop
Call duration display
Call forward all (universal)
Call forward busy
Call forward no answer
Call forward out-of-coverage
Call forward programmable
Call forward reminder
Call forward remote
Call history (missed/answered/placed logs)
Call history display sort
Call hold
Call hold reminder
Call park/retrieve
Call park (button mapping)
Call park (fallback)
Call pick-up (directed)
Call pick-up (group)
Call restrictions (black list)
Call restrictions (blocking inbound)
Call restrictions (blocking outbound)
Call restrictions (call screening)
Call restrictions (forward to trunk)
Call restrictions (toll screening)
Call restrictions (transfer to trunk)
Call restrictions (white list)
Call return
Call transfer (attended)
Call transfer (fallback on transfer failure)
Call transfer (unattended)
Call transfer (restrictions)
Call waiting
Caller ID (called party)
Caller ID (calling party number)
Caller ID (calling party name)
Caller ID (privacy)
Camp on busy (automatic call back)
Class of service override
Customer account and billing codes
Delayed or no ringing
Directory (local user)
Directory (global user)
Distinctive ringing, ring patterns (different call types)
Distinctive ringing, selective ringing (ident-a-call)
Do not disturb
DTMF dialing
Feature codes
Feature access codes
Forced account codes
Forward to mail
Hands-free support
Hotline (hot ring down circuits)
Hunt groups
Hunt groups (call coverage)
Hunt groups (calling group)
Hunt groups (circular)
Hunt groups (feature interactions)
Hunt groups (linear)
Hunt groups (login/logout)
Hunt groups (malicious call trace)
Hunt groups (message-waiting indication)
Hunt groups (multisite)
Hunt groups (view hunt group status)
Last number redial
Malicious call trace
Message-waiting indication (MWI), audio
Message-waiting indication (MWI), visual
Missed call indicator
Mobility (multisite hot desking)
Mobility (single-region hot desking)
Music on hold
Mute
Paging (analog external paging system)
Paging (group - zone)
Paging (phone-to-phone), send beep with calling
number
Paging (SIP external paging system)
Phone lock/unlock
Privacy (block silent monitor/barge-in)
Privacy (calling number suppression)
Serial calling (transfer with callback)
Silent monitor/barge-in
Simultaneous ringing
Speed dial (personal)
Speed dial (system)
Transfer to voicemail (direct)
Voicemail access
Warmline (warm ring down circuits)
IP telephony routing
Calendar bands
Call admission control
Call blocking
Daytime bands
Dialing prefixes
Direct Inward Dialing (DID)
Direct Outward Dialing (DOD)
Dialed Number Identification Service (DNIS)
E.164 numbering plan
External directory access
Holidays
NANP support
Network abbreviated dialing
Number translations
Outdial patterns
Patterns
Prioritization of trunks/routes
Private line service
Requestors
Routes
Route (plans and plan wizard)
Routing (alternate)
Routing (blacklist)
Routing (call coverage)
Routing (first available)
Routing (global directory)
Routing (IP to PSTN)
Routing (IP to IP)
Routing (least cost)
Routing (PSTN to IP)
Routing (source based)
5
HP VCX Connect 100 Unified Communications Series
Specifications (continued)
Features
Routing (VPN numbering plan)
Routing (white list)
Trusted end points
Weekday bands
IP messaging architectural
G.711
G.729
Global voicemail central server
Redundancy (intelligent mirroring)
IP messaging
Message annotation
Message append
Message auto-delivery
Message auto playback
Message broadcast
Message delete
Message delete retrieval
Message delivery report
Message delivery to nonsubscribers
Message deposit
Message deposit treatment options
Message folders
Message forward
Message notification
Message notification options
Message priority
Message record options
Message reply
Message retrieval
Message review
Message review options
Message review playback controls
Message save
Message schedule delivery
Message send
Message send treatment options
Mailbox login
Mailbox login
Greeting
Default system greeting
Personal busy greeting
Personal extended absence greeting
Personal normal greeting
Personal scheduled greetings
Distribution list
Administrator distribution lists
Personal distribution lists
System distribution lists
Directory
Directory search
Directory search (dial-by-name)
User productivity
Auto attendants
Bulletin board
Call back
Call monitor
Family mailbox
Force password change
Listen and manage voicemail messages from Web
user interface
Mailbox alias
Mailbox auto login
Mailbox full alert
Mailboxes for announcements
Mailboxes for forms (Q&A)
Mailboxes for information
Mailboxes for surveys
Mailboxes for system bulletins/broadcasts
Message-waiting indication
Music-on-hold
Outline help
Personal address book
Personal auto-attendant
Privacy
Prompt bypass
Set-up assistant tutorial
Shortcut keys
User password change
User provisioning through TUI
User provisioning through Web
Virtual calling card
Zero out
Find me/follow me
Find me/follow me
Find me/follow me call intercept
Fax mail
Electronic fax sending
Fax auto-delivery to email
Fax auto-delivery to fax machine
Fax delivery to fax machine
Fax message deposit
Fax message retrieval
Never-busy fax
Email integration
Client integration
Email auto delivery
Email integration
Email synchronization
Fax attachment in email (.tif or .pdf formats)
Unified inbox for Domino on Windows
Voicemail POP3/IMAP4 client integration
IP messaging administration
Administration of all parameters through X-terminal
interface
Class of service administration
Company/division administration
Export mailbox/COS
Import mailbox/COS
IMAP SSLv3 support
IP messaging Web portal
Mailbox administration
Mailbox on-the-fly
Mailbox un-login
Multiple administration
Multiple language support
Multiple permission levels
Pager templates
Send-user groups
Support for multi-language voicemail
Telephone user interface (native)
Telephone user interface (traditional)
Time zones
Upload audio files via Web interface
VPIM support
IP messaging management
System alarms
System backup
System restoration
System status
Language support
Chinese (Mandarin), Dutch, English (Australian, UK
and US), French (Canadian and Parisian), German,
Italian, Korean, Portuguese (Brazilian), Russian and
Spanish (Castilian and LAT)
6
HP VCX Connect 100 Unified Communications Series accessories
Modules
HP VCX IP Messaging Seat License 50 Bundle (JC515A)
HP VCX V6100 Connect 100 4-port FXO Module (JE359A)
HP VCX IP Messaging Seat License 250 Bundle (JC514A)
HP VCX V6100 Connect 100 4-port FXS Module (JE360A)
HP VCX Desktop Communicator Standalone Soft Phone
License (JE435A)
HP VCX V6100 Connect 100 4-port BRI Module (JE361A)
HP VCX V6100 Connect 100 1-span E1/T1 Module
(JE382A)
HP VCX V6100 Connect 100 2-span E1/T1 Module
(JE383A)
HP VCX V6000 V6100 Connect 100 (80GB) HDD RAID
Module (JE273A)
Power Supply
HP VCX V6000 V6100 Connect 100 Power Supply Module
(JE272A)
License
HP VCX Business IP Phone License (JE427A)
HP VCX Basic IP Phone License (JE426A)
HP VCX Desktop Communicator Outlook Edition Standalone
Soft Phone License (JE436A)
HP VCX Desktop Communicator to Outlook Edition Upgrade
Soft Phone License (JE437A)
HP VCX Desktop Communicator Soft Phone License 50
Bundle (JE334A)
HP VCX Desktop Communicator Outlook Edition Soft Phone
License 50 Bundle (JE336A)
HP VCX Desktop Communicator Soft Phone License 250
Bundle (JE333A)
HP VCX Desktop Communicator Outlook Edition Soft Phone
License 250 Bundle (JE335A)
HP VCX Third Party IP Phone License (JE444A)
HP VCX Convergence Center Client Standalone License
(JE434A)
HP VCX Business IP Phone License 50 Bundle (JE332A)
HP VCX ACD Agent License (JE422A)
HP VCX Basic IP Phone License 50 Bundle (JE329A)
HP VCX ACD 5 Agent License (JE424A)
HP VCX Business IP Phone License 250 Bundle (JE331A)
HP VCX ACD 10 Agent License (JE423A)
HP VCX Basic IP Phone License 250 Bundle (JE328A)
HP VCX Entry/Analog Phone License (JE425A)
HP VCX IP Messaging Seat License (JE301A)
To learn more, visit www.hp.com/networking
© Copyright 2010 Hewlett-Packard Development Company, L.P. The information contained herein is subject to
change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.
4AA3-0825ENW, Created August 2010
