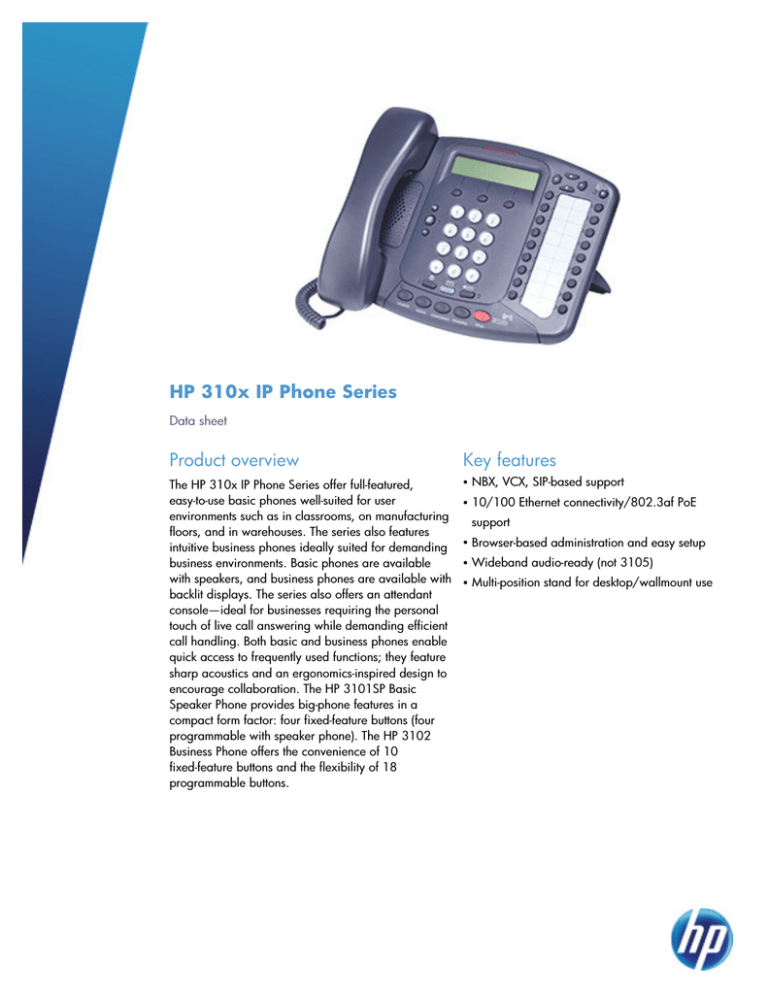

HP 310x IP Phone Series
Data sheet
Product overview
Key features
The HP 310x IP Phone Series offer full-featured,
easy-to-use basic phones well-suited for user
environments such as in classrooms, on manufacturing
floors, and in warehouses. The series also features
intuitive business phones ideally suited for demanding
business environments. Basic phones are available
with speakers, and business phones are available with
backlit displays. The series also offers an attendant
console—ideal for businesses requiring the personal
touch of live call answering while demanding efficient
call handling. Both basic and business phones enable
quick access to frequently used functions; they feature
sharp acoustics and an ergonomics-inspired design to
encourage collaboration. The HP 3101SP Basic
Speaker Phone provides big-phone features in a
compact form factor: four fixed-feature buttons (four
programmable with speaker phone). The HP 3102
Business Phone offers the convenience of 10
fixed-feature buttons and the flexibility of 18
programmable buttons.
b
NBX, VCX, SIP-based support
b
10/100 Ethernet connectivity/802.3af PoE
support
b
Browser-based administration and easy setup
b
Wideband audio-ready (not 3105)
b
Multi-position stand for desktop/wallmount use
Features and benefits
Technical features
Management
• Flexible date/time display: allows
administrators or users to configure date/time
displays on the phones using the Web provisioning
interface, which provides displays based on user
preference or location preference
• Nine definable ring tones: offer a choice of
ring tones, which are used when alerting users of
new incoming calls and can be configured via the
Web provisioning interface; provides customers with
a choice to further personalize the phone to meet
their own needs
• Phone license usage: 310x IP phones require
system software support to download images and to
register successfully with the appropriate server;
phone licenses are required to operate all HP IP
phones running on either the NBX or VCX platforms
and can be installed directly on the server
• Paper labels for fixed or mappable feature
buttons: both the 3101 and 3102 phones come
with removable paper labels that can be used to
label or customize each feature button or each
mappable button with its designated/mapped
functionality name
• Browser-based management from server:
Web-based management on the server eases
configuration tasks and makes advanced features
easier to master; customization capabilities allow
users to accomplish a variety of setup procedures
themselves
Connectivity
• Two RJ-45 switched 10/100 Ethernet ports:
provide one-wire connectivity between the phone
and a PC, which allows the phone to share the
same wiring, eliminating the cost and complexity of
running a second cable to every location
Convergence
• IEEE 802.3af PoE Class 1 compliant (Power
over Ethernet): the 3101SP basic speaker phone
and the 3102 business phone can be easily
deployed by leveraging the built-in support for
Power over Ethernet, so they do not require their
own dedicated AC power adapter, avoiding wiring
clutter and enabling quick setup
• Hands-free installation: allows the system to
work in a mode where the system's only
configuration is done by the administrator, with the
phone's configuration automatically detected (phone
number, download address, etc.) just by plugging in
the phone; this is accomplished using MAC address
provisioning
• Automatic software updates: With the VCX IP
Telephony solution, Session Initiation Protocol
(SIP)-based 3101, 3102, and 3105 IP phones
support automatic detection of phone software
update version; this allows software upgrades to be
delivered automatically to phones without the need
to reboot phones; upgrade detection is polled in a
random manner on 30-minute cycles
• Automatic profile updates: when connected to
a VCX IP Telephony solution, 3101, 3102, and
3105 IP phones support the ability to automatically
update the phone profile without logout or login
when any administrative changes are made
• Volume control: volume settings can be adjusted
on all 310x IP phones for speaker, handset, and
ringers
• DTMF Monotone: VCX IP Telephony solution
supports a user-configurable setting for DTMF or
monotone feedback to dialpad presses; DTMF
Monotone on the phone is considered a security
feature to prevent malicious parties from decoding
the tones
• Acoustic echo cancellation: cancels acoustic
echo for the delay of up to 80 ms; phone cancels
local echo generated by feedback from the handset
earpiece to the handset microphone
• Phone mobility and roaming: allows system
administrator to determine whether end users can
move their stations; phones/soft clients can be
locked to a physical switch port (using MAC
address) or to a specific IP subnet; end users can
move their phones to any location that has IP access
to the user’s telephony server, regardless of
geographic location; hot desking is supported with
VCX when logging into a different VCX region or
branch that is configured for Global Directory
2
Phone characteristics
• Wide range of codecs support: support for
G.711, ADPCM, and G.729A/B on NBX platforms
and G.722, G.711, and G.729 on VCX platforms
allows the phone to negotiate high-fidelity or
lower-bandwidth codecs during call setup, giving it
flexibility in voice quality and network bandwidth
usage
• Fixed-feature buttons: 3101 phones support 5
fixed-feature buttons, 3102 phones support up to
10, and 3105 attendant consoles support 4; Hold
and Message buttons are clearly distinguished to
help users handle calls professionally; dedicated
Mute, Speaker, and Volume buttons allow for
efficient call handling
• Three softkeys below liquid crystal display
(LCD): an intuitive display with three softkeys and a
four-way cursor controller provides instant access to
the location's user directory and call logs
• Four-way navigation control: phones include
three softkeys and four-way cursor for seamless
menu manipulation and data entry
• Phone handset support for G.722
wideband audio: anticipates evolving standards
with a wideband audio-ready handset
• RJ-9 headset jack: allows industry-standard
RJ-9-compatible wired and wireless headsets and
handset lifters to be connected for easy call
handling and convenience; allows for easy
connection of the HP 3101 and 3102 handsets
• Two-line, 160x33 pixel 3.4 inch LCD: both
the 3101 and 3102 phones have a two-line
display, allowing for a varied number of
simultaneous calls at any time, depending on if
they're connected to the NBX or VCX; the LCD
supports two character lines and is capable of
displaying 24 characters
• DHCP Option 184: 310x phones can receive
their IP telephony server IP address from DHCP by
using DHCP Option 184; when the phone boots up,
it's already autopopulated with the primary (and
secondary if it's VCX) SIP server information, making
phone setup easier
• Support for NBX and VCX platforms: 310x
IP phones are capable of being discovered with the
NBX server and registering with the VCX SIP server
and downloading their phone profile from the server
• Support for silence suppression: 310x phones
support silence supression with the use of G.729b
Codec; this is used to prevent transmission of voice
packets over the network when one of the parties
involved in a call is not speaking, reducing
bandwidth usage and providing a major benefit
• Support for speaker phone: the 3101 phones
with a half-duplex speaker improve voice
communications by allowing a two-way speaker
phone for convenient hands-free telephony services;
the 3102 delivers the audio performance of a
high-quality, full-duplex speaker phone
Warranty and support
• 1-year warranty: with advance replacement
and 30-calendar-day delivery (available in most
countries)
• Electronic and telephone support: limited
electronic and telephone support is available from
HP; refer to www.hp.com/networking/warranty for
details on the support provided and the period
during which support is available
• Software releases: refer to
www.hp.com/networking/warranty for details on
the software releases provided and the period
during which software releases are available for
your product(s)
• Adaptive jitter buffer: media and
packet-processing technology in the 310x phones
allow them to reduce interruption or delay in the
voice audio packets, which significantly improves
overall voice quality
• Support of IP-ToS, IEEE 802.1p, and VLAN:
the 3101 phone supports various Quality of Service
(QoS) settings that help ensure signaling and media
VoIP voice packets receive the preferential treatment
they require on the network, increasing total voice
quality; options include IP Type of Service (ToS),
IEEE 802.1p priority tag based on IP address, and
traffic directing on a per-VLAN-segment basis
3
HP 310x IP Phone Series
Specifications
HP 3101SP Basic Speaker Phone (JE221A)
HP 3102 Business Phone (JE223A)
HP 3105 Attendant Console (JE228A)
2 RJ-45 auto-sensing 10/100 ports (IEEE 802.3
Type 10Base-T, IEEE 802.3u Type 100Base-TX);
Media Type: Auto-MDIX; Duplex: half or full
2 RJ-45 auto-sensing 10/100 ports (IEEE 802.3
Type 10Base-T, IEEE 802.3u Type 100Base-TX);
Media Type: Auto-MDIX; Duplex: half or full
2 RJ-9 (headset and handset)
2 RJ-9 (headset and handset)
2 RJ-45 auto-sensing 10/100/1000 ports (IEEE
802.3 Type 10Base-T, IEEE 802.3u Type
100Base-TX, IEEE 802.3ab Type 1000Base-T);
Duplex: 10Base-T/100Base-TX: half or full;
1000Base-T: full only
8.7(d) x 8.3(w) x 4.3(h) in. (22.1 x 21.08 x 10.92
cm)
9.1(d) x 10.6(w) x 4.3(h) in. (23.11 x 26.92 x
10.92 cm)
7.5(d) x 10.3(w) x 3.2(h) in. (19.05 x 26.16 x
8.13 cm)
Weight
1.92 lb. (.87 kg), Fully loaded phone, handset, and
cord
2.34 lb. (1.06 kg), Fully loaded phone, handset,
and cord
1.74 lb. (.79 kg), Fully loaded attendant console,
handset, and cord
Mounting
Rests on multi-angle desk stand or wallmount
Rests on multi-angle desk stand or wallmount
Rests on multi-angle desk stand or wallmount
Environment
Operating temperature
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
Operating relative humidity
5% to 85%, non-condensing
5% to 85%, non-condensing
5% to 85%, non-condensing
Electrical characteristics
Voltage
120-240 VAC
120-240 VAC
120-240 VAC
Maximum power rating
4.7 W
5W
3W
Frequency
50 / 60 Hz
50 / 60 Hz
50 / 60 Hz
Notes
Maximum power rating and maximum heat
dissipation are the worst-case theoretical maximum
numbers provided for planning the infrastructure
with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated.
Maximum power rating and maximum heat
dissipation are the worst-case theoretical maximum
numbers provided for planning the infrastructure
with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated.
Maximum power rating and maximum heat
dissipation are the worst-case theoretical maximum
numbers provided for planning the infrastructure
with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated.
Safety
UL 1950; ICES-003; HAC (Hearing Aid
Compatibility)
UL 1950; ICES-003; HAC (Hearing Aid
Compatibility)
UL 1950; ICES-003; HAC (Hearing Aid
Compatibility)
Phone characteristics
Max. calls (lines) supported
5 (NBX), 2 (VCX)
18(NBX) 9(VCX)
50
Programmable lighted buttons
4 (NBX), 2 (VCX)
18
50 (100 with shift button)
Fixed feature buttons
5
4
4
Soft keys
3
Four-way navigation control
No
Yes
Yes
Display type
Grayscale
Grayscale
N/A
Display backlit
No
No
No
Number of display lines
2
2
N/A
Characters per display line(max.)
24
24
N/A
Display size
3.4 inch
3.4 inch
N/A
Display pixel resolution
160x33
160x33
N/A
Desk stand
Yes - multi-angle, acts as wallmount also
Yes - multi-angle, acts as wallmount also
Yes - multi-angle, acts as wallmount also
Platforms Supported
NBX,VCX
NBX,VCX
NBX,VCX
Default ringtones
9
9
N/A
Emissions
ICES-003 (Canada); FCC Part 15
ICES-003 (Canada); FCC Part 15
ICES-003 (Canada); FCC Part 15
Management
Web-based administration on server only (phone
licenses required)
Web-based administration on server only (phone
licenses required)
Web-based administration on server only (phone
licenses required)
Notes
For Emissions: HP 3101 Basic Phone (JE221A) and
HP 3105 Attendant Console (JE228A) are FCC Part
15, Class A. HP 3102 Business Phone (JE223A) is
FCC Part 15, Class B.
Licenses
• Phone licenses are required to operate all HP IP
phones on NBX or VCX platforms.
For Emissions: HP 3101 Basic Phone (JE221A) and
HP 3105 Attendant Console (JE228A) are FCC Part
15, Class A. HP 3102 Business Phone (JE223A) is
FCC Part 15, Class B.
Licenses
• Phone licenses are required to operate all HP IP
phones on NBX or VCX platforms.
For Emissions: HP 3101 Basic Phone (JE221A) and
HP 3105 Attendant Console (JE228A) are FCC Part
15, Class A. HP 3102 Business Phone (JE223A) is
FCC Part 15, Class B.
Licenses
• Phone licenses are required to operate all HP IP
phones on NBX or VCX platforms.
Services
3-year, parts only, global next-day advance
exchange (UW129E)
3-year, parts only, global next-day advance
exchange (UW129E)
3-year, parts only, global next-day advance
exchange (UW129E)
Refer to the HP website at
www.hp.com/networking/services for details on the
service-level descriptions and product numbers. For
details about services and response times in your
area, please contact your local HP sales office.
Refer to the HP website at
www.hp.com/networking/services for details on the
service-level descriptions and product numbers. For
details about services and response times in your
area, please contact your local HP sales office.
Refer to the HP website at
www.hp.com/networking/services for details on the
service-level descriptions and product numbers. For
details about services and response times in your
area, please contact your local HP sales office.
Ports
Physical characteristics
Dimensions
Standards and protocols
(applies to all products in series)
General protocols
IEEE 802.1p Priority
IEEE 802.3af Power over Ethernet
RFC 1541 DHCP
4
HP 310x IP Phone Series accessories
Power Supply
HP 90/240V-24VDC Phone Power Supply (AA) (JE232A)
HP 90/240V-24VDC Phone Power Supply (CN) (JE233A)
HP 90/240V-24VDC Phone Power Supply (ME) (JE234A)
HP 90/240V-24VDC Phone Power Supply (SA) (JE235A)
HP 90/240V-24VDC Phone Power Supply (UK) (JE236A)
Power cords
HP 90/240V-24VDC Power Cord (JE237A)
To learn more, visit www.hp.com/networking
© Copyright 2010 Hewlett-Packard Development Company, L.P. The information contained herein is subject to
change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
4AA3-0827ENW, Created September 2010
